Controls, Instruments
41
Sun VisorsfSwing the sun visors down to prevent glare
from the front.
fTo prevent glare from the side, unclip the sun
visor from the inner bracket and swivel round
so that it is in front of the door window.

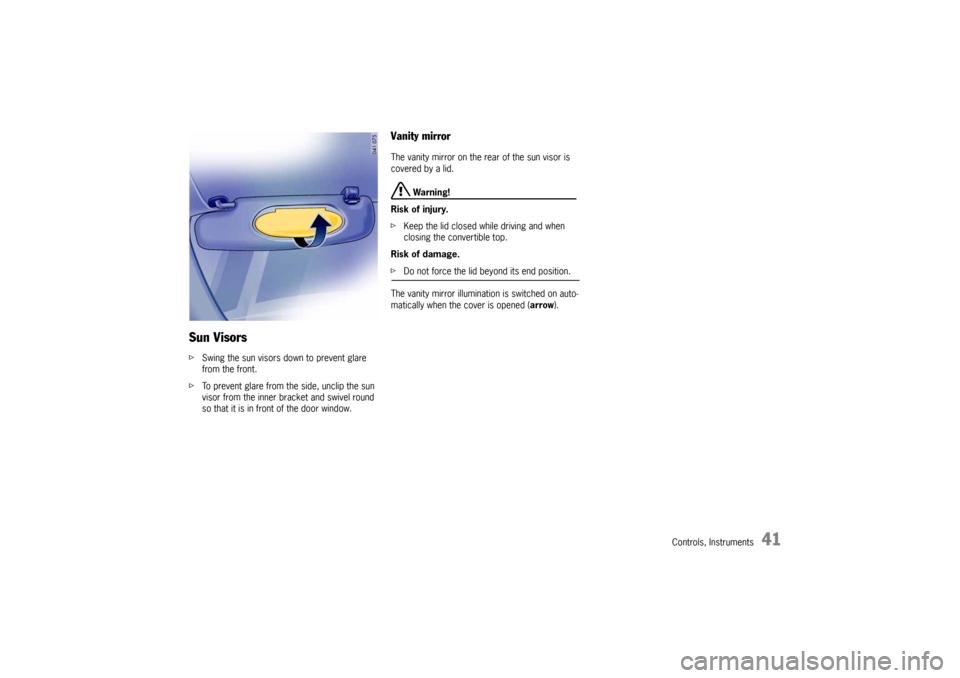

Vanity mirror The vanity mirror on the rear of the sun visor is
covered by a lid.
Warning!
Risk of injury.
fKeep the lid closed while driving and when
closing the convertible top.
Risk of damage.
fDo not force the lid beyond its end position.
The vanity mirror illumination is switched on auto-
matically when the cover is opened (arrow).
Page 42 of 282
42
Controls, Instruments
Safety Belts
Warning!
Always make sure your and your passengers’
safety belts are properly fastened while the
vehicle is in motion.
Failure to follow safety belt warnings may re-
sult in serious personal injury.
fFor your and your passengers’ protection, use
safety belts at all times while the vehicle is in
motion.
fUse appropriate child restraint systems for all
small children.
Proper wearing of safety belts
fS a f e t y b e l t s m u s t b e p o s i t i o n e d o n t h e b o d y a s
to restrain the upper body and lap from sliding
forward. Improperly positioned safety belts
can cause serious personal injury in case of an
accident.
fThe shoulder belt should always rest on your
upper body. The shoulder belt should never be
worn behind your back or under your arm.
fFor maximum effectiveness, the lap belt
should be worn low across the hips.
fPregnant women should position the belt as
low as possible across the pelvis. Make sure it
is not pressing against the abdomen. fBelts should not be worn twisted.
fDo not wear belts over rigid or breakable ob-
jects in or on your clothing, such as eye glass-
es, pens, keys, etc. as these may cause injury.
fSeveral layers of heavy clothing may interfere
with proper positioning of belts.
fBelts must not rub against sharp objects or
damage may occur to the belt.
fTwo occupants should never share the same
belt at the same time.
Care and maintenance
fKeep belt buckles free of any obstruction that
may prevent a secure locking.
fBelts that have been subjected to excessive
stretch forces in an accident must be inspect-
ed or replaced to ensure their continued effec-
tiveness in restraining you.
The same applies to belt tensioner systems
which have been triggered.
In addition, the anchor points of the belts
should be checked.
fIf safety belts do not work properly, see your
authorized Porsche dealer immediately.
fI f t h e b e l t s s h o w d a m a g e t o w e b b i n g , b i n d i n g s ,
buckles or retractors, they should be replaced
to ensure safe operation. fDo not modify or disassemble the safety belts
in your vehicle.
fThe belts must be kept clean or the retractors
may not work properly.
Please observe the chapter “CAR CARE IN-
STRUCTIONS” on Page 198.
fNever bleach or dye safety belts.
fDo not allow safety belts to retract until they
are completely dry after cleaning or this may
cause damage to the belt.
Belt tensioner Depending on the force of an impact, fastened
seat belts are tightened in an accident.
The belt tensioners are triggered in:
– Front, side and rear impacts.
Note
The belt-tensioner system can be triggered only
once; the system must be replaced afterward.
If there is a fault in the belt-tensioner system, the
airbag warning light lights up.
Work may be performed on the belt-tensioner sys-
tem only by an authorized Porsche dealer.
Smoke is released when the belt tensioners are
triggered. This does not indicate a fire in the
vehicle.
Page 43 of 282
Controls, Instruments
43
An audio-visual warning system is interconnect-
ed with the driver’s safety belt.
Every time the ignition is turned on, the gong will
sound for about 6 seconds to remind driver and
passenger to buckle up.
In addition, the gong will sound if vehicle speed ex-
ceeds 6 mph/10 km/h.
The safety belt warning lights in the instrument
panel and on-board computer will go off as soon
as the driver has buckled up.

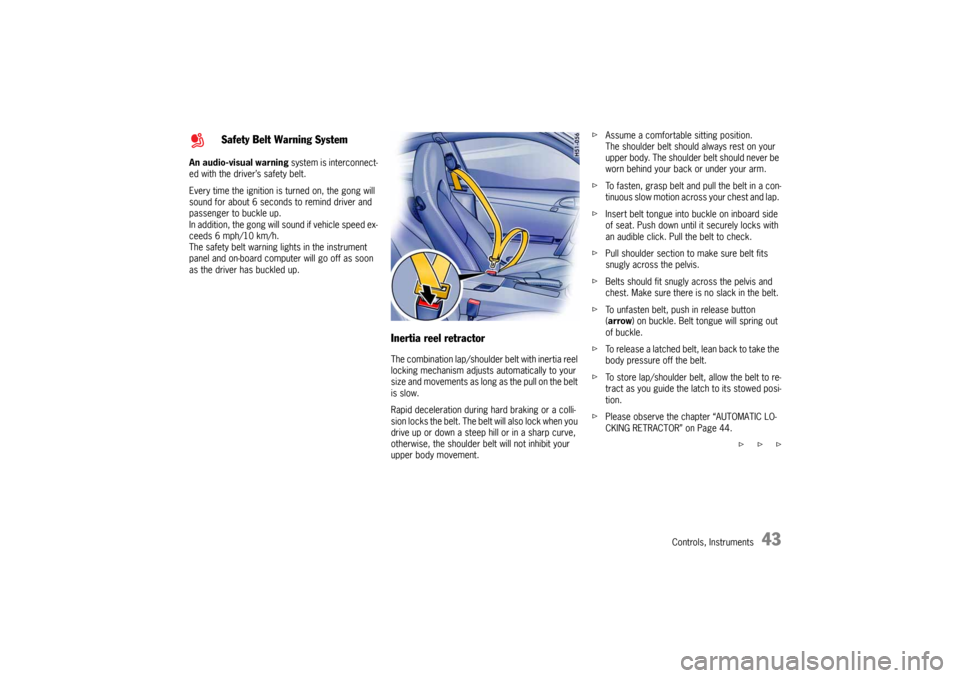

Inertia reel retractor The combination lap/shoulder belt with inertia reel
locking mechanism adjusts automatically to your
size and movements as long as the pull on the belt
is slow.
Rapid deceleration during hard braking or a colli-
sion locks the belt. The belt will also lock when you
drive up or down a steep hill or in a sharp curve,
otherwise, the shoulder belt will not inhibit your
upper body movement. fAssume a comfortable sitting position.
The shoulder belt should always rest on your
upper body. The shoulder belt should never be
worn behind your back or under your arm.
fTo fasten, grasp belt and pull the belt in a con-
tinuous slow motion across your chest and lap.
fInsert belt tongue into buckle on inboard side
of seat. Push down until it securely locks with
an audible click. Pull the belt to check.
fPull shoulder section to make sure belt fits
snugly across the pelvis.
fBelts should fit snugly across the pelvis and
chest. Make sure there is no slack in the belt.
fTo unfasten belt, push in release button
(arrow) on buckle. Belt tongue will spring out
of buckle.
fTo release a latched belt, lean back to take the
body pressure off the belt.
fTo store lap/shoulder belt, allow the belt to re-
tract as you guide the latch to its stowed posi-
tion.
fPlease observe the chapter “AUTOMATIC LO-
CKING RETRACTOR” on Page 44.
f f f
Safety Belt Warning System
Page 44 of 282
44
Controls, Instruments
Safety belt height adjustment(Coupé only)
Adjust the height of the safety belt so that it runs
across the middle of the shoulder, not against the
neck.

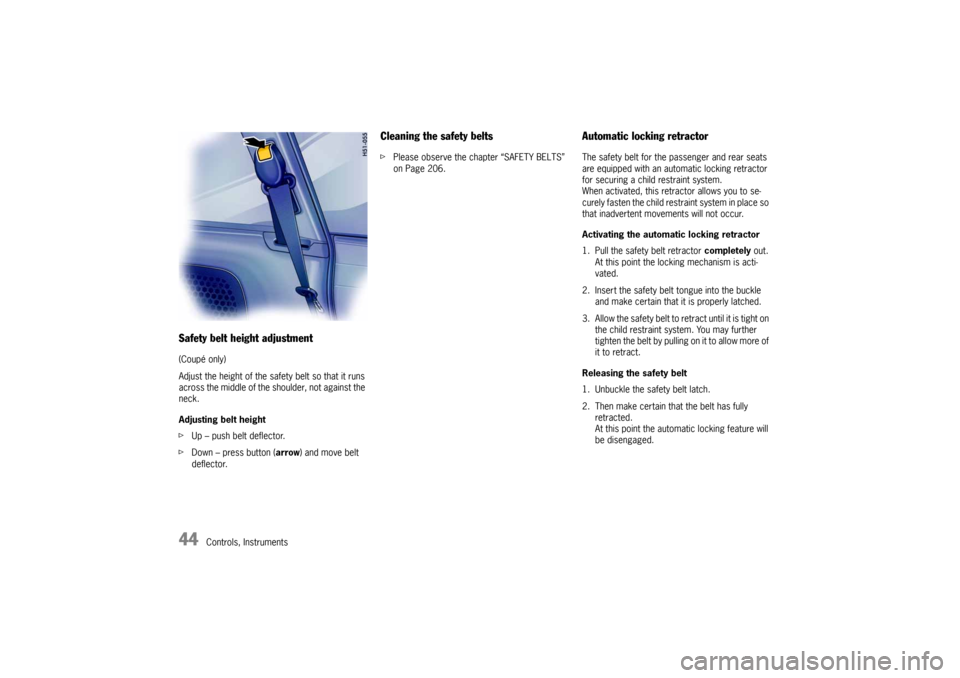

Adjusting belt height
fUp – push belt deflector.
fDown – press button (arrow) and move belt
deflector.
Cleaning the safety beltsfPlease observe the chapter “SAFETY BELTS”
on Page 206.
Automatic locking retractor The safety belt for the passenger and rear seats
are equipped with an automatic locking retractor
for securing a child restraint system.
When activated, this retractor allows you to se-
curely fasten the child restraint system in place so
that inadvertent movements will not occur.
Activating the automatic locking retractor
1. Pull the safety belt retractor completely out.
At this point the locking mechanism is acti-
vated.
2. Insert the safety belt tongue into the buckle
and make certain that it is properly latched.
3. Allow the safety belt to retract until it is tight on
the child restraint system. You may further
tighten the belt by pulling on it to allow more of
it to retract.
Releasing the safety belt
1. Unbuckle the safety belt latch.
2. Then make certain that the belt has fully
retracted.
At this point the automatic locking feature will
be disengaged.
Page 45 of 282
Controls, Instruments
45

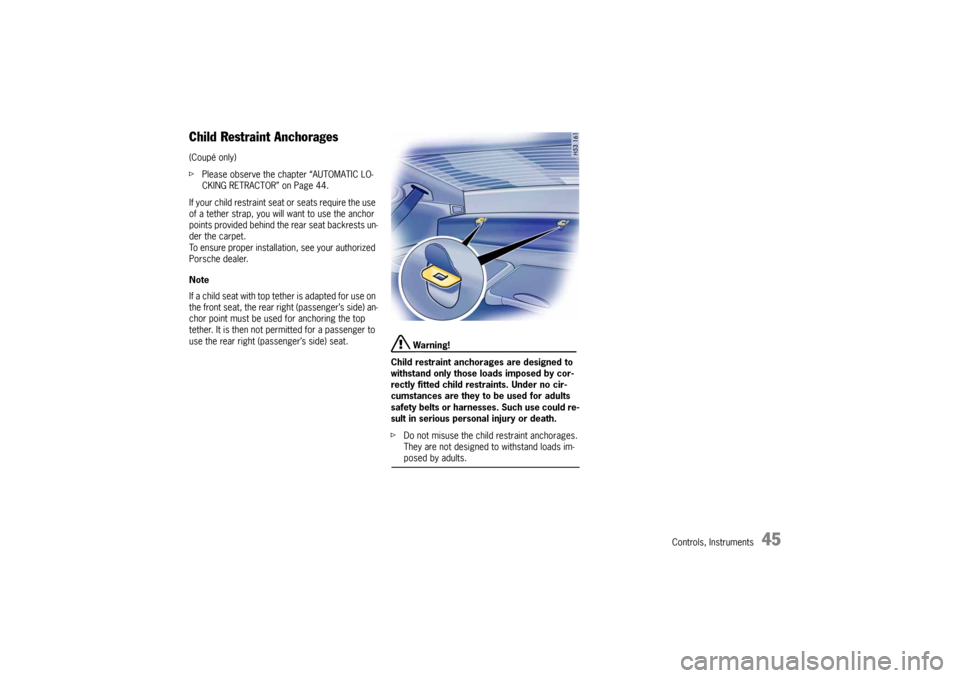

Child Restraint Anchorages (Coupé only)
fPlease observe the chapter “AUTOMATIC LO-
CKING RETRACTOR” on Page 44.
If your child restraint seat or seats require the use
of a tether strap, you will want to use the anchor
points provided behind the rear seat backrests un-
der the carpet.
To ensure proper installation, see your authorized
Porsche dealer.
Note
If a child seat with top tether is adapted for use on
the front seat, the rear right (passenger’s side) an-
chor point must be used for anchoring the top
tether. It is then not permitted for a passenger to
use the rear right (passenger’s side) seat.
Warning!
Child restraint anchorages are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no cir-
cumstances are they to be used for adults
safety belts or harnesses. Such use could re-
sult in serious personal injury or death.
fDo not misuse the child restraint anchorages.
They are not designed to withstand loads im-posed by adults.
Page 46 of 282
46
Controls, Instruments
Child Restraint SystemsPorsche recommends that all infants and children
be restrained in child restraint systems at all times
while the vehicle is in motion in accordance with
applicable laws.
Use only child restraint systems with the LATCH
system recommended by Porsche.
These systems have been tested and adjusted to
the interior of your Porsche and the appropriate
child age groups. Other systems have not been
tested and could entail an increased risk of injury.
You can obtain child seats that are
LATCH compatible at your authorized Porsche
dealer.
fAlways observe the separate installation in-
structions for your child seat.
The use of infant or child restraints is required by
law in all 50 states and the Canadian provinces.
The child restraint system should be one that com-
plies with U.S. Federal/Canadian Motor Vehicle
Safety Standards 213 and should be secured by a
lap belt or lap belt portion of a lap-shoulder belt or
for child seats equipped with the LATCH sytem
(Lower Anchorage and Tether for Children, also
known as ISOFIX) to the LATCH anchorages.
A statement by the seat manufacturer of compli-
ance with this standard can be found on the in-
struction label on the restraint and in the instruc-
tion manual provided with the restraint.Note
The key switch for switching off the passenger’s
airbag and the LATCH attachment bracket are not
installed at the factory. They can be retrofitted.
fPlease see your authorized Porsche dealer.
Danger!
Risk of serious personal injury or death to the
child.
fFollow all child restraint instructions and warn-ings in this manual.
– When using an infant or child restraint system,
be sure to follow all manufacturer’s instruc-
tions on installation and use.
– Infants and small children should never be held
on the lap, nor should they share a safety belt
with another occupant while the vehicle is in
motion.
– Children too big for child restraint systems
should use regular safety belts. A shoulder belt
can be used providing it does not cross the
face or the neck of the child.
– The airbag deactivation device installation
requires special programming available only
from your authorized Porsche dealer.
– Your authorized Porsche dealer will be glad to
advise you about the installation possibility for
a Porsche child restraint system which allows
deactivation of the passenger’s airbags.
Danger!
The use of a child restraint system in the pas-
senger seat without airbag deactivation can
result in serious personal injury or death to
the child from an airbag deployment.
To reduce risk of injury from an inflating
airbag in an accident, Porsche strongly rec-
ommends:
fFor children up to a weight of 27 kg (59 lbs.),
the passenger’s airbag must be switched off if
a child restraint system is used on the passen-
ger’s seat.
The passenger’s airbag must be switched on for children weighing over 27 kg (59 lbs.).
fPlease observe the chapter “KEY-OPERATED
AIRBAG DEACTIVATION DEVICE” on Page 49.
Page 47 of 282
Controls, Instruments
47
Key-operated airbag deactivation deviceIf you decide to put a child seat in the passenger's
front seat, then you must order the key-operated
airbag deactivation device as an After Sales op-
tion. It is not standard equipment on this vehicle.
This device is the only way to deactivate the air-
bag.
fPlease observe the chapter “KEY-OPERATED
AIRBAG DEACTIVATION DEVICE” on Page 49.Children up to 9 months oldChildren of this age must be held in a restraint
system which is installed on the passenger’s seat
facing backwards.
fThe passenger’s airbag must be switched off.Children aged between 9 months and
3yearsChildren of this age are held in child restraint
systems facing forwards.
Whenever possible, these child restraint systems
should be installed on the rear seats.
fThe passenger’s airbag must be switched off
when these systems are used on the
passenger’s seat.
Children aged between 3 and 6 yearsChildren of this age are held in child restraint
systems facing forwards.
Whenever possible, these child restraint systems
should be installed on the rear seats.
fThe passenger’s airbag must be switched off
when these systems are used on the
passenger’s seat.Children aged between 6 and 12 yearsChildren of this age are held in child restraint
systems facing forwards.
Whenever possible, these child restraint systems
should be installed on the rear seats.
fThe passenger’s airbag must be switched off
when these systems are used on the
passenger’s seat.
The passenger’s airbag must be switched on
for children weighing over 59 lbs. (27 kg).Note
If a child seat with top tether is adapted for use on
the front seat, the rear right (passenger’s side) an-
chor point must be used for anchoring the top
tether. It is then not permitted for a passenger to
use the rear right (passenger’s side) seat.
Page 48 of 282
48
Controls, Instruments
LATCH SystemChild seat bracket on the passenger’s
seatUse only child restraint systems with the LATCH
system recommended by Porsche.
These systems have been tested and adjusted to
the interior of your Porsche and the appropriate
child age groups. Other systems have not been
tested and could entail an increased risk of injury.
You can obtain child seats that are
LATCH compatible at your authorized Porsche
dealer.
fAlways observe the separate installation in-
structions for your child seat.
Note
The LATCH attachment bracket is not installed at
the factory. It can be retrofitted at your authorized
Porsche dealer.
Danger!
The use of a child restraint system in the
passenger seat without airbag deactivation
can result in serious personal injury or death
to the child from an airbag deployment.
fFor children up to a weight of 59 lbs. (27 kg),
the passenger’s airbag must be switched off if
a child restraint system is used on the
passenger’s seat.
The passenger’s airbag must be switched on
for children weighing over 59 lbs. (27 kg).
fPlease see your authorized Porsche dealer for
correct Porsche Child Seat availability.
fPorsche recommends the use of a Porsche
Child Seat with Lower Anchorage and Tether
for Children system (LATCH)
fPlease observe the chapter “CHILD RESTRAINT SYSTEMS” on Page 46.
Installing a LATCH child seat system1. Switch off passenger airbag with key switch.
The warning light “PASSENGER AIRBAG OFF”
must be illuminated.
Please observe the chapter “KEY-OPERATED

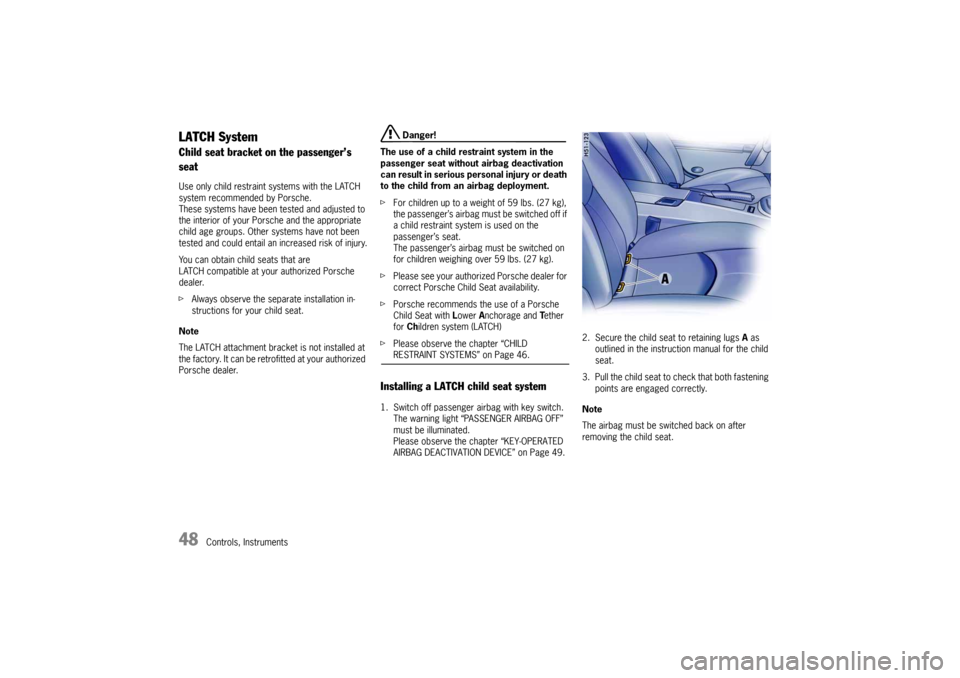

AIRBAG DEACTIVATION DEVICE” on Page 49.2. Secure the child seat to retaining lugs A as
outlined in the instruction manual for the child
seat.
3. Pull the child seat to check that both fastening
points are engaged correctly.
Note
The airbag must be switched back on after
removing the child seat.
Page 49 of 282
Controls, Instruments
49
Key-operated airbag deactivation

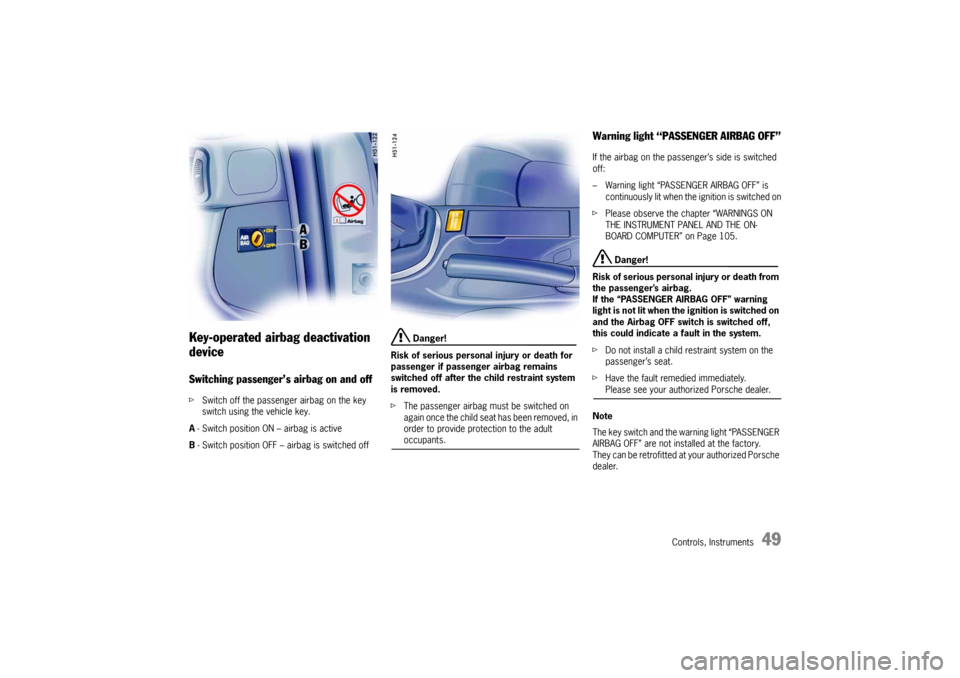

deviceSwitching passenger’s airbag on and offfSwitch off the passenger airbag on the key
switch using the vehicle key.
A - Switch position ON – airbag is active
B - Switch position OFF – airbag is switched off
Danger!
Risk of serious personal injury or death for
passenger if passenger airbag remains
switched off after the child restraint system
is removed.
fThe passenger airbag must be switched on
again once the child seat has been removed, in
order to provide protection to the adult occupants.
Warning light “PASSENGER AIRBAG OFF”If the airbag on the passenger’s side is switched
off:
– Warning light “PASSENGER AIRBAG OFF” is
continuously lit when the ignition is switched on
fPlease observe the chapter “WARNINGS ON
THE INSTRUMENT PANEL AND THE ON-
BOARD COMPUTER” on Page 105.
Danger!
Risk of serious personal injury or death from
the passenger’s airbag.
If the “PASSENGER AIRBAG OFF” warning
light is not lit when the ignition is switched on
and the Airbag OFF switch is switched off,
this could indicate a fault in the system.
fDo not install a child restraint system on the
passenger’s seat.
fHave the fault remedied immediately. Please see your authorized Porsche dealer.
Note
The key switch and the warning light “PASSENGER
AIRBAG OFF” are not installed at the factory.
They can be retrofitted at your authorized Porsche
dealer.
Page 50 of 282
50
Controls, Instruments
Airbag SystemsThe airbags in combination with the safety belts
make up a safety system which offers the driver
and the passenger the greatest known protection
from injuries in case of an accident.
Even though your vehicle is equipped with airbags,
the safety belts are your primary protection
and must be worn at all times.
The airbags can only help protect you where the
impact is of sufficient severity and from a speci-
fied direction.
Therefore, all persons within the vehicle
must always wear safety belts (in many states,
state law requires the use of safety belts).
fPlease observe the chapter “SAFETY BELTS”
on Page 42.
The front airbags are located behind the padded
steering wheel panel on the driver’s side and on
the passenger’s side in the dashboard.
The side airbags are installed in the side of the
seat backrests.
The head airbags are installed in the door linings.
Function Depending on the force and angle of impact, the
corresponding airbags can be triggered.
The inflation process generates the amount of gas
required to fill the airbags at the necessary pres-
sure in fractions of a second. Because of the pos-
sibility of injuries from airbag deployment, airbags
are designed to deploy only when the occupants
would receive substantial additional injuries if the
airbags did not deploy.
Airbags protect the face and upper body, while
simultaneously damping the motion of the driver
and passenger in the impact direction in the event
of a frontal impact or side impact.
Your vehicle is equipped with a crash sensing and
diagnostic module. This module will record the
use of the safety belt restraint system by the driv-
er and front passenger when the side airbags and
head airbags are inflated.
Danger!
To provide optimal occupant protection, air-
bags must inflate at very high speed.
If you are not wearing your safety belt or are
too close to the airbag when its deployed, in-
flating airbags can result in serious personal
injury or death.
fMake sure there are no people, animals or ob-
jects between the driver or passenger and the
area into which the airbag inflates.
fS i t b a c k a s f a r f ro m t h e d a s h b o a rd o r s t e e r i n g
wheel as is practical, while still maintaining full
vehicle control.
fDo not lean against the inside of the doors.
fAlways leave feet in the footwell when driving.
Do not put feet on the dashboard or the seat
cushion.
fAlways hold the steering wheel by the outer
rim.
Never rest your hands on the airbag panel.
fNever transport heavy or sharp objects on or
in front of the passenger seat.
fAlways keep the lid of the door storage com-
partment closed. Objects must not protrude
out of the door storage compartment.
fGive your passenger all of the information in
this chapter.
fNo changes must be made to the wiring or
components of the airbag system.
