The new 911
Porsche identity
Page 2 of 72
Strength 6
Exterior design 12
Interior design 16
Engineering 18
The 911 Carrera models 20
Temperament 36
Engines 38
Tra n s m i ssi o n 4 8
Chassis and body 54
Composure 74
Safet y 76
Comfort 84
Responsibility 106
Motorsport 108
Environment 114
Personality 118
Personalisation 120
Panorama 134
9 11 i d e n t i t y 1 3 6
Technical data 138
Index 142
Page 3 of 72
enthusiastic
libera
enthusiastic
libera
enthusiastic
ted
spirited
determined
spirited
determined
spirited
courageous
grounded
enthusiastic
grounded
enthusiastic
direct
courageous
direct
courageous Strength
enthusiastic
Strength
enthusiastic
determined
Strength
determined
courageous Strengthcourageous
direct
Strength
direct
courageous
direct
courageous Strengthcourageous
direct
courageous
mature
spirited
mature
spirited
determined
mature
determined
spirited
determined
spirited
mature
spirited
determined
spirited
direct
mature
direct
Page 4 of 72
89 10
Many legends look to the past.
This one looks to the future.
T h e 9 11 .
It ’s time to look forward. Because,
traditionally, the 911 has always had
an eye to the future.
Our own engineering tradition is evident
from the ‘Dr. Ing.’ in our company name.
Also from our racing victories, now total
ling more than 30,000. Not just feats
of heroism any longer, but responsibilit y
for the future of the sports car and for
the environment. Then there is the 911’s
reputation as an iconic sports car. How
ever, this reputation means nothing
unless we continue to breathe new life
into old ideas.
For us, heritage and future are inseparably
linked. Of course, we could simply
have made a capable sports car, but this
wouldn’t have been a Porsche, and
certainly not a 911.
Our identit y is the 911. This is especially
true, even in the 21st century. Instantly
recognisable and originally engineered
for the racetrack, it continues to stir the
emotions today, just as it did in 1963.
Yet, is that enough to move forward?
Above all, is it enough for you? Don’t we
need to break the stranglehold of tradi
tion once in a while before it one day
stifles innovation altogether? We believe that the answer is ‘yes’, which is why
almost every component in the latest
generation 911 is new. This is our approach to the preservation of tradition.
It is precisely how we respond to the
passion for the sports car and do justice
to the 911 legend, and always with
tomorrow in mind.
We have achieved this with a future
oriented design and a longer wheelbase,
with refined engines that consume less
fuel but deliver more power, with efficiency
enhancing technologies such as auto
start/stop, thermal management and
electrical system recuperation, with an
intelligent light weight body and a new hood concept on the Cabriolet models,
with the further enhanced Porsche Traction
Management (PTM) active all wheel drive,
and an interior that combines sophisticated
ergonomics and
sporty comfort.
All of that is what defines us. In short, it
is the way in which we combine tradition
and innovation, performance and everyday
practicality, form and function. For us,
these are not contradictions, but our moti
vation. We are referring to Intelligent
Performance.
Our identit y can be accurately described
by many words, and by one number.
The 911. Porsche identit y. Identit y is a combination of disposition,
personalit y and heritage. In our at tempt to
understand it, we tend to compare
differences.
This is equally true in the case of the
911 Carrera models. With defining
at tributes such as performance, efficiency,
st yle and comfort, they reveal a character
of their own and fulfil your individual
expectations – not just of any sports car,
but of a 911.
For fuel consumption and CO
2 emissions, please refer to pages 139/141.
Strength | The 911
Page 5 of 72
Strength | Exterior design
Can you imagine a face without an expression?
Exterior design.
Every child recognises a 911, but can its
identit y be described in words? It can, by
looking more closely at the use of form,
proportions and contours. The roof line
tapers down into the rear. The wings are
higher than the front lid and, at the rear,
they add muscle. They give the 911 its
distinctive expression and leave you in
no doubt as to its temperament.
The overall appearance is low, wide and
sleek. Typically 911.
So, is every thing just the same as it has
been since 1963? Yes, and no. After all, only those who change will remain true
to themselves – and we’ve changed.
Our designers and engineers speak
guardedly about the 911 evolution.
Meanwhile, they continually manage to
take great strides forward with innova
tions motivated by the principle that
these should be functional and perfectly
compatible. The result is a harmonious
overall concept that makes the 911 a
sports car fit for the 21st century.
Indeed, the Porsche 911 Carrera has
already won the prestigious ‘red dot
award: product design 2012’ for its
unique functional and emotive design. To show you what we mean, we should
start by looking at the car’s exterior.
The longer wheelbase of the 911 improves
driving stability and cornering dynamics.
Overhangs are short at the front and rear,
making the 911 look even more compact
and agile.
The sporty overall impression is emphasised
by the roof line, which is lower than that of
the previous model, and by the wider track
at the front
– 46 mm on the 911 Carrera
models and 52 mm on the 911 Carrera S
models. On the new Carrera all wheel drive
models, the body has also been widened
at the rear by 44 mm. Increased traction and agilit y are just some of the benefits
these refinements bring.
The silhouette is therefore typically 911
and t ypical in terms of its development,
which will now be described in more detail.
Strength
| The new 911
11 12 13
Page 6 of 72
Front C4 Heck C4
1415
S
treng th
| Exterior design

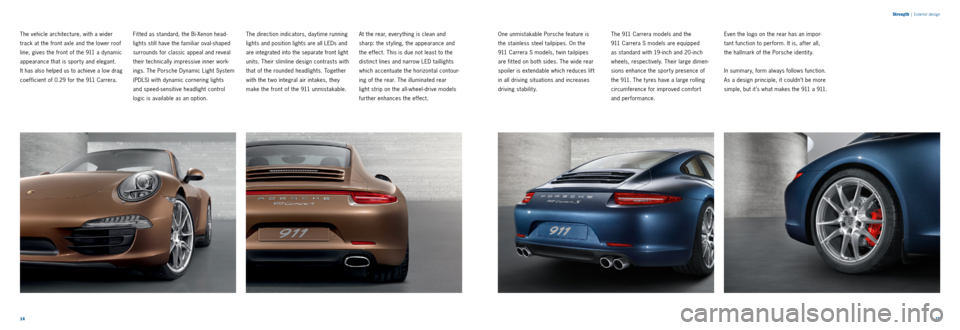

The vehicle architecture, with a wider
track at the front axle and the lower roof
line, gives the front of the 911 a dynamic
appearance that is sport y and elegant.
It has also helped us to achieve a low drag
coefficient of 0.29 for the 911 Carrera. Fit ted as standard, the Bi
Xenon head
lights still have the familiar oval shaped
surrounds for classic appeal and reveal
their technically impressive inner work
ings. The Porsche Dynamic Light System
(PDLS) with dynamic cornering lights
and speed sensitive headlight control
logic is available as an option. The direction indicators, daytime running
lights and position lights are all LEDs and
are integrated into the separate front light
units. Their slimline design contrasts with
that of the rounded headlights. Together
with the two integral air intakes, they
make the front of the 911 unmistakable. At the rear, every thing is clean and
sharp: the styling, the appearance and
the effect. This is due not least to the
distinct lines and narrow LED taillights
which accentuate the horizontal contour
ing of the rear. The illuminated rear
light strip on the all wheel drive models
further enhances the effect. One unmistakable Porsche feature is
the stainless steel tailpipes. On the
911 Carrera S models, t win tailpipes
are fit ted on both sides. The wide rear
spoiler is extendable which reduces lift
in all driving situations and increases
driving stability. The 911 Carrera models and the
911 Carrera S models are equipped
as standard with 19 inch and 20 inch
wheels, respectively. Their large dimen
sions enhance the sport y presence of
the 911. The t yres have a large rolling
circumference for improved comfort
and performance. Even the logo on the rear has an impor
tant function to perform. It is, after all,
the hallmark of the Porsche identity.
In summary, form always follows function.
As a design principle, it couldn’t be more
simple, but it ’s what makes the 9 11 a 9 11.
Page 7 of 72
1617
Strength
|
Interior design
Sporty ergonomics for ordinary driving.
Extraordinary comfort for sporty driving.
Interior design.
At Porsche, we don’t build everyday
sports cars, we build sports cars for
everyday use. How? By understanding
that great agilit y and maximum comfort
are not mutually exclusive but are, in
fact, aspects of a harmonious overall
concept.
This is especially true of the interior of
the 911. Sportiness, functionality and
high quality materials combine to form a
cohesive whole that is conducive to
dynamic driving, even during everyday
use. This becomes clearer the moment you
get in. The longer wheelbase
now of fers
25 mm more leg room in the front than
in previous 911 Carrera models, for
example.
Sportiness in harmony with comfort is
the theme which is reflected in the clever
ergonomics that characterise the entire
interior design. The materials used, the
layout of the controls and their operating
logic belong to a new generation of
sports car. Another new design for the
911 is the ascending centre console.
Its intelligent operating concept follows
a clear principle of direct simplicity. A classic 911 feature is the arrangement
of the five circular instruments with the
rev counter in the middle. The contempo
rary instrument cluster featuring a high
resolution 4.6 inch full VGA TFT colour
display enables the driver to view infor
mation from, for example, the new
adaptive cruise control function or the
all wheel drive display, or to see navi
gation instructions.
Acoustics are an integral part of the
concept, particularly the engine sound.
Available as an option is the Burmester
®
High End Surround Sound System. Optimised for the 911 Carrera model
range, it features 12 loudspeakers and
a total output of 821 wat ts for a perfect
spatial sound.
The 911 proves that apparent opposites,
such as st yle and engineering or comfort
and performance, can go hand in hand.
For us, there is no contradiction and
certainly no need for compromise. After
all, a strong personalit y does not deny
the existence of opposites, it unites them.
Page 8 of 72
1819
Strength
|

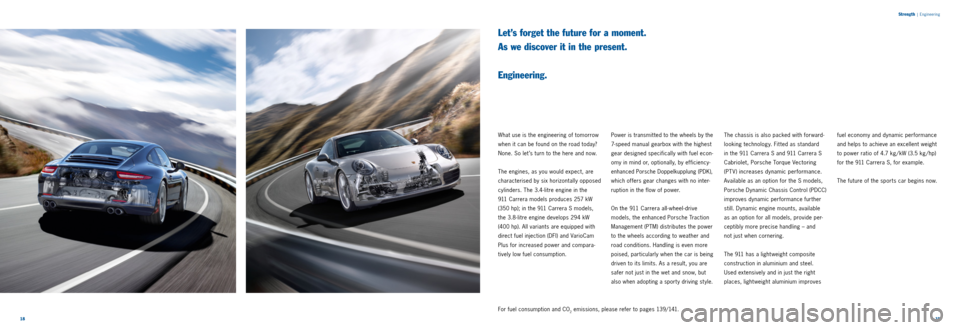

Engineering
Let’s forget the future for a moment.
As we discover it in the present.
Engineering.
What use is the engineering of tomorrow
when it can be found on the road today?
None. So let ’s turn to the here and now.
The engines, as you would expect, are
characterised by six horizontally opposed
cylinders. The 3.4 litre engine in the
911 Carrera models produces 257 kW
(350 hp); in the 911 Carrera S models,
the 3.8 litre engine develops 294 kW
(400 hp). All variants are equipped with
direct fuel injection (DFI) and VarioCam
Plus for increased power and compara
tively low fuel consumption. Power is transmit ted to the wheels by the
7
speed manual gearbox with the highest
gear designed specifically with fuel econ
omy in mind or, optionally, by efficiency
enhanced Porsche Doppel kupplung (PDK),
which offers gear changes with no inter
ruption in the flow of power.
On the 911 Carrera all wheel drive
models, the enhanced Porsche Traction
Management (PTM) distributes the power
to the wheels according to weather and
road conditions. Handling is even more
poised, particularly when the car is being
driven to its limits. As a result, you are
safer not just in the wet and snow, but
also when adopting a sport y driving st yle.
The chassis is also packed with forward
looking technology. Fitted as standard
in the 911 Carrera S and 911 Carrera S
Cabriolet, Porsche Torque Vectoring
(PTV) increases dynamic performance.
Available as an option for the S models,
Porsche Dynamic Chassis Control (PDCC)
improves dynamic performance further
still. Dynamic engine mounts, available
as an option for all models, provide per
ceptibly more precise handling – and
not just when cornering.
The 911 has a light weight composite
construction in aluminium and steel.
Used extensively and in just the right
places, lightweight aluminium improves fuel economy and dynamic performance
and helps to achieve an excellent weight
to power ratio of 4.7 kg / kW (3.5 kg / hp)
for the 911 Carrera S, for example.
The future of the sports car begins now.
For fuel consumption and CO
2 emissions, please refer to pages 139/141.
Page 9 of 72
2021
Strength
| The 911 Carrera
Meetings, conferences, business lunches.
How about some leisure in between?
The 911 Carrera.
In the 21st century, we find ourselves
caught bet ween all kinds of opposites on
a daily basis: bet ween the demands of
our work life and our private life, between
the real world and virtual realit y. How can
they all be reconciled? With a strong iden
tit y and a sports car that has incorporated
many contradictory notions since 1963.
Sportiness and everyday practicality
are a prime example. The 911 Carrera is
equipped as standard with direct fuel
injection (DFI) and VarioCam Plus for high
power, high torque, efficient combustion
and, as a result, comparatively low fuel
consumption. Tradition and innovation blend seamlessly
together in the rear
mounted 3.4 litre
flat six engine thanks to its downsized
capacity. Despite the reduced displace
ment, the engine is capable of delivering
even more power to the road than its
3.6 litre predecessor.
The figures speak for themselves.
The maximum power of 257 kW (350 hp)
is available at 7,400 rpm and the maxi
mum torque of 390 Nm is generated
at 5,600 rpm. Yet, in conjunction with
Porsche Doppelkupplung (PDK), fuel
consumption and CO2 emissions have been
reduced by 16 % compared with the
previous model. Even more impres
sively,
the car accelerates from 0 to 62 mph
in 4.8 seconds and reaches a top speed
of 179 mph.
The 911 Carrera generates powerful
forces, which are transmit ted precisely
and directly to the wheels by the 7 speed
manual gearbox. As with the optional PDK,
gears 1 to 6 have a sports ratio, while
7th gear has a long ratio for reduced fuel
consumption. The SPORT but ton, which
is fit ted as standard, makes it possible to
select an even more responsive engine
and transmission setup.
In terms of form and function, the single
tailpipes are especially imposing and emit a sound which is t ypically Porsche. The
19
inch Carrera wheels are fit ted as
standard and improve driving stability
and performance.
Sports car technology as standard, in
the form of black four piston monobloc
aluminium fixed calipers, Porsche Stability
Management (PSM) and Bi Xenon head
lights, shows that sportiness and safety
are not mutually exclusive.
Sport, moderation, everyday practicality
and st yle. Four key themes, one unifying
concept: the 911 Carrera.
For fuel consumption and CO
2 emissions, please refer to pages 139/141.
Page 10 of 72
2223
Strength
| The 911 Carrera S
Its identity emerged on the racetrack.
Its home is on the road.
The 911 Carrera S.
Nothing defines us more than our heritage.
It says a lot about who we are. This is
particularly true of the 9 11 Carrera S,
which has all the characteristics you would
expect of a sports car whose origin is
in motorsport.
An elementary component of its DNA,
therefore, is power in the form of a 3.8 litre
engine with direct fuel injection (DFI) and
VarioCam Plus. It delivers 294 kW (400 hp)
at 7,400 rpm, and the maximum torque
of 440 Nm is achieved at 5,600 rpm. In
conjunction with the manual gearbox, the
sprint from 0 to 62 mph is completed in
just 4.5 seconds. Top speed isn’t reached
until 188 mph.
On figures alone, the 9 11 Carrera S
excels, particularly in terms of efficiency.
Fuel consumption and CO
2 emissions
have been reduced by 15 % compared
with the previous model. This has been
possible thanks to the auto start/stop
function, which is available as standard,
and the coasting function in conjunction
with the optional Porsche Doppelkupp
lung (PDK).
It ’s not difficult to tell where the
911 Carrera S comes from. You can hear
it in the resonant engine sound and you
can see it in the t win tailpipes in brushed
stainless steel and 20 inch Carrera S
wheels. You can also feel it, thanks to Porsche
Active Suspension Management (PASM), which is fit ted as standard, or the optional
PASM sports suspension with even
sportier aerodynamics and the ride height
lowered by 20 mm. Or the optional
Sport Chrono Package and dynamic
engine mounts. Available as standard,
Porsche Torque Vectoring (PTV), or
Porsche Torque Vectoring Plus (PTV Plus)
in conjunction with the optional PDK,
increase traction and driving stability.
Porsche Dynamic Chassis Control (PDCC),
the active roll stabilisation system, is
available as an option and improves
agility, comfort and safety. On the subject of safet y, the brakes at
the front of the 911 Carrera S come
equipped with monobloc fixed calipers
with six instead of four pistons for im
proved braking performance and a
shorter braking distance. Bi Xenon head
lights are standard and the Porsche
Dynamic Light System (PDLS) is available
as an option.
There is no doubt. The 9 11 Carrera S
knows its roots, and embraces them with
efficiency, power and sporty performance.
For fuel consumption and CO2 emissions, please refer to pages 139/141.
