Tiptronic S, the new 911 Turbo
requires just 3.7 seconds to
reach 100 km / h (62 mph), and
just 12.2 seconds for 200 km / h
(124 mph). Facilitating this
performance is the additionaltraction provided by the new
electronically controlled all-wheel
drive system (see page 48).
In appropriate track conditions,
the car’s maximum speed is
310 km / h (193 mph).
· 29 ·The new 911 Turbo |
Drive

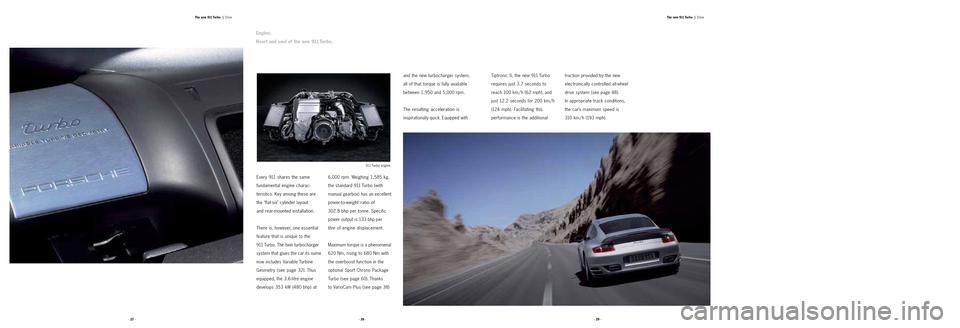

Every 911 shares the same
fundamental engine charac-
teristics. Key among these are
the ‘flat-six’ cylinder layout
and rear-mounted installation.
There is, however, one essential
feature that is unique to the
911 Turbo. The twin turbocharger
system that gives the car its name
now includes Variable Turbine
Geometry (see page 32). Thus
equipped, the 3.6-litre engine
develops 353 kW (480 bhp) at6,000 rpm. Weighing 1,585 kg,
the standard 911 Turbo (with
manual gearbox) has an excellent
power-to-weight ratio of
302.8 bhp per tonne. Specific
power output is 133 bhp per
litre of engine displacement.
Maximum torque is a phenomenal
620 Nm, rising to 680 Nm with
the overboost function in the
optional Sport Chrono Package
Turbo (see page 60). Thanks
to VarioCam Plus (see page 38)and the new turbocharger system,
all of that torque is fully available
between 1,950 and 5,000 rpm.
The resulting acceleration is
inspirationally quick. Equipped with
· 28 · · 27 ·The new 911 Turbo |
Drive
Engine.
Heart and soul of the new 911 Turbo.
911 Turbo engine
Page 12 of 61
Lightweight design.

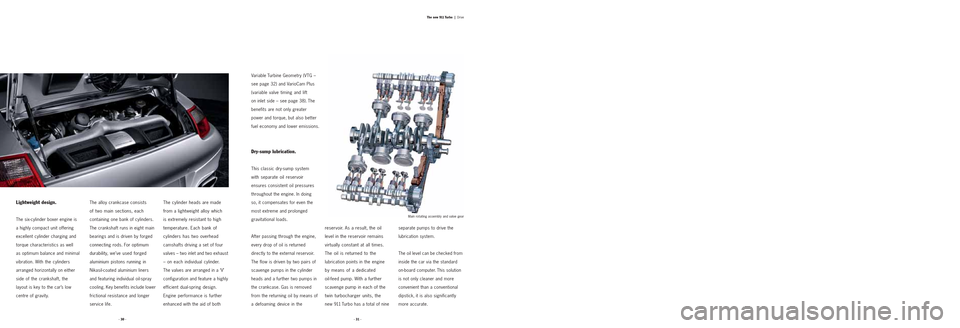

The six-cylinder boxer engine is
a highly compact unit offering
excellent cylinder charging and
torque characteristics as well
as optimum balance and minimal
vibration. With the cylinders
arranged horizontally on either
side of the crankshaft, the
layout is key to the car’s low
centre of gravity.
The alloy crankcase consists
of two main sections, each
containing one bank of cylinders.
The crankshaft runs in eight main
bearings and is driven by forged
connecting rods. For optimum
durability, we’ve used forged
aluminium pistons running in
Nikasil-coated aluminium liners
and featuring individual oil-spray
cooling. Key benefits include lower
frictional resistance and longer
service life.
The cylinder heads are made
from a lightweight alloy which
is extremely resistant to high
temperature. Each bank of
cylinders has two overhead
camshafts driving a set of four
valves – two inlet and two exhaust
– on each individual cylinder.
The valves are arranged in a ‘V’
configuration and feature a highly
efficient dual-spring design.
Engine performance is further
enhanced with the aid of bothVariable Turbine Geometry (VTG –
see page 32) and VarioCam Plus
(variable valve timing and lift
on inlet side – see page 38). The
benefits are not only greater
power and torque, but also better
fuel economy and lower emissions.
Dry-sump lubrication.
This classic dry-sump system
with separate oil reservoir
ensures consistent oil pressures
throughout the engine. In doing
so, it compensates for even the
most extreme and prolonged
gravitational loads.
After passing through the engine,
every drop of oil is returned
directly to the external reservoir.
The flow is driven by two pairs of
scavenge pumps in the cylinder
heads and a further two pumps in
the crankcase. Gas is removed
from the returning oil by means of
a defoaming device in the
reservoir. As a result, the oil
level in the reservoir remains
virtually constant at all times.
The oil is returned to the
lubrication points in the engine
by means of a dedicated
oil-feed pump. With a further
scavenge pump in each of the
twin turbocharger units, the
new 911 Turbo has a total of nineseparate pumps to drive the
lubrication system.
The oil level can be checked from
inside the car via the standard
on-board computer. This solution
is not only cleaner and more
convenient than a conventional
dipstick, it is also significantly
more accurate.
· 30 ·· 31 ·The new 911 Turbo |
Drive
Main rotating assembly and valve gear
Page 13 of 61
vanes are opened further. By
varying the vane angle, it is
possible to achieve the required
boost pressure over the entire
engine speed range. As a result,
there is no need for excess-
pressure valves as found on
conventional turbocharged
engines.
· 34 · · 32 ·· 33 ·The new 911 Turbo |
Drive
Variable Turbine Geometry (VTG).
Creating the optimum turbo for every scenario.
known as ‘turbo lag’, means there
is virtually no turbocharging effect
at lower engine speeds. To
overcome this problem, the twin
water-cooled turbochargers on
the new 911 Turbo feature Variable
Turbine Geometry (VTG). With
this technology, the gas-flow from
the engine is channelled onto Larger turbo units, which create
lower back-pressure at higher rpm,
take considerably longer to spin
up under power due to the large
cross-sectional area and relative
inertia of the heavier turbine.
Generally, this type of turbo will
only be effective in the medium
rpm range. This phenomenon,
Turbocharger guide vane adjuster Turbocharger with Variable Turbine Geometry (VTG)
up easily to its optimum speed.
The key disadvantage of using
a smaller turbo is that the back-
pressure generated at higher
engine speeds causes a significant
reduction in performance.
Resistance is caused by the smaller
cross-sectional area through which
the exhaust is required to flow.
The 911 Turbo has always been
synonymous with performance.
Now the car is more capable than
ever thanks to a new twin turbo
system featuring Variable Turbine
Geometry (VTG).
On a conventional turbocharger,
the exhaust flow drives a turbine
that is connected to a compressor
in the air intake tract. By ‘squeezing’
the incoming air, the amount
of oxygen in a given volume isincreased. Since compression also
causes an increase in temperature,
the air must be passed through
an ‘intercooler’ unit. With more
oxygen present in each cylinder
charge, more fuel can be burnt
yielding greater energy. Since
higher exhaust pressures generate
corresponding loads on the intake
side, the intake pressure must
be carefully controlled in order
to protect the engine. On the new
911 Turbo, the ‘boost pressure’ islimited using ‘wastegate’ valves
that bypass excess pressure
around the twin exhaust turbines.
Another important factor is the
size of the turbo unit. Since a
smaller turbine has a lower mass,
it generally responds more quickly
to increasing pressure, spinning
the turbines via electronically
adjustable guide vanes. By
changing the vane angle, the
system can replicate the
geometry in all types of turbo,
large or small.
With Variable Turbine Geometry
(VTG), it is possible to achieve
higher turbine speeds, and thus
higher boost pressure, at lower
engine rpm. Cylinder charging issignificantly improved, with a
corresponding increase in both
power and torque. Maximum
torque is reached at lower rpm
and is retained across a wider rev
range. A full 620 Nm is available
from as low as 1,950 rpm up to
5,000 rpm. Every throttle input is
met with exceptional response
and phenomenal acceleration.
When the boost pressure reaches
its maximum value, the guide
Page 14 of 61
· 36 · · 35 ·· 37 ·The new 911 Turbo |
Drive
Guide vanes open Guide vanes closedGuide vanes open Guide vanes closed
The capability of the engine can
be further enhanced by selecting
‘Sport’ mode on the optional Sport
Chrono Package Turbo (see page
60). Under full acceleration, the
boost is temporarily increased by
approximately 0.2 bar. During this
phase, the engine develops as
much as 60 Nm of additional
torque.
Matching the superlative
performance of the car is the
efficiency with which it is
generated. In spite of the increase
in power and torque, the new
911 Turbo offers a further
reduction in fuel consumption.
1
2
3
4
5
6
7
8
9
10

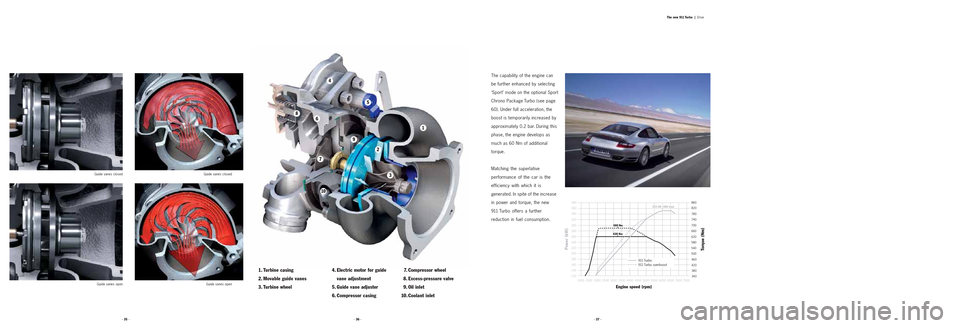

1. Turbine casing
2. Movable guide vanes
3. Turbine wheel4. Electric motor for guide
vane adjustment
5. Guide vane adjuster
6. Compressor casing7. Compressor wheel
8. Excess-pressure valve
9. Oil inlet
10. Coolant inlet340 500 540
580
620 660 700
220 240
260
280
300
1500
7500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000
380 420
460
1000
Power (kW)
Engine speed (rpm)
620 Nm
120 140
160
180
200
Torque (Nm)
680 Nm
740 320
340 360380780 820860
353 kW (480 bhp)
911 Turbo
911 Turbo overboost
Page 15 of 61
locked, the outermost ring –
which is driven by two large
profile cams – is in direct contact
with the valve. When the pin is
removed, the innermost lifter –
operated by a smaller cam
lobe – has sole influence over the
amount of valve lift. The timing of
each valve is steplessly controlled
by means of an electro-hydraulic
rotary vane adjuster at the head
of the corresponding camshaft.To improve responsiveness
during warm-up in cold weather,
VarioCam Plus will select the
higher valve lift setting and retard
valve timing.
At medium revs and low engine
loads, the lower valve lift setting
is selected and timing advanced in
order to reduce fuel consumption
and emissions. The economy of
the engine is particularly
enhanced at lower engine speeds.
For maximum power and torque,
the higher lift setting is selected
and the timing of the valves is
advanced.
From the driver’s perspective, the
results are clear: copious torque
with exceptional fuel economy,
particularly in comparison with
much larger yet similarly rated
engines.
· 39 ·The new 911 Turbo |
Drive

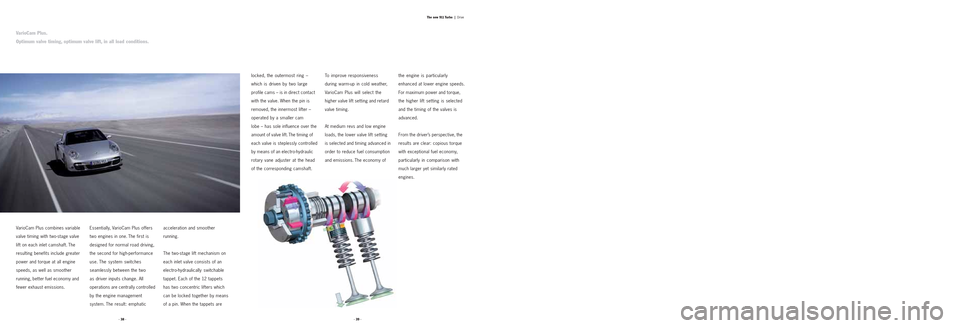

VarioCam Plus combines variable
valve timing with two-stage valve
lift on each inlet camshaft. The
resulting benefits include greater
power and torque at all engine
speeds, as well as smoother
running, better fuel economy and
fewer exhaust emissions.Essentially, VarioCam Plus offers
two engines in one. The first is
designed for normal road driving,
the second for high-performance
use. The system switches
seamlessly between the two
as driver inputs change. All
operations are centrally controlled
by the engine management
system. The result: emphaticacceleration and smoother
running.
The two-stage lift mechanism on
each inlet valve consists of an
electro-hydraulically switchable
tappet. Each of the 12 tappets
has two concentric lifters which
can be locked together by means
of a pin. When the tappets are
· 38 ·
VarioCam Plus.
Optimum valve timing, optimum valve lift, in all load conditions.
Page 16 of 61
Engine cooling.
The 911 Turbo engine features
cross-flow water cooling with fully
integrated coolant management.
This technology ensures a
consistent flow of coolant to each
of the engine’s cylinders. All
coolant passages are integral to
the block, thus eliminating the
need for external hoses. Each
cylinder receives a fresh supply
of coolant which has not been
pre-warmed by the engine. As well
as improving reliability, this
helps to minimise maintenance
requirements. Waste heat from
the oil is transferred to the
coolant via two oil/water heat
exchangers. The coolant is routed
through twin radiator modules
ahead of the front wheels and a
centrally placed unit in the nose.
Engine management.
Optimum performance is assured
at all times with the aid of
the Motronic ME7.8.1 engine
management system. On the new
911 Turbo, this powerful ECU is
responsible for all engine-related
functions and assemblies (see
diagram). Key among these are
the Variable Turbine Geometry
(VTG), VarioCam Plus and
electronic throttle system – one
of the essential prerequisites
for the standard Porsche Stability
Management (PSM). The results:
optimum economy, emissions
and performance, regardless of
driving style.Another important task performed
by the engine management
system is cylinder-specific knock
control. By preventing pre-ignition
at high engine speeds, this
function can avert costly damage
to the pistons and cylinders. Since
temperatures tend to vary in
different parts of the engine, each
cylinder is monitored separately.
If a risk is detected, the individual
ignition timing is adjusted.
The EU-compliant on-board
diagnostics system provides
continuous fault detection and
early warning for the exhaust
and fuel supply systems. The
resulting benefits are active
prevention of harmful emissions
as well as consistent rates of
fuel consumption.
· 40 ·· 41 ·The new 911 Turbo |
Drive
Input data Used to regulate /control
Engine management system
(Motronic ME7.8.1)
Engine load
Pressure upstream from throttle
Throttle-valve angle
Engine speed (from crankshaft)
Camshaft phase angles
Throttle-pedal position
Lambda signal
Knock sensor signal
Ignition
Fuel injection
Throttle valve
Heating elements in lambda sensors
Fuel pump
Fuel-tank venting
CAN interface to
all-wheel drive control unit CAN interface to transmissionMoment interface to Porsche
Stability Management (PSM)
VarioCam Plus
– camshaft phase angle
– valve lift control
Electronic controller for
Variable Turbine Geometry (VTG)
Bypass valve
Secondary air injection
Engine-bay fan
Starter
On-board diagnostics
Air-conditioning compressor
Interface to instrument cluster
Radiator fans
Vehicle speed
Air-conditioning settings
Engine immobiliser status
Clutch pedal switch
Ambient air pressure
Temperatures
– coolant
– airflow upstream from throttle
– engine oil
– air in engine compartment
– ambient air
Exhaust-gas temperature
Page 17 of 61
Fuel injection.
Fuel is supplied to each of the six
cylinders by means of sequential
fuel injection. The timing of each
injection and the volume supplied
to each bank of cylinders are
controlled by the Motronic ME7.8.1
engine management system.
Adjustments are based on a range
of variables, such as throttle
position, engine speed, boost
pressure, coolant temperature
and exhaust gas composition. Theresults are optimised combustion
and fuel consumption. A hot-film
air mass sensor monitors the
density of the incoming air to
ensure the optimum air/fuel
mixture, regardless of weather
and altitude.
Ignition system.
The 911 Turbo is equipped with
a static high-voltage ignition
system. Each individual plug has
a separate ignition coil, ensuring
perfect combustion every time.
The role of distributor is performed
by the engine management
system, which operates the coils
directly. The result: optimum
performance with minimal fuel
consumption.
· 42 ·· 43 ·The new 911 Turbo |
Drive
Page 18 of 61

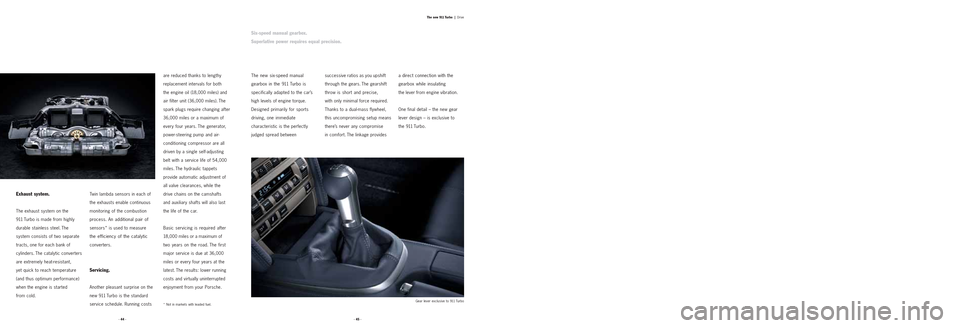

are reduced thanks to lengthy
replacement intervals for both
the engine oil (18,000 miles) and
air filter unit (36,000 miles). The
spark plugs require changing after
36,000 miles or a maximum of
every four years. The generator,
power-steering pump and air-
conditioning compressor are all
driven by a single self-adjusting
belt with a service life of 54,000
miles. The hydraulic tappets
provide automatic adjustment of
all valve clearances, while the
drive chains on the camshafts
and auxiliary shafts will also last
the life of the car.
Basic servicing is required after
18,000 miles or a maximum of
two years on the road. The first
major service is due at 36,000
miles or every four years at the
latest. The results: lower running
costs and virtually uninterrupted
enjoyment from your Porsche.
Exhaust system.
The exhaust system on the
911 Turbo is made from highly
durable stainless steel. The
system consists of two separate
tracts, one for each bank of
cylinders. The catalytic converters
are extremely heat-resistant,
yet quick to reach temperature
(and thus optimum performance)
when the engine is started
from cold.Twin lambda sensors in each of
the exhausts enable continuous
monitoring of the combustion
process. An additional pair of
sensors* is used to measure
the efficiency of the catalytic
converters.
Servicing.
Another pleasant surprise on the
new 911 Turbo is the standard
service schedule. Running costs
The new six-speed manual
gearbox in the 911 Turbo is
specifically adapted to the car’s
high levels of engine torque.
Designed primarily for sports
driving, one immediate
characteristic is the perfectly
judged spread betweensuccessive ratios as you upshift
through the gears. The gearshift
throw is short and precise,
with only minimal force required.
Thanks to a dual-mass flywheel,
this uncompromising setup means
there’s never any compromise
in comfort. The linkage provides
a direct connection with the
gearbox while insulating
the lever from engine vibration.
One final detail – the new gear
lever design – is exclusive to
the 911 Turbo.
· 44 ·· 45 ·The new 911 Turbo |
Drive
Six-speed manual gearbox.
Superlative power requires equal precision.
Gear lever exclusive to 911 Turbo* Not in markets with leaded fuel.
Page 19 of 61
Tiptronic S also includes a warm-
up function designed to minimise
exhaust emissions. When the
car is started, the engine speed is
increased so that the catalytic
converters reach their optimum
operating temperature within the
shortest possible time. braking on descent. This, of
course, helps to reduce the
load on the braking system. If
traction is lost under braking
in the wet or on snow, the system
automatically changes up to
restore lateral grip and bring the
car back into line. there is no need to use a kick-
down function. Unlike conventional
automatic systems, Tiptronic S
does not shift up when the throttle
is released, thus enabling
optimum acceleration when exiting
a corner with no loss of stability
due to changes in load. Mid-corner
gearshifts are also prevented,
thereby enhancing stability and
safety. Under heavy braking, the
system shifts down, using engine
braking to slow the car. The
function is enabled during high-
performance use when the driver
releases the throttle to apply
the brake within a period of
1.5 seconds. These active
downshifts enhance the car’s
performance, particularly when
braking for a corner. Under
prolonged braking, additional
downshifts are performed based
on the amount of brake force
applied. An incline sensor
improves uphill acceleration and
makes better use of engine
The 911 Turbo is available with
optional five-speed Tiptronic S
offering a highly rapid gearshift
action. This versatile option offers
fully automatic five-speed
operation as well as direct manual
control.
In manual mode, you can change
gear by hand using gearshift
controls on the steering wheel.
Simply press up to change up,
and down to change down. The
clutch function is fully automatic.In automatic mode, the standard
gearshift pattern, designed
for maximum fuel economy, can
be steplessly varied up to a
dedicated ‘Sport’ configuration
for optimum high-performance
driving. Each gearshift point is
automatically selected based on
current driving style and road
conditions. Within a short space
of time, you’ll develop a feel for
the system and begin to influence
gearshifts using the throttle alone.
The benefits of Tiptronic S are
particularly apparent when
exploring the car’s potential. Even
in automatic, the rapid gearshift
action enables remarkable agility
under acceleration. The imme-
diacy of response, with virtually
no interruption in drive, is now
more than comparable with a
Porsche manual gearbox. At just
3.7 seconds, the new 911 Turbo
with Tiptronic S is 0.2 seconds
quicker to 100 km / h (62 mph)
than the standard manually
equipped car.
While still in automatic, you can
change gear by hand using the
rocker controls on the steering
wheel. If there is no manual input
for a period of 8 seconds,
the system reverts to automatic
mode.
If the car is driven more assertively,
the system automatically selects
the ‘Sport’ gearshift pattern, i.e.,
· 46 ·· 47 ·The new 911 Turbo |
Drive
Tiptronic S gear selector lever Tiptronic S control on steering wheel
Tiptronic S.
Manual and automatic in one versatile solution.
Page 20 of 61
using the automatic brake
differential (ABD) function. For
optimum traction, manual gearbox
cars can also be equipped with
an optional mechanical limited-slip
rear differential (see page 56).
Assisting PTM is a new and
specially uprated version of
Porsche Stability Management
(PSM – see page 58). Combined,
these systems ensure optimum
torque distribution – and thus
optimum drive – in every type of
road scenario, including high-
speed straights, hairpin bends and
challenging, variable-grip surfaces.
Under heavy braking where ABS
is required, the multi-plate clutch
severs all front drive so that
each front wheel can be controlled
separately
by the ABS without
being influenced by the rear wheel
dynamics.
The traction benefits of the new
electronically controlled system
are particularly apparent in
the wet or on snow. In these
conditions, the new 911 Turbo
offers breathtaking acceleration.
In short, PTM offers greater
active safety, greater performance,
and even more of the positive
handling and agility you’d expect
from a 911 Turbo.
· 49 ·The new 911 Turbo |
Drive
differential (ABD) and anti-slip
regulation (ASR).
The electronically controlled clutch
is used to vary the drive torque
transmitted to the front axle. The
previous 911 Turbo had a multi-
plate clutch filled with a viscous
fluid, which ‘passively’ determined
the front/rear torque split. On
this latest evolution, the fluid is
replaced by active, electronic
control.While the viscous-fluid system
responds to relative differences in
front/rear axle speed, the new
electronic clutch offers a more
direct response to changing road
scenarios. The status of the car
is continuously monitored with the
aid of on-board sensors. These
are used to measure a range of
values, including the rotational
speed of all four wheels, the lateral
and longitudinal acceleration of
the car, and the current steering
angle. The sensor data is analysed
in ‘real time’ by PTM, enabling
immediate adjustments in front-end
drive torque as and when required.
If, for example, the rear wheels
lose traction under acceleration, a
greater proportion of drive torque
is automatically transmitted to
the front axle. The integral ASR
function is also used to minimise
wheel-spin. When
cornering,
the system controls drive to the
front wheels in order to maintain
optimum lateral grip. On variable-
grip surfaces, traction is enhanced
· 48 · Electronically controlled multi-plate clutchAll-wheel drive system

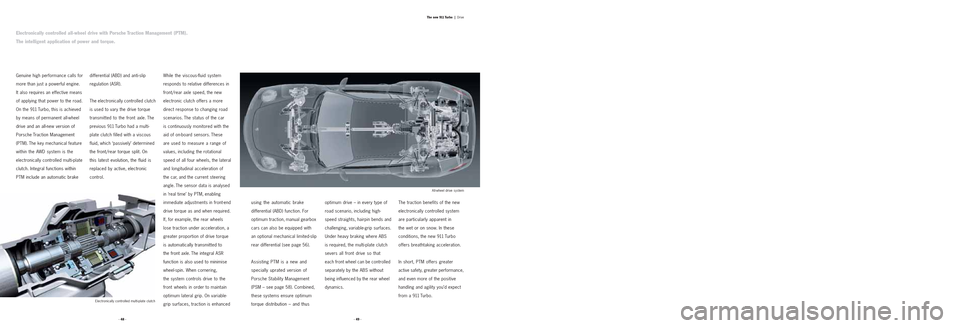

Genuine high performance calls for
more than just a powerful engine.
It also requires an effective means
of applying that power to the road.
On the 911 Turbo, this is achieved
by means of permanent all-wheel
drive and an all-new version of
Porsche Traction Management
(PTM). The key mechanical feature
within the AWD system is the
electronically controlled multi-plate
clutch. Integral functions within
PTM include an automatic brake
Electronically controlled all-wheel drive with Porsche Traction Management (PTM).
The intelligent application of power and torque.
