Instrument Panel and Multi-Function Display 109
Selecting tire type in the TPMS menu (type and size of fitted tire)
Exceeding the maximum tire speed could result in a tire burst, causing loss of control of the vehicle.fAlways observe the permissible maximum speed of the respective tire.fPorsche recommends obeying all traffic laws at all times to maintain the safety of yourself and all vehicle occupants.
Incomplete entries or selection of the wrong tires on the multi-function display affect correct indication of warnings and messages.fThe settings must be updated in the “ Tire pressure ” menu after changing a wheel, filling with tire sealant or adding air (after previous warning “ Check tires”). Please see the chapter “RED WARNING – “CHECK TIRES”” on page 112.
The new tire type and tire size must be selected even if the settings for the new set of wheels are the same as for the old wheels.
Option is selected.
Option is not selected.
The selected setting appears in the TPMS menu in the line “Tire type” (e.g. “20" (W)” with the setting option “20" Winter”).
Tire selection has only been completed successfully when the following message appears on the multi-function display (example):
“No tire pressure monitoring System is learning” .fPlease see the chapter “CHANGING A WHEEL AND REPLACING TIRES” on page 113.
Information
The message “Action cancelled” appears if the setting process is interrupted.
All entries made up to this point are lost, and the original settings remain in effect.
Before fitting tires with dimensions that are not already stored in the multi-function display, the missing information should be added to the multi-function display by your authorized Porsche dealer.fPlease contact an authorized Porsche dealer.fUse only tires approved by Porsche.
The available items in the tire pressure menu depend on the model type. For this reason, some of the selection options shown here may not be available on your multi-function display.
Exceeding Maximum Rated Tire Speed
Entering Tire Data and Display
WARNINGh
WARNINGh
1. Main menu “TPMS”.
2.Confirm “TPMS”.
3.Select “Tire type” and confirm.
4.Select “20" Summer” or “20" Winter” and confirm.
14_991_Turbo_21.book Seite 109 Mittwoch, 9. April 2014 2:19 14

110 Instrument Panel and Multi-Function Display
Selecting load in the TPMS menu
fAdapt the pressure of the tires to the selected load type.Please see the chapter “VIEWING FILL INFO IN THE TPMS MENU” on page 108.
Information
If this menu is not displayed, the specified tire pressures are valid for all types of vehicle load.
Selecting comfort/standard pressure in the TPMS menu
For speeds up to 165 mph (270 km/h), the tire pressures can be reduced to increase suspension comfort.If you select “ Comfort press.”, the TPMS system automatically uses lower pressure values when monitoring tire pressure.
If “ Comfort press.” is deactivated or standard pressure is activated, the standard required pressures suitable for speeds up to the maximum vehicle speed are automatically monitored.
The comfort tire pressures are included in the technical dataorin “ Fill info” when the “Comfort press.” menu is activated.
Prolonged driving at low tire pressure or even short-term driving at high speeds on tires which have too low a pressure is likely to result in a loss of control of your vehicle, either due to a failure to maintain directional control under side loads or due to tire failure.
Tires are inflated to comfort pressure at the factory, which is not suitable for driving at very high speeds.fAlways adjust the pressure in the tires to the standard pressure setting when driving at higher speeds.fRemember to adjust the setting in the Tire Pressure Monitoring System accordingly.
1. Main menu “TPMS”.
2.Confirm “TPMS”.
3. Full load
Full load is selected.
Full load
Partial load is selected.
Change or select the desired load type by enabling or disabling the “ Full load” box.
1.Main menu “TPMS”.
2.Confirm “TPMS”
3. Comfort pressure
Comfort pressure is selected.
Comfort press.
Standard pressure is selected.
Change or select comfort pressure/standard pressure by enabling or disabling the “ Comfort pressure” box.
Low Tire Pressure Loss of Control
WARNINGh
14_991_Turbo_21.book Seite 110 Mittwoch, 9. April 2014 2:19 14

Instrument Panel and Multi-Function Display 111

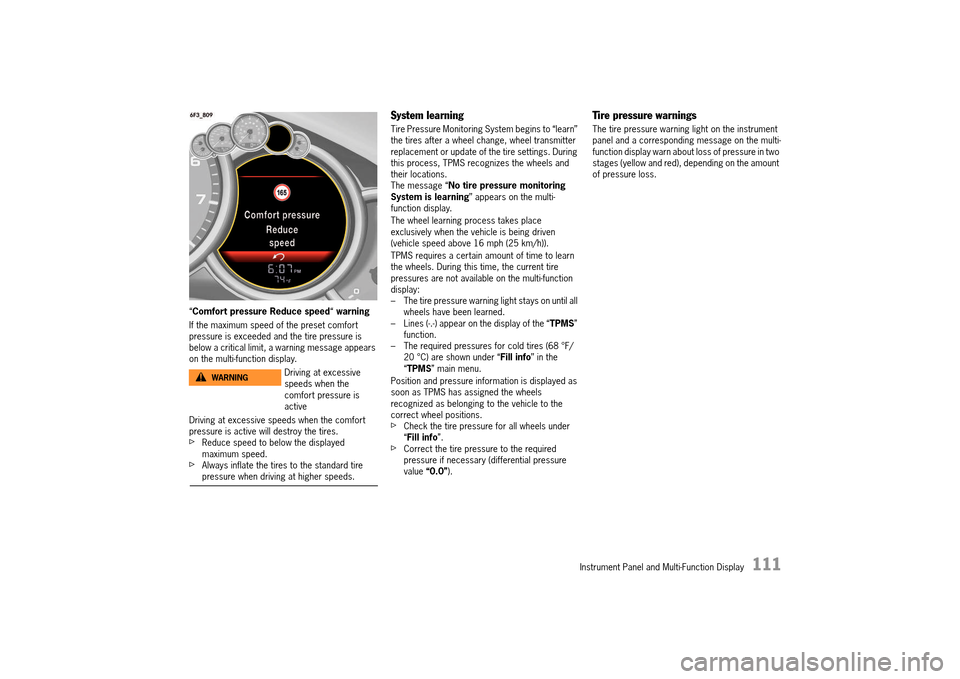

“Comfort pressure Reduce speed“ warning
If the maximum speed of the preset comfort pressure is exceeded and the tire pressure is below a critical limit, a warning message appears on the multi-function display.
Driving at excessive speeds when the comfort pressure is active will destroy the tires.fReduce speed to below the displayed maximum speed.fAlways inflate the tires to the standard tire pressure when driving at higher speeds.
System learning
Tire Pressure Monitoring System begins to “learn” the tires after a wheel change, wheel transmitter replacement or update of the tire settings. During this process, TPMS recognizes the wheels and their locations.The message “ No tire pressure monitoring System is learning ” appears on the multi- function display.
The wheel learning process takes place exclusively when the vehicle is being driven (vehicle speed above 16 mph (25 km/h)).
TPMS requires a certain amount of time to learn the wheels. During this time, the current tire pressures are not available on the multi-function display:– The tire pressure warning light stays on until all wheels have been learned.– Lines (-.-) appear on the display of the “ TPMS” function.– The required pressures for cold tires (68 °F/20 °C) are shown under “ Fill info” in the “ TPMS” main menu.
Position and pressure information is displayed as soon as TPMS has assigned the wheels recognized as belonging to the vehicle to the correct wheel positions.fCheck the tire pressure for all wheels under “ Fill info”.fCorrect the tire pressure to the required pressure if necessary (differential pressure value “0.0”).
Tire pressure warnings
The tire pressure warning light on the instrument panel and a corresponding message on the multi-function display warn about loss of pressure in two stages (yellow and red), depending on the amount of pressure loss.
Driving at excessive speeds when the comfort pressure is active
WARNINGh
14_991_Turbo_21.book Seite 111 Mittwoch, 9. April 2014 2:19 14

112 Instrument Panel and Multi-Function Display

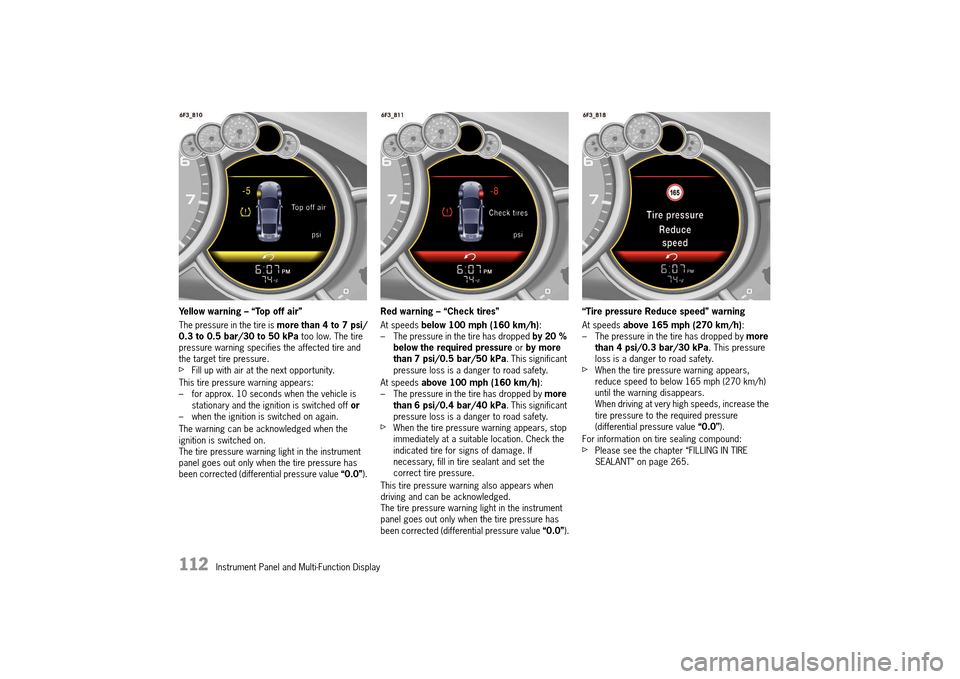

Yellow warning – “Top off air”
The pressure in the tire is more than 4 to 7 psi/ 0.3 to 0.5 bar/30 to 50 kPa too low. The tire pressure warning specifies the affected tire and the target tire pressure. fFill up with air at the next opportunity.
This tire pressure warning appears: – for approx. 10 seconds when the vehicle is stationary and the ignition is switched off or – when the ignition is switched on again.
The warning can be acknowledged when the ignition is switched on.The tire pressure warning light in the instrument panel goes out only when the tire pressure has been corrected (differential pressure value “0.0”).
Red warning – “Check tires”
At speeds below 100 mph (160 km/h): – The pressure in the tire has dropped by 20 % below the required pressure or by more than 7 psi/0.5 bar/50 kPa . This significant pressure loss is a danger to road safety.
At speeds above 100 mph (160 km/h): – The pressure in the tire has dropped by more than 6 psi/0.4 bar/40 kPa . This significant pressure loss is a danger to road safety.fWhen the tire pressure warning appears, stop immediately at a suitable location. Check the indicated tire for signs of damage. If necessary, fill in tire sealant and set the correct tire pressure.
This tire pressure warning also appears when driving and can be acknowledged. The tire pressure warning light in the instrument panel goes out only when the tire pressure has been corrected (differential pressure value “0.0”).
“Tire pressure Reduce speed” warning
At speeds above 165 mph (270 km/h): – The pressure in the tire has dropped by more than 4 psi/0.3 bar/30 kPa . This pressure loss is a danger to road safety.fWhen the tire pressure warning appears, reduce speed to below 165 mph (270 km/h) until the warning disappears.When driving at very high speeds, increase the tire pressure to the required pressure (differential pressure value “0.0”).
For information on tire sealing compound:fPlease see the chapter “FILLING IN TIRE SEALANT” on page 265.
14_991_Turbo_21.book Seite 112 Mittwoch, 9. April 2014 2:19 14

Instrument Panel and Multi-Function Display 113

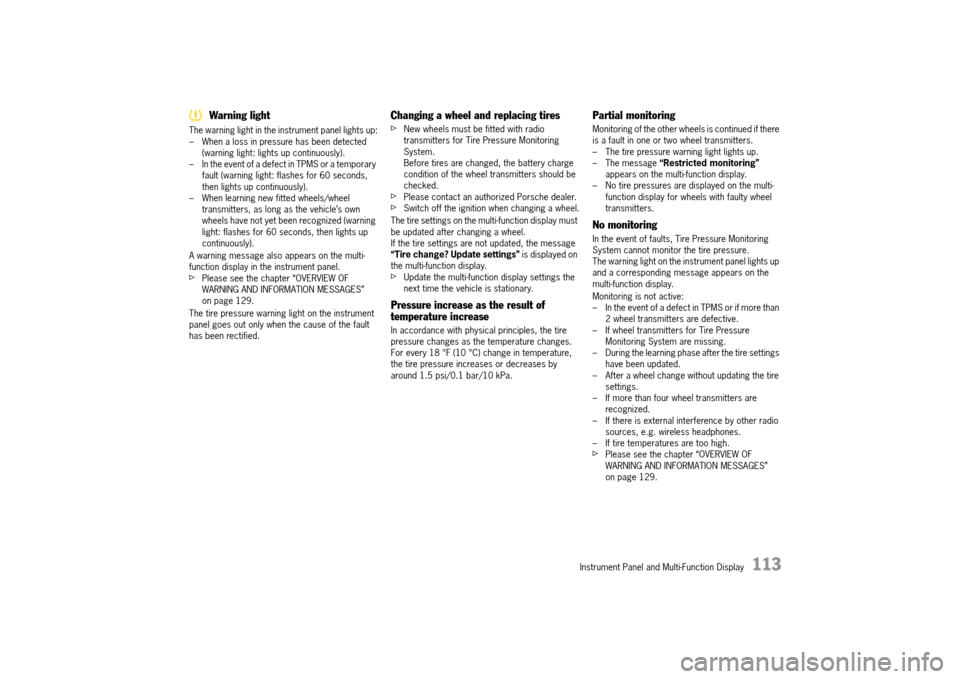

Warning light
The warning light in the instrument panel lights up: – When a loss in pressure has been detected (warning light: lights up continuously).– In the event of a defect in TPMS or a temporary fault (warning light: flashes for 60 seconds, then lights up continuously).– When learning new fitted wheels/wheel transmitters, as long as the vehicle’s own wheels have not yet been recognized (warning light: flashes for 60 seconds, then lights up continuously).
A warning message also appears on the multi- function display in the instrument panel.fPlease see the chapter “OVERVIEW OF WARNING AND INFORMATION MESSAGES” on page 129.
The tire pressure warning light on the instrument panel goes out only when the cause of the fault has been rectified.
Changing a wheel and replacing tires
fNew wheels must be fitted with radio transmitters for Tire Pressure Monitoring System. Before tires are changed, the battery charge condition of the wheel transmitters should be checked.fPlease contact an authorized Porsche dealer.fSwitch off the ignition when changing a wheel.
The tire settings on the multi-function display must be updated after changing a wheel.If the tire settings are not updated, the message “Tire change? Update settings” is displayed on the multi-function display.fUpdate the multi-function display settings the next time the vehicle is stationary.
Pressure increase as the result of temperature increase
In accordance with physical principles, the tire pressure changes as the temperature changes.For every 18 °F (10 °C) change in temperature, the tire pressure increases or decreases by around 1.5 psi/0.1 bar/10 kPa.
Partial monitoring
Monitoring of the other wheels is continued if there is a fault in one or two wheel transmitters.– The tire pressure warning light lights up.– The message “Restricted monitoring” appears on the multi-function display.– No tire pressures are displayed on the multi-function display for wheels with faulty wheel transmitters.
No monitoring
In the event of faults, Tire Pressure Monitoring System cannot monitor the tire pressure. The warning light on the instrument panel lights up and a corresponding message appears on the multi-function display.
Monitoring is not active: – In the event of a defect in TPMS or if more than 2 wheel transmitters are defective.– If wheel transmitters for Tire Pressure Monitoring System are missing.– During the learning phase after the tire settings have been updated.– After a wheel change without updating the tire settings.– If more than four wheel transmitters are recognized.– If there is external interference by other radio sources, e.g. wireless headphones.– If tire temperatures are too high.fPlease see the chapter “OVERVIEW OF WARNING AND INFORMATION MESSAGES” on page 129.
14_991_Turbo_21.book Seite 113 Mittwoch, 9. April 2014 2:19 14

114 Instrument Panel and Multi-Function Display
Allwheel Menu
(Porsche Traction Management PTM)
In the “Allwheel” main menu, the current torque distribution between front and rear axles is shown graphically in the form of bar diagrams.
For information on the operating principle of the PTM:fPLEASE SEE THE CHAPTER “PORSCHE TRACTION MANAGEMENT (PTM)” ON PAGE 180.
Chrono Menu (Stopwatch)
You can use the stopwatch to measure any times, e.g. on race circuits or on work-related journeys. Measured lap times can be stored and evaluated if the vehicle is equipped with Porsche Communication Management (PCM).fPlease observe the chapter “SPORT DISPLAY” in the separate PCM operating instructions.
Stopwatch on the dashboard
The stopwatch has an analog and a digital display. The large pointer of the analog display measures the seconds. The two small pointers measure hours and minutes. The display restarts at zero after 12 hours.Seconds and increments of 1/10th and 1/100th of a second can be read on the digital display. The digital display and the multi-function display can show up to 99 hours and 59 minutes.
Stopwatch timing displays
The stopwatch time is displayed at different positions on the dashboard:– In the stopwatch on the dashboard.– In the “ Chrono” menu in the multi-function display on the instrument panel.– In the “ CAR” main menu on the PCM.
Displaying the time on the stopwatch
You can configure the stopwatch on the dashboard to display the time in the multi-function display on the instrument panel.
For information on displaying the time on the stopwatch:fPlease see the chapter “DISPLAYING TIME IN STOPWATCH ON DASHBOARD” on page 125.
1. Main menu: Select “Allwheel” and confirm.
14_991_Turbo_21.book Seite 114 Mittwoch, 9. April 2014 2:19 14

Instrument Panel and Multi-Function Display 115

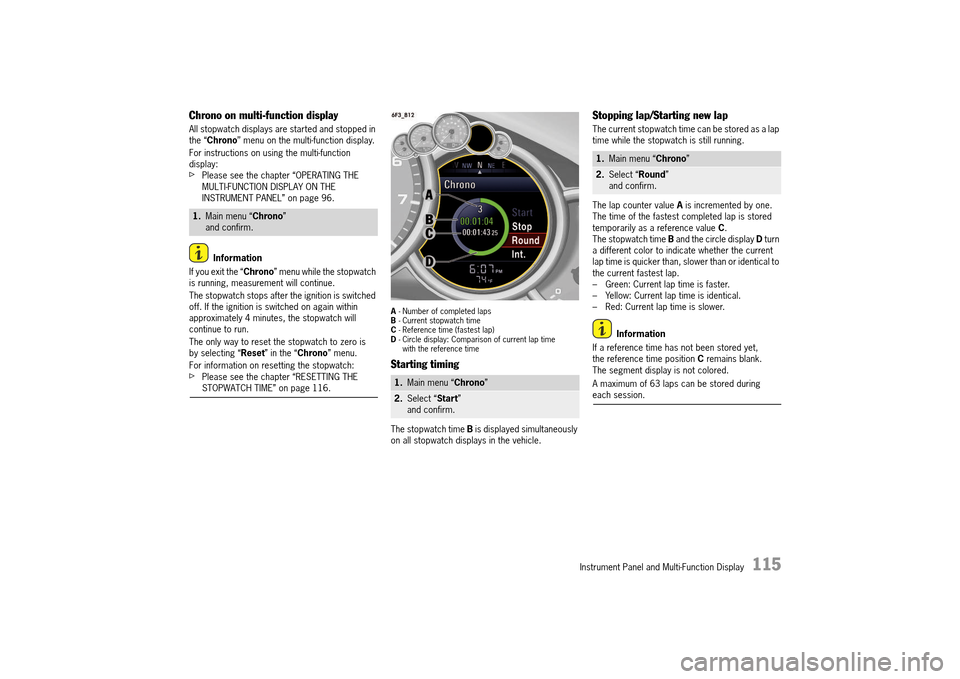

Chrono on multi-function display
All stopwatch displays are started and stopped in the “ Chrono” menu on the multi-function display.
For instructions on using the multi-function display:fPlease see the chapter “OPERATING THE MULTI-FUNCTION DISPLAY ON THE INSTRUMENT PANEL” on page 96.
Information
If you exit the “ Chrono” menu while the stopwatch is running, measurement will continue.
The stopwatch stops after the ignition is switched off. If the ignition is switched on again within approximately 4 minutes, the stopwatch will continue to run.
The only way to reset the stopwatch to zero is by selecting “ Reset” in the “Chrono” menu.
For information on resetting the stopwatch:fPlease see the chapter “RESETTING THE STOPWATCH TIME” on page 116.
A - Number of completed laps B - Current stopwatch time C - Reference time (fastest lap) D - Circle display: Comparison of current lap time with the reference time
Starting timing
The stopwatch time B is displayed simultaneously on all stopwatch displays in the vehicle.
Stopping lap/Starting new lap
The current stopwatch time can be stored as a lap time while the stopwatch is still running.
The lap counter value A is incremented by one. The time of the fastest completed lap is stored temporarily as a reference value C. The stopwatch time B and the circle display D turn a different color to indicate whether the current lap time is quicker than, slower than or identical to the current fastest lap.– Green: Current lap time is faster.– Yellow: Current lap time is identical.– Red: Current lap time is slower.
Information
If a reference time has not been stored yet, the reference time position C remains blank. The segment display is not colored.
A maximum of 63 laps can be stored during each session.
1. Main menu “Chrono” and confirm.
1. Main menu “Chrono”
2.Select “Start” and confirm.
1. Main menu “Chrono”
2.Select “Round” and confirm.
14_991_Turbo_21.book Seite 115 Mittwoch, 9. April 2014 2:19 14

116 Instrument Panel and Multi-Function Display
Storing intermediate time
You can store an intermediate time while the stopwatch is still running.
The intermediate time is displayed temporarily on the multi-function display. It is not stored.Timing continues in the background.
Stopping timing
You can stop the stopwatch at any time.
The stopwatch time B stops.
Continuing timing
You can resume timing again after stopping the stopwatch.
The stopwatch time B continues.
Resetting the stopwatch time
The stopwatch time can be reset to zero.
All stopwatch time displays are reset to zero.

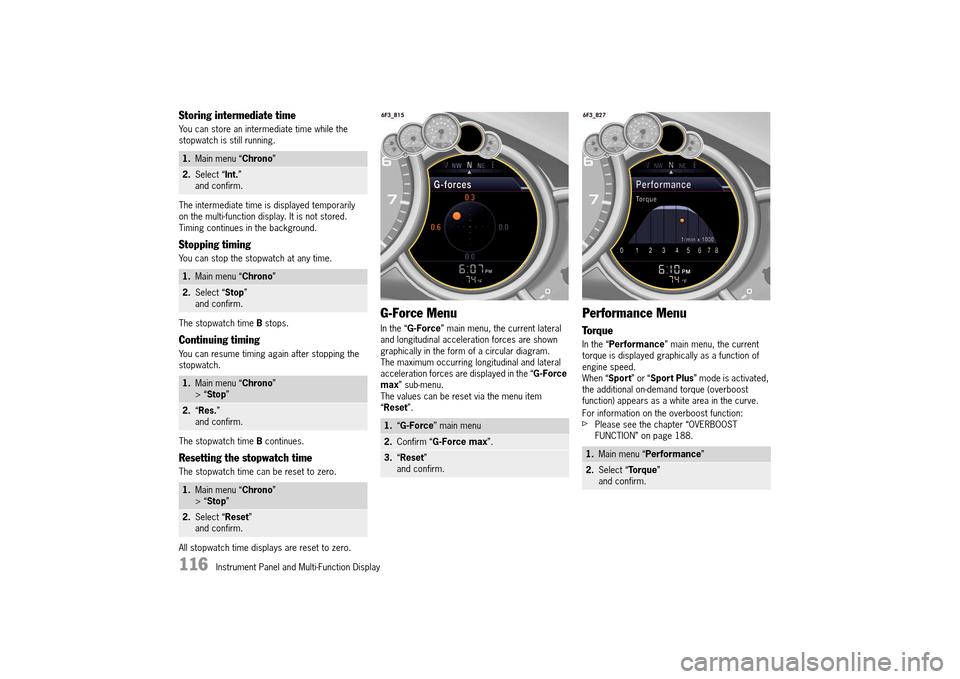

G-Force Menu
In the “ G-Force” main menu, the current lateral and longitudinal acceleration forces are shown graphically in the form of a circular diagram. The maximum occurring longitudinal and lateral acceleration forces are displayed in the “ G-Force max ” sub-menu. The values can be reset via the menu item “ Reset”.
Performance Menu
Torque
In the “Performance” main menu, the current torque is displayed graphically as a function of engine speed.When “ Sport” or “Sport Plus” mode is activated, the additional on-demand torque (overboost function) appears as a white area in the curve.
For information on the overboost function:fPlease see the chapter “OVERBOOST FUNCTION” on page 188.
1. Main menu “Chrono”
2.Select “Int.” and confirm.
1. Main menu “Chrono”
2.Select “Stop” and confirm.
1. Main menu “Chrono” > “ Stop”
2.“Res.” and confirm.
1. Main menu “Chrono” > “ Stop”
2.Select “Reset” and confirm.
1. “G-Force” main menu
2.Confirm “G-Force max”.
3.“Reset” and confirm.
1. Main menu “Performance”
2.Select “Torque” and confirm.
14_991_Turbo_21.book Seite 116 Mittwoch, 9. April 2014 2:19 14

Instrument Panel and Multi-Function Display 117

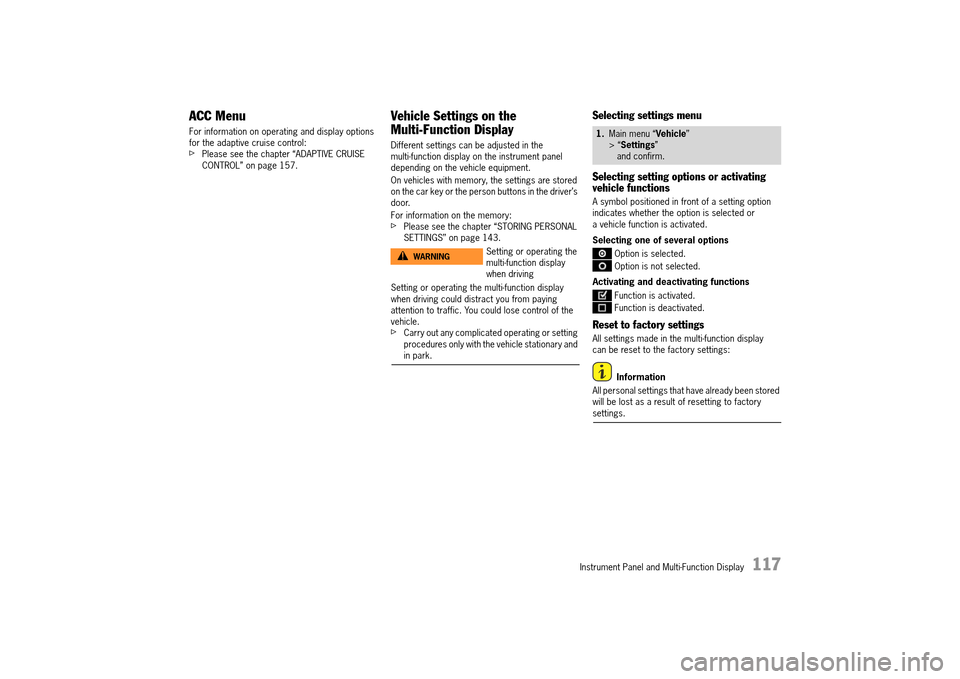

ACC Menu
For information on operating and display options for the adaptive cruise control:fPlease see the chapter “ADAPTIVE CRUISE CONTROL” on page 157.
Vehicle Settings on the
Multi-Function Display
Different settings can be adjusted in the multi-function display on the instrument panel depending on the vehicle equipment.
On vehicles with memory, the settings are stored on the car key or the person buttons in the driver’s door.
For information on the memory:fPlease see the chapter “STORING PERSONAL SETTINGS” on page 143.
Setting or operating the multi-function display when driving could distract you from paying attention to traffic. You could lose control of the vehicle. fCarry out any complicated operating or setting procedures only with the vehicle stationary and in park.
Selecting settings menu
Selecting setting options or activating vehicle functions
A symbol positioned in front of a setting option indicates whether the option is selected or a vehicle function is activated.
Selecting one of several options
Option is selected.
Option is not selected.
Activating and deactivating functions
Function is activated.
Function is deactivated.
Reset to factory settings
All settings made in the multi-function display can be reset to the factory settings:
Information
All personal settings that have already been stored will be lost as a result of resetting to factory settings.
Setting or operating the multi-function display when driving
WARNINGh
1. Main menu “Vehicle” > “ Settings” and confirm.
14_991_Turbo_21.book Seite 117 Mittwoch, 9. April 2014 2:19 14

118 Instrument Panel and Multi-Function Display

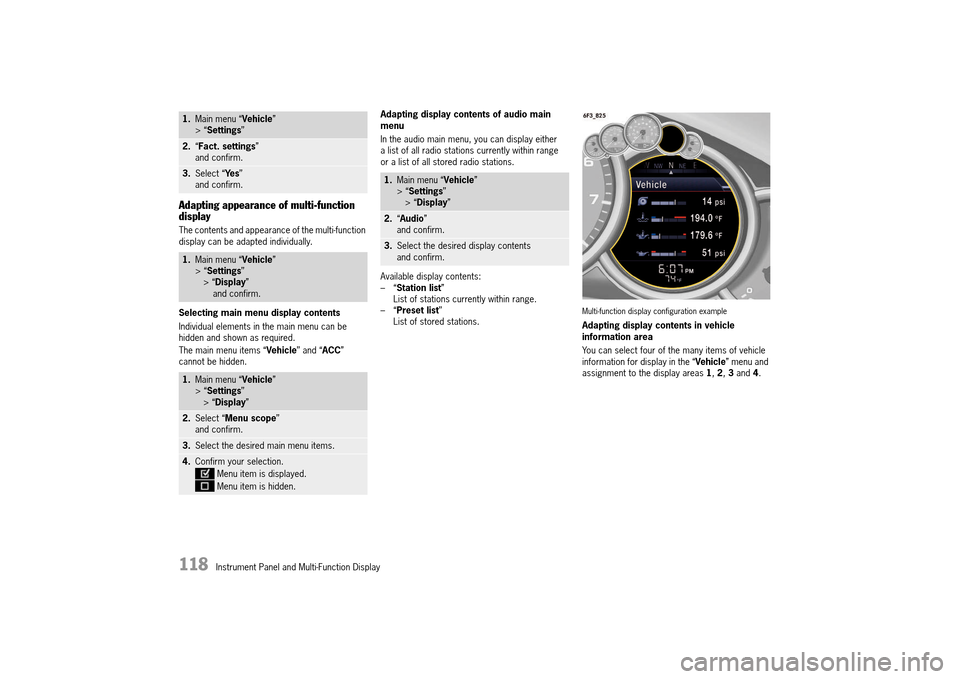

Adapting appearance of multi-function display
The contents and appearance of the multi-function display can be adapted individually.
Selecting main menu display contents
Individual elements in the main menu can be hidden and shown as required.
The main menu items “ Vehicle” and “ACC” cannot be hidden.
Adapting display contents of audio main menu
In the audio main menu, you can display either a list of all radio stations currently within range or a list of all stored radio stations.
Available display contents: –“ Station list” List of stations currently within range.–“ Preset list” List of stored stations.Multi-function display configuration example
Adapting display contents in vehicle information area
You can select four of the many items of vehicle information for display in the “ Vehicle” menu and assignment to the display areas 1, 2, 3 and 4.
1.Main menu “Vehicle” > “ Settings”
2.“Fact. settings” and confirm.
3. Select “Ye s” and confirm.
1. Main menu “Vehicle” > “ Settings” > “ Display” and confirm.
1. Main menu “Vehicle” > “ Settings” > “ Display”
2.Select “Menu scope” and confirm.
3. Select the desired main menu items.
4.Confirm your selection.
Menu item is displayed.
Menu item is hidden.
1. Main menu “Vehicle” > “ Settings” > “ Display”
2.“Audio” and confirm.
3. Select the desired display contents and confirm.
14_991_Turbo_21.book Seite 118 Mittwoch, 9. April 2014 2:19 14
