PORSCHE 911 TURBO 2014 6.G Owners Manual

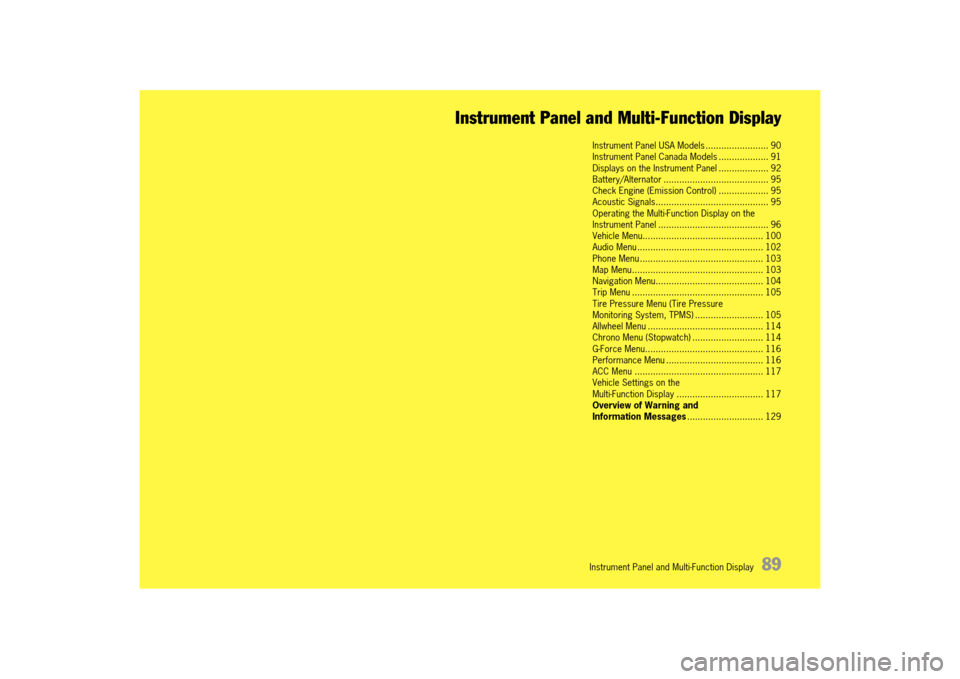

Instrument Panel and Multi-Function Display 89
Instrument Panel and Multi-Function Display
Instrument Panel USA Models ........................ 90 Instrument Panel Canada Models ................... 91Displays on the Instrument Panel ................... 92Battery/Alternator ........................................ 95Check Engine (Emission Control) ................... 95Acoustic Signals........................................... 95Operating the Multi-Function Display on the Instrument Panel .......................................... 96Vehicle Menu.............................................. 100Audio Menu ................................................ 102Phone Menu ............................................... 103Map Menu.................................................. 103Navigation Menu......................................... 104Trip Menu .................................................. 105Tire Pressure Menu (Tire Pressure Monitoring System, TPMS) .......................... 105Allwheel Menu ............................................ 114Chrono Menu (Stopwatch) ........................... 114G-Force Menu............................................. 116Performance Menu ..................................... 116ACC Menu ................................................. 117Vehicle Settings on theMulti-Function Display ................................. 117Overview of Warning and Information Messages ............................. 129
14_991_Turbo_21.book Seite 89 Mittwoch, 9. April 2014 2:19 14

90 Instrument Panel and Multi-Function Display
Instrument Panel USA Models
AEngine oil temperature gauge B Speedometer C Tachometer D Multi-function display E Coolant temperature gauge
F Engine oil pressure gauge G Reset button for trip counter display/ brightness setting for instrument panelH Odometer I Digital speedometer J Upshift indicator K Indicator for selector-lever position Gear displayL Fuel gauge M Marking showing position of filler flap
Warning and indicator lights on the tachometer
Warning and indicator lights on the speedometer
Emission control warning light (Check Engine)
Airbag warning light
Safety belt warning light
PSM warning light
PSM OFF warning light
ABS warning light
Turn signal, left
Turn signal, right
Brake warning light
High beam indicator light
Electric parking brake warning light
Rear fog light indicator light
HOLD function indicator light
Low beam indicator light
High Beam Assistant indicator light
PDLS warning light
Tire pressure warning light
14_991_Turbo_21.book Seite 90 Mittwoch, 9. April 2014 2:19 14

Instrument Panel and Multi-Function Display 91
Instrument Panel Canada Models
AEngine oil temperature gauge B Speedometer C Tachometer D Multi-function display E Coolant temperature gauge
F Engine oil pressure gauge G Reset button for trip counter display/ brightness setting for instrument panelH Odometer I Digital speedometer J Upshift indicator K Indicator for selector-lever position Gear displayL Fuel gauge M Marking showing position of filler flap
Warning and indicator lights on the tachometer
Warning and indicator lights on the speedometer
Emission control warning light (Check Engine)
Airbag warning light
Safety belt warning light
PSM warning light
PSM OFF warning light
ABS warning light
Turn signal, left
Turn signal, right
Brake warning light
High beam indicator light
Electric parking brake warning light
Rear fog light indicator light
HOLD function indicator light
Low beam indicator light
High Beam Assistant indicator light
PDLS warning light
Tire pressure warning light
14_991_Turbo_21.book Seite 91 Mittwoch, 9. April 2014 2:19 14

92 Instrument Panel and Multi-Function Display
Displays on the Instrument Panel
A – Engine oil temperature gauge
A warning message will appear on the multi- function display in the instrument panel if the engine oil temperature is too high.fReduce engine speed and engine load immediately if the red zone is reached.
For information on warning messages on the multi-function display:fPlease see the chapter “OVERVIEW OF WARNING AND INFORMATION MESSAGES” on page 129.
B – Speedometer
The analog display B is located on the left next to the tachometer in the instrument panel.
C – Tachometer
The start of the red zone on the tachometer or rev-counter scale is a visual warning of the maximum permissible engine speed.
If the red zone is reached during acceleration, fuel feed is interrupted in order to protect the engine.
D – Multi-function display
For information on the multi-function display:fPlease see the chapter “OPERATING THE MULTI-FUNCTION DISPLAY ON THE INSTRUMENT PANEL” on page 96.
E – Coolant temperature gauge
fIf the cooling system is in any way faulty, consult an authorized Porsche dealer.
Pointer in the lower area – engine cold
fAvoid high engine speeds and heavy engine loading.
Pointer in the middle – normal operating temperature
Pointer may move up to the red area when the engine is heavily loaded and outside temperature is high.
Coolant temperature warning
If the coolant temperature is too high, the temperature gauge needle moves to the maximum mark and the temperature gauge warning light lights up.The warning message “Engine too hot Park vehicle to cool down” will also appear on the multi-function display in the instrument panel.fSwitch engine off and let it cool. fCheck radiators and air guides in front end of vehicle for obstructions.fCheck the coolant level.Top up with coolant if necessary.fHave the fault corrected.fPlease see the chapter “CHECKING THE COOLANT LEVEL AND ADDING COOLANT” on page 242.fPlease see the chapter “OVERVIEW OF WARNING AND INFORMATION MESSAGES” on page 129.
Information
To prevent excessive temperatures, the cooling air ducts must not be obstructed by covering them (e.g. with film, “stone guards”, etc.).
Coolant level warning
At engine temperatures below 140 °F (60 °C):
A low coolant level is indicated by the warning message “Refill coolant Observe engine temperature” on the multi-function display in the instrument panel.fAdd coolant.
At engine temperatures above 140 °F (60 °C):
A low coolant level is indicated by the warning message “Refill coolant immediately Do not drive on” on the multi-function display in the instrument panel. The temperature gauge needle also moves to the maximum mark and the temperature gauge warning light flashes.fSwitch engine off and let it cool.fAdd coolant.
If the coolant level is low, warning indicators may light up if the vehicle tilts at an extreme angle (e.g. steep slopes) or generates high lateral acceleration while traveling round long bends (e.g. driving in circles). If the warnings do not disappear once the vehicle has assumed “normal” operating state, check the coolant level.fPlease see the chapter “CHECKING THE COOLANT LEVEL AND ADDING COOLANT” on page 242.fPlease see the chapter “OVERVIEW OF WARNING AND INFORMATION MESSAGES” on page 129.
Risk of engine damage.fDo not continue driving if the warning persists even when the engine coolant level is correct.fHave the fault corrected.
NOTICE
14_991_Turbo_21.book Seite 92 Mittwoch, 9. April 2014 2:19 14

Instrument Panel and Multi-Function Display 93
F – Engine oil pressure gauge
The oil pressure is controlled as required and should be at least 51 psi (3.5 bar) at an engine speed of 5000 rpm.
The engine oil pressure varies depending on the engine speed, oil temperature and engine load.
If oil pressure drops abruptly and a message is displayed on the multi-function display when the engine is running or while driving:fStop immediately in a suitable place.fSwitch off the engine.fCheck whether there is an obvious oil leak on or under the car.fSelect “ Oil measurement” on the multi- function display.fPlease see the chapter “DISPLAY AND MEASUREMENT OF THE ENGINE OIL LEVEL” on page 101.fAdd engine oil if necessary.
Risk of engine damage.fDo not continue driving if there is an obvious oil leak.fDo not continue driving if the warning message appears even when the oil level is correct.fHave the fault corrected at an authorized Porsche dealer.
G – Reset button for trip counter display/ brightness setting for instrument lighting
Resetting trip counter display
fPress rotary switch G for approx. 1 second. The trip counter display is reset to “0”.
Adjusting brightness of instrument lighting
For information on adjusting the brightness of the instrument lighting:fPlease see the chapter “INTERIOR/READING LIGHTS” on page 84.
H – Odometer
The displays for the total mileage and individual trips are integrated in the speedometer on the instrument panel.
The upper display counts the total mileage, the lower display shows individual trips.
After exceeding 6,213 miles or 9,999 kilometers, the trip counter returns to 0.
I – Digital speedometer
The digital speedometer I is integrated in the tachometer on the instrument panel.
J – Upshift prompt indicator
The consumption-oriented shift indicator to the right of the digital speed display on the tachometer helps you to develop a fuel-saving driving style. The upshift indicator lights up – prompting you to shift up to the next-higher gear – depending on the selected gear, engine speed and accelerator pedal position.fChange to the next-higher gear when the upshift indicator lights up.
NOTICE
14_991_Turbo_21.book Seite 93 Mittwoch, 9. April 2014 2:19 14

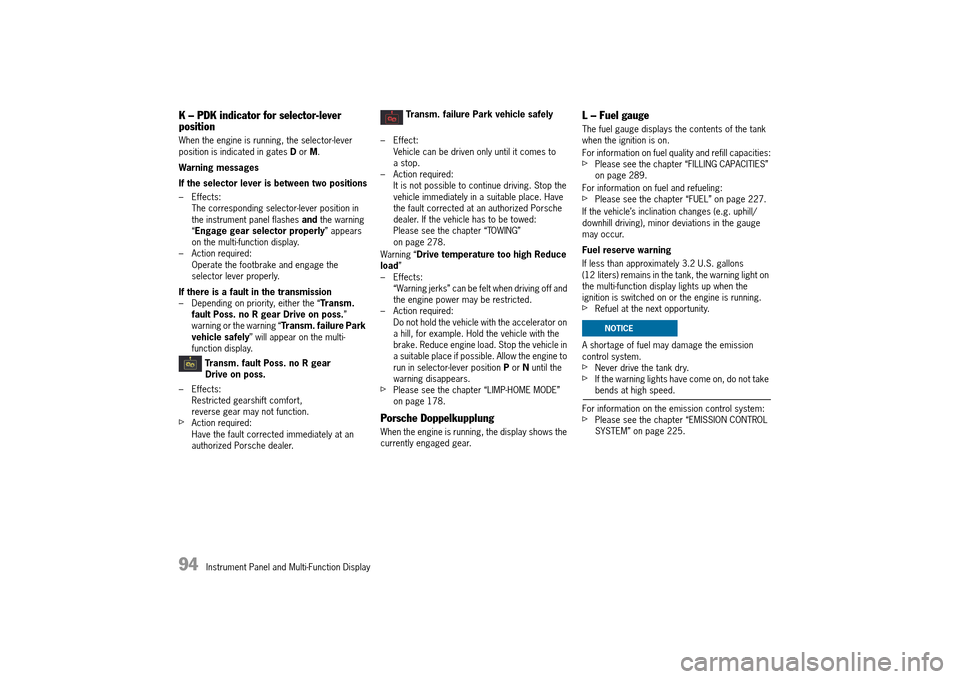

94 Instrument Panel and Multi-Function Display
K – PDK indicator for selector-lever position
When the engine is running, the selector-lever position is indicated in gates D or M.
Warning messages
If the selector lever is between two positions
– Effects: The corresponding selector-lever position in the instrument panel flashes and the warning “ Engage gear selector properly” appears on the multi-function display.– Action required:Operate the footbrake and engage the selector lever properly.
If there is a fault in the transmission – Depending on priority, either the “ Transm. fault Poss. no R gear Drive on poss. ” warning or the warning “ Transm. failure Park vehicle safely ” will appear on the multi- function display.
Transm. fault Poss. no R gear Drive on poss.
– Effects: Restricted gearshift comfort,reverse gear may not function.fAction required:Have the fault corrected immediately at an authorized Porsche dealer.
Transm. failure Park vehicle safely
– Effect: Vehicle can be driven only until it comes to a stop. – Action required:It is not possible to continue driving. Stop the vehicle immediately in a suitable place. Have the fault corrected at an authorized Porsche dealer. If the vehicle has to be towed:Please see the chapter “TOWING” on page 278.
Warning “ Drive temperature too high Reduce load ” – Effects:“Warning jerks” can be felt when driving off and the engine power may be restricted.– Action required:Do not hold the vehicle with the accelerator on a hill, for example. Hold the vehicle with the brake. Reduce engine load. Stop the vehicle in a suitable place if possible. Allow the engine to run in selector-lever position P or N until the warning disappears.fPlease see the chapter “LIMP-HOME MODE” on page 178.
Porsche Doppelkupplung
When the engine is running, the display shows the currently engaged gear.
L – Fuel gauge
The fuel gauge displays the contents of the tank when the ignition is on.
For information on fuel quality and refill capacities:fPlease see the chapter “FILLING CAPACITIES” on page 289.
For information on fuel and refueling:fPlease see the chapter “FUEL” on page 227.
If the vehicle’s inclination changes (e.g. uphill/ downhill driving), minor deviations in the gauge may occur.
Fuel reserve warning
If less than approximately 3.2 U.S. gallons (12 liters) remains in the tank, the warning light on the multi-function display lights up when the ignition is switched on or the engine is running. fRefuel at the next opportunity.
A shortage of fuel may damage the emission control system. fNever drive the tank dry.fIf the warning lights have come on, do not take bends at high speed.
For information on the emission control system:fPlease see the chapter “EMISSION CONTROL SYSTEM” on page 225.
NOTICE
14_991_Turbo_21.book Seite 94 Mittwoch, 9. April 2014 2:19 14

Instrument Panel and Multi-Function Display 95
Battery/Alternator
The warning message “Generator fault Park vehicle safely ” will appear on the multi-function display in the instrument panel if the vehicle electrical system voltage drops significantly.fStop at a safe place and switch the engine off.
For information on warning messages on the multi-function display:fPlease see the chapter “OVERVIEW OF WARNING AND INFORMATION MESSAGES” on page 129.
Possible causes
– Defect in the battery charging system– Broken drive belt
Risk of engine damage.
The engine cooling does not function if the drive belt is torn.fDo not continue driving.fHave the fault corrected.fPlease contact an authorized Porsche dealer.
Check Engine
(Emission Control)
Warning light
The emission control system detects malfunctions that could cause increased pollutant emissions or consequential damage etc. well in advance.Faults are indicated by the warning light on the instrument panel which then either lights up continuously or flashes.The faults are recorded in the control unit’s fault memory.
The warning light on the instrument panel lights up when the ignition is switched on as a lamp check and goes out approx. 1 second after the engine starts.
The warning light on the instrument panel flashes to indicate operating states (e.g. engine misfiring) which may cause damage to certain parts of the emission control system.fIn this case, immediately reduce the engine load by easing off the accelerator pedal.
In order to avoid consequential damage to the engine or the exhaust-gas cleaning system (e.g. catalytic converter):fPlease contact an authorized Porsche dealer.
Risk of damage to the emission control system.
If the warning light on the instrument panel continues flashing even when you have eased off the accelerator pedal, the emission control system may overheat.fStop as soon as possible in a safe place.Make sure that combustible materials, such as dry grass or leaves, cannot come into contact with the hot exhaust system.fSwitch off the engine.fHave the fault corrected at an authorized Porsche dealer.
Acoustic Signals
A speaker in the instrument panel generates acoustic signals.The warning message “ Instrument cluster/ Park Assist audio fault Service required ” will appear on the multi-function display in the instrument panel if a speaker fault occurs.The speaker cannot generate acoustic signals.fPlease see the chapter “OVERVIEW OF WARNING AND INFORMATION MESSAGES” on page 129.
Warning message
NOTICE
NOTICE
14_991_Turbo_21.book Seite 95 Mittwoch, 9. April 2014 2:19 14

96 Instrument Panel and Multi-Function Display
Operating the Multi-Function
Display on the Instrument Panel
On the multi-function display, you can view information relating to the relevant vehicle equipment, operate the audio source (radio, CD, iPod, etc.), check the oil level, check the tire pressure, use the stopwatch or operate the navigation system.You can also modify different vehicle settings in the “ Vehicle” menu.
It is not possible to describe all details of the functions in this Owner’s Manual. The examples clearly demonstrate the functional principle and clarify the menu structure.
You may be distracted from paying attention to the road if you set or operate the multi-function display, radio, navigation system, telephone or other equipment when driving. You may lose control of the vehicle.fOperate the equipment while driving only if the traffic situation allows you to do so safely.fCarry out any complicated operating or setting procedures only when the vehicle is stationary.
Multi-function display
Information
The multi-function display is only active when the ignition is on.Certain menus are only available when the vehicle has stopped, e.g. the adjustment menu for tire pressure monitoring.
Operating principle on vehicles without multi-function steering wheel
The multi-function display is operated with the lower lever on the right of the steering column.
Selecting menu, function, setting option
fPush the lever downwards (position 3) or upwards (position 4).
Confirming selection (Enter)
fPush the lever forward (position 1).
Moving back one or several selection levels
fPull the lever towards the steering wheel (position 2) once or several times.
Operation of the multi- function display, radio, navigation system, telephone etc. during driving.
WARNINGh
14_991_Turbo_21.book Seite 96 Mittwoch, 9. April 2014 2:19 14

Instrument Panel and Multi-Function Display 97
Operating principle on vehicles with multi-function steering wheel
The multi-function display is operated using the rotary knob A, the Back button B and the diamond ◊ button C, which can be assigned as required. fPlease see the chapter “FUNCTION BUTTONS ON THE MULTI-FUNCTION STEERING WHEEL” on page 53.
Selecting menu, function, setting option
fTurn rotary knob A upwards or downwards.
Confirming selection (Enter)
fPress rotary knob A.
Moving back one or several selection levels
fPress button B (Back button).
Individual assignment of the diamond button
Porsche Communication Management (PCM) functions, CDR functions or multi-function display functions can be assigned to the ◊ button in the multi-function display on the instrument panel. Audio source selection is preset by default.
For information on individual assignment of the ◊ button:fPlease see the chapter “CHANGING BUTTON ASSIGNMENT ON MULTI-FUNCTION STEERING WHEEL” on page 127.
For information on Porsche Communication Management (PCM) and CDR:fPlease refer to the separate operating instructions.
A - Upper status area B - Title area with menu indicator C - Information area D - Lower status area
Areas on the multi-function display
Upper status area/Lower status area
The upper A and lower status area D permanently display basic information, such as the radio station, compass, time and temperature or the remaining range.
14_991_Turbo_21.book Seite 97 Mittwoch, 9. April 2014 2:19 14

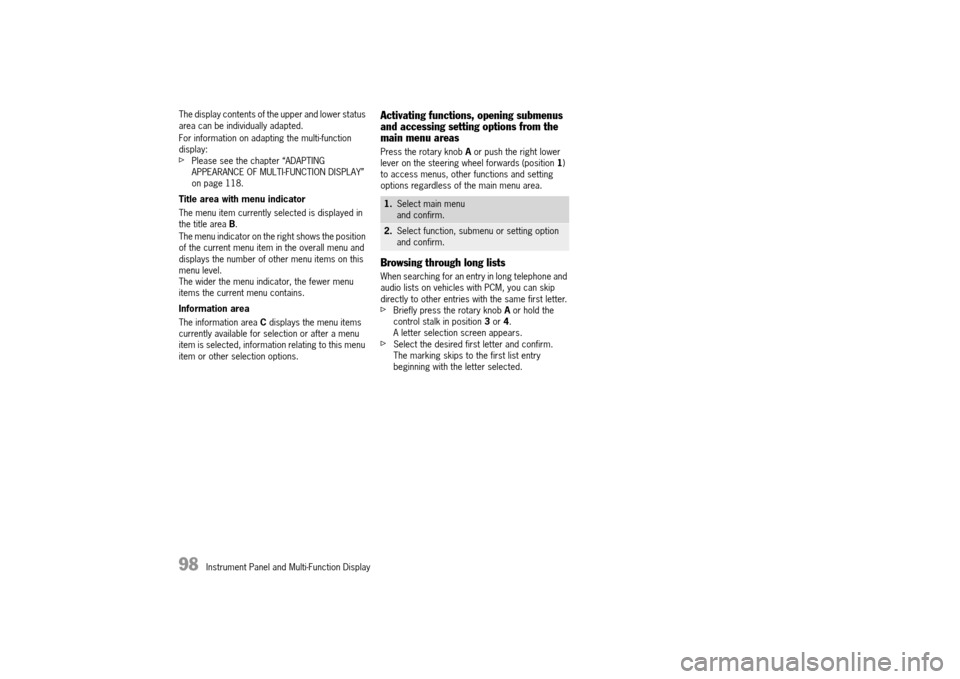

98 Instrument Panel and Multi-Function Display
The display contents of the upper and lower status area can be individually adapted.
For information on adapting the multi-function display:fPlease see the chapter “ADAPTING APPEARANCE OF MULTI-FUNCTION DISPLAY” on page 118.
Title area with menu indicator
The menu item currently selected is displayed in the title area B.
The menu indicator on the right shows the position of the current menu item in the overall menu and displays the number of other menu items on this menu level.The wider the menu indicator, the fewer menu items the current menu contains.
Information area
The information area C displays the menu items currently available for selection or after a menu item is selected, information relating to this menu item or other selection options.
Activating functions, opening submenus and accessing setting options from the main menu areas
Press the rotary knob A or push the right lower lever on the steering wheel forwards (position 1) to access menus, other functions and setting options regardless of the main menu area.
Browsing through long lists
When searching for an entry in long telephone and audio lists on vehicles with PCM, you can skip directly to other entries with the same first letter.fBriefly press the rotary knob A or hold the control stalk in position 3 or 4. A letter selection screen appears.fSelect the desired first letter and confirm.The marking skips to the first list entry beginning with the letter selected.
1. Select main menu and confirm.
2. Select function, submenu or setting option and confirm.
14_991_Turbo_21.book Seite 98 Mittwoch, 9. April 2014 2:19 14
