PORSCHE 911 TURBO 2014 6.G User Guide

Contents 9
Tire Pressure and Technical Data ..... 283
Vehicle Identification Data ............................ 284 Engine Data................................................ 285Driving Performance ................................... 285Wheels, Tires.............................................. 286Tire Pressure for Cold Tires (68 °F/ 20 °C) ... 287Weights...................................................... 288Dimensions ................................................ 288Filling Capacities ......................................... 289
Index .............................................. 290
14_991_Turbo_21.book Seite 9 Mittwoch, 9. April 2014 2:19 14

10 Overview Illustrations

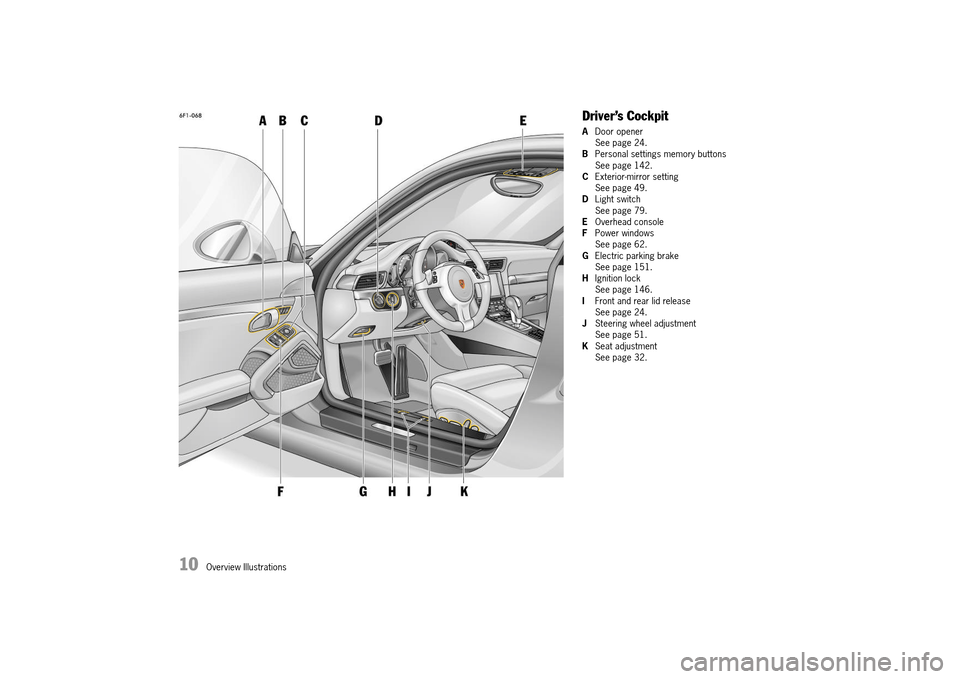

Driver’s Cockpit
ADoor opener See page 24.B Personal settings memory buttons See page 142.C Exterior-mirror setting See page 49.D Light switch See page 79.E Overhead console F Power windows See page 62.G Electric parking brake See page 151.H Ignition lock See page 146.I Front and rear lid release See page 24.J Steering wheel adjustment See page 51.K Seat adjustment See page 32.
14_991_Turbo_21.book Seite 10 Mittwoch, 9. April 2014 2:19 14

Overview Illustrations 11
Steering Wheel and
Instrument Panel
A PDK shift buttons See page 176.B Turn signal lights See page 82.C Engine oil pressure gauge See page 93.D Engine oil temperature gauge See page 92.E Speedometer See page 92.F Tachometer See page 95.G Multi-function display See page 96.H Coolant temperature gauge See page 92.I Fuel gauge See page 94.J Windshield wipers See page 86.K Cruise control See page 157.L Diagnostic socket (OBD) M Telephone controls, multi-function display See page 103.N Horn
14_991_Turbo_21.book Seite 11 Mittwoch, 9. April 2014 2:19 14

12 Overview Illustrations
Center Console
ASport Chrono watch See page 114.B Porsche Communication Management (PCM) See page 170.C Air vents See page 59.D Drinks holder/Cupholder See page 194.E Glove box See page 193.F Operating panel for air conditioning See page 55.G Center console See page 13.H Ashtray, cigarette lighter See page 195.I Oddments tray See page 194.
14_991_Turbo_21.book Seite 12 Mittwoch, 9. April 2014 2:19 14

Overview Illustrations 13

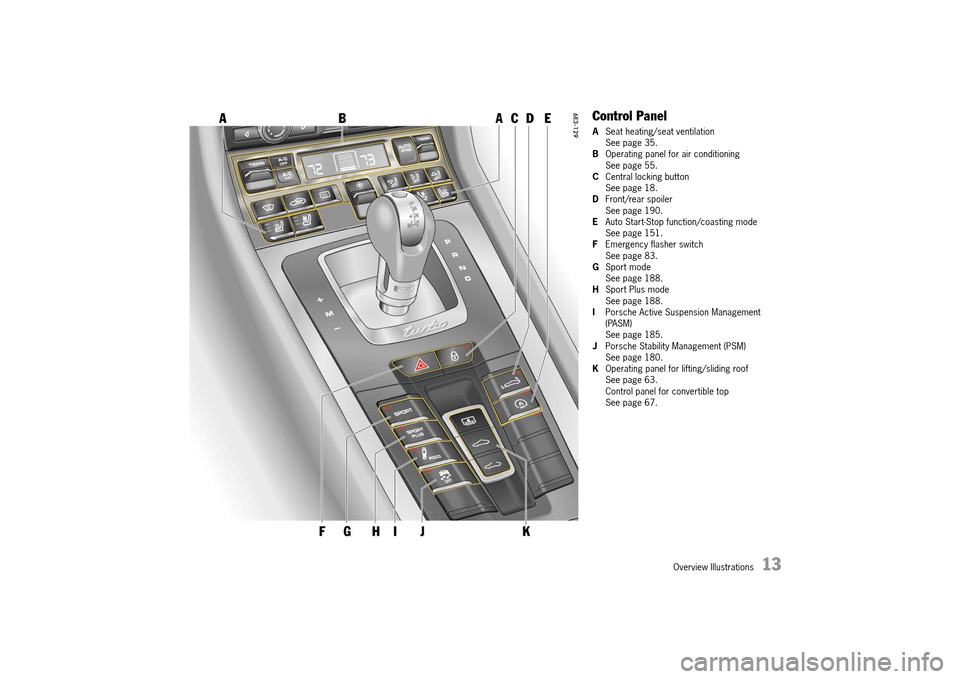

Control Panel
ASeat heating/seat ventilation See page 35.B Operating panel for air conditioning See page 55.C Central locking button See page 18.D Front/rear spoiler See page 190.E Auto Start-Stop function/coasting mode See page 151.F Emergency flasher switch See page 83.G Sport mode See page 188.H Sport Plus mode See page 188.I Porsche Active Suspension Management (PASM)See page 185.J Porsche Stability Management (PSM) See page 180.K Operating panel for lifting/sliding roof See page 63.Control panel for convertible topSee page 67.
14_991_Turbo_21.book Seite 13 Mittwoch, 9. April 2014 2:19 14

14 Overview Illustrations
Overhead Console
AButton for interior/reading lights See page 84.B PASS AIR BAG OFF warning light See page 45.C Interior light See page 84.D Reading lights See page 84.E ParkAssist See page 207.F Garage door opener (HomeLink®) See page 211.G Button for interior/reading lights See page 84.
14_991_Turbo_21.book Seite 14 Mittwoch, 9. April 2014 2:19 14

Opening and Locking 15
Opening and Locking
Never invite car theft! ....................................16 Notes on the Key and Central Locking System ...........................................16Central Locking System .................................18Brief Overview – Opening and Locking from Outside ........................................................19Opening and Locking from Outside .................20Opening and Locking from Inside....................23Opening and Closing the Luggage Compartment Lid and Engine Cover................24Malfunctions when Opening and Closing ..........26Trunk Entrapment .........................................30
14_991_Turbo_21.book Seite 15 Mittwoch, 9. April 2014 2:19 14

16 Opening and Locking

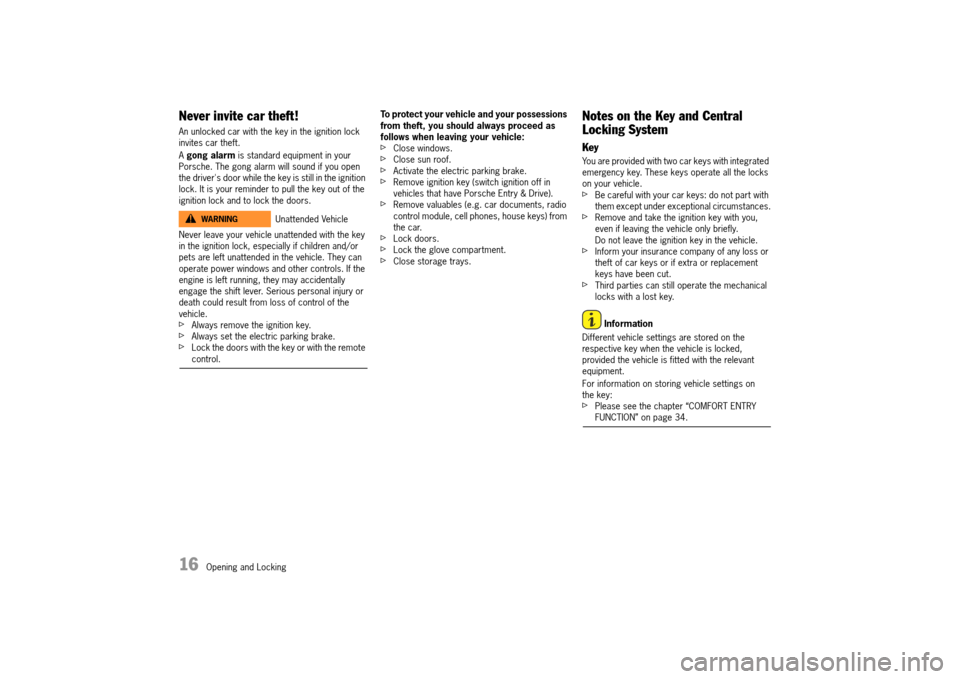

Never invite car theft!
An unlocked car with the key in the ignition lock invites car theft.
A gong alarm is standard equipment in your Porsche. The gong alarm will sound if you open the driver's door while the key is still in the ignition lock. It is your reminder to pull the key out of the ignition lock and to lock the doors.
Never leave your vehicle unattended with the key in the ignition lock, especially if children and/or pets are left unattended in the vehicle. They can operate power windows and other controls. If the engine is left running, they may accidentally engage the shift lever. Serious personal injury or death could result from loss of control of the vehicle.fAlways remove the ignition key.fAlways set the electric parking brake.fLock the doors with the key or with the remote control.
To protect your vehicle and your possessions from theft, you should always proceed as follows when leaving your vehicle:fClose windows.fClose sun roof.fActivate the electric parking brake.fRemove ignition key (switch ignition off in vehicles that have Porsche Entry & Drive).fRemove valuables (e.g. car documents, radio control module, cell phones, house keys) from the car.fLock doors.fLock the glove compartment.fClose storage trays.
Notes on the Key and Central
Locking System
Key
You are provided with two car keys with integrated emergency key. These keys operate all the locks on your vehicle.fBe careful with your car keys: do not part with them except under exceptional circumstances.fRemove and take the ignition key with you, even if leaving the vehicle only briefly.Do not leave the ignition key in the vehicle.fInform your insurance company of any loss or theft of car keys or if extra or replacement keys have been cut.fThird parties can still operate the mechanical locks with a lost key.
Information
Different vehicle settings are stored on the respective key when the vehicle is locked, provided the vehicle is fitted with the relevant equipment.
For information on storing vehicle settings on the key:fPlease see the chapter “COMFORT ENTRY FUNCTION” on page 34.
Unattended VehicleWARNINGh
14_991_Turbo_21.book Seite 16 Mittwoch, 9. April 2014 2:19 14

Opening and Locking 17

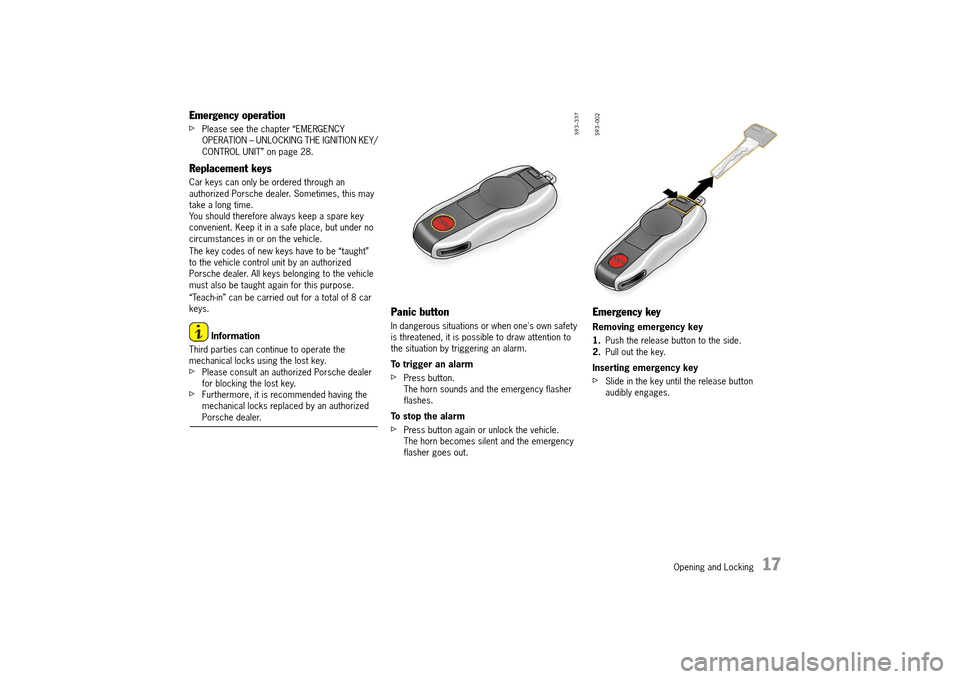

Emergency operation
fPlease see the chapter “EMERGENCY OPERATION – UNLOCKING THE IGNITION KEY/CONTROL UNIT” on page 28.
Replacement keys
Car keys can only be ordered through an authorized Porsche dealer. Sometimes, this may take a long time.You should therefore always keep a spare key convenient. Keep it in a safe place, but under no circumstances in or on the vehicle.
The key codes of new keys have to be “taught” to the vehicle control unit by an authorized Porsche dealer. All keys belonging to the vehicle must also be taught again for this purpose.
“Teach-in” can be carried out for a total of 8 car keys.
Information
Third parties can continue to operate the mechanical locks using the lost key. fPlease consult an authorized Porsche dealer for blocking the lost key. fFurthermore, it is recommended having the mechanical locks replaced by an authorized Porsche dealer.
Panic button
In dangerous situations or when one's own safety is threatened, it is possible to draw attention to the situation by triggering an alarm.
To trigger an alarm
fPress button. The horn sounds and the emergency flasher flashes.
To stop the alarm
fPress button again or unlock the vehicle. The horn becomes silent and the emergency flasher goes out.
Emergency key
Removing emergency key
1. Push the release button to the side. 2. Pull out the key.
Inserting emergency key
fSlide in the key until the release button audibly engages.
14_991_Turbo_21.book Seite 17 Mittwoch, 9. April 2014 2:19 14

18 Opening and Locking

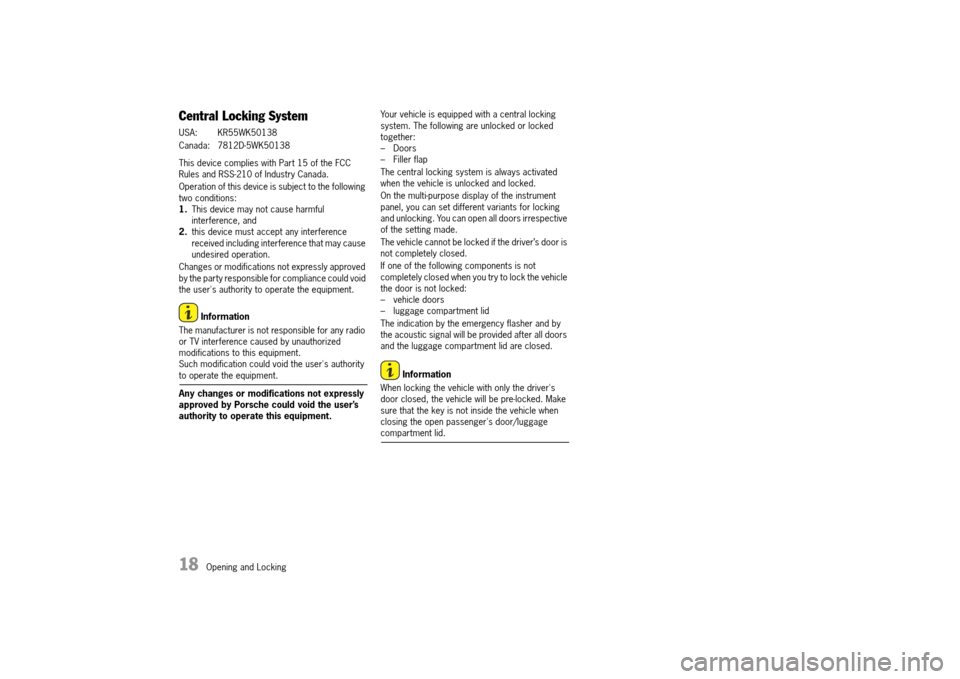

Central Locking System
This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada.
Operation of this device is subject to the following two conditions:1. This device may not cause harmful interference, and 2. this device must accept any interference received including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Information
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modification could void the user's authority to operate the equipment.
Any changes or modifications not expressly approved by Porsche could void the user’s authority to operate this equipment.
Your vehicle is equipped with a central locking system. The following are unlocked or locked together:– Doors– Filler flap
The central locking system is always activated when the vehicle is unlocked and locked.
On the multi-purpose display of the instrument panel, you can set different variants for locking and unlocking. You can open all doors irrespective of the setting made.
The vehicle cannot be locked if the driver’s door is not completely closed.
If one of the following components is not completely closed when you try to lock the vehicle the door is not locked:– vehicle doors– luggage compartment lid
The indication by the emergency flasher and by the acoustic signal will be provided after all doors and the luggage compartment lid are closed.
Information
When locking the vehicle with only the driver's door closed, the vehicle will be pre-locked. Make sure that the key is not inside the vehicle when closing the open passenger's door/luggage compartment lid.
USA: KR55WK50138
Canada: 7812D-5WK50138
