PORSCHE 911 TURBO 2014 6.G Workshop Manual
Manufacturer: PORSCHE, Model Year: 2014, Model line: 911 TURBO, Model: PORSCHE 911 TURBO 2014 6.GPages: 300, PDF Size: 10.61 MB

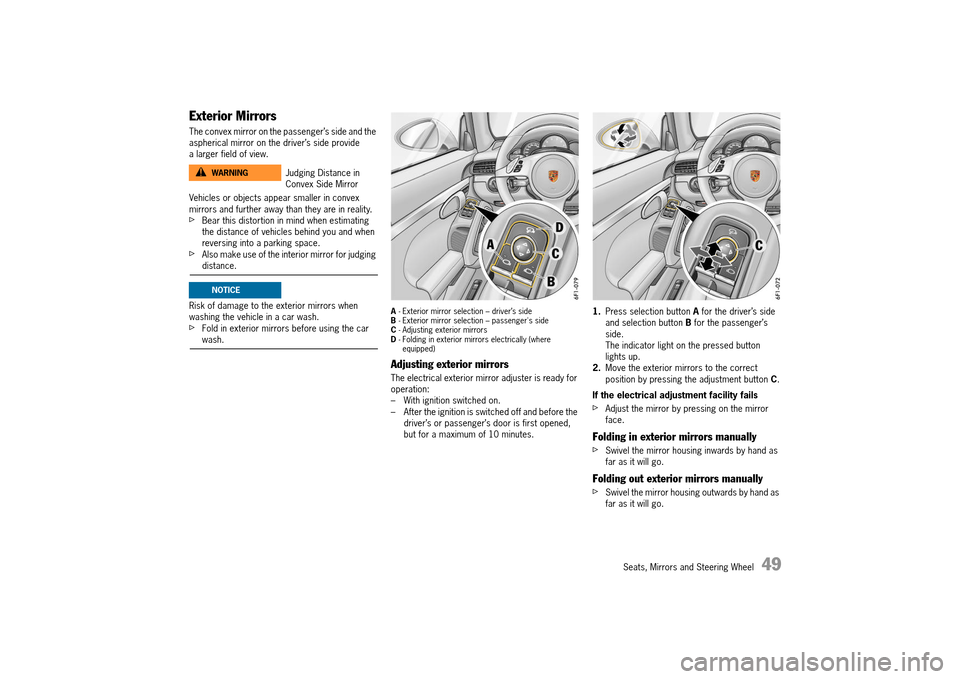

Page 51 of 300
Seats, Mirrors and Steering Wheel 49
Exterior Mirrors
The convex mirror on the passenger’s side and the aspherical mirror on the driver’s side provide a larger field of view.
Vehicles or objects appear smaller in convex mirrors and further away than they are in reality.fBear this distortion in mind when estimating the distance of vehicles behind you and when reversing into a parking space.fAlso make use of the interior mirror for judging distance.
Risk of damage to the exterior mirrors when washing the vehicle in a car wash.fFold in exterior mirrors before using the car wash.
A - Exterior mirror selection – driver’s side B - Exterior mirror selection – passenger's side C - Adjusting exterior mirrors D - Folding in exterior mirrors electrically (where equipped)
Adjusting exterior mirrors
The electrical exterior mirror adjuster is ready for operation:– With ignition switched on.– After the ignition is switched off and before the driver’s or passenger’s door is first opened, but for a maximum of 10 minutes.
1. Press selection button A for the driver’s side and selection button B for the passenger’s side.The indicator light on the pressed button lights up.2. Move the exterior mirrors to the correct position by pressing the adjustment button C.
If the electrical adjustment facility fails
fAdjust the mirror by pressing on the mirror face.
Folding in exterior mirrors manually
fSwivel the mirror housing inwards by hand as far as it will go.
Folding out exterior mirrors manually
fSwivel the mirror housing outwards by hand as far as it will go.
Judging Distance in Convex Side Mirror
WARNINGh
NOTICE
14_991_Turbo_21.book Seite 49 Mittwoch, 9. April 2014 2:19 14

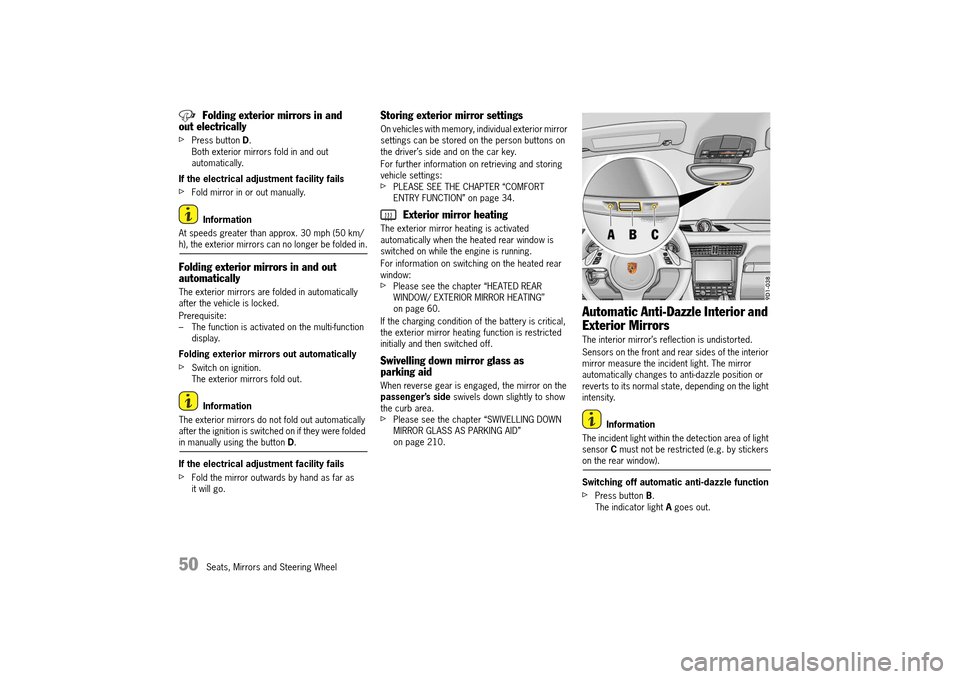

Page 52 of 300
50 Seats, Mirrors and Steering Wheel
Folding exterior mirrors in and out electrically
fPress button D. Both exterior mirrors fold in and out automatically.
If the electrical adjustment facility fails
fFold mirror in or out manually.
Information
At speeds greater than approx. 30 mph (50 km/h), the exterior mirrors can no longer be folded in.
Folding exterior mirrors in and out automatically
The exterior mirrors are folded in automatically after the vehicle is locked.
Prerequisite: – The function is activated on the multi-function display.
Folding exterior mirrors out automatically
fSwitch on ignition. The exterior mirrors fold out.
Information
The exterior mirrors do not fold out automatically after the ignition is switched on if they were folded in manually using the button D.
If the electrical adjustment facility fails
fFold the mirror outwards by hand as far as it will go.
Storing exterior mirror settings
On vehicles with memory, individual exterior mirror settings can be stored on the person buttons on the driver’s side and on the car key.
For further information on retrieving and storing vehicle settings:fPLEASE SEE THE CHAPTER “COMFORT ENTRY FUNCTION” on page 34.
Exterior mirror heating
The exterior mirror heating is activated automatically when the heated rear window is switched on while the engine is running.
For information on switching on the heated rear window:fPlease see the chapter “HEATED REAR WINDOW/ EXTERIOR MIRROR HEATING” on page 60.
If the charging condition of the battery is critical, the exterior mirror heating function is restricted initially and then switched off.
Swivelling down mirror glass as parking aid
When reverse gear is engaged, the mirror on the passenger’s side swivels down slightly to show the curb area.fPlease see the chapter “SWIVELLING DOWN MIRROR GLASS AS PARKING AID” on page 210.
Automatic Anti-Dazzle Interior and
Exterior Mirrors
The interior mirror’s reflection is undistorted.
Sensors on the front and rear sides of the interior mirror measure the incident light. The mirror automatically changes to anti-dazzle position or reverts to its normal state, depending on the light intensity.
Information
The incident light within the detection area of light sensor C must not be restricted (e.g. by stickers on the rear window).
Switching off automatic anti-dazzle function
fPress button B. The indicator light A goes out.
14_991_Turbo_21.book Seite 50 Mittwoch, 9. April 2014 2:19 14

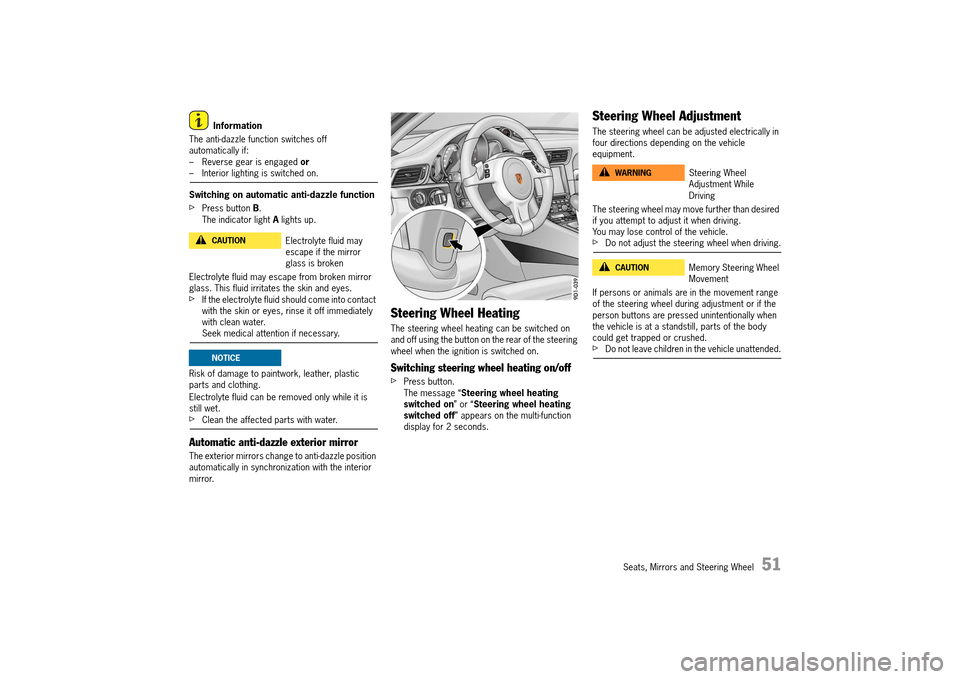

Page 53 of 300
Seats, Mirrors and Steering Wheel 51
Information
The anti-dazzle function switches off automatically if:– Reverse gear is engaged or– Interior lighting is switched on.
Switching on automatic anti-dazzle function
fPress button B. The indicator light A lights up.
Electrolyte fluid may escape from broken mirror glass. This fluid irritates the skin and eyes.fIf the electrolyte fluid should come into contact with the skin or eyes, rinse it off immediately with clean water.Seek medical attention if necessary.
Risk of damage to paintwork, leather, plastic parts and clothing.
Electrolyte fluid can be removed only while it is still wet.fClean the affected parts with water.
Automatic anti-dazzle exterior mirror
The exterior mirrors change to anti-dazzle position automatically in synchronization with the interior mirror.
Steering Wheel Heating
The steering wheel heating can be switched on and off using the button on the rear of the steering wheel when the ignition is switched on.
Switching steering wheel heating on/off
fPress button.The message “ Steering wheel heating switched on ” or “Steering wheel heating switched off ” appears on the multi-function display for 2 seconds.
Steering Wheel Adjustment
The steering wheel can be adjusted electrically in four directions depending on the vehicle equipment.
The steering wheel may move further than desired if you attempt to adjust it when driving.You may lose control of the vehicle.fDo not adjust the steering wheel when driving.
If persons or animals are in the movement range of the steering wheel during adjustment or if the person buttons are pressed unintentionally when the vehicle is at a standstill, parts of the body could get trapped or crushed.fDo not leave children in the vehicle unattended.
Electrolyte fluid may escape if the mirror glass is broken
CAUTIONh
NOTICE
Steering Wheel Adjustment While Driving
Memory Steering Wheel Movement
WARNINGh
CAUTIONh
14_991_Turbo_21.book Seite 51 Mittwoch, 9. April 2014 2:19 14

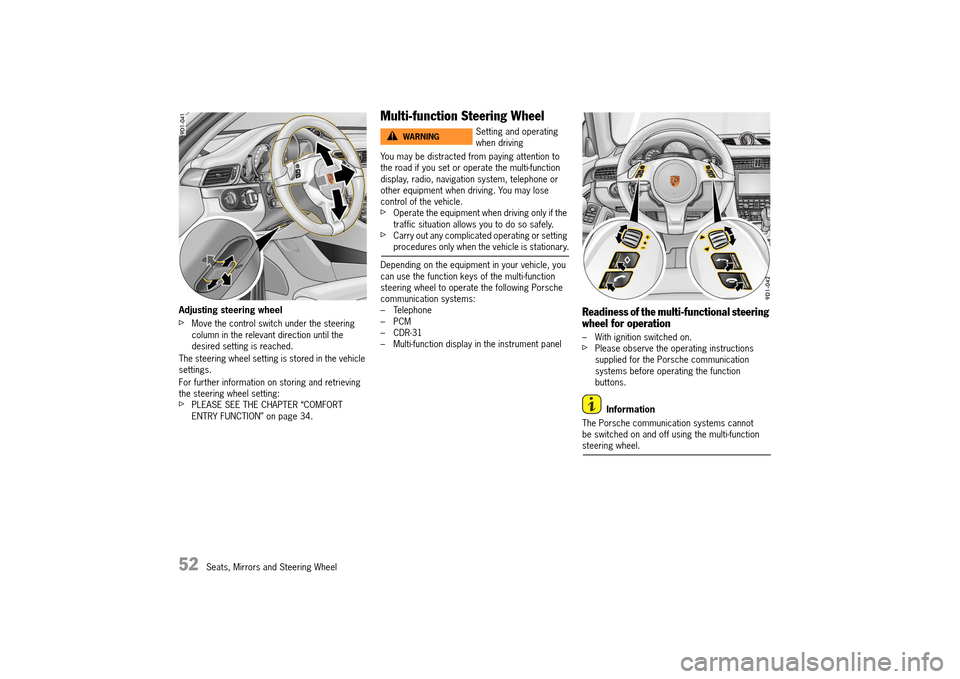

Page 54 of 300
52 Seats, Mirrors and Steering Wheel
Adjusting steering wheel
fMove the control switch under the steering column in the relevant direction until the desired setting is reached.
The steering wheel setting is stored in the vehicle settings.
For further information on storing and retrieving the steering wheel setting:fPLEASE SEE THE CHAPTER “COMFORT ENTRY FUNCTION” on page 34.
Multi-function Steering Wheel
You may be distracted from paying attention to the road if you set or operate the multi-function display, radio, navigation system, telephone or other equipment when driving. You may lose control of the vehicle.fOperate the equipment when driving only if the traffic situation allows you to do so safely.fCarry out any complicated operating or setting procedures only when the vehicle is stationary.
Depending on the equipment in your vehicle, you can use the function keys of the multi-function steering wheel to operate the following Porsche communication systems:– Telephone– PCM– CDR-31– Multi-function display in the instrument panel
Readiness of the multi-functional steering wheel for operation
– With ignition switched on.fPlease observe the operating instructions supplied for the Porsche communication systems before operating the function buttons.
Information
The Porsche communication systems cannot be switched on and off using the multi-function steering wheel.
Setting and operating when drivingWARNINGh
14_991_Turbo_21.book Seite 52 Mittwoch, 9. April 2014 2:19 14

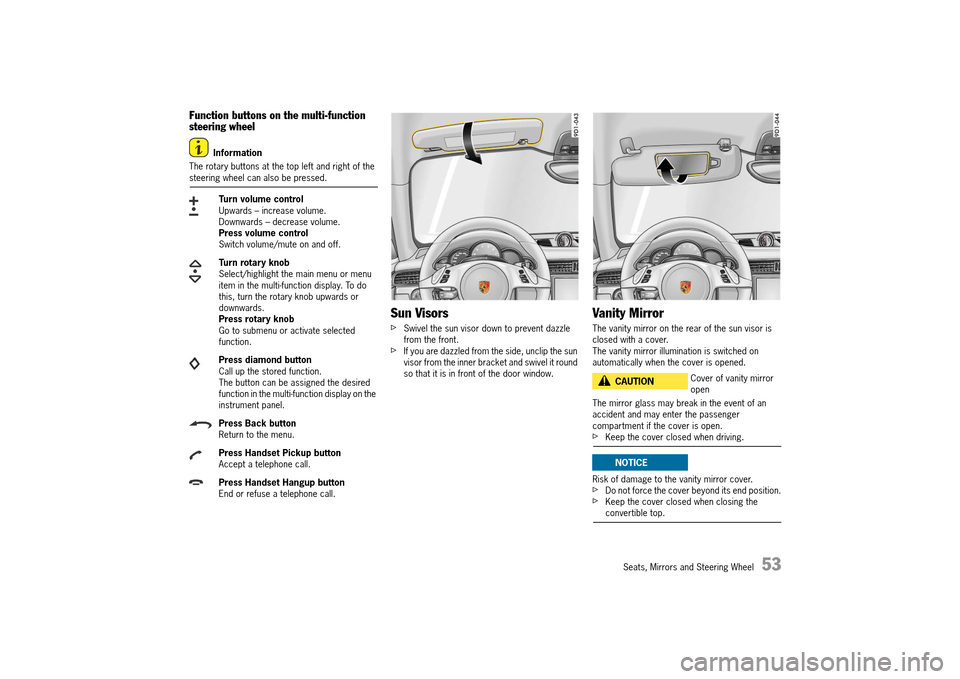

Page 55 of 300
Seats, Mirrors and Steering Wheel 53
Function buttons on the multi-function steering wheel
Information
The rotary buttons at the top left and right of the steering wheel can also be pressed.
Sun Visors
fSwivel the sun visor down to prevent dazzle from the front.fIf you are dazzled from the side, unclip the sun visor from the inner bracket and swivel it round so that it is in front of the door window.
Vanity Mirror
The vanity mirror on the rear of the sun visor is closed with a cover. The vanity mirror illumination is switched on automatically when the cover is opened.
The mirror glass may break in the event of an accident and may enter the passenger compartment if the cover is open.fKeep the cover closed when driving.
Risk of damage to the vanity mirror cover.fDo not force the cover beyond its end position.fKeep the cover closed when closing the convertible top.
Turn volume control Upwards – increase volume.Downwards – decrease volume.Press volume controlSwitch volume/mute on and off.
Turn rotary knob Select/highlight the main menu or menu item in the multi-function display. To do this, turn the rotary knob upwards or downwards.Press rotary knobGo to submenu or activate selected function.
Press diamond button Call up the stored function.The button can be assigned the desired function in the multi-function display on the instrument panel.
Press Back button Return to the menu.
Press Handset Pickup button Accept a telephone call.
Press Handset Hangup button End or refuse a telephone call.
Cover of vanity mirror openCAUTIONh
NOTICE
14_991_Turbo_21.book Seite 53 Mittwoch, 9. April 2014 2:19 14

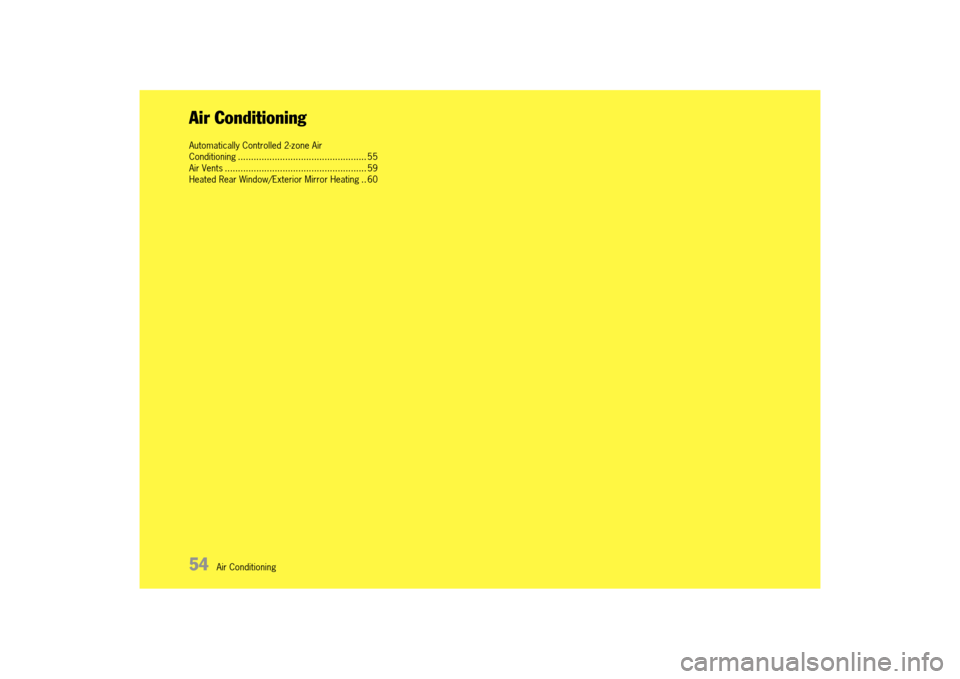

Page 56 of 300
54 Air Conditioning
Air Conditioning
Automatically Controlled 2-zone Air Conditioning ................................................. 55Air Vents ...................................................... 59Heated Rear Window/Exterior Mirror Heating .. 60
14_991_Turbo_21.book Seite 54 Mittwoch, 9. April 2014 2:19 14
Page 57 of 300
Air Conditioning 55
Automatically Controlled 2-zone
Air Conditioning
The temperature can be set individually for the driver’s and passenger’s side.
In automatic mode the air conditioning system exercises full control over the air temperature, air distribution, and air quantity. A number of factors (such as ambient air temperature, amount of sunlight, etc...) are used by the system to determine the optimum settings for the current situation.
Automatic mode is deactivated as soon as the settings are adjusted manually. In this case, automatic climate control still regulates the air-conditioning functions that have not been modified manually.
Interior temperature sensor
Sensors
To avoid impairing the function of the air conditioning system, the interior temperature sensor for the air-conditioning system must not be covered or taped over.
Information
Additional air conditioning settings can be made on the multi-function display on the instrument panel:fPlease see the chapter “SETTING AIR CONDITIONING” on page 123.
All air-conditioning system settings are stored on the respective car key when the vehicle is locked, on vehicles with memory.
Information on air-conditioning compressor
The air-conditioning compressor – Can switch off briefly to ensure sufficient engine cooling if the engine is operating under extreme load.– Switches off automatically at temperatures below approx. 36 °F (2 °C) and cannot be switched on, even manually.– Operates most effectively with the windows closed.If the vehicle has been in the sun for a long time, it is a good idea to ventilate the interior briefly with the windows open.– Depending on the outside temperature and humidity, condensation can drip from the evaporator and form a pool under the vehicle.This is normal and not a sign of leakage.
Information on automatic load switch-off
If the charging condition of the battery is critical, the following air-conditioning or heating functions are restricted initially and then switched off:– Seat heating– Seat ventilation– Heated rear window/Exterior mirror heating– Fresh-air blower– Air-conditioning compressor
14_991_Turbo_21.book Seite 55 Mittwoch, 9. April 2014 2:19 14

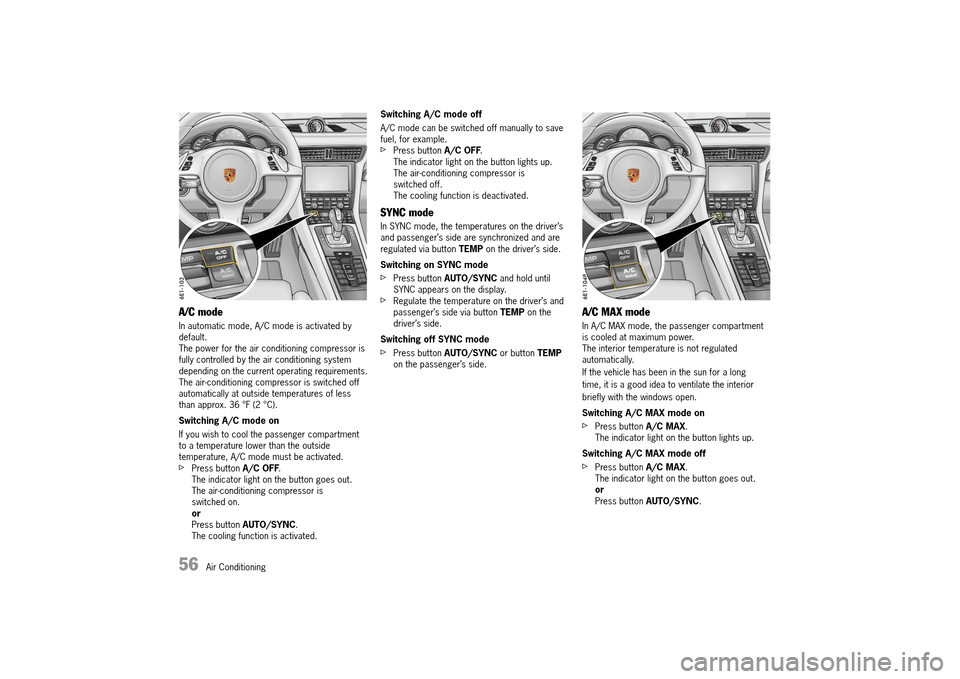

Page 58 of 300
56 Air Conditioning
A/C mode
In automatic mode, A/C mode is activated by default.The power for the air conditioning compressor is fully controlled by the air conditioning system depending on the current operating requirements.The air-conditioning compressor is switched off automatically at outside temperatures of less than approx. 36 °F (2 °C).
Switching A/C mode on
If you wish to cool the passenger compartment to a temperature lower than the outside temperature, A/C mode must be activated.fPress button A/C OFF. The indicator light on the button goes out.The air-conditioning compressor is switched on.orPress button AUTO/SYNC. The cooling function is activated.
Switching A/C mode off
A/C mode can be switched off manually to save fuel, for example.fPress button A/C OFF. The indicator light on the button lights up.The air-conditioning compressor is switched off.The cooling function is deactivated.
SYNC mode
In SYNC mode, the temperatures on the driver’s and passenger’s side are synchronized and are regulated via button TEMP on the driver’s side.
Switching on SYNC mode
fPress button AUTO/SYNC and hold until SYNC appears on the display.fRegulate the temperature on the driver’s and passenger’s side via button TEMP on the driver’s side.
Switching off SYNC mode
fPress button AUTO/SYNC or button TEMP on the passenger’s side.
A/C MAX mode
In A/C MAX mode, the passenger compartment is cooled at maximum power.The interior temperature is not regulated automatically.
If the vehicle has been in the sun for a long
time, it is a good idea to ventilate the interior
briefly with the windows open.
Switching A/C MAX mode on
fPress button A/C MAX. The indicator light on the button lights up.
Switching A/C MAX mode off
fPress button A/C MAX. The indicator light on the button goes out.orPress button AUTO/SYNC.
14_991_Turbo_21.book Seite 56 Mittwoch, 9. April 2014 2:19 14

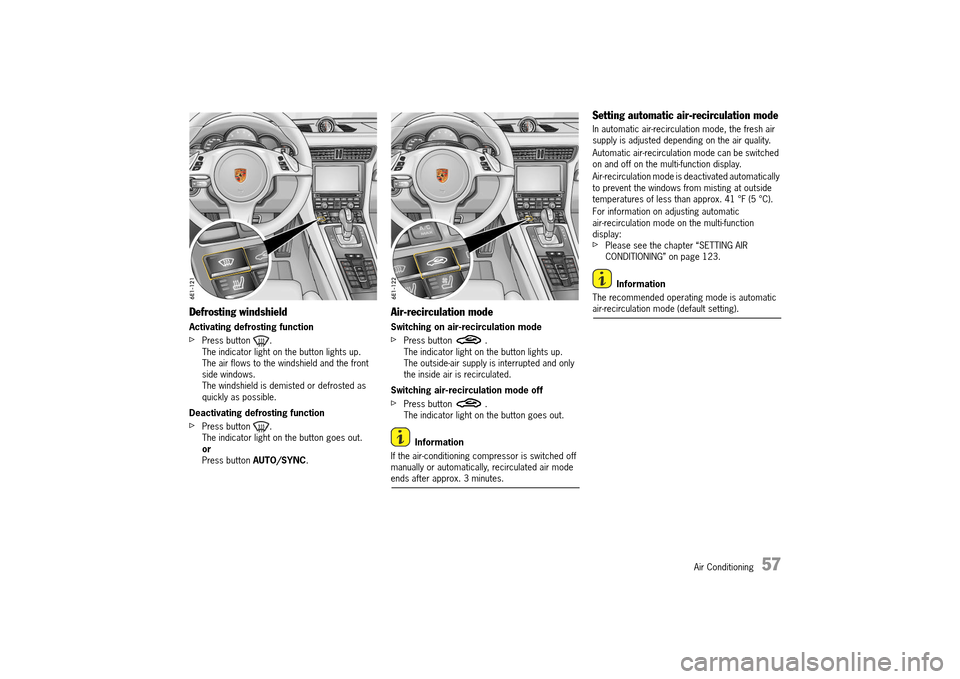

Page 59 of 300
Air Conditioning 57
Defrosting windshield
Activating defrosting function
fPress button . The indicator light on the button lights up.The air flows to the windshield and the front side windows.The windshield is demisted or defrosted as quickly as possible.
Deactivating defrosting function
fPress button . The indicator light on the button goes out.orPress button AUTO/SYNC.
Air-recirculation mode
Switching on air-recirculation mode
fPress button . The indicator light on the button lights up.The outside-air supply is interrupted and only the inside air is recirculated.
Switching air-recirculation mode off
fPress button . The indicator light on the button goes out.
Information
If the air-conditioning compressor is switched off manually or automatically, recirculated air mode ends after approx. 3 minutes.
Setting automatic air-recirculation mode
In automatic air-recirculation mode, the fresh air supply is adjusted depending on the air quality.
Automatic air-recirculation mode can be switched on and off on the multi-function display.
Air-recirculation mode is deactivated automatically to prevent the windows from misting at outside temperatures of less than approx. 41 °F (5 °C).
For information on adjusting automatic air-recirculation mode on the multi-function display:fPlease see the chapter “SETTING AIR CONDITIONING” on page 123.
Information
The recommended operating mode is automatic air-recirculation mode (default setting).
14_991_Turbo_21.book Seite 57 Mittwoch, 9. April 2014 2:19 14

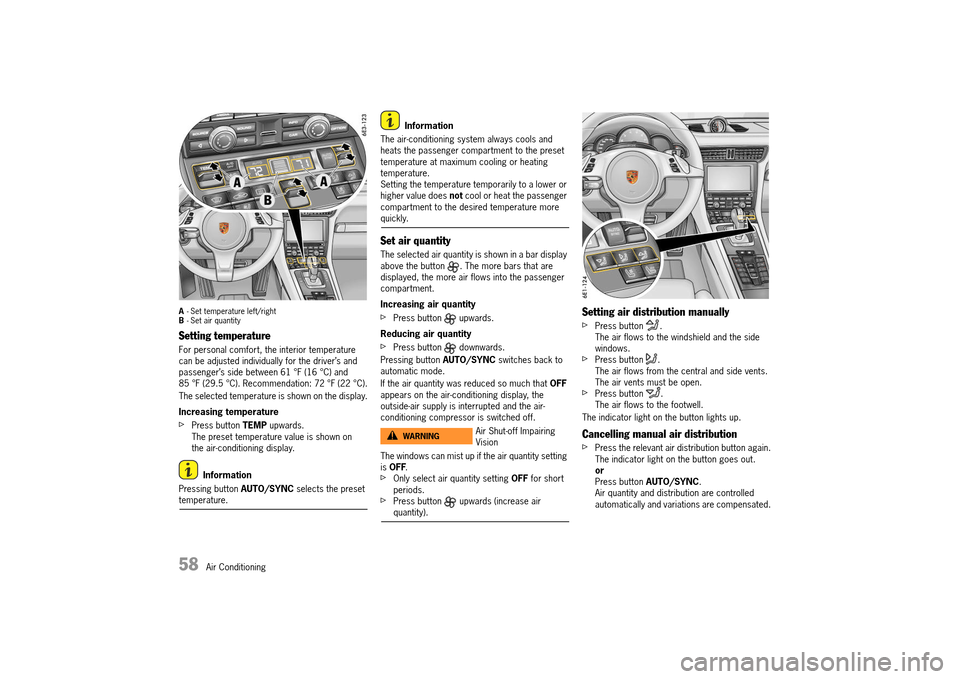

Page 60 of 300
58 Air Conditioning
A- Set temperature left/right B - Set air quantity
Setting temperature
For personal comfort, the interior temperature can be adjusted individually for the driver’s and passenger’s side between 61 °F (16 °C) and 85 °F (29.5 °C). Recommendation: 72 °F (22 °C).
The selected temperature is shown on the display.
Increasing temperature
fPress button TEMP upwards. The preset temperature value is shown on the air-conditioning display.
Information
Pressing button AUTO/SYNC selects the preset temperature.
Information
The air-conditioning system always cools and heats the passenger compartment to the preset temperature at maximum cooling or heating temperature.Setting the temperature temporarily to a lower or higher value does not cool or heat the passenger compartment to the desired temperature more quickly.
Set air quantity
The selected air quantity is shown in a bar display above the button . The more bars that are displayed, the more air flows into the passenger compartment.
Increasing air quantity
fPress button upwards.
Reducing air quantity
fPress button downwards.
Pressing button AUTO/SYNC switches back to automatic mode.
If the air quantity was reduced so much that OFF appears on the air-conditioning display, the outside-air supply is interrupted and the air-conditioning compressor is switched off.
The windows can mist up if the air quantity setting is OFF.fOnly select air quantity setting OFF for short periods.fPress button upwards (increase air quantity).
Setting air distribution manually
fPress button . The air flows to the windshield and the side windows.fPress button .The air flows from the central and side vents. The air vents must be open.fPress button .The air flows to the footwell.
The indicator light on the button lights up.
Cancelling manual air distribution
fPress the relevant air distribution button again. The indicator light on the button goes out.orPress button AUTO/SYNC. Air quantity and distribution are controlled automatically and variations are compensated.
Air Shut-off Impairing VisionWARNINGh
14_991_Turbo_21.book Seite 58 Mittwoch, 9. April 2014 2:19 14
