Opening and Locking 19

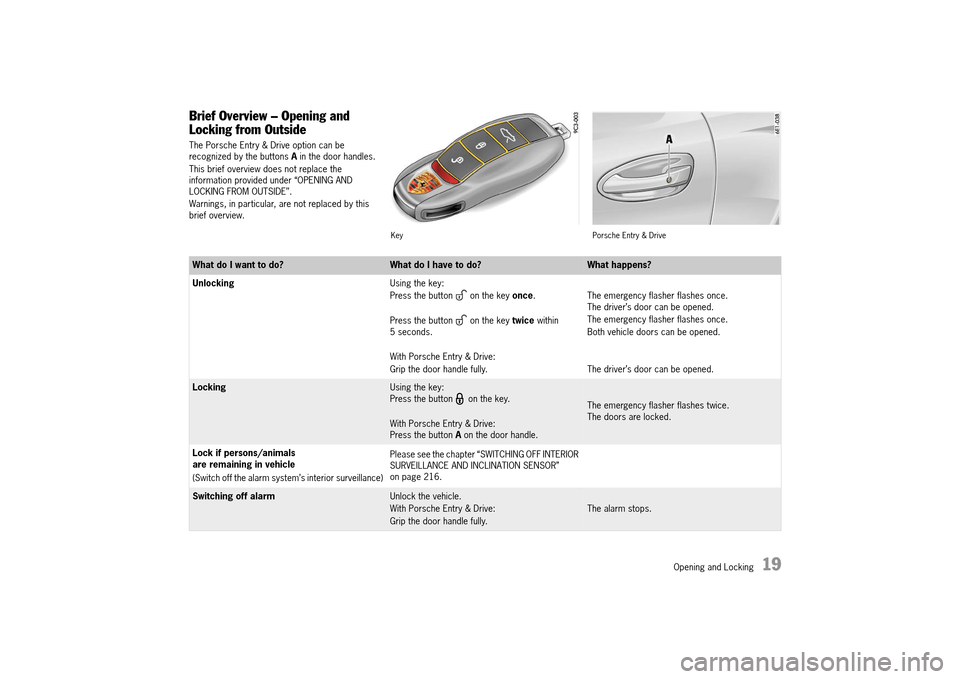

Brief Overview – Opening and
Locking from Outside
The Porsche Entry & Drive option can be recognized by the buttons A in the door handles.
This brief overview does not replace the information provided under “OPENING AND LOCKING FROM OUTSIDE”.
Warnings, in particular, are not replaced by this brief overview.
Key Porsche Entry & Drive
What do I want to do?What do I have to do?What happens?
Unlocking Using the key:
Press the button on the key once.
Press the button on the key twice within 5 seconds.
With Porsche Entry & Drive:
Grip the door handle fully.
The emergency flasher flashes once. The driver’s door can be opened.
The emergency flasher flashes once.
Both vehicle doors can be opened.
The driver’s door can be opened.
LockingUsing the key: Press the button on the key.
With Porsche Entry & Drive: Press the button A on the door handle.
The emergency flasher flashes twice. The doors are locked.
Lock if persons/animals are remaining in vehicle
(Switch off the alarm system’s interior surveillance)
Please see the chapter “SWITCHING OFF INTERIOR SURVEILLANCE AND INCLINATION SENSOR” on page 216.
Switching off alarmUnlock the vehicle.
With Porsche Entry & Drive:
Grip the door handle fully.
The alarm stops.
14_991_Turbo_21.book Seite 19 Mittwoch, 9. April 2014 2:19 14

20 Opening and Locking

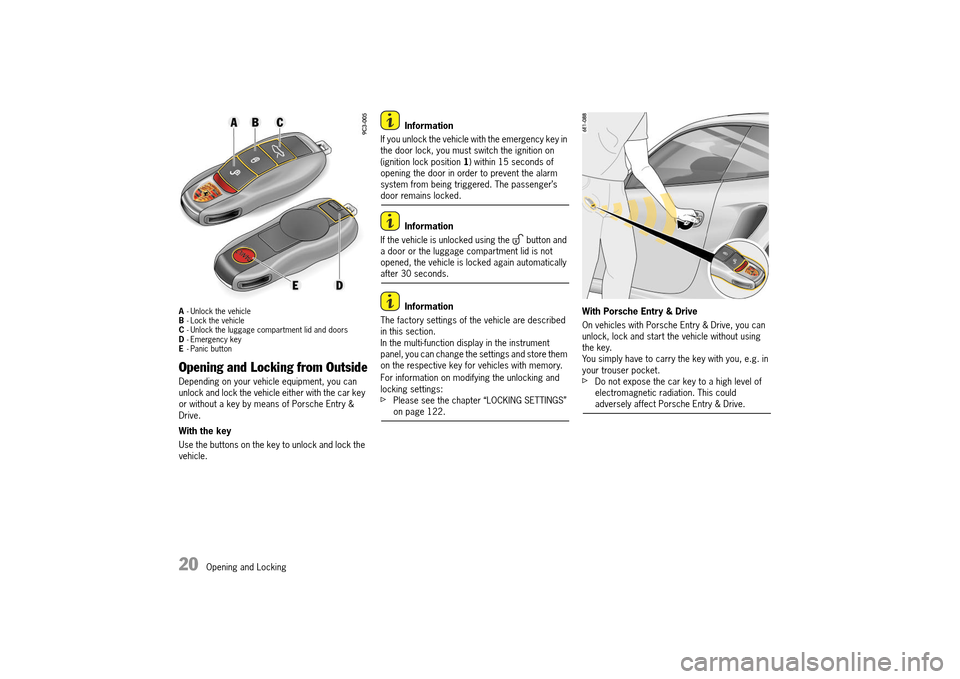

A- Unlock the vehicle B - Lock the vehicle C - Unlock the luggage compartment lid and doors D - Emergency key E - Panic button
Opening and Locking from Outside
Depending on your vehicle equipment, you can unlock and lock the vehicle either with the car key or without a key by means of Porsche Entry & Drive.
With the key
Use the buttons on the key to unlock and lock the vehicle.
Information
If you unlock the vehicle with the emergency key in the door lock, you must switch the ignition on (ignition lock position 1) within 15 seconds of opening the door in order to prevent the alarm system from being triggered. The passenger’s door remains locked.
Information
If the vehicle is unlocked using the button and a door or the luggage compartment lid is not opened, the vehicle is locked again automatically after 30 seconds.
Information
The factory settings of the vehicle are described in this section.In the multi-function display in the instrument panel, you can change the settings and store them on the respective key for vehicles with memory.
For information on modifying the unlocking and locking settings: fPlease see the chapter “LOCKING SETTINGS” on page 122.
With Porsche Entry & Drive
On vehicles with Porsche Entry & Drive, you can unlock, lock and start the vehicle without using the key.You simply have to carry the key with you, e.g. in your trouser pocket. fDo not expose the car key to a high level of electromagnetic radiation. This could adversely affect Porsche Entry & Drive.
14_991_Turbo_21.book Seite 20 Mittwoch, 9. April 2014 2:19 14

Opening and Locking 21
Unlocking and opening doors
Unlocking with the key
1. Press button once. The emergency flasher flashes once.The driver’s door is unlocked.orPress button twice within 5 seconds. The emergency flasher flashes once.Both vehicle doors are unlocked.2. Pull the door handle.
Unlocking with Porsche Entry & Drive (keyless)
Either door can be unlocked if you have the key and position yourself on the side of the vehicle (driver’s side, passenger’s side) that you wish to open.1. Grip the door handle fully. The emergency flasher flashes once.The doors are unlocked.2. Pull the door handle.
Information
The vehicle is locked automatically after 30 seconds if none of the doors or the luggage compartment is opened.
If the interior surveillance system and inclination sensor have been switched off (restricted anti-theft protection), this also remains the case after automatic relocking.As a result, the doors can be opened from inside by pulling the door opener.fInform any persons remaining in the vehicle that the alarm system will be triggered if the door is opened.
When locked again, the interior surveillance system and inclination sensor are activated once more.
Switching off operational readiness (for vehicles with Porsche Entry & Drive)
Operational readiness of Porsche Entry & Drive is switched off after 96 hours for the driver’s door and after 36 hours for the passenger door if the vehicle is not unlocked within this time.1. Pull the door handle once to activate the system again.2. Pull the door handle again to open the door.
Side-selective door unlock function
When unlocking the vehicle, you can choose to unlock only the driver's door or also the passenger's door. You can unlock both doors irrespective of the selected setting. fPress button on the key twice within 5 seconds.
For information on modifying the opening and locking settings: fPlease see the chapter “LOCKING SETTINGS” on page 122.
14_991_Turbo_21.book Seite 21 Mittwoch, 9. April 2014 2:19 14

22 Opening and Locking
Locking doors
Locking with the key
1. Close the door. 2. Press button once. The emergency flasher flashes twice and an acoustic signal will sound twice.The doors cannot be opened from outside.orIf persons or animals are remaining in the vehicle , press button twice within 2 seconds.The emergency flasher emits one long flash.The alarm system’s interior surveillance is switched off.The doors can be opened from inside by pulling on the door opener.fInform any persons remaining in the vehicle that the alarm system will be triggered if the door is opened.
Information
When locking the vehicle with only the driver's door closed, the vehicle will be pre-locked. Make sure that the key is not inside the vehicle when closing the open passenger's door/luggage compartment lid.
Information
The emergency flasher indicates that the vehicle has been locked successfully only when all the doors, the engine compartment lid and the tailgate are closed.
Locking with Porsche Entry & Drive (keyless)
You must carry the key with you. 1. Close all doors. 2. Press the locking button A on the door handle. The emergency flasher flashes twice and an acoustic signal will sound twice.The doors cannot be opened from outside.orIf persons or animals are remaining in the vehicle ,fpress the locking button A on the door handle twice within 2 seconds.The emergency flasher emits one long flash.The alarm system’s interior surveillance is switched off.The doors can be opened from inside by pulling on the door opener.fInform any persons remaining in the vehicle that the alarm system will be triggered if the door is opened.
Information
The vehicle cannot be locked if any of the doors or the luggage compartment are not completely closed.A warning signal sounds in the passenger compartment and a warning message appears on the multi-function display.
The key must be outside the vehicle when locking the vehicle doors, otherwise the vehicle doors cannot be locked.
If the key is out of range, the vehicle doors and the luggage compartment can no longer be opened after the vehicle is locked.
Automatic door locking and automatic door unlocking
In an emergency situation where you need to exit the car through an automatically locked door, remember the following procedure to open the door.fUnlock the doors by pressing the central locking button or fPull the inner door handle to open the door.
Emergency Auto Lock Override
WARNINGh
14_991_Turbo_21.book Seite 22 Mittwoch, 9. April 2014 2:19 14

Opening and Locking 23

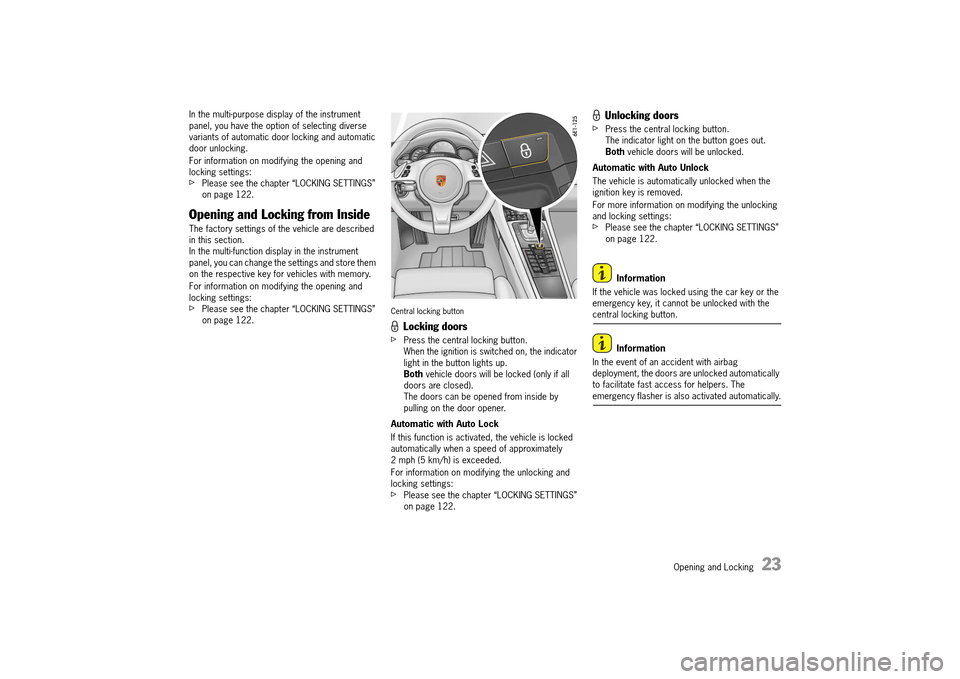

In the multi-purpose display of the instrument panel, you have the option of selecting diverse variants of automatic door locking and automatic door unlocking.
For information on modifying the opening and locking settings:fPlease see the chapter “LOCKING SETTINGS” on page 122.
Opening and Locking from Inside
The factory settings of the vehicle are described in this section. In the multi-function display in the instrument panel, you can change the settings and store them on the respective key for vehicles with memory.
For information on modifying the opening and locking settings: fPlease see the chapter “LOCKING SETTINGS” on page 122.Central locking button
Locking doors
fPress the central locking button.When the ignition is switched on, the indicator light in the button lights up.Both vehicle doors will be locked (only if all doors are closed).The doors can be opened from inside by pulling on the door opener.
Automatic with Auto Lock
If this function is activated, the vehicle is locked automatically when a speed of approximately 2 mph (5 km/h) is exceeded.
For information on modifying the unlocking and locking settings: fPlease see the chapter “LOCKING SETTINGS” on page 122.
Unlocking doors
fPress the central locking button.The indicator light on the button goes out.Both vehicle doors will be unlocked.
Automatic with Auto Unlock
The vehicle is automatically unlocked when the ignition key is removed.
For more information on modifying the unlocking and locking settings: fPlease see the chapter “LOCKING SETTINGS” on page 122.
Information
If the vehicle was locked using the car key or the emergency key, it cannot be unlocked with the central locking button.
Information
In the event of an accident with airbag deployment, the doors are unlocked automatically to facilitate fast access for helpers. The emergency flasher is also activated automatically.
14_991_Turbo_21.book Seite 23 Mittwoch, 9. April 2014 2:19 14

24 Opening and Locking

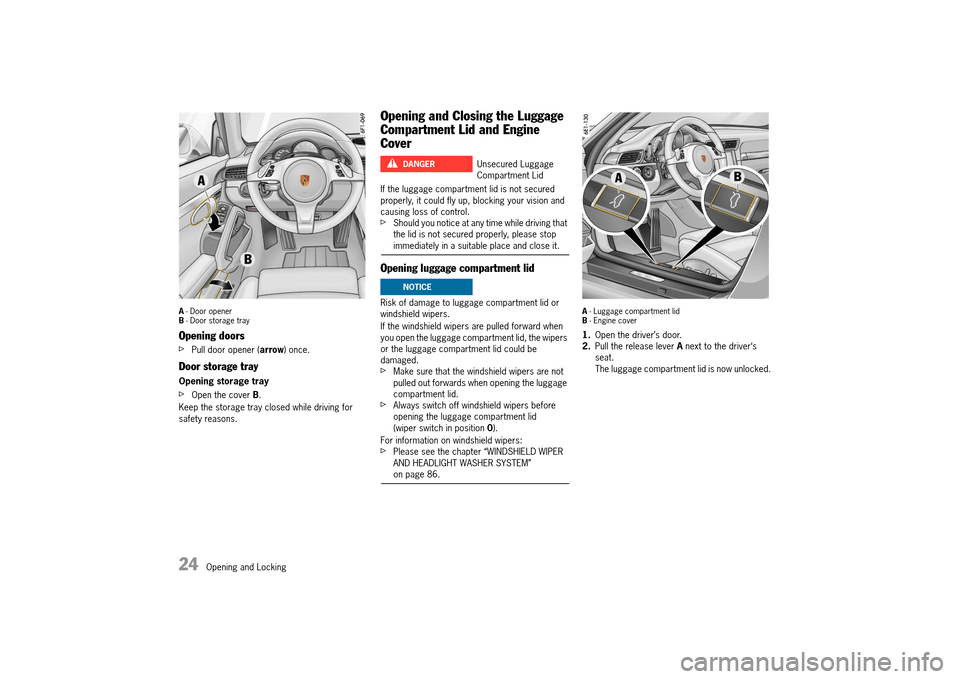

A - Door opener B - Door storage tray
Opening doors
fPull door opener (arrow) once.
Door storage tray
Opening storage tray
fOpen the cover B.
Keep the storage tray closed while driving for safety reasons.
Opening and Closing the Luggage
Compartment Lid and Engine
Cover
If the luggage compartment lid is not secured properly, it could fly up, blocking your vision and causing loss of control.fShould you notice at any time while driving that the lid is not secured properly, please stop immediately in a suitable place and close it.
Opening luggage compartment lid
Risk of damage to luggage compartment lid or windshield wipers.
If the windshield wipers are pulled forward when you open the luggage compartment lid, the wipers or the luggage compartment lid could be damaged.fMake sure that the windshield wipers are not pulled out forwards when opening the luggage compartment lid.fAlways switch off windshield wipers before opening the luggage compartment lid (wiper switch in position 0).
For information on windshield wipers: fPlease see the chapter “WINDSHIELD WIPER AND HEADLIGHT WASHER SYSTEM” on page 86.
A - Luggage compartment lid B - Engine cover
1.Open the driver’s door. 2. Pull the release lever A next to the driver‘s seat.The luggage compartment lid is now unlocked.
Unsecured Luggage Compartment Lid
DANGERh
NOTICE
14_991_Turbo_21.book Seite 24 Mittwoch, 9. April 2014 2:19 14

Opening and Locking 25
3.Raise lid slightly and unlatch the safety catch with the red lever (arrow).4. Open the luggage compartment fully.
Opening luggage compartment lid with the key
Information
When the luggage compartment lid is unlocked, the vehicle doors are also unlocked.
Unlocking and opening luggage compartment lid with the key
1. Press button . 2. Raise lid slightly and unlatch the safety catch with the red lever.3. Open the lid.
Unlocking and opening luggage compartment lid with Porsche Entry & Drive (keyless)
The luggage compartment lid can be opened if you are in the front area of the vehicle with the key.fHold your hand between the Porsche Crest and the license plate ( illustration). – The lid is unlocked via a sensor and pops open.– The vehicle doors are also unlocked.fRaise lid slightly and unlatch the safety catch with the red lever.fOpen the lid
14_991_Turbo_21.book Seite 25 Mittwoch, 9. April 2014 2:19 14

26 Opening and Locking
Closing luggage compartment lid
1.Lower lid and let it fall into the lock. If necessary, push the lid closed with the palm of your hand in the area of the lock.2. Check that the lid has correctly engaged in the lock.
When the vehicle is in motion, a message will appear on the multi-function display in the instru-ment panel if the lid is not closed properly.
Opening engine compartment lid with the pull-button
Coupé only:
1. Open the driver’s door. 2. Operate pull-button B next to the driver’s seat. The lid is unlocked and can be raised.
Cabriolet only:
1. Open the driver’s door. 2. Operate pull-button B next to the driver’s seat. Engine compartment lid (convertible-top compartment lid) opens automatically to the service position.
Closing engine compartment lid
Coupé only:
1. Lower lid and let it fall into the lock. If necessary, push the lid closed with the palm of your hand in the area of the lock.2. Check that the lid has engaged correctly in the lock.
When the vehicle is in motion, a message will appear on the multi-function display in the instrument panel if the lid is not closed properly.
Cabriolet only:
fPress pull-button B. Engine compartment lid (convertible-top compartment lid) closes automatically.
Malfunctions when Opening and
Closing
Emergency operation of luggage compartment lid
If the vehicle battery is discharged, the luggage compartment lid can be opened only by connecting an external electrical power source.fPlease see the chapter “EMERGENCY UNLOCKING OF LUGGAGE COMPARTMENT LID” on page 270.
Only one door is unlocked
The setting for locking and unlocking the doors has been changed on the multi-function display in the instrument panel. fPlease see the chapter “SETTING DOOR UNLOCKING” on page 122.
You can open both doors irrespective of the selected setting.fPress button on the key twice within 5 seconds.
14_991_Turbo_21.book Seite 26 Mittwoch, 9. April 2014 2:19 14

Opening and Locking 27

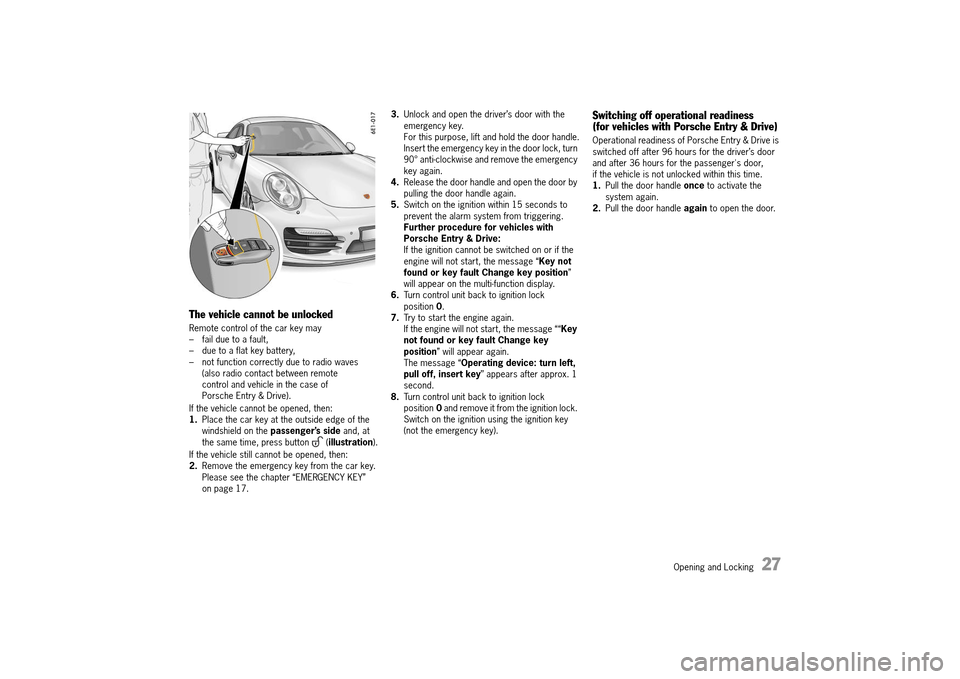

The vehicle cannot be unlocked
Remote control of the car key may – fail due to a fault,– due to a flat key battery,– not function correctly due to radio waves (also radio contact between remote control and vehicle in the case of Porsche Entry & Drive).
If the vehicle cannot be opened, then: 1. Place the car key at the outside edge of the windshield on the passenger’s side and, at the same time, press button ( illustration).
If the vehicle still cannot be opened, then: 2. Remove the emergency key from the car key. Please see the chapter “EMERGENCY KEY” on page 17.
3. Unlock and open the driver’s door with the emergency key.For this purpose, lift and hold the door handle.Insert the emergency key in the door lock, turn 90° anti-clockwise and remove the emergency key again.4. Release the door handle and open the door by pulling the door handle again.5. Switch on the ignition within 15 seconds to prevent the alarm system from triggering.Further procedure for vehicles with Porsche Entry & Drive:If the ignition cannot be switched on or if the engine will not start, the message “ Key not found or key fault Change key position ” will appear on the multi-function display.6. Turn control unit back to ignition lock position 0. 7. Try to start the engine again. If the engine will not start, the message ““ Key not found or key fault Change key position ” will appear again. The message “ Operating device: turn left, pull off, insert key ” appears after approx. 1 second.8. Turn control unit back to ignition lock position 0 and remove it from the ignition lock. Switch on the ignition using the ignition key (not the emergency key).
Switching off operational readiness (for vehicles with Porsche Entry & Drive)
Operational readiness of Porsche Entry & Drive is switched off after 96 hours for the driver’s door and after 36 hours for the passenger's door, if the vehicle is not unlocked within this time.1. Pull the door handle once to activate the system again.2. Pull the door handle again to open the door.
14_991_Turbo_21.book Seite 27 Mittwoch, 9. April 2014 2:19 14

28 Opening and Locking

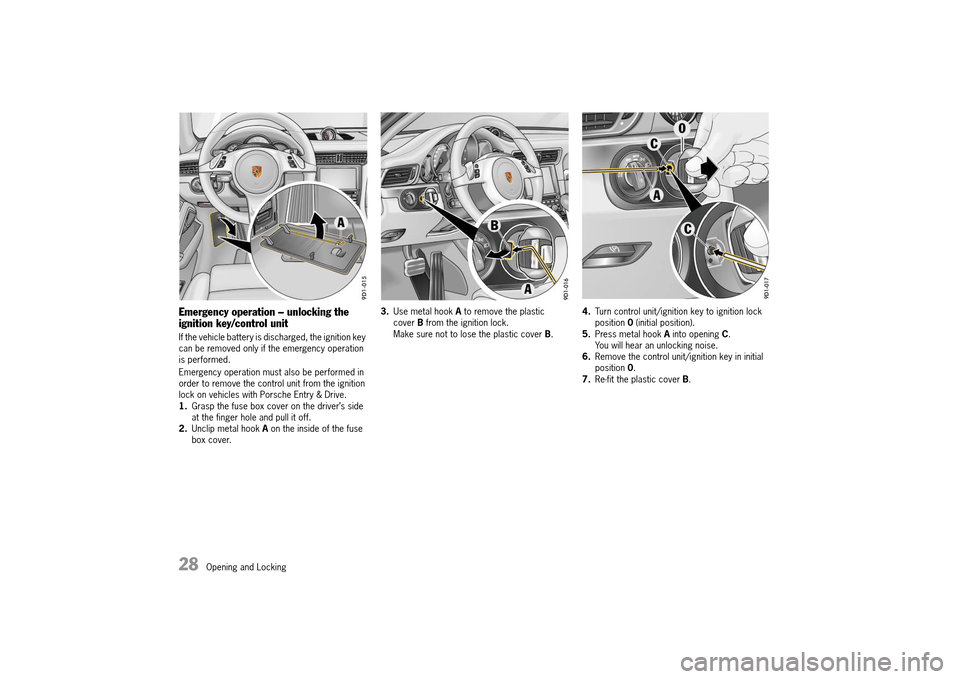

Emergency operation – unlocking the ignition key/control unit
If the vehicle battery is discharged, the ignition key can be removed only if the emergency operation is performed.
Emergency operation must also be performed in order to remove the control unit from the ignition lock on vehicles with Porsche Entry & Drive.1. Grasp the fuse box cover on the driver’s side at the finger hole and pull it off.2. Unclip metal hook A on the inside of the fuse box cover.
3. Use metal hook A to remove the plastic cover B from the ignition lock. Make sure not to lose the plastic cover B.
4. Turn control unit/ignition key to ignition lock position 0 (initial position). 5. Press metal hook A into opening C. You will hear an unlocking noise.6. Remove the control unit/ignition key in initial position 0. 7. Re-fit the plastic cover B.
