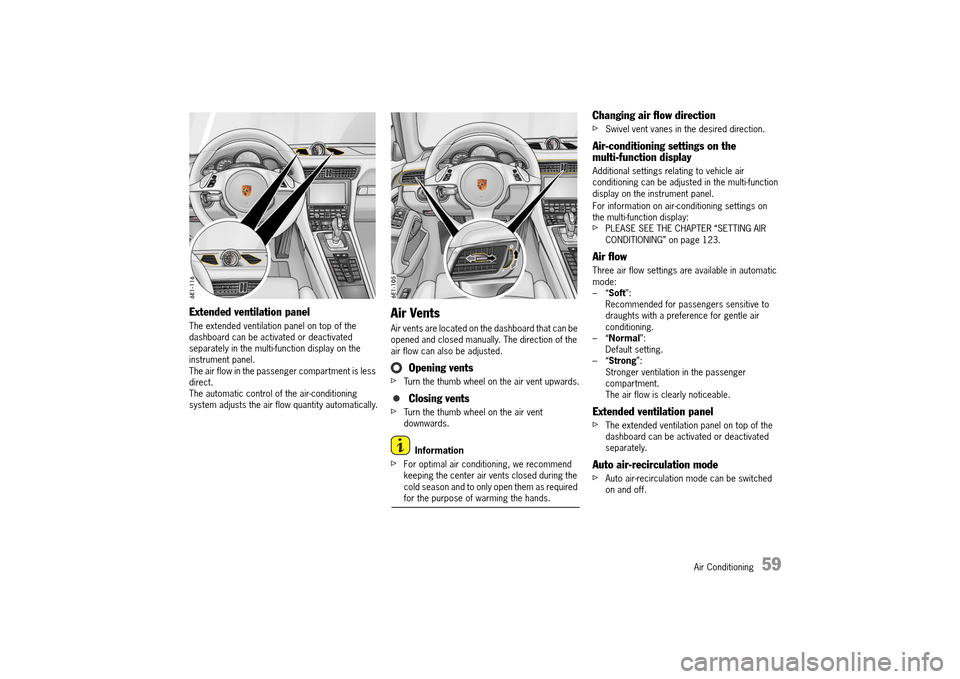

Air Conditioning 59
Extended ventilation panel
The extended ventilation panel on top of the dashboard can be activated or deactivated separately in the multi-function display on the instrument panel.The air flow in the passenger compartment is less direct.The automatic control of the air-conditioning system adjusts the air flow quantity automatically.
Air Vents
Air vents are located on the dashboard that can be opened and closed manually. The direction of the air flow can also be adjusted.
Opening vents
fTurn the thumb wheel on the air vent upwards.
Closing vents
fTurn the thumb wheel on the air vent downwards.
Information
fFor optimal air conditioning, we recommend keeping the center air vents closed during the cold season and to only open them as required for the purpose of warming the hands.
Changing air flow direction
fSwivel vent vanes in the desired direction.
Air-conditioning settings on the multi-function display
Additional settings relating to vehicle air conditioning can be adjusted in the multi-function display on the instrument panel.
For information on air-conditioning settings on the multi-function display:fPLEASE SEE THE CHAPTER “SETTING AIR CONDITIONING” on page 123.
Air flow
Three air flow settings are available in automatic mode:–“ Soft”: Recommended for passengers sensitive to draughts with a preference for gentle air conditioning.–“ Normal”: Default setting.–“ Strong”: Stronger ventilation in the passenger compartment.The air flow is clearly noticeable.
Extended ventilation panel
fThe extended ventilation panel on top of the dashboard can be activated or deactivated separately.
Auto air-recirculation mode
fAuto air-recirculation mode can be switched on and off.
14_991_Turbo_21.book Seite 59 Mittwoch, 9. April 2014 2:19 14

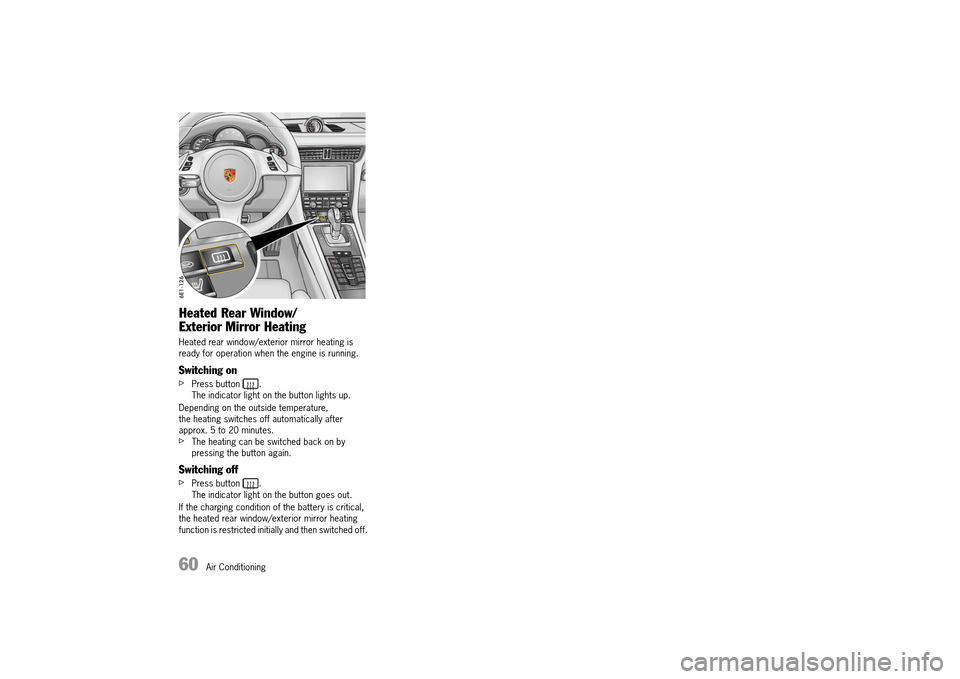

60 Air Conditioning
Heated Rear Window/
Exterior Mirror Heating
Heated rear window/exterior mirror heating is ready for operation when the engine is running.
Switching on
fPress button .The indicator light on the button lights up.
Depending on the outside temperature, the heating switches off automatically after approx. 5 to 20 minutes.fThe heating can be switched back on by pressing the button again.
Switching off
fPress button .The indicator light on the button goes out.
If the charging condition of the battery is critical, the heated rear window/exterior mirror heating function is restricted initially and then switched off.
14_991_Turbo_21.book Seite 60 Mittwoch, 9. April 2014 2:19 14

Windows, Sunroof and Cabriolet 61
Windows, Sunroof and Cabriolet
Power Windows............................................ 62 Sunroof ....................................................... 63Convertible Top............................................ 67Wind Deflector ............................................. 69Emergency Operation of Convertible Top and Wind Deflector ............... 70
14_991_Turbo_21.book Seite 61 Mittwoch, 9. April 2014 2:19 14

62 Windows, Sunroof and Cabriolet
Power Windows
When opening or closing the windows, particularly in one-touch mode, parts of the body may get trapped between the moving window and fixed vehicle parts.fTake care to ensure that nobody can be injured when the windows open or close.fAlways remove the ignition key when leaving the vehicle or switch ignition off on vehicles with Porsche Entry & Drive. Always take the ignition key with you when leaving the vehicle. Uninformed persons could injure themselves by operating the power windows.fDo not leave children in the vehicle unattended.
Readiness for operation of power windows
The power windows are ready for operation:– With ignition switched on.– After the ignition is switched off and before the driver’s or passenger’s door is first opened, but for a maximum of 10 minutes.One-touch operation for closing the door windows is available only when the ignition is switched on.
Cabriolet
When the convertible top is open, the rear side windows can only be closed if the door windows are closed.

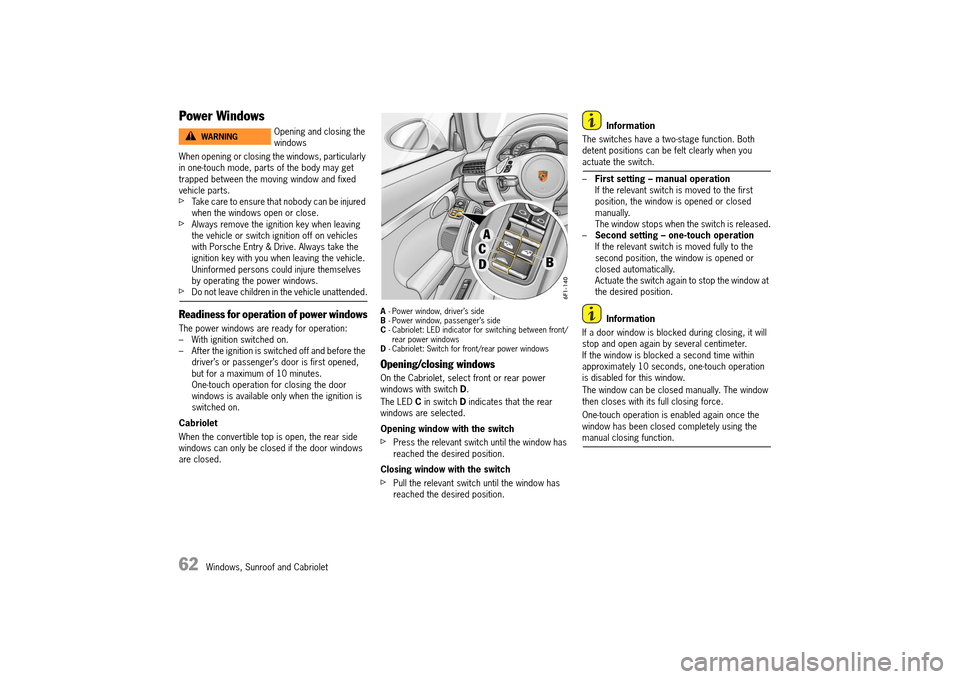

A - Power window, driver’s side B - Power window, passenger’s side C - Cabriolet: LED indicator for switching between front/ rear power windowsD - Cabriolet: Switch for front/rear power windows
Opening/closing windows
On the Cabriolet, select front or rear power windows with switch D.
The LED C in switch D indicates that the rear windows are selected.
Opening window with the switch
fPress the relevant switch until the window has reached the desired position.
Closing window with the switch
fPull the relevant switch until the window has reached the desired position.
Information
The switches have a two-stage function. Both detent positions can be felt clearly when you actuate the switch.
– First setting – manual operation If the relevant switch is moved to the first position, the window is opened or closed manually.The window stops when the switch is released.– Second setting – one-touch operation If the relevant switch is moved fully to the second position, the window is opened or closed automatically.Actuate the switch again to stop the window at the desired position.
Information
If a door window is blocked during closing, it will stop and open again by several centimeter.If the window is blocked a second time within approximately 10 seconds, one-touch operation is disabled for this window.
The window can be closed manually. The window then closes with its full closing force.
One-touch operation is enabled again once the window has been closed completely using the manual closing function.
Opening and closing the windowsWARNINGh
14_991_Turbo_21.book Seite 62 Mittwoch, 9. April 2014 2:19 14

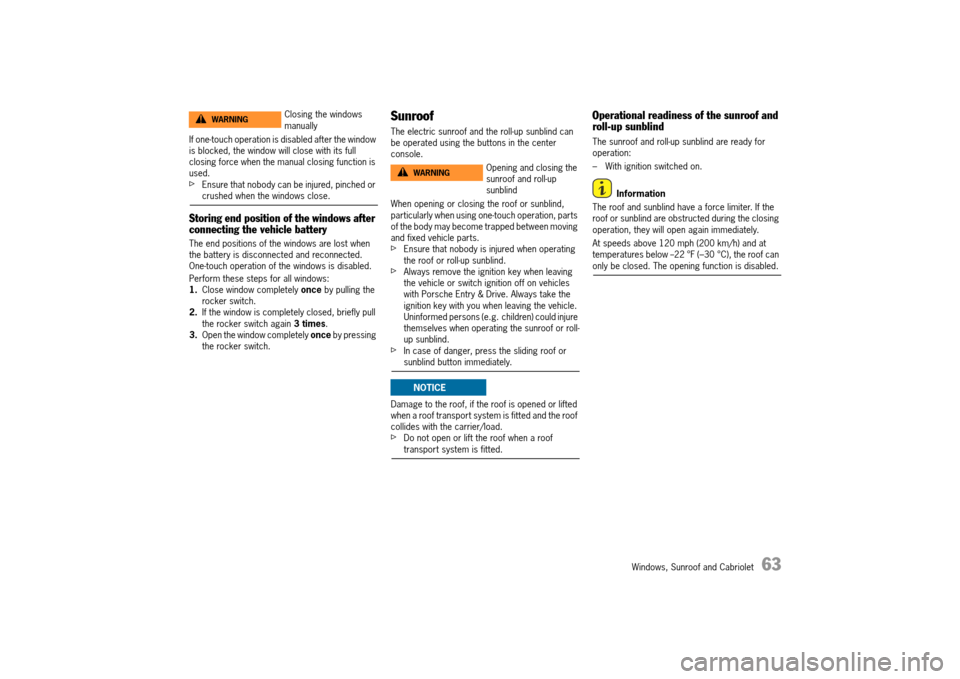

Windows, Sunroof and Cabriolet 63
If one-touch operation is disabled after the window is blocked, the window will close with its full closing force when the manual closing function is used.fEnsure that nobody can be injured, pinched or crushed when the windows close.
Storing end position of the windows after connecting the vehicle battery
The end positions of the windows are lost when the battery is disconnected and reconnected. One-touch operation of the windows is disabled.
Perform these steps for all windows: 1. Close window completely once by pulling the rocker switch.2. If the window is completely closed, briefly pull the rocker switch again 3 times. 3. Open the window completely once by pressing the rocker switch.
Sunroof
The electric sunroof and the roll-up sunblind can be operated using the buttons in the center console.
When opening or closing the roof or sunblind, particularly when using one-touch operation, parts of the body may become trapped between moving and fixed vehicle parts.fEnsure that nobody is injured when operating the roof or roll-up sunblind.fAlways remove the ignition key when leaving the vehicle or switch ignition off on vehicles with Porsche Entry & Drive. Always take the ignition key with you when leaving the vehicle. Uninformed persons (e.g. children) could injure themselves when operating the sunroof or roll-up sunblind.fIn case of danger, press the sliding roof or sunblind button immediately.
Damage to the roof, if the roof is opened or lifted when a roof transport system is fitted and the roof collides with the carrier/load.fDo not open or lift the roof when a roof transport system is fitted.
Operational readiness of the sunroof and roll-up sunblind
The sunroof and roll-up sunblind are ready for operation:
– With ignition switched on.
Information
The roof and sunblind have a force limiter. If the roof or sunblind are obstructed during the closing operation, they will open again immediately.
At speeds above 120 mph (200 km/h) and at temperatures below --22 °F (–30 °C), the roof can only be closed. The opening function is disabled.
Closing the windows manuallyWARNINGh
Opening and closing the sunroof and roll-up sunblind
WARNINGh
NOTICE
14_991_Turbo_21.book Seite 63 Mittwoch, 9. April 2014 2:19 14

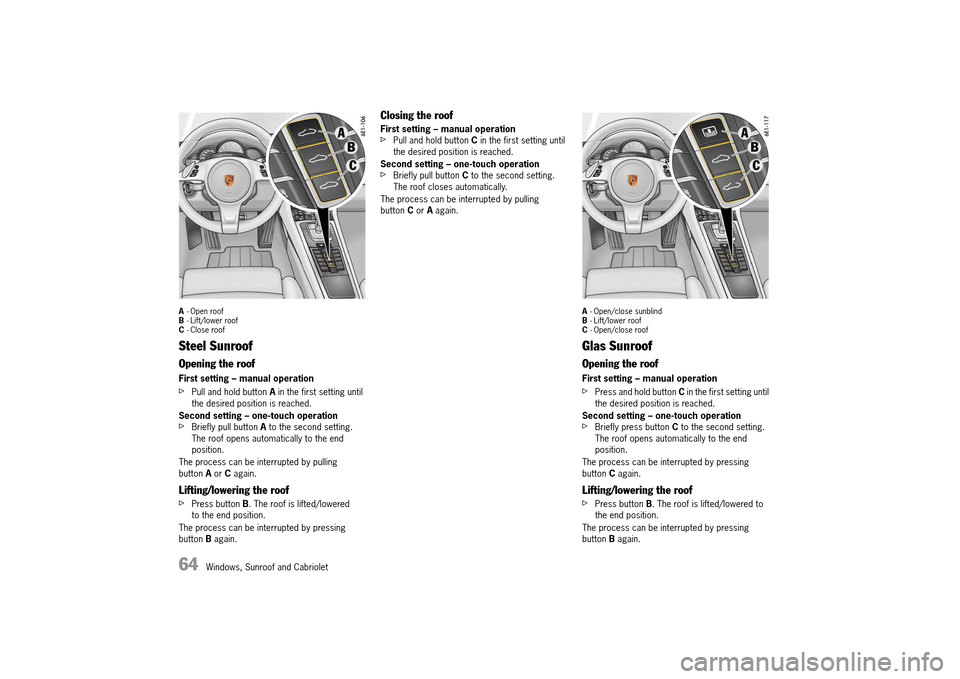

64 Windows, Sunroof and Cabriolet
A- Open roof B - Lift/lower roof C - Close roof
Steel Sunroof
Opening the roof
First setting – manual operation
fPull and hold button A in the first setting until the desired position is reached.
Second setting – one-touch operationfBriefly pull button A to the second setting. The roof opens automatically to the end position.
The process can be interrupted by pulling button A or C again.
Lifting/lowering the roof
fPress button B. The roof is lifted/lowered to the end position.
The process can be interrupted by pressing button B again.
Closing the roof
First setting – manual operationfPull and hold button C in the first setting until the desired position is reached.
Second setting – one-touch operationfBriefly pull button C to the second setting. The roof closes automatically.
The process can be interrupted by pulling button C or A again.
A- Open/close sunblind B - Lift/lower roof C - Open/close roof
Glas Sunroof
Opening the roof
First setting – manual operation
fPress and hold button C in the first setting until the desired position is reached.
Second setting – one-touch operationfBriefly press button C to the second setting. The roof opens automatically to the end position.
The process can be interrupted by pressing button C again.
Lifting/lowering the roof
fPress button B. The roof is lifted/lowered to the end position.
The process can be interrupted by pressing button B again.
14_991_Turbo_21.book Seite 64 Mittwoch, 9. April 2014 2:19 14

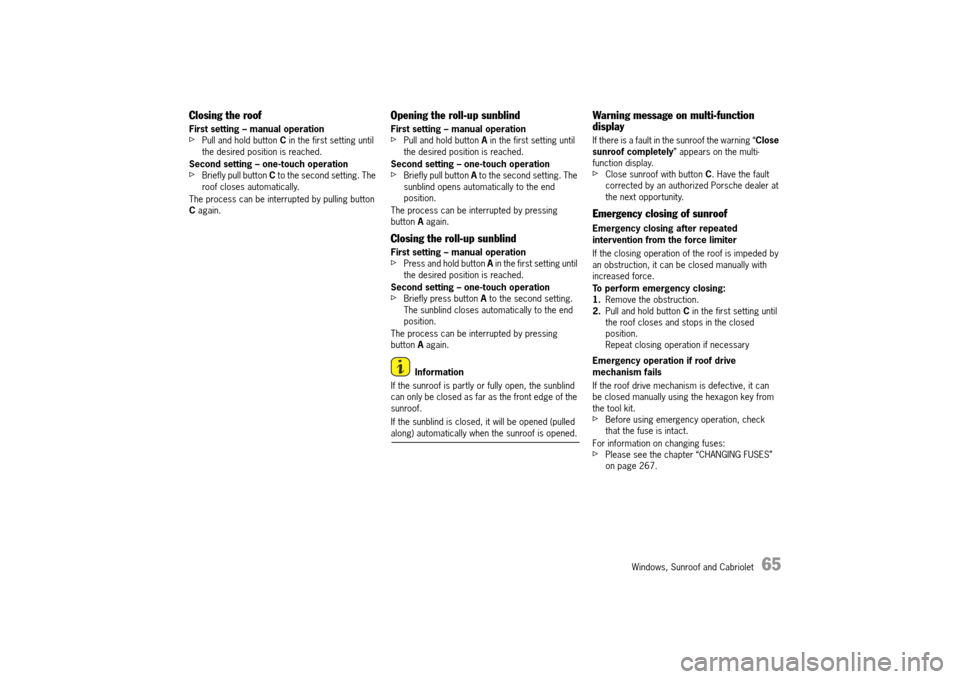

Windows, Sunroof and Cabriolet 65
Closing the roof
First setting – manual operationfPull and hold button C in the first setting until the desired position is reached.
Second setting – one-touch operationfBriefly pull button C to the second setting. The roof closes automatically.
The process can be interrupted by pulling button C again.
Opening the roll-up sunblind
First setting – manual operationfPull and hold button A in the first setting until the desired position is reached.
Second setting – one-touch operationfBriefly pull button A to the second setting. The sunblind opens automatically to the end position.
The process can be interrupted by pressing button A again.
Closing the roll-up sunblind
First setting – manual operationfPress and hold button A in the first setting until the desired position is reached.
Second setting – one-touch operationfBriefly press button A to the second setting. The sunblind closes automatically to the end position.
The process can be interrupted by pressing button A again.
Information
If the sunroof is partly or fully open, the sunblind can only be closed as far as the front edge of the sunroof.
If the sunblind is closed, it will be opened (pulled along) automatically when the sunroof is opened.
Warning message on multi-function display
If there is a fault in the sunroof the warning “ Close sunroof completely” appears on the multi- function display.fClose sunroof with button C. Have the fault corrected by an authorized Porsche dealer at the next opportunity.
Emergency closing of sunroof
Emergency closing after repeated intervention from the force limiter
If the closing operation of the roof is impeded by an obstruction, it can be closed manually with increased force.
To perform emergency closing: 1. Remove the obstruction. 2. Pull and hold button C in the first setting until the roof closes and stops in the closed position.Repeat closing operation if necessary
Emergency operation if roof drive mechanism fails
If the roof drive mechanism is defective, it can be closed manually using the hexagon key from the tool kit.fBefore using emergency operation, check that the fuse is intact.
For information on changing fuses:fPlease see the chapter “CHANGING FUSES” on page 267.
14_991_Turbo_21.book Seite 65 Mittwoch, 9. April 2014 2:19 14

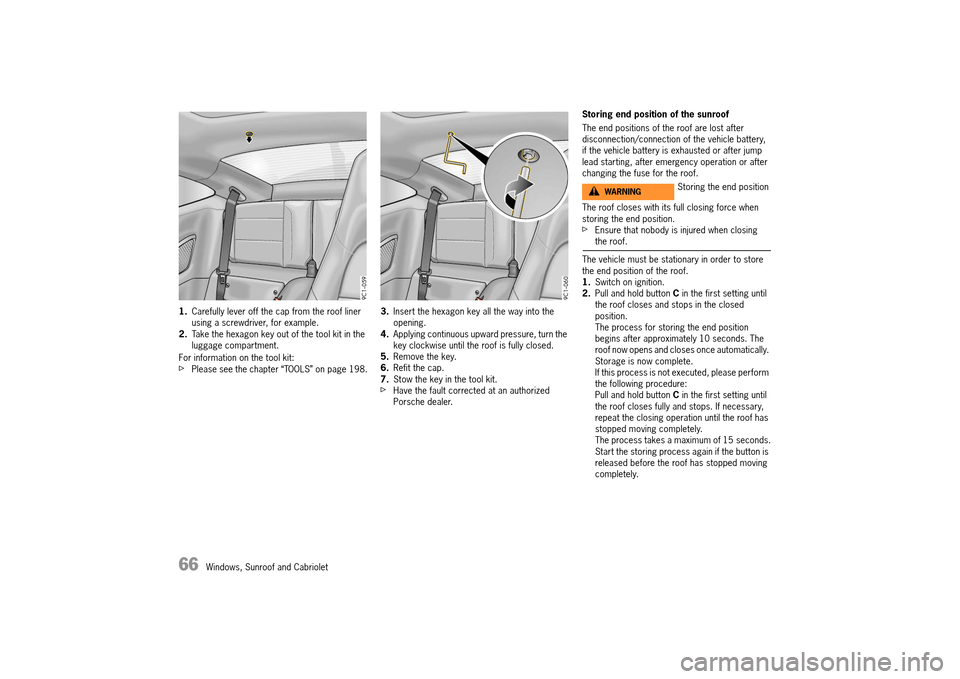

66 Windows, Sunroof and Cabriolet
1.Carefully lever off the cap from the roof liner using a screwdriver, for example.2. Take the hexagon key out of the tool kit in the luggage compartment.
For information on the tool kit:fPlease see the chapter “TOOLS” on page 198.
3. Insert the hexagon key all the way into the opening.4. Applying continuous upward pressure, turn the key clockwise until the roof is fully closed.5. Remove the key. 6. Refit the cap. 7. Stow the key in the tool kit.fHave the fault corrected at an authorized Porsche dealer.
Storing end position of the sunroof
The end positions of the roof are lost after disconnection/connection of the vehicle battery, if the vehicle battery is exhausted or after jump lead starting, after emergency operation or after changing the fuse for the roof.
The roof closes with its full closing force when storing the end position.fEnsure that nobody is injured when closing the roof.
The vehicle must be stationary in order to store the end position of the roof.1. Switch on ignition. 2. Pull and hold button C in the first setting until the roof closes and stops in the closed position.The process for storing the end position begins after approximately 10 seconds. The roof now opens and closes once automatically. Storage is now complete.If this process is not executed, please perform the following procedure:Pull and hold button C in the first setting until the roof closes fully and stops. If necessary, repeat the closing operation until the roof has stopped moving completely.The process takes a maximum of 15 seconds.Start the storing process again if the button is released before the roof has stopped moving completely.
Storing the end positionWARNINGh
14_991_Turbo_21.book Seite 66 Mittwoch, 9. April 2014 2:19 14

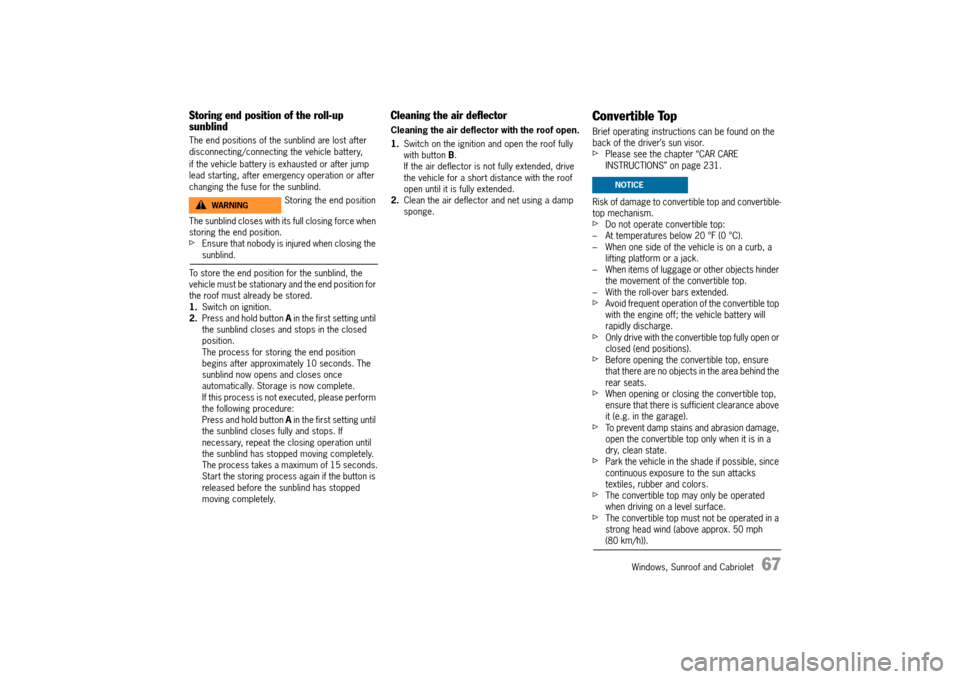

Windows, Sunroof and Cabriolet 67
Storing end position of the roll-up sunblind
The end positions of the sunblind are lost after disconnecting/connecting the vehicle battery,
if the vehicle battery is exhausted or after jump lead starting, after emergency operation or after changing the fuse for the sunblind.
The sunblind closes with its full closing force when storing the end position.fEnsure that nobody is injured when closing the sunblind.
To store the end position for the sunblind, the vehicle must be stationary and the end position for the roof must already be stored.1. Switch on ignition. 2. Press and hold button A in the first setting until the sunblind closes and stops in the closed position.The process for storing the end position begins after approximately 10 seconds. The sunblind now opens and closes once automatically. Storage is now complete.If this process is not executed, please perform the following procedure:Press and hold button A in the first setting until the sunblind closes fully and stops. If necessary, repeat the closing operation until the sunblind has stopped moving completely.The process takes a maximum of 15 seconds.Start the storing process again if the button is released before the sunblind has stopped moving completely.
Cleaning the air deflector
Cleaning the air deflector with the roof open.
1. Switch on the ignition and open the roof fully with button B. If the air deflector is not fully extended, drive the vehicle for a short distance with the roof open until it is fully extended.2. Clean the air deflector and net using a damp sponge.
Convertible Top
Brief operating instructions can be found on the back of the driver’s sun visor.fPlease see the chapter “CAR CARE INSTRUCTIONS” on page 231.
Risk of damage to convertible top and convertible- top mechanism.fDo not operate convertible top:– At temperatures below 20 °F (0 °C).– When one side of the vehicle is on a curb, a lifting platform or a jack.– When items of luggage or other objects hinder the movement of the convertible top.– With the roll-over bars extended.fAvoid frequent operation of the convertible top with the engine off; the vehicle battery will rapidly discharge.fOnly drive with the convertible top fully open or closed (end positions).fBefore opening the convertible top, ensure that there are no objects in the area behind the rear seats.fWhen opening or closing the convertible top, ensure that there is sufficient clearance above it (e.g. in the garage).fTo prevent damp stains and abrasion damage, open the convertible top only when it is in a dry, clean state.fPark the vehicle in the shade if possible, since continuous exposure to the sun attacks textiles, rubber and colors.fThe convertible top may only be operated when driving on a level surface.fThe convertible top must not be operated in a strong head wind (above approx. 50 mph (80 km/h)).
Storing the end positionWARNINGh
NOTICE
14_991_Turbo_21.book Seite 67 Mittwoch, 9. April 2014 2:19 14

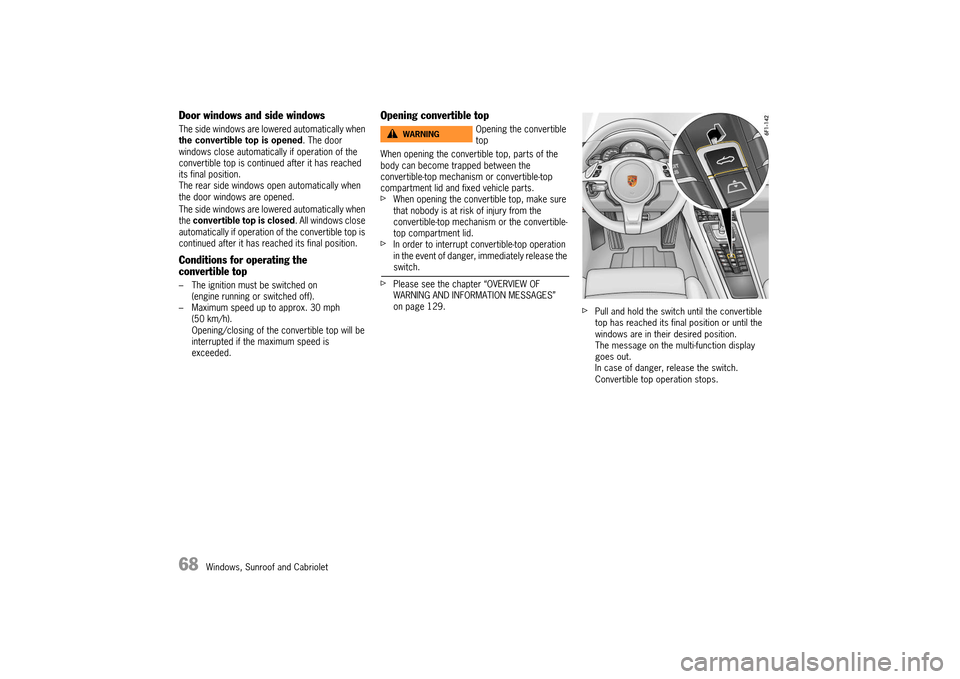

68 Windows, Sunroof and Cabriolet
Door windows and side windows
The side windows are lowered automatically when the convertible top is opened . The door windows close automatically if operation of the convertible top is continued after it has reached its final position.The rear side windows open automatically when the door windows are opened.
The side windows are lowered automatically when the convertible top is closed. All windows close automatically if operation of the convertible top is continued after it has reached its final position.
Conditions for operating the convertible top
– The ignition must be switched on (engine running or switched off).– Maximum speed up to approx. 30 mph (50 km/h).Opening/closing of the convertible top will be interrupted if the maximum speed is exceeded.
Opening convertible top
When opening the convertible top, parts of the body can become trapped between the convertible-top mechanism or convertible-top compartment lid and fixed vehicle parts.fWhen opening the convertible top, make sure that nobody is at risk of injury from the convertible-top mechanism or the convertible-top compartment lid.fIn order to interrupt convertible-top operation in the event of danger, immediately release the switch.
fPlease see the chapter “OVERVIEW OF WARNING AND INFORMATION MESSAGES” on page 129.fPull and hold the switch until the convertible top has reached its final position or until the windows are in their desired position.The message on the multi-function display goes out.In case of danger, release the switch. Convertible top operation stops.
Opening the convertible topWARNINGh
