PORSCHE BOXSTER 2009 2.G Owners Manual

Shifting Gears
179
Depending on driving speed and engine speed,
you can shift up or down at any time.
Gear changes which would exceed the upper or
lower engine speed limit are not executed by the
controller.
There is no automatic upshift at the upper engine
speed limit in selector lever position M. Upshift
suppression can be cancelled by kickdown opera-
tion. If, for example, the engine speed limit is
reached during overtaking and the automatic
upshift does not occur, the transmission in this
case shifts up as a result of kickdown operation.
f Select an appropriately low gear on upward
and downward slopes.
This will ensure optimum use of engine power
and engine braking.
In order to shift up au tomatically at the upper
engine speed limit:
f Depress the accelerator pedal beyond the full-
throttle point (kickdown). Failure of the selector lever display on the
instrument cluster
The warning “Transmission emergency run” is
displayed in red on the on-board computer.
–Effect:
No selector lever position is displayed on the
instrument cluster.
Vehicle can be driven only until it comes to a
stop.
Remedy:
It is not possible to continue driving. Immedi-
ately stop the vehicle in a suitable place. Have
the vehicle towed to an authorized Porsche
dealer.
Please see the chapter “TOWING” on
Page 269.
Stoppingf For a brief stop (e.g. at a traffic light), leave the
selector lever in drive position and hold the
vehicle with the brake pedal.
f Do not hold the car on a slope using the
accelerator. Use the brake pedal or the
handbrake instead.
f Before leaving the vehicle, always apply the
handbrake and move the selector lever to
position P.Parkingf Go easy on the accelerator!
f When parking or manoeuvring in a small
space, control the speed by careful use of the
footbrake.Driving in winterIn wintry road conditions it is advisable to take
steep inclines in manual mo de. This prevents gear
changes occurring that could cause wheelspin.Tow-starting, towingf Please see the chapter “TOWING” on
Page 269.

180
Shifting Gears
Reduced driving programIf there is a fault in the transmission
– Depending on priority, the warning “Transmis-sion emergency run” in white or red lettering or
the warning “Transmission temperature too
high” is displayed on the on-board computer.
Warning “Transmission emergency run” white
– Effects: Restricted gearshift comfort,
Reverse gear may not function.
Remedy:
Have the fault repaired immediately at an
authorized Porsche dealer. Warning “Transmission emergency run”
red
– Effect: Vehicle can be driven only until it comes to a
stop.
Remedy:
It is not possible to continue driving. Immedi-
ately stop the vehicle in a suitable place. Have
the vehicle towed to an authorized Porsche
dealer.
Warning “Transmission temperature too high”
–Effects: “Warning jerks” can be felt when driving off and
the engine power may be restricted.
Remedy:
Do not hold the vehicle with the accelerator on
a hill, for example. Hold the vehicle with the
brake. Reduce engine load. If possible, stop
the vehicle in a suitable place. Allow the engine
to run in selector lever position P or N until the
warning disappears.

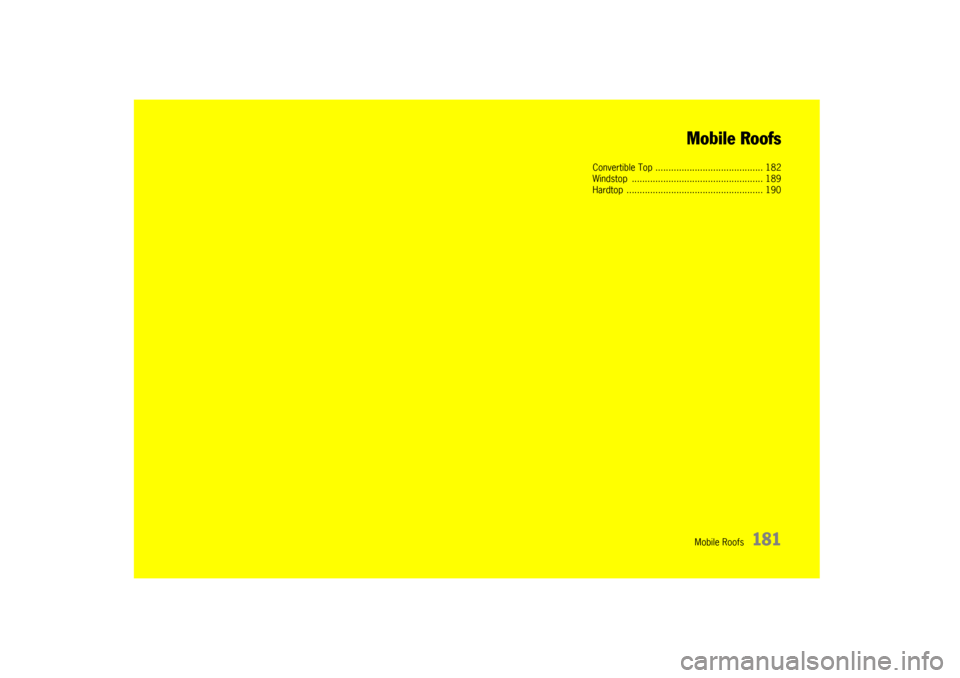

Mobile Roofs
181
Mobile Roofs
Convertible Top ......
................................... 182
Windstop .................... .............................. 189
Hardtop ...................... .............................. 190

182
Mobile Roofs
Convertible TopBrief operating instructions can be found on the
back side of the driver’s sun visor.
fPlease see the chapter “CAR CARE INSTRUC-
TIONS” on Page 213.
Warning!
When opening or closing the convertible top,
serious personal injury may occur if a per-
son’s body parts are near or in the way of the
convertible top mechanism’s moving parts.
f Make absolutely sure that nobody can be
injured by the convertible-top mechanism or the convertible-top compartment lid.
Do not operate convertible top:
– At temperatures below 32 °F/0 °C.
– When one side of the ca r is on a curb, a hoist
or a jack.
– When items of luggage or other objects hinder the convertible top movement.
f Drive only with the convertible top fully open or
closed (end positions). f
Items of luggage or objects on the luggage
tray above the engine compartment lid must
be put in the storage box or be secured to
prevent their sliding out. These items must not
be in abrasive contact with the convertible top
or rear window. Keep s hutters of the storage
box closed while driving.
f Avoid frequent operation of the convertible top
with the engine off; the vehicle battery would
be unintentionally discharged rapidly.
f When opening or closing the convertible top,
ensure there is sufficient clearance above the
convertible top (e.g. in the garage).
f To prevent damp stains and abrasions, only
open the convertible top in a dry, clean state.
f Park your car in the shade whenever possible,
as the fabric, rubber ma terial and color can be
harmed by long exposure to sunlight.
f The convertible top may only be actuated
during driving on even surfaces.
f The convertible top must not be used with
strong counter wind (over approx. 50 mph/
80 km/h).
Conditions for operating the convertible
top – The ignition must be switched on
(engine running or off).
– Maximum speed 30 mph (50 km/h) The opening/closing process of the convertib-
le top will be interrupted if the maximum speed
is exceeded.
f Reduce speed.
Press button again.
The opening/closing process is ended.

Mobile Roofs
183
Opening convertible topReleasing the latching lever
fPress on the release plate A.
Latching lever B pops into engaging position. Releasing convertible top
Caution!
Risk of damage by the locking hooks on the
roof frame when the latching lever is not
engaged correctly.
f Make sure that the latching lever is felt to engage when opening.
f Swivel latching lever B to the rear until it is felt
to engage.
Opening the convertible top with the button Warning!
Risk of injury.
f When opening the convertible top, make sure
that nobody can be injured by the convertible-
top mechanism or the convertible-top com-
partment lid.
f In order to abort convertible top operation in
the event of danger:
up to 6 mph (10 km/h), release the button im-
mediately,
over 6 mph (10 km/h), activate the button briefly. f
Up to 6 mph (10 km/h):
Pull the button and hold without interruption un-
til the convertible top is in the final position and
the message on the on-board computer goes
out.
In case of danger, release the button.
Convertible top operation stops.
f From 6 mph (10 km/h) to 30 mph
(50 km/h):
Pull button briefly, the convertible top opens
automatically. The message in on-board com-
puter goes out.
In case of danger, pu ll the button back again,
the convertible top operation stops.

184
Mobile Roofs
Closing the convertible top
Warning!
Danger of injury and damage.
f When closing the conver tible top, make sure
that nobody can be injured by the convertible-
top mechanism or the convertible-top com-
partment lid.
f In order to abort convertible top operation in
the event of danger:
up to 6 mph (10 km/h), release the button im-
mediately,
over 6 mph (10 km/h), activate the button
briefly.
f Keep the lids of the ma ke-up mirrors in the sun
visors closed when closing the convertible top.
f Lock the convertible top with the latching lever after automatic closing. Closing convertible top with the button
f
Up to 6 mph (10 km/h):
Pull the button and hold without interruption un-
til the convertible top is in the final position and
the message on the on-board computer goes
out.
In case of danger, release the button.
Convertible top operation stops.
f From 6 mph (10 km/h) to 30 mph
(50 km/h):
Pull the button briefly, the convertible top clo-
ses automatically. The message in on-board
computer goes out.
In case of danger, pu sh the button forward
again, the convertible top operation stops. f
Lock convertible top wi th the latching lever.

Mobile Roofs
185
Locking the convertible topfSwivel latching lever B to the front until it is felt
to engage.
The locking hook C must engage in the
receptacle on the windshield frame.
Note
If the convertible top has been opened for a longer
period, it could be necessary to assist the locking
hook C engage.
f With the vehicle stationary, press and hold the
button for convertible top operation and pull
the convertible top to the windshield using the
handle recess D.
Emergency operation fBefore performing emergency operation,
please check:
Was the ignition switched on and the hand-
brake applied?
Are the electrical fuses defective?
Please see the chapter “ELECTRICAL SYS-
TEM” on Page 245.
Warning!
There is a danger of in jury and risk of dama-
ge during emergency operation.
There is a danger of crushing or pinching
body parts at all moveable convertible top
parts which could cause serious personal
injury.
f Take great care when performing emergency
operation.
f Do not operate the convertible top during and
after emergency operation.
f Lever off joint rods only with the greatest care.
f If the convertible top is not in the rearward final
position, the convertible-top compartment lid
or the convertible top could fall down when the
joint rods are levered off.
For this reason, hold convertible top or conver-
tible-top compartment lid firmly before levering
off the second joint rod.
f During emergency operation, ensure that the paint is not damaged.

186
Mobile Roofs
1. Remove the ignition key so that the convertible
top is not operated unintentionally.
2. On both sides of the car, unclip the black rod cover A and pull it up and out. 3. Take lever B out of the tool kit.
Warning!
Danger of crushing or pinching.
f Lever off joint rods only with the greatest care.
f If the convertible top is not in the rearward final
position, the convertible-top compartment lid
or the convertible top could fall down when the
joint rods are levered off.
For this reason, hold convertible top or conver-
tible-top compartment lid firmly before levering off the second joint rod.

Mobile Dächer
187
Example: Convertible top in rearward final position
D - Joint rod for converti ble-top compartment cover
(black ball head fastening)
E - Joint rod for convertible top
(white ball head fastening) The position and accessibility of the joint rods
change depending on the position of the conver-
tible top. It can be helpful to fold up the rear part
of the convertible top. 4. Lever joint rod
D (black fastening) off the ball
head with blade of lever B.
As the connection is under spring tension, a
corresponding amount of force is required to
lever off the ball head, creating danger of
crushing and pinching.
5. When levering off joint rod D on the other side of the vehicle, the convertible-top compart-
ment cover must be held so that it does not fall
down in an uncontrolled manner to protect
against injury from a fallen cover.
6. Grasp convertible-top compartment cover in the center and set up completely ( arrow).
7. Lever joint rod E (white fastening) off the ball
head with blade of lever B.
A corresponding amount of force is required to
lever off the ball head, creating danger of
crushing and pinching.
8. When levering off joint rod E on the other side
of the vehicle, the convertible top must be held
so that it does not fall down in an uncontrolled
manner to protect against injury from a fallen
cover.

188
Mobile Roofs
9. Lift convertible top with both hands (
arrow)
and close.
10.Lock convertible top.
11.Carefully lower convertible-top compartment cover.
Caution!
Danger of damage at the convertible top.
f After emergency operation, do not operate the
convertible top with the rocker switch.
f Drive slowly to an authorized Porsche dealer in order to have the fault remedied.
