Air Conditioning, Parking Heater and Heated Rear Window
81
A-“
–” button
B-TIMER button
C- ON/OFF button
D-“+” button
Parking HeaterThe parking heater features two functions: parking
heating and parking ventilation.
The parking heater is ready for use regardless of
the ignition key position.
The parking heater is also used as an auxiliary
heater. Operation of the parking heater is there-
fore clearly audible when outside temperatures
are low, even if the parking heater has been
manually switched off.
Danger!
Risk of poisoning due to carbon monoxide
(CO). The parking heater consumes fuel and
emits exhaust fumes. Exposure to such
fumes can cause unconsciousness, serious
personal injury or death.
fSwitch off the parking heater before refueling.
fDo not operate the parking heater in enclosed spaces (e.g. a garage).
The parking heater is operated using the following
buttons on the front air-conditioning control panel:
Switch parking heater on and off
Activate program
Start programming
Call memories
Set ON times
Activate heating function
Set ON times
Activate ventilating function
10_Cayenne_21_KW17.book Seite 81 Donnerstag, 9. April 2009 3:33 15

82
Air Conditioning, Parking Heater and Heated Rear Window Notes on operation
The parking heater runs on fuel, and it therefore
cannot be switched on after the reserve warning
lights up.
fFor further information on the fuel reserve
warning:
Please see the chapter “FUEL RESERVE WAR-
NING” on Page 120.
The parking heater must be operated at least
once per month with the engine cold.
Ignition off: When the parking heater is running,
the remaining running time is shown on the display
panel.
Operation of the parking heater is clearly audible
when outside temperatures are low and the engine
is cold.
In certain circumstances, exhaust gases may be
visible under the vehicle.Switching on
fPress ON/OFF button .
The most recently activated parking heating or
parking ventilation function is switched on.
Switching off
fPress ON/OFF button again.
Note on operation
fAfter switching off the parking heater using
ON/OFF button , wait for at least
2 minutes before you press the button again.
The combustion chamber is cleaned.
Switching parking heater on and
off
10_Cayenne_21_KW17.book Seite 82 Donnerstag, 9. April 2009 3:33 15

Air Conditioning, Parking Heater and Heated Rear Window
83

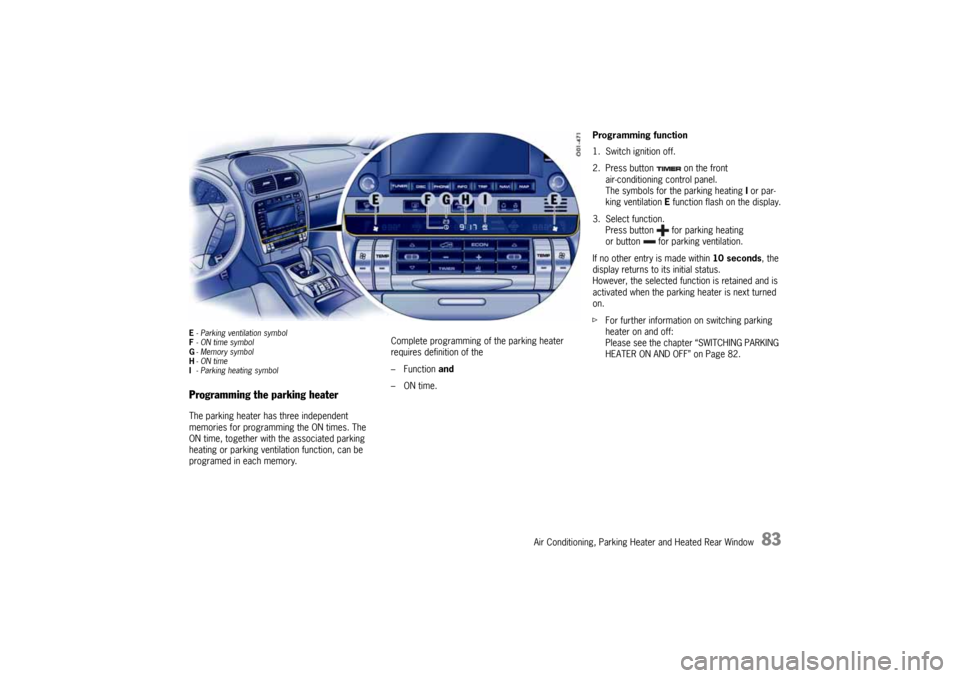

E- Parking ventilation symbol
F- ON time symbol
G-Memory symbol
H-ON time
I-Parking heating symbolProgramming the parking heaterThe parking heater has three independent
memories for programming the ON times. The
ON time, together with the associated parking
heating or parking ventilation function, can be
programed in each memory.Complete programming of the parking heater
requires definition of the
– Function and
–ON time.
Programming function
1. Switch ignition off.
2. Press button on the front
air-conditioning control panel.
The symbols for the parking heating I or par-
king ventilation E function flash on the display.
3. Select function.
Press button for parking heating
or button for parking ventilation.
If no other entry is made within 10 seconds, the
display returns to its initial status.
However, the selected function is retained and is
activated when the parking heater is next turned
on.
fFor further information on switching parking
heater on and off:
Please see the chapter “SWITCHING PARKING
HEATER ON AND OFF” on Page 82.
10_Cayenne_21_KW17.book Seite 83 Donnerstag, 9. April 2009 3:33 15

84
Air Conditioning, Parking Heater and Heated Rear Window Programming ON times
1. Switch ignition off.
2. Press button .
3. Select function (parking heating or parking
ventilation).
4. Select the memory using button .
The desired memory can be selected by pres-
sing button several times.
5. Set ON time using the and buttons.
Pressing the buttons adjusts the time on a
minute-by-minute basis. If the button is kept
depressed, the time is adjusted faster.
ON times are only valid for 24 hours.
6. Press ON/OFF button .
Displays F and G flash for approx. 10 seconds.
Flashing of the displays can be ended before
this time has elapsed by pressing the ON/OFF
button again.
After ON/OFF button has been pressed ON
time H, clock symbol F and memory G are
displayed for 2 minutes.
The display then goes out.
The parking heater has now been programed
and the selected memory is active (symbol G
is lit).
Note on operation
Only one memory can be active at any one time.Activating the memory
The parking heater runs for 30 minutes. It then
switches itself off automatically.
The program must be reactivated for every subse-
quent run.
To do this:
1. Switch ignition off.
2. Press button .
3. Select function (parking heating or parking ven-
tilation).
4. Select the memory using button . The
ON time that was last saved is displayed.
5. Press ON/OFF button .
The program is reactivated.
Displays F and G flash for approx. 10 seconds.
The ON/OFF button can be pressed again
to switch off the displays before this time has
elapsed.
After the ON/OFF button has been
pressed, the ON time H, clock symbol F and
memory G are displayed for 2 minutes.
The display then goes out.
The parking heater has now been programed
and the selected memory is active (symbol G
is lit).
Note on operation
Only one memory can be active at any one time.Example:
The parking heater is to activate the parking
heating function at 9:48 a.m.
To do this:
1. Switch ignition off.
2. Press button on the front air-conditio-
ning control panel.
The symbols for the parking heating or parking
ventilation function flash on the display.
3. Press button .
This selects the parking heating function.
4. Select the memory using button .
5. Set ON time to 9:48 a.m. using the and
buttons.
6. Press ON/OFF button .
The parking heater has now been programed
and the selected memory is active.
Note on operation
If the parking heater is switched on manually prior
to program start of an active memory, this will
delete the programming.
The memory must be reactivated if it is needed.
If the memory is not reactivated, the parking
heater will not switch on.
10_Cayenne_21_KW17.book Seite 84 Donnerstag, 9. April 2009 3:33 15

Air Conditioning, Parking Heater and Heated Rear Window
85
Parking heater faultsInitial start-up following period of non-
utilization
If you have not used the parking heater for several
weeks, the system may require the parking heater
to be switched on several times before it actually
“starts up”.
fPlease take a break of approximately
5 minutes between each individual switch-on
attempt.
Requirement for initial start-up of the
parking heater:
–Cold engine.Have the parking heater checked by an authorized
Porsche dealer in the following cases:
– If the parking heater fails to “start-up” after the
3rd switch-on attempt.
– In the event of faults in the parking heater, no
function symbol appears on the display – only
the remaining running time is shown.
The display flashes on briefly and then goes
completely dark.
– In the event of a serious accident, the parking
heater switches off automatically for safety
reasons.
The parking heater is not ready for operation.
– If the temperature rises, the overheating
protection switches the parking heater off
automatically. The parking heater is not ready
for operation.
– The parking heater is switched off automati-
cally if the voltage is too low. The parking
heater is temporarily unavailable.
10_Cayenne_21_KW17.book Seite 85 Donnerstag, 9. April 2009 3:33 15

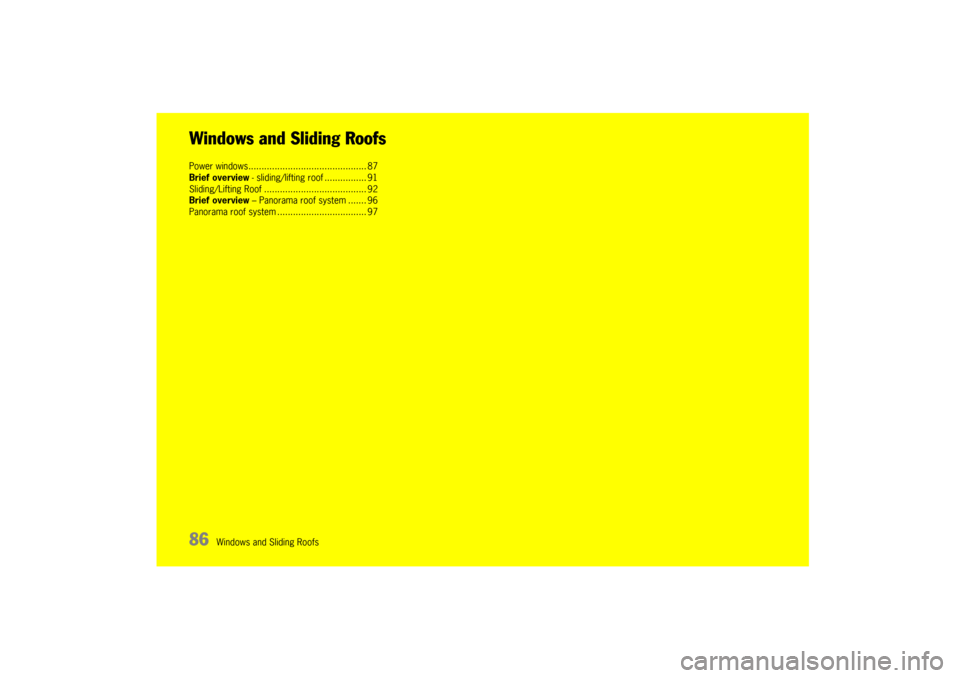

86
Windows and Sliding Roofs
Windows and Sliding RoofsPower windows............................................. 87
Brief overview - sliding/lifting roof ................ 91
Sliding/Lifting Roof ....................................... 92
Brief overview – Panorama roof system ....... 96
Panorama roof system.................................. 97
10_Cayenne_21_KW17.book Seite 86 Donnerstag, 9. April 2009 3:33 15

Windows and Sliding Roofs
87
Power windows
Warning!
Risk of injury when the door windows close.
This applies especially if the windows are
closed with the comfort function.
When this function is in operation the window
goes up automatically.
fMake sure that fingers, hands, arms or other
body parts are not in the way when the
windows close.
fRemove the ignition key or switch ignition off in
vehicles that have Porsche Entry & Drive to
shut off power to the window switches when
the vehicle is not attended by a responsible
person. Always take the ignition key with you
when leaving the vehicle. Uninformed persons
could injure themselves by operating the
power windows.
fIn case of danger, immediately release the but-
ton on the car key or the button in the door
handle in vehicles that have Porsche Entry &
Drive.
fDo not leave children in the car unattended.
Risk of an accident.
fDo not put anything on or near the windows that may interfere with the driver's vision.
Note on operation
fAlways keep the side windows closed while
driving off-road.
Readiness for operation of power windows– With ignition switched on or
– A maximum of 10 minutes with door closed
and ignition key withdrawn, but only until
driver’s or passenger door is first opened.
The one-touch operation for closing the door
windows is available only when the ignition is
switched on.Opening/closing windowsOpening window with the rocker switch
fPress rocker switch until the window has
reached the desired position.
A- Power window in driver’s door
B- Power window in passenger’s door
C- Left rear power window
D- Right rear power windowNote on operation
Rocker switches A and B in the driver’s door have
a two-stage function:
– If the switch in question is pressed or pulled to
the first level, the front window is opened or
closed manually.
– If the switch is completely pressed or pulled to
the second level, the front window is opened or
closed automatically (one-touch operation).
Press or pull again to stop the window in the
desired position.
10_Cayenne_21_KW17.book Seite 87 Donnerstag, 9. April 2009 3:33 15

88
Windows and Sliding Roofs
Power windows in passenger’s door and rear doorsClosing window with the rocker switch
– Pull rocker switch until the window has reached
the desired position.One-touch operation for front windows
fPull or press rocker switch to its final position
in the driver’s door.
Window moves to its final position.
Press or pull again to stop the window in the
desired position.
Note on operation
If a door window is blocked during closing, it will
stop and open again by several centimetres.
However, this is not the case:
– If the rocker switch is pressed again within
10 seconds of the window being blocked and
– The windows are closed using the car key in
the door lock (comfort function).
The windows close with their full closing force.
Warning!
Risk of serious personal injury. If the rocker
switch is pulled again within 10 seconds of
the window being blocked, the window will
close with its full closing force.
fEnsure that no one can be injured when the windows close.
One-touch operation is disabled for 10 seconds
after the door window is obstructed.
Disabling power windows in the rear
doorsThe power windows, central locking buttons on
the rear doors and the rear control panel for the
air conditioning can be disabled by means of the
safety button in the armrest of the driver’s door.
fPress the safety button to switch child protec-
tion on and off.
The symbol in the safety button lights up if
child protection is active.
Switching child protection on/off
10_Cayenne_21_KW17.book Seite 88 Donnerstag, 9. April 2009 3:33 15

Windows and Sliding Roofs
89
On vehicles with and without Porsche Entry & DriveOpening/closing windows with car key
Warning!
Danger of injury. The window will close with
its full closing force.
fEnsure that no one can be injured when the windows close.
fHold the car key in the door lock in the unlo-
cking or locking position until the windows
have reached the desired position.If you unlock the vehicle with the key at the door
lock, only the driver’s door is unlocked. In order to
prevent the alarm system from being triggered,
you must switch the ignition on within 15 seconds
of opening the door.
10_Cayenne_21_KW17.book Seite 89 Donnerstag, 9. April 2009 3:33 15

90
Windows and Sliding Roofs
On vehicles with Porsche Entry & DriveClosing windows with button in door
handle
Warning!
Danger of injury. The window will close with
its full closing force.
fEnsure that no one can be injured when the win-dows close.
fHold the button in the door handle when
locking the vehicle until the windows and the
Panorama roof system have reached the
desired position.Note on operation
The comfort function remains available for approx.
30 seconds after the vehicle has been locked.
Storing final position of the door windowsThe end positions of the door windows are lost
when the battery is disconnected and reconnec-
ted. The one-touch operation of the windows is
disabled.
Perform these procedures for all windows:
1. Close window completely once by pulling
rocker switch.
2. Open window completely again by pressing
rocker switch.
10_Cayenne_21_KW17.book Seite 90 Donnerstag, 9. April 2009 3:33 15
