Multi-Purpose Display and Instruments
121
J - OdometerThe displays for the total mileage and individual
trips are located in the analog speedometer.
The upper display counts the total mileage, the
lower display counts the short trips.
After exceeding 6213 miles (9999 kilometers),
the short trip counter returns to 0.Resetting the short trip counter to “O”fPress button H for approx. 1 secondThe voltmeter indicates the vehicle electrical
system voltage.
Normal range: 12 to 16 volts.
The voltage may drop considerably when the
vehicle is being started.
If the indicator is continually below 12 volts
when the engine is running:
fPlease have the battery charging system
checked at an authorized Porsche dealer.
Battery/alternatorA warning message will appear on the multi-purpo-
se display of the instrument panel if the voltage
drops significantly.
fStop in a safe place and switch off the engine.
fFor information on the warning message on
the multi-purpose display:
Please see the chapter “OVERVIEW OF
WARNING MESSAGES” on Page 149.Possible causes
– Defect in the battery charging system
– Broken drive belt
Warning!
Risk of engine damage with resultant loss of
control and accident, leading to serious
personal injury or death.
A broken drive belt means there is no power
assistance to the steering (more effort is
required to steer) and engine cooling fails.
fDo not continue driving.
fHave the fault remedied at your nearest autho-
rized Porsche dealer.
Danger of steering assistance failing during
a long trip in the water if the drive belt slips.
fIf the steering assistance fails, more effort will be required to steer.
K - Voltmeter
10_Cayenne_21_KW17.book Seite 121 Donnerstag, 9. April 2009 3:33 15

122
Multi-Purpose Display and Instruments fIf the cooling system is in any way faulty,
consult your authorized Porsche dealer.
Temperature gageUSA: Display in °F
Canada: Display in °C
Pointer to the left – engine cold
fAvoid high engine speeds and heavy engine
loading.
Pointer in the middle – normal operating
temperature
The pointer may move up to the red area when
engine is heavily loaded and outside temperature
is high, but should return to “normal“ when engine
load is reduced.Engine coolant temperature warningA warning message will appear on the multi-pur-
pose display of the instrument panel if the engine
coolant temperature is too high.
fSwitch engine off and let it cool.
fCheck radiator and air passages in front end of
car for obstructions.fCheck coolant level.
Add coolant if necessary.
fPlease have the fault remedied at an authori-
zed Porsche dealer.
fFor further information on coolant, checking
the coolant level and topping up coolant:
Please see the chapter “COOLANT LEVEL” on
Page 255.
Note on operation
To prevent excessive temperatures, the cooling
air guides must not be restricted by covers
(e.g. films, “stone guards”).
Engine coolant level warningA warning message will appear on the multi-pur-
pose display of the instrument panel if the engine
coolant level is too low.
fSwitch engine off and let it cool.
fTop off coolant.
Please have the cause of the fault remedied at
an authorized Porsche dealer.
fFor further information on coolant, checking
the coolant level and topping up coolant:
Please see the chapter “COOLANT LEVEL” on
Page 255.
fFor information on the warning message on
the multi-purpose display:
Please see the chapter “OVERVIEW OF
WARNING MESSAGES” on Page 149.
Caution!
Risk of engine damage.
fDo not continue driving if the warning persists
even when the engine coolant level is correct.
fHave the fault remedied at your nearest authorized Porsche dealer.
Cooling System
10_Cayenne_21_KW17.book Seite 122 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
123
Emission ControlThe emission control system detects malfunctions
early that could, for example, cause increased
pollutant emissions or consequential damage.
Faults are indicated by a continuously lit or
flashing instrument panel warning light.
The faults are recorded in the control unit's fault
memory.
The warning light in the instrument panel lights up
when the ignition is switched on as a bulb check
and goes out approx. 4 seconds after the engine
starts. If the warning light does not light up, have
the bulb replaced promptly.The warning light in the instrument panel flashes to
indicate operating states (e.g. engine misfiring)
which might cause damage to certain parts of the
emission control system.
fIn this case, immediately reduce the engine
load by easing off the accelerator.
fIn order to avoid consequential damage to the
engine or emission control system (e.g. cata-
lytic converter), have the fault diagnosed and
rectified immediately at the nearest authorized
Porsche dealer.
If the warning light in the instrument panel lights up
permanently without flashing before and remains
on while driving, it suggests:
– a potential engine control problem and the
need for system service or
– an improperly fastened tank cap or
– the vehicle was refueled while the engine was
running.
fStop immediately at a suitable and secure
place and check tank cap for proper fastening.
If tank cap was fastened correctly, see your
authorized Porsche dealer for service as soon
as possible.
Caution!
If the check engine warning light in the in-
strument panel is flashing, serious catalytic
converter damage and power loss will soon
occur.
Prolonged driving with the check engine
warning light on could cause damage to the
emission control system. It also could affect
fuel economy and driveability.
fHave the fault remedied at the nearest authorized Porsche dealer immediately.
Check engine warning light
10_Cayenne_21_KW17.book Seite 123 Donnerstag, 9. April 2009 3:33 15

124
Multi-Purpose Display and Instruments
Operating the multi-purpose
display on the instrument panelOn-board computer information can be displayed
on the multi-purpose display. Additional functions
are also available in the main menu which allow
you to change the settings for your vehicle.
Warning!
There is a danger of accident, resulting in
serious personal injury or death if you set or
operate the multi-purpose display, radio,
navigation system, telephone or other equip-
ment while driving. Operating these devices
while driving could distract you from traffic
and cause you to lose control of the vehicle.
fOperate these components while driving only if
the traffic situation allows you to do so safely.
fCarry out any complicated operating or setting procedures only with the vehicle stationary.
It is not possible to describe all details of the
functions in this Owner’ s Manual.
The examples clearly demonstrate the functional
principle and clarify the menu structure.Note on operation
Depending on the equipment of your vehicle,
some information or functions may not be avai-
lable on the multi-purpose display (e.g. navigation,
audio system, compass or tire pressure)
Various menus can only be called up when the
vehicle is stationary.
Note
The multi-purpose display is ready for operation
only when the ignition is on.
Note on operation
By selecting the menu items
MAIN MENU > SETTINGS > FACTORY SET, you
can reset all individual settings to the basic factory
settings.
Note on operation
Arrows at the top and bottom of the menu indicate
additional entries.
fPress rocker switch A up or down.
In the COMFORT menu, the menu scrolls
automatically as you approach the end of the list.
Operating principleThe multi-purpose display is operated by means of
the rocker switch A and the ENTER button B on
the windshield wiper stalk.
Selection or setting
Using the rocker switch A, you can move the bar
up and down to select menu items, change
between display screens and make settings.
Confirmation
Press the ENTER button B to confirm the selected
entry. The selected item is then activated.
10_Cayenne_21_KW17.book Seite 124 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
125
Opening the main menuThe main menu contains the following functions:
fPHONE
MPH-LIMIT
VEHICLE INFO
TYRE PRESS.
SETTINGS
Operating example: Displaying
average consumptionSelect items with rocker switch on the wiper stalk
in each case and confirm by pressing the ENTER
button.Note on operation
Switching the ignition off does not reset the
measurements. Values can thus be collected over
long periods. Disconnecting the vehicle battery
clears the memories.
Further on-board computer functions can be
displayed in the PCM.
Please follow the separate operating instructions
for PCM. 1.Switch ignition on.
2.Select MAIN MENU.
3.Confirm selection.
The main menu is displayed.
1.MAIN MENU
>VEHICLE INFO
Select and confirm.
2.Select Ø CONSUM.
3.Confirm selection.
The average consumption is now
displayed.
Returning to starting menu
4.Select BACK.
5.Confirm selection.
VEHICLE INFO menu appears.
6.Select BACK.
7.Confirm selection.
MAIN MENU menu appears.
8.Select BACK.
9.Confirm selection.
Basic display appears.
10_Cayenne_21_KW17.book Seite 125 Donnerstag, 9. April 2009 3:33 15

126

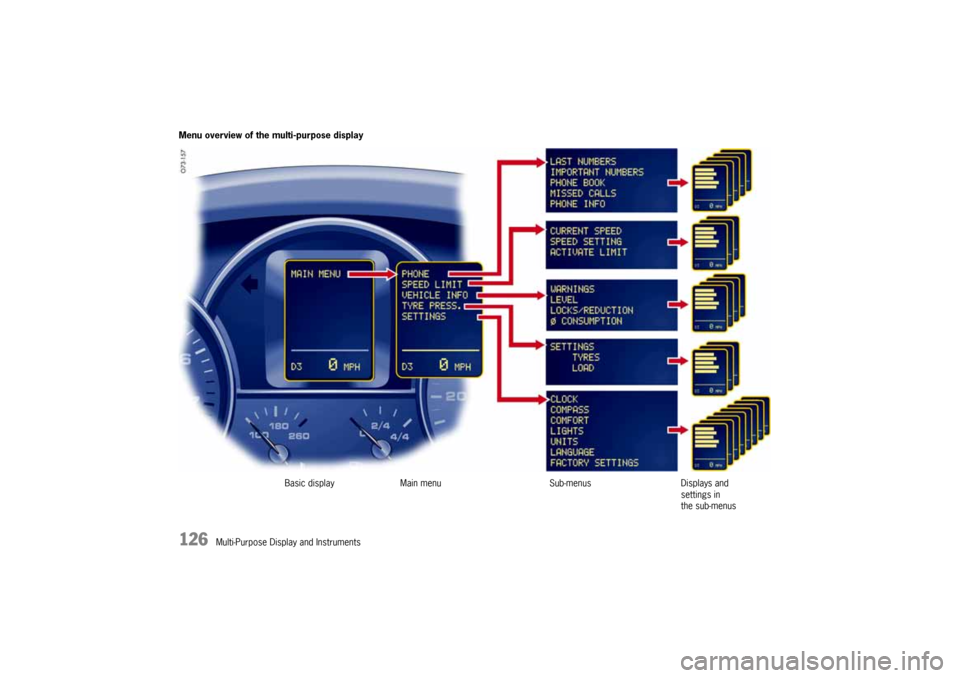

Multi-Purpose Display and Instruments Menu overview of the multi-purpose display
Basic display Main menu Sub-menus Displays and
settings in
the sub-menus
10_Cayenne_21_KW17.book Seite 126 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
127
Displaying/resetting average
speed
Displaying range on remaining fuelThe range on remaining fuel is continuously
recomputed while driving based on fuel level,
current consumption and average consumption.
Displaying tire pressureThis display is available only in conjunction with the
Tire Pressure Monitoring option.
The current tire pressures at the actually present
levels are displayed in the “Tyre pressure” screen
of the on-board computer. These values would be
identical to those of a pressure gage connected to
the four valves. These pressures change while the
vehicle is being driven.
– The tire pressures increase as the temperature
in the tires rises, e.g. during high-speed
motorway driving.
– The tire pressures decrease as the tempera-
tures drop, e.g. during trips in cold regions
(such as mountains).
The values displayed therefore do not allow
conclusions to be drawn about possible pressure
deviations.
fIn order to display pressure deviations from
the prescribed pressure, select the menu item
TYRE PRESS. in the MAIN MENU.
Displaying compassThis display is available only in conjunction with the
Compass or PCM option.Displaying navigation informationNavigation information can also be displayed on
the multi-purpose display.
This display is available only in conjunction with the
Navigation (PCM) option. Displaying average speed
1.Switch ignition on.
2.Select Ø MPH.
The average speed is displayed.
The displayed values are based on the
distance travelled since the last reset to
“zero”.
Resetting average speed
3.Select Ø MPH.
The average speed is displayed.
4.Press the ENTER button for longer than
1second.
1.Switch ignition on.
2.Select remaining range.1.Switch ignition on.
2.Select TYRE PRESS.1.Switch ignition on.
2.Select COMPASS.
1.Switch ignition on.
2.Select NAVIGATION.
The navigation arrows are displayed.
10_Cayenne_21_KW17.book Seite 127 Donnerstag, 9. April 2009 3:33 15

128
Multi-Purpose Display and Instruments
Operating the telephone via the
multi-purpose displayNote
The telephone function of the multi-purpose
display is linked to both the PCM and the multi-
functional buttons on the steering wheel as well as
the control stalk.
A SIM card must be inserted in the drawer of
the PCM as a prerequisite for telephone
operation.
If the link to the network is lost, no PIN is entered,
no SIM card is inserted or the telephone is
switched off, a corresponding indication will
appear.
Note
The phone number of an incoming call is shown on
the multi-purpose display. The name of the caller
is shown only if the caller is stored in the telephone
book.Notes on operation
If the rocker switch is pressed for longer than one
second, the initial letters for which entries exist
are shown.
This allows the desired entry to be found more
quickly.
fFor information on the operating principle of
the multi-purpose display:
Please see the chapter “OPERATING
PRINCIPLE” on Page 124.
Accepting, refusing, ending a callIncoming calls are shown on the multi-purpose
display (PHONE INFO must be activated).
Displaying telephone calls on the multi-
purpose displayAutomatic indication of an incoming call on the
multi-purpose display can be switched on or off
with the PHONE INFO menu.Displaying last numbers and last-number
redialThe LAST NUMBERS menu shows the most recent
entries dialled via the respective SIM card. 1.Press the ENTER button.
The display reverts to the last menu.
Display on display screen
1.Select ACCEPT or
REFUSE.
2.Confirm selection.
After the call is accepted, END appears in the
menu.
Ending a call
3.Select END.
4.Confirm selection.
1.MAIN MENU
> PHONE
> PHONE INFO
Select and confirm.
2.Select ON or OFF.
3.Confirm selection.
The selected item is then accepted.1.MAIN MENU
> PHONE
> LAST NUMBERS
Select and confirm.
2.Select entry from the list.
3.Confirm selection.
10_Cayenne_21_KW17.book Seite 128 Donnerstag, 9. April 2009 3:33 15

Multi-Purpose Display and Instruments
129
Displaying important numbers and callingThe IMPORTANT NOS. menu shows the entries
stored as important numbers on the SIM card.Displaying telephone book, selecting
party and callingThe PHONE BOOK menu shows the entries of the
telephone book that are stored on the SIM card.
Displaying missed calls, calling back
partyThe telephone numbers of the rejected calls are
shown in the MISSED CALLS menu. The numbers
are stored on the SIM card.
Setting speed limit on the multi-
purpose displayA speed limit can be entered to monitor the driving
speed. When it is exceeded, a signal sounds and
the multi-purpose display displays the message
LIMIT EXCEEDED.
Note on operation
fFor information on the operating principle of
the multi-purpose display:
Please see the chapter “OPERATING
PRINCIPLE” on Page 124.Accepting current speedYou can define the current speed as the speed
limit in the menu MPH-LIMIT.
1.MAIN MENU
> PHONE
> IMPORTANT NOS.
Select and confirm.
2.Select entry from the list.
3.Confirm selection.1.MAIN MENU
> PHONE
> PHONE BOOK
Select and confirm.
2.Select entry from the list.
3.Confirm selection.
1.MAIN MENU
> PHONE
> MISSED CALLS
Select and confirm.
2.Select entry from the list.
3.Confirm selection.
1.MAIN MENU
>MPH-LIMIT
Select and confirm
2.Select CURRENT MPH.
3.Confirm selection.
LIMIT ACTIVE is activated automatically and
the selected speed limit is shown.
10_Cayenne_21_KW17.book Seite 129 Donnerstag, 9. April 2009 3:33 15

130
Multi-Purpose Display and Instruments

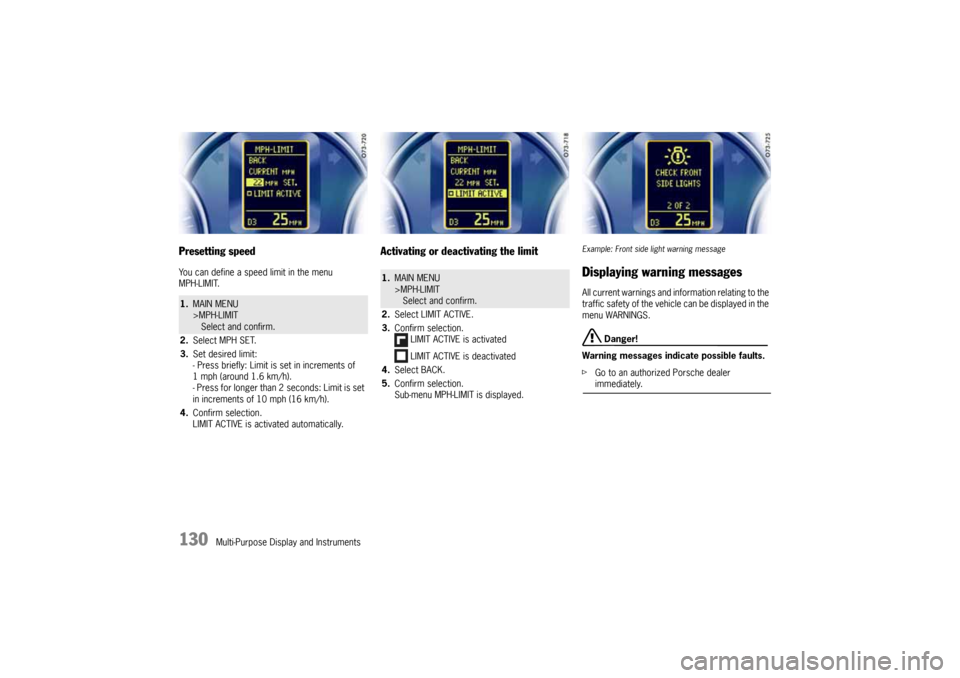

Presetting speedYou can define a speed limit in the menu
MPH-LIMIT.
Activating or deactivating the limit
Example: Front side light warning messageDisplaying warning messagesAll current warnings and information relating to the
traffic safety of the vehicle can be displayed in the
menu WARNINGS.
Danger!
Warning messages indicate possible faults.
fGo to an authorized Porsche dealer immediately.
1.MAIN MENU
>MPH-LIMIT
Select and confirm.
2.Select MPH SET.
3.Set desired limit:
- Press briefly: Limit is set in increments of
1 mph (around 1.6 km/h).
- Press for longer than 2 seconds: Limit is set
in increments of 10 mph (16 km/h).
4.Confirm selection.
LIMIT ACTIVE is activated automatically.
1.MAIN MENU
>MPH-LIMIT
Select and confirm.
2.Select LIMIT ACTIVE.
3.Confirm selection.
LIMIT ACTIVE is activated
LIMIT ACTIVE is deactivated
4.Select BACK.
5.Confirm selection.
Sub-menu MPH-LIMIT is displayed.
10_Cayenne_21_KW17.book Seite 130 Donnerstag, 9. April 2009 3:33 15
