Brief overview - sliding/lifting roofThis brief overview does not replace the informati-
on provided in the chapter “Sliding/lifting roof”.
In particular, warnings are not replaced by this
brief overview.

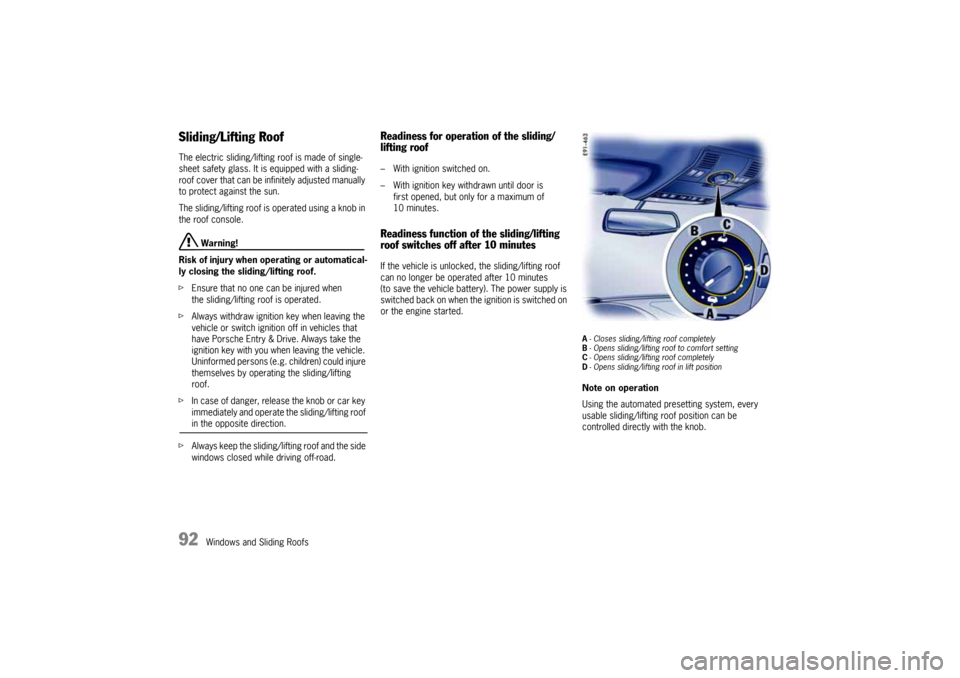

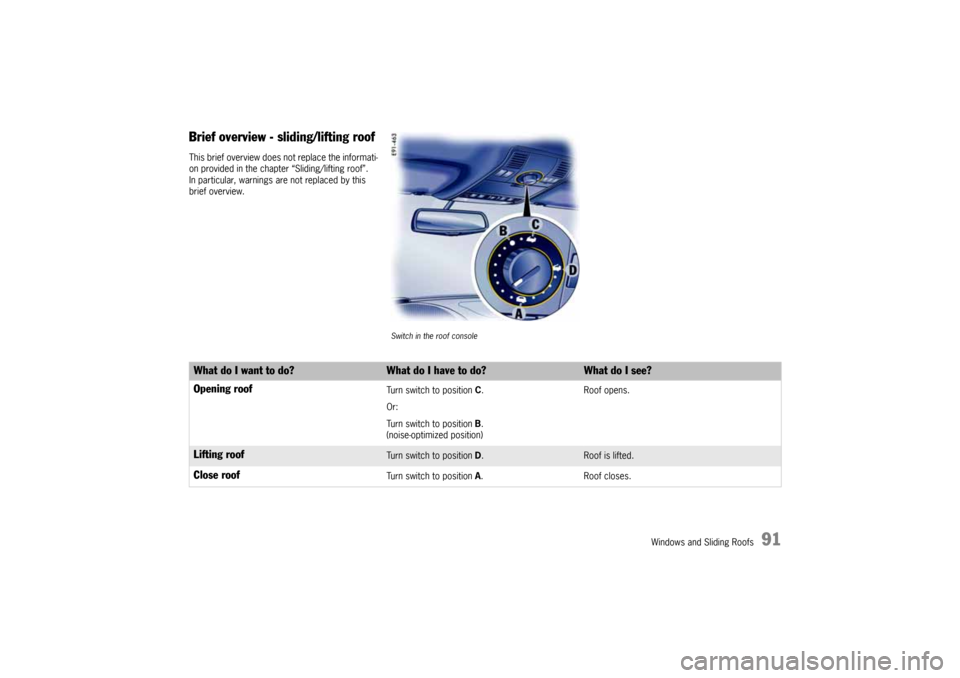

Switch in the roof console
What do I want to do?
What do I have to do?
What do I see?
Opening roof
Turn switch to position C.
Or:
Turn switch to position B.
(noise-optimized position)Roof opens.
Lifting roof
Turn switch to position D.
Roof is lifted.
Close roof
Turn switch to position A. Roof closes.
10_Cayenne_21_KW17.book Seite 91 Donnerstag, 9. April 2009 3:33 15

92
Windows and Sliding Roofs
Sliding/Lifting RoofThe electric sliding/lifting roof is made of single-
sheet safety glass. It is equipped with a sliding-
roof cover that can be infinitely adjusted manually
to protect against the sun.
The sliding/lifting roof is operated using a knob in
the roof console.
Warning!
Risk of injury when operating or automatical-
ly closing the sliding/lifting roof.
fEnsure that no one can be injured when
the sliding/lifting roof is operated.
fAlways withdraw ignition key when leaving the
vehicle or switch ignition off in vehicles that
have Porsche Entry & Drive. Always take the
ignition key with you when leaving the vehicle.
Uninformed persons (e.g. children) could injure
themselves by operating the sliding/lifting
roof.
fIn case of danger, release the knob or car key
immediately and operate the sliding/lifting roof in the opposite direction.
fAlways keep the sliding/lifting roof and the side
windows closed while driving off-road.
Readiness for operation of the sliding/
lifting roof– With ignition switched on.
– With ignition key withdrawn until door is
first opened, but only for a maximum of
10 minutes.Readiness function of the sliding/lifting
roof switches off after 10 minutesIf the vehicle is unlocked, the sliding/lifting roof
can no longer be operated after 10 minutes
(to save the vehicle battery). The power supply is
switched back on when the ignition is switched on
or the engine started.
A- Closes sliding/lifting roof completely
B- Opens sliding/lifting roof to comfort setting
C- Opens sliding/lifting roof completely
D- Opens sliding/lifting roof in lift positionNote on operation
Using the automated presetting system, every
usable sliding/lifting roof position can be
controlled directly with the knob.
10_Cayenne_21_KW17.book Seite 92 Donnerstag, 9. April 2009 3:33 15

Windows and Sliding Roofs
93
A - Closing sliding/lifting roof completelyfTurn knob to switch position A.
Note on operation
The sliding/lifting roof is equipped with a force
limiter. If the sliding/lifting roof is obstructed
during the closing process, the sliding/lifting roof
opens again immediately.
Closing the sliding/lifting roof after
operation of the force limiter
fRemove the obstruction.
fTurn knob to position A again.B - Opening sliding/lifting roof to comfort
settingfTurn knob to switch position B.
The sliding/lifting roof opens in switch position B
until it reaches the best position relative to noise.
It can be opened fully, however, if you continue to
turn the switch beyond the limit to position C.
C - Opening sliding/lifting roof completelyfTurn knob beyond stop position B to switch
position C.
Effort is required to turn the knob.
Once released, the knob rebounds to position
B.D - Lifting sliding/lifting rooffTurn knob between switch positions A and D
until it reaches the required position. The roof
is lifted completely in switch position D.
Comfort function on vehicles without
Porsche Entry & DriveClosing the sliding/lifting roof
fHold the car key in the door lock in the locking
position until the windows and the sliding/
lifting roof have reached the desired position.Comfort function on vehicles with
Porsche Entry & DriveClosing the sliding/lifting roof
fHold the car key in the door lock in the locking
position until the windows and the sliding/
lifting roof have reached the desired position
or
fHold the button in the door handle when
locking the vehicle until the windows and the
sliding/lifting roof have reached the desired
position.
10_Cayenne_21_KW17.book Seite 93 Donnerstag, 9. April 2009 3:33 15

94
Windows and Sliding Roofs
Emergency operation of sliding/lifting
roofIf the sliding/lifting roof is defective, this can be
closed or opened manually.
Warning!
Risk of serious personal injury and damage
to the sliding/lifting roof during emergency
operation.
fEnsure that no one can be injured when the
sliding/lifting roof is operated.
fDuring and after emergency operation, the
sliding/lifting roof may no longer be operated with the rocker switch.

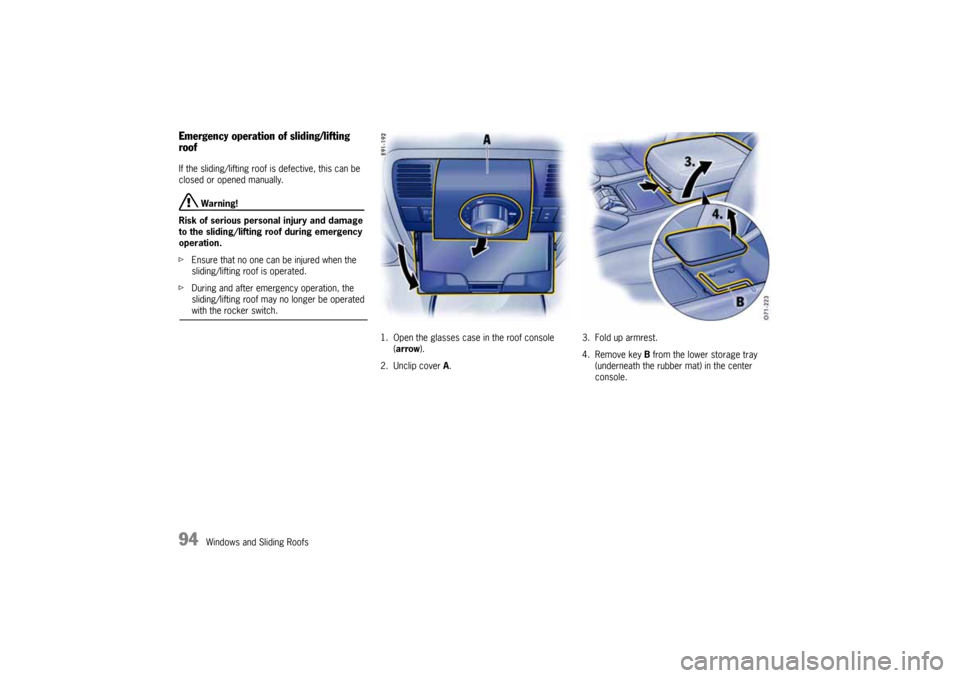

1. Open the glasses case in the roof console
(arrow).
2. Unclip cover A.3. Fold up armrest.
4. Remove key B from the lower storage tray
(underneath the rubber mat) in the center
console.
10_Cayenne_21_KW17.book Seite 94 Donnerstag, 9. April 2009 3:33 15

Windows and Sliding Roofs
95
5. Insert the key in opening C. This requires a so-
mewhat greater effort.6. Close sliding/lifting roof
To close the roof – turn to the right.
To open the roof – turn to the left.
7. Remove the key and return it to the storage
tray.
8. Clip in cover.
fHave the fault remedied at an authorized
Porsche dealer.
10_Cayenne_21_KW17.book Seite 95 Donnerstag, 9. April 2009 3:33 15

96
Windows and Sliding Roofs
Brief overview –
Panorama roof systemThis brief overview does not replace the informa-
tion provided in the chapter “Panorama roof
system”.
In particular, warnings are not replaced by this
brief overview.

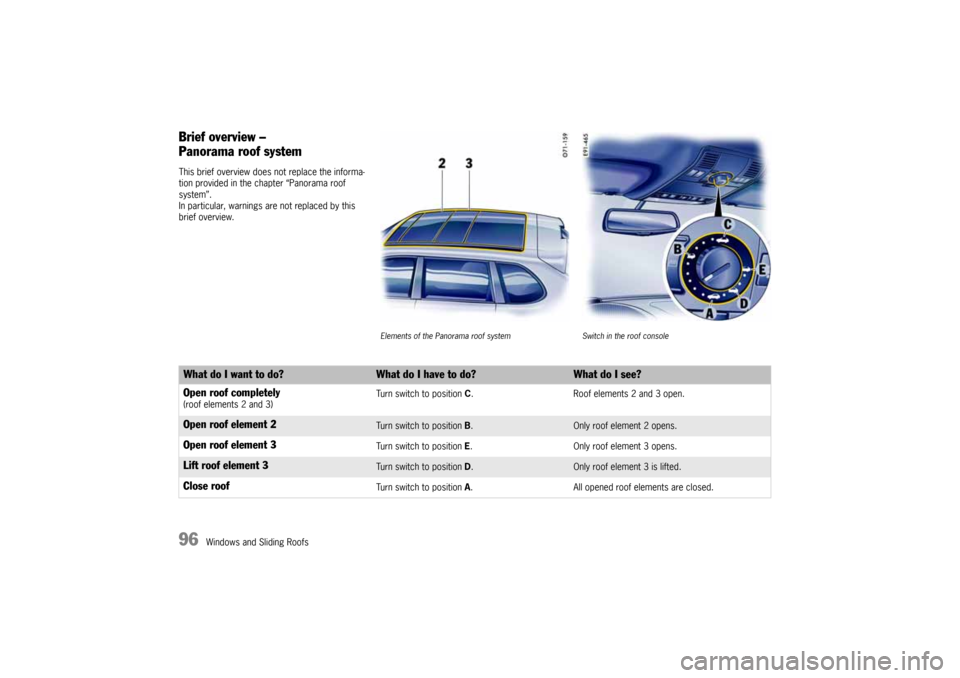

Elements of the Panorama roof system Switch in the roof console
What do I want to do?
What do I have to do?
What do I see?
Open roof completely
(roof elements 2 and 3) Turn switch to position C. Roof elements 2 and 3 open.Open roof element 2
Turn switch to position B.
Only roof element 2 opens.
Open roof element 3
Turn switch to position E. Only roof element 3 opens.
Lift roof element 3
Turn switch to position D.
Only roof element 3 is lifted.
Close roof
Turn switch to position A. All opened roof elements are closed.
10_Cayenne_21_KW17.book Seite 96 Donnerstag, 9. April 2009 3:33 15

Windows and Sliding Roofs
97
Panorama roof systemThe Panorama roof system of your Porsche
consists of a total of four roof elements.
Roof element 1 is the draft deflector. This
adjusts itself according to the speed, and helps
protect from the disturbing effects of the wind
when the Panorama roof system is open,
especially at high speeds or from turbulent air
flow.
Both roof elements 2 and 3 can be moved by
activating the knob in the vehicle's longitudinal
direction. Roof element 3 can also be raised.
This allows the interior to be better ventilated.
Roof element 4 is a fixed glass element and
completes the Panorama roof system.

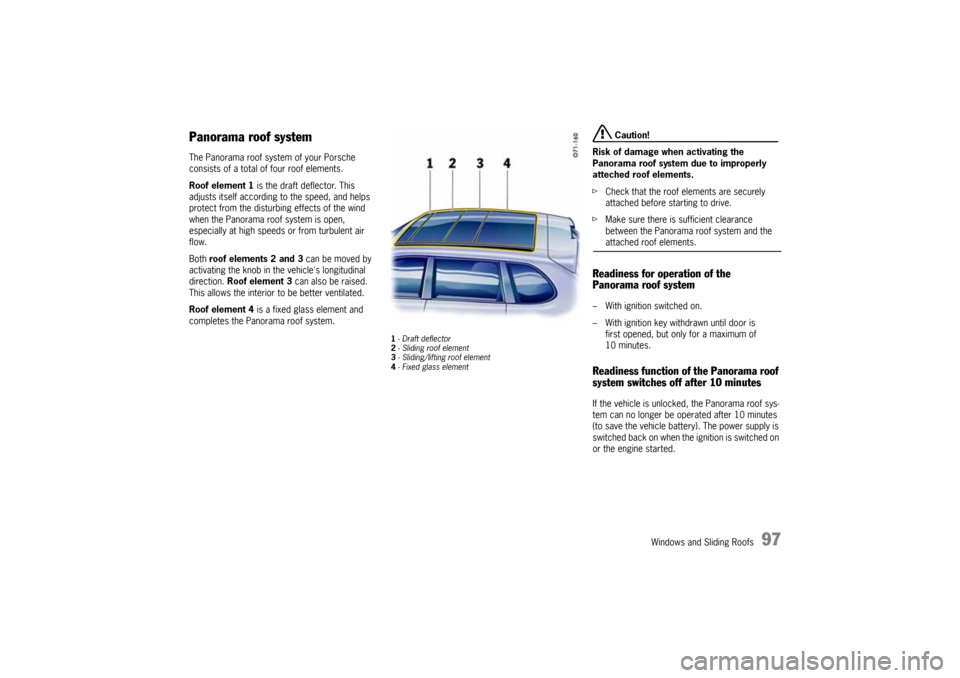

1-Draft deflector
2- Sliding roof element
3- Sliding/lifting roof element
4- Fixed glass element
Caution!
Risk of damage when activating the
Panorama roof system due to improperly
atteched roof elements.
fCheck that the roof elements are securely
attached before starting to drive.
fMake sure there is sufficient clearance
between the Panorama roof system and the attached roof elements.
Readiness for operation of the
Panorama roof system– With ignition switched on.
– With ignition key withdrawn until door is
first opened, but only for a maximum of
10 minutes.Readiness function of the Panorama roof
system switches off after 10 minutesIf the vehicle is unlocked, the Panorama roof sys-
tem can no longer be operated after 10 minutes
(to save the vehicle battery). The power supply is
switched bac k o n whe n the ignition is switched on
or the engine started.
10_Cayenne_21_KW17.book Seite 97 Donnerstag, 9. April 2009 3:33 15

98
Windows and Sliding Roofs

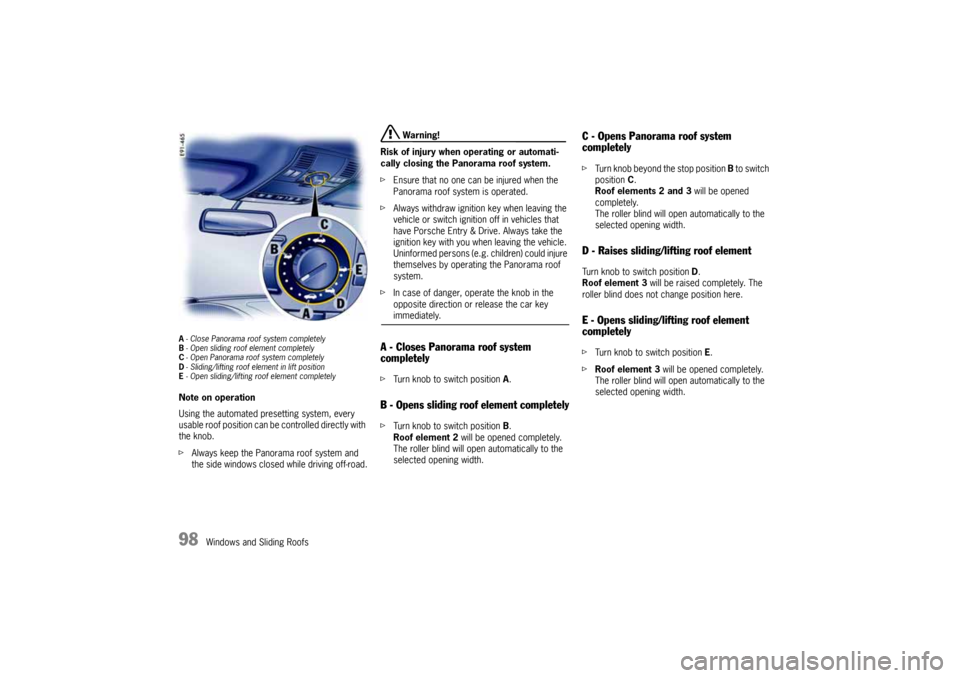

A- Close Panorama roof system completely
B- Open sliding roof element completely
C- Open Panorama roof system completely
D- Sliding/lifting roof element in lift position
E- Open sliding/lifting roof element completelyNote on operation
Using the automated presetting system, every
usable roof position can be controlled directly with
the knob.
fAlways keep the Panorama roof system and
the side windows closed while driving off-road.
Warning!
Risk of injury when operating or automati-
cally closing the Panorama roof system.
fEnsure that no one can be injured when the
Panorama roof system is operated.
fAlways withdraw ignition key when leaving the
vehicle or switch ignition off in vehicles that
have Porsche Entry & Drive. Always take the
ignition key with you when leaving the vehicle.
Uninformed persons (e.g. children) could injure
themselves by operating the Panorama roof
system.
fIn case of danger, operate the knob in the
opposite direction or release the car key immediately.
A - Closes Panorama roof system
completelyfTurn knob to switch position A.B - Opens sliding roof element completelyfTurn knob to switch position B.
Roof element 2 will be opened completely.
The roller blind will open automatically to the
selected opening width.
C - Opens Panorama roof system
completelyfTurn knob beyond the stop position B to switch
position C.
Roof elements 2 and 3 will be opened
completely.
The roller blind will open automatically to the
selected opening width.D - Raises sliding/lifting roof elementTurn knob to switch position D.
Roof element 3 will be raised completely. The
roller blind does not change position here.E - Opens sliding/lifting roof element
completelyfTurn knob to switch position E.
fRoof element 3 will be opened completely.
The roller blind will open automatically to the
selected opening width.
10_Cayenne_21_KW17.book Seite 98 Donnerstag, 9. April 2009 3:33 15

Windows and Sliding Roofs
99
Comfort function on vehicles without
Porsche Entry & DriveOpening and closing the Panorama roof
system
fHold the car key in the door lock in the
unlocking or locking position until the windows
and the Panorama roof system have reached
the desired position.Comfort function on vehicles with
Porsche Entry & DriveOpening and closing the Panorama roof
system
fHold the car key in the door lock in the
unlocking or locking position until the windows
and the Panorama roof system have reached
the desired position.
Closing the Panorama roof system
fHold the button in the door handle when
locking the vehicle until the windows and the
Panorama roof system have reached the
desired position.
Force limiter for the Panorama roof
system All roof elements are equipped with a force limiter.
If the sliding roof or the sliding/lifting roof element
is obstructed during the closing or opening
process, the respective roof element opens or
closes again immediately.
Closing a roof element after triggering the
force limiter
1. Remove the obstruction.
2. Turn knob to position A again.Electric emergency closing function
Warning!
Risk of injury from the emergency closing
function for the Panorama roof system. The
force limiter is not available and the roof
elements will close with full force.
fEnsure that no one can be injured when the Panorama roof system is closing.
If the roof cannot be closed due to dirt, ice, or
similar substances:
1. Turn knob to position A.
2. Hold the knob in position A until all roof
elements are completely closed.
Save final position of the Panorama roof
systemAfter disconnecting/reconnecting the vehicle
battery or if the vehicle battery is discharged, or
after emergency starting with jumper cables, the
final positions of the Panorama roof system are
lost.
Warning!
Risk of injury when closing the Panorama
roof system. The force limiter is not available
and the roof elements will close with full
force.
fEnsure that no one can be injured when the Panorama roof system is closing.
1. Switch ignition off.
2. Turn knob to position A.
3. Switch ignition on.
4. Press knob up at its front edge in position A
and keep pressed.
The teaching process begins after around
5 seconds. Hold the knob pressed in position
until the roller blind and all roof elements have
completely stopped moving. The procedure
lasts a maximum of 20 seconds.
5. Release the knob.
The raised sliding/lifting roof element 3 clo-
ses automatically. The teaching process is
then completed.
10_Cayenne_21_KW17.book Seite 99 Donnerstag, 9. April 2009 3:33 15

100
Windows and Sliding Roofs Note on operation
If the procedure is interrupted, saving the final
positions must be started from the beginning.

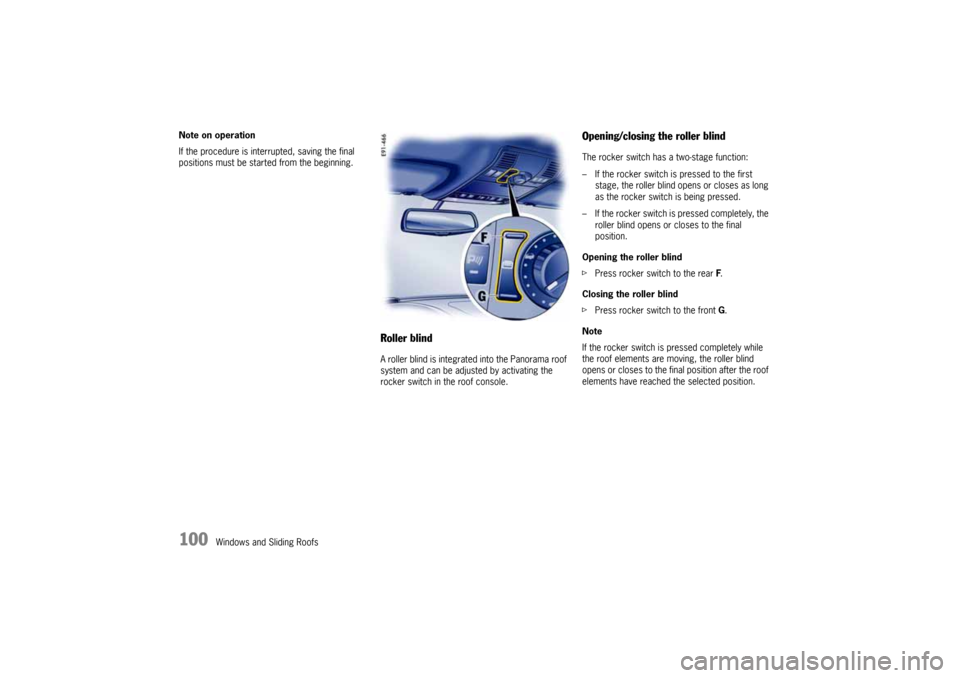

Roller blindA roller blind is integrated into the Panorama roof
system and can be adjusted by activating the
rocker switch in the roof console.
Opening/closing the roller blindThe rocker switch has a two-stage function:
– If the rocker switch is pressed to the first
stage, the roller blind opens or closes as long
as the rocker switch is being pressed.
– If the rocker switch is pressed completely, the
roller blind opens or closes to the final
position.
Opening the roller blind
fPress rocker switch to the rear F.
Closing the roller blind
fPress rocker switch to the front G.
Note
If the rocker switch is pressed completely while
the roof elements are moving, the roller blind
opens or closes to the final position after the roof
elements have reached the selected position.
10_Cayenne_21_KW17.book Seite 100 Donnerstag, 9. April 2009 3:33 15
