Adaptive cruise control.
Optional on all Cayenne models,
adaptive cruise control regulates
the speed of your vehicle in line
with that of the vehicle in front. To
do that, the system uses a radar
sensor in the central air intake
to monitor the road up to 200 m
ahead. If you approach another vehicle
that is travelling slower than
your selected cruising speed,

the system slows the engine or
gently applies the brakes. This
continues until the distance that
you have preset is maintained.
If heavier braking is required, the
driver has to actively intervene. Your vehicle will now follow the
one in front at a reduced speed.
If the other vehicle decelerates
further, adaptive cruise control
will continue to reduce your speed
– even down to a halt. When the
road ahead is free once more,
the car automatically returns
to your selected cruising speed bet ween 30 and 210 km/ h
(19 and 130 mph). To pull away
after an automatic stop, simply
use the control lever or depress
the accelerator pedal.
For added safet y, the system also
readies the brakes whenever a
decreasing distance to the vehicle
in front is detected. Adaptive
cruise control and PSM (p. 66)
interact to prefill the brakes.
The system visually and audibly
alerts the driver in the event
of a critical decrease in distance
and briefly tugs on the brakes.
Optional for all Cayenne
models.
Lane Change Assist (LCA).
Lane Change Assist (LCA )
monitors the area behind the
vehicle and the blind spot using
radar sensors. At speeds of 30 km/ h (19 mph) or
more, the system alerts the driver
of a vehicle in the blind spot or
approaching quickly from behind
via a visual signal from the
exter ior mirrors. This enhances
comfort and safet y, particularly
when driving on the motorway.
However, LCA does not actively
intervene in the
controlling of
the vehicle and can be deactivated
at any time.
Optional for all Cayenne
models.
Lane Change Assist (LCA)
Adaptive cruise control
Comfort and transport | Driver assistance systems · 105
104 · Comfort and transport | Driver assistance systems

Ski bag
Loading option
Even when the car is fully laden,
the self-levelling air suspension
on the Cayenne Turbo (optional
on all other models) maintains a
constant ground clearance at
front and rear.
For greater convenience, the air
suspension package includes
ride-height control, enabling the
car to be lowered below the
normal ride level for easier load-
ing of heav y items. When
moving
off, the suspension automatically
reverts to the standard ride-height
set ting (Normal Level).
An automatic tailgate is avail-
able as an option with a user-
programmable set ting that can
be adjusted to the height of
your garage.
With the rear seats folded, the
loadspace expands to as much

as 1,780 litres
2). Items can be
stored out of view and protected
from the sun using a retractable
cover with detachable storage
casset te.
A handy ski bag is available as an
option. As well as protecting the
interior of your Cayenne, it can
be used to transport your skis
to and from the car. For added
practicalit y, the ski bag is also
washable.
The Cayenne brings a new facet
to the concept of high perform-
ance. And it ’s extremely versatile
too.
Luggage compartment.
The Cayenne models have a
spacious passenger area and,
thanks to the adjustable rear
bench, a large versatile luggage
compartment. With a total volume
of 670 litres
1) (VDA), it of fers
more
than enough space for up
to
six suitcases – depending
on the
size. Other standard
features include an easily acces-
sible
meshed storage compart-
ment on the lef t and a practical
load-through facilit y when the
centre section of the rear bench
is folded down.
The Cayenne models.
For when you need to pack in a whole lot more.
Transpor t.
1) Cayenne S Hybrid: 580 litres. 2) With sports seats: 1,705 litres.
Cayenne S Hybrid: 1,690 litres.
Comfort and transport | Transport · 107
106 · Comfort and transport | Transport

The st yling of the roof is further
enhanced by a set of three drip
rails included in the package. The
roof rails are required for fitment
of the optional roof transport
system and come in a high -gloss
black finish as part of the mono -
chrome black exterior package.
Only available as a factory-fit ted
option. Optional for all Cayenne
models.
Roof transport system.
Even when the luggage com-
partment is completely full, the
Cayenne has space for more.
In conjunction with the optional
roof rails, the car can be
equipped with a set of lockable
transverse roof bars for all the
usual load- carrying at tachments
from Porsche. The load-bearing
parts are made from aluminium
and enable a maximum roof load
of 100 kg. Load-carrying at tach-
ments are available from Porsche
Tequipment. Optional for all Cayenne
models.
when the car is fully laden. The
partition at taches to one of
t wo easily accessible points on
the rooflining.
Optional for all Cayenne
models.
Roof rails.
The high-qualit y roof rails in alu-
minium blend harmoniously with
the dynamic design of the vehicle.
Loadspace management
system.
This facilit y enables you to parti-
tion the luggage compartment
and secure individual objects dur-
ing transit using a rail system with
sliding telescopic bar, a fixing belt
and four variable lashing eyelets.
A reversible mat protects against
dirt while securing luggage under
braking, etc. The package also
includes a loadspace partition net
which provides additional safet y
Loadspace management system
Towbar systems.
For the largest of loads, you can
choose from t wo towing options:
an electrically deployable towbar
system or a manually detachable
towbar. With the electric system,
the ball neck is retracted at the
push of a but ton and concealed
beneath the rear apron. Both
options have a 13-pin socket and
of fer a maximum braked trailer load of 3,500 kg (2,700 kg on the
Cayenne with manual gearbox)
or an unbraked load of 750 kg,
with a maximum noseweight of
140 kg. Both systems are also
available for
future installation. All
models have a towbar preparation
as standard.
Optional for all Cayenne
models.
Comfort and transport | Transport · 109
108 · Comfort and transport | Transport

Looking for that lit tle bit more?
Or something different?
Create a Porsche Cayenne that
reflects your own individual st yle.

an extensive colour range with no
fewer than 11 exterior shades.
In total, there’s a choice of t wo
Colours can af fect people in
very dif ferent ways. That ’s why
the Cayenne models come in Colours.To see how these colour options
would look on your car, use
the Porsche Car Configurator at
w w w.porsche.com.
and four t wo -tone combinations,
as well as seven interior pack-
ages in aluminium, carbon or a
selection of fine woods.
solid, seven metallic and t wo
special colours. You can also
choose from five interior colours
Classic Silver Metallic Dark Blue Metallic Jet Black Metallic
Sand White
1)
White2)
Black
112 · Personalisation Personalisation · 113Personalisation · 114
Metallic exterior colours.Metallic exterior colours.
Solid exterior colours.
Meteor Grey Metallic Jet Green Metallic
Umber Metallic
Design a Porsche Cayenne
that uniquely reflects your own
individual st yle. Inside and out.
1) Available until end of 09/2011.2) Introduction planned for 11/2011.
Metallic exterior colours.
Auburn Metallic
Amethyst Metallic
1)
Sand Yellow1)
Special exterior colours.

Espresso/Cognac (rooflining: Espresso,
carpet1): Cognac)
Interior packages.
Walnut (wood)2), 3)Natural olive (wood)2)
Brushed aluminium
Anthracite birch (wood)
2), 3)
Yachting Mahogany (wood)2)
Carbon3)
Umber Espresso
Umber/Cream (rooflining:
Umber, carpet
1): Cream)
Black / Titanium Blue (rooflining:
Black, carpet
1): Titanium Blue)
Umber/ Light Tartufo
(rooflining: Umber, carpet
1): Light Tartufo)3)
Black Black
Luxor Beige Luxor Beige
Platinum Grey
Platinum Grey
Standard colours:
leather interior.
Dashboard/trim/seats.Natural leather interior.
Dashboard/trim/seats.
Two-tone combination: natural
leather interior.
Dashboard/trim/seats.Two-tone combinations:
leather interior.
Dashboard/trim/seats.
Standard interior colours.
Dashboard/trim/seats.
1) Carpet in loadspace area in darker colour.2) Colour and grain may var y.3) Also available on steering wheel.
116 · Personalisation
Personalisation · 117
Monochrome black (high -gloss)
Personalisation · 118
Leather interior in Platinum Grey with carbon interior package
Leather interior in Luxor Beige with natural olive interior package
Leather interior in Umber with walnut interior package
Available colour combinations.

1 ) Introduction planned for 11/2011.2 ) Introduction planned for 12/2011.
Personalisation · 121
– not available extra-cost option• standard equipmentW no-cost option
For more information on the options featured in this catalogue, please refer to the price list.
120 · Personalisation

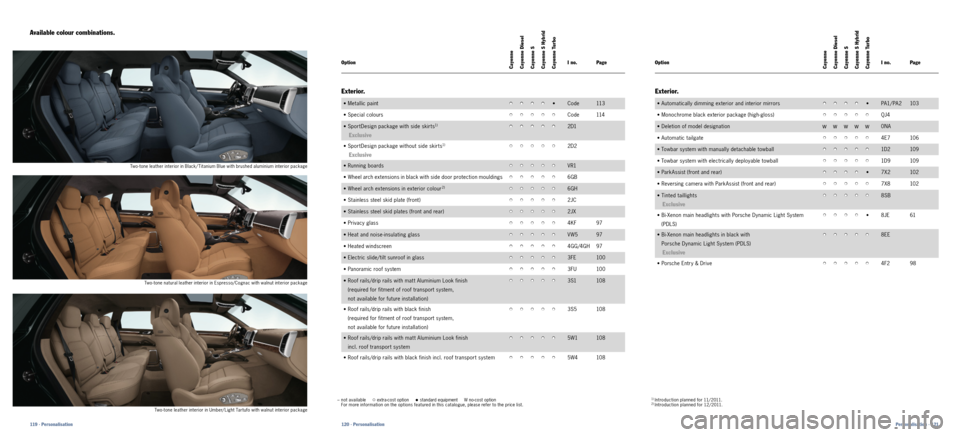

Exterior.
• Metallic paint••••• Code 113
• Special colours
•••••Code 114
• SportDesign package with side skirts
1)
Exclusive
•••••2 D1
• SportDesign package without side skirts
1)
Exclusive
•••••2D2
• Running boards
•••••VR1
• Wheel arch extensions in black with side door protection mouldings
•••••6GB
• Wheel arch extensions in exterior colour
2)•••••6GH
• Stainless steel skid plate (front)
•••••2JC
• Stainless steel skid plates (front and rear)
•••••2JX
• Privacy glass
•••••4KF 97
• Heat and noise-insulating glass
•••••VW5 97
• Heated windscreen
•••••4GG/4GH 97
• Electric slide/tilt sunroof in glass
•••••3FE 10 0
• Panoramic roof system
•••••3FU 10 0
• Roof rails/drip rails with mat t Aluminium Look finish (required for fitment of roof transport system,
not available for future installation)
•••••3S1 10 8
• Roof rails/drip rails with black finish (required for fitment of roof transport system,
not available for future installation)
•••••3S5 10 8
• Roof rails/drip rails with mat t Aluminium Look finish incl. roof transport system
•••••5W1 10 8
• Roof rails/drip rails with black finish incl. roof transport system
•••••5W4 10 8
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no.Page
Option
Exterior.
• Automatically dimming exterior and interior mirrors ••••• PA1/ PA 2 10 3
• Monochrome black exterior package (high -gloss)
•••••QJ4
• Deletion of model designation
w wwww0NA
• Automatic tailgate
•••••4E7 10 6
• Towbar system with manually detachable towball
•••••1D2 10 9
• Towbar system with electrically deployable towball
•••••1D9 10 9
• ParkAssist (front and rear)
••••• 7X2 10 2
• Reversing camera with Park Assist (front and rear)
•••••7X8 10 2
• Tinted taillights

Exclusive
•••••8SB
• Bi -Xenon main headlights with Porsche Dynamic Light System (PDLS)
••••• 8JE 61
• Bi -Xenon main headlights in black with Porsche Dynamic Light System (PDLS)

Exclusive
•••••8EE
• Porsche Entry & Drive
•••••4F2 98
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no.Page
Option
119 · Personalisation
Two -tone leather interior in Black / Titanium Blue with brushed aluminium interior package
Two -tone natural leather interior in Espresso/Cognac with walnut interior package
Two -tone leather interior in Umber/ Light Tar tufo with walnut interior package
Available colour combinations.

1) In conjunction with 275 - mm t yres for the Cayenne Turbo and 265 - mm t yres for all other models.2) Stows in internal holder on right- hand side of luggage compar tment.3) For Cayenne, Cayenne Diesel, Cayenne S and Cayenne S Hybrid: only in conjunction with PCCB.4 ) For Cayenne Turbo: until 08/2011 only in conjunction with Powerkit Cayenne Turbo.5 ) For Cayenne Turbo: only in conjunction with PCCB (PB3).6) Only in conjunction with Tiptronic S.
Personalisation · 123
122 · Personalisation
– not available extra-cost option• standard equipment W no-cost option
For more information on the options featured in this catalogue, please refer to the price list.
Wheels.
• 18-inch Cayenne wheel ••ww –C1J
56
• 18-inch Cayenne S III wheel
••• •–C1Q 56
• 19 -inch Cayenne Turbo wheel
••••• C8K 57
• 19-inch Cayenne Design II wheel
1)•••••FO9 57
• 20 - inch RS Spyder Design wheel
•••••CP5 57
• 20 -inch Cayenne SportDesign II wheel
•••••CN7 57
• 21- inch 911 Turbo II wheel with wheel arch extensions
•••••CZ4 57
• 21-inch Cayenne SportEdition wheel with wheel arch extensions
Exclusive
•••••CKO 57
• 21-inch Cayenne SportEdition wheel painted black with wheel arch extensions
Exclusive
•••••CQ1
• All-season t yre for 18-inch alloy wheel
w www –H9M
• All-season t yre for 19 -inch alloy wheel
w wwwwHQ3
• All-season t yre for 20 -inch alloy wheel
w wwwwHQ4
• Full-size spare wheel (stows inside luggage compartment)
2)••• –•3 F4
• 18-inch collapsible spare wheel (stows beneath loadspace floor)
••••2)–1G1
• 19 -inch collapsible spare wheel (stows beneath loadspace floor)
3) ••••2)•1G 4
• 20 -inch collapsible spare wheel (stows beneath loadspace floor)
4)– –––•1G 6
• Tyre Pressure Monitoring (TPM)
••••• 7K3 57
• Wheel centre with full - colour Porsche Crest
•••••1N P
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no. Page
Option
Engine, transmission and chassis.
• 8 -speed Tiptronic S with auto start /stop function •• ••• G1G 42
• Porsche Torque Vectoring Plus (PT V Plus)
• –•–•1Y 1
50
• Servotronic
•••••1N3 55
• Porsche Active Suspension Management (PASM)
•••• –1B H
51
• Air suspension with Porsche Active Suspension Management (PASM)
••••• 1B K 52
• Porsche Dynamic Chassis Control (PDCC)
• –•–•0AW
53
• Porsche Ceramic Composite Brake (PCCB) Disc diameter (front/rear): 390 mm/370 mm
•••• –PB2
64
• Porsche Ceramic Composite Brake (PCCB) Disc diameter (front/rear): 410 mm/370 mm
– –––•PB1 64
• Porsche Ceramic Composite Brake (PCCB) Disc diameter (front/rear): 420 mm/370 mm
5)– –––•PB3 64
• Sports exhaust system with t win dual-tube tailpipes (high -gloss)
6)
Exclusive
• –•–
–OP8 41
• Powerkit Cayenne Turbo

Exclusive
– –––•E81
• Off-road underbody protection
•••••PT1
• 100 - litre fuel tank
w www• OM1
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no. Page
Option

1 ) Includes electric adjustment of lumbar support, squab leng th and steering column, a comfort memor y package
(driver’s side: seat, steering column, exterior mirror set tings; front passenger’s side: seat set tings) and other additional functions.
2 ) Includes electric adjustment of lumbar support, squab leng th, side cushions on backrest /squab and steering column (Cayenne Turbo:
comfort memor y package as no - cost option); comfort memor y package (driver’s side: seat, steering column, exterior mirror set tings;
front passenger’s side: seat set tings) and other additional functions.
3) ‘Cayenne’ for Cayenne and Cayenne Diesel, ‘Cayenne S’ for Cayenne S and Cayenne S Hybrid, and ‘Cayenne turbo’ for Cayenne Turbo.
Personalisation · 125
124 · Personalisation
– not available extra-cost option• standard equipment W no-cost option
For more information on the options featured in this catalogue, please refer to the price list.
Interior.
• Seat heating (front) •••• –4A3
83
• Seat heating (front and rear)
••••• 4A4 83
• Seat ventilation (front)
•••••4D3 83
• Heated sports steering wheel
••••• 2PH
• Multifunction steering wheel
•••••2ZM 79
• Heated multifunction steering wheel
•••••2ZH
• SportDesign steering wheel with gearshif t paddles
•••••1ML 79
• Lane Change Assist (LCA)
•••••7Y1 10 5
• Adaptive cruise control
•••••8T3 10 4
• HomeLink
® (garage - door opener) •••••VC1
• Preparation for Porsche Vehicle Tracking System (PV TS)
•••••7G5 99
• Side airbags (rear)
•••••4X4 68
• Comfor t lighting package
•••••PP5/PP6 10 2
• 4-zone climate control
••• –•9AH
96
• Auxiliary heating system
••• –•9M9
• Driver memory package
•••• –3L4
82
• Comfort memory package (14-way)
1)•••• wPE5/Q2J
82
• Adaptive sports seats with comfort memory package (18-way)
2)••••• PE6 82
• Porsche Crest embossed on head restraints (front)
Exclusive
•••••3J7 81
• Porsche Crest embossed on head restraints (front and rear)
Exclusive
•••••5ZF 81
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no.Page
Option
Interior.
• Rooflining in Alcantara••••• 6NN 25
• Outer door-sill guards in stainless steel with model logo (front)
3)••• •• 7M1
• Electric sunscreen for rear side windows
•••••3Y8 98
• Floor mats
•••••0TD
• Smoker package
w wwww9JB
• Fire extinguisher
•••••6A7
• Ski bag
•••••3X1 10 6 , 107
• Loadspace management system
•••••3GN 10 8
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no.Page
Option
Interior: leather.
• Leather interior package in standard colours, smooth -finish leather ••••• Code 116
• Leather interior package in t wo -tone combination
•••••Code 116
• Leather interior package in natural leather
•••••Code 117
• Leather interior package in two-tone combination natural leather
•••••Code 117
• Sof t ruf fled leather on seat centres
•••••N 5 Y/ N7 D/
N7F

1) Colour and grain may var y. 2 ) Reduced luggage compartment volume due to subwoofer beneath loadspace floor. Cayenne S Hybrid: no storage compar tment on lef t- hand side of luggage compar tment.
3) May be incompatible with some copy- protected CDs/ DVDs.4) For information on compatible mobile phones, please visit w w w.porsche.com or contact your Porsche Centre. 5) Mobile phone preparation or telephone module in HFP mode: using a mobile phone inside the vehicle may expose occupants to increased
levels of electromagnetic radiation. The use of the telephone module for PCM via Bluetooth® SAP connection or with inser ted SIM card helps
to prevent exposure to this radiation as only the car’s external aerial is used.
6) For information on compatibilit y with the latest iPod® and iPhone® models, please contact your Porsche Centre. 7) Suitable for receiving analogue and digital T V signals (DVB -T) (where available).
Personalisation · 127
126 · Personalisation
– not available extra-cost option• standard equipment W no-cost option
For more information on the options featured in this catalogue, please refer to the price list.
Interior packages.
• Monochrome black interior package (high -gloss) ••••w5TL 118
• Walnut interior package (wood)
1)•••••5MG/ PH4 118
• Heated multifunction steering wheel in walnut (wood)
1)•••••1XJ 79
• Natural olive interior package (wood)
1)•••••5 T F/ P H 5 118
• Anthracite birch interior package (wood)
1)•••••5MB/ PH6 118
• Heated multifunction steering wheel in anthracite birch (wood)
1)•••••1XE
• Carbon interior package
•••••5MH/ PH7 118
• Heated multifunction steering wheel in carbon
•••••2FX
• Brushed aluminium interior package
••••• 5TE 118
• Yachting Mahogany interior package (wood)

Exclusive
•••••5ML/ PH8 118
• Heated multifunction steering wheel in Yachting Mahogany (wood)

Exclusive
•••••2ZU 118
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no.Page
Option
Audio and communication: CDR-31 audio system.
• BOSE® Surround Sound System2)•••• –9VL
92
• Burmester
® High-End Surround Sound System2)•••• –9VJ
94
• CD autochanger (6 - disc)
3)•••• –7 D7
88
• Universal audio interface (AUX)
•••• –UF1
91
• Mobile phone preparation (HFP)
4), 5)•••• –9W5
90
• Porsche Rear Seat Entertainment
Exclusive
•••• –A EC
87
Audio and communication: PCM.
• Porsche Communication Management (PCM)
with navigation module3)••••• 7T1 88
• BOSE
® Surround Sound System2)••••• 9VL 92
• Burmester
® High-End Surround Sound System2)•••••9VJ 94
• CD/ DVD autochanger (6 - disc)
3)•••••7 D7 89
• Universal audio interface (AUX, USB, e. g. for iPod
®)6)•••••UF1 91
• Mobile phone preparation (HFP)
4), 5)•••••9W5 90
• Telephone module (SAP and HFP)
4), 5)•••••9W1 90
• Telephone module (SAP and HFP) with cordless keypad handset
4), 5)•••••9ZP 90
• T V tuner
7)•••••QV1 91
• Electronic logbook
•••••9NY 90
• Voice control
•••••QH1 90
• Compass display in instrument cluster
•••••QR1 79
• Porsche Rear Seat Entertainment
Exclusive
•••••A EC 87
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Cayenne TurboI no.Page
Option
Factory collection.
• Factory collection Cayenne•••••S9Y 12 9
