and spectacular chicanes. Alter-
natively, experience the car’s all-
terrain capabilit y on our dedicated
of f-road circuit – also under the
expert guidance of one of our
motorsport professionals, who will
take this opportunit y to explain
the relevant vehicle controls and
give you some useful tips. At the
end of the day, to which you can
bring up to t wo accompanying
persons, it ’s time to take delivery
of your vehicle. Fully fuelled and
ready to go.
visit also includes a three- course
meal in our restaurant which
offers spectacular panoramic
views of the on-site test track.
The highlight of your factory
collection is still to come. An
experienced Porsche instructor
will accompany you to the track
and explain the finer details about
your car. In a demonstration
vehicle you will begin to learn
about the powerful potential of the
Cayenne. You can test its
on - road
performance on some long
straights, through hairpin
bends
Arrange to collect your new
Cayenne directly from the Porsche
factory in Leipzig where it was
made, and experience the fascin-
ating world of Porsche up close.
During your five-hour visit, you’ll
take a detailed look behind the
scenes on a tour of the factory,
accompanying the Cayenne and
Panamera every step of the
way through this state- of-the-art
production facilit y. Then, it ’s on
to the Customer Centre where
you will be introduced not only to
the history of Porsche, but also
to the latest vehicle models. Your
Either your P
ors che Ce ntr e or the
Cu stomer Ce ntr e in Zuf fenhausen
( t el. +49 (0)7 11 9 11-25977) will
be happy to answer any qu estions
about Porsche Exclu sive that
you may have. P le ase no te that
d elivery tim es may be ex ten ded
for ce rtain i tems of P ors che
E x c l u sive equipme nt.
even befo re it l eaves the factory.
A esthet ically and techn ically,
i n side and out side , u sing fine

m a terials and with cu stomary
P o rs che qualit y. Our overriding
princip le? Making su re that your
car is uniquely handc raf ted to
your t aste. You will find a wi de
r ange of design options in the
sepa ra te P ors che Exclu sive
Cayenne catalogue.
Porsche Exclusive
Porsche Exclusive.
As personal as it gets.
Over and above the pe rsonal-
isation options featu red in this
catalogue , you can now make
your P ors che even mo re special
with Po rsche Exclu sive. Have
your veh icle individually and
e x c l u sively tailo red to your wish es
Taking delivery of your Cayenne in its birthplace: Leipzig.
A truly moving experience.
Factory collection.
128 · Personalisation

Porsche Centres
Your Porsche Centre can assist you
with every aspect of purchasing
and owning your Porsche. You will
also find a wide range of products
and services, including genuine
Porsche parts and accessories.
Porsche Used Car Programme
Porsche Approved is the simple
way to find the perfect pre-owned
Porsche, any where in the world.
Every car is rigorously tested
and comes with a comprehensive
vehicle warrant y.
Porsche Classic
Your specialist source for genuine
Porsche parts and technical docu-
mentation as well as servicing,
repair and restoration for all t ypes
of classic Porsche. Find out more
at w w w.porsche.com/classic.
Christophorus
Our bi-monthly magazine for
Porsche owners has news,
interviews and a wide variet y
of features from throughout
the world of Porsche.
Porsche Clubs
Since the first Porsche Club
was founded in 1952, their
number has grown to 613 with
a total of 120,000 members
worldwide. To find out more,
call +49 (0)711 911-78307 or
go to w w w.porsche.com.
Porsche Driving Experience
1. Porsche Travel Club.
Exclusive driving holidays and
incentive ideas combining
luxury and adventure, worldwide.
To find out more, call
+49 (0)711 911-78155.
E-mail: [email protected]
Porsche Online
For all the latest news and
information from Porsche,
go to w w w.porsche.com.
2. Porsche Sport Driving School.
Develop your skill and explore your
Porsche with the Porsche Sport
Driving School. To learn about
events at some of the world’s most
famous racing venues, call
+49 (0)711 911-78683. E-mail:
[email protected]
Porsche Assistance
Enjoy peace of mind with our
exclusive breakdown and accident
recovery service. Membership is
free when you buy a new Porsche.
Porsche Financial Services
Our innovative suite of financial
services is specially tailored
to the needs of Porsche owners.
Products range from at tractive
finance and leasing options
to vehicle insurance and the
Porsche Card.
Porsche Exclusive
Realise your vision of the perfect
Porsche with our factory custom-
isation programme. From st yling
enhancements to performance
upgrades, all modifications are
uniquely handcraf ted for your
Porsche.
Porsche Tequipment
Personalise your Porsche at any
time af ter purchase with the
Tequipment range of approved
accessories. Designed exclusively
for your car, every product is fully
guaranteed.
Porsche Design
Driver’s Selection
With products ranging from
fashion and accessories to
tailored luggage, this unique
collection combines qualit y and
st yle with everyday practicalit y.
Service
Ask your Porsche Centre for the latest brochures from Porsche Exclusive, Porsche Tequipment, Porsche Design Driver’s Selection and the
Porsche Driving Experience.
Service · 131
130 · Service

When designing the Cayenne,
we decided to make it different.
And therefore more Porsche
then ever.
To the point.
The Cayenne models.

Technical data
Technical data · 135
134 · Technical data
Cayenne Cayenne Diesel
Engine/electric motor
Cylinders 6 6
Displacement 3,598 cm
32,967 cm3
Max. power (DIN)
at rpm220 kW (300 hp)
6,300 180 kW (245 hp)
3,800–4,400
Max. torque
at rpm 400 Nm
3,000 550 Nm
1,75 0 –2,75 0
Compression ratio 11.7:1 16 . 8 :1
Max. power (electric motor)
at rpm –
–
Max. torque (electric motor)
at rpm –
–
Max. power (parallel full hybrid)
at rpm –
–
Max. torque (parallel full hybrid)
at rpm –
–
Transmission
Layout Porsche Traction Management (PTM):
active all-wheel drive with elec-
tronically variable, map-controlled
multi-plate clutch, automatic
brake dif ferential (ABD) and anti -slip
regulation (ASR) Porsche Traction Management (PTM):
permanent all-wheel drive with self-
locking centre dif ferential, automatic
brake dif ferential (ABD) and anti -slip
regulation (ASR)
6-speed manual gearbox Standard –
8 -speed Tiptronic S Optional Standard
Chassis
Front axle Extra - large format double wishbone
suspension, fully independent Extra - large format double wishbone
suspension, fully independent
Rear axle Multi-link suspension,
fully independent Multi-link suspension,
fully independent
Steering Power-assisted, hydraulic Power-assisted, hydraulic
Cayenne SCayenne S Hybrid Cayenne Turbo
8 6 8
4,806 cm
32,995 cm34,806 cm3
294 kW (400 hp)
6,500 245 kW (333 hp)
5,500 – 6,500 368 kW (500 hp)
6,000
500 Nm
3,500–5,000 440 Nm
3,000 –5,250 700 Nm
2,250 – 4,500
12.5:1 10. 5:1 10. 5:1
– 34 kW (47 hp)
> 1,15 0 –
– 300 Nm
< 1,15 0 –
– 279 kW (380 hp)
5,500 –
– 580 Nm
1,000 –
Porsche Traction Management (PTM):
active all-wheel drive with elec-
tronically variable, map - controlled
multi-plate clutch, automatic
brake dif ferential (ABD) and anti-slip
regulation (ASR) Porsche Traction Management (PTM):
permanent all-wheel drive with self-
locking centre dif ferential, automatic
brake dif ferential (ABD) and anti-slip
regulation (ASR)
Porsche Traction Management (PTM):
active all-wheel drive with elec-
tronically variable, map - controlled
multi-plate clutch, automatic brake
dif ferential (ABD) and anti-slip
regulation (ASR)
– – –
Standard Standard Standard
Extra - large format double wishbone
suspension, fully independent Extra - large format double wishbone
suspension, fully independent Extra - large format double wishbone
suspension, fully independent
Multi-link suspension,
fully independent Multi-link suspension,
fully independent Multi-link suspension,
fully independent
Power-assisted, hydraulic Power-assisted, hydraulic Power-assisted, hydraulic
Some of the vehicles featured in this catalogue are fit ted with optional equipment available at extra cost. All information in respect of features,
design, per formance, dimensions, weight, fuel consumption and running costs is correct at the time of publication.
Porsche reser ves the right to alter specifications and other product information without prior notice.

136 · Technical dataTechnical data · 137
CayenneCayenne Diesel
Chassis
Brakes 6-piston monobloc aluminium fixed
calipers at front, 4 - piston monobloc
aluminium brakes at rear, ABS 6-piston monobloc aluminium fixed
calipers at front, 4 - piston monobloc
aluminium brakes at rear, ABS
Wheels 8.0J x 18 8.0J x 18
Ty r e s 255/55 R 18 255/55 R 18
Unladen weight Manual gearbox/ Tiptronic STiptronic S
DIN 1,995 kg /2,030 kg 2,080 kg
EC
1) 2,070 kg /2,105 kg 2,155 k g
Permissible gross weight 2,765 kg /2,800 kg 2,840 kg
Maximum payload 770 kg / 770 kg 760 k g
Performance Manual gearbox/ Tiptronic STiptronic S
Top speed 230 km/ h (143 mph)/
230 km/ h (143 mph) 220 km/ h (137 mph)
0 –100 km/ h (0 – 62 mph) 7.5 secs/7.8 secs 7.6 secs
Flexibility (manual gearbox) in
second highest (5th) gear,
80 –120 km/ h (50 –75 mph) 9.6 secs
–
Over taking acceleration (automatic
transmission) 80 –120 km/ h
(5 0 –75 m p h) 5.4 secs
5.3 secs
Fuel consumption/emissions2)Manual gearbox/ Tiptronic STiptronic S
Fuel grade
3)Super Plus Diesel2)
Urban in l/100 km (mpg)15.9 (17.8)/13.2 (21.4) 8.4 (33.2)2)
Extra urban in l/100 km (mpg)8.5 (33.2)/8.0 (35.3) 6.5 (43.5)2)
Combined in l/100 km (mpg)11.2 (25.2)/9.9 (28.5) 7.2 (39.2)2)
CO2 emission in g/km263/236 1892)
Emissions standardEU5 EU5
Cayenne SCayenne S Hybrid Cayenne Turbo
6-piston monobloc aluminium fixed
calipers at front, 4 - piston monobloc
aluminium brakes at rear, ABS 6-piston monobloc aluminium fixed
calipers at front, 4 - piston monobloc
aluminium brakes at rear, ABS 6-piston monobloc aluminium fixed
calipers at front, 4 - piston monobloc
aluminium brakes at rear, ABS
8.0J x 18 8.0J x 18 8.5J x 19
255/55 R 18 255/55 R 18 265/50 R 19
Tiptronic S Tiptronic S Tiptronic S
2,065 kg 2,240 k g 2 ,17 0 k g
2 ,14 0 k g 2,315 k g 2,245 k g
2,840 kg 2,910 k g 2,880 kg
775 kg 670 kg 710 k g
Tiptronic S Tiptronic S Tiptronic S
258 km/ h (160 mph) 242 km/ h (150 mph) 278 km/ h (173 mph)
5.9 secs 6.5 secs 4.7 s e c s
– – –
4.0 secs 4.6 secs 3.1 secs
Tiptronic S Tiptronic S Tiptronic S
Super Plus Super Super Plus
14.4 (19.6) 8.7 (32.5) 15.8 (17.9)
8.2 (34.4) 7.9 (35.8) 8.4 (33.6)
10.5 (26.9) 8.2 (34.4) 11.5 (24.6)
245 193 270
EU5 EU5 EU5
1) The unladen weight (EC) complies with the relevant EC Directives and is valid for standard specification vehicles only. Some items of
optional equipment can increase this weight. The figure specified above includes 68 kg representing the driver and 7 kg for luggage.
2) Fuel consumption was recorded on vehicles with standard specification. Optional equipment may af fect fuel consumption and vehicle
per formance. The data presented here was recorded using the Euro 5 test procedure (715/2007/ EC and 692/2008/ EC) and the NEDC
(New European Driving Cycle). The respective figures were not recorded on individual vehicles and do not constitute par t of the of fer.
This data is provided solely for the purposes of comparison bet ween the respective models. For more information on individual models,
please contact your Porsche Centre. Provisional data only. Of ficial data unavailable at the time of publication. Please contact your Porsche
Centre for the final and of ficially cer tified values.
3) The petrol - engined models are designed to operate on fuels with an ethanol content of up to 10 %.
The diesel engine is compatible with a biodiesel blend of max. 7 %.

138 · Technical dataTechnical data · 139
CayenneCayenne Diesel
Dimensions
Length 4,846 mm 4,846 mm
Width (incl. mirrors) 1,939 mm (2,155 mm) 1,939 mm (2,155 mm)
Height 1,705 mm 1,705 mm
Wheelbase 2,895 mm 2,895 mm
Luggage compar tment volume
(VDA), with rear seats folded 670 litres/1,780 litres
670 litres/1,780 litres
Tank capacit y/reser ve 85 litres/15 litres 85 litres/13 litres
Off-road capability
Wading depth 500 mm 500 mm
Approach angle
1)26°
(steel-sprung suspension) 26°
(steel-sprung suspension)
Departure angle
1)24.5°
(steel-sprung suspension) 24.5°
(steel-sprung suspension)
Ramp breakover angle
1)20.5°
(steel-sprung suspension) 20.5°
(steel-sprung suspension)
Lockable differentials (standard) Electronically variable,
map-controlled multi-plate clutch Self-locking centre differential
Max. ground clearance
1)
High Level II
High Level I
Normal Level
Low Level I
Low Level II
Loading Level 215 mm
215 mm
Cayenne SCayenne S Hybrid Cayenne Turbo
4,846 mm 4,846 mm 4,846 mm
1,939 mm (2,155 mm) 1,939 mm (2,155 mm) 1,939 mm (2,155 mm)
1,705 mm 1,705 mm 1,702 mm
2,895 mm 2,895 mm 2,895 mm
670 litres/1,780 litres 580 litres/1,690 litres 670 litres/1,705 litres
85 litres/15 litres 85 litres/13 litres 100 litres/15 litres
500 mm 500 mm 500 mm
26°
(steel-sprung suspension) 26°
(steel-sprung suspension) 26°
(air suspension)
24.5°
(steel-sprung suspension) 24.5°
(steel-sprung suspension) 24.5°
(air suspension)
20.5°
(steel-sprung suspension) 20.5°
(steel-sprung suspension) 20°
(air suspension)
Electronically variable,
map-controlled multi-plate clutch Self-locking centre differential
Electronically variable,
map-controlled multi-plate clutch
215 mm 215 mm 273 mm
243 mm
215 mm
193 mm
183 mm
163 mm
1) At DIN unladen weight, ground clearance at axle centre, Cayenne Turbo with air suspension. All information in respect of features,
design, per formance, dimensions, weight, fuel consumption and running costs is correct at the time of publication.
Porsche reser ves the right to alter specifications and other product information without prior notice.

Index
Index · 141
140 · Index
Drive systems 28
‘Coasting’ 23
Electric machine 28
Hybrid module 28
Parallel full hybrid 28
Performance 28

Engine technology 36
Air intake system 40
Auto start /stop function 36
Common-rail injection system 38
Cooling systems 38
Direct fuel injection (DFI) 38
Engine management
(electronic) 41
Exhaust system 41
Lubrication 39
Sports exhaust system 41
Supercharging system 40
Turbocharging systems 40
Variable Turbine Geometry
(V TG) 40
Variable valve timing 37
VarioCam Plus 37
Transmission 42
All-wheel drive 44
Anti-slip regulation (ASR) 44
Automatic brake dif ferential
(ABD) 44
Downhill assistance 47
Manual gearbox 42
Porsche Traction Management
(PTM) 44
Tiptronic S 42
Off-road capability 48
Chassis
50
Air suspension 52
Porsche Active Suspension
Management (PASM) 51
Porsche Dynamic Chassis
Control (PDCC) 53
Porsche Torque Vectoring Plus
(PT V Plus) 50
Self-levelling 52
Servotronic 55
Steering 55
Tyre Pressure Monitoring
( T PM) 57
Weight reduction 54
Wheels 56
Safety 58
Airbags 68
Automatic headlight
activation 60
Automatic hold function 63
Braking systems 62
Ceramic brakes 64
Cornering lights 61
Day time running lights 61
Headlights 60
Interior safet y features 68
Lighting 60
Parking brake (electric) 63
Porsche Ceramic Composite
Brake (PCCB) 64
Porsche Dynamic Light
System (PDLS) 61
Porsche Side Impact Protection
(POSIP) 68
Porsche Stabilit y Management
(PSM) 66
Recuperation 64
Seat belt system 69
Taillights 61
Environment 70
Exhaust emissions 72
Fuel economy 73
Fuel system 73
Ignition system 74Lightweight construction 70
Materials
75
Recycling 75
S e r v i c i n g 74

Comfor t 78
Anti-theft protection 99
Audio systems 88, 92, 94
Bluetooth
® 90
BOSE
® Surround Sound
System 92
Burmester
® High - End
Surround Sound System 94
CD/ DVD autochanger 88
Child seats 84
Climate control 96
Comfort memory package 82
Compass display 79
Driver memory package 82
Heat and noise-insulating
glass 97
Heated windscreen 97
Electronic logbook 90
Interior 79
Interior lighting 86
Mobile phone preparation 90
MP3 89, 91
Multifunction
steering wheel 79, 91
Navigation system 88
On-board computer 79 Panoramic roof system 100
Porsche Communication
Management (PCM) 88
Porsche Entry & Drive 98
Porsche Rear Seat
Entertainment
87
Porsche Vehicle Tracking
System (PV TS) 99
Privacy glass 97
Radio 88
Rain sensor 98
Seats 82
Storage compartments 86
S u n r o o f 10 0
Sunscreen 98
Telephone module 90
Touchscreen 88
T V tuner 91
Universal audio interface 91
USB port 91
Voice control 90
Water-repellent side windows 97

Driver assistance systems 102
Adaptive cruise control 104
Automatically dimming
mirrors 103
Comfort lighting package 102
Cruise control 103
Lane Change Assist (LCA) 105
P a r k A s s i s t 10 2
Reversing camera 102

Tr an s p o r t 10 6
Loading options 107
Loadspace management
s y s t e m 10 8
Luggage compartment 106
Ride-height control 106
Roof transport system 108
Tailgate (automatic) 106
Towbar systems 109
Personalisation 110
C o l o u r s 112
Exterior 112, 120
Interior 116, 124
Factory collection 129
Technical data 134

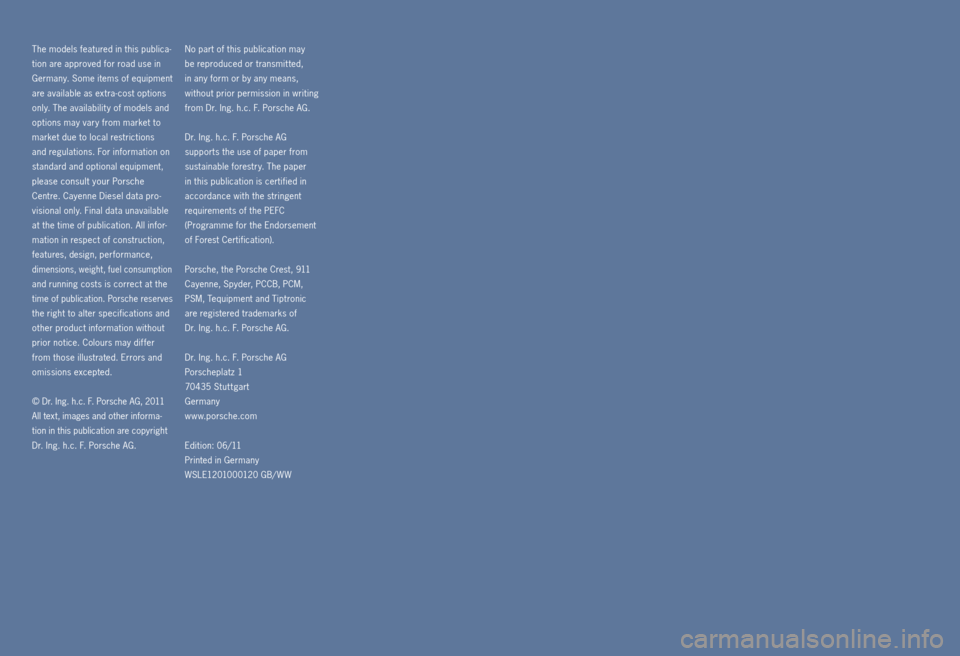

The models featured in this publica-
tion are approved for road use in
Germany. Some items of equipment
are available as extra- cost options
only. The availabilit y of models and
options may vary from market to
market due to local restrictions
and regulations. For information on
standard and optional equipment,
please consult your Porsche
Centre. Cayenne Diesel data pro -
visional only. Final data unavailable
at the time of publication.
All infor-
mation in respect of construction,
features, design, per formance,
dimensions, weight, fuel consumption
and running costs is correct at the
time of publication. Porsche reserves
the right to alter specifications and
other product information without
prior notice. Colours may dif fer
from those illustrated. Errors and
omissions excepted.
© Dr. Ing. h.c. F. Porsche AG, 2011
All text, images and other informa-
tion in this publication are copyright
Dr. Ing. h.c. F. Porsche AG. No part of this publication may
be reproduced or transmit ted,
in any form or by any means,
without prior permission in writing
from Dr. Ing. h.c. F. Porsche AG.
Dr. Ing. h.c. F. Porsche AG
supports the use of paper from
sustainable forestry. The paper
in this publication is certified in
accordance with the stringent
requirements of the PEFC
(Programme for the Endorsement
of Forest Certification).
Porsche, the Porsche Crest, 911
Cayenne, Spyder, PCCB, PCM,
PSM, Tequipment and Tiptronic
are registered trademarks of
Dr. Ing. h.c. F. Porsche AG.
Dr. Ing. h.c. F. Porsche AG
Porscheplatz 1
70435 Stut tgart
Germany
www.porsche.com
Edition: 06/11
Printed in Germany
WS L E12010 0 0120 G B/ W W

La CayenneLa Cayenne
WSLE1201000140 IT/ W W
