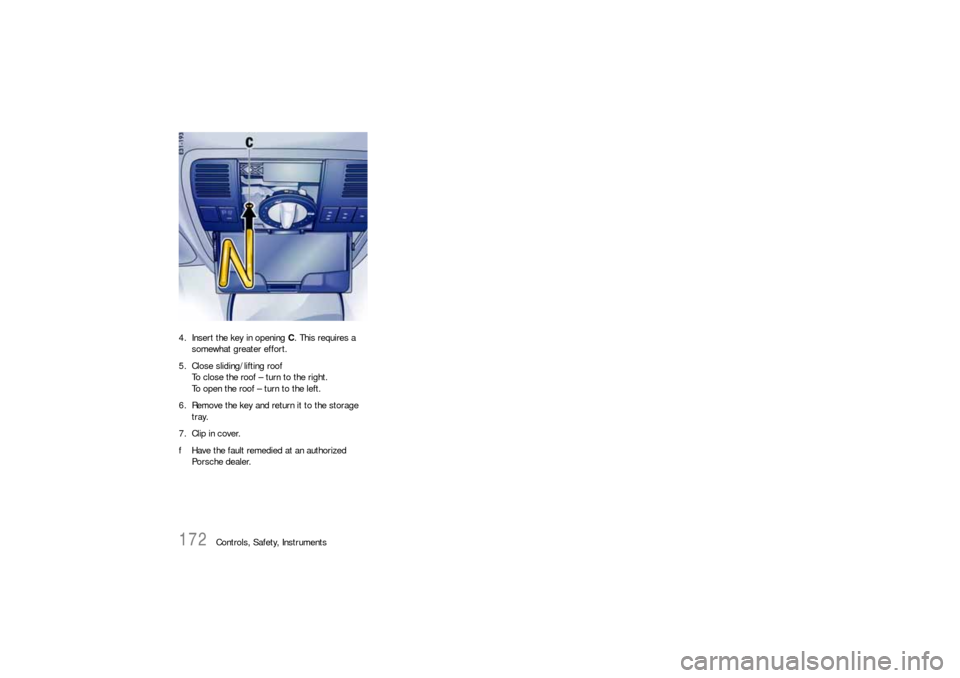

Emergency operation of sliding/lifting
roofIf the sliding/lifting roof is defective, this can be
closed or opened manually.
Warning!
Risk of serious personal injury and damage
to the sliding/lifting roof during emergency
operation.
fTake care to ensure that nobody can be injured
when the sliding/lifting roof is operated.
fDuring and after emergency operation, the slid-
ing/lifting roof may no longer be operated with the rocker switch.

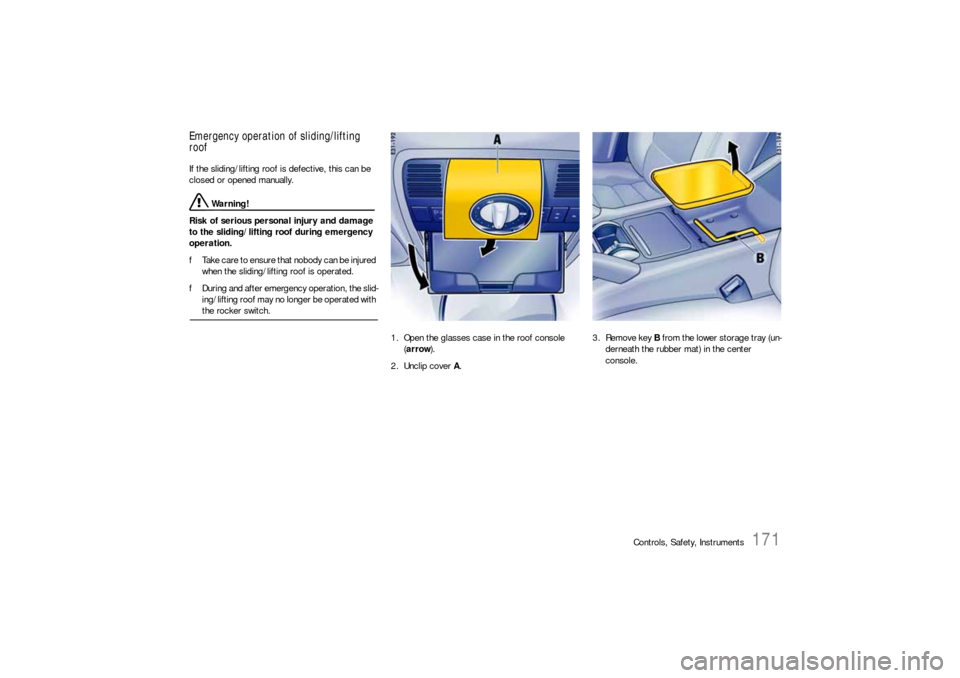

1. Open the glasses case in the roof console
(arrow).
2. Unclip cover A.3. Remove key B from the lower storage tray (un-
derneath the rubber mat) in the center
console.

172
Controls, Safety, Instruments 4. Insert the key in opening C. This requires a
somewhat greater effort.
5. Close sliding/lifting roof
To close the roof – turn to the right.
To open the roof – turn to the left.
6. Remove the key and return it to the storage
tray.
7. Clip in cover.
fHave the fault remedied at an authorized
Porsche dealer.

Controls, Safety, Instruments
173
Panorama roof systemThe Panorama roof system of your Porsche
consists of a total of four roof elements.
Roof element 1 is the draft deflector. This
adjusts itself according to the speed, and helps
protect from the disturbing effects of the wind
when the Panorama roof system is open,
especially at high speeds or from turbulent air
flow.
Both roof elements 2 and 3 can be moved by
activating the knob in the vehicle's longitudinal
direction. Roof element 3 can also be raised. This
allows the interior to be better ventilated.
Roof element 4 is a fixed glass element and
completes the Panorama roof system.

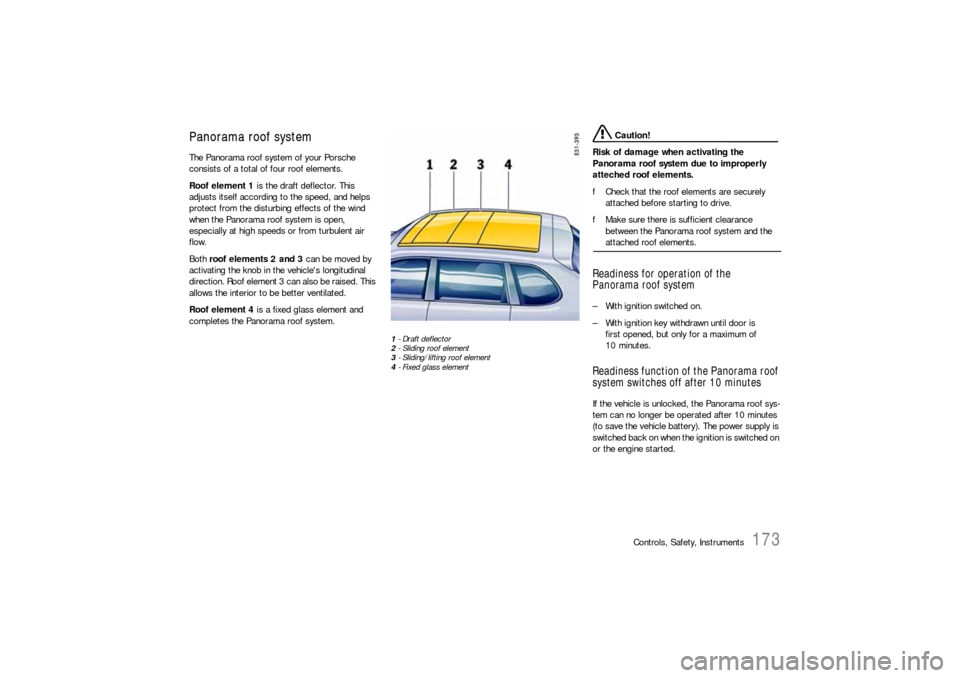

1-Draft deflector
2- Sliding roof element
3- Sliding/lifting roof element
4- Fixed glass element
Caution!
Risk of damage when activating the
Panorama roof system due to improperly
atteched roof elements.
fCheck that the roof elements are securely
attached before starting to drive.
fMake sure there is sufficient clearance
between the Panorama roof system and the attached roof elements.
Readiness for operation of the
Panorama roof system– With ignition switched on.
– With ignition key withdrawn until door is
first opened, but only for a maximum of
10 minutes.Readiness function of the Panorama roof
system switches off after 10 minutesIf the vehicle is unlocked, the Panorama roof sys-
tem can no longer be operated after 10 minutes
(to save the vehicle battery). The power supply is
switched bac k o n whe n the ignition is switched on
or the engine started.

174
Controls, Safety, Instruments

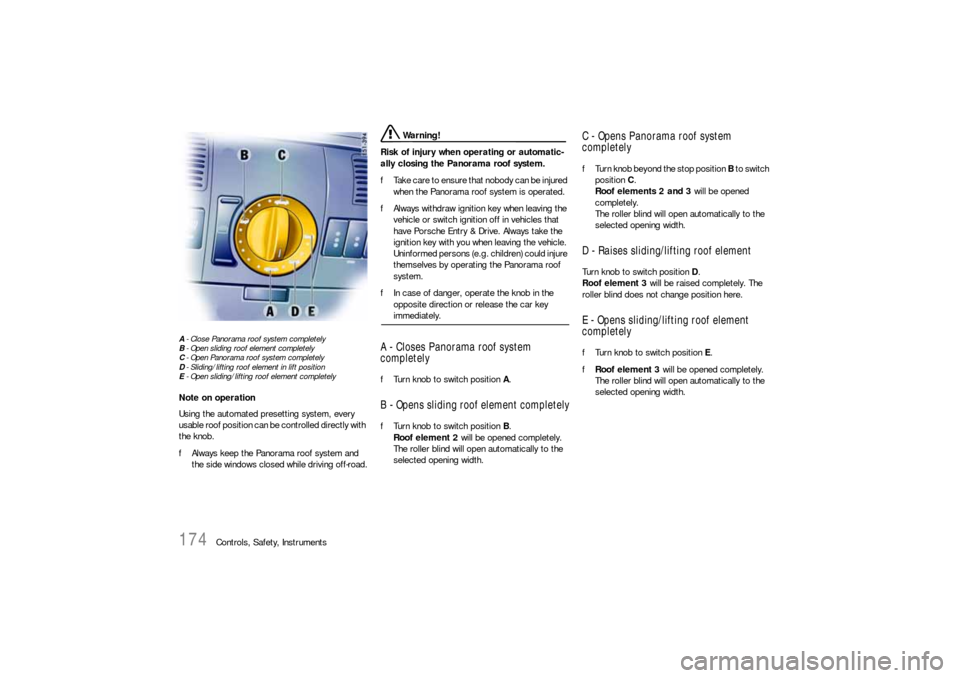

A- Close Panorama roof system completely
B- Open sliding roof element completely
C- Open Panorama roof system completely
D- Sliding/lifting roof element in lift position
E- Open sliding/lifting roof element completelyNote on operation
Using the automated presetting system, every
usable roof position can be controlled directly with
the knob.
fAlways keep the Panorama roof system and
the side windows closed while driving off-road.
Warning!
Risk of injury when operating or automatic-
ally closing the Panorama roof system.
fTa k e c a r e t o e n s u r e t h a t n o b o d y c a n b e i n j u re d
when the Panorama roof system is operated.
fAlways withdraw ignition key when leaving the
vehicle or switch ignition off in vehicles that
have Porsche Entry & Drive. Always take the
ignition key with you when leaving the vehicle.
Uninformed persons (e.g. children) could injure
themselves by operating the Panorama roof
system.
fIn case of danger, operate the knob in the
opposite direction or release the car key immediately.
A - Closes Panorama roof system
completelyfTurn knob to switch position A.B - Opens sliding roof element completelyfTurn knob to switch position B.
Roof element 2 will be opened completely.
The roller blind will open automatically to the
selected opening width.
C - Opens Panorama roof system
completelyfTurn knob beyond the stop position B to switch
position C.
Roof elements 2 and 3 will be opened
completely.
The roller blind will open automatically to the
selected opening width.D - Raises sliding/lifting roof elementTurn knob to switch position D.
Roof element 3 will be raised completely. The
roller blind does not change position here.E - Opens sliding/lifting roof element
completelyfTurn knob to switch position E.
fRoof element 3 will be opened completely.
The roller blind will open automatically to the
selected opening width.

Controls, Safety, Instruments
175
Comfort function on vehicles without
Porsche Entry & DriveOpening and closing the Panorama roof
system
fHold the vehicle key in the door lock in the
unlocking or locking position until the windows
and the Panorama roof system have reached
the desired position.Comfort function on vehicles with
Porsche Entry & DriveOpening and closing the Panorama roof
system
fHold the vehicle key in the door lock in the
unlocking or locking position until the windows
and the Panorama roof system have reached
the desired position.
Closing the Panorama roof system
fHold the button in the door handle when
locking the vehicle until the windows and the
Panorama roof system have reached the
desired position.
Force limiter for the Panorama roof
system All roof elements are equipped with a force limiter.
If the sliding roof or the sliding/lifting roof element
is obstructed during the closing or opening
process, the respective roof element opens or
closes again immediately.
Closing a roof element after triggering the
force limiter
1. Remove the obstruction.
2. Turn knob to position A again.Electric emergency closing function
Warning!
Risk of injury from the emergency closing
function for the Panorama roof system. The
force limiter is not available and the roof
elements will close with full force.
fTake care to ensure that nobody can be injured when the Panorama roof system is closing.
If the roof cannot be closed due to dirt, ice, or
similar substances:
1. Turn knob to position A.
2. Hold the knob in position A until all roof
elements are completely closed.
Save final position of the Panorama roof
systemAfter disconnecting/reconnecting the vehicle
battery or if the vehicle battery is discharged, or
after emergency starting with jumper cables, the
final positions of the Panorama roof system are
lost.
Warning!
Risk of injury when closing the Panorama
roof system. The force limiter is not available
and the roof elements will close with full
force.
fTake care to ensure that nobody can be injured when the Panorama roof system is closing.
1. Switch ignition off.
2. Turn knob to position A.
3. Switch ignition on.
4. Hold knob in position A. The closing process
begins after around 5 seconds. Hold the knob
in position until the roller blind and all roof
elements are completely closed. The proce-
dure lasts approximately 20 seconds.
Note on operation
If the procedure is interrupted, saving the final po-
sitions must be started from the beginning.

176
Controls, Safety, Instruments

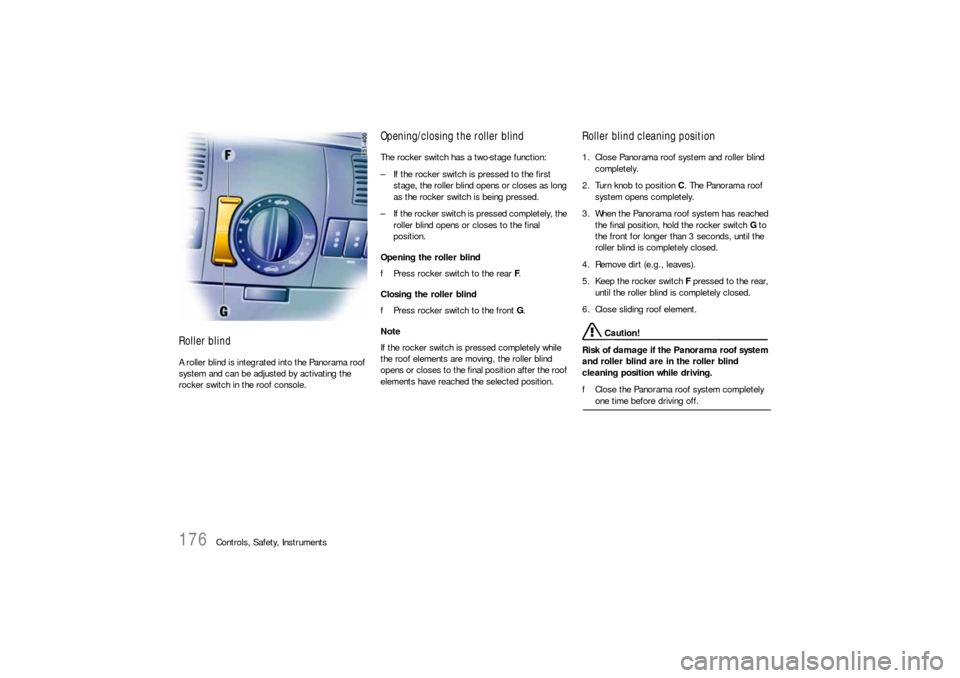

Roller blindA roller blind is integrated into the Panorama roof
system and can be adjusted by activating the
rocker switch in the roof console.
Opening/closing the roller blindThe rocker switch has a two-stage function:
– If the rocker switch is pressed to the first
stage, the roller blind opens or closes as long
as the rocker switch is being pressed.
– If the rocker switch is pressed completely, the
roller blind opens or closes to the final
position.
Opening the roller blind

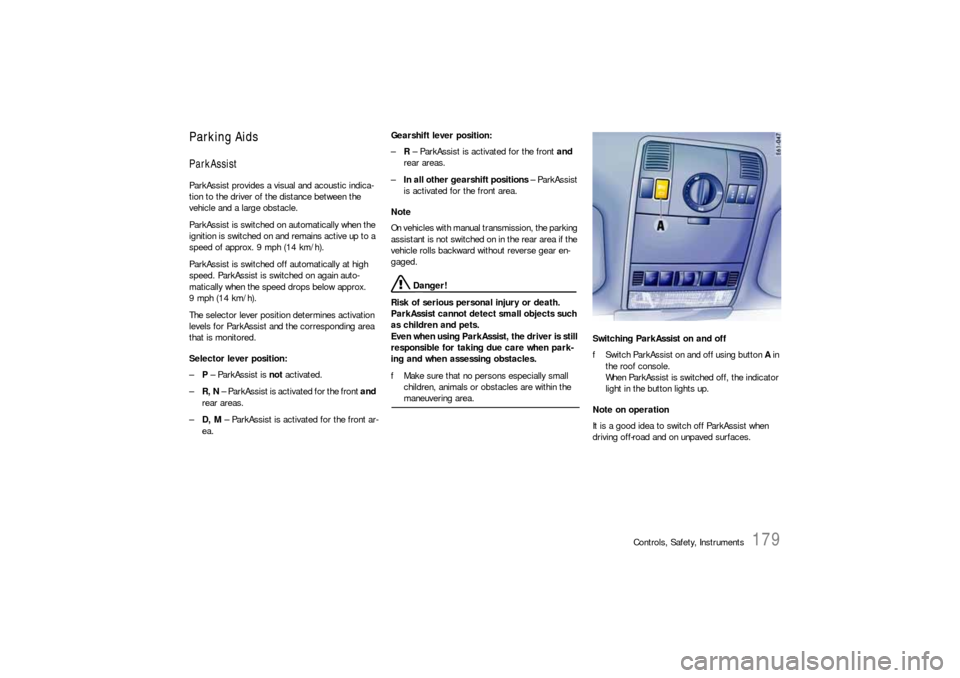

fPress rocker switch to the rear F.
Closing the roller blind
fPress rocker switch to the front G.
Note
If the rocker switch is pressed completely while
the roof elements are moving, the roller blind
opens or closes to the final position after the roof
elements have reached the selected position.
Roller blind cleaning position1. Close Panorama roof system and roller blind
completely.
2. Turn knob to position C. The Panorama roof
system opens completely.
3. When the Panorama roof system has reached
the final position, hold the rocker switch G to
the front for longer than 3 seconds, until the
roller blind is completely closed.
4. Remove dirt (e.g., leaves).
5. Keep the rocker switch F pressed to the rear,
until the roller blind is completely closed.
6. Close sliding roof element.
Caution!
Risk of damage if the Panorama roof system
and roller blind are in the roller blind
cleaning position while driving.
fClose the Panorama roof system completely one time before driving off.

Controls, Safety, Instruments
177
Emergency operation of the Panorama
roof systemUse emergency operation only under exceptional
circumstances if the electric emergency closing
function cannot be implemented and the end
position cannot be stored.
fBefore using emergency operation, please
check whether the fuse is defective. After the
fuse has been changed, the limit positions of
the Panorama roof system will have to be
stored again.
Danger!
Danger of injury and risk of damage when
closing the roof.
fTake care to ensure that nobody can be injured
when the roof elements are activated.
fDo not operate the Panorama roof system with

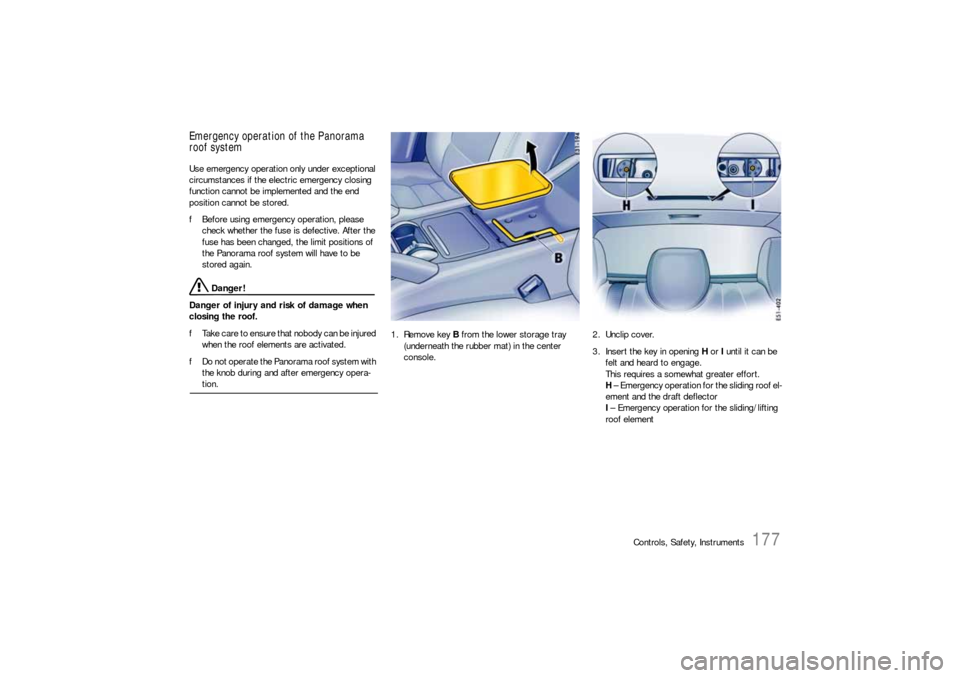

the knob during and after emergency opera-tion.1. Remove key B from the lower storage tray
(underneath the rubber mat) in the center
console.2. Unclip cover.
3. Insert the key in opening H or I until it can be
felt and heard to engage.
This requires a somewhat greater effort.
H – Emergency operation for the sliding roof el-
ement and the draft deflector
I – Emergency operation for the sliding/lifting
roof element

178
Controls, Safety, Instruments 4. Hold the key in this position and turn.
To close the roof – turn clockwise.
To open the roof – turn counter-clockwise.
Note on operation
When using emergency closing for the sliding/
lifting roof element, make sure that the roof
element is completely closed (center position
between sliding and lifting roof position).
5. Remove the key and return it to the storage
tray.
6. Clip in cover.
To rule out malfunctions in the system, the final
positions of the Panorama roof system must be
saved again after emergency operation.
fPlease observe the chapter “SAVE FINAL
POSITION OF THE PANORAMA ROOF SYSTEM”
on Page 175.

Controls, Safety, Instruments
179

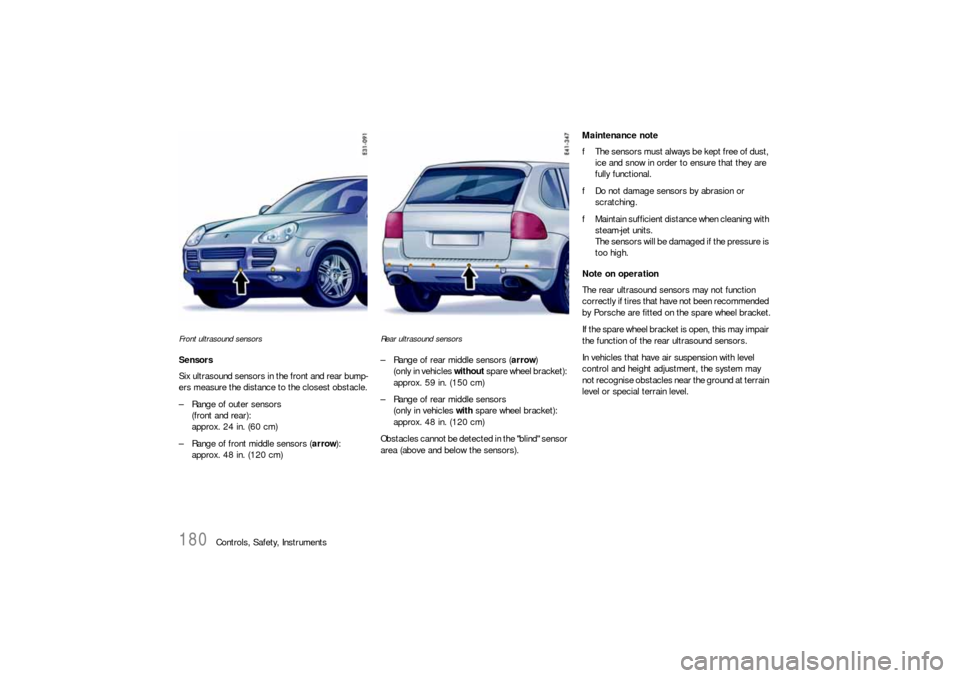

Parking AidsParkAssistParkAssist provides a visual and acoustic indica-
tion to the driver of the distance between the
vehicle and a large obstacle.
ParkAssist is switched on automatically when the
ignition is switched on and remains active up to a
speed of approx. 9 mph (14 km/h).
ParkAssist is switched off automatically at high
speed. ParkAssist is switched on again auto-
matically when the speed drops below approx.
9 mph (14 km/h).
The selector lever position determines activation
levels for ParkAssist and the corresponding area
that is monitored.
Selector lever position:
–P – ParkAssist is not activated.
–R, N – ParkAssist is activated for the front and
rear areas.
–D, M – ParkAssist is activated for the front ar-
ea.Gearshift lever position:
–R – ParkAssist is activated for the front and
rear areas.
–In all other gearshift positions – ParkAssist
is activated for the front area.
Note
On vehicles with manual transmission, the parking
assistant is not switched on in the rear area if the
vehicle rolls backward without reverse gear en-
gaged.
Danger!
Risk of serious personal injury or death.
ParkAssist cannot detect small objects such
as children and pets.
Even when using ParkAssist, the driver is still
responsible for taking due care when park-
ing and when assessing obstacles.
fMake sure that no persons especially small
children, animals or obstacles are within the maneuvering area.Switching ParkAssist on and off
fSwitch ParkAssist on and off using button A in
the roof console.
When ParkAssist is switched off, the indicator
light in the button lights up.
Note on operation
It is a good idea to switch off ParkAssist when
driving off-road and on unpaved surfaces.

180
Controls, Safety, Instruments
Front ultrasound sensorsSensors
Six ultrasound sensors in the front and rear bump-
ers measure the distance to the closest obstacle.
– Range of outer sensors
(front and rear):
approx. 24 in. (60 cm)
– Range of front middle sensors (arrow):
approx. 48 in. (120 cm)
Rear ultrasound sensors– Range of rear middle sensors (arrow)
(only in vehicles without spare wheel bracket):
approx. 59 in. (150 cm)
– Range of rear middle sensors
(only in vehicles with spare wheel bracket):
approx. 48 in. (120 cm)
Obstacles cannot be detected in the "blind" sensor
area (above and below the sensors).Maintenance note
fThe sensors must always be kept free of dust,
ice and snow in order to ensure that they are
fully functional.
fDo not damage sensors by abrasion or
scratching.
fMaintain sufficient distance when cleaning with
steam-jet units.
The sensors will be damaged if the pressure is
too high.
Note on operation
The rear ultrasound sensors may not function
correctly if tires that have not been recommended
by Porsche are fitted on the spare wheel bracket.
If the spare wheel bracket is open, this may impair
the function of the rear ultrasound sensors.
In vehicles that have air suspension with level
control and height adjustment, the system may
not recognise obstacles near the ground at terrain
level or special terrain level.
