Controls, Safety, Instruments
111
Spare wheel fillingCollapsible spare wheel being filled with level-control
compressor.
Do not drive off!
Control off Level control has been switched off (to jack up the vehicle).
Not permissible The prerequisites for setting the desired level have not been
met.
Pressure accumulator charging Level control temporarily unavailable.
Warning - off-road anti-roll bar The anti-roll bar cannot be engaged; the system is faulty. Drive
carefully to the nearest workshop. Have the fault remediesd at
an authorized Porsche dealer as soon as possible.
Off-road anti-roll bar faulty The anti-roll bar cannot be disengaged. Have the fault reme-
diesd at an authorized Porsche dealer.
Off-road anti-roll bar disengaged,
max. 30 mph (50 km/h)The anti-roll bars cannot be disengaged. Have the fault reme-
diesd at an authorized Porsche dealer.
Not permissible The prerequisites for disengaging the anti-roll bars have not
been met.
Only possible with reduction Disengagement of the anti-roll bars is only possible with
Low Range engaged.
All-wheel drive system faulty Have the fault remedied at an authorized Porsche dealer.
Shifting not possible,
Speed too highWhen changing between Low Range and High Range, the limit
speed (off-road shifting) must not be exceeded.
Possible only in neutral with brake
appliedThe vehicle must be stationary, the footbrake must be applied
and the selector lever must be in position Nwhen changing
between Low Range and High Range.
Warning – Parking lock!
Operate footbrake.Do not continue driving. Apply the parking brake.
Have the fault remedied at an authorized Porsche dealer.
Instrument
panelMulti-purpose
displayText display Meaning/measures

112
Controls, Safety, Instruments
Spare wheel not locked.
Lock spare wheel bracket properly.
Driver’s door open
All unlocked doors and lids are displayed when the vehicle
exceeds2 mph (3 km/h).
Passenger’s door open
All unlocked doors and lids are displayed when the vehicle
exceeds2 mph (3 km/h).
Rear left door open
All unlocked doors and lids are displayed when the vehicle
exceeds2 mph (3 km/h).
Rear right door open
All unlocked doors and lids are displayed when the vehicle
exceeds2 mph (3 km/h).
Hood open
All unlocked doors and lids are displayed when the vehicle
exceeds2 mph (3 km/h).
Rear lid open
All unlocked doors and lids are displayed when the vehicle
exceeds2 mph (3 km/h).
Rear window open
All unlocked doors and lids are displayed7 when the vehicle
exceeds2 mph (3 km/h).
System fault – WorkshopSeveral systems may have failed.
Have the fault remedied by a qualified specialist workshop.
Instrument
panelMulti-purpose
displayText display Meaning/measures

Controls, Safety, Instruments
113

114
Controls, Safety, Instruments
Light switch with driving light assistant Light switch without driving light assistant
Note on operation
If the ignition key is withdrawn and the door is
opened while the lights (not the parking light) are
on, an acoustic signal (gong) warns of possible
battery discharge.
In some countries, differences are possible
due to provisions of law.
Light SwitchLight is switched off.
Driving light assistant
Side lights
Number plate light, instrument illuminati-
on
Low beam, high beam
Only when the ignition is switched on
Fog lights
Only when side lights or low beam are
switched on:
Pull switch to first click.
Indicator light lights up.
Rear fog light
Pull switch to second click.
Indicator light lights up.

Controls, Safety, Instruments
115
Automatic driving light assistantThe driving light assistant is a comfort function.
Your Porsche’s driving light (low beam) is switched
on and off automatically, irrespective of the ambi-
ent brightness.
Despite possible support by the driving light assis-
tant, it is the responsibility of the driver to switch
on the driving light using the conventional light
switch in accordance with the relevant national
regulations.
Activating the headlights using the driving light as-
sistant does not therefore absolve the driver
of responsibility for the correct operation of the
driving light.
The low beam is switched on automatically in the
following situations:
–Dusk
–Darkness
– Travelling through tunnels
– Rain
– Highway driving
Note on operation
Fog is not recognised.
fIn the event of fog, the driving light must be
switched on manually.
Warning!
Risk of accident due to driving without lights.
fAlways carefully monitor the automatic driving light control.
Highway function
The light is switched on at speeds of over 87 mph
(140 km/h). If you are travelling slower than 40
mph (65 km/h), the driving light is switched off af-
ter a delay of approx. 2 minutes, if the external
lighting conditions permit.
Rain function
The driving light is switched on after five seconds
of continuous wiper operation.
The driving light is switched off approx. 4 minutes
after the wipers have stopped.
Bi-Xenon main headlights with
dynamically controlled cornering lightThe Bi-Xenon main headlights are equipped with
an additional light in vehicles with a cornering
light. As a result of its particular positioning, the
additional light provides significantly better lane
lighting to the left and right of the main light beam.

116
Controls, Safety, Instruments
A- Instrument lighting knobWhen the light is switched on, the brightness of
the instrument illumination can be adjusted by
turning thumb wheel A.
fPlease observe the chapter “A - BUTTON FOR
DIMMING THE COMFORT LIGHTING” on
Page 146.
Automatic Headlight Beam
AdjustmentVehicles with Bi-Xenon headlights feature
automatic headlight beam adjustment.
When the ignition is switched on, the level of the
headlight beam automatically changes in accor-
dance with the vehicle load. The level of the head-
light beam is automatically kept constant during
acceleration and braking.
Checking operation
1. Switch the low beam on.
2. Switch ignition on.
The light beam first dips all the way down and
is then adapted to the vehicle load.
If this test point not satisfied, the headlight level-
ling adjustment must be checked by an authorized
Porsche dealer.
Instrument Illumination

Controls, Safety, Instruments
117

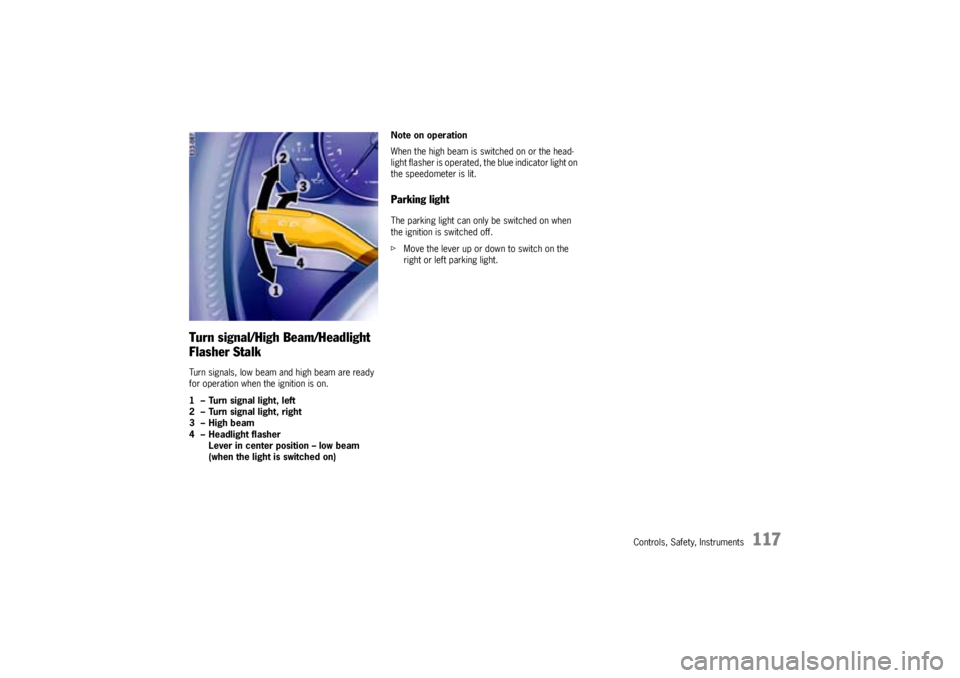

Turn signal/High Beam/Headlight
Flasher StalkTurn signals, low beam and high beam are ready
for operation when the ignition is on.
1 – Turn signal light, left
2 – Turn signal light, right
3 – High beam
4 – Headlight flasher
Lever in center position – low beam
(when the light is switched on)Note on operation
When the high beam is switched on or the head-
light flasher is operated, the blue indicator light on
the speedometer is lit.
Parking lightThe parking light can only be switched on when
the ignition is switched off.
fMove the lever up or down to switch on the
right or left parking light.

118

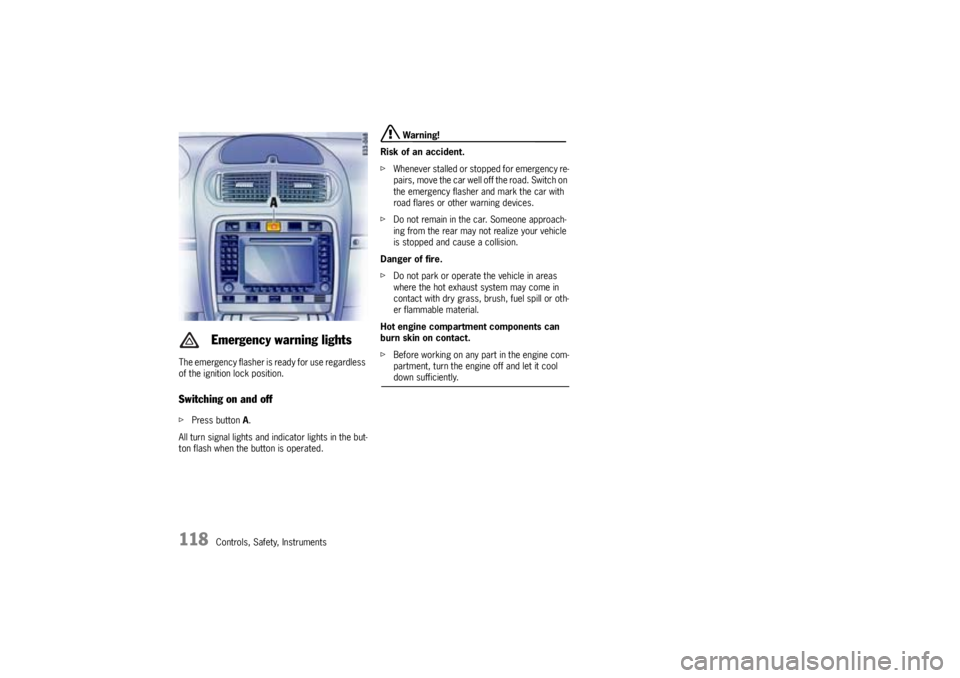

Controls, Safety, Instruments The emergency flasher is ready for use regardless
of the ignition lock position.
Switching on and offfPress button A.
All turn signal lights and indicator lights in the but-
ton flash when the button is operated.
Warning!
Risk of an accident.
fWhenever stalled or stopped for emergency re-
pairs, move the car well off the road. Switch on
the emergency flasher and mark the car with
road flares or other warning devices.
fDo not remain in the car. Someone approach-
ing from the rear may not realize your vehicle
is stopped and cause a collision.
Danger of fire.
fDo not park or operate the vehicle in areas
where the hot exhaust system may come in
contact with dry grass, brush, fuel spill or oth-
er flammable material.
Hot engine compartment components can
burn skin on contact.
fBefore working on any part in the engine com-
partment, turn the engine off and let it cool down sufficiently.
Emergency warning lights

Controls, Safety, Instruments
119
Windshield Wiper/Washer Stalk
Warning!
Danger of injury when the windshield wipers
operate unintentionally.
Risk of damage to the engine compartment
lid, windshield and wiper system.
fOnly wipe the windshield when sufficiently wet,
otherwise it could be scratched.
fLoosen frozen wiper blades before driving off.
fDo not operate headlight washer when it is
frozen.
fAlways switch off windshield wipers in car
wash to prevent them wiping unintentionally
(rain sensor operation).
fDo not operate headlight washer in car wash-
es.
fAlways switch off windshield wipers before
cleaning the windshield to avoid unintentional
operation (rain sensor operation).
fAlways hold the wiper arm securely when re-
placing the wiper blade.fAlways switch the windscreen wipers off (posi-
tion 0) before opening the engine compart-
ment lid. If the wiper arms are not in position
0, they will automatically move to this position
when the engine compartment lid is opened.
This will happen even if the ignition is off.
The wiper arms remain in this position until the
lid is closed and the wiper system is switched.
0 – Windshield wipers off
1 – Front windshield wiper – rain sensor op-
eration
fMove wiper stalk upwards to the first click.
Notes on operation
The amount of rain or snow which has settled on
the windshield is measured. Wiper speed is auto-
matically adjusted accordingly.
f f f

120
Controls, Safety, Instruments The rain sensor remains switched off if the wiper
lever is already in position 1 when the ignition is
switched on.
To switch the rain sensor on again:
fMove wiper stalk to position 0 and then to
position1 – switching on is confirmed by one
wipe of the windscreen – or
fOperate windscreen washer system 5–
switching on is confirmed by three wipes of the
windscreen – or
fChange the sensitivity of the rain sensor with
four-stage switch A.Changing the sensitivity of the rain sensor
Sensitivity can be set with switch A in 4 stages:
fAdjust switch A upwards –
high sensitivity.
The setting is confirmed by one wipe of the
windscreen.
fAdjust switch A downwards –
low sensitivity.
2 – Front windscreen wiper – slow
fMove wiper stalk upwards to the second click.
3 – Front windscreen wiper – fast
fMove wiper stalk upwards to the third click.
At speeds of less than approx. ca. 2.5 mph (4 km/
h), rain sensor operation mode is automatically
activated if the windscreen wiper is switched on. If
you exceed a speed of approx. 5 mph (8 km/h),
the system switches to the pre-selected wiper
level.
4 – Front windscreen wiper – one-touch
operation
fMove wiper stalk downwards. The front wind-
screen wipers go through one wiping cycle.5 – Front windscreen wipers and washer
system
fPull wiper stalk towards the steering wheel.
The washer system sprays and wipes while the
lever is pulled towards the steering wheel.
When the wiper lever is released, a few drying
wipes are executed.
Headlight washer (on vehicles with Bi-Xe-
non headlights):
The washer sprays only while low beam or high
beam is switched on.
To activate the headlight washer system, the
wiper lever must be pulled for a longer period
of time.
The spray duration is limited.
Maintenance note
fIf heavily soiled, repeat wash.
fPersistent dirt (e.g. insect remains) should be
regularly removed.
Please observe the chapter “CAR CARE
INSTRUCTIONS” on Page 256.
Thefront windscreen washer nozzles are heat-
ed when the ignition is on, as a precaution against
freezing.
