Controls, Safety, Instruments
81

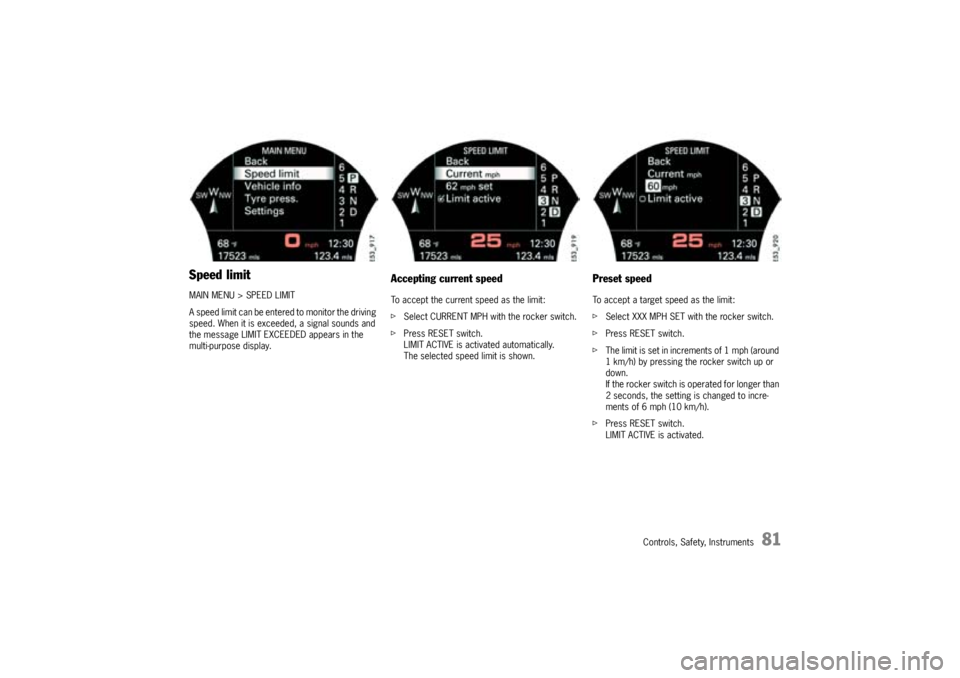

Speed limitMAIN MENU > SPEED LIMIT
A speed limit can be entered to monitor the driving
speed. When it is exceeded, a signal sounds and
the message LIMIT EXCEEDED appears in the
multi-purpose display.
Accepting current speedTo accept the current speed as the limit:
fSelect CURRENT MPH with the rocker switch.
fPress RESET switch.
LIMIT ACTIVE is activated automatically.
The selected speed limit is shown.
Preset speedTo accept a target speed as the limit:
fSelect XXX MPH SET with the rocker switch.
fPress RESET switch.
fThe limit is set in increments of 1 mph (around
1 km/h) by pressing the rocker switch up or
down.
If the rocker switch is operated for longer than
2 seconds, the setting is changed to incre-
ments of 6 mph (10 km/h).
fPress RESET switch.
LIMIT ACTIVE is activated.

82
Controls, Safety, Instruments

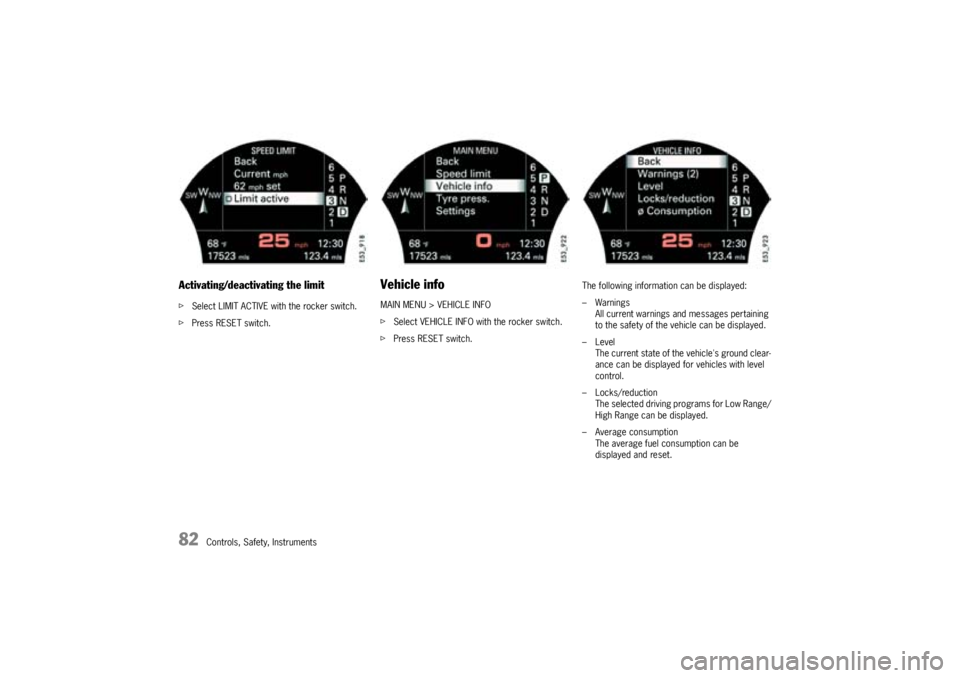

Activating/deactivating the limitfSelect LIMIT ACTIVE with the rocker switch.
fPress RESET switch.
Vehicle infoMAIN MENU > VEHICLE INFO
fSelect VEHICLE INFO with the rocker switch.
fPress RESET switch.The following information can be displayed:
–Warnings
All current warnings and messages pertaining
to the safety of the vehicle can be displayed.
–Level
The current state of the vehicle's ground clear-
ance can be displayed for vehicles with level
control.
– Locks/reduction
The selected driving programs for Low Range/
High Range can be displayed.
– Average consumption
The average fuel consumption can be
displayed and reset.

Controls, Safety, Instruments
83

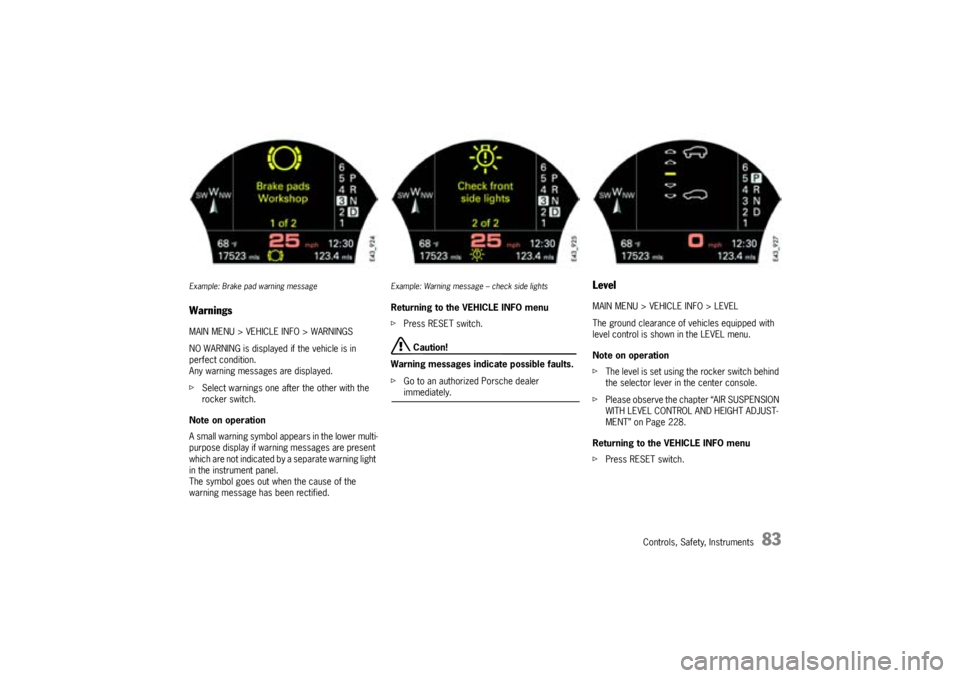

Example: Brake pad warning messageWarningsMAIN MENU > VEHICLE INFO > WARNINGS
NO WARNING is displayed if the vehicle is in
perfect condition.
Any warning messages are displayed.
fSelect warnings one after the other with the
rocker switch.
Note on operation
A small warning symbol appears in the lower multi-
purpose display if warning messages are present
which are not indicated by a separate warning light
in the instrument panel.
The symbol goes out when the cause of the
warning message has been rectified.
Example: Warning message – check side lightsReturning to the VEHICLE INFO menu
fPress RESET switch.
Caution!
Warning messages indicate possible faults.
fGo to an authorized Porsche dealer immediately.
LevelMAIN MENU > VEHICLE INFO > LEVEL
The ground clearance of vehicles equipped with
level control is shown in the LEVEL menu.
Note on operation
fThe level is set using the rocker switch behind
the selector lever in the center console.
fPlease observe the chapter “AIR SUSPENSION
WITH LEVEL CONTROL AND HEIGHT ADJUST-
MENT” on Page 228.
Returning to the VEHICLE INFO menu
fPress RESET switch.

84
Controls, Safety, Instruments

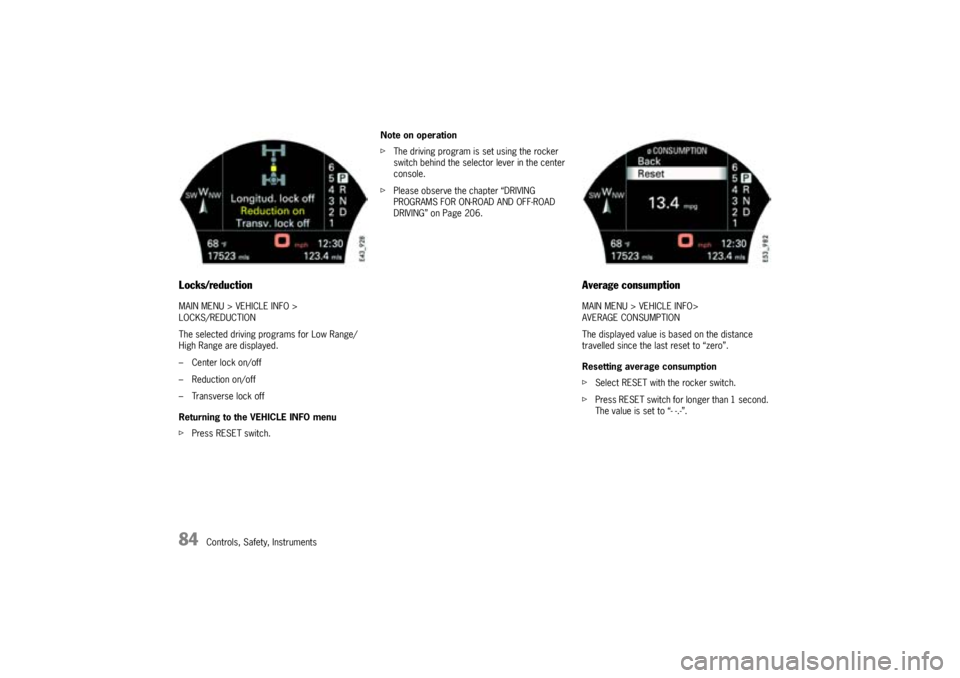

Locks/reductionMAIN MENU > VEHICLE INFO >
LOCKS/REDUCTION
The selected driving programs for Low Range/
High Range are displayed.
– Center lock on/off
– Reduction on/off
– Transverse lock off
Returning to the VEHICLE INFO menu
fPress RESET switch.Note on operation
fThe driving program is set using the rocker
switch behind the selector lever in the center
console.
fPlease observe the chapter “DRIVING
PROGRAMS FOR ON-ROAD AND OFF-ROAD
DRIVING” on Page 206.
Average consumptionMAIN MENU > VEHICLE INFO>
AVERAGE CONSUMPTION
The displayed value is based on the distance
travelled since the last reset to “zero”.
Resetting average consumption
fSelect RESET with the rocker switch.
fPress RESET switch for longer than 1 second.
The value is set to “- -.-”.

Controls, Safety, Instruments
85
Tire PressureThe tire pressure monitoring system continuously
monitors tire pressure and tire temperature on all
four wheels and warns the driver when the tire
pressure is too low.
The display as well as the settings for tire
pressure monitoring are done on the multi-
purpose display in the TYRE PRESSURE menu.
However the tire pressure must be set manually
on the wheel.
The tire pressures to be monitored for tire type
are permanently set in the tire pressure
monitoring system and cannot be changed.
The driver is solely responsible for filling the tires
correctly and for selecting in the multi-purpose dis-
play.
Danger!
Risk of serious personal injury or death.
Driving the vehicle with low tire pressure in-
creases increases risk of a tire failure and re-
sulting loss of control. Furthermore, low tire
pressure increases rate of wear of the affect-
ed tires.
fWhen a flat tire has been displayed, immediate-
ly stop in a suitable place and check the tires
for damage. If necessary remedy the damages
with a tire sealant.
fDo not by any means continue to drive with
leaking tires.
fDefective tires must be immediately replaced
by a specialist workshop.
Tyre repairs are not permissible under
any circumstances.
fSealing the tyre with the tyre sealant is only an
emergency repair, so you can drive to the next
workshop. The maximum permitted speed is
50 mph (80 km/h).
fDo not drive with tires whose tyre pressure
drops again in a short period of time. In cases
of doubt, have tires checked by a specialist
workshop.
fIf the tire pressure monitoring system is defec-
tive (e.g., defective wheel transmitter), contact
a specialist workshop immediately and have
the damages repaired.
The tire pressure will not be monitored by a
defective tire pressure monitoring system.fUse only the pressure differences shown in the
TYRE PRESSURE menu or from tyre pressure
messages or warnings when correcting the
tyre pressure.
fTires lose air over time without a tire defect be-
ing present. A tire pressure warning will then
appear in the multi-purpose display
Correct the tire pressure.
fThe tire pressure monitoring system gives a
warning about tyre damages due to insufficient
tyre pressure as well as about a gradual loss
of pressure due to foreign objects.
The tyre pressure monitoring system cannot
warn you about tyre damages occurring sud-
denly (e.g., flat tyre due to sudden external ef-
fects).
fIf a message is displayed, check the tire
pressure at the next opportunity.
fBefore fitting tires approved by Porsche which
are not stored in the on-board computer, the
missing information should be supplemented
in the on-board computer.

86
Controls, Safety, Instruments

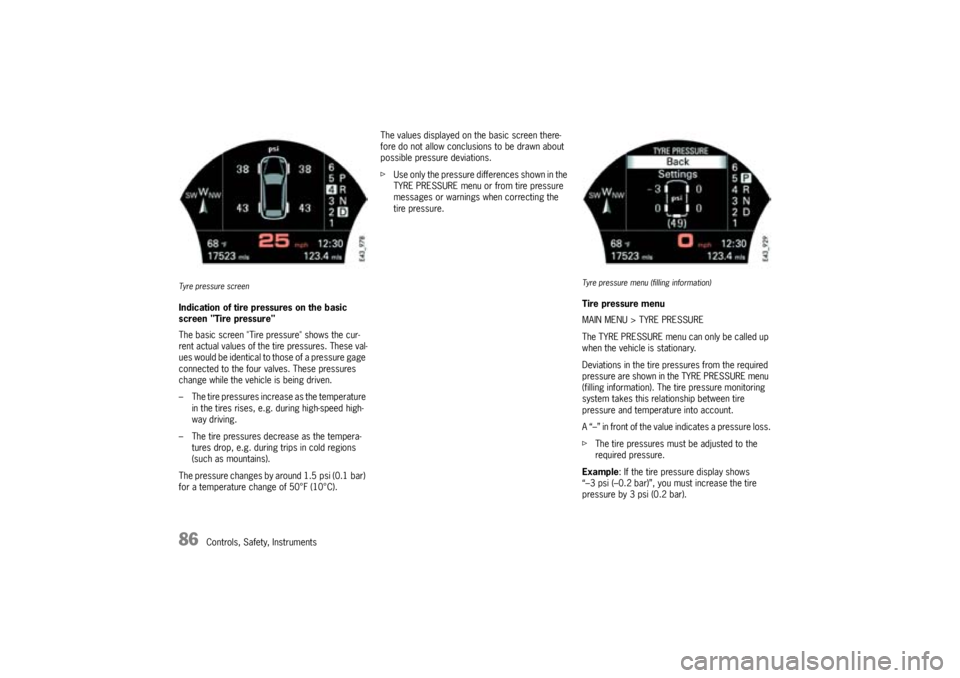

Tyre pressure screenIndication of tire pressures on the basic
screen "Tire pressure"
The basic screen "Tire pressure" shows the cur-
rent actual values of the tire pressures. These val-
ues would be identical to those of a pressure gage
connected to the four valves. These pressures
change while the vehicle is being driven.
– The tire pressures increase as the temperature
in the tires rises, e.g. during high-speed high-
way driving.
– The tire pressures decrease as the tempera-
tures drop, e.g. during trips in cold regions
(such as mountains).
The pressure changes by around 1.5 psi (0.1 bar)
for a temperature change of 50°F (10°C).The values displayed on the basic screen there-
fore do not allow conclusions to be drawn about
possible pressure deviations.
fUse only the pressure differences shown in the
TYRE PRESSURE menu or from tire pressure
messages or warnings when correcting the
tire pressure.
Tyre pressure menu (filling information)Tire pressure menu
MAIN MENU > TYRE PRESSURE
The TYRE PRESSURE menu can only be called up
when the vehicle is stationary.
Deviations in the tire pressures from the required
pressure are shown in the TYRE PRESSURE menu
(filling information). The tire pressure monitoring
system takes this relationship between tire
pressure and temperature into account.
A “–” in front of the value indicates a pressure loss.
fThe tire pressures must be adjusted to the
required pressure.
Example: If the tire pressure display shows
“–3 psi (–0.2 bar)”, you must increase the tire
pressure by 3 psi (0.2 bar).

Controls, Safety, Instruments
87
Tire pressure monitoring system learning
phaseEach time a wheel is changed, the tire pressure
monitoring system must complete the learning
phase again. The tire pressure monitoring system
identifies the wheel positions in this process.
The current tire pressures will not be available on
the multi-purpose display until the learning phase
is complete.
Tire pressure monitoring system learning
process
fSelect tire type and tire size in the menu TYRE
PRESSURE > SETTINGS > TYRES.
The learning process is started. The tire type
and size must be selected even if the settings
for the new set of wheels are the same as for
the old wheels.Note
The spare wheel and collapsible spare wheel do
not contain a wheel transmitter and are not moni-
tored by the tire pressure monitoring system.
The tire pressures for cold tires (68°F/20°C) are
shown in the TYRE PRESSURE menu (filling infor-
mation) during the learning phase.
The required pressure for the spare wheel is al-
ways displayed in the TYRE PRESSURE menu (fill-
ing information).
fCheck the tire pressure for the spare wheel
and collapsible spare wheel manually.
Tire pressure filling informationTire pressure menuThe TYRE PRESSURE menu provides an overview
of the current pressure specifications for the re-
spective wheel (filling information). The pressure
differences with respect to the required pressure
are specified irrespective of the tire temperature.
If the wheels have not been learned, the current
pressures are unavailable.
The spare wheel is not monitored. The required
pressure is specified in brackets.
To make changes to the settings of the tire pres-
sure monitoring system, select SETTINGS in the
TYRE PRESSURE menu.

88
Controls, Safety, Instruments
Tire pressure settingsMAIN MENU > TYRE PRESSURE > SETTINGS
Warning!
Incomplete entries on the multi-purpose
display affect correct information of
warnings and messages.
fAfter one of the following actions, the settings
must be updated in the TYRE PRESSURE
menu:
– Changing a wheel
– Filling with tire sealant
– Adding air (after previous warning “Flat tyre”)
fPlease observe the chapter “SELECTION AF-TER WARNING” on Page 95.The following settings made in this menu serve as
the basis on which the tire pressure monitoring
system determines the correct pressure.
–Tires
Select the type and size of the tires on the
vehicle
–Load
Select the type of loading
–System
Switch tire pressure monitoring on/off
Note on operation
Settings can be made only when the vehicle is sta-
tionary.
Tyre typeMAIN MENU > TYRE PRESSURE > SETTINGS >
TYRE TYPE
The tire type and corresponding tire size are set in
the TYRE TYPE menu.
–Summer
– All season
– Winter
– All terrain
–Spare wheel

Controls, Safety, Instruments
89
Selection of tire sizes for summer tiresExample: Selecting summer tires
MAIN MENU > TYRE PRESSURE > SETTINGS >
TYRE TYPE > SUMMER
fSelect tire type with the rocker switch.
fPress RESET switch.
fSelect tire size with the rocker switch
(e.g. 255/55 R 18).
fPress RESET switch.
The menu returns to TYRE PRESSURE > SET-
TINGS and shows the current settings.Note on operation
fThe tire size and type can be found on the tire
sidewall.
Please observe the chapter “TIRES/WHEELS”
on Page 269.
Note
Before fitting tires approved by Porsche which are
not stored in the multi-purpose display, the
missing information should be supplemented in
the multi-purpose display.
fGo to an authorized Porsche dealer
immediately.Speed limits for tires
Danger!
Risk of accident due to excessive speed.
This could lead to severe personal injury or
death.
fAlways observe the permissible maximum
speed of the respective tire.
fExceeding maximum tire speed could result in
a tire burst, causing lose of control of the ve-
hicle. This could lead to severe personal injury
or death.
Moreover, Porsche recommends obeying all
traffic laws at all times to maintain the safety of yourself and all vehicle occupants.
fPlease observe the chapter “EXAMPLE OF IN-
SCRIPTION” on Page 281.

90
Controls, Safety, Instruments

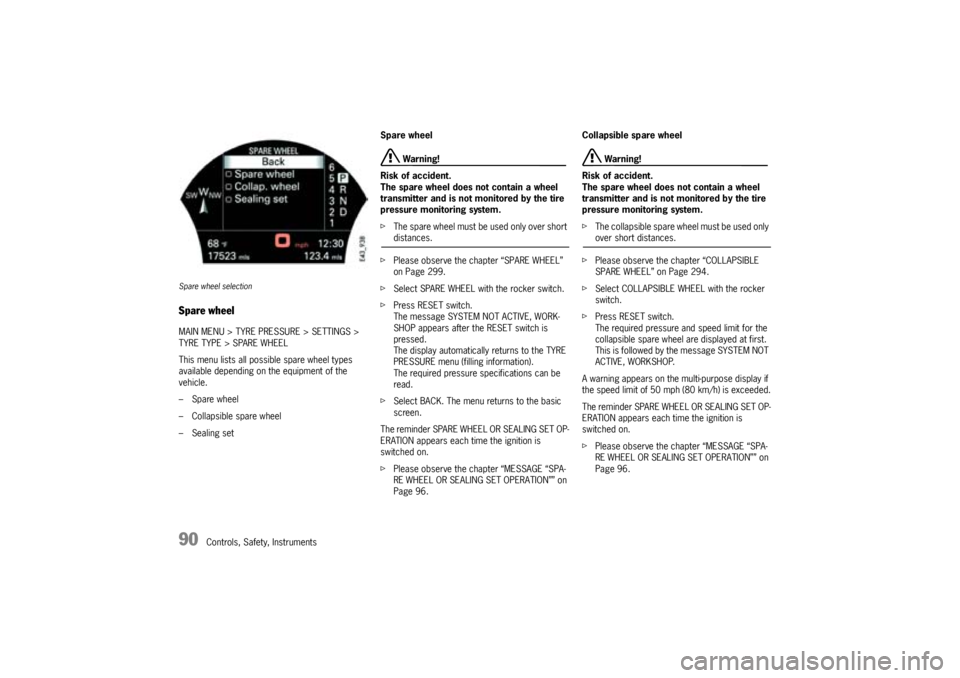

Spare wheel selectionSpare wheelMAIN MENU > TYRE PRESSURE > SETTINGS >
TYRE TYPE > SPARE WHEEL
This menu lists all possible spare wheel types
available depending on the equipment of the
vehicle.
–Spare wheel
– Collapsible spare wheel
– Sealing setSpare wheel
Warning!
Risk of accident.
The spare wheel does not contain a wheel
transmitter and is not monitored by the tire
pressure monitoring system.
fThe spare wheel must be used only over short distances.
fPlease observe the chapter “SPARE WHEEL”
on Page 299.
fSelect SPARE WHEEL with the rocker switch.
fPress RESET switch.
The message SYSTEM NOT ACTIVE, WORK-
SHOP appears after the RESET switch is
pressed.
The display automatically returns to the TYRE
PRESSURE menu (filling information).
The required pressure specifications can be
read.
fSelect BACK. The menu returns to the basic
screen.
The reminder SPARE WHEEL OR SEALING SET OP-
ERATION appears each time the ignition is
switched on.
fPlease observe the chapter “MESSAGE “SPA-
RE WHEEL OR SEALING SET OPERATION”” on
Page 96.Collapsible spare wheel
Warning!
Risk of accident.
The spare wheel does not contain a wheel
transmitter and is not monitored by the tire
pressure monitoring system.
fThe collapsible spare wheel must be used only over short distances.
fPlease observe the chapter “COLLAPSIBLE
SPARE WHEEL” on Page 294.
fSelect COLLAPSIBLE WHEEL with the rocker
switch.
fPress RESET switch.
The required pressure and speed limit for the
collapsible spare wheel are displayed at first.
This is followed by the message SYSTEM NOT
ACTIVE, WORKSHOP.
A warning appears on the multi-purpose display if
the speed limit of 50 mph (80 km/h) is exceeded.
The reminder SPARE WHEEL OR SEALING SET OP-
ERATION appears each time the ignition is
switched on.
fPlease observe the chapter “MESSAGE “SPA-
RE WHEEL OR SEALING SET OPERATION”” on
Page 96.
