STARTING AND OPERATING 371
PARKSENSE ACTIVE PARK ASSIST SYSTEM — IF
EQUIPPED
The ParkSense Active Park Assist system is intended to assist
the driver during parallel and perpendicular parking
maneuvers by identifying a proper parking space, providing
audible/visual instructions, and controlling the steering
wheel. The ParkSense Active Park Assist system is defined as
“semi-automatic” since the driver maintains control of the
accelerator, gear selector and brakes. Depending on the
driver's parking maneuver selection, the ParkSense ActivePark Assist system is capable of maneuvering a vehicle into
a parallel or a perpendicular parking space on either side
(i.e., driver side or passenger side).
NOTE:
• The driver is always responsible for controlling the
vehicle, responsible for any surrounding objects, and must
intervene as required.
• The system is provided to assist the driver and not to substitute the driver.
• During a semi-automatic maneuver, if the driver touches the steering wheel after being instructed to remove their
hands from the steering wheel, the system will cancel, and
the driver will be required to manually complete the
parking maneuver.
• The system may not work in all conditions (e.g. environ -
mental conditions such as heavy rain, snow, etc., or if
searching for a parking space that has surfaces that will
absorb the ultrasonic sensor waves).
• New vehicles from the dealership must have at least 30 miles (48 km) accumulated before the ParkSense Active
Park Assist system is fully calibrated and performs accu -
rately. This is due to the system’s dynamic vehicle calibra -
CAUTION!
• ParkSense is only a parking aid and it is unable to recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below the
sensors will not be detected when they are in close
proximity.
• The vehicle must be driven slowly when using Park -
Sense in order to be able to stop in time when an
obstacle is detected. It is recommended that the driver
looks over his/her shoulder when using ParkSense.
5
2020_DT_1500_OM_US.book Page 371

STARTING AND OPERATING 375
Once the vehicle is in position, you will be instructed to stop
the vehicle’s movement and remove your hands from the
steering wheel.Parking Space Found — Stop Once the vehicle is at a standstill with your hands removed
from the steering wheel, you will be instructed to place the
gear selector into the REVERSE position.
Parking Space Found — Remove Hands — Shift To Reverse
5
2020_DT_1500_OM_US.book Page 375

STARTING AND OPERATING 377
NOTE:
• It is the driver’s responsibility to use the brake and accel-
erator during the semi-automatic parking maneuver.
• Rear automatic braking is NOT intended to stop the vehicle for the driver during parking maneuvers.
• When the system instructs the driver to remove their hands from the steering wheel, the driver should check
their surroundings and begin to back up slowly.
• The ParkSense Active Park Assist system will allow a maximum of eight shifts between DRIVE or REVERSE. If
the maneuver cannot be completed within eight shifts, the
system will cancel and the instrument cluster display will
instruct the driver to complete the maneuver manually.
• The system will cancel the maneuver if the vehicle speed exceeds 5 mph (7 km/h) during active steering guidanceinto the parking space. The system will provide a warning
to the driver at 3 mph (5 km/h) that tells them to slowdown. The driver is then responsible for completing the
maneuver if the system is canceled.
• If the system is canceled during the maneuver for any reason, the driver must take full control of the vehicle. When the vehicle has reached the end of its backward move
-
ment, the system will instruct the driver to check their
surroundings and stop the vehicle’s movement.
Check Surroundings — STOP
NOTE:
It is the driver’s responsibility to use the brake and stop the
vehicle. The driver should check their surroundings and be
prepared to stop the vehicle either when instructed to, or
when driver intervention is required.
5
2020_DT_1500_OM_US.book Page 377

STARTING AND OPERATING 379
The system will then instruct the driver to check their
surroundings and move forward.Check Surroundings — Move Forward When the vehicle has reached the end of its forward move
-
ment, the system will instruct the driver to check their
surroundings and stop the vehicle’s movement.
Check Surroundings — STOP
NOTE:
It is the driver’s responsibility to use the brake and stop the
vehicle. The driver should check their surroundings and be
prepared to stop the vehicle either when instructed to, or
when driver intervention is required.
5
2020_DT_1500_OM_US.book Page 379

STARTING AND OPERATING 383
When an available parking space has been found, and the
vehicle is not in position, you will be instructed to move
forward to position the vehicle for a perpendicular parking
sequence.Parking Space Found — Keep Moving Forward Once the vehicle is in position, you will be instructed to stop
the vehicle’s movement and remove your hands from the
steering wheel.
Parking Space Found — STOP
5
2020_DT_1500_OM_US.book Page 383

STARTING AND OPERATING 385
The system will then instruct the driver to check their
surroundings and move backward.Check Surroundings — Move Backwards NOTE:
• It is the driver’s responsibility to use the brake and accel
-
erator during the semi-automatic parking maneuver.
• Rear automatic braking is NOT intended to stop the vehicle for the driver during parking maneuvers.
• When the system instructs the driver to remove their hands from the steering wheel, the driver should check
their surroundings and begin to back up slowly.
• The ParkSense Active Park Assist system will allow a maximum of eight shifts between DRIVE or REVERSE. If
the maneuver cannot be completed within eight shifts, the
system will cancel and the instrument cluster display will
instruct the driver to complete the maneuver manually.
• The system will cancel the maneuver if the vehicle speed exceeds 5 mph (7 km/h) during active steering guidanceinto the parking space. The system will provide a warning
to the driver at 3 mph (5 km/h) that tells them to slowdown. The driver is then responsible for completing the
maneuver if the system is canceled.
• If the system is canceled during the maneuver for any reason, the driver must take control of the vehicle.
5
2020_DT_1500_OM_US.book Page 385

386 STARTING AND OPERATING
When the vehicle has reached the end of its backward move-
ment, the system will instruct the driver to check their
surroundings and stop the vehicle’s movement.
Check Surroundings — STOP
NOTE:
It is the driver’s responsibility to use the brake and stop the
vehicle. The driver should check their surroundings and be
prepared to stop the vehicle either when instructed to, or
when driver intervention is required. Once the vehicle is in a standstill condition, the driver will be
instructed to place the gear selector into the DRIVE position.
Check Surroundings — Shift To Drive
2020_DT_1500_OM_US.book Page 386

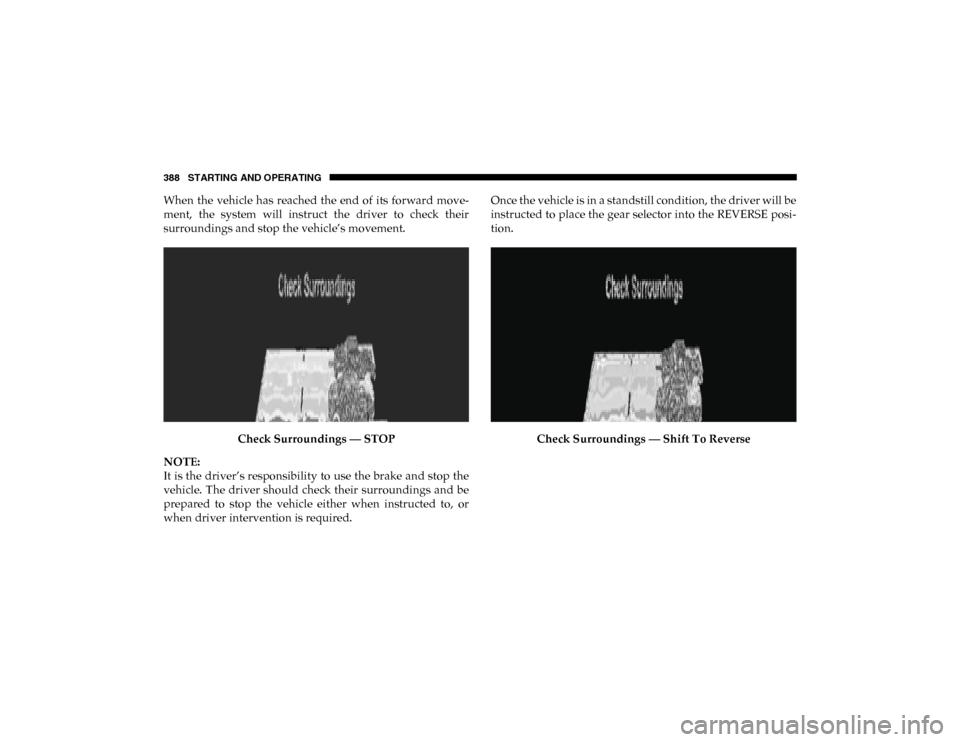

388 STARTING AND OPERATING
When the vehicle has reached the end of its forward move-
ment, the system will instruct the driver to check their
surroundings and stop the vehicle’s movement.
Check Surroundings — STOP
NOTE:
It is the driver’s responsibility to use the brake and stop the
vehicle. The driver should check their surroundings and be
prepared to stop the vehicle either when instructed to, or
when driver intervention is required. Once the vehicle is in a standstill condition, the driver will be
instructed to place the gear selector into the REVERSE posi
-
tion.
Check Surroundings — Shift To Reverse
2020_DT_1500_OM_US.book Page 388

390 STARTING AND OPERATING
Your vehicle is now in the perpendicular park position.
When the maneuver is complete, the driver will be instructed
to check the vehicle's parking position. If the driver is satis-
fied with the vehicle position, they should shift to PARK. The
"Active ParkSense Complete - Check Parking Position"
message will be momentarily displayed.
Active Park Sense Complete — Check Parking PositionWARNING!
Drivers must be careful when performing parallel or
perpendicular parking maneuvers even when using the
ParkSense Active Park Assist system. Always check
carefully behind and in front of your vehicle, look
behind and in front of you, and be sure to check for
pedestrians, animals, other vehicles, obstructions, and
blind spots before backing up and moving forward. You
are responsible for safety and must continue to pay
attention to your surroundings. Failure to do so can
result in serious injury or death.
CAUTION!
• The ParkSense Active Park Assist system is only a parking aid and it is unable to recognize every obstacle,
including small obstacles. Parking curbs might be
temporarily detected or not detected at all. Obstacles
located above or below the sensors will not be detected
when they are in close proximity.
• The vehicle must be driven slowly when using the ParkSense Active Park Assist system in order to be able
to stop in time when an obstacle is detected. It is recom -
mended that the driver looks over his/her shoulder
when using the ParkSense Active Park Assist system.
2020_DT_1500_OM_US.book Page 390

STARTING AND OPERATING 397
NOTE:
For further information about how to access and change the
programmable features of the ParkView Rear Backup
Camera, refer to “Uconnect Settings” in “Multimedia” for
further information.
A dashed center line overlay indicates the center of the
vehicle to assist with parking or aligning to a hitch/receiver.
The following table shows the approximate distances for
each zone:The ParkView Camera is located in the center of the tailgate
handle.
Zones
Distance To The Rear Of
The Vehicle
Red 0 - 1 ft (0 - 30 cm)
Yellow 1 ft - 6.5 ft (30 cm - 2m)
Green 6.5 ft or greater
(2 m or greater)WARNING!
Drivers must be careful when backing up even when
using the ParkView Rear Back Up Camera. Always check
carefully behind your vehicle, and be sure to check for
pedestrians, animals, other vehicles, obstructions, or
blind spots before backing up. You are responsible for
the safety of your surroundings and must continue to
pay attention while backing up. Failure to do so can
result in serious injury or death.
CAUTION!
• To avoid vehicle damage, ParkView should only be used as a parking aid. The ParkView camera is unable
to view every obstacle or object in your drive path.
• To avoid vehicle damage, the vehicle must be driven slowly when using ParkView to be able to stop in time
when an obstacle is seen. It is recommended that the
driver look frequently over his/her shoulder when
using ParkView.
5
