RAM 1500 2021 User Guide

9

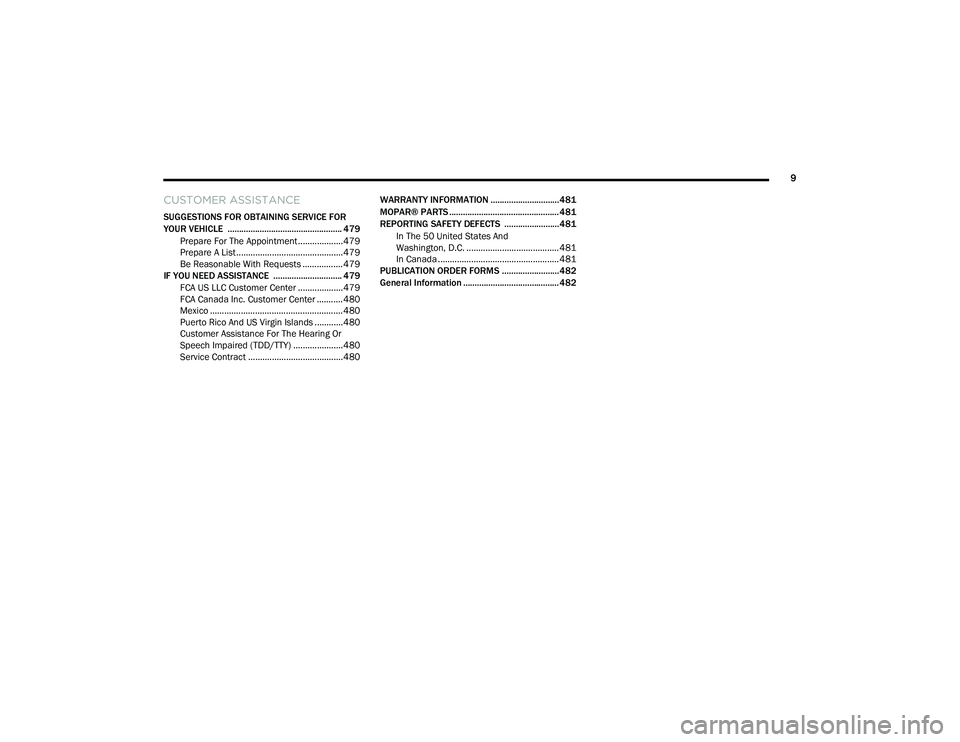

CUSTOMER ASSISTANCE
SUGGESTIONS FOR OBTAINING SERVICE FOR
YOUR VEHICLE .................................................. 479Prepare For The Appointment ...................479Prepare A List .............................................479Be Reasonable With Requests ................. 479
IF YOU NEED ASSISTANCE .............................. 479
FCA US LLC Customer Center ...................479FCA Canada Inc. Customer Center ........... 480Mexico ........................................................ 480
Puerto Rico And US Virgin Islands ............480
Customer Assistance For The Hearing Or
Speech Impaired (TDD/TTY) .....................480 Service Contract ........................................480 WARRANTY INFORMATION ..............................481
MOPAR® PARTS ................................................ 481
REPORTING SAFETY DEFECTS ........................481 In The 50 United States And
Washington, D.C. ....................................... 481 In Canada ................................................... 481
PUBLICATION ORDER FORMS .........................482
General Information .......................................... 482

21_DT_OM_EN_USC_t.book Page 9

10
INTRODUCTION
Dear Customer, congratulations on the purchase of your new Ram vehicle. Be assured that it represents precision workmanship, distinctive styling, and
high quality.
This is a specialized utility vehicle. It can go places and perform tasks that are not intended for conventional passenger vehicles. It handles and
maneuvers differently from many passenger vehicles both on-road and off-road, so take time to become familiar with your vehicle. If equipped, the
two-wheel drive version of this vehicle was designed for on-road use only. It is not intended for off-road driving or use in other severe conditions suited
for a four-wheel drive vehicle. Before you start to drive this vehicle, read the Owner’s Manual. Be sure you are familiar with all vehicle controls,
particularly those used for braking, steering, transmission, and transfer case shifting. Learn how your vehicle handles on different road surfaces. Your
driving skills will improve with experience. When driving off-road, or working the vehicle, don’t overload the vehicle or expect the vehicle to overcome
the natural laws of physics. Always observe federal, state, provincial and local laws wherever you drive. As with other vehicles of this type, failure to
operate this vehicle correctly may result in loss of control or a collision Úpage 234.
This Owner's Manual has been prepared with the assistance of service and engineering specialists to acquaint you with the operation and maintenance
of your vehicle. It is supplemented by customer-oriented documents. Within this information, you will find a description of the services that FCA US LLC
offers to its customers as well as the details of the terms and conditions for maintaining its validity. Please take the time to read all of these publications
carefully before driving your vehicle for the first time. Following the instructions, recommendations, tips, and important warnings in this manual will help
ensure safe and enjoyable operation of your vehicle.
This Owner's Manual describes all versions of this vehicle. Options and equipment dedicated to specific markets or versions are not expressly indicated
in the text. Therefore, you should only consider the information that is related to the trim level, engine, and version that you have purchased. Any content
introduced throughout the Owner's Information, which may or may not be applicable to your vehicle, will be identified with the wording “If Equipped”.
All data contained in this publication are intended to help you use your vehicle in the best possible way. FCA US LLC aims at a constant improvement
of the vehicles produced. For this reason, it reserves the right to make changes to the model described for technical and/or commercial reasons. For
further information, contact an authorized dealer.
When it comes to service, remember that authorized dealers know your Ram best, have factory-trained technicians and genuine MOPAR® parts, and
care about your satisfaction.

21_DT_OM_EN_USC_t.book Page 10

11
SYMBOLS KEY
WARNINGS AND CAUTIONS
This Owner’s Manual contains WARNINGS against operating procedures
that could result in a collision, bodily injury and/or death. It also contains
CAUTIONS against procedures that could result in damage to your vehicle.
If you do not read this entire Owner’s Manual, you may miss important
information. Observe all Warnings and Cautions.
VAN CONVERSIONS/CAMPERS
The New Vehicle Limited Warranty does not apply to body modifications or
special equipment installed by van conversion/camper manufacturers/
body builders. US residents refer to the Warranty Information, Section
2.1.C. Canadian residents refer to the “What Is Not Covered” section of
the Warranty Information. Such equipment includes video monitors, DVD/
Blu-Ray™, heaters, stoves, refrigerators, etc. For warranty coverage and
service on these items, contact the applicable manufacturer.
Operating instructions for the special equipment installed by the
conversion/camper manufacturer should also be supplied with your
vehicle. For any additional instructions, please contact your conversion/
camper manufacturer.
To obtain dimensional and technical specifications for your vehicle, refer
to the Body Builder’s Guide at https://www.ramtrucks.com/
ram-commercial/body-builders-guide.html.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING! Indicates a potentially hazardous situation,
which if not avoided, could result in death or
serious injury.
CAUTION! An unsafe practice which may result in personal
injury or damage to the vehicle.
NOTE: A suggestion which will improve installation,
operation, and reliability. If not followed, may
result in damage.
TIP: General ideas/solutions/suggestions on easier
use of the product or functionality.
PAGE REFERENCE
ARROW
Follow this reference for additional information
on a particular feature.
FOOTNOTE Supplementary and relevant information
pertaining to the topic.
WARNING!
Any modifications or alterations to this vehicle could seriously affect its
roadworthiness and safety and may lead to a collision resulting in
serious injury or death.
1

21_DT_OM_EN_USC_t.book Page 11

12
SYMBOL GLOSSARY
Some car components have colored labels with symbols indicating
precautions to be observed when using this component. It is important to
follow all warnings when operating your vehicle. See below for the
definition of each symbol Úpage 104.
Red Warning Lights
Seat Belt Reminder Warning Light
Úpage 126
Air Bag Warning Light Úpage 126
Brake Warning Light Úpage 126
Hood Open Warning Light Úpage 127
Vehicle Security Warning Light — If Equipped Úpage 127
Engine Coolant Temperature Warning Light Úpage 128
Battery Charge Warning Light
Úpage 128
Oil Pressure Warning Light Úpage 128
Oil Temperature Warning Light Úpage 128
Electronic Throttle Control (ETC) Warning Light Úpage 128
Electric Power Steering Fault Warning Light Úpage 129
Tailgate Open Warning Light Úpage 129
Trailer Brake Disconnected Warning Light Úpage 129
Red Warning Lights

21_DT_OM_EN_USC_t.book Page 12

13
Transmission Temperature Warning Light — If Equipped
Ú page 129
Door Open Warning Light Úpage 129
Yellow Warning Lights
Adaptive Cruise Control (ACC) Fault Warning
Light — If Equipped
Úpage 129
Air Suspension Fault Warning Light — If Equipped
Ú page 129
Engine Check/Malfunction Indicator Warning Light (MIL)
Ú page 130
Electronic Park Brake Warning Light Úpage 130
Electronic Stability Control (ESC) Active Warning Light — If Equipped
Úpage 130
Red Warning Lights
Electronic Stability Control (ESC) OFF Warning
Light — If Equipped
Úpage 131
Service LaneSense Warning Light — If Equipped Úpage 131
Low Washer Fluid Warning Light — If Equipped Úpage 131
Low Fuel Warning Light Úpage 131
Tire Pressure Monitoring System (TPMS) Warning Light
Ú page 131
Anti-Lock Brake System (ABS) Warning Light Úpage 132
Rear Axle Locker Fault Indicator Light — If Equipped
Ú page 132
Service Forward Collision Warning (FCW) Light — If Equipped
Ú page 132
Yellow Warning Lights
1

21_DT_OM_EN_USC_t.book Page 13

14
Service Stop/Start System Warning Light Úpage 133
Service 4WD Warning Light — If Equipped Úpage 133
Cruise Control Fault Warning Light Úpage 133
Yellow Indicator Lights
Forward Collision Warning Off Indicator Light —
If Equipped
Ú page 133
Air Suspension Payload Protection Indicator Light — If Equipped
Úpage 133
Trailer Merge Assist Indicator Light — If Equipped
Ú page 133
TOW/HAUL Indicator Light Úpage 133
Yellow Warning Lights
Cargo Light On Indicator Light
Úpage 133
Air Suspension Off-Road 1 Indicator Light — If Equipped
Ú page 133
Air Suspension Off-Road 2 Indicator Light — If Equipped
Ú page 133
Air Suspension Normal Height Indicator Light — If Equipped
Ú page 134
Air Suspension Aerodynamic Height Indicator Light — If Equipped
Úpage 134
Entry/Exit Indicator Light — If Equipped Úpage 134
Air Suspension Ride Height Raising Indicator Light — If Equipped
Úpage 134
Yellow Indicator Lights

21_DT_OM_EN_USC_t.book Page 14

15
Air Suspension Ride Height Lowering Indicator Light — If Equipped
Úpage 134
Rear Axle Lock Indicator Light Úpage 134
4WD Indicator Light — If Equipped Úpage 134
4WD Low Indicator Light — If Equipped Úpage 134
4WD High Indicator Light — If Equipped Úpage 134
NEUTRAL Indicator Light — If Equipped Úpage 134
Low Diesel Exhaust Fluid (DEF) Indicator Light — If Equipped
Ú page 134
Wait To Start Light — If Equipped Úpage 135
Yellow Indicator Lights
Water In Fuel Indicator Light — If Equipped
Úpage 135
Green Indicator Lights
Adaptive Cruise Control (ACC) Set With Target
Light — If Equipped
Úpage 135
Adaptive Cruise Control (ACC) Set With No
Target Detected Indicator Light — If Equipped
Úpage 135
ECO Mode Indicator Light Úpage 135
Park/Headlight On Indicator Light Úpage 135
LaneSense Indicator Light — If Equipped Úpage 137
Front Fog Indicator Light — If Equipped Úpage 136
Yellow Indicator Lights
1

21_DT_OM_EN_USC_t.book Page 15

16
Turn Signal Indicator Lights Úpage 136
Cruise Control SET Indicator Light — If Equipped With A Premium Instrument Cluster
Úpage 136
Stop/Start Active Indicator Light Úpage 136
4WD AUTO Indicator Light — If Equipped Úpage 136
White Indicator Lights
Adaptive Cruise Control (ACC) Ready Light — If
Equipped
Ú page 136
Cruise Control Ready Indicator Úpage 136
Speed Control SET Indicator Light — If Equipped With Base/Midline Instrument Cluster Display
Úpage 136
Green Indicator Lights
Hill Descent Control (HDC) Indicator Light — If
Equipped
Ú page 137
LaneSense Indicator Light — If Equipped Úpage 137
Blue Indicator Lights
High Beam Indicator Light
Úpage 137
White Indicator Lights

21_DT_OM_EN_USC_t.book Page 16

17
GETTING TO KNOW YOUR VEHICLE
KEYS
KEY FOB
Your vehicle is equipped with a key fob which
supports Passive Entry, Remote Keyless Entry
(RKE), Keyless Enter-N-Go (if equipped), and
Remote Start (if equipped). The key fob allows
you to lock or unlock all doors, tailgate, and the
RamBox (if equipped) as well as activate the
Panic Alarm from distances up to approximately
66 ft (20 m). The key fob does not need to be
pointed at the vehicle to activate the system. The
key fob also contains an emergency key, which is
stored in the rear of the key fob.
NOTE:
The key fob’s wireless signal may be blocked if
the key fob is located next to a mobile phone,
laptop, or other electronic device. This may
result in poor performance.
If your vehicle is equipped with a Wireless
Charging Pad, the key fob may not be found if
it is placed within 15 cm (150 mm) of the pad
Ú page 77.
With the ignition in the ON position and the
vehicle moving at 2 mph (4 km/h), all RKE
commands are disabled.
Key Fob
In case the ignition switch does not change with
the push of a button, the key fob may have a low
or fully depleted battery. A low key fob battery
can be verified by referring to the instrument
cluster, which will display directions to follow.
NOTE:
A low key fob battery condition may be indicated
by a message in the instrument cluster display,
or by the LED light on the key fob. If the LED key
fob light no longer illuminates from key fob
button pushes, then the key fob battery requires
replacement.
1 — Unlock
2 — LED Light
3 — Lock
4 — Tailgate Lowering
5 — Remote Start
6 — PANIC
7 — Emergency Key
8 — Air Suspension
2

21_DT_OM_EN_USC_t.book Page 17

18GETTING TO KNOW YOUR VEHICLE
To Lock/Unlock The Doors And Tailgate
Push and release the unlock button on the key
fob once to unlock the driver’s door, or, twice
within five seconds to unlock all doors, the
tailgate and the RamBox (if equipped). To lock all
the doors and the tailgate, push the lock button
once.
When the doors are unlocked, the turn signals
will flash and the illuminated entry system will
be activated. When the doors are locked, the
turn signals will flash and the horn will chirp.
All doors can be programmed to unlock on the
first push of the unlock button. The horn chirp
when the lock button is pushed can be
programmed on/off within Uconnect Settings
Úpage 237.
Air Suspension (Remote Lowering Of The
Vehicle) — If Equipped
For easy entry and loading, your
vehicle can be lowered by pushing the
key fob air suspension lowering button
two times. When air suspension
lowering is requested using the key fob, the
vehicle will send a series of chirps and flashes to
alert the customer that the operation has begun
and will continue these alerts until it successfully
lowers. The following conditions must be met for the
vehicle to lower remotely:
The vehicle must not already be in Entry/Exit
(Park) ride height.
The vehicle battery must be fully charged.
All doors must be closed.
The key fob must be out of the vehicle.
NOTE:
Ensure the vehicle is clear of all objects, pets,
and people prior to remote lowering.
Canceling Remote Lowering
Vehicle lowering can be cancelled at anytime.
When vehicle lowering is cancelled, the vehicle
will raise up to the next defined level and lock
out the remote lowering feature until the
ignition has been cycled ON/OFF.
To cancel vehicle lowering, push the key fob air
suspension lowering button one time during the
lowering process. When vehicle lowering is
cancelled, the horn will chirp two times and the
turn signal lamps will flash four times. Once
raising is completed, the horn will chirp one
time. NOTE:
More information on air suspension is provided
later in this manual Ú
page 165.
Replacing The Battery In The Key Fob
The replacement battery model is one CR2450
battery.
NOTE:
Customers are recommended to use a
battery obtained from Mopar. Aftermarket
coin battery dimensions may not meet the
original OEM coin battery dimensions.
Perchlorate Material — special handling may
apply. See www.dtsc.ca.gov/hazard -
ouswaste/perchlorate for further informa -
tion.
Do not touch the battery terminals that are
on the back housing or the printed circuit
board.
Do not replace the coin battery if the LED on
the key fob above the top row buttons blinks
when a button is pressed. The coin battery
should last a minimum of three years with
normal vehicle usage.

21_DT_OM_EN_USC_t.book Page 18
