mirror Ram 3500 2011 User Guide

Setting Memory Positions and Linking RKE
Transmitter to Memory
NOTE:Each time the S (SET) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
1. Turn the vehicle key to the ON/RUN position.
2. Adjust the driver’s seat, recliner, and both sideview
mirrors to the desired positions.
NOTE:Not all motors may be moved at one time. Refer
to “Seats/Eight-Way Power Seat” in this section for
further information.
3. Adjust the brake and accelerator pedals to the desired
positions.
4. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).5. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.
6. Press and release the SET button located on the
driver’s seat.
7. Within five seconds, press and release MEMORY
button 1 or 2 on the driver’s seat. The next steps must be
performed within 10 seconds if you desire to also use a
RKE transmitter to recall memory positions.
8. Turn the ignition OFF and remove the key.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Repeat the above steps to set the next memory
position using the other numbered memory button or to
link another RKE transmitter to memory.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

OVERHEAD CONSOLE — IF EQUIPPED
The overhead console is located on the headliner above
the review mirror. The overhead console contains the
following features:
•Courtesy/Reading Lights
•Power Sunroof Switch — If Equipped
•Power Sliding Rear Window Switch — If Equipped
•Universal Garage Door Opener — If Equipped
Courtesy/Reading Lights
Both lights in the overhead console and rear passenger
compartment will illuminate as courtesy lights when a
door is opened, when the dimmer control is rotated to the
Overhead Console
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149

REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
climate control panel. Press this button to turn on
the rear window defroster and the heated outside mirrors
(if equipped). An indicator in the button will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after approximately
10 minutes. For an additional five minutes of operation,
press the button a second time.
NOTE:To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

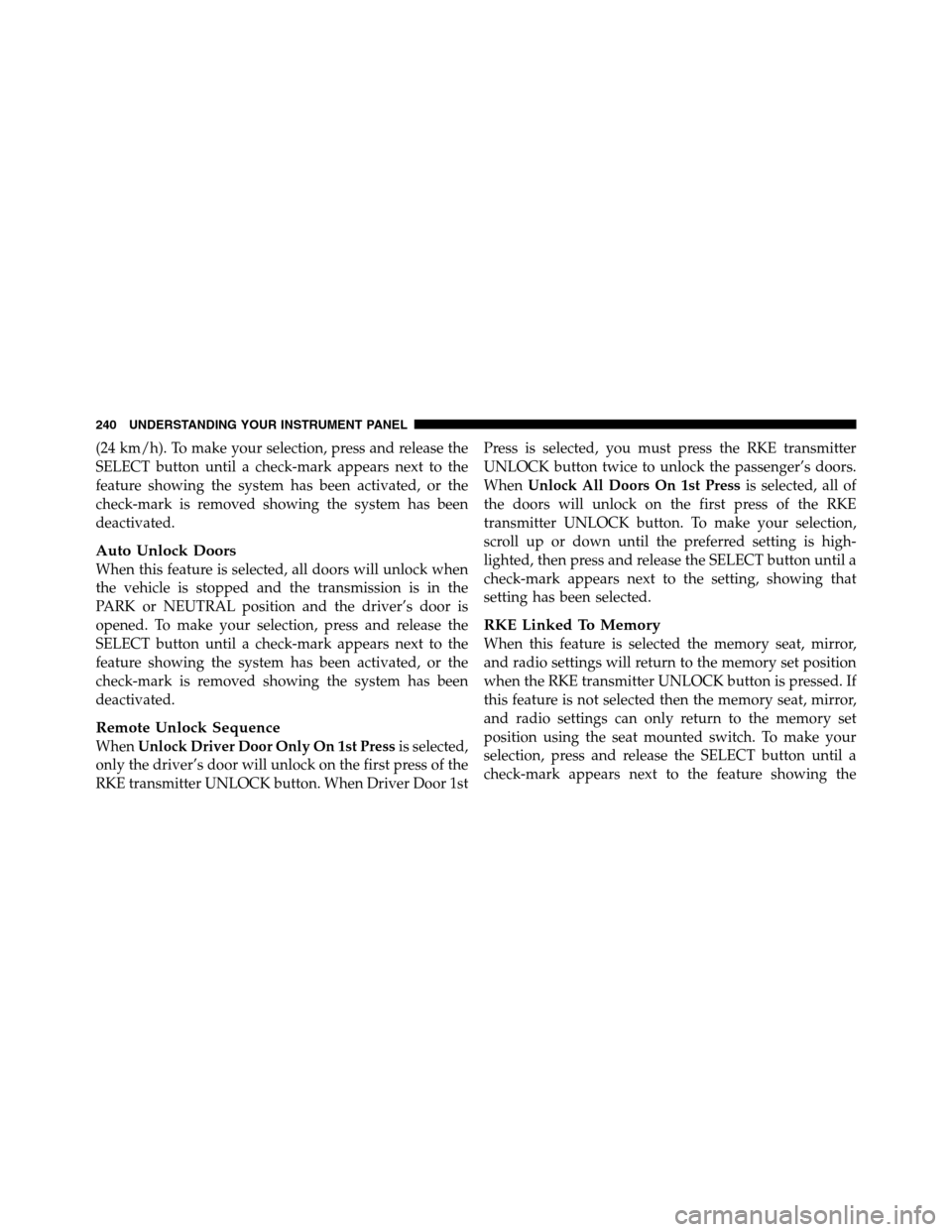

(24 km/h). To make your selection, press and release the
SELECT button until a check-mark appears next to the
feature showing the system has been activated, or the
check-mark is removed showing the system has been
deactivated.
Auto Unlock Doors
When this feature is selected, all doors will unlock when
the vehicle is stopped and the transmission is in the
PARK or NEUTRAL position and the driver’s door is
opened. To make your selection, press and release the
SELECT button until a check-mark appears next to the
feature showing the system has been activated, or the
check-mark is removed showing the system has been
deactivated.
Remote Unlock Sequence
WhenUnlock Driver Door Only On 1st Pressis selected,
only the driver’s door will unlock on the first press of the
RKE transmitter UNLOCK button. When Driver Door 1stPress is selected, you must press the RKE transmitter
UNLOCK button twice to unlock the passenger’s doors.
WhenUnlock All Doors On 1st Pressis selected, all of
the doors will unlock on the first press of the RKE
transmitter UNLOCK button. To make your selection,
scroll up or down until the preferred setting is high-
lighted, then press and release the SELECT button until a
check-mark appears next to the setting, showing that
setting has been selected.
RKE Linked To Memory
When this feature is selected the memory seat, mirror,
and radio settings will return to the memory set position
when the RKE transmitter UNLOCK button is pressed. If
this feature is not selected then the memory seat, mirror,
and radio settings can only return to the memory set
position using the seat mounted switch. To make your
selection, press and release the SELECT button until a
check-mark appears next to the feature showing the
240 UNDERSTANDING YOUR INSTRUMENT PANEL

and release the SELECT button until a check-mark ap-
pears next to the feature showing the system has been
activated or the check-mark is removed, showing the
system has been deactivated.
NOTE:The seat will return to the memorized seat
location (if Recall Memory with Remote Key Unlock is set
to ON) when the RKE transmitter is used to unlock the
door. Refer to “Driver Memory Seat” in “Understanding
The Features Of Your Vehicle” for further information.
Tilt Mirror In Reverse
When this feature is selected and the shift lever is placed
in reverse gear, the side mirrors tilt downward to allow
the driver to see into the previous blind spot and avoid
objects in close proximity to the rear of the vehicle. To
make your selection, press and release the SELECT
button until a check-mark appears next to the feature
showing the system has been activated or the check-mark
is removed, showing the system has been deactivated.
Key-Off Power Delay
When this feature is selected, the power window
switches, radio, hands-free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition switch is turned OFF. Opening a vehicle
door will cancel this feature. To make your selection,
scroll up or down until the preferred setting is high-
lighted, then press and release the SELECT button until a
check-mark appears next to the setting, showing that
setting has been selected.
Illuminated Approach
When this feature is selected, the headlights will activate
and remain on for 0, 30, 60, or 90 seconds when the doors
are unlocked with the RKE transmitter. To make your
selection, scroll up or down until the preferred setting is
highlighted, then press and release the SELECT button
until a check-mark appears next to the setting, showing
that setting has been selected.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 243

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belt.
The starter should not be operated for more than 15-
second intervals. Waiting a few seconds between such
intervals will protect the starter from overheating.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the key fob in
the ignition. A child could operate power windows,
other controls, or move the vehicle.
Normal Starting
Normal starting of either a warm or cold engine is
obtained without pumping or pressing the acceleratorpedal. Turn the key fob to the START position and release
when the engine starts. If the engine fails to start within
10 seconds, turn the key fob to the OFF position, wait five
seconds, then repeat the “Normal Starting” procedure.
Automatic Transmission
Start the engine with the shift lever in the NEUTRAL or
PARK position. Apply the brake before shifting into any
driving range.
NOTE: This vehicle is equipped with a transmission
shift interlocking system. The brake pedal must be
pressed to shift out of PARK.
Tip Start Feature
Do notpress the accelerator. Turn the ignition switch
briefly to the START position and release it. The starter
motor will continue to run but will automatically disen-
gage when the engine is running.
5
STARTING AND OPERATING 305

WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle is equipped with plastic headlights and fog
lights (if equipped) that are lighter and less susceptible to
stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments which may
scratch the elements. When cleaning the rearview mirror,
spray cleaner on the towel or rag that you are using. Do
not spray cleaner directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
550 MAINTAINING YOUR VEHICLE

Adding Engine Coolant (Antifreeze).......... 535
Adding Fuel........................... 444
Adjustable Pedals....................... 133
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 526
Air Conditioner Maintenance............... 528
Air Conditioning........................ 286
Air Conditioning Controls................. 286
Air Conditioning, Operating Tips............ 297
Air Conditioning Refrigerant.............528,529
Air Conditioning System.............286,290,528
Air Pressure, Tires....................412,418
Airbag..............................54,63
Airbag Deployment....................... 64
Airbag Light.....................62,67,84,220
Airbag Maintenance....................... 66
Airbag, Side..........................61,63
Airbag, Window (Side Curtain)...........57,61,63
Alarm Light........................... 210
Alarm, Panic............................ 24Alarm (Security Alarm).................... 18
Alarm System (Security Alarm)............... 18
Alterations/Modifications, Vehicle............. 7
Antenna, Satellite Radio................... 267
Antifreeze (Engine Coolant)..............535,569
Disposal............................ 537
Anti-Lock Brake System (ABS).............. 390
Anti-Lock Warning Light.................. 221
Anti-Theft Security Alarm (Theft Alarm)........ 18
Anti-Theft System........................ 18
Appearance Care........................ 546
Ashtray............................... 163
Auto Down Power Windows................ 35
Automatic Dimming Mirror................. 94
Automatic Headlights.................... 123
Automatic Temperature Control (ATC)......... 290
Automatic Transmission................... 311
Adding Fluid......................... 544
Fluid and Filter Changes................. 545
602 INDEX

Hazard
Driving Through Flowing, Rising, or
Shallow Standing Water................. 362
Hazard Warning Flasher................... 482
Head Restraints......................... 113
Headlights............................ 559
Automatic........................... 123
Cleaning............................ 550
High Beam.......................... 129
High Beam/Low Beam Select Switch........ 129
Lights On Reminder.................... 127
Passing............................. 128
Switch.............................. 123
Heated Mirrors.......................97,176
Heated Seats........................... 103
Heater............................... 286
Heater, Engine Block..................... 307
High Beam/Low Beam Select (Dimmer) Switch . . 129Hitches
Trailer Towing........................ 453
Hoisting.............................. 501
HomeLink(Garage Door Opener) Transmitter . . . 151
Hood Release.......................... 120
Hub Caps............................. 497
Ignition............................... 14
Key ...............................12,14
Ignition Key Removal..................... 14
Illuminated Entry........................ 19
Immobilizer (Sentry Key)................... 16
Infant Restraint........................68,69
Inflation Pressure Tires.................... 418
Information Center, Vehicle................. 223
Inside Rearview Mirror.................... 93
Instrument Cluster.................202,204,206
Instrument Panel and Controls.............. 201
Instrument Panel Lens Cleaning............. 550
10
INDEX 609

Lower Anchors and Tether for CHildren
(LATCH).............................. 73
Lubrication, Body....................... 529
Maintenance Free Battery.................. 526
Maintenance Procedures................... 522
Maintenance Schedule.................... 574
Malfunction Indicator Light (Check Engine)..... 520
Manual, Service......................... 597
Manual Transmission
Fluid Level Check..................... 543
Lubricant Selection..................... 572
Memory Seat........................... 116
Methanol............................. 437
Mini-Trip Computer...................... 233
Mirrors................................ 93
Automatic Dimming..................... 94
Electric Powered....................... 96
Heated.............................. 97Memory............................. 116
Outside.............................. 94
Rearview............................. 93
Trailer Towing......................... 99
Mode
Fuel Saver........................231,233
Modifications/Alterations, Vehicle............. 7
Monitor, Tire Pressure System............... 424
Mopar Parts.........................521,596
MTBE/ETBE........................... 437
Multi-Displacement Engine System........... 387
Multi-Function Control Lever............... 127
Navigation System (Uconnect™ gps).......... 147
New Vehicle Break-In Period................ 81
Occupant Restraints...................38,61,64
Occupant Restraints (Sedan).............57,61,63
Octane Rating, Gasoline (Fuel).............. 435
612 INDEX
