Ram 3500 2017 Diesel Supplement
Manufacturer: RAM, Model Year: 2017, Model line: 3500, Model: Ram 3500 2017Pages: 228, PDF Size: 1.35 MB
Page 201 of 228

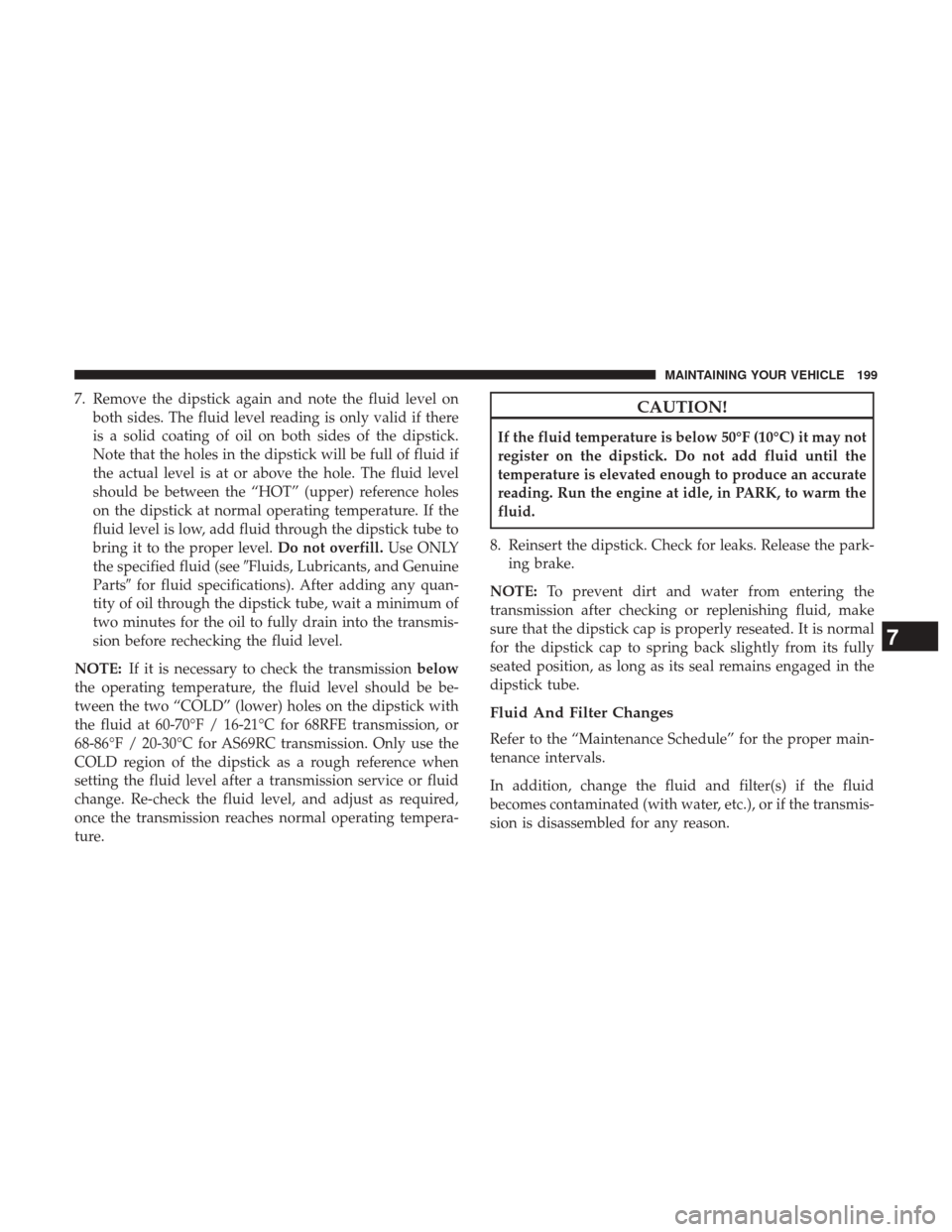

7. Remove the dipstick again and note the fluid level onboth sides. The fluid level reading is only valid if there
is a solid coating of oil on both sides of the dipstick.
Note that the holes in the dipstick will be full of fluid if
the actual level is at or above the hole. The fluid level
should be between the “HOT” (upper) reference holes
on the dipstick at normal operating temperature. If the
fluid level is low, add fluid through the dipstick tube to
bring it to the proper level. Do not overfill.Use ONLY
the specified fluid (see Fluids, Lubricants, and Genuine
Parts for fluid specifications). After adding any quan-
tity of oil through the dipstick tube, wait a minimum of
two minutes for the oil to fully drain into the transmis-
sion before rechecking the fluid level.
NOTE: If it is necessary to check the transmission below
the operating temperature, the fluid level should be be-
tween the two “COLD” (lower) holes on the dipstick with
the fluid at 60-70°F / 16-21°C for 68RFE transmission, or
68-86°F / 20-30°C for AS69RC transmission. Only use the
COLD region of the dipstick as a rough reference when
setting the fluid level after a transmission service or fluid
change. Re-check the fluid level, and adjust as required,
once the transmission reaches normal operating tempera-
ture.CAUTION!
If the fluid temperature is below 50°F (10°C) it may not
register on the dipstick. Do not add fluid until the
temperature is elevated enough to produce an accurate
reading. Run the engine at idle, in PARK, to warm the
fluid.
8. Reinsert the dipstick. Check for leaks. Release the park- ing brake.
NOTE: To prevent dirt and water from entering the
transmission after checking or replenishing fluid, make
sure that the dipstick cap is properly reseated. It is normal
for the dipstick cap to spring back slightly from its fully
seated position, as long as its seal remains engaged in the
dipstick tube.
Fluid And Filter Changes
Refer to the “Maintenance Schedule” for the proper main-
tenance intervals.
In addition, change the fluid and filter(s) if the fluid
becomes contaminated (with water, etc.), or if the transmis-
sion is disassembled for any reason.
7
MAINTAINING YOUR VEHICLE 199
Page 202 of 228

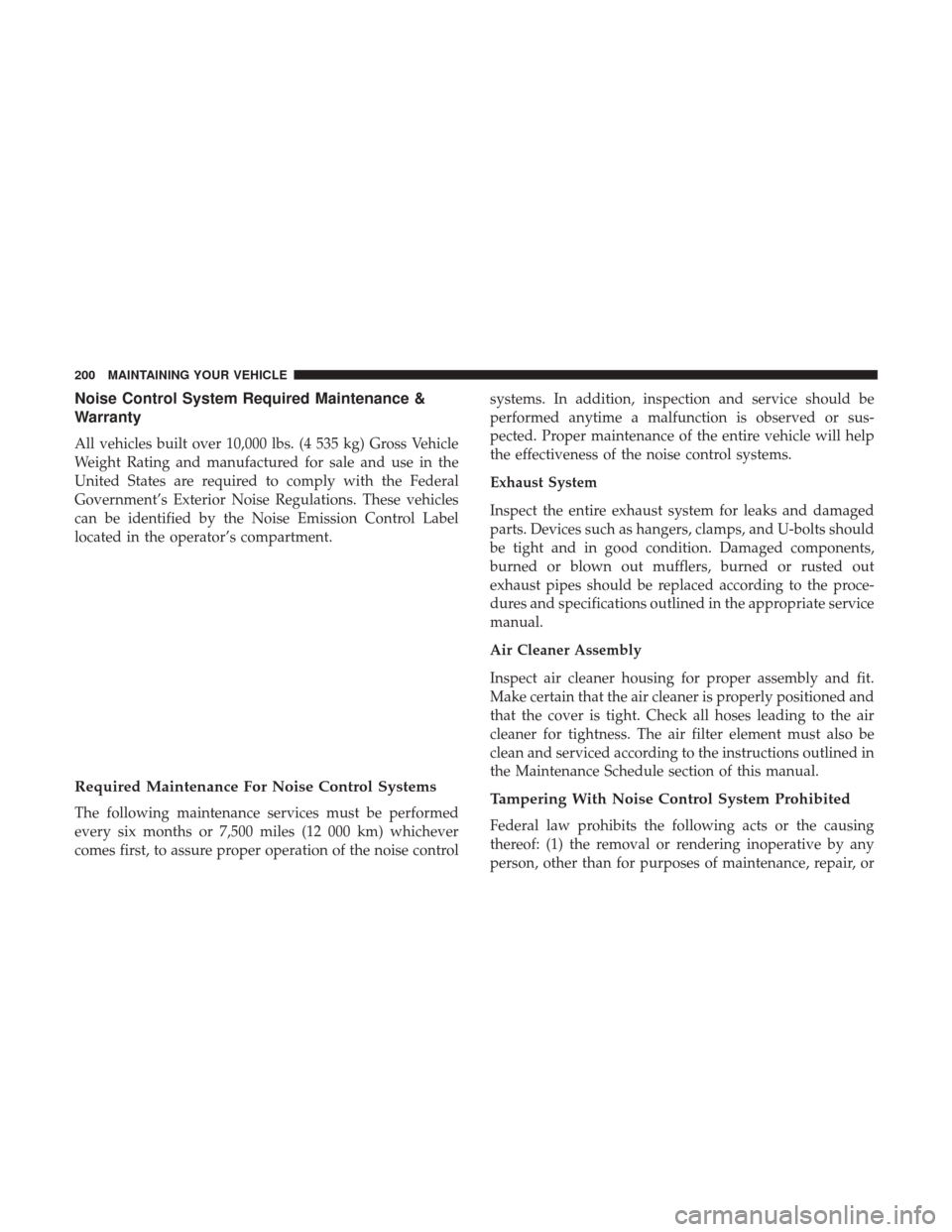

Noise Control System Required Maintenance &
Warranty
All vehicles built over 10,000 lbs. (4 535 kg) Gross Vehicle
Weight Rating and manufactured for sale and use in the
United States are required to comply with the Federal
Government’s Exterior Noise Regulations. These vehicles
can be identified by the Noise Emission Control Label
located in the operator’s compartment.
Required Maintenance For Noise Control Systems
The following maintenance services must be performed
every six months or 7,500 miles (12 000 km) whichever
comes first, to assure proper operation of the noise controlsystems. In addition, inspection and service should be
performed anytime a malfunction is observed or sus-
pected. Proper maintenance of the entire vehicle will help
the effectiveness of the noise control systems.
Exhaust System
Inspect the entire exhaust system for leaks and damaged
parts. Devices such as hangers, clamps, and U-bolts should
be tight and in good condition. Damaged components,
burned or blown out mufflers, burned or rusted out
exhaust pipes should be replaced according to the proce-
dures and specifications outlined in the appropriate service
manual.
Air Cleaner Assembly
Inspect air cleaner housing for proper assembly and fit.
Make certain that the air cleaner is properly positioned and
that the cover is tight. Check all hoses leading to the air
cleaner for tightness. The air filter element must also be
clean and serviced according to the instructions outlined in
the Maintenance Schedule section of this manual.Tampering With Noise Control System Prohibited
Federal law prohibits the following acts or the causing
thereof: (1) the removal or rendering inoperative by any
person, other than for purposes of maintenance, repair, or
200 MAINTAINING YOUR VEHICLE
Page 203 of 228

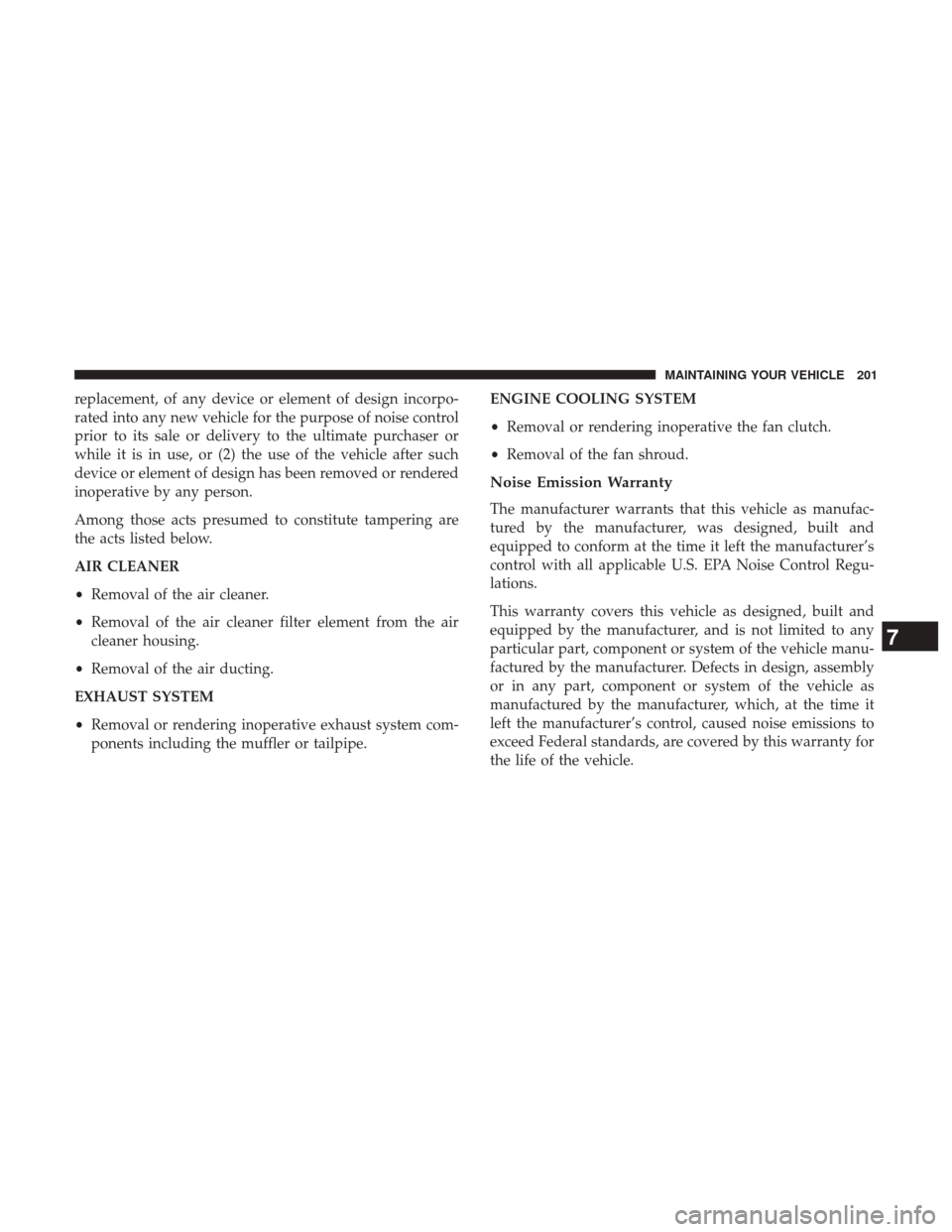

replacement, of any device or element of design incorpo-
rated into any new vehicle for the purpose of noise control
prior to its sale or delivery to the ultimate purchaser or
while it is in use, or (2) the use of the vehicle after such
device or element of design has been removed or rendered
inoperative by any person.
Among those acts presumed to constitute tampering are
the acts listed below.
AIR CLEANER
•Removal of the air cleaner.
• Removal of the air cleaner filter element from the air
cleaner housing.
• Removal of the air ducting.
EXHAUST SYSTEM
• Removal or rendering inoperative exhaust system com-
ponents including the muffler or tailpipe. ENGINE COOLING SYSTEM
•
Removal or rendering inoperative the fan clutch.
• Removal of the fan shroud.
Noise Emission Warranty
The manufacturer warrants that this vehicle as manufac-
tured by the manufacturer, was designed, built and
equipped to conform at the time it left the manufacturer’s
control with all applicable U.S. EPA Noise Control Regu-
lations.
This warranty covers this vehicle as designed, built and
equipped by the manufacturer, and is not limited to any
particular part, component or system of the vehicle manu-
factured by the manufacturer. Defects in design, assembly
or in any part, component or system of the vehicle as
manufactured by the manufacturer, which, at the time it
left the manufacturer’s control, caused noise emissions to
exceed Federal standards, are covered by this warranty for
the life of the vehicle.
7
MAINTAINING YOUR VEHICLE 201
Page 204 of 228

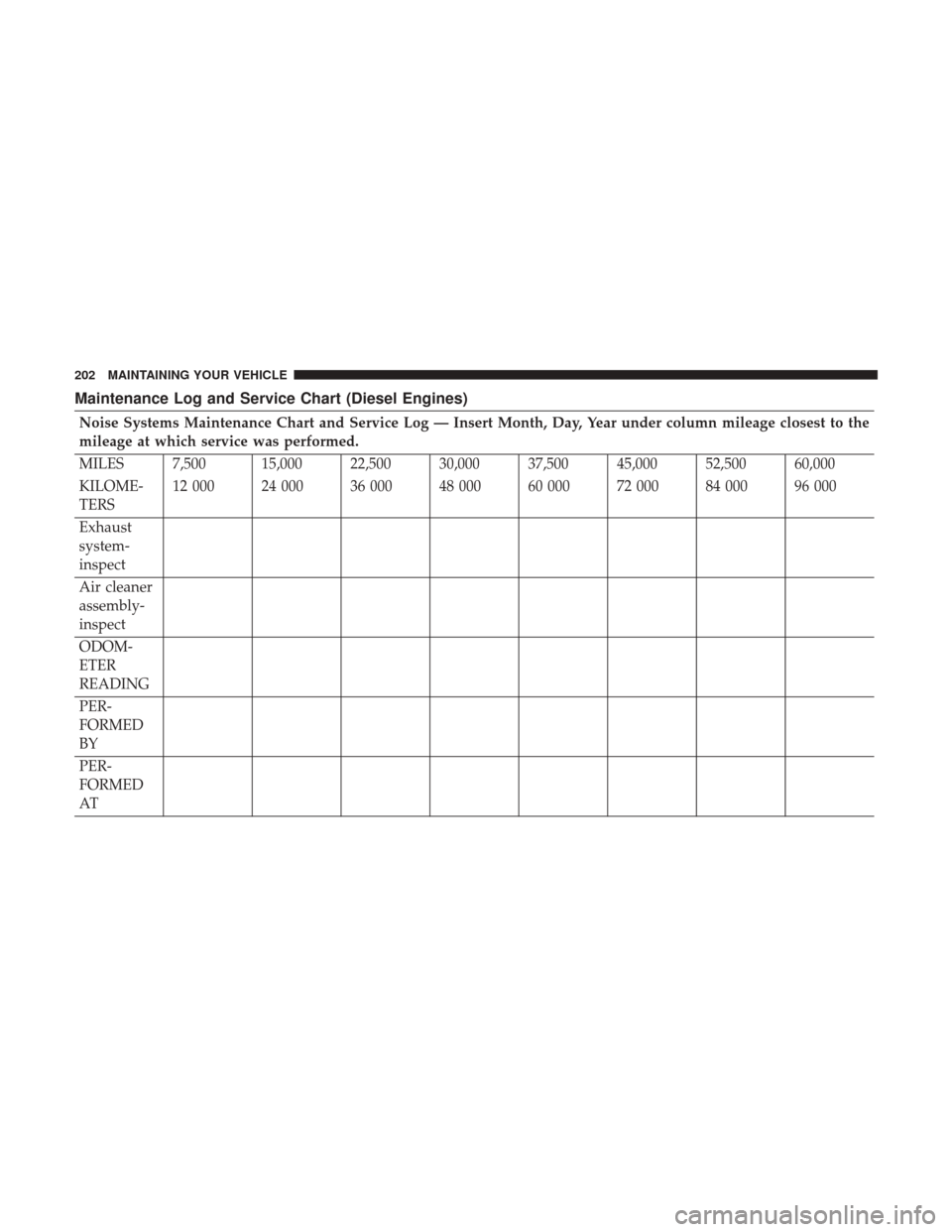

Maintenance Log and Service Chart (Diesel Engines)
Noise Systems Maintenance Chart and Service Log — Insert Month, Day, Year under column mileage closest to the
mileage at which service was performed.
MILES 7,500 15,000 22,500 30,000 37,500 45,000 52,500 60,000
KILOME-
TERS12 000 24 000 36 000 48 000 60 000 72 000 84 000 96 000
Exhaust
system-
inspect
Air cleaner
assembly-
inspect
ODOM-
ETER
READING
PER-
FORMED
BY
PER-
FORMED
AT
202 MAINTAINING YOUR VEHICLE
Page 205 of 228

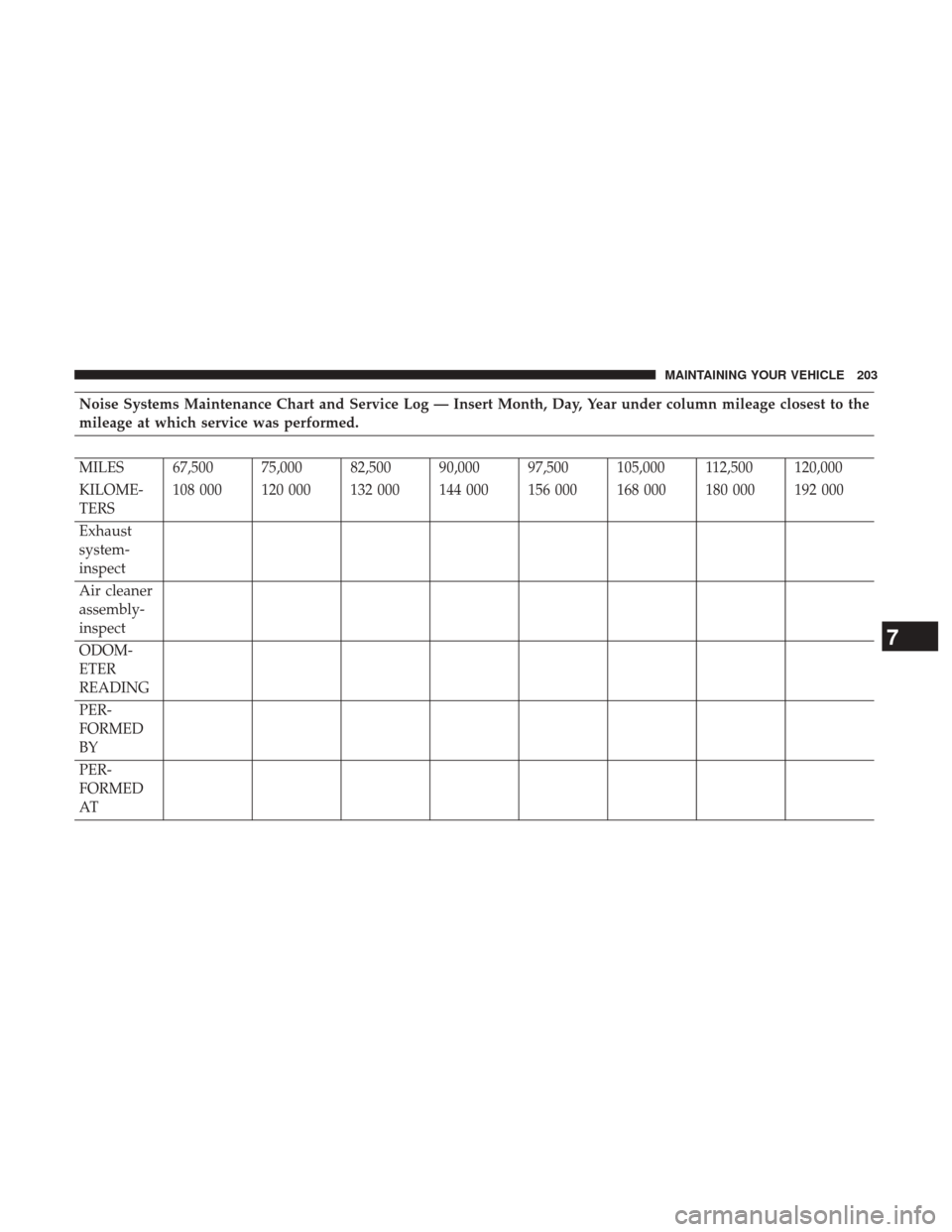

Noise Systems Maintenance Chart and Service Log — Insert Month, Day, Year under column mileage closest to the
mileage at which service was performed.
MILES 67,500 75,000 82,500 90,000 97,500 105,000 112,500 120,000
KILOME-
TERS108 000 120 000 132 000 144 000 156 000 168 000 180 000 192 000
Exhaust
system-
inspect
Air cleaner
assembly-
inspect
ODOM-
ETER
READING
PER-
FORMED
BY
PER-
FORMED
AT
7
MAINTAINING YOUR VEHICLE 203
Page 206 of 228

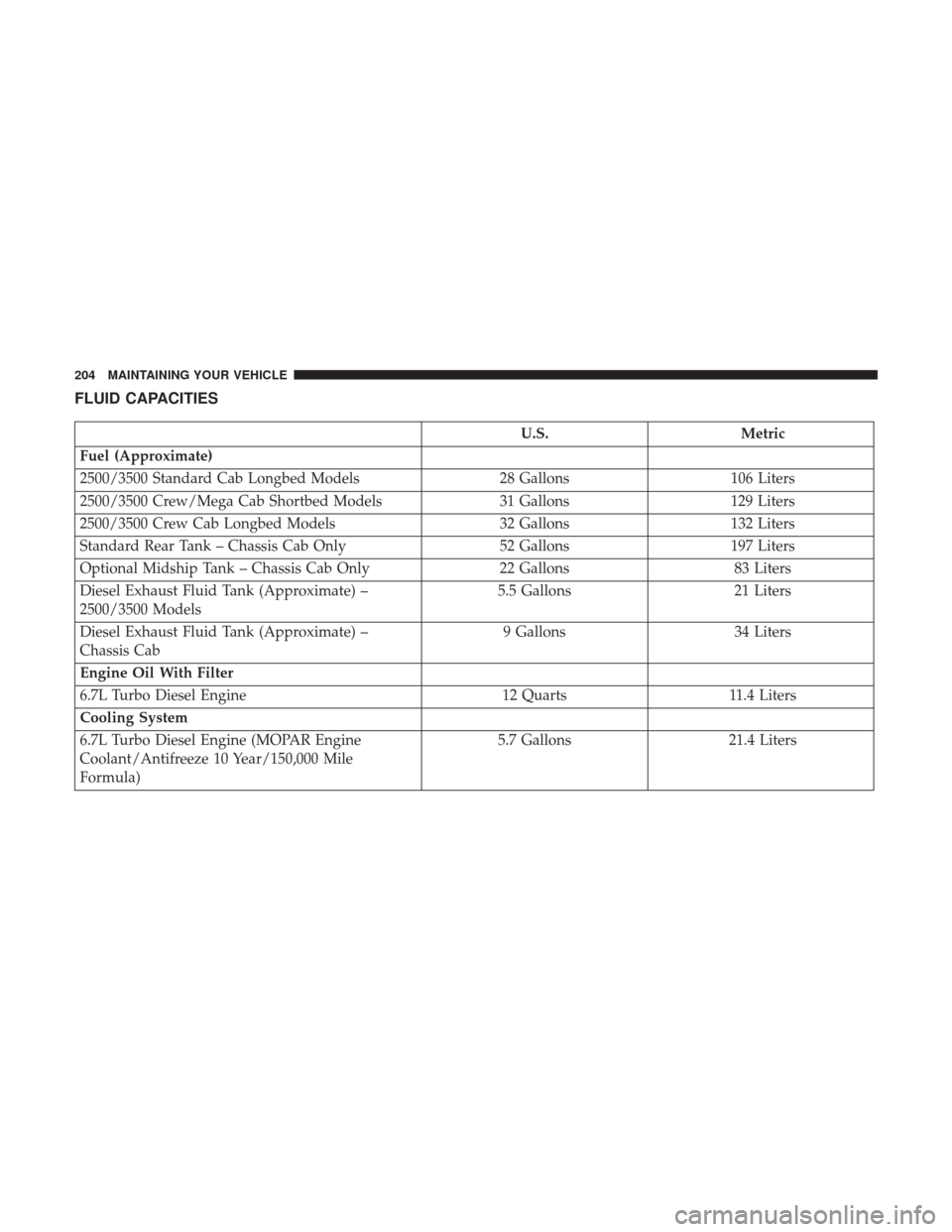

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
2500/3500 Standard Cab Longbed Models 28 Gallons106 Liters
2500/3500 Crew/Mega Cab Shortbed Models 31 Gallons129 Liters
2500/3500 Crew Cab Longbed Models 32 Gallons132 Liters
Standard Rear Tank – Chassis Cab Only 52 Gallons197 Liters
Optional Midship Tank – Chassis Cab Only 22 Gallons83 Liters
Diesel Exhaust Fluid Tank (Approximate) –
2500/3500 Models 5.5 Gallons
21 Liters
Diesel Exhaust Fluid Tank (Approximate) –
Chassis Cab 9 Gallons
34 Liters
Engine Oil With Filter
6.7L Turbo Diesel Engine 12 Quarts11.4 Liters
Cooling System
6.7L Turbo Diesel Engine (MOPAR Engine
Coolant/Antifreeze 10 Year/150,000 Mile
Formula) 5.7 Gallons
21.4 Liters
204 MAINTAINING YOUR VEHICLE
Page 207 of 228

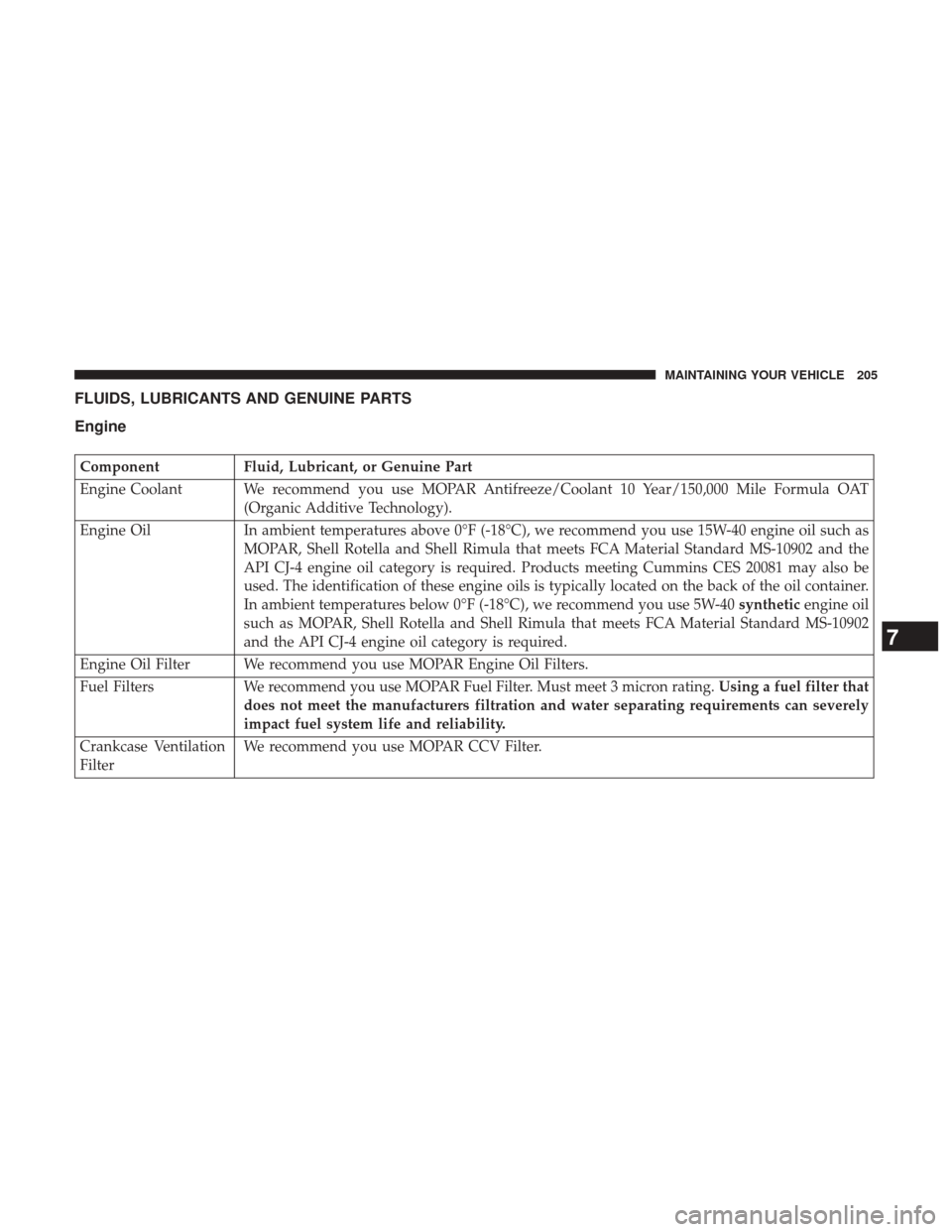

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technology).
Engine Oil In ambient temperatures above 0°F (-18°C), we recommend you use 15W-40 engine oil such as
MOPAR, Shell Rotella and Shell Rimula that meets FCA Material Standard MS-10902 and the
API CJ-4 engine oil category is required. Products meeting Cummins CES 20081 may also be
used. The identification of these engine oils is typically located on the back of the oil container.
In ambient temperatures below 0°F (-18°C), we recommend you use 5W-40 syntheticengine oil
such as MOPAR, Shell Rotella and Shell Rimula that meets FCA Material Standard MS-10902
and the API CJ-4 engine oil category is required.
Engine Oil Filter We recommend you use MOPAR Engine Oil Filters.
Fuel Filters We recommend you use MOPAR Fuel Filter. Must meet 3 micron rating. Using a fuel filter that
does not meet the manufacturers filtration and water separating requirements can severely
impact fuel system life and reliability.
Crankcase Ventilation
Filter We recommend you use MOPAR CCV Filter.
7
MAINTAINING YOUR VEHICLE 205
Page 208 of 228

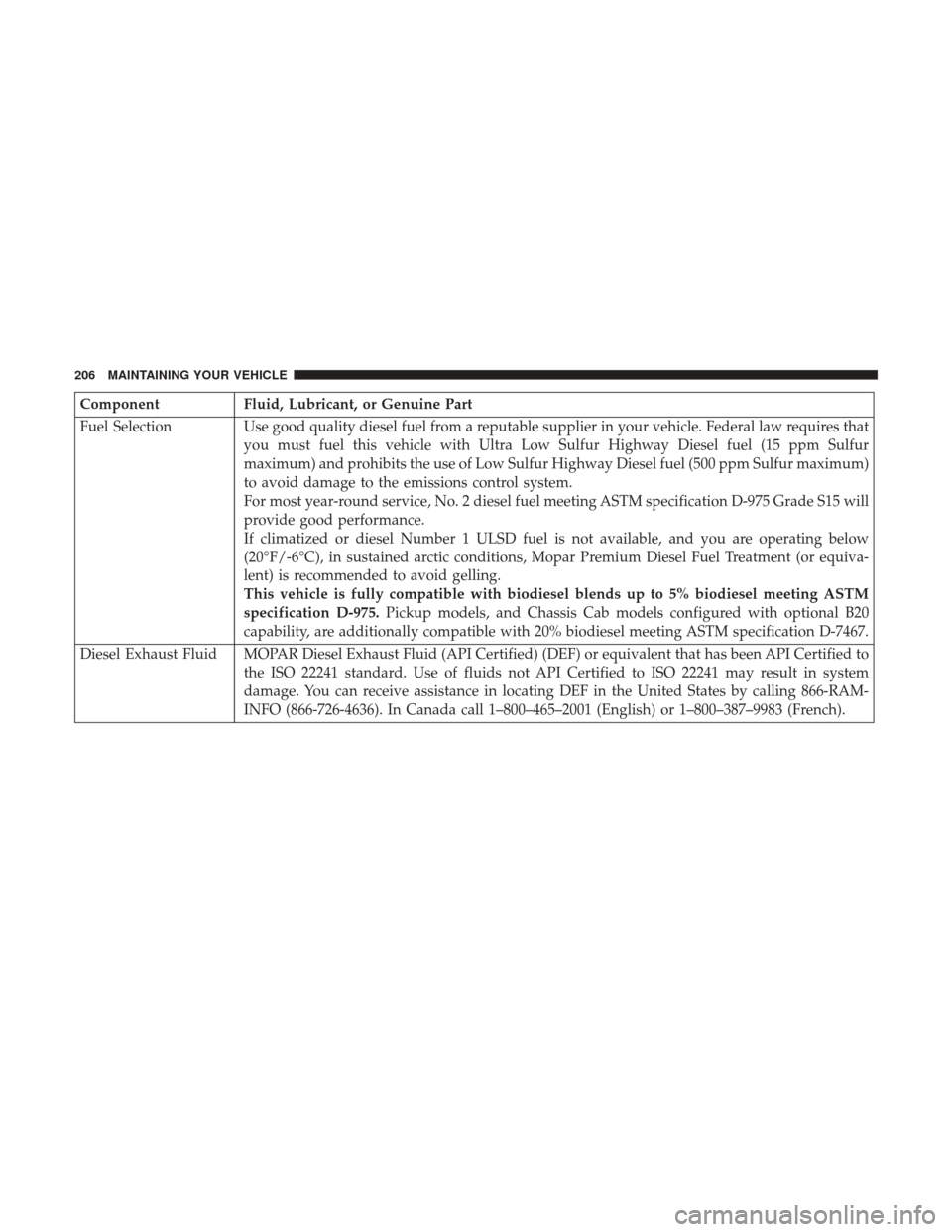

ComponentFluid, Lubricant, or Genuine Part
Fuel Selection Use good quality diesel fuel from a reputable supplier in your vehicle. Federal law requires that you must fuel this vehicle with Ultra Low Sulfur Highway Diesel fuel (15 ppm Sulfur
maximum) and prohibits the use of Low Sulfur Highway Diesel fuel (500 ppm Sulfur maximum)
to avoid damage to the emissions control system.
For most year-round service, No. 2 diesel fuel meeting ASTM specification D-975 Grade S15 will
provide good performance.
If climatized or diesel Number 1 ULSD fuel is not available, and you are operating below
(20°F/-6°C), in sustained arctic conditions, Mopar Premium Diesel Fuel Treatment (or equiva-
lent) is recommended to avoid gelling.
This vehicle is fully compatible with biodiesel blends up to 5% biodiesel meeting ASTM
specification D-975.Pickup models, and Chassis Cab models configured with optional B20
capability, are additionally compatible with 20% biodiesel meeting ASTM specification D-7467.
Diesel Exhaust Fluid MOPAR Diesel Exhaust Fluid (API Certified) (DEF) or equivalent that has been API Certified to the ISO 22241 standard. Use of fluids not API Certified to ISO 22241 may result in system
damage. You can receive assistance in locating DEF in the United States by calling 866-RAM-
INFO (866-726-4636). In Canada call 1–800–465–2001 (English) or 1–800–387–9983 (French).
206 MAINTAINING YOUR VEHICLE
Page 209 of 228

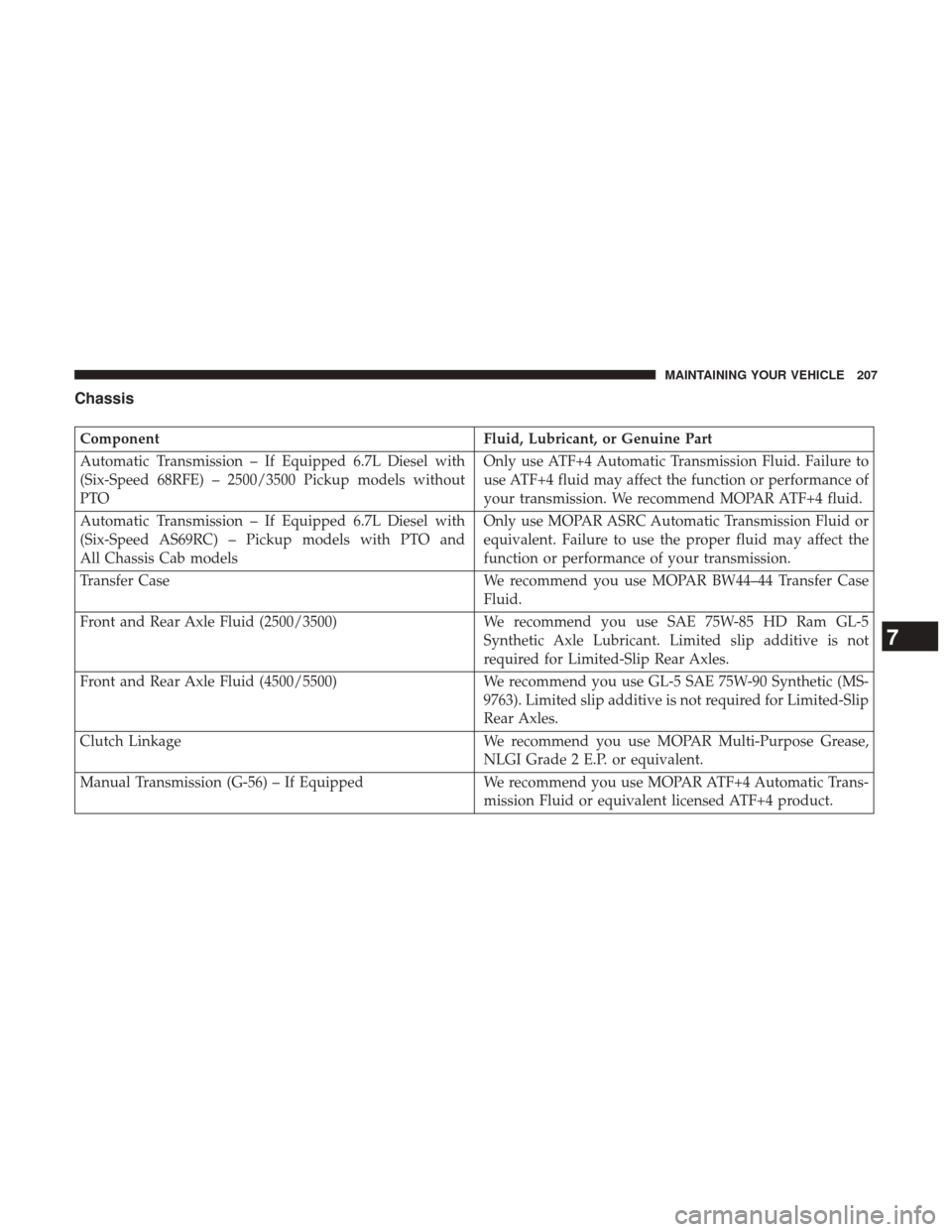

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission – If Equipped 6.7L Diesel with
(Six-Speed 68RFE) – 2500/3500 Pickup models without
PTO Only use ATF+4 Automatic Transmission Fluid. Failure to
use ATF+4 fluid may affect the function or performance of
your transmission. We recommend MOPAR ATF+4 fluid.
Automatic Transmission – If Equipped 6.7L Diesel with
(Six-Speed AS69RC) – Pickup models with PTO and
All Chassis Cab models Only use MOPAR ASRC Automatic Transmission Fluid or
equivalent. Failure to use the proper fluid may affect the
function or performance of your transmission.
Transfer Case We recommend you use MOPAR BW44–44 Transfer Case
Fluid.
Front and Rear Axle Fluid (2500/3500) We recommend you use SAE 75W-85 HD Ram GL-5
Synthetic Axle Lubricant. Limited slip additive is not
required for Limited-Slip Rear Axles.
Front and Rear Axle Fluid (4500/5500) We recommend you use GL-5 SAE 75W-90 Synthetic (MS-
9763). Limited slip additive is not required for Limited-Slip
Rear Axles.
Clutch Linkage We recommend you use MOPAR Multi-Purpose Grease,
NLGI Grade 2 E.P. or equivalent.
Manual Transmission (G-56) – If Equipped We recommend you use MOPAR ATF+4 Automatic Trans-
mission Fluid or equivalent licensed ATF+4 product.
7
MAINTAINING YOUR VEHICLE 207
