NOTE: If multiple pre-heat cycles are used before
starting, additional engine run time may be required to
maintain battery state of charge at a satisfactory level.
1. If the engine stalls after the initial start, the ignition
must be turned to the OFF position for at least five
seconds and then to the ON position to recycle the
manifold heaters.
NOTE:Excessive white smoke and poor engine perfor-
mance will result if manifold heaters are not recycled.
2. Heat generated by the manifold heaters dissipates
rapidly in a cold engine. If more than two minutes pass
between the time the “Wait To Start Light” turns off and
the engine is started, recycle the manifold heaters by
turning the ignition switch to the OFF position for at least
five seconds and then back ON. 3. If the vehicle is driven and vehicle speed exceeds
19 mph (31 km/h) before the manifold heater post-heat
(after start) cycle is complete, the manifold heaters will
shut off.
4. If the engine is started before the “Wait To Start Light”
turns off, the preheat cycle will turn off.
5. If the engine is cranked for more than 10 seconds, the
post-heat cycle will turn off.
NOTE:
•Engine idle speed will automatically increase to 1,000
RPM and engage the Variable Geometry Turbocharger
at low coolant temperatures to improve engine warm-
up.
4
STARTING AND OPERATING 39
Page 42 of 173
•When a diesel engine is allowed to run out of fuel or
the fuel gels at low temperatures, air is pulled into the
fuel system. If your engine has run out of fuel, refer to
“Maintenance Procedures/Priming If The Engine Has
Run Out Of Fuel” in “Maintaining Your Vehicle” for
further information.
Starting Fluids
WARNING!
Starting fluids or flammable liquids are never to be
used in the Cumminsdiesel engine (see Warning
label). Never pour diesel fuel, flammable liquid,
starting fluids (ether) into the air cleaner canister, air
intake piping, or turbocharger inlet in an attempt to
start the vehicle. This could result in a flash fire and
explosion causing serious personal injury and engine
damage. The engine is equipped with an automatic electric air
preheating system. If the instructions in this manual are
followed, the engine should start in all conditions.
WARNING!
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build up may
cause serious injury or death.
•Leaving children in a vehicle unattended is dan-
gerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the shift lever. Do not leave the key
in the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
40 STARTING AND OPERATING
Page 43 of 173

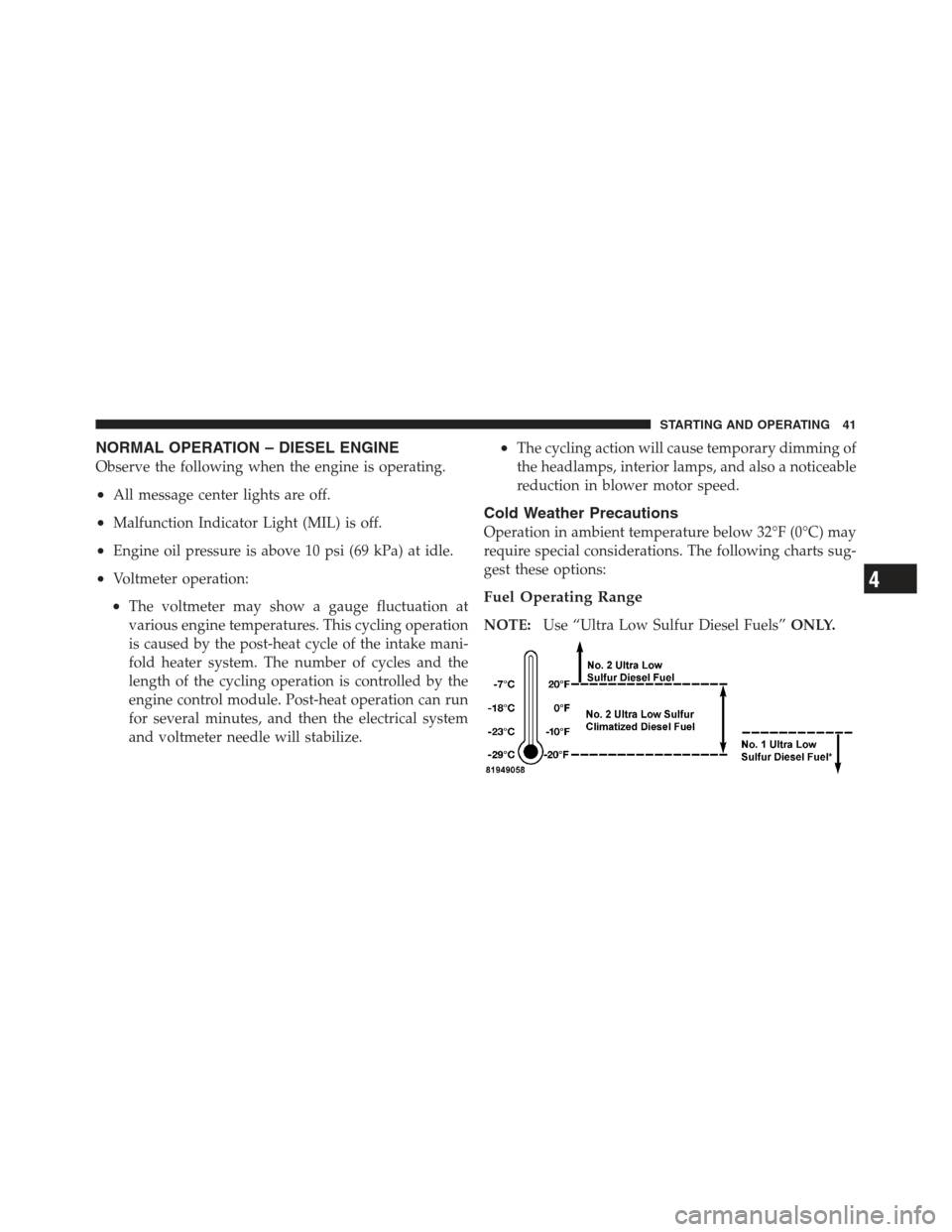

NORMAL OPERATION – DIESEL ENGINE
Observe the following when the engine is operating.
•All message center lights are off.
•Malfunction Indicator Light (MIL) is off.
•Engine oil pressure is above 10 psi (69 kPa) at idle.
•Voltmeter operation:
•The voltmeter may show a gauge fluctuation at
various engine temperatures. This cycling operation
is caused by the post-heat cycle of the intake mani-
fold heater system. The number of cycles and the
length of the cycling operation is controlled by the
engine control module. Post-heat operation can run
for several minutes, and then the electrical system
and voltmeter needle will stabilize.
•The cycling action will cause temporary dimming of
the headlamps, interior lamps, and also a noticeable
reduction in blower motor speed.
Cold Weather Precautions
Operation in ambient temperature below 32°F (0°C) may
require special considerations. The following charts sug-
gest these options:
Fuel Operating Range
NOTE:Use “Ultra Low Sulfur Diesel Fuels” ONLY.
4
STARTING AND OPERATING 41
Page 44 of 173

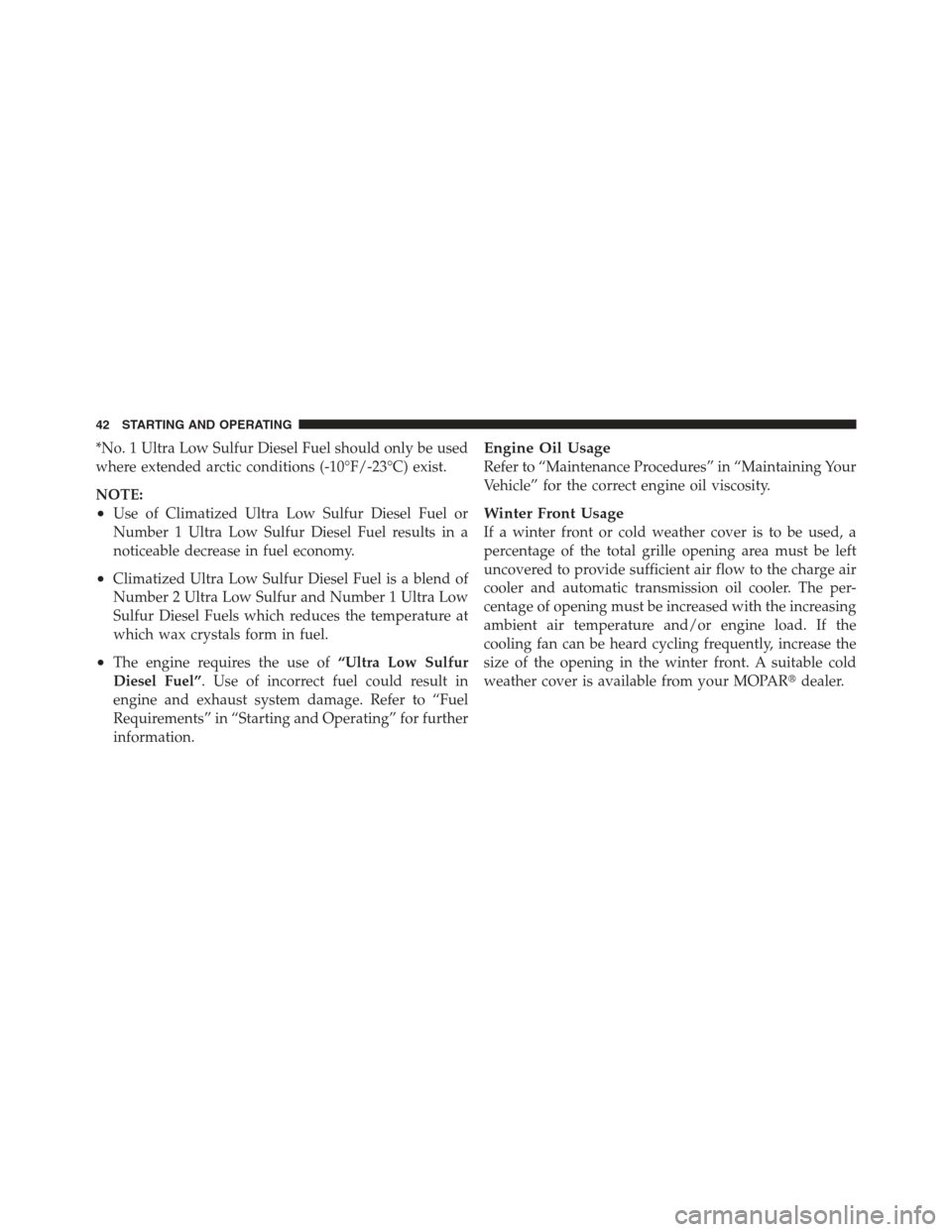

*No. 1 Ultra Low Sulfur Diesel Fuel should only be used
where extended arctic conditions (-10°F/-23°C) exist.
NOTE:
•Use of Climatized Ultra Low Sulfur Diesel Fuel or
Number 1 Ultra Low Sulfur Diesel Fuel results in a
noticeable decrease in fuel economy.
•Climatized Ultra Low Sulfur Diesel Fuel is a blend of
Number 2 Ultra Low Sulfur and Number 1 Ultra Low
Sulfur Diesel Fuels which reduces the temperature at
which wax crystals form in fuel.
•The engine requires the use of“Ultra Low Sulfur
Diesel Fuel”. Use of incorrect fuel could result in
engine and exhaust system damage. Refer to “Fuel
Requirements” in “Starting and Operating” for further
information.
Engine Oil Usage
Refer to “Maintenance Procedures” in “Maintaining Your
Vehicle” for the correct engine oil viscosity.
Winter Front Usage
If a winter front or cold weather cover is to be used, a
percentage of the total grille opening area must be left
uncovered to provide sufficient air flow to the charge air
cooler and automatic transmission oil cooler. The per-
centage of opening must be increased with the increasing
ambient air temperature and/or engine load. If the
cooling fan can be heard cycling frequently, increase the
size of the opening in the winter front. A suitable cold
weather cover is available from your MOPAR dealer.
42 STARTING AND OPERATING
Page 45 of 173
Battery Blanket Usage
A battery loses 60% of its cranking power as the battery
temperature decreases to 0°F (-18°C). For the same de-
crease in temperature, the engine requires twice as much
power to crank at the same RPM. The use of 120 VAC
powered battery blankets will greatly increase starting
capability at low temperatures. Suitable battery blankets
are available from your authorized MOPARdealer.
Engine Warm-Up
Avoid full throttle operation when the engine is cold.
When starting a cold engine, bring the engine up to
operating speed slowly to allow the oil pressure to
stabilize as the engine warms up.
NOTE:High-speed, no-load running of a cold engine
can result in excessive white smoke and poor engine
performance. No-load engine speeds should be kept
under 1,200 RPM during the warm-up period, especially
in cold ambient temperature conditions. Your vehicle is equipped with a turbo speed limiter, this
feature limits the engine speed to 1,200 RPM when
engine coolant temperatures are below 70°F (21°C). This
feature is designed to protect the turbocharger from
damage and will only operate in PARK or NEUTRAL.
If temperatures are below 32°F (0°C), operate the engine
at moderate speeds for five minutes before full loads are
applied.
NOTE:•If ambient temperatures are low and the coolant
temperature is below 180°F (82°C), the engine idle
speed will slowly increase to 1,000 RPM after two
minutes of idle, if the following conditions are met:
•foot is off brake pedal and throttle pedal
•automatic transmission is in PARK
•vehicle speed is zero
•Applying the throttle will cancel fast idle
4
STARTING AND OPERATING 43
Page 46 of 173

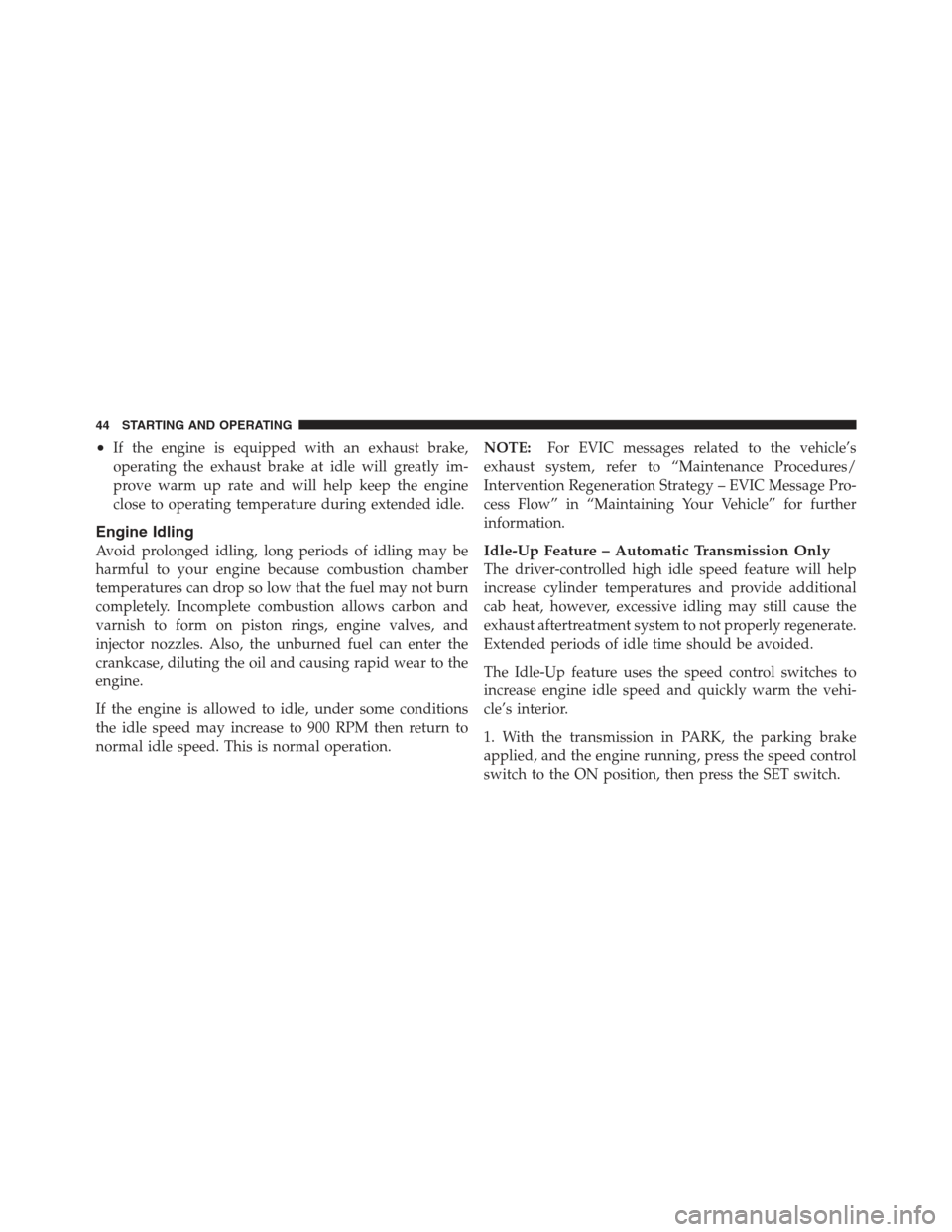

•If the engine is equipped with an exhaust brake,
operating the exhaust brake at idle will greatly im-
prove warm up rate and will help keep the engine
close to operating temperature during extended idle.
Engine Idling
Avoid prolonged idling, long periods of idling may be
harmful to your engine because combustion chamber
temperatures can drop so low that the fuel may not burn
completely. Incomplete combustion allows carbon and
varnish to form on piston rings, engine valves, and
injector nozzles. Also, the unburned fuel can enter the
crankcase, diluting the oil and causing rapid wear to the
engine.
If the engine is allowed to idle, under some conditions
the idle speed may increase to 900 RPM then return to
normal idle speed. This is normal operation.NOTE:
For EVIC messages related to the vehicle’s
exhaust system, refer to “Maintenance Procedures/
Intervention Regeneration Strategy – EVIC Message Pro-
cess Flow” in “Maintaining Your Vehicle” for further
information.Idle-Up Feature – Automatic Transmission Only
The driver-controlled high idle speed feature will help
increase cylinder temperatures and provide additional
cab heat, however, excessive idling may still cause the
exhaust aftertreatment system to not properly regenerate.
Extended periods of idle time should be avoided.
The Idle-Up feature uses the speed control switches to
increase engine idle speed and quickly warm the vehi-
cle’s interior.
1. With the transmission in PARK, the parking brake
applied, and the engine running, press the speed control
switch to the ON position, then press the SET switch.
44 STARTING AND OPERATING
Page 47 of 173
2. The engine RPM will go up to 1100 RPM. To increase
the RPM, press and hold the ACCEL/RESUME switch
and the idle speed will increase to approximately 1500
RPM. To decrease the RPM, press and hold the DECEL
switch and the idle speed will decrease to approximately
1100 RPM.
3. To cancel the Idle–Up feature, either press the CAN-
CEL switch, press the ON/OFF switch, or press the brake
pedal.
Stopping The Engine
Idle the engine a few minutes before routine shutdown.
After full load operation, idle the engine three to five
minutes before shutting it down. This idle period will
allow the lubricating oil and coolant to carry excess heat
away from the combustion chamber, bearings, internal
components, and turbocharger. This is especially impor-
tant for turbocharged, charge air-cooled engines.NOTE:
•During engine shut down on vehicles equipped with
manual transmissions, it is normal for the diesel
engine to resonate heavily for a moment during engine
shut off. When the engine is connected to a manual
transmission, this resonance causes load gear rattle
from the transmission. This is commonly referred to as
“shut down rattle.” The manufacturer recommends
performing engine shut down with the clutch pedal
pushed to the floor (clutch disengaged). When engine
shut down is performed in this manner the rattle is
reduced (not eliminated).
4
STARTING AND OPERATING 45
Page 48 of 173

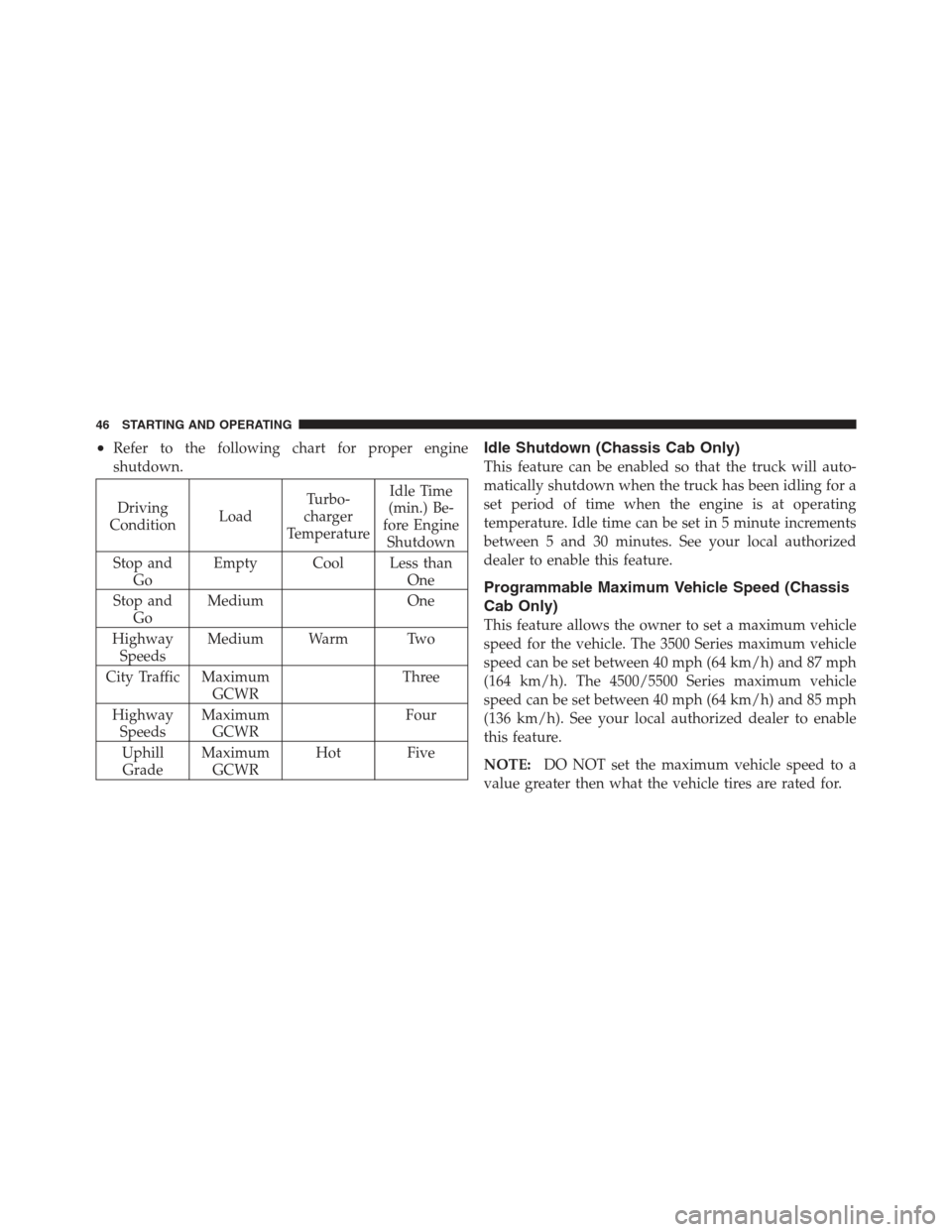

•Refer to the following chart for proper engine
shutdown.
Driving
Condition LoadTurbo-
charger
Temperature Idle Time
(min.) Be-
fore Engine Shutdown
Stop and Go Empty Cool Less than
One
Stop and Go Medium One
Highway Speeds Medium Warm Two
City Traffic Maximum GCWR Three
Highway Speeds Maximum
GCWR Four
Uphill Grade Maximum
GCWR Hot Five
Idle Shutdown (Chassis Cab Only)
This feature can be enabled so that the truck will auto-
matically shutdown when the truck has been idling for a
set period of time when the engine is at operating
temperature. Idle time can be set in 5 minute increments
between 5 and 30 minutes. See your local authorized
dealer to enable this feature.
Programmable Maximum Vehicle Speed (Chassis
Cab Only)
This feature allows the owner to set a maximum vehicle
speed for the vehicle. The 3500 Series maximum vehicle
speed can be set between 40 mph (64 km/h) and 87 mph
(164 km/h). The 4500/5500 Series maximum vehicle
speed can be set between 40 mph (64 km/h) and 85 mph
(136 km/h). See your local authorized dealer to enable
this feature.
NOTE:
DO NOT set the maximum vehicle speed to a
value greater then what the vehicle tires are rated for.
46 STARTING AND OPERATING
Page 49 of 173
Snow Plow Mode
Snow Plow Mode can be activated when the vehicle has
a snow plow installed. This mode fully engages the fan
clutch to increase the airflow when the plow is attached
to the vehicle.
NOTE:There may be an increase in fan noise and a
decrease in fuel economy may result when using this
feature. The fan clutch operation can be initiated by
performing the following button sequence.
1. Turn the ignition key to the on position or start the
vehicle.
2. Pull in the Cruise Control “Cancel” button/lever and
hold. While holding the Cruise Control “Cancel”, push
the “Exhaust Brake” button twice within five seconds.
Repeat this sequence four times. The chime will sound
twice as an audible indicator that the function is engaged. 3. To disable the function, repeat Step 2. The chime will
sound four times as an audible indicator that the function
is disengaged.
Operating Precautions
Avoid Overheating The Engine
The temperature of the engine coolant (antifreeze) (a
mixture of 50% ethylene-glycol and 50% water) must not
exceed the normal range of the temperature gauge 240°F
(116°C) with a 16 psi (110 kPa) radiator cap.
Usually the engine coolant (antifreeze) temperature indi-
cated during operation will be to the left of center in the
normal range of the gauge.
Avoid Low Coolant Temperature Operation
Continual operation at low engine coolant (antifreeze)
temperature below the normal range on the gauge 140°F
(60°C) can be harmful to the engine. Low engine coolant
4
STARTING AND OPERATING 47
Page 50 of 173

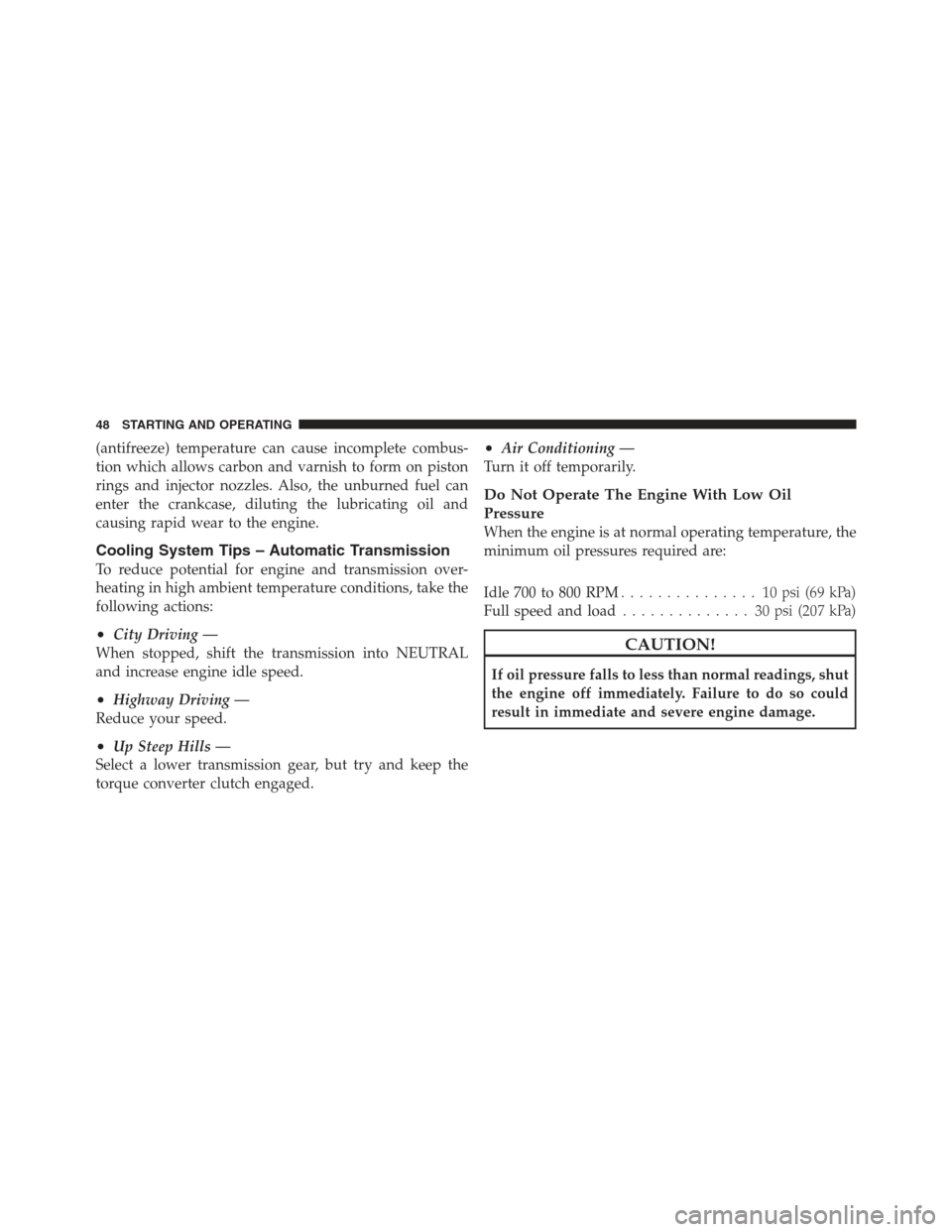

(antifreeze) temperature can cause incomplete combus-
tion which allows carbon and varnish to form on piston
rings and injector nozzles. Also, the unburned fuel can
enter the crankcase, diluting the lubricating oil and
causing rapid wear to the engine.
Cooling System Tips – Automatic Transmission
To reduce potential for engine and transmission over-
heating in high ambient temperature conditions, take the
following actions:
•City Driving —
When stopped, shift the transmission into NEUTRAL
and increase engine idle speed.
•Highway Driving —
Reduce your speed.
•Up Steep Hills —
Select a lower transmission gear, but try and keep the
torque converter clutch engaged.
•Air Conditioning —
Turn it off temporarily.
Do Not Operate The Engine With Low Oil
Pressure
When the engine is at normal operating temperature, the
minimum oil pressures required are:
Idle 700 to 800 RPM ............... 10psi(69kPa)
Full speed and load .............. 30psi (207 kPa)
CAUTION!
If oil pressure falls to less than normal readings, shut
the engine off immediately. Failure to do so could
result in immediate and severe engine damage.
48 STARTING AND OPERATING
