Ram 5500 Chassis Cab 2012 Diesel Supplement

Diesel Exhaust Fluid (DEF) Fault Warning
Messages – Chassis Cab Only
There are three different messages which are displayed if
the vehicle detects that the DEF system has been filled
with a fluid other than DEF, has experienced component
failures, or when tampering has been detected. The
vehicle will not start if the DEF system is not serviced
within less than 250 miles (402 km) of the fault being
detected.
When the DEF system needs to be serviced the following
warnings will display:
•Service DEF System – See Dealer— This message
will display when the fault is initially detected, each
time the vehicle is started, and periodically during
driving. The message will be accompanied by a single
chime. We recommend you drive to your nearest
authorized dealer and have your vehicle serviced as
soon as possible.
•Service DEF System Engine Will Not Start In
200 Miles – See Dealer — This message will display if
the DEF system has not been serviced after the “Ser-
vice DEF System – See Dealer” message is displayed.
This message will continuously display until the mile-
age counter reaches zero, and will be accompanied by
a periodic chime. The message will continue to count-
down until it reaches zero unless the vehicle is ser-
viced. We recommend you drive to your nearest
authorized dealer and have your vehicle serviced
immediately.
NOTE: Under some circumstances this mileage counter
may start with a value of less than 200 miles (322 km). For
example, if recurring faults are detected in a time interval
of less than 40 hours, the counter may restart at the value
where it stopped when a previous fault was temporarily
remedied, or at a minimum of 50 miles (80 km).
3
UNDERSTANDING YOUR INSTRUMENT PANEL 29

•Service DEF System Engine Will Not Start – See
Dealer— This message will continuously display
when the mileage counter reaches zero, and will be
accompanied by a periodic chime. The engine will not
restart after it has been turned off, your vehicle will
require towing, see your authorized dealer for service.
NOTE: When this message is displayed, the engine will
no longer start after it has been turned off.
Vehicle Information (Customer Information
Features)
Press and release the UP or DOWN button until “Vehicle
Info” displays in the EVIC and press the SELECT button.
Press the UP and DOWN button to scroll through the
available information displays, then press SELECT to
display anyone of the following choices.
•DEF Fluid Level – Chassis Cab Only
Displays the Diesel Exhaust Fluid (DEF) fluid level.
•Coolant Temp
Displays the actual coolant temperature.
•Oil Pressure
Displays the actual oil pressure.
•Trans Temperature
Displays the actual transmission sump temperature.
•Engine Hours
Displays the hours of engine operation.
30 UNDERSTANDING YOUR INSTRUMENT PANEL

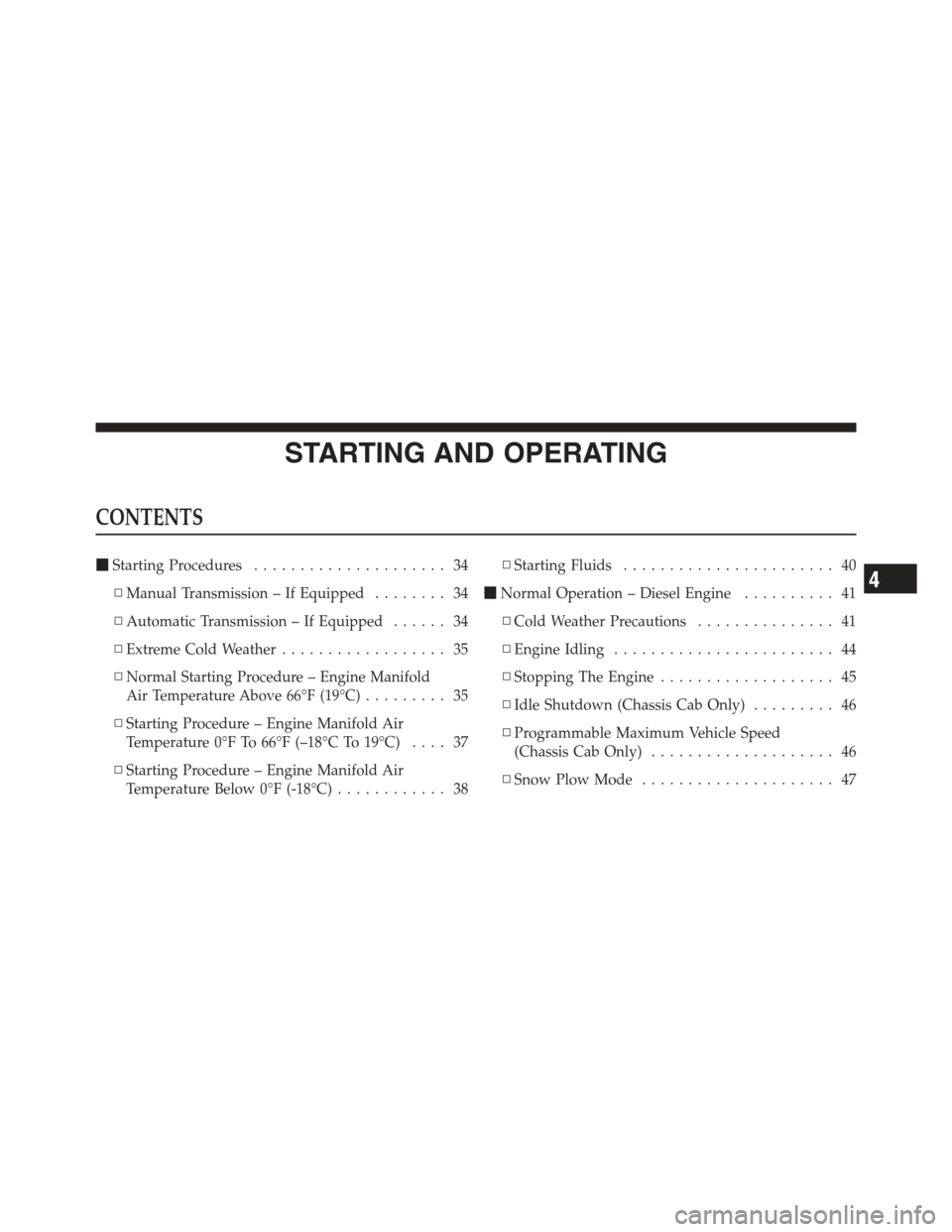

STARTING AND OPERATING
CONTENTS
Starting Procedures ..................... 34
▫ Manual Transmission – If Equipped ........ 34
▫ Automatic Transmission – If Equipped ...... 34
▫ Extreme Cold Weather .................. 35
▫
Normal Starting Procedure – Engine Manifold
Air Temperature Above 66°F (19°C)
......... 35
▫ Starting Procedure – Engine Manifold Air
Temperature 0°F To 66°F (–18°C To 19°C) .... 37
▫ Starting Procedure – Engine Manifold Air
Temperature Below 0°F (-18°C) ............ 38▫
Starting Fluids ....................... 40
 Normal Operation – Diesel Engine .......... 41
▫ Cold Weather Precautions ............... 41
▫ Engine Idling ........................ 44
▫ Stopping The Engine ................... 45
▫ Idle Shutdown (Chassis Cab Only) ......... 46
▫ Programmable Maximum Vehicle Speed
(Chassis Cab Only) .................... 46
▫ Snow Plow Mode ..................... 47
4

▫Operating Precautions .................. 47
▫ Cooling System Tips – Automatic
Transmission ........................ 48
 Engine Block Heater — If Equipped ......... 49
▫ Block Heater Usage .................... 50
 Diesel Exhaust Brake (Engine Braking)
— If Equipped ......................... 50
 Automatic Transmission — If Equipped ....... 52
▫ Key Ignition Park Interlock .............. 53
▫ Brake/Transmission Shift Interlock System . . . 53
▫ Six-Speed Automatic Transmission
– If Equipped (Ram Truck Only) ........... 54
▫ Six-Speed Automatic Transmission
– If Equipped (Chassis Cab Only) .......... 64
Manual Transmission — If Equipped ......... 75
▫ Shifting ............................ 75
▫ Downshifting ........................ 76
▫ Reverse Shifting ...................... 78
 Power Take Off Operation — If Equipped
(Chassis Cab Only) ...................... 78
▫ Stationary Mode ...................... 79
▫ Mobile Mode ........................ 80
▫ Power Take Off – Aftermarket Installation .... 81
 Engine Runaway ....................... 81
 Fuel Requirements ...................... 82
▫ Fuel Specifications .................... 83
 Adding Fuel .......................... 83
32 STARTING AND OPERATING

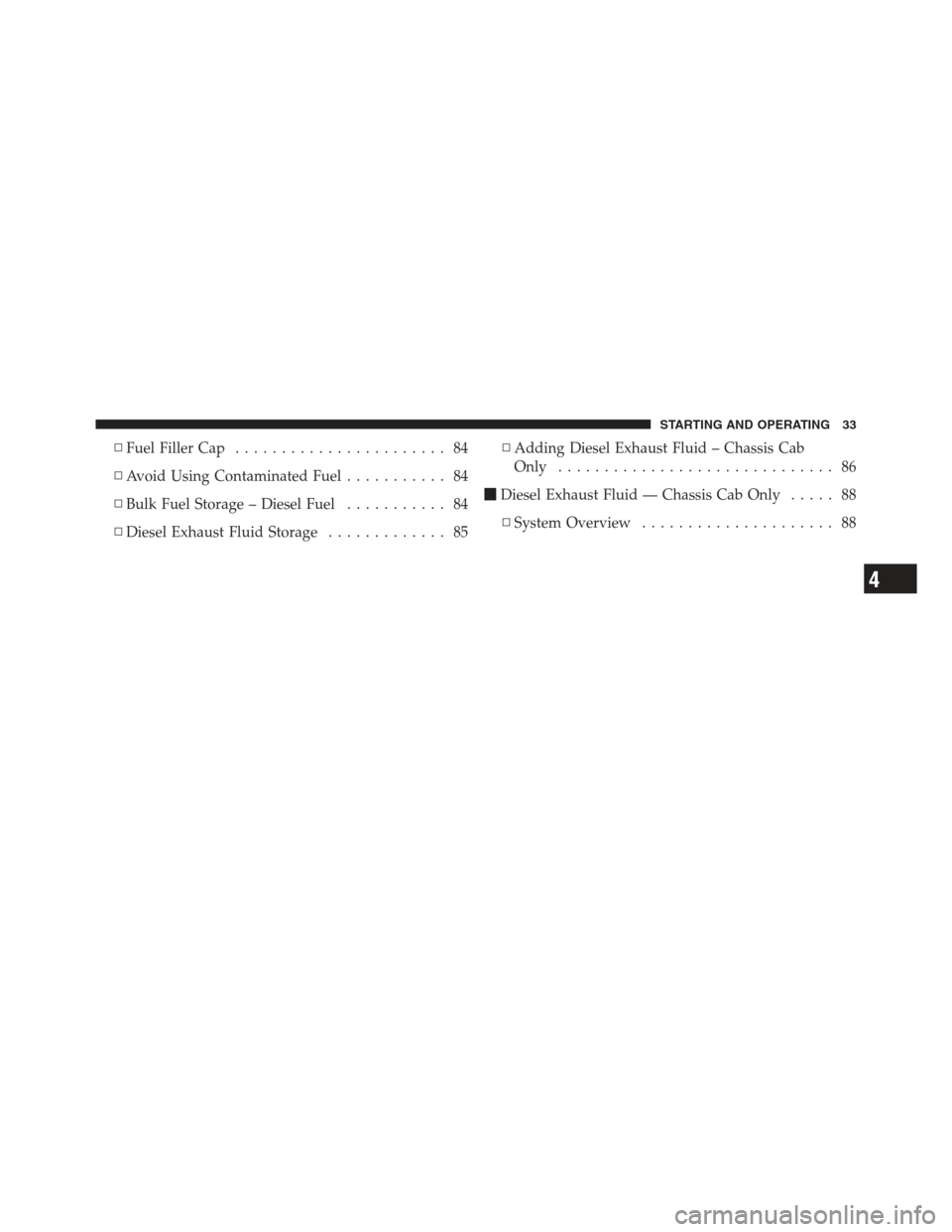

▫Fuel Filler Cap ....................... 84
▫ Avoid Using Contaminated Fuel ........... 84
▫ Bulk Fuel Storage – Diesel Fuel ........... 84
▫ Diesel Exhaust Fluid Storage ............. 85▫
Adding Diesel Exhaust Fluid – Chassis Cab
Only .............................. 86
 Diesel Exhaust Fluid — Chassis Cab Only ..... 88
▫ System Overview ..................... 88
4
STARTING AND OPERATING 33

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
The starter should not be operated for more than 15-
second intervals. Waiting a few minutes between such
intervals will protect the starter from overheating.
WARNING!
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build up may
cause serious injury or death.
•Leaving children in a vehicle unattended is dan-
gerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the shift lever. Do not leave the key
in the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
Manual Transmission – If Equipped
Apply the parking brake, place the shift lever in NEU-
TRAL and press the clutch pedal to the floor before
starting the vehicle. This vehicle is equipped with a
clutch interlocking ignition system. It will not start unless
the clutch is fully pressed.
Automatic Transmission – If Equipped
Start the engine with the shift lever in NEUTRAL or
PARK position. Apply the brake before shifting to any
driving range.
Tip Start Feature
Do notpress the accelerator. Turn the ignition switch
briefly to the START position and release it. The starter
motor will continue to run but will automatically disen-
gage when the engine is running.
34 STARTING AND OPERATING

Extreme Cold Weather
The Cumminsdiesel engine is equipped with several
features designed to assist cold weather starting and
operation:
•The engine block heater is a resistance heater installed
in the water jacket of the engine just above and behind
the oil filter. It requires a 110–115 Volt AC electrical
outlet with a grounded, three-wire extension cord.
NOTE: The engine block heater cord is a factory in-
stalled option. If your vehicle is not equipped, heater
cords are available from your authorized MOPAR
dealer.
•A 12 Volt heater built into the fuel filter housing aids in
preventing fuel gelling. It is controlled by a built-in
thermostat.
•A heated intake air system both improves engine
starting and reduces the amount of white smoke
generated by a warming engine.
Normal Starting Procedure – Engine Manifold Air
Temperature Above 66°F (19°C)
Observe the instrument panel cluster lights when starting
the engine.
1. Always apply the parking brake.
2. Shift into PARK for an automatic transmission. For
vehicles equipped with a manual transmission, fully
press and hold the clutch pedal and shift into NEUTRAL.
3. Turn the ignition switch to the ON position and watch
the instrument panel cluster lights.
4
STARTING AND OPERATING 35

CAUTION!
If the “Water in Fuel Indicator Light” remains on, DO
NOT START the engine before you drain the water
from the fuel filter to avoid engine damage. Refer to
“Maintenance Procedures/Draining Fuel/Water Sepa-
rator Filter” in “Maintaining Your Vehicle” for fur-
ther information.
4. Turn the ignition switch to the START position and
crank the engine. Do not press the accelerator during
starting.
CAUTION!
Do not crank engine for more than 15 seconds at a
time or starter motor damage may result. Turn the
ignition switch to the OFF position and wait at least
two minutes for the starter to cool before repeating
start procedure.
5. When the engine starts, release the key fob.
6. Check to see that there is oil pressure.
7. Release the parking brake.
36 STARTING AND OPERATING

Starting Procedure – Engine Manifold Air
Temperature 0°F To 66°F (–18°C to 19°C)
NOTE:The temperature displayed in the Electronic
Vehicle Information Center (EVIC) does not necessarily
reflect the engine manifold air temperature. Refer to
“Electronic Vehicle Information Center (EVIC)” in “Un-
derstanding Your Instrument Panel” for further informa-
tion. When engine temperatures fall below 66°F (19°C)
the “Wait To Start Light” will remain on indicating the
intake manifold heater system is active.
Follow the steps in the “Normal Starting” procedure
except:
1. The “Wait To Start Light” will remain on for a period
of time (length of time depends on engine temperature).
CAUTION!
If the “Water in Fuel Indicator Light” remains on, DO
NOT START engine before you drain the water from
the fuel filter to avoid engine damage. Refer to
“Maintenance Procedures/Draining Fuel/Water Sepa-
rator Filter” in “Maintaining Your Vehicle” for fur-
ther information.
2. After the “Wait To Start Light” goes off, turn the
ignition switch to the START position. Do not press the
accelerator during starting.
4
STARTING AND OPERATING 37

CAUTION!
Do not crank engine for more than 15 seconds at a
time or starter motor damage may result. Turn the
ignition switch to the OFF position and wait at least
two minutes for the starter to cool before repeating
start procedure.
3. After engine start-up, check to see that there is oil
pressure.
4. Allow the engine to idle about three minutes until the
manifold heaters have completed the post-heat cycle.
5. Release the parking brake and drive.
NOTE:
•Engine idle speed will automatically increase to 1,000
RPM and engage the Variable Geometry Turbocharger
at low coolant temperatures to improve engine warm-
up.
•If the engine stalls, or if the ignition switch is left ON
for more than two minutes after the “Wait To Start
Light” goes out, reset the grid heaters by turning the
ignition switch to the OFF position for at least five
seconds and then back ON. Repeat steps 1 through 5 of
“Starting Procedure – Engine Manifold Air Tempera-
ture Below 66°F (19°C).”
Starting Procedure – Engine Manifold Air
Temperature Below 0°F (-18°C)
In extremely cold weather below 0°F (-18°C) it may be
beneficial to cycle the manifold heaters twice before
attempting to start the engine. This can be accomplished
by turning the ignition OFF for at least five seconds and
then back ON after the “Wait To Start Light” has turned
off, but before the engine is started. However, excessive
cycling of the manifold heaters will result in damage to
the heater elements or reduced battery voltage.
38 STARTING AND OPERATING
