426SERVICING AND MAINTENANCE
All passenger vehicle tires must conform
to Federal safety requirements in
addition to these grades.
TREADWEAR
The Treadwear grade is a comparative
rating, based on the wear rate of the tire
when tested under controlled conditions
on a specified government test course.
For example, a tire graded 150 would
wear one and one-half times as well
on the government course as a tire
graded 100. The relative performance
of tires depends upon the actual
conditions of their use, however, and
may depart significantly from the norm
due to variations in driving habits,
service practices, and differences in
road characteristics and climate.
TRACTION GRADES
The Traction grades, from highest to
lowest, are AA, A, B, and C. These grades
represent the tire's ability to stop on
wet pavement, as measured under
controlled conditions on specified
government test surfaces of asphalt
and concrete. A tire marked C may
have poor traction performance.
TEMPERATURE GRADES
The Temperature grades are A (the
highest), B, and C, representing the tire's
resistance to the generation of heat and
its ability to dissipate heat, when tested
under controlled conditions on a
specified indoor laboratory test wheel.
Sustained high temperature can cause
the material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden tire
failure. The grade C corresponds to a level
of performance, which all passenger
vehicle tires must meet under the Federal
Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel,
than the minimum required by law.

WARNING!
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.WARNING!
The temperature grade for this tire is
established for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, either
separately or in combination, can cause heat
buildup and possible tire failure.

21_DPF_OM_EN_USC_t.book Page 426

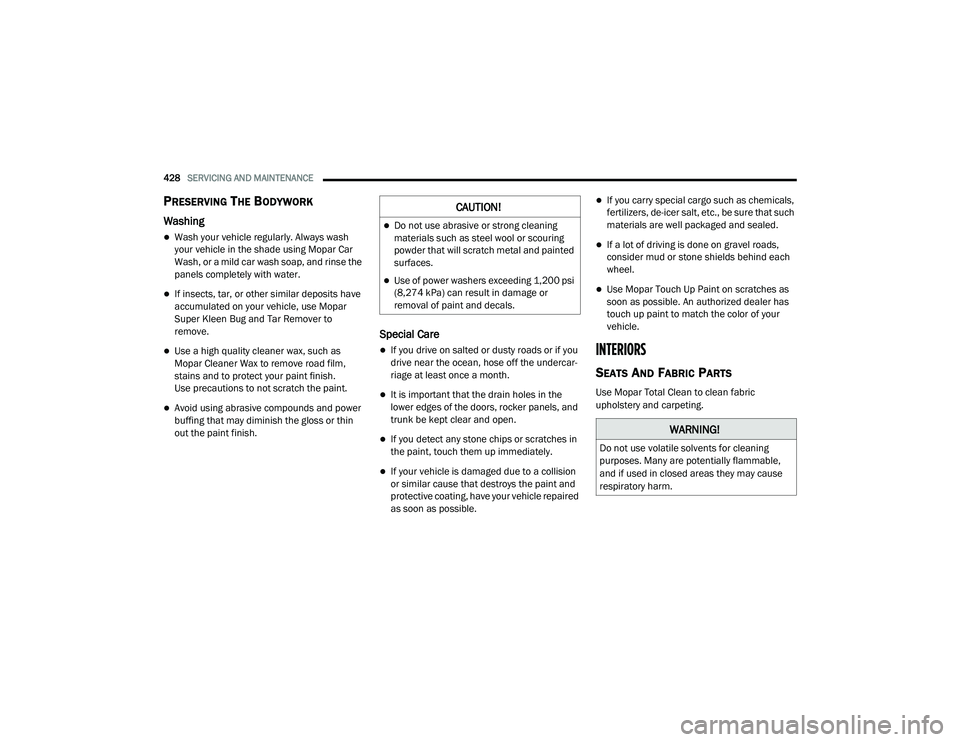

428SERVICING AND MAINTENANCE
PRESERVING THE BODYWORK
Washing
Wash your vehicle regularly. Always wash
your vehicle in the shade using Mopar Car
Wash, or a mild car wash soap, and rinse the
panels completely with water.
If insects, tar, or other similar deposits have
accumulated on your vehicle, use Mopar
Super Kleen Bug and Tar Remover to
remove.
Use a high quality cleaner wax, such as
Mopar Cleaner Wax to remove road film,
stains and to protect your paint finish.
Use precautions to not scratch the paint.
Avoid using abrasive compounds and power
buffing that may diminish the gloss or thin
out the paint finish.
Special Care
If you drive on salted or dusty roads or if you
drive near the ocean, hose off the undercar -
riage at least once a month.
It is important that the drain holes in the
lower edges of the doors, rocker panels, and
trunk be kept clear and open.
If you detect any stone chips or scratches in
the paint, touch them up immediately.
If your vehicle is damaged due to a collision
or similar cause that destroys the paint and
protective coating, have your vehicle repaired
as soon as possible.
If you carry special cargo such as chemicals,
fertilizers, de-icer salt, etc., be sure that such
materials are well packaged and sealed.
If a lot of driving is done on gravel roads,
consider mud or stone shields behind each
wheel.
Use Mopar Touch Up Paint on scratches as
soon as possible. An authorized dealer has
touch up paint to match the color of your
vehicle.
INTERIORS
SEATS AND FABRIC PARTS
Use Mopar Total Clean to clean fabric
upholstery and carpeting.
CAUTION!
Do not use abrasive or strong cleaning
materials such as steel wool or scouring
powder that will scratch metal and painted
surfaces.
Use of power washers exceeding 1,200 psi
(8,274 kPa) can result in damage or
removal of paint and decals.
WARNING!
Do not use volatile solvents for cleaning
purposes. Many are potentially flammable,
and if used in closed areas they may cause
respiratory harm.

21_DPF_OM_EN_USC_t.book Page 428

SERVICING AND MAINTENANCE429
Stain Repel Fabric Cleaning Procedure — If
Equipped
Stain Repel seats may be cleaned in the
following manner:
Remove as much of the stain as possible by
blotting with a clean, dry towel.
Blot any remaining stain with a clean, damp
towel.
For tough stains, apply Mopar Total Clean, or
a mild soap solution to a clean, damp cloth
and remove stain. Use a fresh, damp towel to
remove soap residue.
For grease stains, apply Mopar Multi-Purpose
Cleaner to a clean, damp cloth and remove
stain. Use a fresh, damp towel to remove
soap residue.
Do not use any harsh solvents or any other
form of protectants on Stain Repel products.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with
chemical solvents or abrasive cleaners.
This will weaken the fabric. If the belts need cleaning, use a mild soap
solution or lukewarm water. Do not remove the
belts from the vehicle to wash them. Dry with a
soft cloth.
Sun damage can also weaken the fabric.
Replace the belts if they appear frayed or worn
or if the buckles do not work properly.
NOTE:
If the belts retract slowly, inspect the upper
turning loop for soiling. If soiling is present,
clean with a wet soft cloth until all residue is
removed.
PLASTIC AND COATED PARTS
Use Mopar Total Clean to clean vinyl upholstery.
Cleaning Plastic Instrument Cluster
Lenses
The lenses in front of the instruments in this
vehicle are molded in clear plastic. When
cleaning the lenses, care must be taken to
avoid scratching the plastic.
Clean with a wet soft cloth. A mild soap solution
may be used, but do not use high alcohol
content or abrasive cleaners. If soap is used,
wipe clean with a clean damp cloth. Dry with a
soft cloth.
WARNING!
A frayed or torn belt could rip apart in a
collision and leave you with no protection.
Inspect the belt system periodically, checking
for cuts, frays, or loose parts. Damaged parts
must be replaced immediately. Do not
disassemble or modify the system. Seat belt
assemblies must be replaced after a collision
if they have been damaged (i.e., bent
retractor, torn webbing, etc.).
CAUTION!
Direct contact of air fresheners, insect
repellents, suntan lotions, or hand sani
-
tizers to the plastic, painted, or decorated
surfaces of the interior may cause perma -
nent damage. Wipe away immediately.
Damage caused by these type of products
may not be covered by your New Vehicle
Limited Warranty.
8

21_DPF_OM_EN_USC_t.book Page 429

431
TECHNICAL SPECIFICATIONS
VEHICLE IDENTIFICATION NUMBER (VIN)
The VIN is found on the left front corner of
the instrument panel, visible through the
windshield.
Vehicle Identification Number

NOTE:
It is illegal to remove or alter the VIN.
BRAKE SYSTEM
If power assist is lost for any reason (for
example, repeated brake applications with
the engine off), the brakes will still function.
However, you will experience a substantial
increase in braking effort to stop the vehicle.

If either the front or rear hydraulic system loses
normal braking capability, the remaining system
will still function with some loss of overall braking
effectiveness. This will be evident by increased
pedal travel during application, greater pedal
force required to slow or stop, and activation of
the “Brake Warning Light” and/or the “ABS
Warning Light” during brake use.

HYDRAULIC BRAKE ASSIST — IF
E
QUIPPED
The brake system power assist is provided by a
hydro-boost unit which shares fluid with the
power steering system. You may experience
some clicking or hissing noises from the
hydro-boost system during hard braking
conditions.
NOTE:
Under cold temperatures, pedal effort will be
higher than normal until the power steering fluid
reaches operating temperature.
9

21_DPF_OM_EN_USC_t.book Page 431

TECHNICAL SPECIFICATIONS433

8/10 Lug Nuts/Bolts Torque Patterns

It is recommended that wheel stud nuts be kept
torqued to specifications at all times. Torque
wheel stud nuts to specifications at each
lubrication interval.

All wheel nuts should be tightened occasionally
to eliminate the possibility of wheel studs being
sheared or the bolt holes in the wheels becoming
elongated. This is especially important during the
first few hundred miles/kilometers of operation
to allow the wheel nuts to become properly set.
All wheel nuts should first be firmly seated
against the wheel. The wheel nuts should then be
tightened to recommended torque. Tighten the wheel nuts to final torque in increments.
Progress around the bolt circle, tightening the
wheel nut opposite to the wheel nut just
previously tightened until final torque is
achieved.

FUEL REQUIREMENTS — GASOLINE ENGINE
While operating on gasoline with the required
octane number, hearing a light knocking sound
from the engine is not a cause for concern.
However, if the engine is heard making a heavy
knocking sound, see a dealer immediately. Use
of gasoline with a lower than recommended
octane number can cause engine failure and
may void or not be covered by the New Vehicle
Limited Warranty.

Poor quality gasoline can cause problems such as
hard starting, stalling, and hesitations. If you
experience these symptoms, try another brand of
gasoline before considering service for the vehicle.

6.4L ENGINE
Do not use E-85 flex fuel or ethanol blends
greater than 15% in this engine.

This engine is designed to meet all
emissions regulations and provide
satisfactory fuel economy and
performance when using high quality
unleaded gasoline having a posted octane number
of 87 as specified by the (R+M)/2 method.

REFORMULATED GASOLINE
Many areas of the country require the use of
cleaner burning gasoline referred to as
“reformulated gasoline”. Reformulated
gasoline contains oxygenates and are
specifically blended to reduce vehicle
emissions and improve air quality.
The use of reformulated gasoline is
recommended. Properly blended reformulated
gasoline will provide improved performance
and durability of engine and fuel system
components.
1 — 10 Bolt Pattern
2 — 8 Bolt Pattern
WARNING!

To avoid the risk of forcing the vehicle off the
jack, do not tighten the lug nuts/bolts fully until
the vehicle has been lowered. Failure to follow
this warning may result in personal injury.

9

21_DPF_OM_EN_USC_t.book Page 433

436TECHNICAL SPECIFICATIONS
FUEL REQUIREMENTS – DIESEL ENGINE
Use good quality diesel fuel from a reputable
supplier in your vehicle. Federal law requires
that you must fuel this vehicle with Ultra Low
Sulfur Highway Diesel fuel (15 ppm Sulfur
maximum) and prohibits the use of Low Sulfur
Highway Diesel fuel (500 ppm Sulfur maximum)
to avoid damage to the emissions control
system.
For most year-round service, Number 2 diesel
fuel meeting ASTM (formerly known as the
American Society for Testing and Materials)
specification D-975 Grade S15 will provide
good performance. If the vehicle is exposed
to extreme cold (below 20°F or -7°C), or is
required to operate at colder-than-normal
conditions for prolonged periods, use climatized
Number 2 diesel fuel or dilute the Number 2
diesel fuel with 50% Number 1 diesel fuel. This
will provide better protection from fuel gelling or
wax-plugging of the fuel filters.
Diesel fuel is seldom completely free of water.
To prevent fuel system trouble, drain the
accumulated water from the fuel/water
separator using the fuel/water separator drain
provided on both fuel filters. If you buy good
quality fuel and follow the cold weather advice
above, fuel conditioners should not be required
in your vehicle. If available in your area, a high
cetane “premium” diesel fuel may offer improved
cold-starting and warm-up performance.

FUEL SPECIFICATIONS
The Cummins® Turbo Diesel engine has been
developed to take advantage of the high energy
content and generally lower cost Number 2
Ultra Low Sulfur diesel fuel or Number 2 Ultra
Low Sulfur climatized diesel fuels. Experience
has shown that it also operates on Number 1
Ultra Low Sulfur diesel fuels or other fuels
within specification.
NOTE:
If you accidentally fill the fuel tank with gaso
-
line on your diesel vehicle, Do not start the
vehicle. If you restart your vehicle you risk
damaging the engine and fuel system. Please
call an authorized dealer for service.
A maximum blend of 5% biodiesel meeting
ASTM specification D-975 may be used with
your Cummins diesel engine. (Chassis Cab
models not configured with B20 capability).
WARNING!
Do not use alcohol or gasoline as a fuel
blending agent. They can be unstable under
certain conditions and hazardous or
explosive when mixed with diesel fuel.
CAUTION!
If the “Water in Fuel Indicator Light” remains
on, DO NOT START engine before you drain
the water from the fuel filter(s) to avoid
engine damage Ú page 375.

21_DPF_OM_EN_USC_t.book Page 436

CUSTOMER ASSISTANCE447
We appreciate that you have made a major
investment when you purchased the vehicle.
An authorized dealer has also made a major
investment in facilities, tools, and training to
assure that you are absolutely delighted with
the ownership experience.WARRANTY INFORMATION
See the Warranty Information for the terms and
provisions of FCA US LLC warranties applicable
to this vehicle and market. Refer to
www.mopar.com/om for further information.
Use this QR code to access your
digital experience .
MOPAR PARTS
Mopar original equipment parts & accessories
and factory filled fluids are available from an
authorized dealer. They are recommended for
your vehicle to keep it operating at its best and
maintain its original condition.
REPORTING SAFETY DEFECTS
IN THE 50 UNITED STATES AND
W
ASHINGTON, D.C.
If you believe that your vehicle has a
defect that could cause a crash or cause
injury or death, you should immediately
inform the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying FCA US LLC.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, an authorized
dealer or FCA US LLC.
WARNING!
Engine exhaust (internal combustion engines
only), some of its constituents, and certain
vehicle components contain, or emit,
chemicals known to the State of California
to cause cancer and birth defects, or other
reproductive harm. In addition, certain fluids
contained in vehicles and certain products of
component wear contain, or emit, chemicals
known to the State of California to cause
cancer and birth defects, or other
reproductive harm.
10

21_DPF_OM_EN_USC_t.book Page 447

450
INDEX
 Pair (Link) Uconnect Phone To A Mobile
Phone............................................................ 260 WARRANTY INFORMATION...................... 447
A
Adaptive Cruise Control (ACC)
(Cruise Control)
.................................... 164, 166Adding Engine Coolant (Antifreeze)............... 384Adding Fuel.................................................... 196Additives, Fuel............................................... 434Adjust Down........................................................... 35Forward....................................................... 35Rearward..................................................... 35Up................................................................ 35Adjustable Pedals............................................ 40Advance Phone Connectivity......................... 266Air BagAir Bag Operation...................................... 305Air Bag Warning Light................................ 303Enhanced Accident Response......... 310, 352Event Data Recorder (EDR)....................... 352If Deployment Occurs................................ 309Knee Impact Bolsters................................ 305Maintaining Your Air Bag System.............. 311Maintenance............................................. 311
Redundant Air Bag Warning Light............. 303Transporting Pets..................................... 330Air Bag Light................................ 107, 303, 331Air Cleaner, Engine (Engine Air Cleaner
Filter)................................................... 369, 391Air Conditioner Maintenance........................ 371Air Conditioner Refrigerant.................. 371, 372Air Conditioner System................................. 371Air Conditioning................................................ 62Air Conditioning Filter....................................... 65Air Conditioning System................................... 64Air Conditioning, Operating Tips....................... 65Air Filter........................................................ 369Air PressureTires......................................................... 415AlarmSecurity Alarm....................................23, 108Alterations/ModificationsVehicle......................................................... 10Antifreeze (Engine Coolant).......................... 384Capacities................................................. 439Disposal................................................... 385Anti-Lock Brake System (ABS)...................... 273Anti-Lock Warning Light................................ 113Assist, Hill Start............................................. 280Audio Settings............................................... 253Audio Systems (Radio).................................. 220
Auto Down Power Windows..............................77Automatic Door Locks......................................28Automatic Headlights.......................................52Automatic Temperature Control (ATC)..............64Automatic Transmission....................... 141, 389Adding Fluid.............................................. 389Fluid And Filter Change............................. 389Fluid Change............................................. 389Fluid Level Check............................. 387, 388Fluid Type........................................ 390, 444Shifting..................................................... 146Special Additives...................................... 387Automatic Transmission Limp Home Mode... 145AutoPark....................................................... 120AUX Camera......................................... 188, 194Auxiliary Driving Systems.............................. 281Axle Fluid.....................................390, 391, 444Axle Lubrication................................... 390, 391
B
Back-Up......................................................... 186Back-Up Camera........................................... 186Battery................................................. 108, 366Blanket..................................................... 130Charging System Light.............................. 108Keyless Key Fob Replacement....................16Battery Saver Feature......................................54

21_DPF_OM_EN_USC_t.book Page 450

451
Belts, Seat
..................................................... 330Bluetooth Connecting To A Particular Mobile Phone Or Audio Device After Pairing
................262Body Builders Guide........................................ 10Body Mechanism Lubrication........................ 380B-Pillar Location............................................. 411Brake Assist System...................................... 274Brake Control System.................................... 274Brake Fluid.......................................... 387, 444Brake System...................................... 387, 431Fluid Check............................................... 387Master Cylinder......................................... 387Parking...................................................... 137Warning Light............................................ 107Brake/Transmission Interlock....................... 141Bulb Replacement......................................... 401Bulbs, Light.......................................... 332, 401
C
Cab Top Clearance Lights.............................. 405Camera.......................................................... 186Camera, AUX........................................ 188, 194Camera, Rear...................................... 186, 189Capacities, Antifreeze (Engine Coolant)......... 439Capacities, Fluid............................................ 439Caps, FillerOil (Engine)................................................ 364Power Steering.......................................... 163Radiator (Coolant Pressure)...................... 385
Car Washes................................................... 428Carbon Monoxide Warning............................ 333Cargo Light....................................................... 54CD................................................................. 255Cellular Phone.............................................. 269Center High Mounted Stop Light................... 405Center Seat Storage Compartment.................. 67Changing A Flat Tire...................................... 339Charge Air Cooler.......................................... 386Chart, Tire Sizing........................................... 407Check Engine Light (Malfunction
Indicator Light).............................................. 117Checking Your Vehicle For Safety................. 330Checks, Safety.............................................. 330Child Restraint.............................................. 312Child RestraintsBooster Seats........................................... 315Child Seat Installation..................... 323, 325How To Stow An unused ALR Seat Belt.... 322Infant And Child Restraints....................... 313Locating The LATCH Anchorages.............. 320Lower Anchors And Tethers For Children.. 317Older Children And Child Restraints......... 314Seating Positions...................................... 316Clean Air Gasoline......................................... 433CleaningWheels..................................................... 421Climate Control................................................ 58Automatic.................................................... 59Manual........................................................ 62
Cold Weather Operation................................ 122Compact Spare Tire...................................... 419Contract, Service........................................... 446Controls........................................................ 247Cooling Pressure Cap (Radiator Cap)............ 385Cooling System............................................. 383Adding Coolant (Antifreeze)...................... 384Coolant Level................................... 384, 386Cooling Capacity....................................... 439Disposal Of Used Coolant......................... 385Drain, Flush, And Refill............................. 384Inspection................................................. 386Points To Remember................................ 386Pressure Cap............................................ 385Radiator Cap............................................. 385Selection Of Coolant (Antifreeze)..... 384, 440Corrosion Protection..................................... 427Cruise Control (Speed Control)............. 164, 166Cruise Light................................................... 115Customer Assistance.................................... 445Cybersecurity................................................ 220
D
Daytime Running Lights...................................51Dealer Service............................................... 367Defroster, Rear Window...................................62Defroster, Windshield............................ 62, 331Delay (Intermittent) Wipers..............................57Deleting A Phone........................................... 262Diagnostic System, Onboard......................... 116
11

21_DPF_OM_EN_USC_t.book Page 451

452 Diesel Exhaust Brake
.................................... 138Diesel Fuel..................................................... 436Diesel Fuel Requirements............................. 436Diesel Fuel System, Re-Priming..................... 378Differential, Limited Slip................................ 162Dipsticks Power Steering.......................................... 163Disabled Vehicle Towing................................ 350Disc Drive...................................................... 255Disconnecting................................................ 262DisposalAntifreeze (Engine Coolant)....................... 385Disturb........................................................... 265Door Ajar........................................................ 110Door Ajar Light............................................... 110Door LocksAutomatic.................................................... 28Doors............................................................... 24Draining Fuel/Water Separator Filter............ 375Driver Memory Presets.................................. 253Driver’s Seat Back Tilt..................................... 33DrivingThrough Flowing, Rising, Or Shallow Standing Water
.................................................... 218Dual Rear Wheels....................... 342, 425, 432
E
Electric Brake Control System....................... 274Anti-Lock Brake System............................. 273Electronic Roll Mitigation................. 275, 281
Electrical Power Outlets................................... 73Electronic Range Select (ERS)............. 145, 150Electronic Stability Control (ESC).................. 275Electronic Throttle Control Warning Light...... 109Electronically Shifted Transfer Case.... 153, 156Emergency Braking....................................... 137Emergency, In Case OfFreeing Vehicle When Stuck..................... 349Hazard Warning Flasher........................... 334Jacking..................................................... 339Jump Starting........................................... 344Emission Control System Maintenance........ 117Engine.................................................. 364, 365Air Cleaner................................................ 369Block Heater............................................. 125Break-In Recommendations............ 136, 137Compartment........................................... 365Compartment Identification...................... 364Coolant (Antifreeze).................................. 440Exhaust Gas Caution................................ 333Fails To Start............................................ 121Flooded, Starting...................................... 121Fuel Requirements................................... 433Identification............................................ 365Idling........................................................ 131Jump Starting........................................... 344Oil.................................................... 368, 440Oil Filler Cap............................................. 364Oil Filter.................................................... 369
Oil Reset......................................................91Oil Selection.............................................. 368Oil Synthetic.............................................. 368Overheating.............................................. 346Runaway................................................... 195Starting..................................................... 119Enhanced Accident Response
Feature................................................ 310, 352Entry System, Illuminated................................56Ethanol.......................................................... 434Exhaust Brake............................................... 138Exhaust Gas Cautions................................... 333Exhaust System..........................333, 382, 391Exterior Lighting...............................................50Exterior Lights........................................ 50, 332
F
FiltersAir Cleaner
................................................ 369Air Conditioning................................. 65, 372Engine Fuel...................................... 375, 440Engine Oil........................................ 369, 440Engine Oil Disposal................................... 369FlashersTurn Signals.............................. 54, 115, 332Flash-To-Pass...................................................52Flat Tire Stowage.......................................... 343Fluid Capacities............................................ 439Fluid Leaks.................................................... 332

21_DPF_OM_EN_USC_t.book Page 452
