RENAULT CLIO 2000 X65 / 2.G Owners Manual
Manufacturer: RENAULT, Model Year: 2000, Model line: CLIO, Model: RENAULT CLIO 2000 X65 / 2.GPages: 184, PDF Size: 8.45 MB
Page 111 of 184
1
A
2
B
3
4
3
4
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page25
3.25
REAR BENCH SEAT(operation)
The seat base and the seatback may
be folded down (in one or two
sections) to allow bulky objects to
be carried

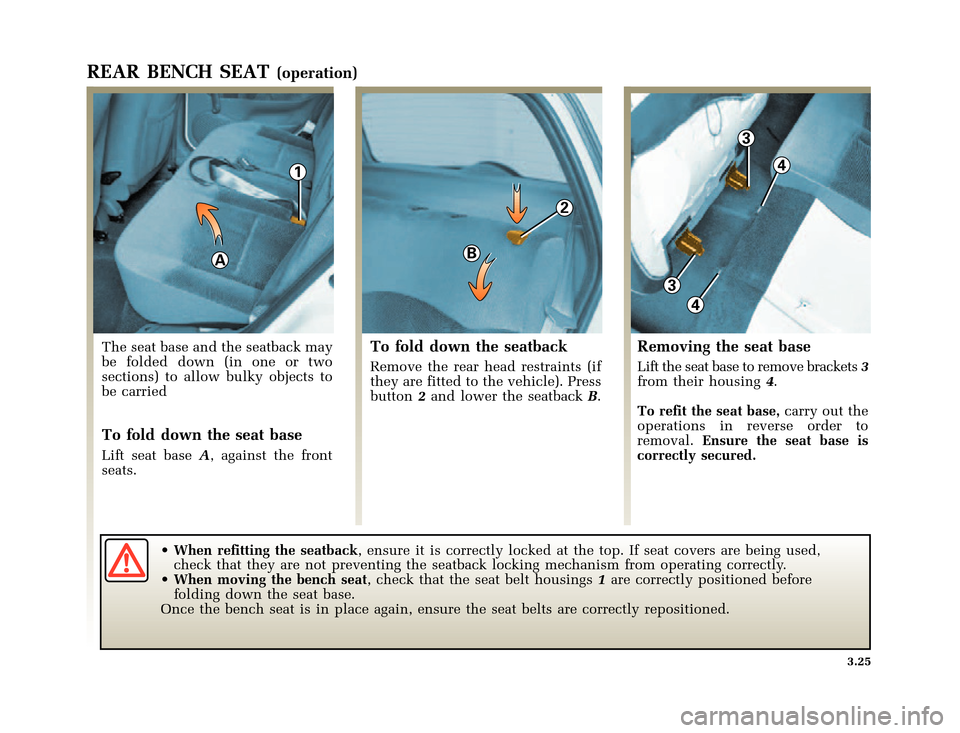

To fold down the seat base
Lift seat baseA, against the front
seats.
To fold down the seatback
Remove the rear head restraints (if
they are fitted to the vehicle). Press
button2and lower the seatbackB.
Removing the seat base
Lift the seat base to remove brackets3
from their housing4.
To refit the seat base,carry out the
operations in reverse order to
removal.Ensure the seat base is
correctly secured.
• When refitting the seatback, ensure it is correctly locked at the top. If seat covers are being used,
check that they are not preventing the seatback locking mechanism from operating correctly.
• When moving the bench seat, check that the seat belt housings1are correctly positioned before
folding down the seat base.
Once the bench seat is in place again, ensure the seat belts are correctly repositioned.
Page 112 of 184
1
2
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page26
3.26
LUGGAGE COMPARTMENT

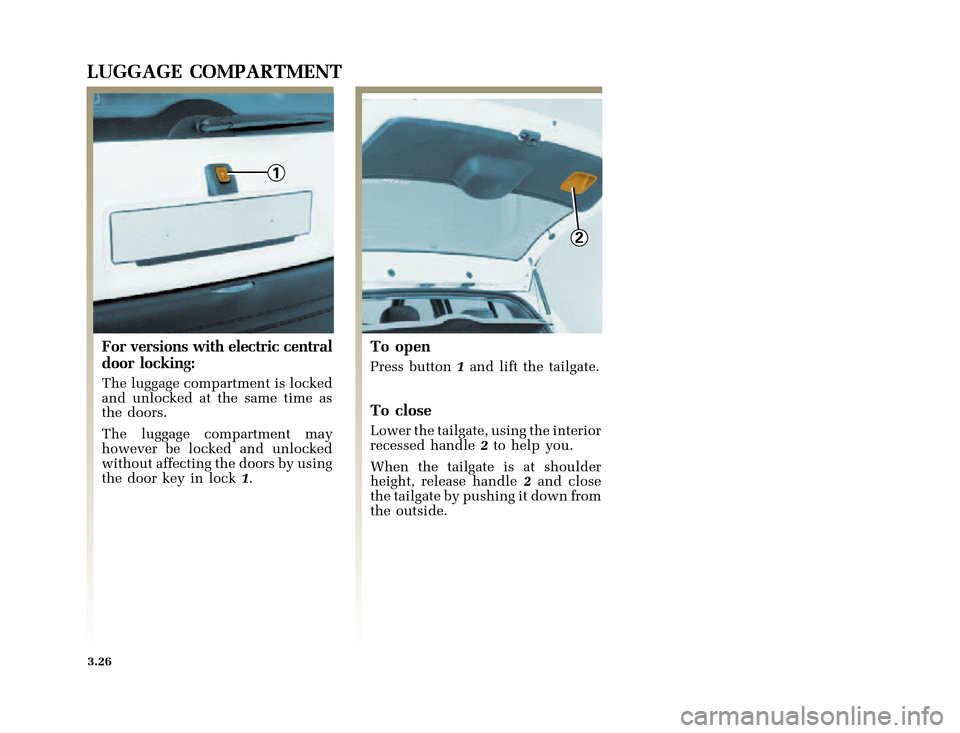

For versions with electric central
door locking:
The luggage compartment is locked
and unlocked at the same time as
the doors.
The luggage compartment may
however be locked and unlocked
without affecting the doors by using
the door key in lock1.
To open
Press button1and lift the tailgate.
To close
Lower the tailgate, using the interior
recessed handle2to help you.
When the tailgate is at shoulder
height, release handle2and close
the tailgate by pushing it down from
the outside.
Page 113 of 184
11
2
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page27
3.27
LUGGAGE COMPARTMENT(continued)
Rear shelf

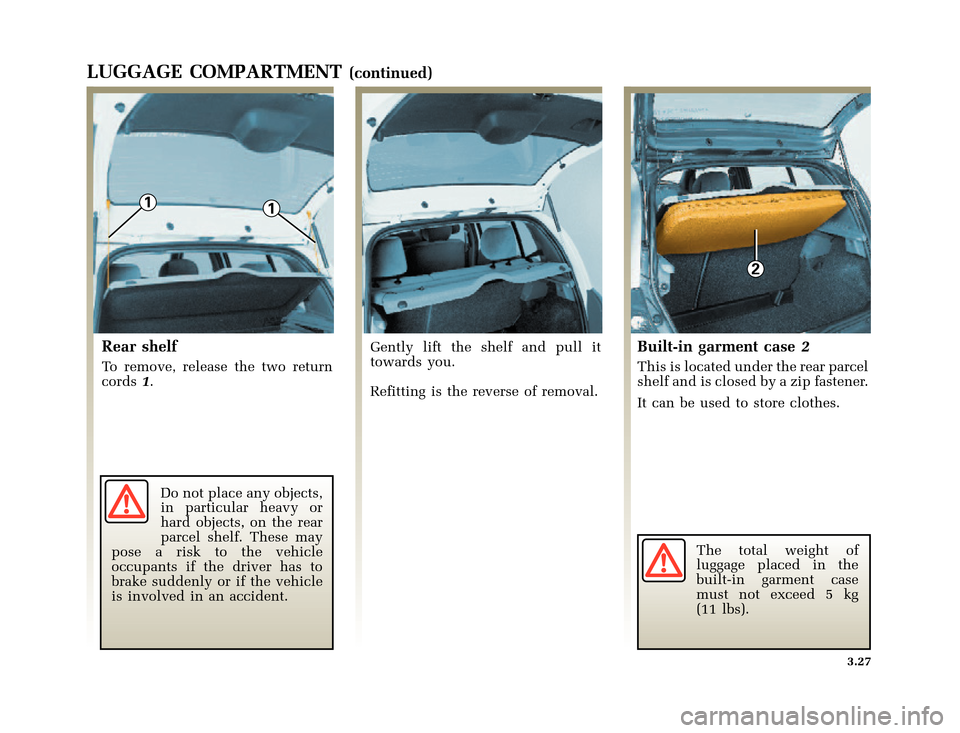

To remove, release the two return
cords1.
Do not place any objects,
in particular heavy or
hard objects, on the rear
parcel shelf. These may
pose a risk to the vehicle
occupants if the driver has to
brake suddenly or if the vehicle
is involved in an accident.Gently lift the shelf and pull it
towards you.
Refitting is the reverse of removal.
Built-in garment case2
This is located under the rear parcel
shelf and is closed by a zip fastener.
It can be used to store clothes.
The total weight of
luggage placed in the
built-in garment case
must not exceed 5 kg
(11 lbs).
Page 114 of 184
A
A
B
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page28
3.28
LUGGAGE COMPARTMENT COVER - SEPARATING GRILLE:utility versions

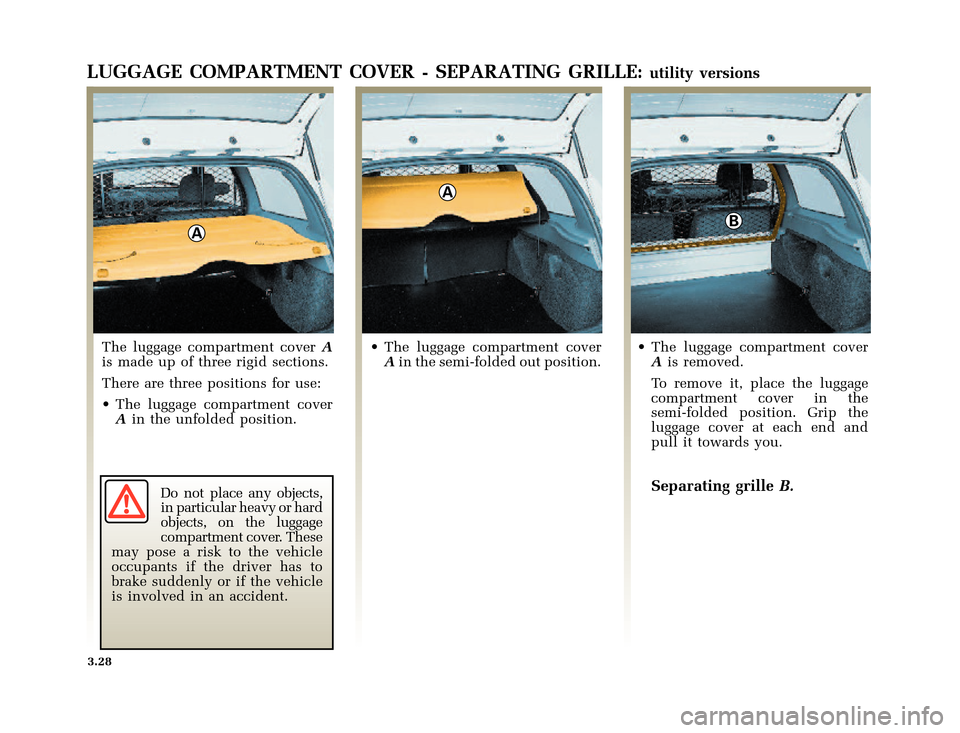

The luggage compartment coverA
is made up of three rigid sections.
There are three positions for use:
• The luggage compartment cover
Ain the unfolded position.
Do not place any objects,
in particular heavy or hard
objects, on the luggage
compartment cover. These
may pose a risk to the vehicle
occupants if the driver has to
brake suddenly or if the vehicle
is involved in an accident.• The luggage compartment cover
Ain the semi-folded out position.• The luggage compartment cover
Ais removed.
To remove it, place the luggage
compartment cover in the
semi-folded position. Grip the
luggage cover at each end and
pull it towards you.
Separating grilleB.
Page 115 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page29
3.29
TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT

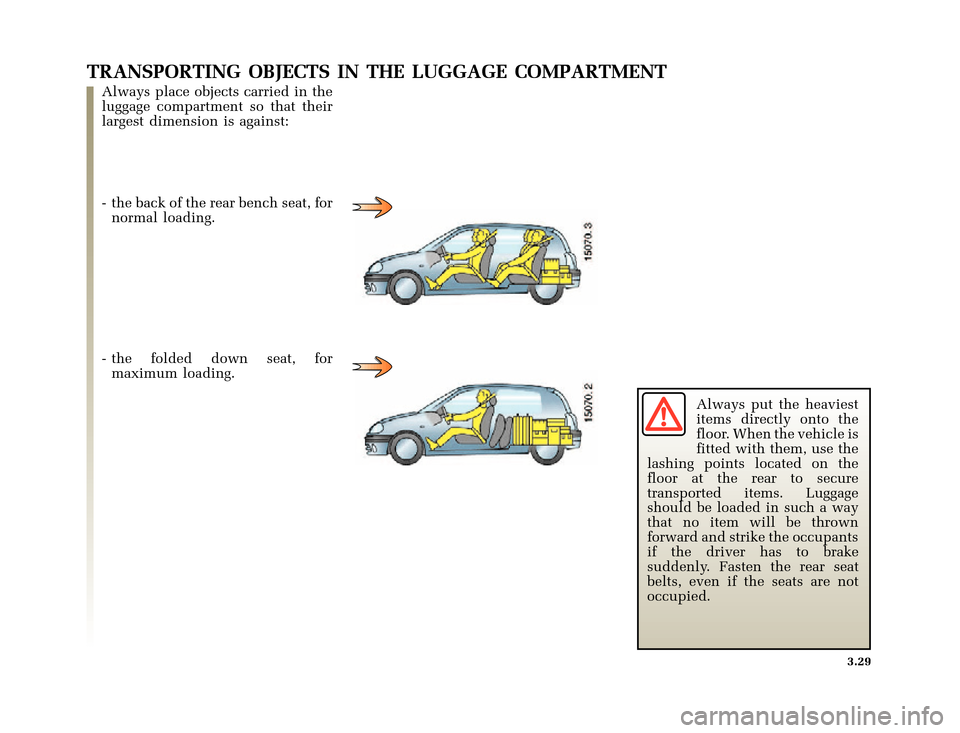

Always place objects carried in the
luggage compartment so that their
largest dimension is against:
- the back of the rear bench seat, for
normal loading.
- the folded down seat, for
maximum loading.
Always put the heaviest
items directly onto the
floor. When the vehicle is
fitted with them, use the
lashing points located on the
floor at the rear to secure
transported items. Luggage
should be loaded in such a way
that no item will be thrown
forward and strike the occupants
if the driver has to brake
suddenly. Fasten the rear seat
belts, even if the seats are not
occupied.
Page 116 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page30
3.30
Page 117 of 184
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T4.WIN 16/10/2000 11:23-page1
4.01
Section 4: Maintenance
Bonnet ................................................................................................................................................................ 4.02
Engine oil level .................................................................................................................................... 4.03
¬4.07
Oil changes: Engine .......................................................................................................................................... 4.07
Levels: Brake fluid ............................................................................................................................................ 4.08
Coolant .................................................................................................................................................. 4.09
Battery ................................................................................................................................................... 4.10
Power steering pump .......................................................................................................................... 4.10
Screen washer reservoir ...................................................................................................................... 4.11
Air filter ............................................................................................................................................................. 4.11
Bodywork maintenance ......................................................................................................................... 4.12 - 4.13
Interior trim maintenance ................................................................................................................................ 4.14
Page 118 of 184
1
2
4
2
3
5
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T4.WIN 16/10/2000 11:23-page2
4.02
BONNET
Opening the bonnet
To open, pull handle1.
Bonnet safety lock
To unlock, lift lever2.
Lift the bonnet, release the strut4
from its mounting3. For your safety,
thismustbe placed in location5.
Closing the bonnet
To close the bonnet, replace strut4
in its mounting3,hold the bonnet
in the middle and lower it to 20 cm
above the closed position. Now
release it and it will lock under its
own weight.
Check that the bonnet is correctly
locked.
Check that nothing has been left in
the engine compartment before
closing the bonnet.
Ensure it is correctly
locked.
Take care when working
under the bonnet as the
engine cooling fan may
cut in at any moment.
Page 119 of 184
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T4.WIN 16/10/2000 11:23-page3
4.03
ENGINE OIL LEVEL
It is normal for an engine to use oil
for lubrication and cooling of
moving parts and it is sometimes
necessary to top up the level
between oil changes.
However, if more than 0.5 litre is
used every 625 miles (1000 km)
aftertherunninginperiodconsult
your Renault Dealer.
Oil change frequency: Check the oil
level from time to time and
certainly before any long journey,
to avoid the risk of damaging your
engine.
Reading the oil level
The car must be parked on level
ground and the engine should have
been switched off for some time
beforehand to obtain an accurate
reading.
The oil level can be read:
- on the instrument panel;
- using the dipstick.Reading the level on the instrument
panel
When ignition has been switched
on for approximately 30 seconds:
-if the level is correct, the display
will show “oil OK”: display
message1
Special note:To gain a more
precise indication of the level,
press the trip mileage counter
reset button or the information
scroll button on the onboard
computer.The squares which appear on the
display indicate the level. The
number of squares displayed
reduces as the oil level drops and
they are replaced by a dash: display
message2.
To move to onboard computer
reading, press the button again).
-if the level is at its minimum,the
word “OK” will not appear on the
display, the dashes and the word
“oil” will flash (display message3)
and the indicator light
illuminates in the instrument
panel on some versions.
It is vital to top up the oil as soon
as possible.
Message 1
Maximum
level
Message 2
Level
display
function
Message 3
Minimum
level
(flashing)
Page 120 of 184
B
A
B
A
C
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T4.WIN 16/10/2000 11:23-page4
4.04
ENGINE OIL LEVEL(continued)
Reading the level using the dipstick
- Take out the dipstick.
- Wipe the dipstick using a clean,
lint-free cloth.
- Push the dipstick in as far as it will
go. (For vehicles equipped with a
cap-type dipstickC, screw the cap
in as far as it will go.)
- Take out the dipstick again.
- Read the level. It should never fall
below the minimum markBor
exceed the maximum markA.
Take care when working in
the engine compartment as
the engine cooling fan may
cut in at any moment
without warning. Consult your Renault Dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
