Page 81 of 184
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page9
2.09
ENVIRONMENT
Your vehicle has been designed with
the aim of caring forthe environment.
• Most versions are fitted with a
depollution system incorporating
thecatalytic converter, oxygen
sensor and active carbon filter
(which prevents fuel vapour
evaporating from the fuel tank
into the open air).
•These vehicles run on unleaded
fuel only.
•your vehicle comprises 87%
recyclable partsand already
contains parts which are made
fromrecycled materials(as marked
on the diagram above).
• 95% of the plastic parts in your
vehicle are marked by a symbol
which allows the principal
component material to be identified.
This marking means that the parts
removed can be sorted more
easily, making recycling of each of
them easier.In addition, your vehicle meets the
requirements of European legislation
concerning the protection of the
environment.
Make your contribution to
environmental protection too !
Do not dispose of parts replaced in
the course of routine vehicle
maintenance (battery, oil filter, air
filter...) and oil cans (empty or filled
with old oil...) with household
waste.
Dispose of them through specialist
organisations. In all cases comply
with local legislation.
Page 82 of 184
A
B
C
E
F
G
H
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page10
2.10
PROACTIVE AUTOMATIC TRANSMISSION
Selector lever
The displayEand tell-tale lightsF,
G,Hon the instrument panel
indicate the position of the gear
lever1and/or the operating mode of
the automatic transmission.
P: Park
R: Reverse
N: Neutral
D: Drive in automatic
(gears authorised: 1, 2, 3 and 4)
2: 2nd gear hold
(gears authorised: 1, 2)
1: 1st gear holdPosition D3 or 3rd gear hold
(Gears authorised: 1, 2, 3).
With the selector lever in position
D, press buttonB. A tell-tale lightH
will illuminate on the instrument
panel. Press buttonBagain to
deselect this position. (The tell-tale
light will extinguish.)
Note:When the tell-tale light is
illuminated, the system will
prevent 4th gear being selected.For safety reasons, certain positions
may not be selected until the
mechanism is released: press buttonA.
The lever may only be moved to D
or R when the vehicle is stationary,
with your foot on the brake and the
accelerator pedal released.
Moving off forwards
With the lever in position PorN,
switch on the ignition.
With your foot on the brake pedal,
move the lever out of positionPorN.
For safety reasons, to take the lever
out of position P, the brake pedal
must be pressed before pressing the
releasing buttonA.
Page 83 of 184
C
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page11
2.11
PROACTIVE AUTOMATIC TRANSMISSION(continued)
Forward gears
Move the lever to positionD.Inthe
majority of traffic conditions, you
will not have to move the lever
again: gear changing will take place
automatically at the right time and
at the most suitable engine speed
since the automatic system takes
into account the vehicle load, the
road contour and the particular
driving style you have chosen.
Acceleration and overtaking
Fully depress the accelerator pedal
quickly (or even take your foot off
the accelerator and press it in again
asfarasitwillgo).
The speed of depressing the pedal
will activate the “kickdown”
switch to obtain maximum
performance.
Special circumstances
• Snow position:if you are driving
on a surface with low adhesion
(snow, mud etc.), press switchC,
warning lightFwill illuminate.
When these driving conditions no
longer apply, turn the system off
by pressing buttonCagain and
the warning light will extinguish.• In hilly or mountainous country:
if the road surface and the number
of bends do not allow you to
remain in 4th, we recommend
you select positionD3(by
pressing buttonB, with the gear
lever in positionD), or even2
(2nd gear hold), to avoid the
transmission changing to a higher
gear than the one selected.
Position1, which enforces the use
of 1st gear, gives good engine
braking.
When travelling downhill for a
long way, select positionD3or2
(or even1)togivemoreefficient
engine braking, and to relieve the
brakes.
•In cold weather, to prevent the
engine from stalling, wait for a
few moments before moving the
lever from positionPorNto
positionDorR.
Page 84 of 184
A
I
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page12
2.12
PROACTIVE AUTOMATIC TRANSMISSION(continued)
Economical driving
On the open road, always leave the
lever in positionD. Press the
accelerator pedal lightly to ensure
that the gears change automatically
at a low engine speed.
Never use positions D3, 2, 1 and the
snow position unless special
circumstances apply.
Parking the vehicle
When the vehicle is stationary,
whilst keeping your foot on the
brake pedal, place the lever in
positionP: the automatic
transmission is in neutral and the
drive wheels are mechanically
locked by the transmission.
Apply the handbrake.
Operating faults
• If the lever remains locked in P
when your foot is on the brake
pedal, the lever may be moved
manually.
To do this, unclip coverIand then
press the raised area (under cover
I)and,atthesametime,press
unlocking buttonAto remove the
lever from positionP.
Take the vehicle to your Renault
Dealer.
•While driving,if this
warning light illuminates,
there is a fault. Refer to
the
information on the “Instrument
panel” in section 1.
•Towing a vehicle with an
automatic transmission,refer to
the information on “Towing” in
section 5.
Page 85 of 184
1
2
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page13
2.13
GEAR LEVER HANDBRAKEPOWER ASSISTED STEERING
To select reverse
(vehicle stationary)
Move the lever to neutral, then lift
up ring1against the gear lever knob
to select reverse gear.
The reversing lights illuminate as
soon as reverse gear is selected
(ignition on).
To release
Pull the lever up slightly, press in
button2and lower the lever to the
floor.
If you are driving with the
handbrake incorrectly released, the
red warning light on the instrument
panel will remain illuminated.
To apply
Pull the lever upwards.
The lever should travel about 10
notches to hold the vehicle. Your
vehicle has self adjusting rear brake
shoes and the handbrake should
only be adjusted during a brake
overhaul.
When the vehicle is
stationary, make sure
that the handbrake is
properly applied so that
the vehicle does not move
unintentionally.
Make sure the handbrake is
properly released when driving,
otherwise overheating may
occur.Never leave the steering on full lock
when the vehicle is parked (risk of
damaging the power assisted
steering pump).
Never switch off the
engine when travelling
downhill, and avoid
doing so when driving in
general (power steering and
brake servo will not function).
Page 86 of 184
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T2.WIN 30/9/2000 11:04-page14
2.14

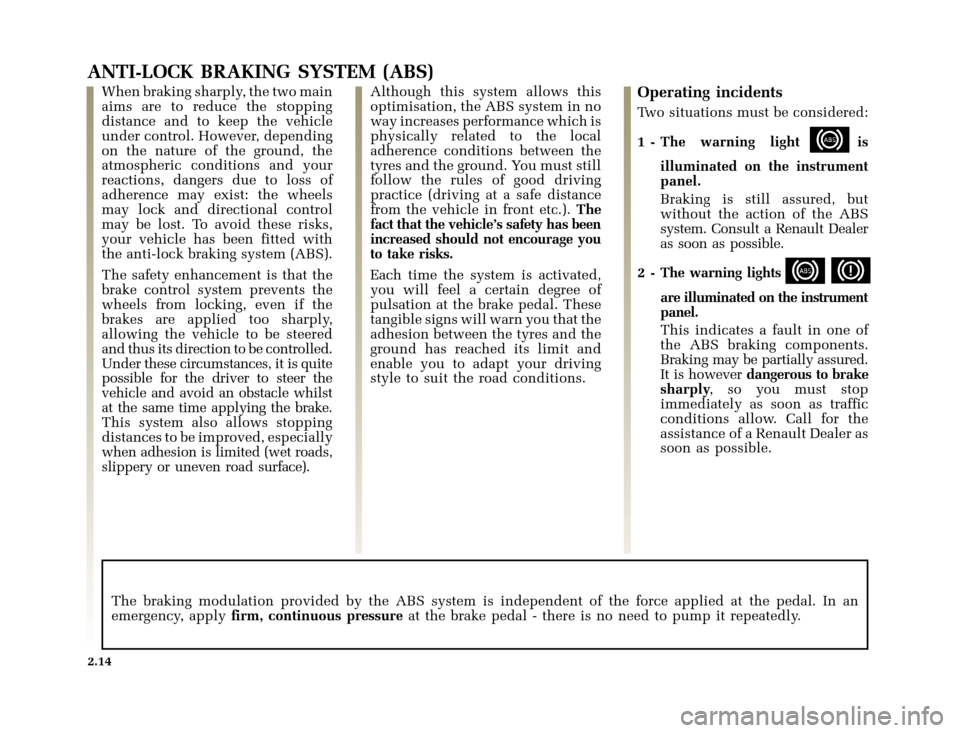

ANTI-LOCK BRAKING SYSTEM (ABS)
When braking sharply, the two main
aims are to reduce the stopping
distance and to keep the vehicle
under control. However, depending
on the nature of the ground, the
atmospheric conditions and your
reactions, dangers due to loss of
adherence may exist: the wheels
may lock and directional control
may be lost. To avoid these risks,
your vehicle has been fitted with
the anti-lock braking system (ABS).
The safety enhancement is that the
brake control system prevents the
wheels from locking, even if the
brakes are applied too sharply,
allowing the vehicle to be steered
and thus its direction to be controlled.
Under these circumstances, it is quite
possible for the driver to steer the
vehicle and avoid an obstacle whilst
at the same time applying the brake.
This system also allows stopping
distances to be improved, especially
when adhesion is limited (wet roads,
slippery or uneven road surface).Although this system allows this
optimisation, the ABS system in no
way increases performance which is
physically related to the local
adherence conditions between the
tyres and the ground. You must still
follow the rules of good driving
practice (driving at a safe distance
from the vehicle in front etc.).The
fact that the vehicle’s safety has been
increased should not encourage you
to take risks.
Each time the system is activated,
you will feel a certain degree of
pulsation at the brake pedal. These
tangible signs will warn you that the
adhesion between the tyres and the
ground has reached its limit and
enable you to adapt your driving
style to suit the road conditions.Operating incidents
Two situations must be considered:
1 - The warning light is
illuminated on the instrument
panel.
Braking is still assured, but
without the action of the ABS
system. Consult a Renault Dealer
as soon as possible.
2 - The warning lights
are illuminated on the instrument
panel.
This indicates a fault in one of
the ABS braking components.
Braking may be partially assured.
It is howeverdangerous to brake
sharply,soyoumuststop
immediately as soon as traffic
conditions allow. Call for the
assistance of a Renault Dealer as
soon as possible.
The braking modulation provided by the ABS system is independent of the force applied at the pedal. In an
emergency, applyfirm, continuous pressureat the brake pedal - there is no need to pump it repeatedly.
Page 87 of 184
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page1
3.01

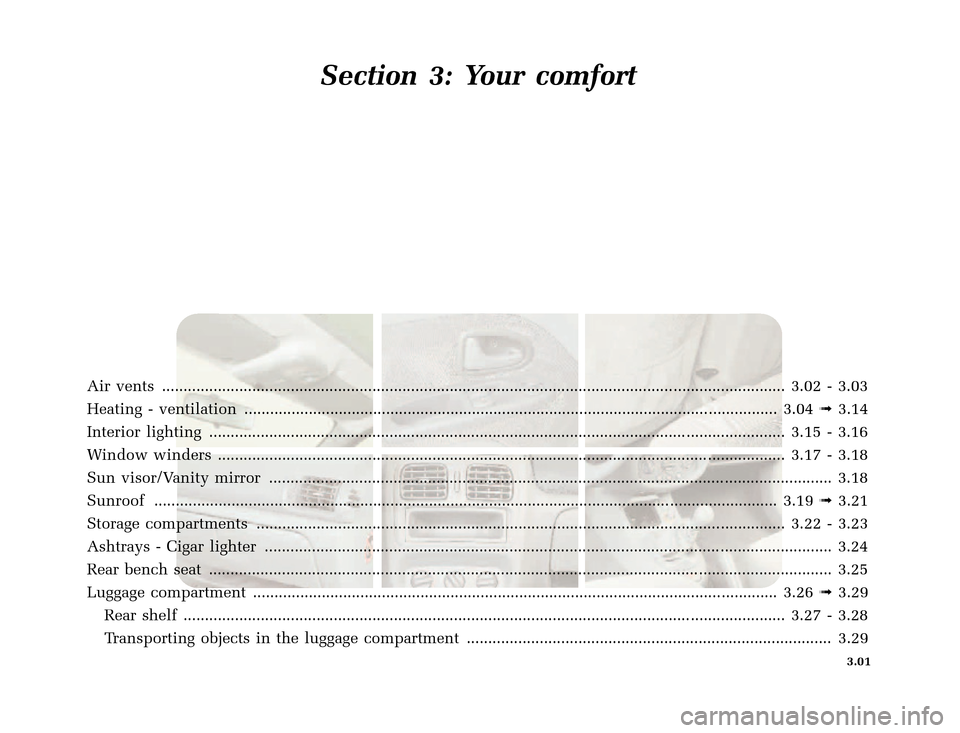

Section 3: Your comfort
Air vents ................................................................................................................................................. 3.02 - 3.03

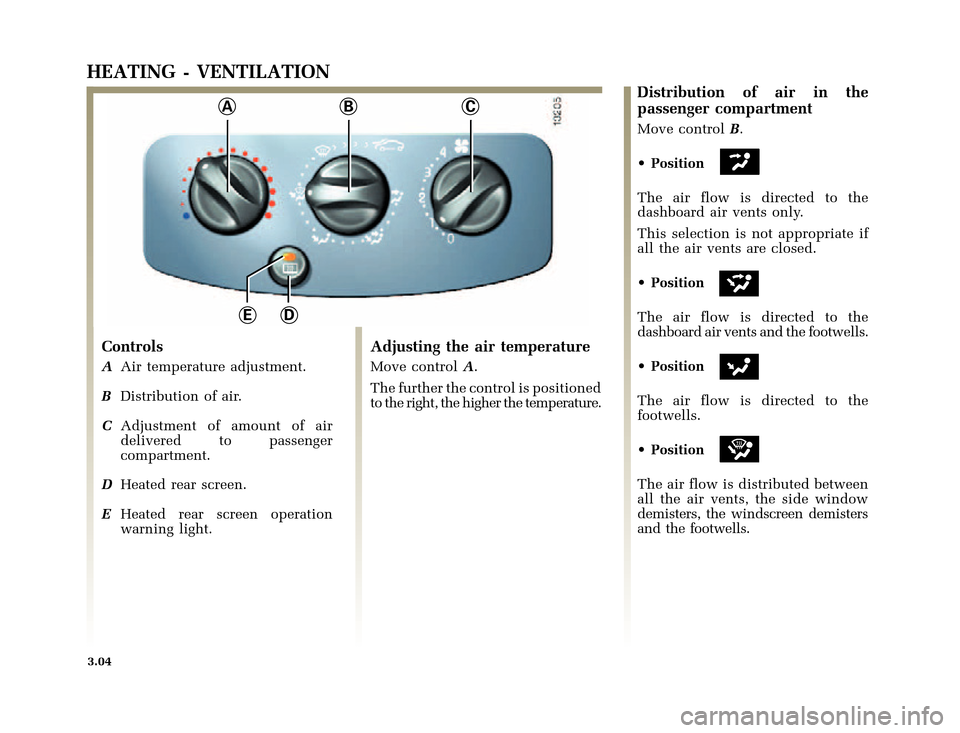

Heating - ventilation ............................................................................................................................ 3.04
¬3.14
Interior lighting ...................................................................................................................................... 3.15 - 3.16
Window winders .................................................................................................................................... 3.17 - 3.18
Sun visor/Vanity mirror ................................................................................................................................... 3.18
Sunroof ................................................................................................................................................. 3.19
¬3.21
Storage compartments ........................................................................................................................... 3.22 - 3.23
Ashtrays - Cigar lighter .................................................................................................................................... 3.24
Rear bench seat ................................................................................................................................................. 3.25
Luggage compartment .......................................................................................................................... 3.26
¬3.29
Rear shelf ............................................................................................................................................ 3.27 - 3.28
Transporting objects in the luggage compartment .....................................................................................3.29
Page 88 of 184
12 3 4 5 67
88
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page2
3.02

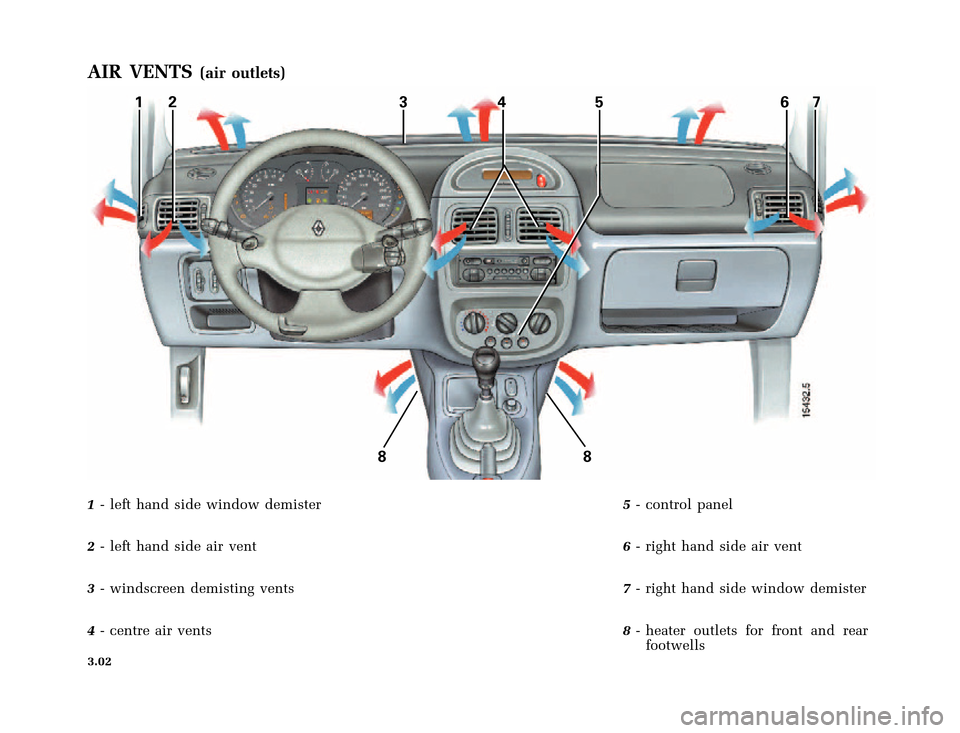

AIR VENTS(air outlets)
1- left hand side window demister
2- left hand side air vent
3- windscreen demisting vents
4- centre air vents5- control panel
6- right hand side air vent
7- right hand side window demister
8- heater outlets for front and rear
footwells
Page 89 of 184
12
33
4
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page3
3.03

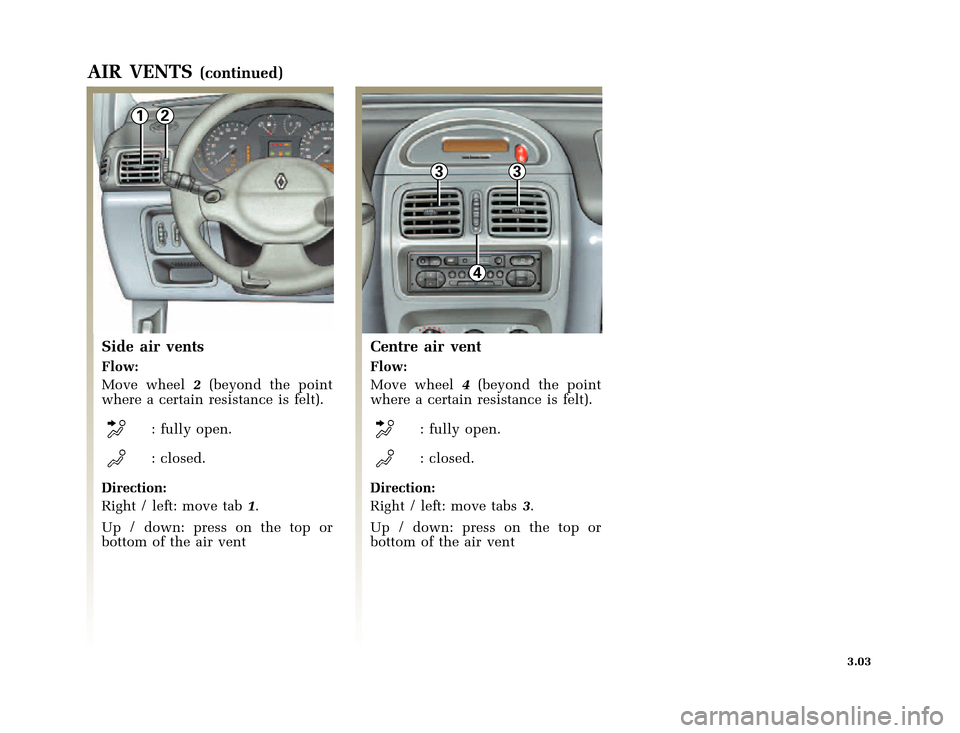

AIR VENTS(continued)
Side air vents
Flow:
Move wheel2(beyond the point
where a certain resistance is felt).
: fully open.
: closed.
Direction:
Right / left: move tab1.
Up / down: press on the top or
bottom of the air vent
Centre air vent
Flow:
Move wheel4(beyond the point
where a certain resistance is felt).
: fully open.
: closed.
Direction:
Right / left: move tabs3.
Up / down: press on the top or
bottom of the air vent
Page 90 of 184
ABC
DE
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout\Nu607-8gb_T3.WIN 30/9/2000 11:27-page4
3.04
HEATING - VENTILATION
Controls
AAir temperature adjustment.
BDistribution of air.
CAdjustment of amount of air
delivered to passenger
compartment.
DHeated rear screen.
EHeated rear screen operation
warning light.
Adjusting the air temperature
Move controlA.
The further the control is positioned
to the right, the higher the temperature.
Distribution of air in the
passenger compartment
Move controlB.
• Position
The air flow is directed to the
dashboard air vents only.
This selection is not appropriate if
all the air vents are closed.
• Position
The air flow is directed to the
dashboard air vents and the footwells.
• Position
The air flow is directed to the
footwells.
• Position
The air flow is distributed between
all the air vents, the side window
demisters, the windscreen demisters
and the footwells.
