FUSES(continued)
Allocation of fuses(the presence of fuses depends on the vehicle equipment level)
Symbol Allocation
Air bag/Central timer
Stop lights
Heated rear screen
Windscreen wipers
Anti-lock braking (ABS)
Fan
Radio/Cigar lighter/Clock
Horn
Left hand
dipped headlight
Right hand
dipped headlight
Symbol Allocation
Right hand main beam
headlight
Left hand main beam
headlight
Dual headlights
(dipped beam headlights
and main beam
headlights)
Heated rear view mirrors
Front fog lights
Not used
Not used
Central timer
Direction
indicators/Hazard warning
lights
Rear fog light
Symbol Allocation
Left hand side light
Right hand side light
Engine immobiliser
Interior and luggage
compartment lights/Radio
Central door locking
Electric windows
Headlight washers
Heated seats
Electric sunroof
Page 152 of 184
1
2
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page22
5.22

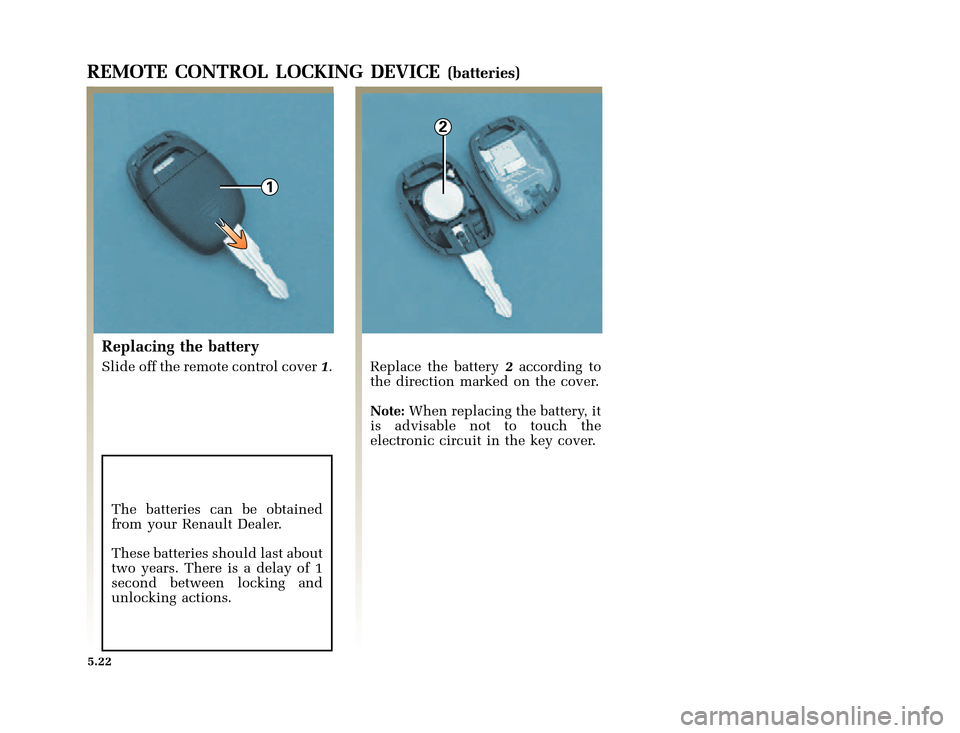

REMOTE CONTROL LOCKING DEVICE(batteries)
Replacing the battery
Slide off the remote control cover1.
The batteries can be obtained
from your Renault Dealer.
These batteries should last about
two years. There is a delay of 1
second between locking and
unlocking actions.Replace the battery2according to
the direction marked on the cover.
Note:When replacing the battery, it
is advisable not to touch the
electronic circuit in the key cover.
Page 153 of 184
1
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page23
5.23

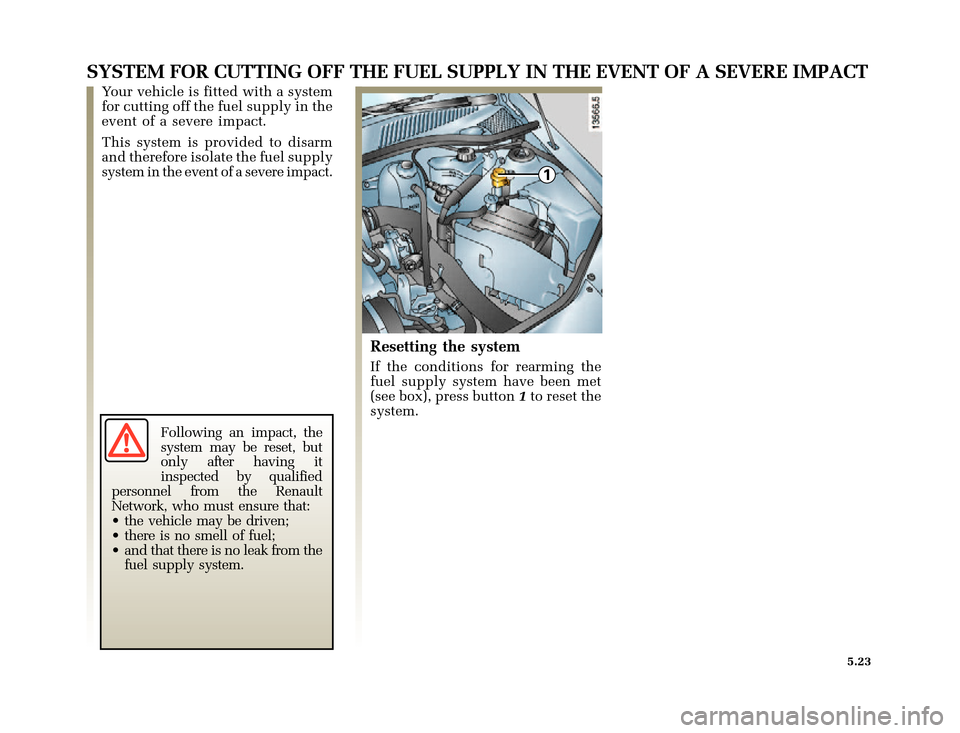

SYSTEM FOR CUTTING OFF THE FUEL SUPPLY IN THE EVENT OF A SEVERE IMPACT
Yourvehicleisfittedwithasystem
for cutting off the fuel supply in the
event of a severe impact.
This system is provided to disarm
and therefore isolate the fuel supply
system in the event of a severe impact.
Following an impact, the
system may be reset, but
only after having it
inspected by qualified
personnel from the Renault
Network, who must ensure that:
• the vehicle may be driven;
• there is no smell of fuel;
• and that there is no leak from the
fuel supply system.
Resetting the system
If the conditions for rearming the
fuel supply system have been met
(see box), press button1to reset the
system.
Page 154 of 184
1
2
23
2
5
4
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page24
5.24

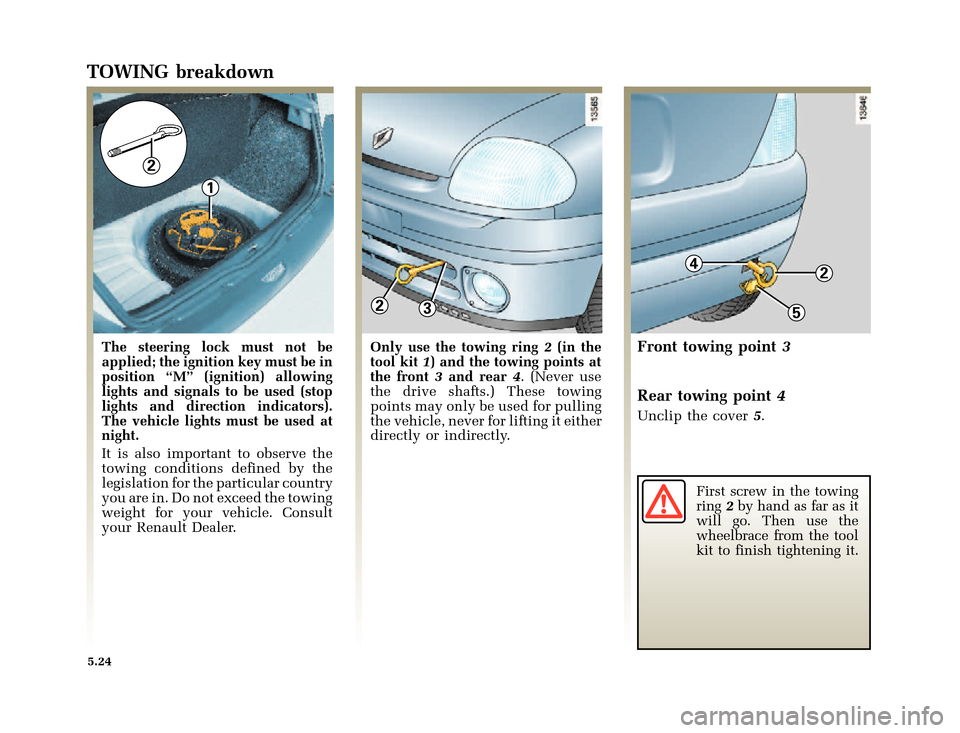

TOWING breakdown
The steering lock must not be
applied; the ignition key must be in
position “M” (ignition) allowing
lights and signals to be used (stop
lights and direction indicators).
The vehicle lights must be used at
night.
It is also important to observe the
towing conditions defined by the
legislation for the particular country
you are in. Do not exceed the towing
weight for your vehicle. Consult
your Renault Dealer.Only use the towing ring2(in the
tool kit1) and the towing points at
the front3and rear4. (Never use
the drive shafts.) These towing
points may only be used for pulling
the vehicle, never for lifting it either
directly or indirectly.Front towing point3
Rear towing point4
Unclip the cover5.
First screw in the towing
ring2by hand as far as it
will go. Then use the
wheelbrace from the tool
kit to finish tightening it.
Page 155 of 184
A
I
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page25
5.25
TOWING breakdown,(continued)
• Renault specifies the
use of a rigid towing
bar. If a rope or cable is
used (where the law
allows this), the vehicle being
towed must be able to brake.
• A vehicle must not be towed if
it is not fit to be driven.
• Do not accelerate or brake
suddenly when towing, as this
may result in damage being
caused to the vehicle.
• When towing a vehicle, it
is advisable not to exceed
15 mph (25 km/h).Towing a vehicle with
automatic transmission: special
notes
Engine switched off:The transmission
is no longer lubricated. It is
preferable to tow this type of
vehicle on a trailer or tow it with the
front wheels off the ground.
In exceptional cases, you can tow
the vehicle with all four wheels on
the ground for a maximum distance
of 30 miles (50 km).
The selector lever must be in
neutral (position N).
If the lever becomes jammed in P
position, even though you are
pressing down the brake pedal, the
lever can be released manually. To
do this, unclip coverI. Press on both
the raised part (under coverI)and
the unlocking buttonAat the same
time to move the lever from
positionP.
Page 156 of 184
A
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page26
5.26

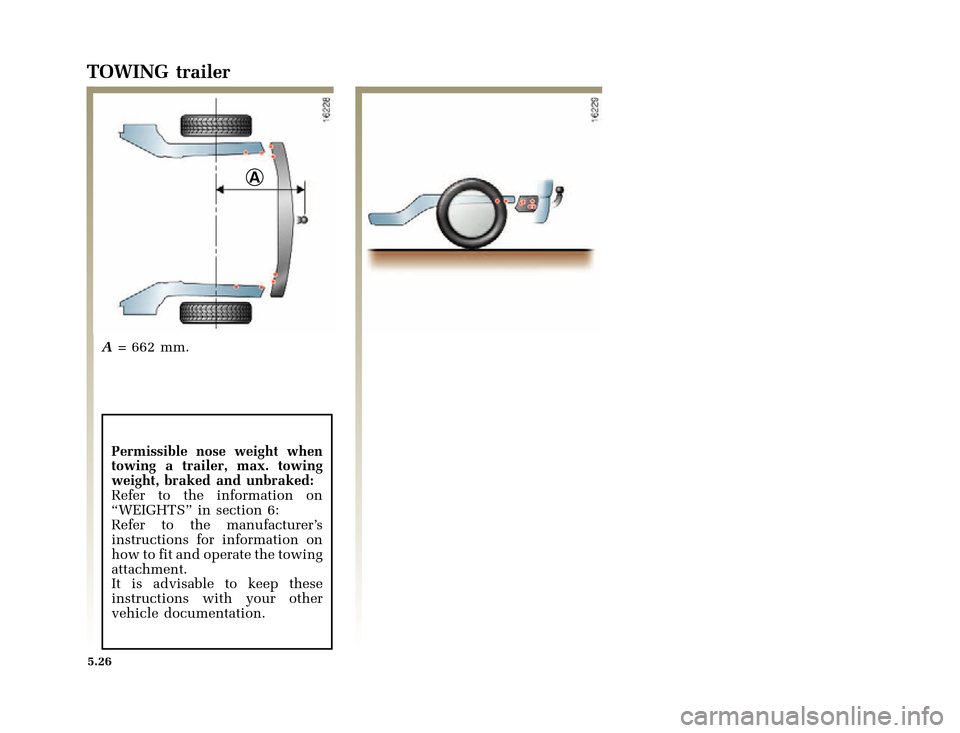

TOWING trailer
A= 662 mm.
Permissible nose weight when
towing a trailer, max. towing
weight, braked and unbraked:
Refer to the information on
“WEIGHTS” in section 6:
Refer to the manufacturer’s
instructions for information on
how to fit and operate the towing
attachment.
It is advisable to keep these
instructions with your other
vehicle documentation.
Page 157 of 184
1
2
3
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page27
5.27

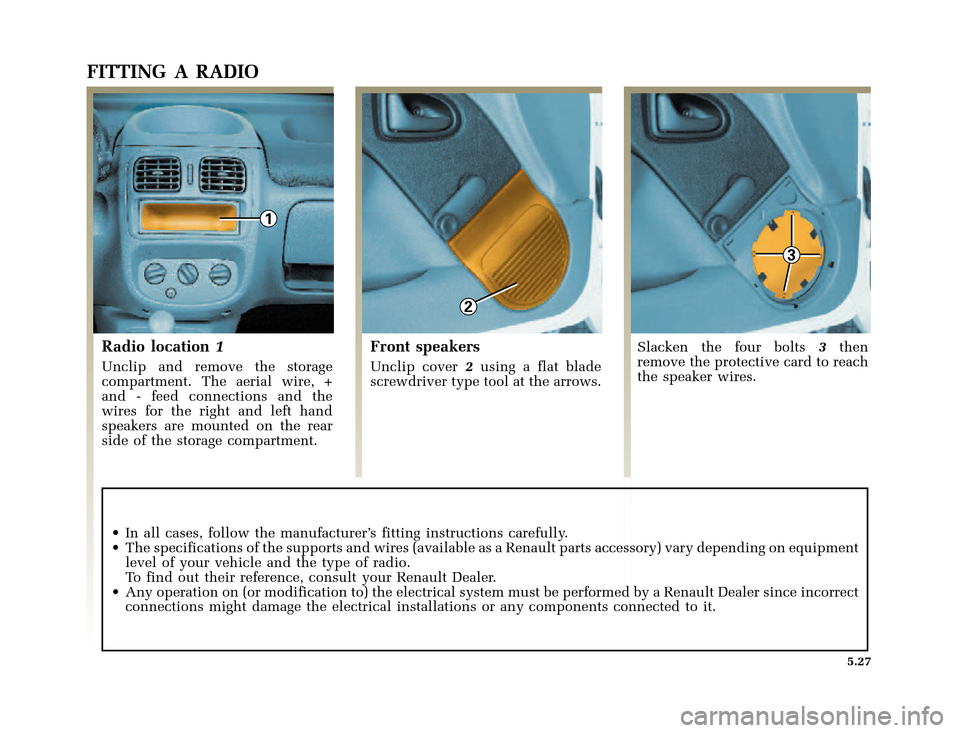

FITTING A RADIO
Radio location1
Unclip and remove the storage
compartment. The aerial wire, +
and - feed connections and the
wires for the right and left hand
speakers are mounted on the rear
side of the storage compartment.
Front speakers
Unclip cover2using a flat blade
screwdriver type tool at the arrows.Slacken the four bolts3then
remove the protective card to reach
the speaker wires.
• In all cases, follow the manufacturer’s fitting instructions carefully.
• The specifications of the supports and wires (available as a Renault parts accessory) vary depending on equipment
level of your vehicle and the type of radio.
To find out their reference, consult your Renault Dealer.
• Any operation on (or modification to) the electrical system must be performed by a Renault Dealer since incorrect
connections might damage the electrical installations or any components connected to it.
Page 158 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page28
5.28
ACCESSORIES
Using mobile phones and
CB equipment
Mobile phones and CB
equipment with integrated
aerials may cause interference to
the original electronic systems
fitted to the vehicle: it is advisable
only to use equipment with an
external aerial.
Also, for your own safety, we
would advise you always to take
account of traffic conditions and
not to use this type of equipment
when you are driving.After-sales installation of
electric or electronic
accessories
•Anyworkontheelectric
circuit of the vehicle must be
carried out by Renault network
engineers: if the system is
connected incorrectly, it may
result in damage being caused to
the electrical installation and/or
the units connected to it.
• If the vehicle is retrofitted with
any electrical equipment, make
sure that the unit is correctly
protected by a fuse. Ask for
information on the rating and
position of this fuse.
After-sales installation of
non-electrical accessories (roof
bars, towing attachments, etc.)
Accessories approved by Renault
are based on a strict specification
and are regularly tested. We would
recommend that you use approved
accessories (particularly where
these affect safety) because they are
particularly reliable and
appropriate for your vehicle.
Page 159 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page29
5.29
OPERATING INCIDENTS
Your vehicle should not be affected by incidents likely to keep it off the road for long periods if you have followed the
Renault Servicing Programme regularly.
The following advice will allow you to get going again quickly, albeit temporarily: for reasons of safety, you should
always consult a Renault Dealer as soon as possible.
When starter is activated CAUSES REMEDIAL ACTION
• There is no response. The warning
lights fail to illuminate and the starter
does not turn.Battery lead disconnected or terminals
oxidised.Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
Battery unserviceable. Replace the battery.
• Warning lights go dim and starter
turns very slowly.Battery terminals not tight.
Battery terminals oxidised.Check battery terminals: scrape clean
if oxidised and re-tighten.
Battery discharged. Connect another battery to the faulty
battery.
• The engine is difficult to start in
damp conditions or after washing.Poor ignition, ignition system damp. Dry the plug leads and ignition coil.
• The engine is difficult to start when
hot.Poor carburation (bubbles of vaporised
fuel in the circuit).Let the engine cool down.
Lack of compression. Consult a Renault Dealer.
Page 160 of 184
1 8 I U B * E T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page30
5.30

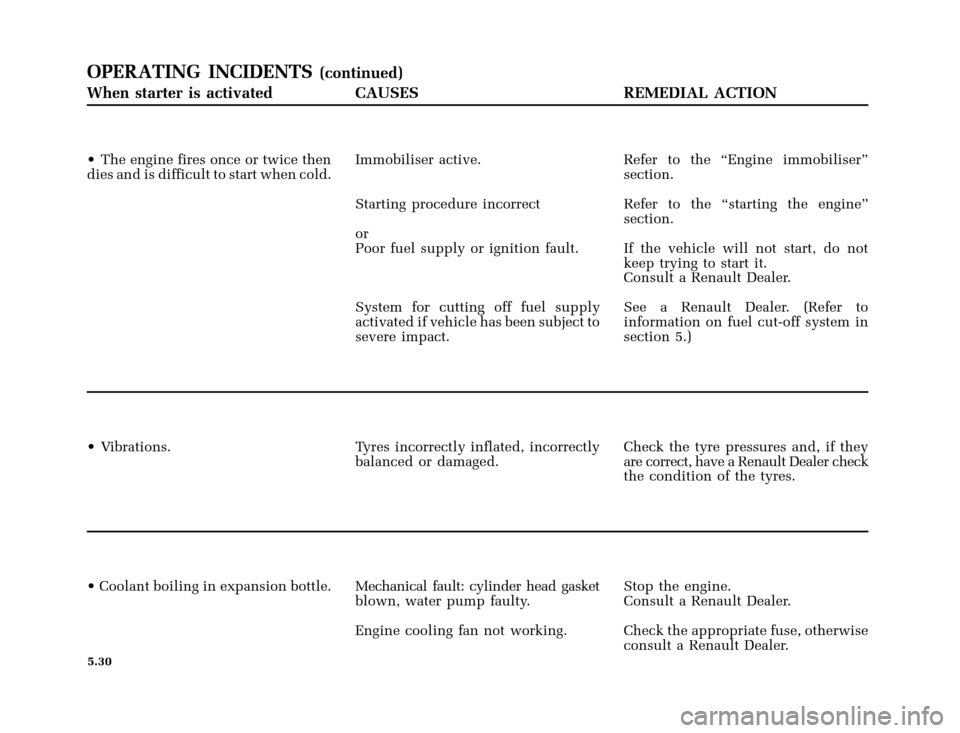

OPERATING INCIDENTS(continued)
When starter is activated CAUSES REMEDIAL ACTION
• The engine fires once or twice then
dies and is difficult to start when cold.Immobiliser active. Refer to the “Engine immobiliser”
section.
Starting procedure incorrect Refer to the “starting the engine”
section.
or
Poor fuel supply or ignition fault. If the vehicle will not start, do not
keeptryingtostartit.
Consult a Renault Dealer.
System for cutting off fuel supply
activated if vehicle has been subject to
severe impact.See a Renault Dealer. (Refer to
information on fuel cut-off system in
section 5.)
• Vibrations. Tyres incorrectly inflated, incorrectly
balanced or damaged.Check the tyre pressures and, if they
are correct, have a Renault Dealer check
the condition of the tyres.
• Coolant boiling in expansion bottle. Mechanical fault: cylinder head gasket
blown, water pump faulty.Stop the engine.
Consult a Renault Dealer.
Engine cooling fan not working. Check the appropriate fuse, otherwise
consult a Renault Dealer.
