Section 5: Practical advice
Emergency spare wheel .................................................................................................................................... 5.02
Tool kit (Jack - Wheelbrace - Wheel spanners, etc.) ...................................................................................... 5.03
Wheel embellishers .......................................................................................................................................... 5.04
Changing a wheel ............................................................................................................................................. 5.05
Tyres (tyre safety, wheels, winter precautions) ................................................................................. 5.06
¬5.08
Wiper blades ..................................................................................................................................................... 5.09
Replacing bulbs: ................................................................................................................................... 5.10
¬5.17
Headlights ........................................................................................................................................... 5.10 - 5.11
Fog lights ....................................................................................................................................................... 5.12
Rear lights ........................................................................................................................................... 5.13 - 5.14
Side repeaters ................................................................................................................................................ 5.15
Interior lights ...................................................................................................................................... 5.16 - 5.17
Battery ..................................................................................................................................................... 5.18 - 5.19
Fuses ....................................................................................................................................................... 5.20 - 5.21
Remote control locking device (replacing batteries) ..................................................................................... 5.22
System for cutting off the fuel supply in the event of a severe impact ...................................................... 5.23
Towing (breakdown - trailer) ................................................................................................................ 5.24 - 5.26
Fitting a radio/accessories .................................................................................................................... 5.27 - 5.28
Operating incidents ............................................................................................................................. 5.29
¬5.34
Page 132 of 184
1
3
2
4
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page2
5.02

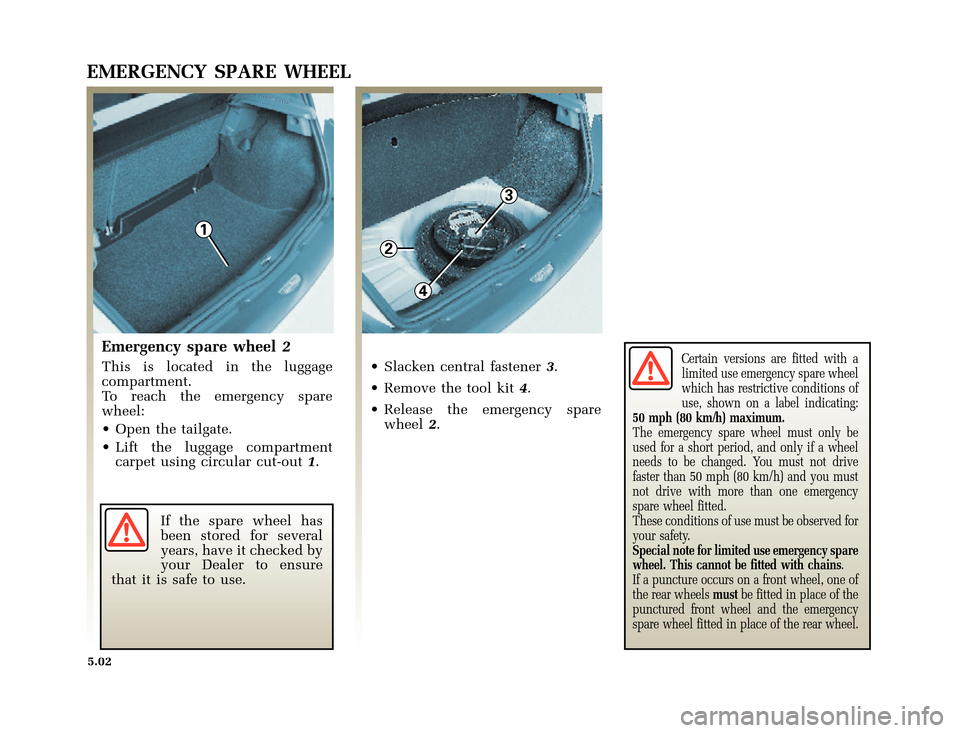

EMERGENCY SPARE WHEEL
Emergency spare wheel2
This is located in the luggage
compartment.
To reach the emergency spare
wheel:
• Open the tailgate.
• Lift the luggage compartment
carpet using circular cut-out1.
If the spare wheel has
been stored for several
years, have it checked by
your Dealer to ensure
that it is safe to use.• Slacken central fastener3.
• Remove the tool kit4.
• Release the emergency spare
wheel2.Certain versions are fitted with a
limited use emergency spare wheel
which has restrictive conditions of
use, shown on a label indicating:
50 mph (80 km/h) maximum.
The emergency spare wheel must only be
used for a short period, and only if a wheel
needs to be changed. You must not drive
faster than 50 mph (80 km/h) and you must
not drive with more than one emergency
spare wheel fitted.
These conditions of use must be observed for
your safety.
Special note for limited use emergency spare
wheel. This cannot be fitted with chains.
If a puncture occurs on a front wheel, one of
the rear wheelsmustbe fitted in place of the
punctured front wheel and the emergency
spare wheel fitted in place of the rear wheel.
Page 133 of 184
1
4
63
25
9
7
8
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page3
5.03
TOOL KIT
The tool kit1is located in the
emergency spare wheel. It contains
a set of tools for various operations
on the vehicle: jack, wheelbrace,
screwdriver, towing ring, etc. and a
location for a set of bulbs.Wheelbrace9
Jack8
When replacing the jack, fold it
down completely before putting it
back into position.
The jack is designed for
changing a wheel. Under
no circumstances should
it be used for carrying out
repairs or to gain access under
the vehicle.
Embellisher spanner2
This is used to unclip the wheel
embellishers.
Wheel spanner4
This is used to lock or release the
wheel bolts.
Wheel bolt guide/Screwdriver
handle3
Wheel bolt guide
This is used to finish unscrewing
the wheel bolts or to begin to tighten
them. Always use the wheel
spanner to lock or release the bolts.
Screwdriver handle
Insert the appropriate screwdriver
attachment5or6(two
screwdriver attachments giving
four different end pieces) into the
screwdriver handle.
Towing ring7
Refer to the paragraph “Towing” in
section 5 for information on using
the towing ring.
Page 134 of 184
1
A
2
34
65
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page4
5.04

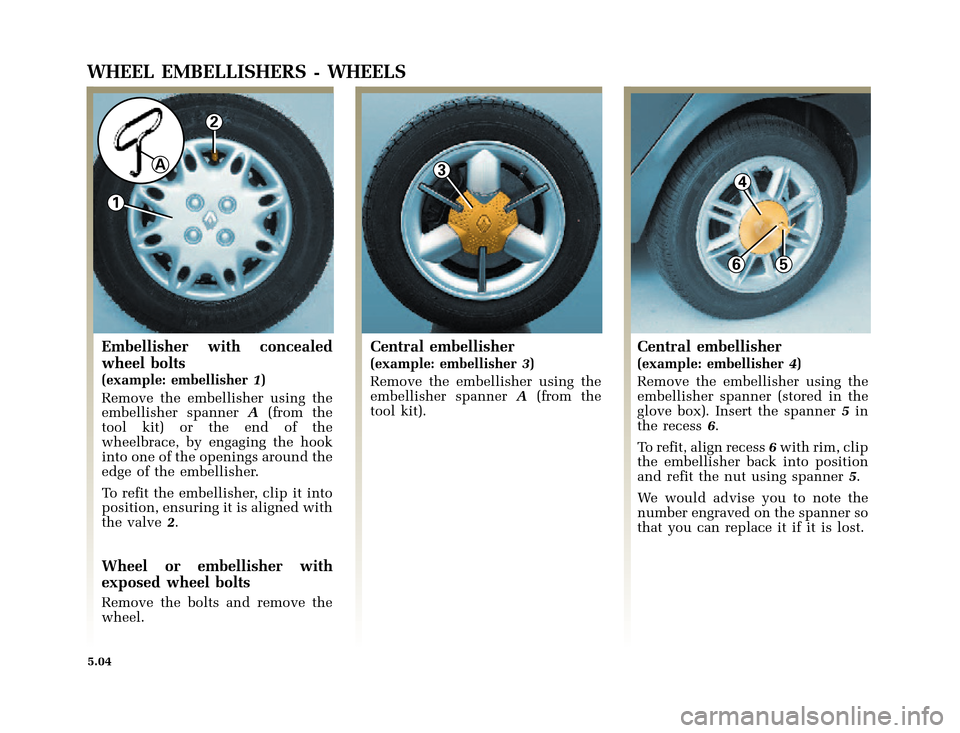

WHEEL EMBELLISHERS - WHEELS
Embellisher with concealed
wheel bolts
(example: embellisher1)
Remove the embellisher using the
embellisher spannerA(from the
tool kit) or the end of the
wheelbrace, by engaging the hook
into one of the openings around the
edge of the embellisher.
To refit the embellisher, clip it into
position, ensuring it is aligned with
the valve2.
Wheel or embellisher with
exposed wheel bolts
Remove the bolts and remove the
wheel.
Central embellisher
(example: embellisher3)
Remove the embellisher using the
embellisher spannerA(from the
tool kit).
Central embellisher
(example: embellisher4)
Remove the embellisher using the
embellisher spanner (stored in the
glove box). Insert the spanner5in
the recess6.
To refit, align recess6with rim, clip
the embellisher back into position
and refit the nut using spanner5.
We would advise you to note the
number engraved on the spanner so
that you can replace it if it is lost.
Page 135 of 184
1
3
2
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page5
5.05

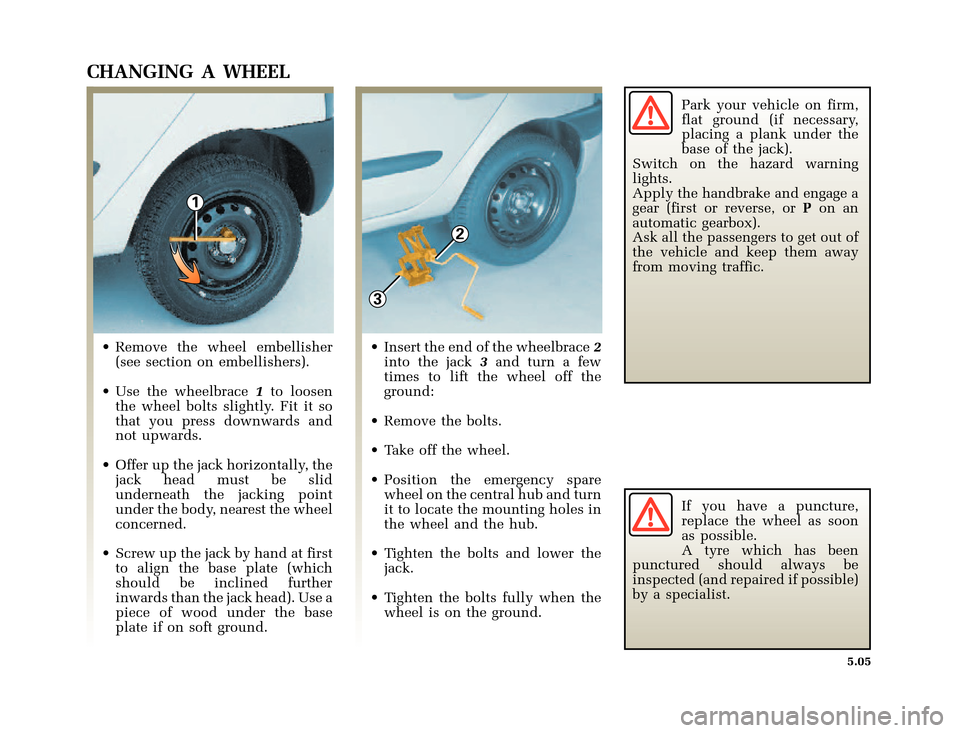

CHANGING A WHEEL
•Remove the wheel embellisher
(see section on embellishers).
• Use the wheelbrace1to loosen
the wheel bolts slightly. Fit it so
that you press downwards and
not upwards.
• Offer up the jack horizontally, the
jack head must be slid
underneath the jacking point
under the body, nearest the wheel
concerned.
• Screw up the jack by hand at first
to align the base plate (which
should be inclined further
inwards than the jack head). Use a
piece of wood under the base
plate if on soft ground.• Insert the end of the wheelbrace2
into the jack3and turn a few
times to lift the wheel off the
ground:
• Remove the bolts.
• Take off the wheel.
• Position the emergency spare
wheel on the central hub and turn
it to locate the mounting holes in
the wheel and the hub.
• Tighten the bolts and lower the
jack.
• Tighten the bolts fully when the
wheel is on the ground.Park your vehicle on firm,
flat ground (if necessary,
placing a plank under the
base of the jack).
Switch on the hazard warning
lights.
Apply the handbrake and engage a
gear (first or reverse, orPon an
automatic gearbox).
Ask all the passengers to get out of
the vehicle and keep them away
from moving traffic.
If you have a puncture,
replace the wheel as soon
as possible.
A tyre which has been
punctured should always be
inspected (and repaired if possible)
by a specialist.
Page 136 of 184
2
1
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page6
5.06
TYRES

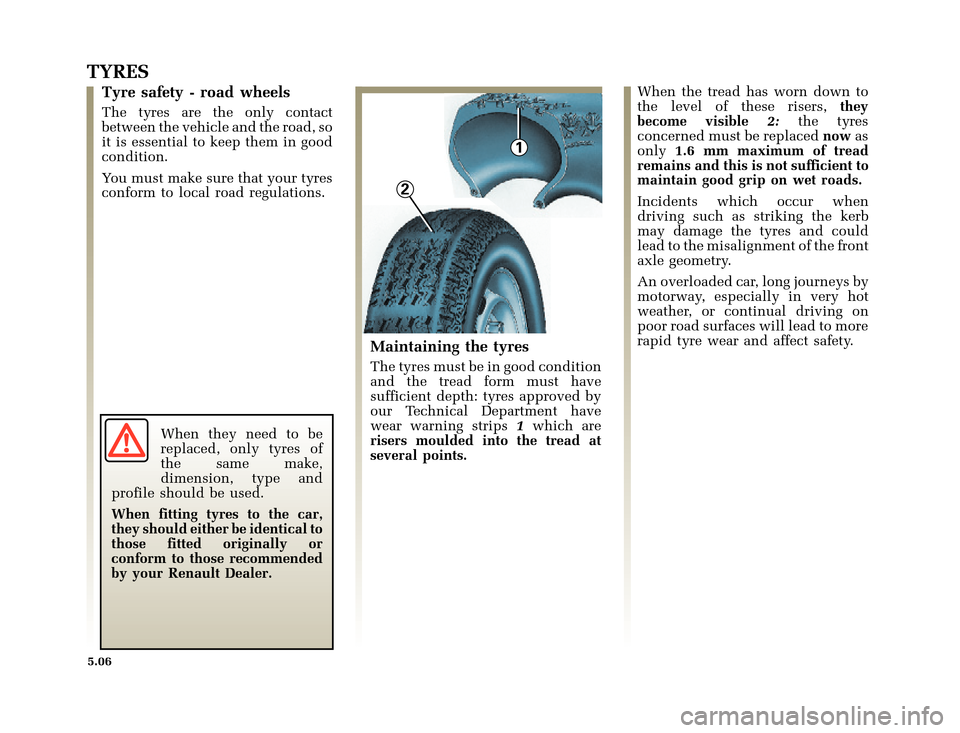

Tyre safety - road wheels
The tyres are the only contact
between the vehicle and the road, so
it is essential to keep them in good
condition.
You must make sure that your tyres
conform to local road regulations.
When they need to be
replaced, only tyres of
the same make,
dimension, type and
profile should be used.
When fitting tyres to the car,
they should either be identical to
those fitted originally or
conform to those recommended
by your Renault Dealer.
Maintaining the tyres
The tyres must be in good condition
and the tread form must have
sufficient depth: tyres approved by
our Technical Department have
wear warning strips1which are
risers moulded into the tread at
several points.When the tread has worn down to
the level of these risers,they
become visible2:the tyres
concerned must be replacednowas
only1.6 mm maximum of tread
remains and this is not sufficient to
maintain good grip on wet roads.
Incidents which occur when
driving such as striking the kerb
may damage the tyres and could
lead to the misalignment of the front
axle geometry.
An overloaded car, long journeys by
motorway, especially in very hot
weather, or continual driving on
poor road surfaces will lead to more
rapid tyre wear and affect safety.
Page 137 of 184
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page7
5.07
TYRES(continued)

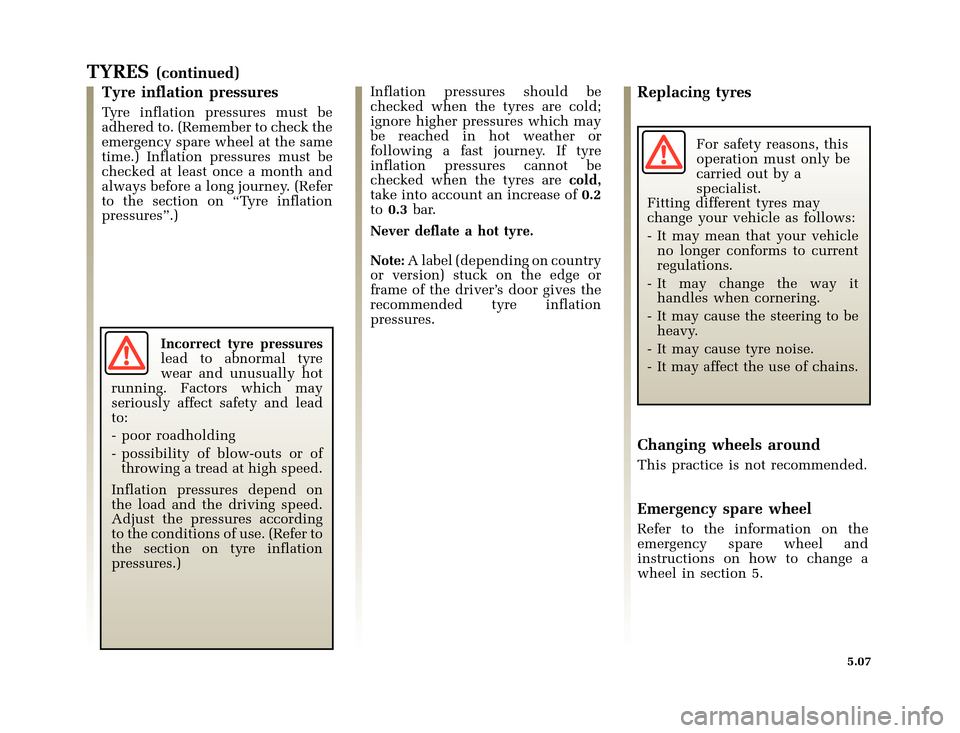

Tyre inflation pressures
Tyre inflation pressures must be
adhered to. (Remember to check the
emergency spare wheel at the same
time.) Inflation pressures must be
checked at least once a month and
always before a long journey. (Refer
to the section on “Tyre inflation
pressures”.)
Incorrect tyre pressures
lead to abnormal tyre
wear and unusually hot
running. Factors which may
seriously affect safety and lead
to:
- poor roadholding
- possibility of blow-outs or of
throwingatreadathighspeed.
Inflation pressures depend on
the load and the driving speed.
Adjust the pressures according
to the conditions of use. (Refer to
the section on tyre inflation
pressures.)Inflation pressures should be
checked when the tyres are cold;
ignore higher pressures which may
be reached in hot weather or
following a fast journey. If tyre
inflation pressures cannot be
checked when the tyres arecold,
take into account an increase of0.2
to0.3bar.
Never deflate a hot tyre.
Note:A label (depending on country
or version) stuck on the edge or
frame of the driver’s door gives the
recommended tyre inflation
pressures.
Replacing tyres
For safety reasons, this
operation must only be
carried out by a
specialist.
Fitting different tyres may
change your vehicle as follows:
- It may mean that your vehicle
no longer conforms to current
regulations.
- It may change the way it
handles when cornering.
- It may cause the steering to be
heavy.
- It may cause tyre noise.
- It may affect the use of chains.
Changing wheels around
This practice is not recommended.
Emergency spare wheel
Refer to the information on the
emergency spare wheel and
instructions on how to change a
wheel in section 5.
Page 138 of 184
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page8
5.08
TYRES(continued)

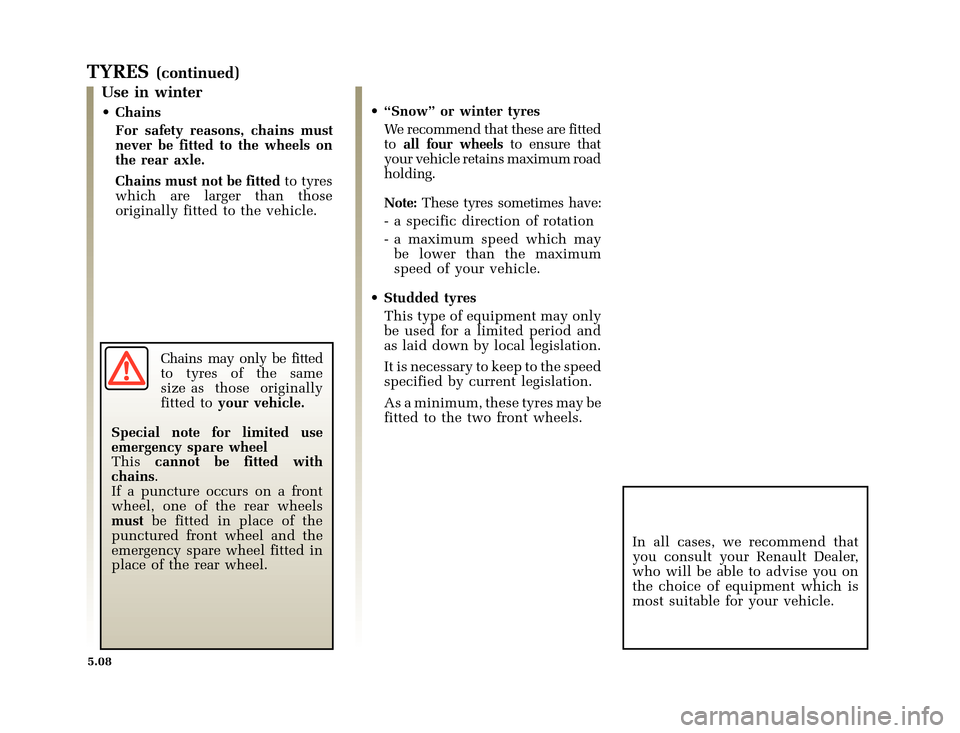

Use in winter
• Chains
For safety reasons, chains must
never be fitted to the wheels on
the rear axle.
Chains must not be fittedto tyres
which are larger than those
originally fitted to the vehicle.
Chains may only be fitted
to tyres of the same
size as those originally
fitted toyour vehicle.
Special note for limited use
emergency spare wheel
Thiscannot be fitted with
chains.
If a puncture occurs on a front
wheel, one of the rear wheels
mustbe fitted in place of the
punctured front wheel and the
emergency spare wheel fitted in
place of the rear wheel.• “Snow” or winter tyres
We recommend that these are fitted
toall four wheelsto ensure that
your vehicle retains maximum road
holding.
Note:These tyres sometimes have:
- a specific direction of rotation
- a maximum speed which may
be lower than the maximum
speed of your vehicle.
• Studded tyres
This type of equipment may only
be used for a limited period and
as laid down by local legislation.
It is necessary to keep to the speed
specified by current legislation.
As a minimum, these tyres may be
fitted to the two front wheels.
In all cases, we recommend that
you consult your Renault Dealer,
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.
Page 139 of 184
21
4
A
B
C
5
3
6
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page9
5.09
WIPERS

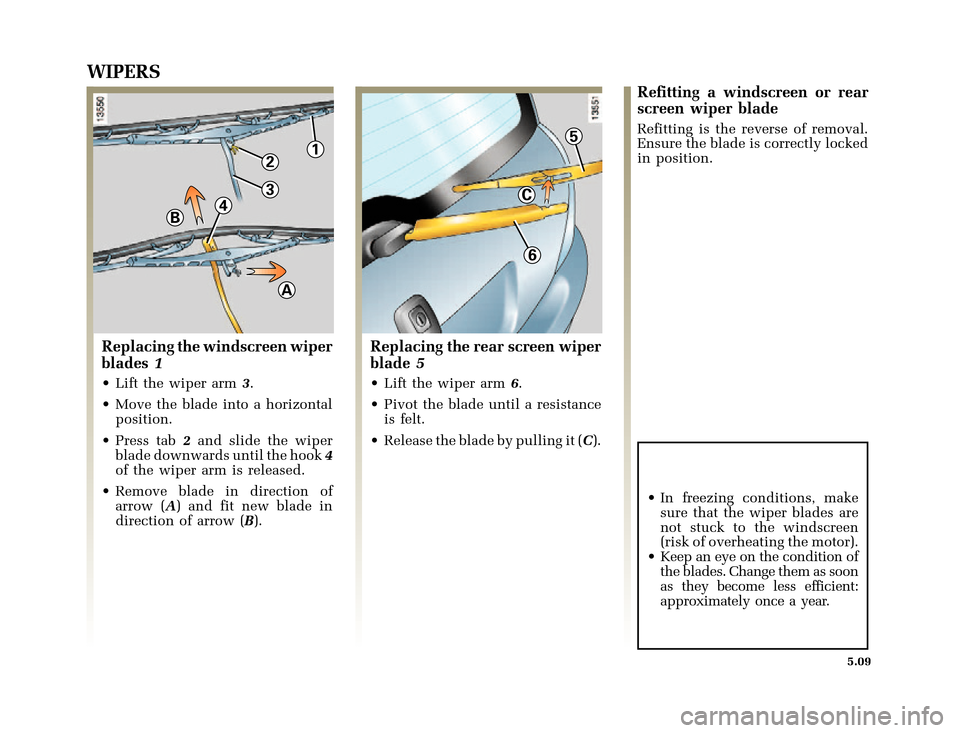

Replacing the windscreen wiper
blades1
• Lift the wiper arm3.
• Move the blade into a horizontal
position.
• Press tab2and slide the wiper
blade downwards until the hook4
of the wiper arm is released.
• Remove blade in direction of
arrow (A)andfitnewbladein
direction of arrow (B).
Replacing the rear screen wiper
blade5
• Lift the wiper arm6.
• Pivot the blade until a resistance
is felt.
• Release the blade by pulling it (C).
Refitting a windscreen or rear
screen wiper blade
Refitting is the reverse of removal.
Ensure the blade is correctly locked
in position.
• In freezing conditions, make
sure that the wiper blades are
not stuck to the windscreen
(risk of overheating the motor).
• Keep an eye on the condition of
the blades. Change them as soon
as they become less efficient:
approximately once a year.
Page 140 of 184
1
A
2
3
4
1 8 I U B * D T [ G 3 D J H
X65 - CLIOC:\Documentum\Checkout_47\Nu607-8gb_T5.WIN 16/10/2000 11:24-page10
5.10

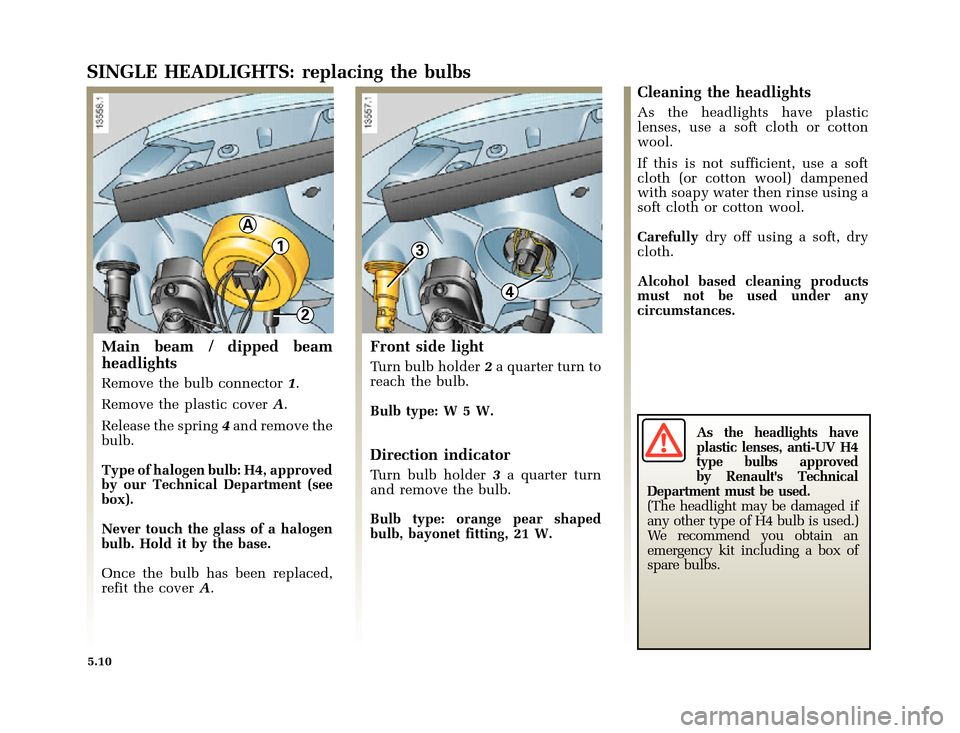

SINGLE HEADLIGHTS: replacing the bulbs
Main beam / dipped beam
headlights
Remove the bulb connector1.
Remove the plastic coverA.
Release the spring4and remove the
bulb.
Type of halogen bulb: H4, approved
by our Technical Department (see
box).
Never touch the glass of a halogen
bulb. Hold it by the base.
Once the bulb has been replaced,
refit the coverA.
Front side light
Turn bulb holder2a quarter turn to
reach the bulb.
Bulb type: W 5 W.
Direction indicator
Turn bulb holder3a quarter turn
and remove the bulb.
Bulb type: orange pear shaped
bulb, bayonet fitting, 21 W.
Cleaning the headlights
As the headlights have plastic
lenses, use a soft cloth or cotton
wool.
If this is not sufficient, use a soft
cloth (or cotton wool) dampened
with soapy water then rinse using a
soft cloth or cotton wool.
Carefullydry off using a soft, dry
cloth.
Alcohol based cleaning products
must not be used under any
circumstances.
As the headlights have
plastic lenses, anti-UV H4
type bulbs approved
by Renault's Technical
Department must be used.
(The headlight may be damaged if
any other type of H4 bulb is used.)
We recommend you obtain an
emergency kit including a box of
spare bulbs.
