Niveau huile moteur : généralités (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-7_BCSK85_Renault_4
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
Reading the level using the dipstick
– take out the dipstick;
– wipe the dipstick using a clean, lint-
free cloth;
– push the dipstick in as far as it will
go;
– take out the dipstick again;
– read the level: it should never fall
below minimum mark A or exceed
maximum mark B.
Once the operation has been carried
out, ensure that the dipstick is pushed
in as far as it will go.
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Maximum engine oil level
exceeded.
The oil level should only be read with
the dipstick as explained above.
If the oil level exceeds the maximum
level, do not start your vehicle and
contact an approved Dealer.
Under no circumstances
should maximum filling
level B be exceeded: this
could damage the engine
and the catalytic converter.
ENGINE OIL LEVEL: general information (2/2)
In order to prevent splashback, it is
recommended that a funnel be used
when topping up/filling with oil
A
B
A
B
Page 182 of 268
Downloaded from www.Manualslib.com manuals search engine 4.6
ENG_UD24922_4
Niveau huile moteur : appoint, remplissage (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-7_BCSK85_Renault_4
Jaune NoirNoir texte
Engine oil level: topping up, filling
Topping up/filling
The vehicle must be parked on level
ground and the engine should be cold
(for instance, before the engine is
started up for the first time in the day). –
Unscrew cap 1;
– top up the level (as a guide, the ca-
pacity between the minimum and
maximum reading on the dipstick 2
is between 1.5 and 2 litres, depend-
ing on the engine);
– wait for approximately 10 minutes to
allow the oil to flow into the engine;
– check the level using the dipstick 2
(as described above).
Once the operation has been com -
pleted, ensure that the dipstick is
pushed in as far as it will go and that
the cap is completely screwed in.
ENGINE OIL LEVEL: topping up/filling (1/2)
1
2
Do not exceed the max level and
do not forget to refit cap 1 and dip-
stick 2.
In order to prevent splashback, it is
recommended that a funnel be used
when topping up/filling with oil.
1
2
Page 183 of 268
Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
4.7
ENG_UD24922_4
Niveau huile moteur : appoint, remplissage (X85 - B85 - C85 - S85 - K85\
- Renault)
ENG_NU_853-7_BCSK85_Renault_4

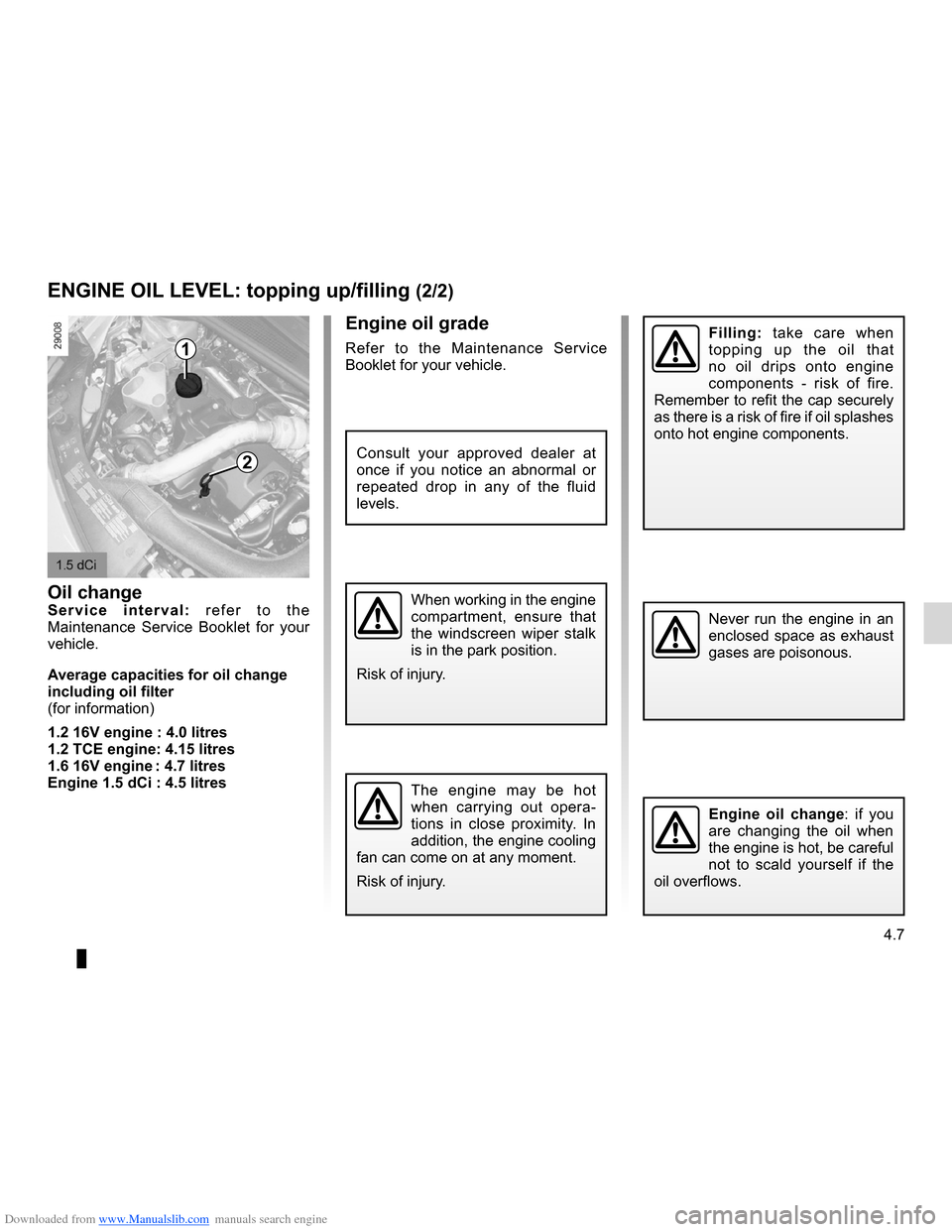

Engine oil grade
Refer to the Maintenance Service
Booklet for your vehicle.
ENGINE OIL LEVEL: topping up/filling (2/2)
Never run the engine in an
enclosed space as exhaust
gases are poisonous.
Engine oil change : if you
are changing the oil when
the engine is hot, be careful
not to scald yourself if the
oil overflows.
Filling: take care when
topping up the oil that
no oil drips onto engine
components - risk of fire.
Remember to refit the cap securely
as there is a risk of fire if oil splashes
onto hot engine components.
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Oil changeS e r v i c e i n t e r v a l : r e f e r t o t h e
Maintenance Service Booklet for your
vehicle.
Average capacities for oil change
including oil filter
(for information)
1.2 16V engine : 4.0 litres
1.2 TCE engine: 4.15 litres
1.6 16V engine : 4.7 litres
Engine 1.5 dCi : 4.5 litres
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
1
2
Page 184 of 268
Downloaded from www.Manualslib.com manuals search engine levels .................................................... (up to the end of the DU)
engine coolant ....................................................... (current page)
tanks and reservoirs coolant ............................................................. (current page)
levels: coolant ............................................................. (current page)
4.8
ENG_UD19908_3
Niveau / Filtres (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_4
Jaune NoirNoir texte
Frequency of checking coolant level
Check the coolant level regularly
(very severe damage is likely to be
caused to the engine if it runs out of
coolant).
If the level needs to be topped up, only
use products approved by our Technical
Department which ensure:
– protection against freezing;
– an anti-corrosion protection for the
cooling system.
Levels
engine coolant
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
No operations should be
carried out on the cooling
circuit when the engine is
hot.
Risk of burns.
Replacement interval
Refer to the Maintenance Service
Booklet for your vehicle.
Coolant level
With the engine switched off and on
level ground, the level when cold must
be between the MINI and MAXI marks
on reservoir 1.
Top this level up when cold before it
reaches the MINI mark.
LEVELS (1/3)
1
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.
Page 185 of 268
Downloaded from www.Manualslib.com manuals search engine brake fluid .............................................................. (current page)
levels: brake fluid ........................................................ (current page)
tanks and reservoirs brake fluid ........................................................ (current page)
JauneNoirNoir texte
4.9
ENG_UD19908_3
Niveau / Filtres (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_4
brake fluid
Level 1
It is normal for the level to drop as the
brake shoes become worn, but it must
never drop lower than the “MINI" warn-
ing line.
If you wish to check the disc and drum
wear yourself, you should obtain the
document explaining the checking pro-
cedure from the manufacturer ’s net -
work or web site.
Topping up
After any operation on the hydraulic cir-
cuit, a specialist must replace the brake
fluid.
Only use fluids approved by our
Technical Department (and taken from
a sealed container).
Replacement interval
Refer to the Maintenance Service
Booklet for your vehicle.
Brake fluid level
The level should be read with the engine
switched off and on level ground.
This should be checked frequently,
and immediately if you notice even the
slightest loss in braking efficiency.
LEVELS (2/3)
1
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Consult your approved dealer at
once if you notice an abnormal or
repeated drop in any of the fluid
levels.
Page 186 of 268
Downloaded from www.Manualslib.com manuals search engine filterair filter ............................................................. (current page)
tanks and reservoirs: windscreen washer .......................................... (current page)
levels: windscreen washer reservoir ........................... (current page)
filter diesel filter ........................................................ (current page)
filter passenger compartment filter .......................... (current page)
4.10
ENG_UD19908_3
Niveau / Filtres (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_4
windscreen washer/headlight washer reservoirs
Filters
NOTE
Depending on the vehicle, to find
out the fluid level, use the “dropper-
cap”. To do this, plug hole 2 (in the
cap) and remove the cap.
Filters
The replacement of filter components
(air filter, cabin filter, diesel filter, etc.)
is scheduled in the maintenance opera -
tions for your vehicle.
Replacement intervals for filter el -
ements: refer to the Maintenance
Service Booklet for your vehicle.
Windscreen/headlight washer
reservoir
Topping up
With the engine switched off, open
cap 1 . Fill until you can see the fluid,
then replace the cap.
Liquid
Screen wash product (product with an-
tifreeze in winter).
LEVELS (3/3)/FILTERS
11
2
Jets
Use a needle-type tool to adjust the
angle of the windscreen washer jets.
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in the park position.
Risk of injury.
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Page 187 of 268
Downloaded from www.Manualslib.com manuals search engine 4.11
ENG_UD20297_3
Pression de gonflage des pneumatiques (X85 - B85 - C85 - S85 - K85 - Re\
nault)
ENG_NU_853-7_BCSK85_Renault_4
Tyre pressures
TyRE pRESSURE
The tyre pressure is indicated on
label A affixed to the edge of the driv -
er’s door. Open the door to read it.
B : dimension of the tyres fitted to the
vehicle.
C: intended driving speed.
D: recommended pressure for optimis-
ing fuel consumption.
Note: driving comfort may be altered. E: front tyre pressure.
F: rear tyre pressure.
G
: tyre pressure for the emergency
spare wheel.
Tyre safety and use of snow
chains
Refer to the information on “Tyres”
in Section 5 for the servicing con -
ditions and, depending on the ver -
sion, the use of chains.
Special note
For vehicles used fully laden
( m a x i m u m p e r m i s s i b l e a l l - u p
weight) and towing a trailer. The
maximum speed must be limited
to 60 mph (100 km/h) and the tyre
pressure increased by 0.2 bar.
Refer to the information on “Weights”
in Section 6.
When they need to be replaced, only tyres of the same make, size, type
and profile should be used.
Tyres fitted to the vehicle should either be identical to those fitted
originally or conform to those recommended by your approved
dealer.
A
C
D
FE
G
A
B
C
E
E
F
F
Page 188 of 268
Downloaded from www.Manualslib.com manuals search engine battery................................................... (up to the end of the DU)
maintenance: mechanical ...................................... (up to the end of the DU)
4.12
ENG_UD19991_3
Batterie (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_4
This is located under cover 1 and does
not need to be serviced. Label A
Observe the indications on the battery:
–
2 naked flames and smoking forbid-
den;
– 3 eye protection required;
– 4 keep away from children;
– 5 explosive materials;
– 6 refer to the handbook;
– 7 corrosive materials.
Battery
BATTER y
1
2
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water. If necessary,
consult a doctor.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
The battery is a specific
type , please ensure it is
replaced with the same
type. Consult an approved
dealer.
A234
567
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
Replacing the batteryAs this operation is complex, we advise
you to contact an approved Dealer.
Page 189 of 268
Downloaded from www.Manualslib.com manuals search engine maintenance:bodywork ........................................ (up to the end of the DU)
washing ................................................ (up to the end of the DU)
paintwork maintenance ................................... (up to the end of the DU)
anti-corrosion protection ........................................ (current page)
4.13
ENG_UD25392_1
Entretien de la carrosserie (X95 - J95 - R95 - Renault)
ENG_NU_853-7_BCSK85_Renault_4
Bodywork maintenance
BODyWORK MAINTENANCE (1/2)
Allow rust to form following minor im -
pacts.
Use solvents not approved by our
Technical Department to remove stains
as this could damage the paintwork.
Drive frequently in snow or muddy con-
ditions without washing the vehicle,
particularly under the wheel arches and
body.
Minor impacts
You should take a minimum number of
precautions in order to safeguard your
vehicle against such risks and not to
lose the benefit of your vehicle’s anti
-
corrosion protection.
What you should not do
Do not degrease or clean mechanical
components (e.g. the engine compart -
ment), underneath the body, parts with
hinges (e.g. inside the charging flap)
and painted plastic external fittings
(e.g. bumpers) using high-pressure
cleaning equipment or by spraying on
products not approved by our Technical
Department. If adequate precautions
are not taken, this could give rise to cor-
rosion or operational faults.
Wash the vehicle in bright sunlight or
freezing temperatures.
Scrape off mud or dirt without pre-wet-
ting.
Allow dirt to accumulate on the exterior.
A well-maintained vehicle will last
longer. It is therefore recommended to
maintain the exterior of the vehicle reg-
ularly.
protection against the effects
of corrosive agents
Although your vehicle has been treated
with very effective anti-corrosion prod
-
ucts, it nevertheless remains subject to
the effects of different parameters.
Corrosive agents in the
atmosphere:
– atmospheric pollution (built-up and
industrial areas);
– saline atmospheres (near the sea,
particularly in hot weather);
– seasonal and damp weather condi -
tions, (e.g. road salt in winter, water
from road cleaners, etc.).
Abrasive action
Wind-borne dust and sand, mud, road
grit thrown up by other vehicles, etc.
Page 190 of 268
Downloaded from www.Manualslib.com manuals search engine 4.14
ENG_UD25392_1
Entretien de la carrosserie (X95 - J95 - R95 - Renault)
ENG_NU_853-7_BCSK85_Renault_4
– bird droppings , which cause a
chemical reaction with the paint that
rapidly discolours paintwork and
may even cause the paint to peel
off;
Wash the vehicle immediately to
remove these marks since it is im -
possible to remove them by polish -
ing;
– salt, particularly in the wheel arches
and underneath the body after driv -
ing in areas where the roads have
been gritted.
Using a roller type car wash
Return the windscreen wiper stalk to
the Park position (refer to the informa-
tion on the “Windscreen washer, wiper”
in Section 1). Check the mounting of
external accessories, additional lights
and mirrors, and ensure that the wiper
blades are secured with adhesive tape.
Remove the radio aerial mast if your
vehicle is fitted with this equipment.
Remember to remove the tape and refit
the antenna after washing.y ou should
Observe the vehicle stopping distances
when driving on gravelled surfaces to
prevent paint damage.
Repair, or have repaired quickly, areas
where the paint has been damaged, to
prevent corrosion spreading.
Remember to visit the body shop pe -
riodically in order to maintain your
anti-corrosion warranty. Refer to the
Maintenance Service Booklet.
Respect local regulations about wash -
ing vehicles (e.g. do not wash your ve-
hicle on a public highway).
Wash your car frequently, with the
engine off, with cleaning products rec-
ommended by the manufacturer (never
use abrasive products). Rinse thor -
oughly beforehand with a jet:
– spots of tree resin and industrial
grime;
– mud in the wheel arches and under -
neath the body which forms damp
patches;
BODyWORK MAINTENANCE (2/2)
If it is necessary to clean mechani -
cal components, hinges, etc., spray
them with products approved by our
Technical Department to protect them
after they have been cleaned.
Cleaning the headlights
As the headlights are made of plastic
“glass”, use a soft cloth or cotton wool
to clean them. If this does not clean
them properly, moisten the cloth with
soapy water, then wipe clean with a soft
damp cloth or cotton wool.
Finally, carefully dry off with a soft dry
cloth.
Cleaning products containing alco -
hol must not be used.
We have selected special products
to care for your vehicle and you can
obtain these from the manufactur -
er’s accessory outlets.
