Tableau de bord : afficheurs et indicateurs (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1
INSTRUMENT PANEL: displays and indicators (3/3)
Door indicator light or
multifunction display 7
(depending on vehicle)
Opening elements warning
light
Shows when a door or the tailgate is
open or not closed properly.
OR
Multifunction display
This indicates:
– that a door or the tailgate is open or
not properly closed,
– the gear engaged (for vehicles fitted
with an automatic or Quickshift gear-
box).7

Downloaded from www.Manualslib.com manuals search engine control instruments ............................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
trip computer and warning system ........(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
instrument panel messages ..................(up to the end of the DU)
1.63
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-7_BCSK85_Renault_1
On-board computer
ON-BOARD COMPUTER: general information (1/3)
Trip computer and warning
system
This displays the following information
on instrument panel display A or B (po-
sition varies according to vehicle):
– information messages (distance
travelled, journey parameters etc.);
– Operating fault messages (gener -
ally connected to the
© warning
light);
– Warning messages (linked to the
® warning light).
A
B

Downloaded from www.Manualslib.com manuals search engine 1.64
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-7_BCSK85_Renault_1
Jaune NoirNoir texte
ON-BOARD COMPUTER: general information (2/3)
Display selection keys 1
and 2
Scroll through the following informa-
tion in this order or reverse the order by
briefly pressing the key repeatedly.
a) total mileage recorder; trip mileage
recorder,
b) journey parameters:
– fuel used,
– average fuel consumption,
– current fuel consumption (de -
pending on vehicle),
– estimated range,
– distance travelled. c)
mileage before service,
d) programmed speed (speed limiter/
cruise control),
e) on-board log: operating fault and in-
formation message readout.
1
2

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.65
ENG_UD24928_6
Ordinateur de bord : généralités (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-7_BCSK85_Renault_1

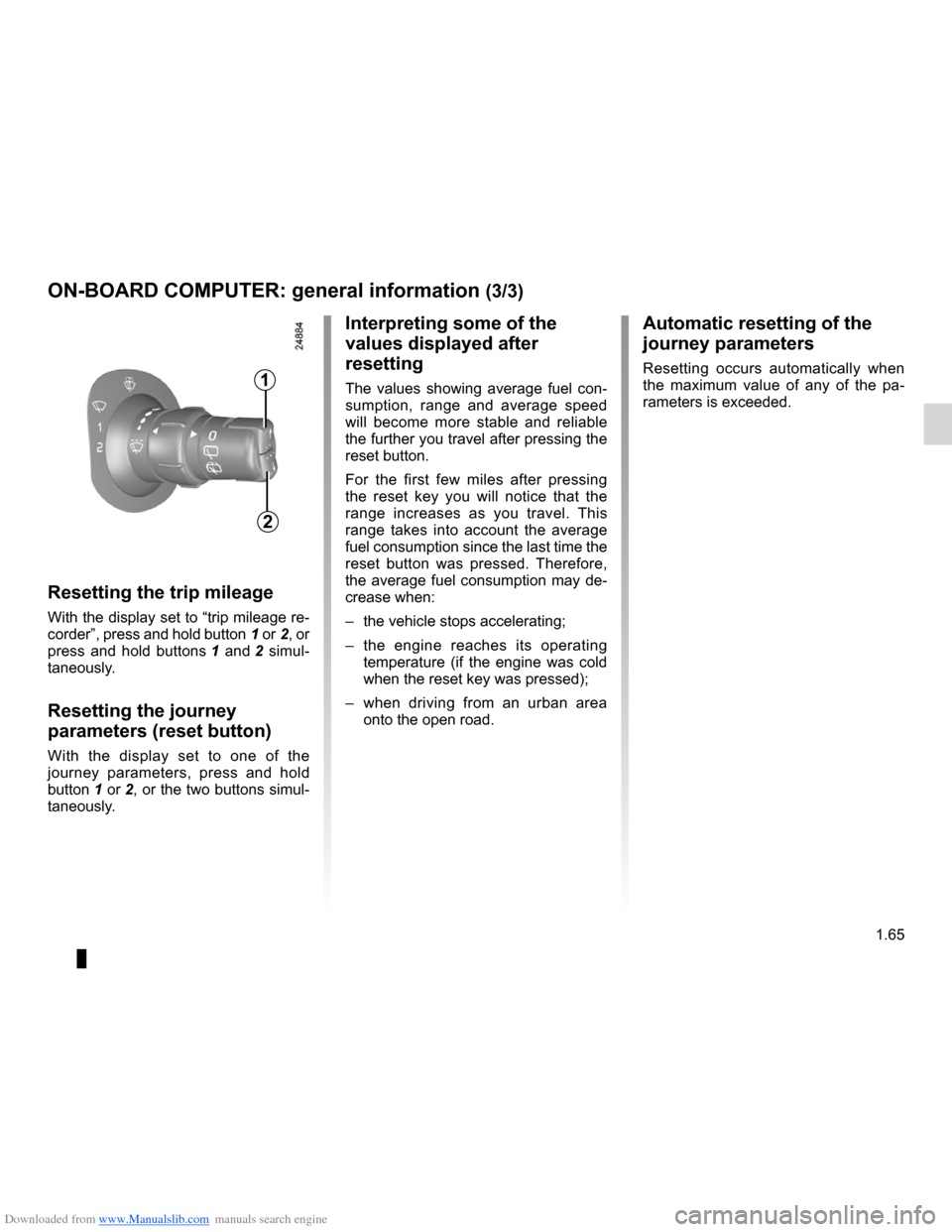

ON-BOARD COMPUTER: general information (3/3)
Resetting the trip mileage
With the display set to “trip mileage re-
corder”, press and hold button 1 or 2, or
press and hold buttons 1 and 2 simul -
taneously.
Resetting the journey
parameters (reset button)
With the display set to one of the
journey parameters, press and hold
button 1 or 2, or the two buttons simul-
taneously.
Interpreting some of the
values displayed after
resetting
The values showing average fuel con -
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the average fuel consumption may de-
crease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
– when driving from an urban area
onto the open road.
Automatic resetting of the
journey parameters
Resetting occurs automatically when
the maximum value of any of the pa -
rameters is exceeded.1
2

Downloaded from www.Manualslib.com manuals search engine 1.66
ENG_UD24936_1
Ordinateur de bord : paramètres de voyage (X85 - B85 - C85 - S85 - K\
85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1
Jaune NoirNoir texte

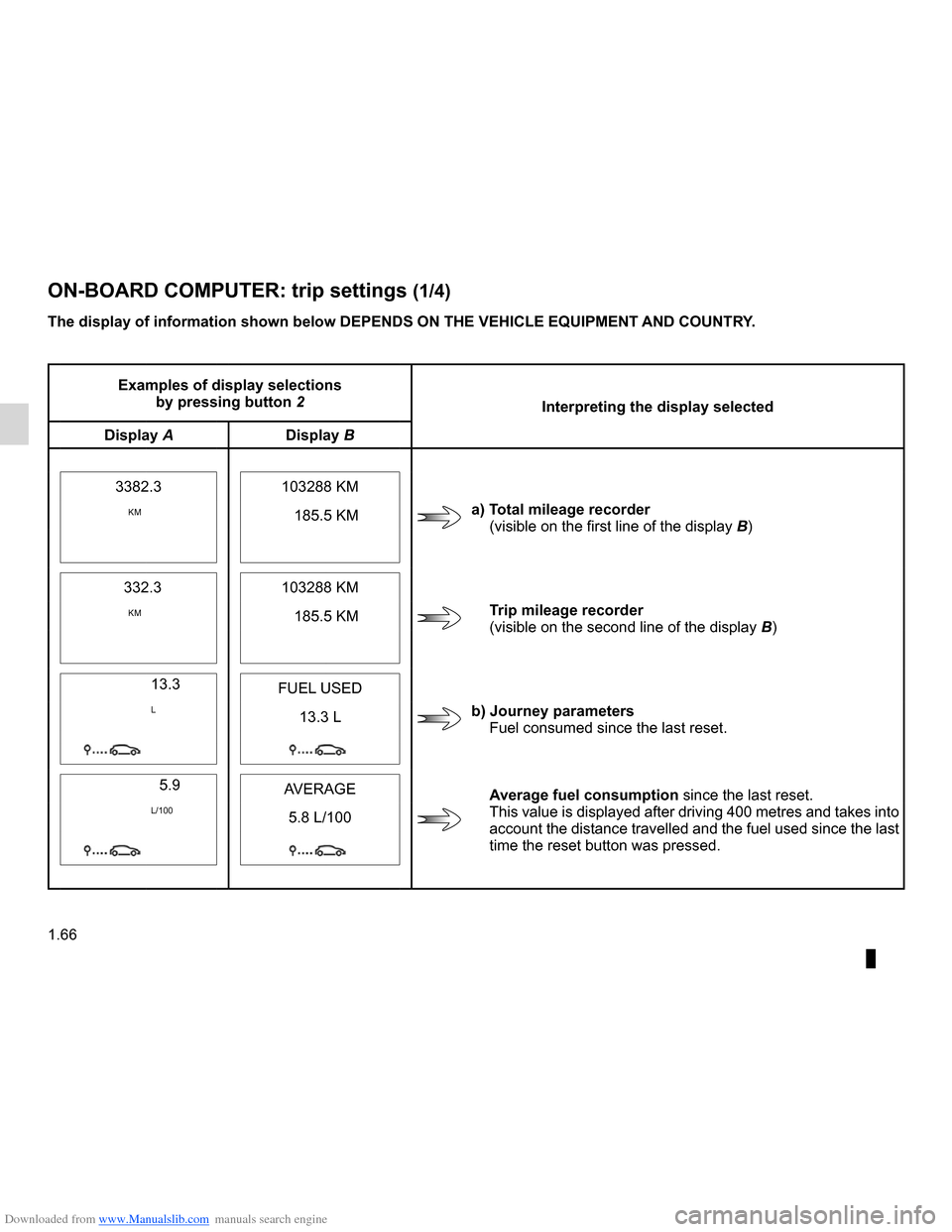

ON-BOARD COMPUTER: trip settings (1/4)
Examples of display selections
by pressing button 2
Interpreting the display selected
Display A Display B
3382.3 103288 KM
a) Total mileage recorder
(visible on the first line of the display B)KM 185.5 KM
332.3 103288 KM
Trip mileage recorder
(visible on the second line of the display B)KM 185.5 KM
13.3 FUEL USED
b) Journey parameters
Fuel consumed since the last reset.L13.3 L
5.9 AVERAGEAverage fuel consumption since the last reset.
This value is displayed after driving 400 metres and takes into
account the distance travelled and the fuel used since the last
time the reset button was pressed.L/1005.8 L/100
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.67
ENG_UD24936_1
Ordinateur de bord : paramètres de voyage (X85 - B85 - C85 - S85 - K\
85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1

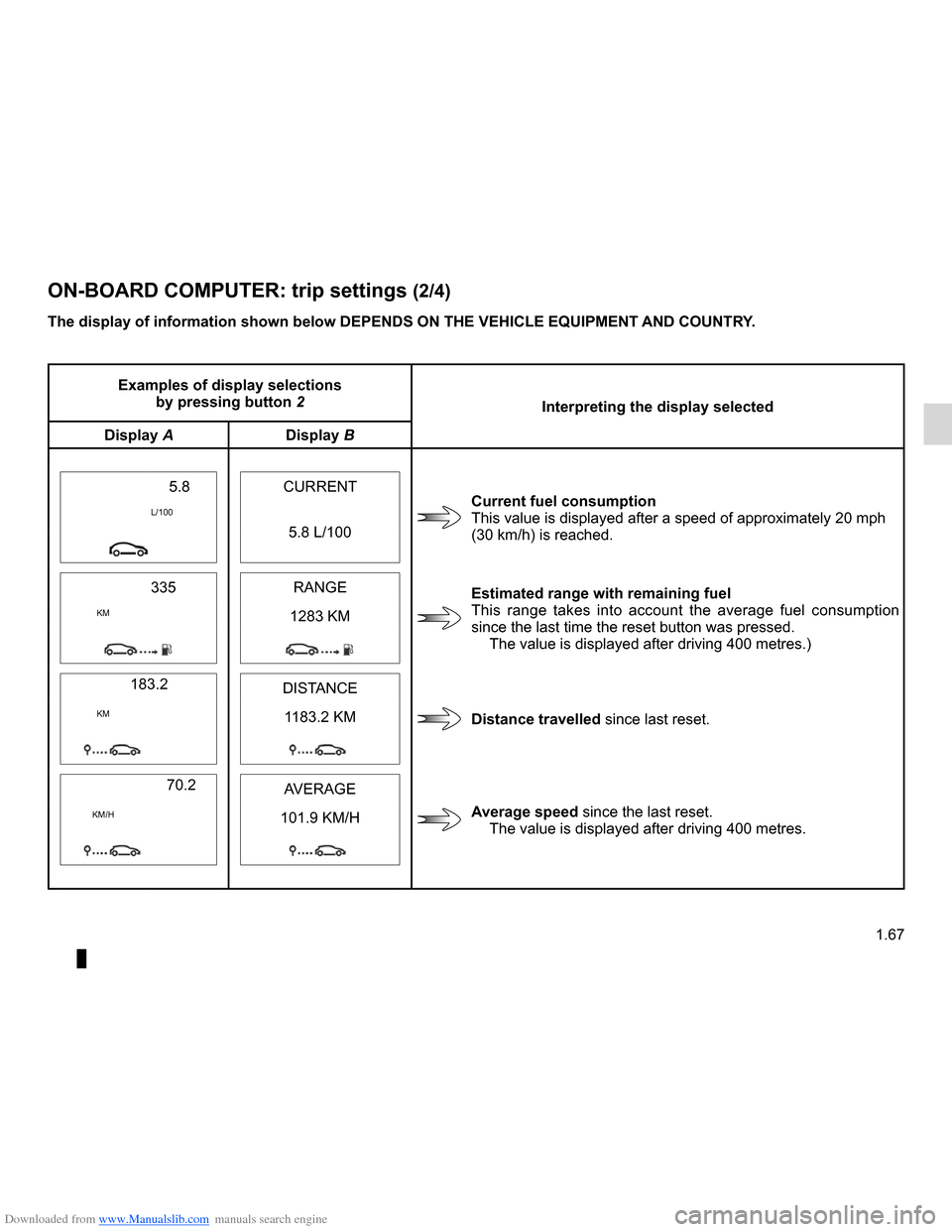

ON-BOARD COMPUTER: trip settings (2/4)
Examples of display selections
by pressing button 2
Interpreting the display selected
Display A Display B
5.8 CURRENT
Current fuel consumption
This value is displayed after a speed of approximately 20 mph
(30 km/h) is reached. L/100
5.8 L/100
335 RANGEEstimated range with remaining fuel
This range takes into account the average fuel consumption
since the last time the reset button was pressed.
The value is displayed after driving 400 metres.)
KM1283 KM
183.2 DISTANCE
Distance travelled since last reset.KM1183.2 KM
70.2
AVERAGE
Average speed since the last reset.
The value is displayed after driving 400 metres.KM/H 101.9 KM/H
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

Downloaded from www.Manualslib.com manuals search engine 1.68
ENG_UD24936_1
Ordinateur de bord : paramètres de voyage (X85 - B85 - C85 - S85 - K\
85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1
Jaune NoirNoir texte
ON-BOARD COMPUTER: trip settings (3/4)
Examples of display selections
by pressing button 2 Interpreting the display selected
Display A Display Bc) Distance before service
Distance remaining until the next service.
There are several scenarios:
–
remaining mileage less than 900 miles (1,500 km) or next serv-
ice due within two months. When the display selected is “mile-
age before service”, symbol
Ê appears on display A . The
message “Service due” appears on display B.
– mileage before service equal to 0 miles/km or date of serviced
reached. When the display selected is “mileage before service”,
symbol
Ê flashes on display A accompanied by warning light
©. The message “Service vehicle” is shown on display B
accompanied by the symbol
Ê and warning light ©.
12000 SERVICE DUE IN

KMÊ12000 KM
NB: depending on the vehicle, the mileage before service changes according to the driving style (frequent driving at low speed,
door-to-door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next service can there-
fore decrease more quickly in some cases than the actual distance travel\
led.
Resetting the display after the service in accordance with the maintenan\
ce schedule.
The mileage before service must only be reset after a service which complies with the recommendations in the maintenance
schedule.
If you decide to change the oil more frequently, do not reset this data each time the oil is changed to avoid exceeding the replace -
ment intervals for other parts in the maintenance schedule.
Special note: to reset the distance before service, press and hold one of the display reset buttons for approximately 10 seconds
until the display shows the mileage permanently.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.69
ENG_UD24936_1
Ordinateur de bord : paramètres de voyage (X85 - B85 - C85 - S85 - K\
85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1
ON-BOARD COMPUTER: trip settings (4/4)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of display selections
by pressing button 2
Interpreting the display selected
Display A Display B
70 SPEED LIMITER
d) Cruise control/speed limiter programmed speed (depend -
ing on vehicle) Refer to the information on the “Cruise control - Speed limiter”
in Section 2.
KM
70 KM/H
CRUISE CONTROL 70 KM/H
AUTO LIGHTS
DEACTIVATED
e) On-board log Successive display:
– information messages (depending on the vehicle: auto -
matic headlights, etc.),
– of operating fault messages (check the injection system,
etc.).

Downloaded from www.Manualslib.com manuals search engine 1.71
ENG_UD24930_1
Ordinateur de bord : messages d’anomalies de fonctionnement (X85 - \
B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-7_BCSK85_Renault_1
TRIP COMPUTER AND WARNING SYSTEM: operating fault messages
These appear with the © warning light and mean that you should drive very carefully to an authorised dealer as
soon as possible. If you fail to follow this recommendation, you risk da\
maging your vehicle.
They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The
©
warning light stays on. Examples of operating fault messages are given i\
n the following pages.
Examples of messages Interpretation of messages
« CHECK ESP »Indicates a fault in the ESP system. Please refer to the information on the “Electronic
Stability Program: ESP” in Section 2.
« CHECK FUEL FILTER » Indicates that there is water present in the diesel fuel.
Contact an approved dealer as soon as possible.
« ELECTRONIC FAULT » Indicates a fault in the electronic management of your vehicle.
Contact an approved dealer as soon as possible.
« CHECK GEARBOX »Indicates that a fault has occurred in the gearbox; contact an approved dealer as soon as
possible.
« CHECK AUTO LIGHTS »Indicates an automatic lighting operating fault; contact an approved dea\
ler.
« CHECK STEERING » Indicates a power-assisted steering system operating fault.

Downloaded from www.Manualslib.com manuals search engine 1.72
ENG_UD24929_1
Ordinateur de bord : messages d’alerte (X85 - B85 - C85 - S85 - K85 \
- Renault)
ENG_NU_853-7_BCSK85_Renault_1
TRIP COMPUTER AND WARNING SYSTEM: warning message
These appear with the ® warning light and require you to stop immediately, for your own safety, as soon as traffic
conditions allow. Stop your engine and do not restart it. Contact an approved Dealer.
Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually
or alternately (when there are several messages to be displayed), and \
may be accompanied by a warning light and/or a beep.
Examples of messages Interpretation of messages
« INJECTION FAULT » Indicates that the vehicle has a serious engine fault.
« ENGINE OVERHEATING » Indicates that the engine is overheating.
« LOW BATTERY »Indicates a fault with the battery charging circuit.
« STEERING FAULT » Indicates a fault in the vehicle’s power-assisted steering.
« GEARBOX OVERHEATING » Indicates that the gearbox is overheating.
« BRAKING FAULT » Indicates a fault in the braking circuit.
« OIL PRESSURE FAULT » Indicates an oil pressure fault.
