RENAULT CLIO SPORT TOURER 2012 X85 / 3.G Owners Manual
Manufacturer: RENAULT, Model Year: 2012, Model line: CLIO SPORT TOURER, Model: RENAULT CLIO SPORT TOURER 2012 X85 / 3.GPages: 264, PDF Size: 7.7 MB
Page 241 of 264
JauneNoirNoir texte
6.5
ENG_UD19795_3
Dimensions (en mètres) (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_6
1,450 to 1,470 (1)
2,025
0,805 2,5750,822
4,203
1,497*

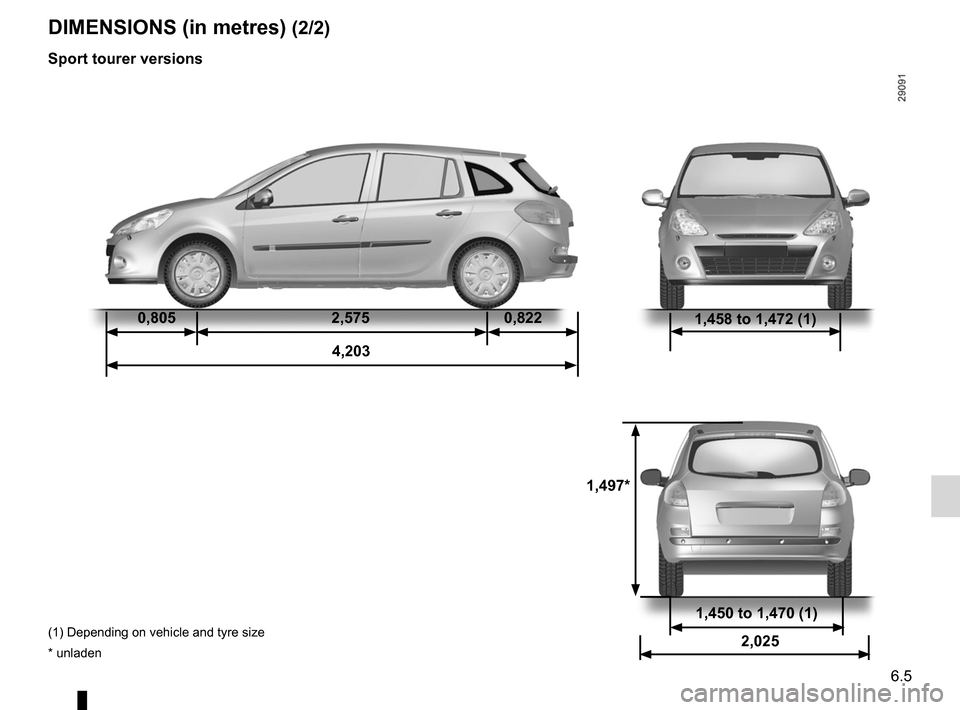

diMensions (in metres) (2/2)
1,458 to 1,472 (1)
(1) Depending on vehicle and tyre size
* unladen
sport tourer versions
Page 242 of 264
technical specifications ......................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
engine specifications ............................ (up to the end of the DU)
6.6
ENG_UD24924_2
Caractéristiques moteurs (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_6

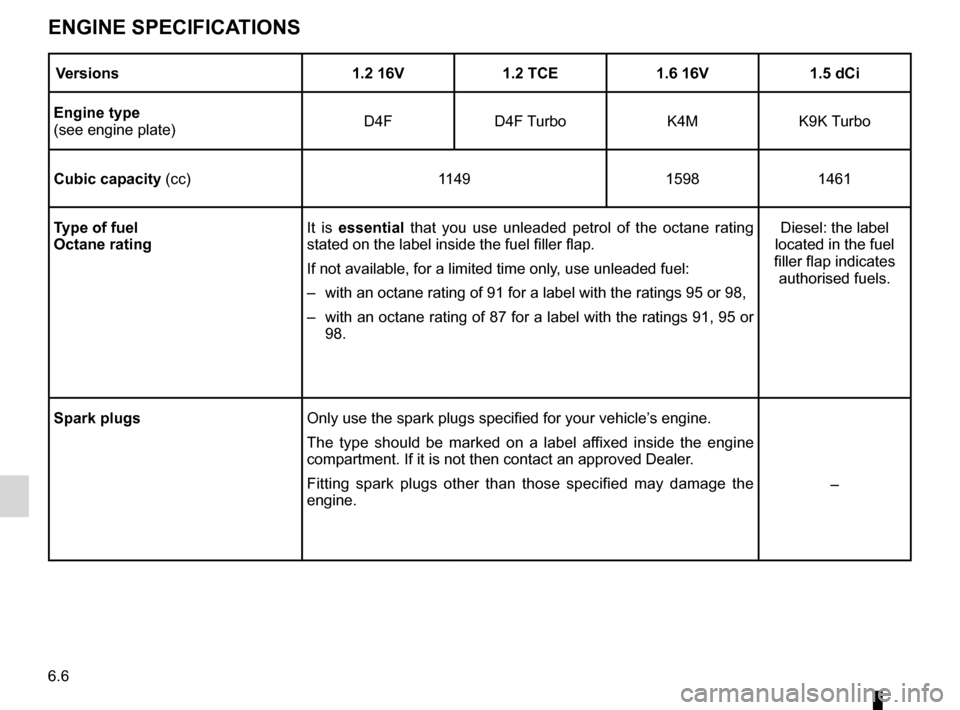

Engine specifications
enGine specifications
Versions 1.2 16V1.2 tce 1.6 16V1.5 dci
engine type
(see engine plate) D4F
D4F Turbo K4MK9K Turbo
cubic capacity (cc) 114915981461
t ype of fuel
octane rating It is
essential that you use unleaded petrol of the octane rating
stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label with the ratings 95 or 98,
– with an octane rating of 87 for a label with the ratings 91, 95 or
98. Diesel: the label
located in the fuel
filler flap indicates authorised fuels.
spark plugs Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine
compartment. If it is not then contact an approved Dealer.
Fitting spark plugs other than those specified may damage the
engine. –
Page 243 of 264
technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
weights ................................................. (up to the end of the DU)
transporting objects on the roof ....................................... (up to the end of the DU)
load permitted on the roof .....................(up to the end of the DU)
6.7
ENG_UD26555_5
Masses (en kg) (X85 - B85 - C85 - S85 - K85 - Renault)
ENG_NU_853-8_BCSK85_Renault_6
Towing weights
Weights
WeiGhts (in kg)
the weights indicated for a basic vehicle without options: they vary depending on the your vehicle’s equipment.
consult your approved dealer.
Maximum permissible all-up weight (MMac)
Maximum permissible all-up weight (MMta)
t otal train weight (MtR) Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked t railer Weight* found by calculating: MtR - MMac
Unbraked t railer Weight* 535
permissible nose weight* 75
Maximum permissible load on roof 80 kg (including the carrying device)
* t owing weight (towing a caravan, boat, etc.)
Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on the identification plate.
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following
is permitted:
– rear axle MMTA exceeded by no more than 15%,
– maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must
be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by
10% at an altitude of 1,000 metres and by an additional 10% for each 1,0\
00 metres thereafter.
Weight transfer (except utility version)
Depending on the local legislation, if the Maximum Authorised Mass of the vehicle has not been reached, up to 300 kg can be
transferred to the braked trailer, within the limits of the Gross Train Weight.
Page 244 of 264
technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.8
ENG_UD7339_1
Pièces de rechange et réparations (X76 - Renault)
ENG_NU_853-8_BCSK85_Renault_6

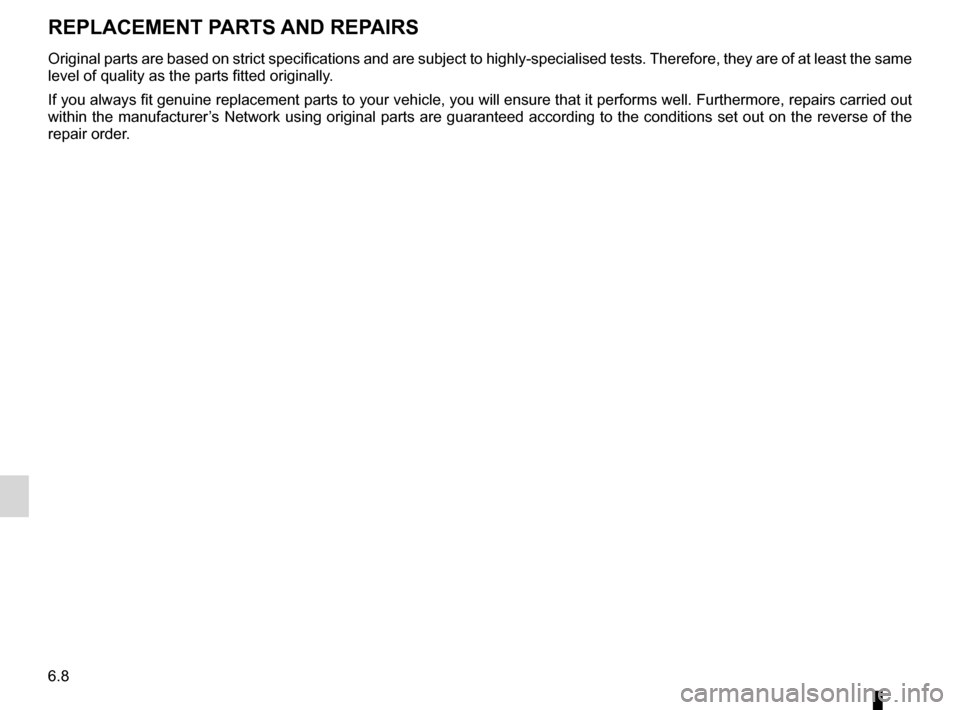

Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
ReplaceMent paRts and RepaiRs
Page 245 of 264
service sheets....................................... (up to the end of the DU)
maintenance: mechanical ...................................... (up to the end of the DU)
maintenance: mileage before service .................... (up to the end of the DU)
6.9
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - L38 - L43 - L4\
7 - X61 BUp - X33 - Renault)
ENG_NU_853-8_BCSK85_Renault_6

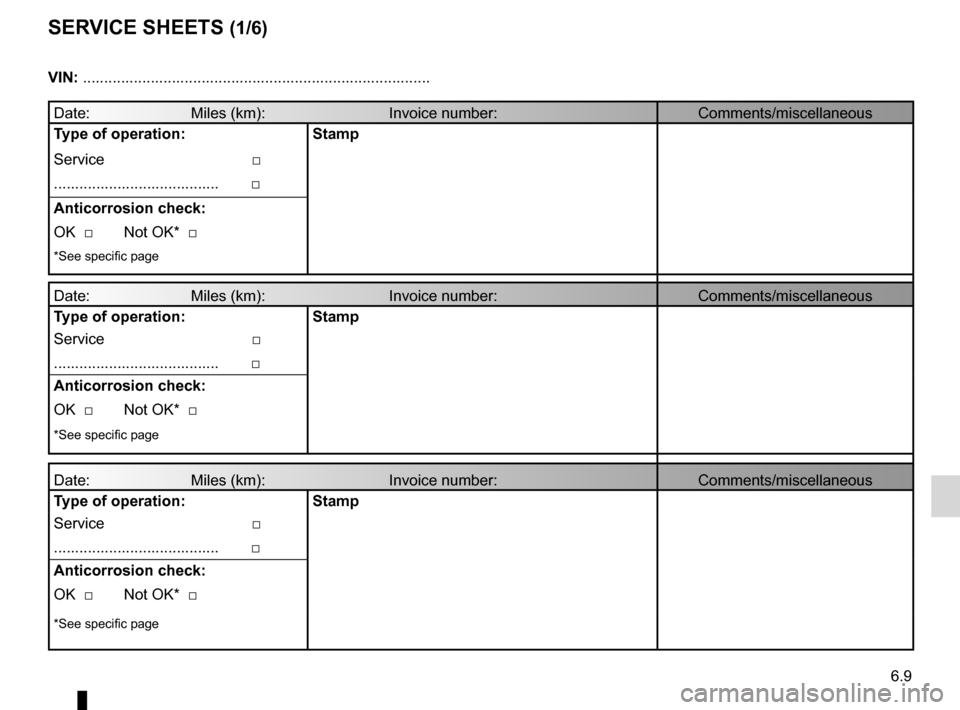

Service sheets
seRVice sheets (1/6)
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Vin: .......................................................................\
...........
Page 246 of 264
6.10
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - L38 - L43 - L4\
7 - X61 BUp - X33 - Renault)
ENG_NU_853-8_BCSK85_Renault_6
Jaune NoirNoir texte

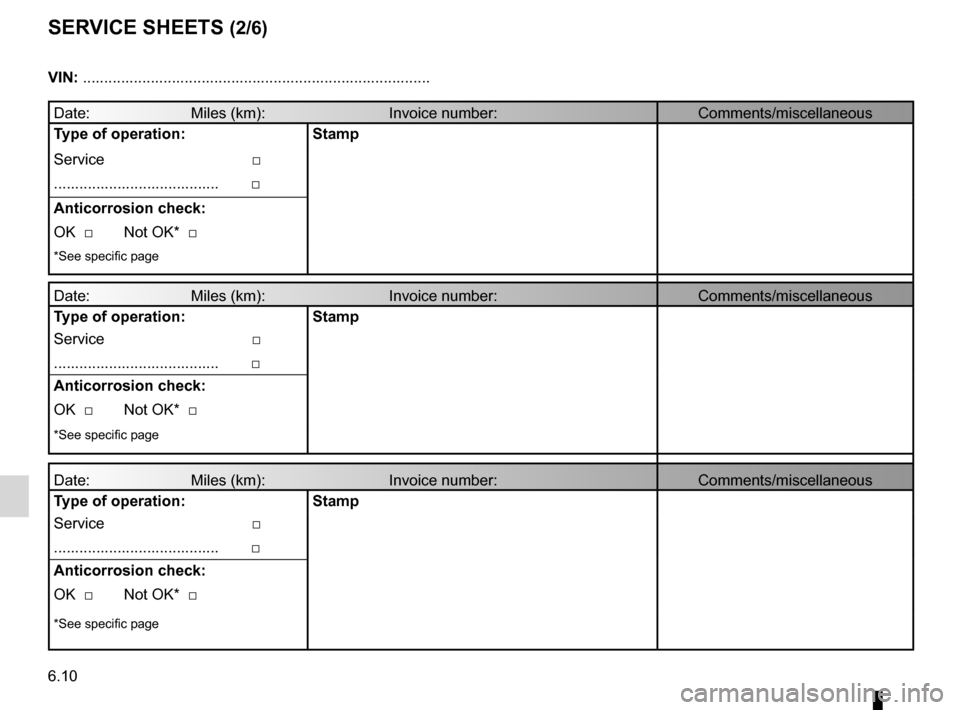

seRVice sheets (2/6)
Vin: .......................................................................\
...........
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Page 247 of 264
JauneNoirNoir texte
6.11
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - L38 - L43 - L4\
7 - X61 BUp - X33 - Renault)
ENG_NU_853-8_BCSK85_Renault_6

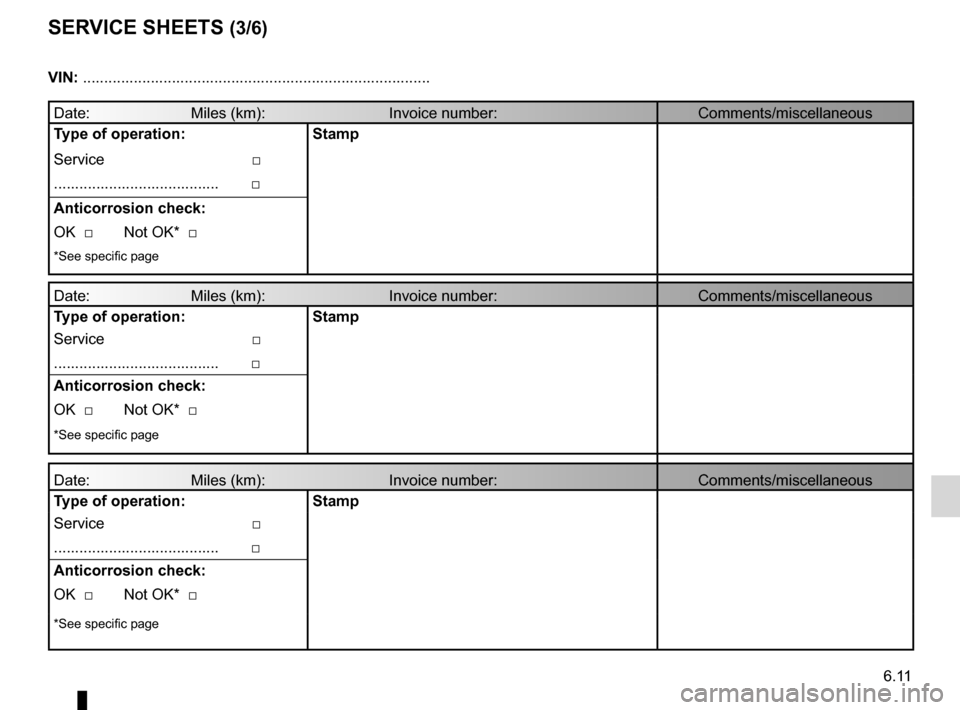

seRVice sheets (3/6)
Vin: .......................................................................\
...........
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Page 248 of 264
6.12
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - L38 - L43 - L4\
7 - X61 BUp - X33 - Renault)
ENG_NU_853-8_BCSK85_Renault_6
Jaune NoirNoir texte
seRVice sheets (4/6)
Vin: .......................................................................\
...........
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Page 249 of 264
JauneNoirNoir texte
6.13
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - L38 - L43 - L4\
7 - X61 BUp - X33 - Renault)
ENG_NU_853-8_BCSK85_Renault_6
seRVice sheets (5/6)
Vin: .......................................................................\
...........
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Page 250 of 264
6.14
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - L38 - L43 - L4\
7 - X61 BUp - X33 - Renault)
ENG_NU_853-8_BCSK85_Renault_6
seRVice sheets (6/6)
Vin: .......................................................................\
...........
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anticorrosion check:
OK □ Not OK* □
*See specific page
