Page 131 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.27
TYRE PRESSURE MONITORING SYSTEM (2/3)
Display
The display 1  and the warning light 4
 on the instrument panel warn
you of any tyre pressure faults (flat tyre,
punctured tyre, system fault,

Page 132 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.28
Replacing wheels/tyres
This system requires specific equip-
ment (wheels, tyres, hubcaps, etc.).
Please see the information on “Tyres”
in Section 5.
Contact an approved Dealer to fit new
t

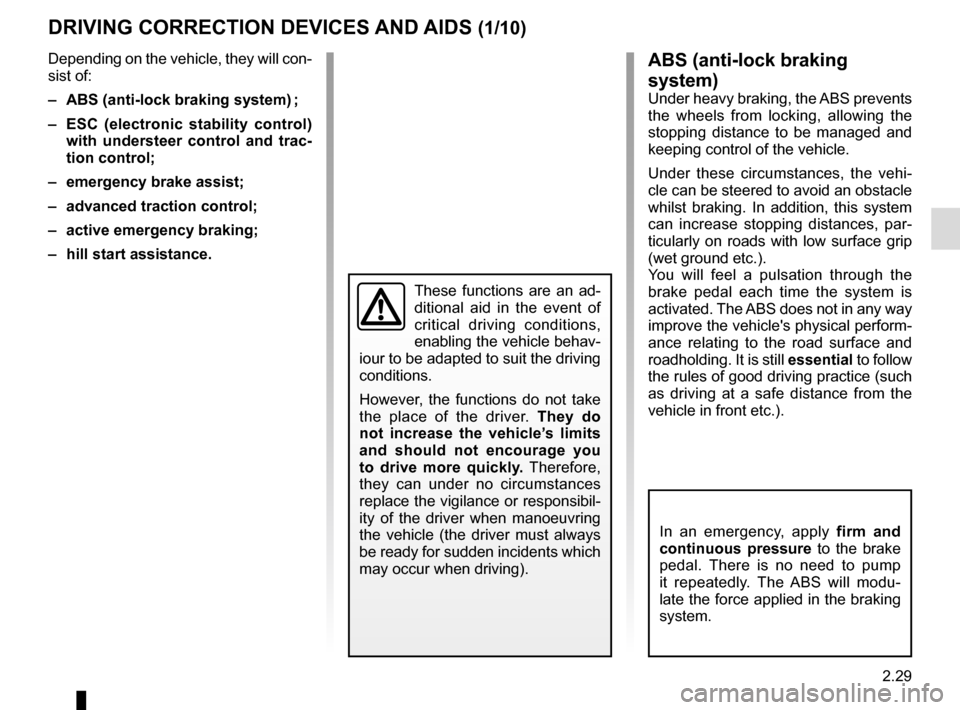

Page 133 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.29
DRIVING CORRECTION DEVICES AND AIDS (1/10)ABS (anti-lock braking
system)
Under heavy braking, the ABS prevents
the wheels from locking, allowing the
stopping distance to be managed and
keepin

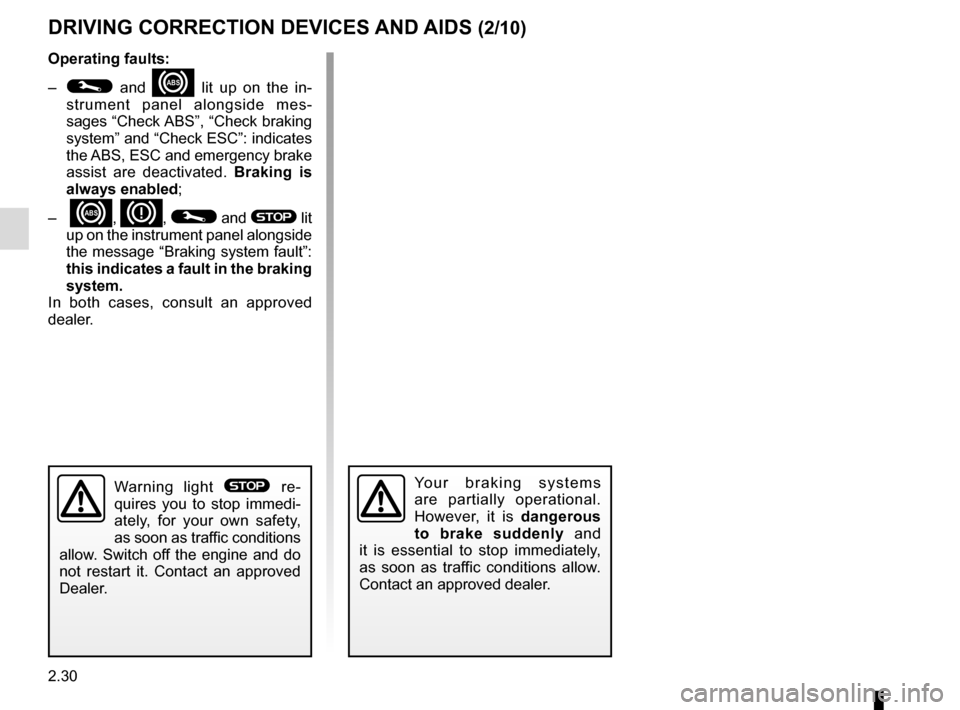

Page 134 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.30
DRIVING CORRECTION DEVICES AND AIDS (2/10)
Operating faults:
–
© and x lit up on the in-
strument panel alongside mes-
sages “Check ABS”, “Check braking
system” and “Check ESC”:

Page 135 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.31
Electronic stability control
ESC with understeer control
and traction control
Electronic stability control ESC
This system helps you to keep control
of the vehicle in critical driving condi-
t

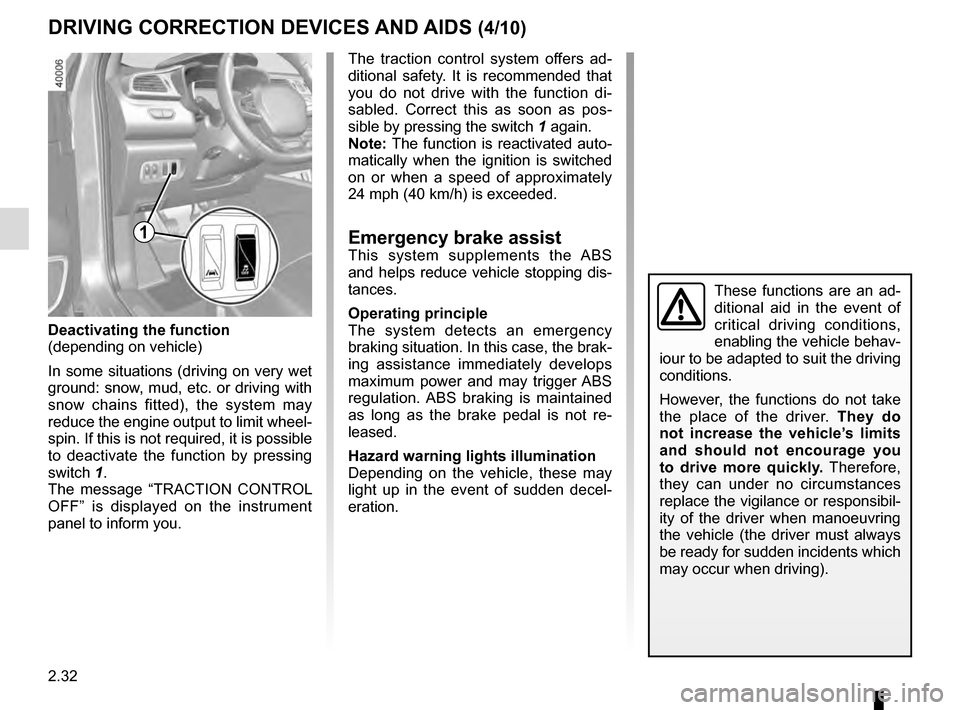

Page 136 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.32
DRIVING CORRECTION DEVICES AND AIDS (4/10)
The traction control system offers ad-
ditional safety. It is recommended that
you do not drive with the function di-
sabled. Correct this as soon as p

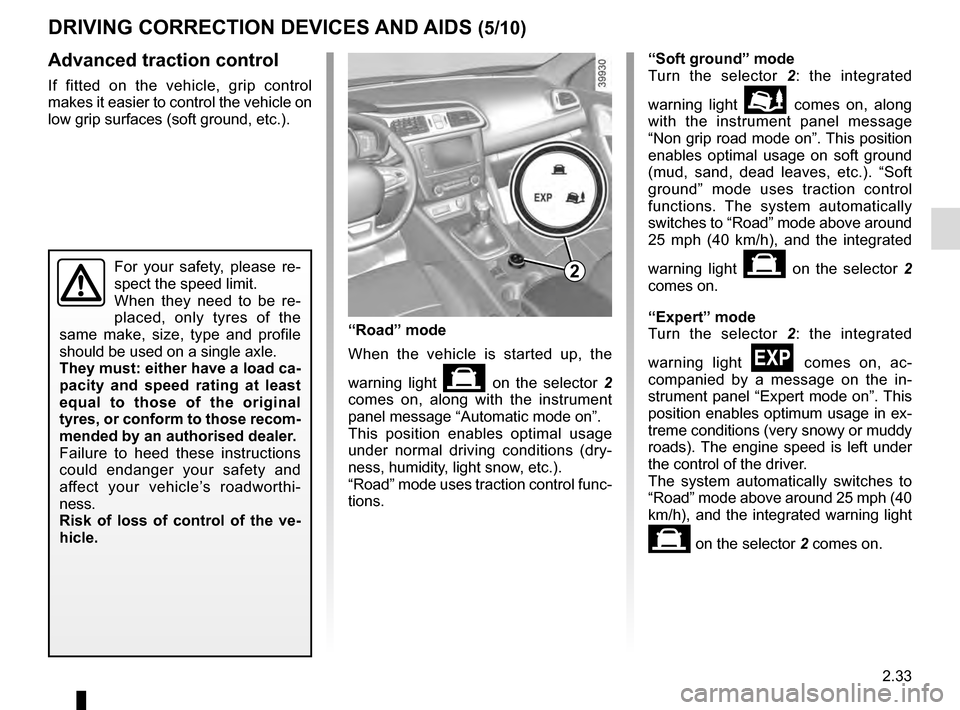

Page 137 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.33
Advanced traction control
If fitted on the vehicle, grip control
makes it easier to control the vehicle on
low grip surfaces (soft ground, etc.).
DRIVING CORRECTION DEVICES AND AIDS (5/10)
For

Page 138 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.34
DRIVING CORRECTION DEVICES AND AIDS (6/10)
If the driver depresses the brake pedal
and the system still detects a risk of col-
lision, the brake force is increased.
If the driver fails to react

Page 139 of 300

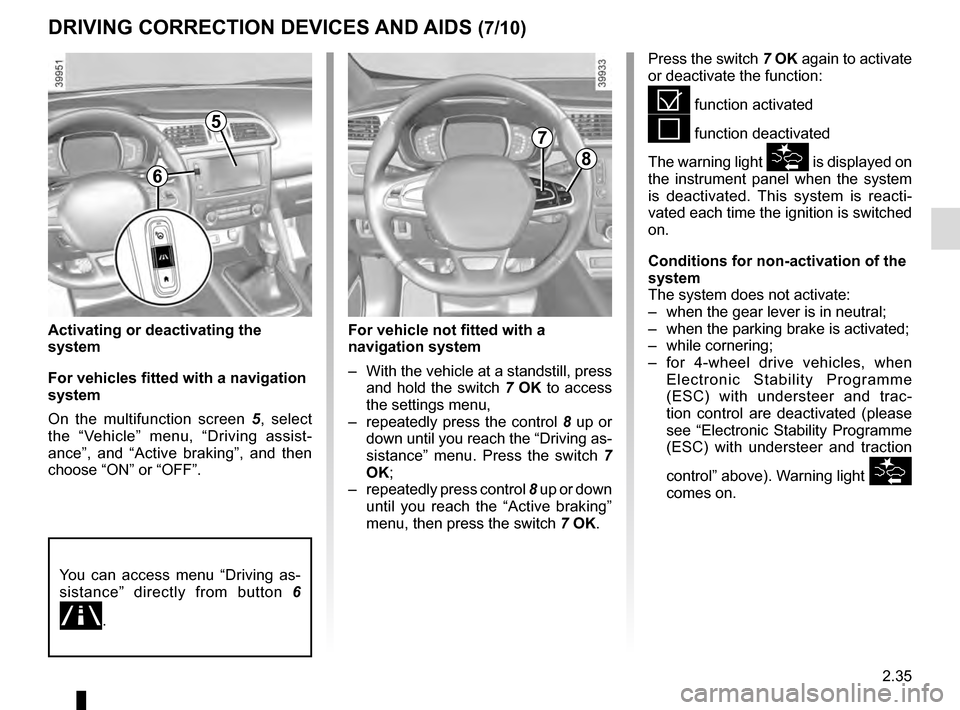

RENAULT KADJAR 2016 1.G Owners Manual 2.35
Activating or deactivating the
system
For vehicles fitted with a navigation
system
On the multifunction screen 5, select
the “Vehicle” menu, “Driving assist-
ance”, and “Active braki

Page 140 of 300

RENAULT KADJAR 2016 1.G Owners Manual 2.36
DRIVING CORRECTION DEVICES AND AIDS (8/10)
Active emergency braking
This function is an additional driving aid. However, this function is not
under any circumstances intended to replace the due
