Air conditioning: information and advice on use
Operating faults
As a general rule, contact your ap-
proved Dealer in the event of an op-
erating fault.
– r eduction in de-icing, demist -
ing or air conditioning per -
formance. This may be caused
by the passenger compartment
filter cartridge becoming clogged.
– no cold air is being produced.
Check that the controls are set
correctly and that the fuses are
sound. Otherwise, switch off the
system.Fuel consumption
You will normally notice an increase
in fuel consumption (especially
when driving in town) when the air
conditioning is operating.
For vehicles fitted with manual air
conditioning, switch off the system
when it is not required.
Advice for reducing consumption
and helping to preserve the envi-
ronment
Drive with the air vents on and the
windows closed.
If the vehicle has been parked in
the sun, open the doors for a few
moments to let the hot air escape
before starting the engine.
Air COnDitiOninG: information and advice on use
note
Presence of water under the ve -
hicle. After prolonged use of the air
conditioning system, it is normal for
water to be present under the vehi-
cle. This is caused by condensation.
Do not open the refriger -
ant fluid circuit. The fluid
may damage eyes or skin.Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection
frequency.
Page 132 of 237
lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
map reading lights ................................ (up to the end of the DU)
3.16
ENG_UD17474_4
Eclairage intérieur (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_3
Jaune NoirNoir texte

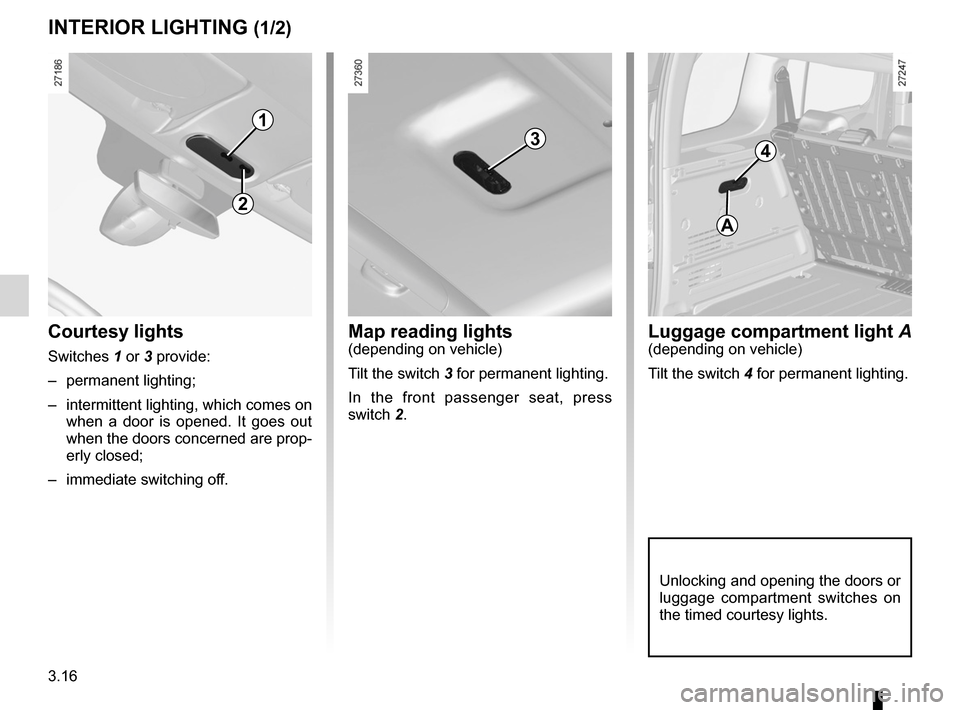

Interior lighting
Map reading lights(depending on vehicle)
Tilt the switch 3 for permanent lighting.
In the front passenger seat, press
switch 2.Courtesy lights
Switches 1 or 3 provide:
– permanent lighting;
– intermittent lighting, which comes on
when a door is opened. It goes out
when the doors concerned are prop-
erly closed;
– immediate switching off.
interiOr LiGHtinG (1/2)
2
1
Luggage compartment light A(depending on vehicle)
Tilt the switch 4 for permanent lighting.
A
34
Unlocking and opening the doors or
luggage compartment switches on
the timed courtesy lights.
Page 133 of 237
JauneNoirNoir texte
3.17
ENG_UD17474_4
Eclairage intérieur (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_3
special features
Depending on the vehicle, remote un -
locking of the doors triggers timed light-
ing of the passenger compartment. If
one of the front or rear doors is opened,
the period for which the light is switched
on will start again.
Then the courtesy light and the luggage
compartment light dim and go out.
The lighting timer will cut out for vari -
ous reasons:
– if a door has been open for 15 min-
utes;
– if all the doors have been closed for
15 seconds or 5 minutes, depending
on the vehicle;
– when the ignition is switched on.
B
Luggage compartment light B(depending on vehicle)
interiOr LiGHtinG (2/2)
C
sliding side door light C(depending on vehicle)
Pressing switch 5 gives:
– permanent lighting;
– light when the sliding side door is
opened. It goes out when the door in
question is correctly closed;
– immediate switching off.
5
Page 134 of 237
courtesy mirrors .................................... (up to the end of the DU)
sun visor ............................................... (up to the end of the DU)
child minder mirror ................................................. (current page)
3.18
ENG_UD4233_1
Pare-soleil / Miroirs (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_3

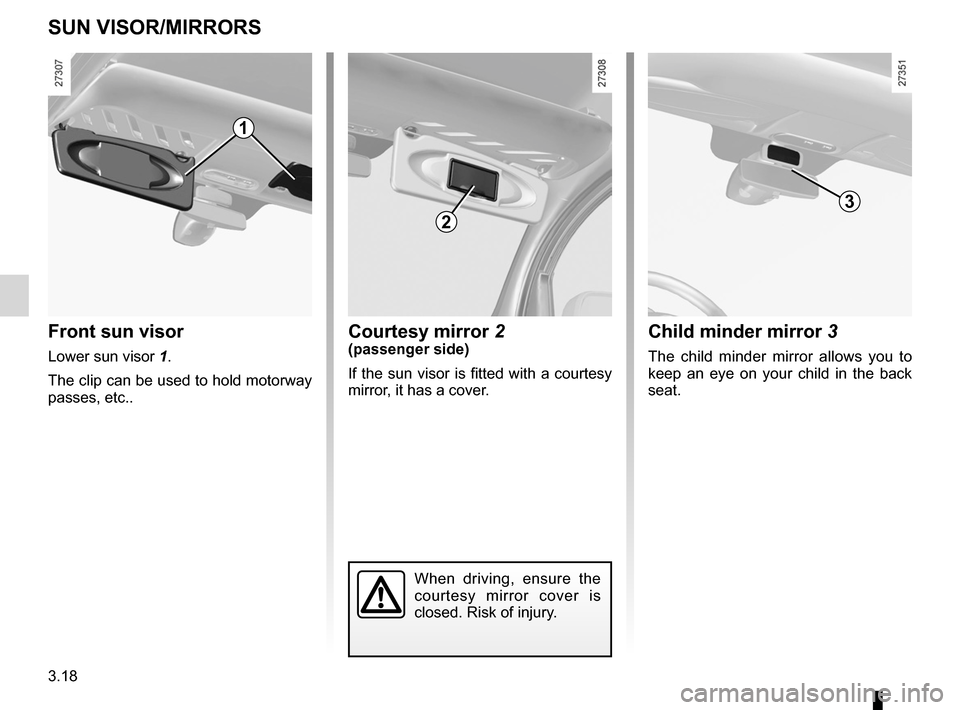

Pare-soleil / Miroirs
Courtesy mirror 2(passenger side)
If the sun visor is fitted with a courtesy
mirror, it has a cover.Front sun visor
Lower sun visor 1.
The clip can be used to hold motorway
passes, etc..
sUn visOr/MirrOrs
When driving, ensure the
courtesy mirror cover is
closed. Risk of injury.
Child minder mirror 3
The child minder mirror allows you to
keep an eye on your child in the back
seat.
1
2
3
Page 135 of 237
electric windows ................................... (up to the end of the DU)
child safety ............................................................. (current page)
3.19
ENG_UD21472_4
Vitres (X61 - F61 - K61 - Renault)ENG_NU_813-11_FK61_Renault_3
Electric windows
electric windows
With the ignition on:
– press the switch for the window
concerned to lower it to the desired
height;
– lift the switch for the window con -
cerned to raise it to the desired
height.
From the driver’s seat
Operate the switches as follows:
– 1 for the driver’s side;
– 2 for the front passenger’s side;
– 3 and 5 for the rear passenger win-
dows.
eLeCtriC WinDOWs (1/2)
From the rear seats
With the doors closed, press switch 7.
From the front passenger seat
Press switch 6.
1
2
34
56
safety of rear occupants
Depending on the vehicle, the driver can disable operation of the rear
electric windows by pressing switch
4.
Driver’s responsibility
Never leave your vehicle with the remote control unit inside and never leave a
child (or a pet) unsupervised, even for a short while.
The reason for this is that the child may endanger himself or others by starting the
vehicle, activating equipment such as the electric windows, or locking the doors.
If any part of the body becomes trapped, reverse the direction of the window im-
mediately by pressing the relevant switch. Risk of serious injury .
7
Page 136 of 237
side windows ........................................ (up to the end of the DU)
3.20
ENG_UD21472_4
Vitres (X61 - F61 - K61 - Renault)ENG_NU_813-11_FK61_Renault_3

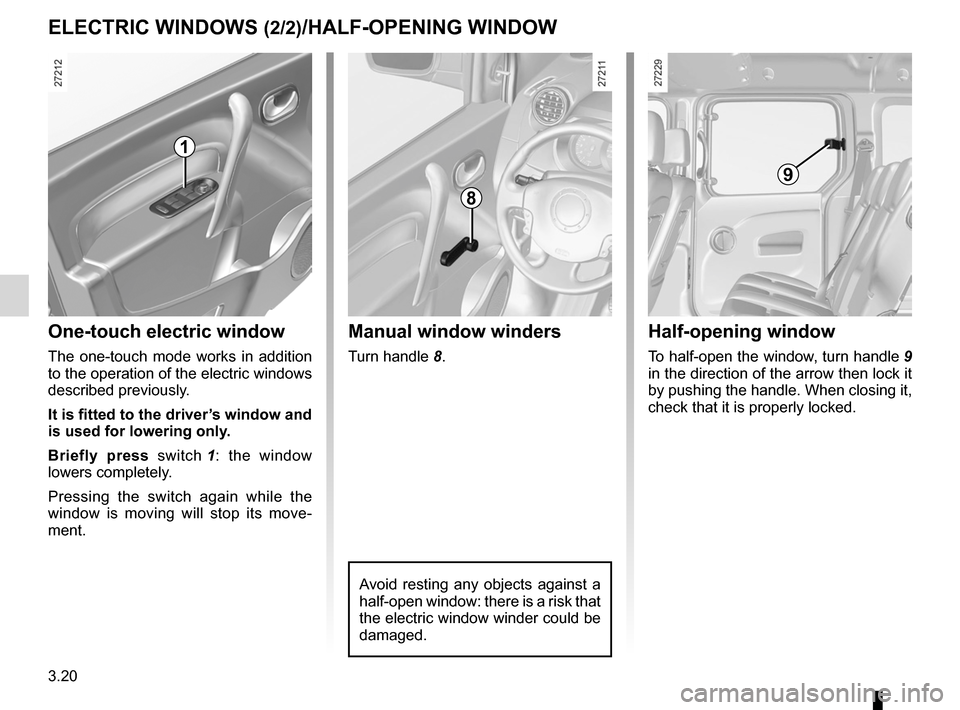

Half-opening window
One-touch electric window
The one-touch mode works in addition
to the operation of the electric windows
described previously.
it is fitted to the driver’s window and
is used for lowering only.
Briefly press switch 1 : the window
lowers completely.
Pressing the switch again while the
window is moving will stop its move -
ment.
eLeCtriC WinDOWs (2/2)/HALF-OPeninG WinDOW
Manual window winders
Turn handle 8.
8
9
Half-opening window
To half-open the window, turn handle 9
in the direction of the arrow then lock it
by pushing the handle. When closing it,
check that it is properly locked.
8
1
Avoid resting any objects against a
half-open window: there is a risk that
the electric window winder could be
damaged.
Page 137 of 237
sunroof.................................................. (up to the end of the DU)
3.21
ENG_UD9535_2
Toit ouvrant à commande manuelle (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_3

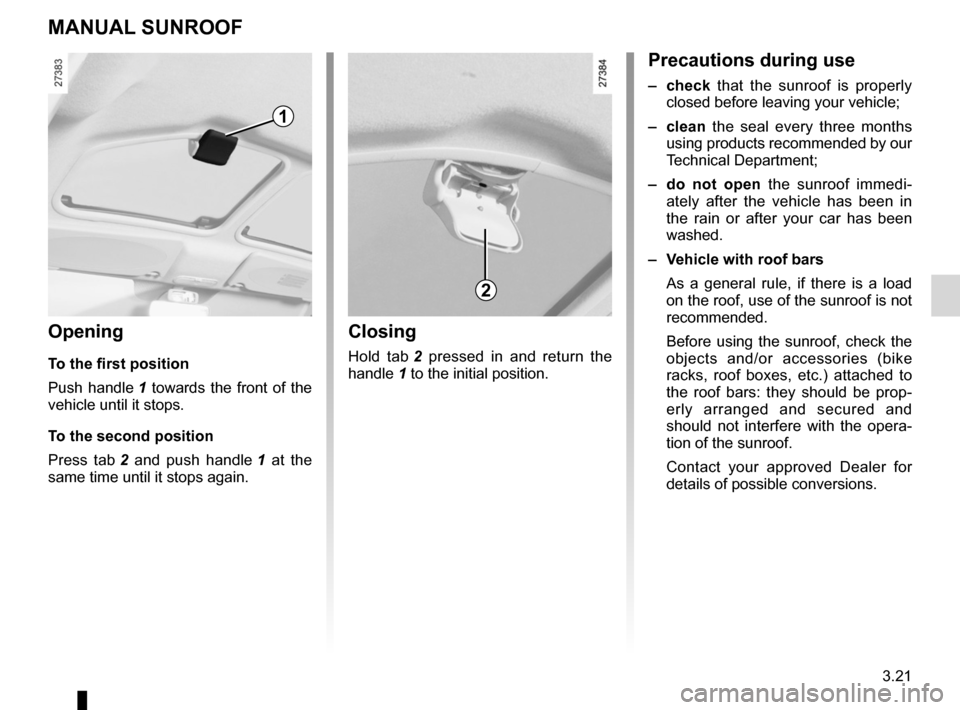

Manual sunroof
MAnUAL sUnrOOF
Opening
t o the first position
Push handle 1 towards the front of the
vehicle until it stops.
t o the second position
Press tab 2 and push handle 1 at the
same time until it stops again.
1
2
Precautions during use
– check that the sunroof is properly
closed before leaving your vehicle;
– clean the seal every three months
using products recommended by our
Technical Department;
– do not open the sunroof immedi -
ately after the vehicle has been in
the rain or after your car has been
washed.
– v ehicle with roof bars
As a general rule, if there is a load
on the roof, use of the sunroof is not
recommended.
Before using the sunroof, check the
objects and/or accessories (bike
racks, roof boxes, etc.) attached to
the roof bars: they should be prop -
erly arranged and secured and
should not interfere with the opera -
tion of the sunroof.
Contact your approved Dealer for
details of possible conversions.
Closing
Hold tab 2 pressed in and return the
handle 1 to the initial position.
Page 138 of 237
cigar lighter ........................................... (up to the end of the DU)
ashtrays ................................................ (up to the end of the DU)
accessories socket ................................................ (current page)
3.22
ENG_UD21473_2
Cendriers, allume-cigares, prises accessoires (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_3

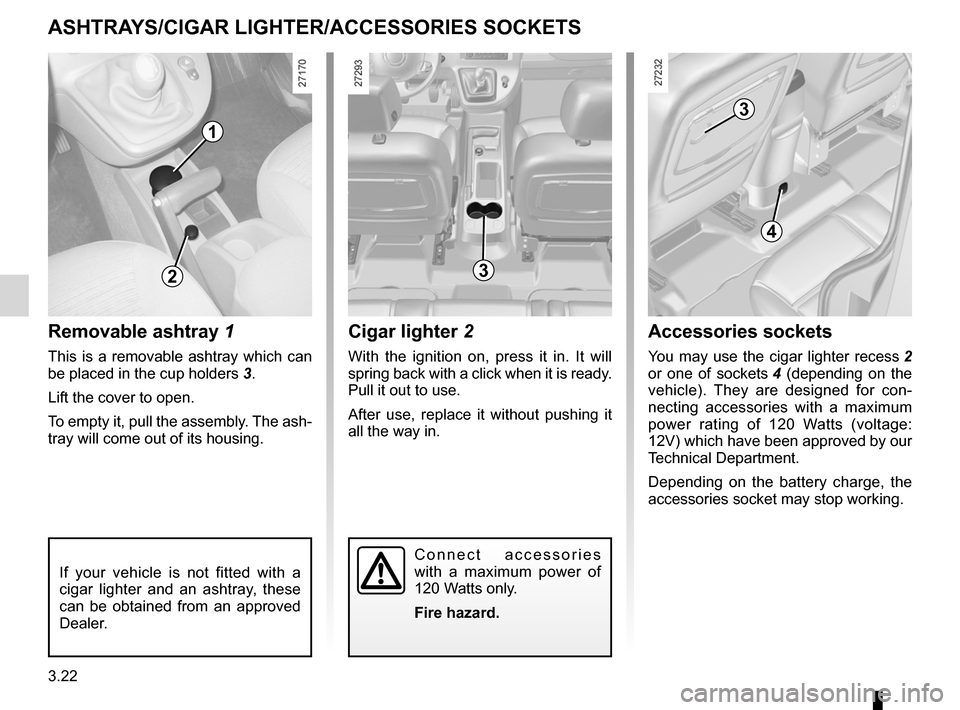

Ashtray/Cigar lighter/Accessories sockets
removable ashtray 1
This is a removable ashtray which can
be placed in the cup holders 3.
Lift the cover to open.
To empty it, pull the assembly. The ash-
tray will come out of its housing.
2
AsHtrA ys/CiGAr LiGHter/ACCessOries sOCkets
1
Accessories sockets
You may use the cigar lighter recess 2
or one of sockets 4 (depending on the
vehicle). They are designed for con -
necting accessories with a maximum
power rating of 120 Watts (voltage:
12V) which have been approved by our
Technical Department.
Depending on the battery charge, the
accessories socket may stop working.
4
3
Cigar lighter 2
With the ignition on, press it in. It will
spring back with a click when it is ready.
Pull it out to use.
After use, replace it without pushing it
all the way in.
3
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.
Page 139 of 237
storage compartments .......................... (up to the end of the DU)
fittings ................................................... (up to the end of the DU)
glove box ............................................................... (current page)
storage compartment ............................(up to the end of the DU)
3.23
ENG_UD23542_3
Rangements / Aménagements habitacle (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_3
Passenger compartment storage space and fittings
Dashboard storage
compartment 3
Central storage
compartment 4
To open it, lift cover 5 . It will store a
1.5 litre bottle.
Glovebox
To open the glove box, lift catch 1.
Audio connection socket 2
If fitted to the vehicle, this socket is
used for connecting a portable audio
player.
PAssenGer COMPArtMent st OrAGe sPACe AnD FittinGs (1/5)
1
3
5
4
When turning corners, accelerating or braking, ensure that the receptacle
being held by the cup holder is not dislodged.
There is a risk of burning if hot liquid escapes.
2
Page 140 of 237
sun visor ................................................................ (current page)
3.24
ENG_UD23542_3
Rangements / Aménagements habitacle (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_3
Jaune NoirNoir texte

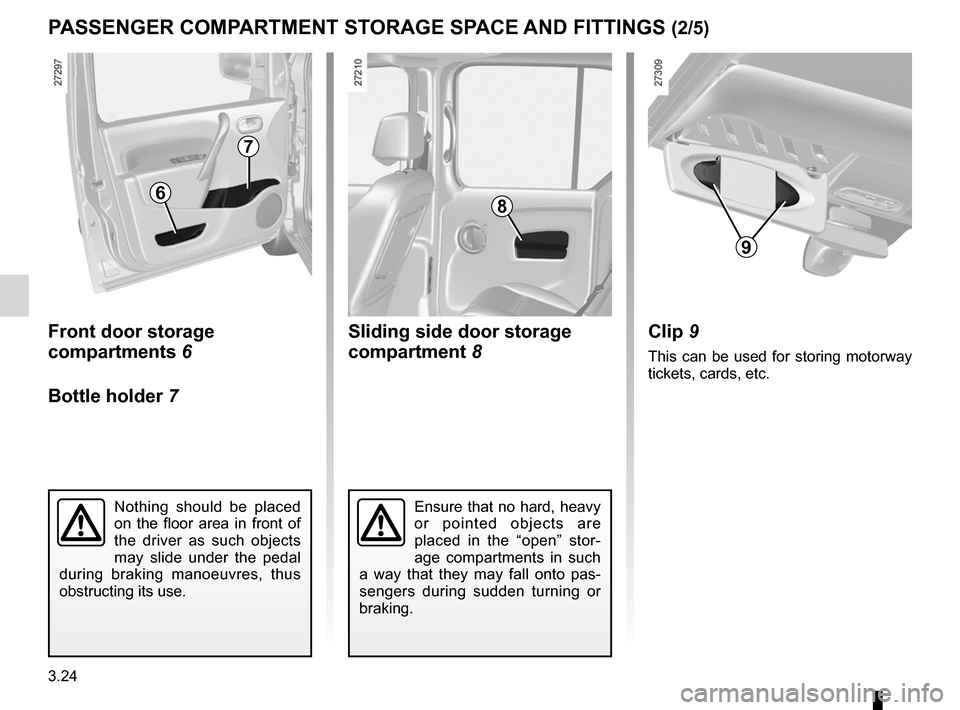

sliding side door storage
compartment 8
Front door storage
compartments 6
Bottle holder
7
PAssenGer COMPArtMent st OrAGe sPACe AnD FittinGs (2/5)
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Clip 9
This can be used for storing motorway
tickets, cards, etc.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor -
age compartments in such
a way that they may fall onto pas -
sengers during sudden turning or
braking.
6
7
8
9
