Changement de roue (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Undo the bolts and take off the wheel.
For vehicles fitted with alloy wheels,
use the guide bolt located in the tool kit
to finish loosening and start tightening
the bolts.
Fit the emergency spare wheel on
the central hub and turn it to align the
mounting holes in the wheel and the
hub.
Tighten the bolts and lower the jack.
If bolts are supplied with the emergency
spare wheel, only use these bolts for
the emergency spare wheel.
Tighten the bolts, checking that the
wheel is correctly positioned on its hub
and unscrew the jack.
With the wheels on the ground, tighten
the screws as fully as possible and
check the tightness as soon as possi -
ble (tightening torque 110 Nm).

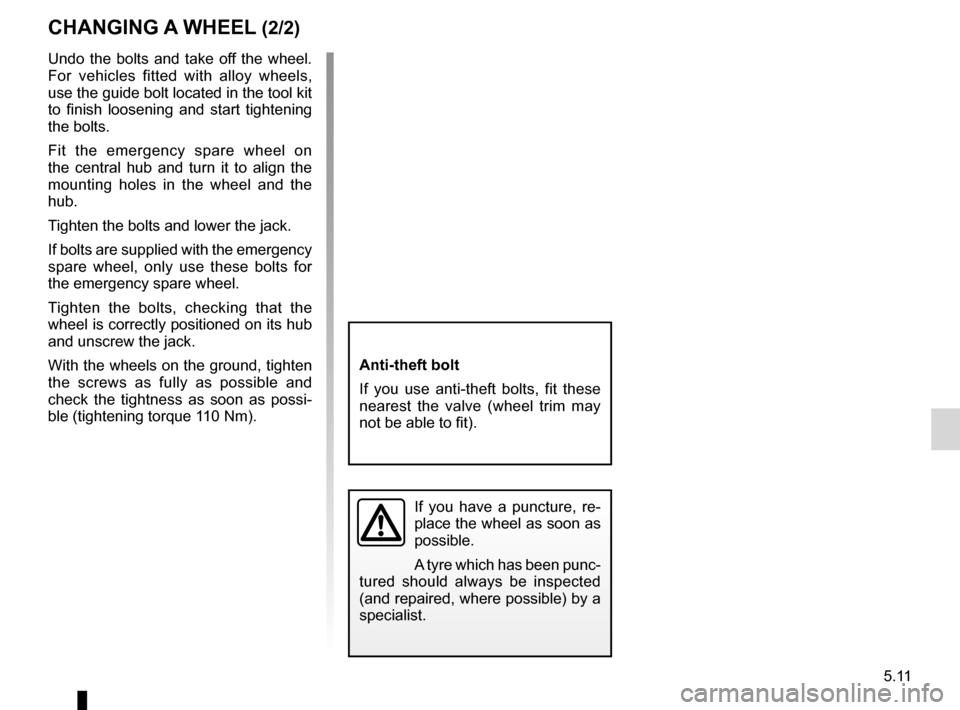

changIng a wheel (2/2)
anti-theft bolt
If you use anti-theft bolts, fit these
nearest the valve (wheel trim may
not be able to fit).
If you have a puncture, re -
place the wheel as soon as
possible.
A tyre which has been punc-
tured should always be inspected
(and repaired, where possible) by a
specialist.

tyres ...................................................... (up to the end of the DU)
wheels (safety) ...................................................... (current page)
tyre pressures ....................................... (up to the end of the DU)
5.12
ENG_UD23039_4
Pneumatiques (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Jaune NoirNoir texte
Tyres
tyres (1/3)
maintaining the tyres
The tyres must be in good condition
and the tread form must have sufficient
depth; tyres approved by our Technical
Department have tread wear indica -
tors 1 which are indicators moulded
into the tread at several points .

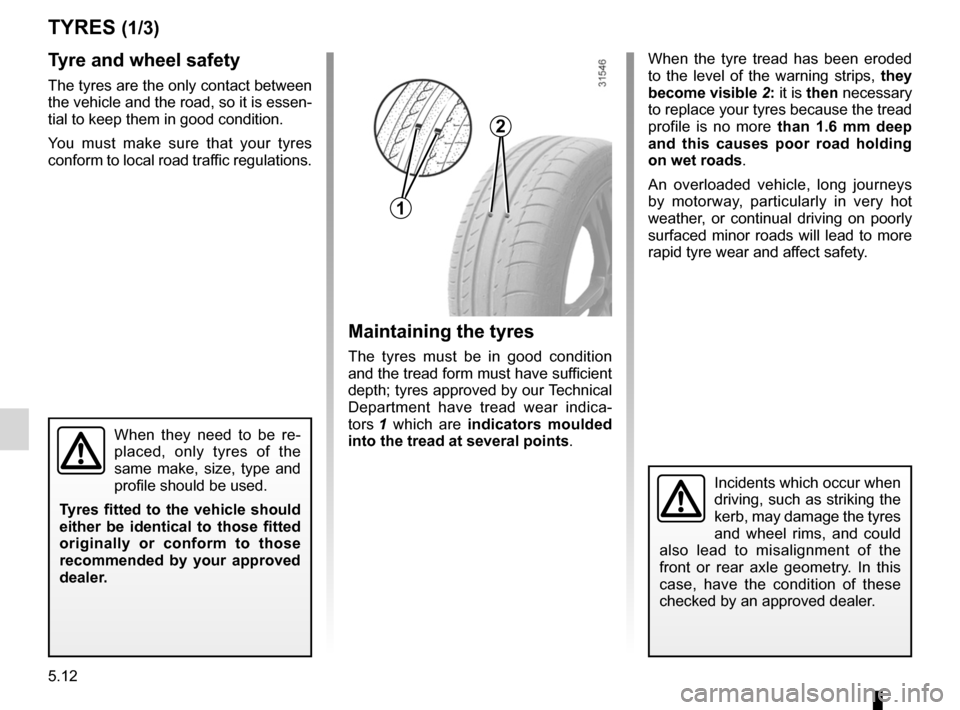

tyre and wheel safety
The tyres are the only contact between
the vehicle and the road, so it is essen-
tial to keep them in good condition.
You must make sure that your tyres
conform to local road traffic regulations. When the tyre tread has been eroded
to the level of the warning strips,
they
become visible 2: it is then necessary
to replace your tyres because the tread
profile is no more than 1.6 mm deep
and this causes poor road holding
on wet roads .
An overloaded vehicle, long journeys
by motorway, particularly in very hot
weather, or continual driving on poorly
surfaced minor roads will lead to more
rapid tyre wear and affect safety.
When they need to be re -
placed, only tyres of the
same make, size, type and
profile should be used.
t yres fitted to the vehicle should
either be identical to those fitted
originally or conform to those
recommended by your approved
dealer.
Incidents which occur when
driving, such as striking the
kerb, may damage the tyres
and wheel rims, and could
also lead to misalignment of the
front or rear axle geometry. In this
case, have the condition of these
checked by an approved dealer.
1
2

JauneNoirNoir texte
5.13
ENG_UD23039_4
Pneumatiques (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5

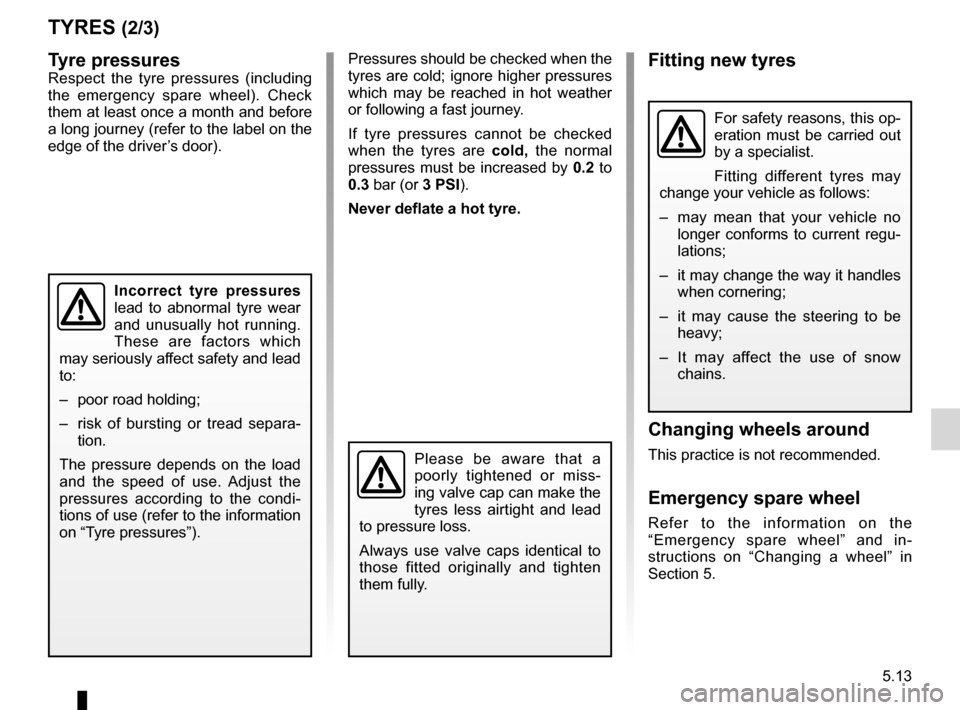

tyres (2/3)
Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are cold, the normal
pressures must be increased by 0.2 to
0.3 bar (or 3 PsI).
never deflate a hot tyre.Fitting new tyres
changing wheels around
This practice is not recommended.
emergency spare wheel
Refer to the information on the
“Emergency spare wheel” and in -
structions on “Changing a wheel” in
Section 5.
t yre pressuresRespect the tyre pressures (including
the emergency spare wheel). Check
them at least once a month and before
a long journey (refer to the label on the
edge of the driver’s door).
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding;
– risk of bursting or tread separa -
tion.
The pressure depends on the load
and the speed of use. Adjust the
pressures according to the condi -
tions of use (refer to the information
on “Tyre pressures”).
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– may mean that your vehicle no
longer conforms to current regu-
lations;
– it may change the way it handles
when cornering;
– it may cause the steering to be
heavy;
– It may affect the use of snow
chains.

5.14
ENG_UD23039_4
Pneumatiques (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5

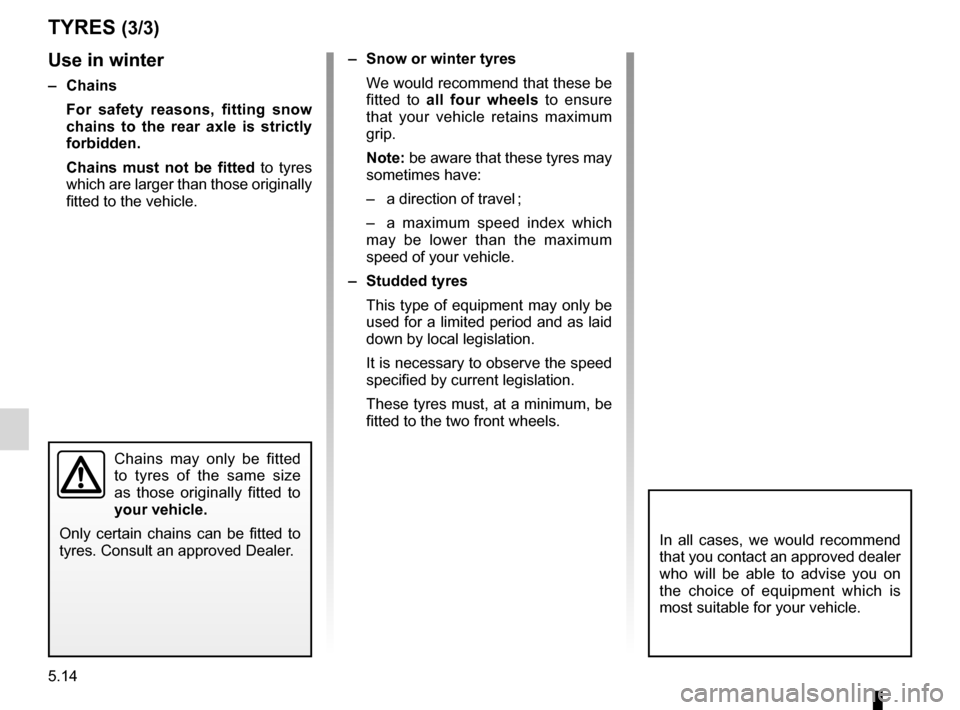

tyres (3/3)
use in winter
– chains
For safety reasons, fitting snow
chains to the rear axle is strictly
forbidden.
chains must not be fitted to tyres
which are larger than those originally
fitted to the vehicle.
Chains may only be fitted
to tyres of the same size
as those originally fitted to
your vehicle.
Only certain chains can be fitted to
tyres. Consult an approved Dealer.
– snow or winter tyres We would recommend that these be
fitted to all four wheels to ensure
that your vehicle retains maximum
grip.
note: be aware that these tyres may
sometimes have:
– a direction of travel ;
– a maximum speed index which
may be lower than the maximum
speed of your vehicle.
– studded tyres This type of equipment may only be
used for a limited period and as laid
down by local legislation.
It is necessary to observe the speed
specified by current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
In all cases, we would recommend
that you contact an approved dealer
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
front lights changing bulbs ................................ (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights: dipped beam headlights ................................... (current page)
lights changing bulbs ................................ (up to the end of the DU)
lights front ................................................. (up to the end of the DU)
5.15
ENG_UD25826_4
Projecteurs : remplacement des lampes (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5

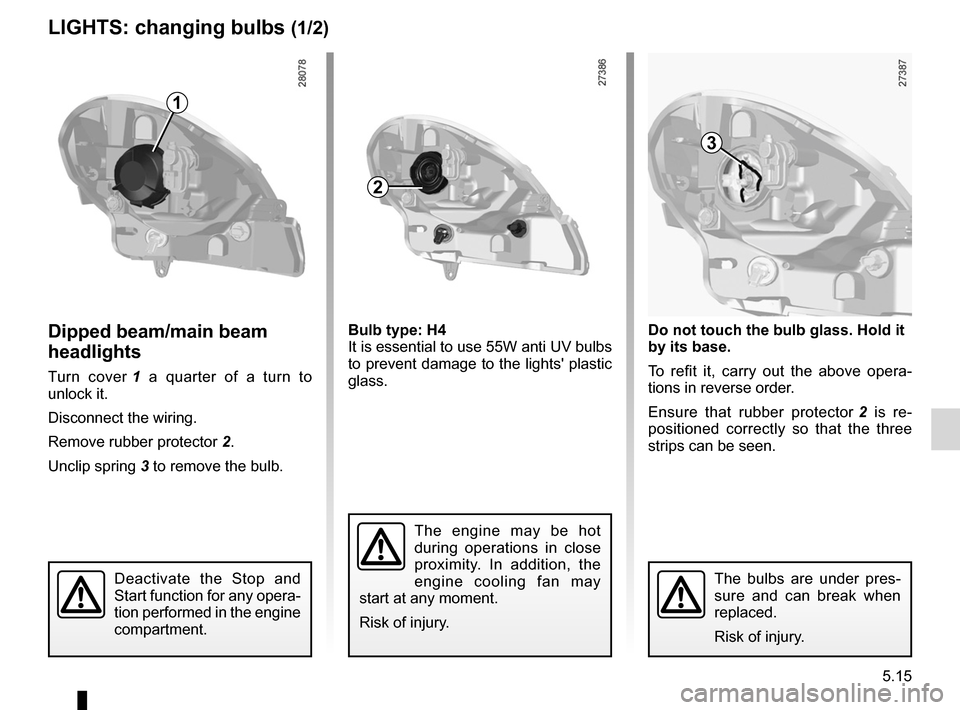

Headlights: changing bulbs
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Dipped beam/main beam
headlights
Turn cover 1 a quarter of a turn to
unlock it.
Disconnect the wiring.
Remove rubber protector 2.
Unclip spring 3 to remove the bulb.
lIghts: changing bulbs (1/2)
1
2
3
Do not touch the bulb glass. hold it
by its base.
To refit it, carry out the above opera -
tions in reverse order.
Ensure that rubber protector 2 is re -
positioned correctly so that the three
strips can be seen.
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
start at any moment.
Risk of injury.
Deactivate the Stop and
Start function for any opera -
tion performed in the engine
compartment.
Bulb type: h4
It is essential to use 55W anti UV bulbs
to prevent damage to the lights' plastic
glass.

indicators ............................................................... (current page)
indicators: direction indicators ........................................... (current page)
5.16
ENG_UD25826_4
Projecteurs : remplacement des lampes (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5

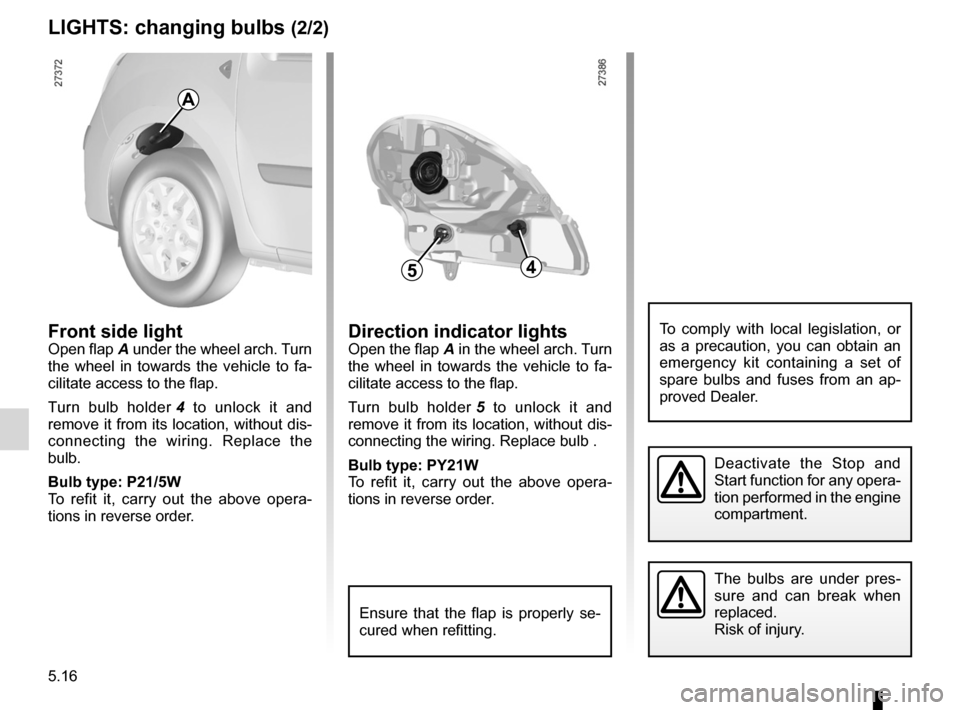

Front side lightOpen flap A under the wheel arch. Turn
the wheel in towards the vehicle to fa-
cilitate access to the flap.
Turn bulb holder 4 to unlock it and
remove it from its location, without dis-
connecting the wiring. Replace the
bulb.
Bulb type: P21/5w
To refit it, carry out the above opera -
tions in reverse order.Direction indicator lightsOpen the flap A in the wheel arch. Turn
the wheel in towards the vehicle to fa-
cilitate access to the flap.
Turn bulb holder 5 to unlock it and
remove it from its location, without dis-
connecting the wiring. Replace bulb .
Bulb type: Py21w
To refit it, carry out the above opera -
tions in reverse order.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
lIghts : changing bulbs (2/2)
45
a
Ensure that the flap is properly se -
cured when refitting.
Deactivate the Stop and
Start function for any opera -
tion performed in the engine
compartment.
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap -
proved Dealer.

bulbschanging ......................................... (up to the end of the DU)
fog lights ............................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
lights fog lights ......................................... (up to the end of the DU)
5.17
ENG_UD6842_3
Feux de brouillard : remplacement des lampes (X61 - F61 - K61 - Renault\
)
ENG_NU_813-11_FK61_Renault_5

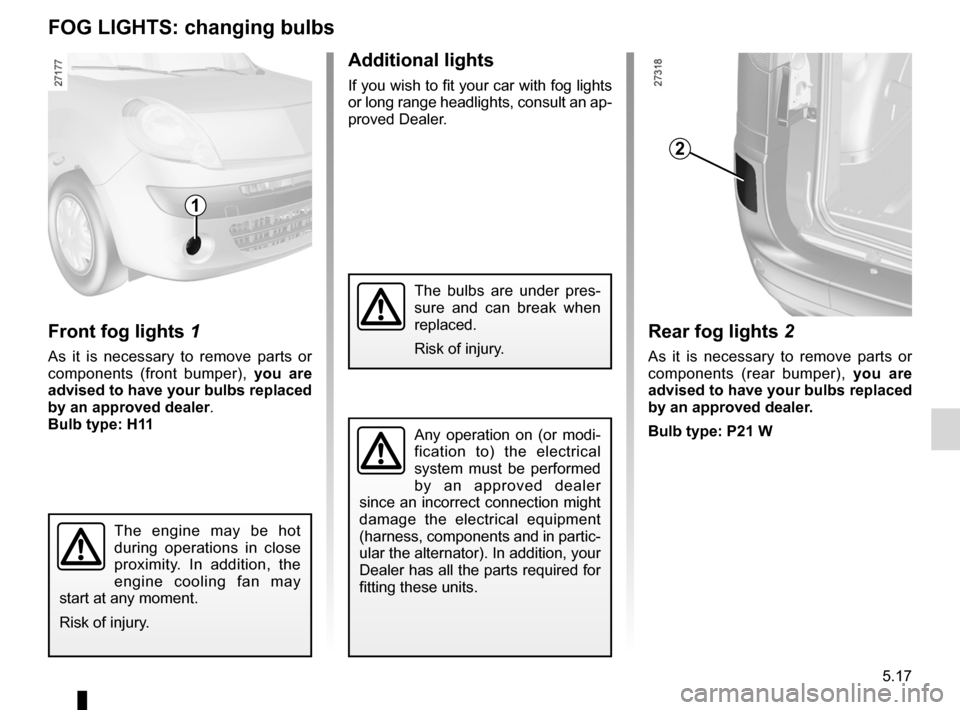

Front fog lights 1
As it is necessary to remove parts or
components (front bumper), you are
advised to have your bulbs replaced
by an approved dealer.
Bulb type: h11
additional lights
If you wish to fit your car with fog lights
or long range headlights, consult an ap-
proved Dealer.
Feux de brouillard : remplacement des lampes
FOg lIghts: changing bulbs
1
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
start at any moment.
Risk of injury.
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
rear fog lights 2
As it is necessary to remove parts or
components (rear bumper), you are
advised to have your bulbs replaced
by an approved dealer.
Bulb type: P21 w
2
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.

rear lightschanging bulbs ................................ (up to the end of the DU)
lights: reversing lights ................................................. (current page)
lights: direction indicators ........................................... (current page)
lights: brake lights ...................................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
brake lights changing bulbs ................................................. (current page)
bulbs changing ......................................... (up to the end of the DU)
5.18
ENG_UD6422_2
Feux arrière : remplacement des lampes (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Jaune NoirNoir texte
Feux arrière : remplacement des lampes
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Bulb type
4 Indicator
Pear-shaped, bayonet type bulb P
y21w.
5 side and brake light
Pear-shaped, bayonet type bulb
with two filaments P 21/5w.
6 r eversing light (right-hand side
or, depending on the vehicle, on
both sides)
Pear-shaped, bayonet type bulb P
21w.rear lights
Depending on the vehicle, open the
hinged doors or the tailgate.
Undo bolts 1 using a Torx tool.
Unclip the lower section, then the upper
section of the light by pulling it towards
you.
Pull tabs 2 to unclip bulb holders 3.
Replace the bulb, then proceed in the
reverse order to refit the bulb.

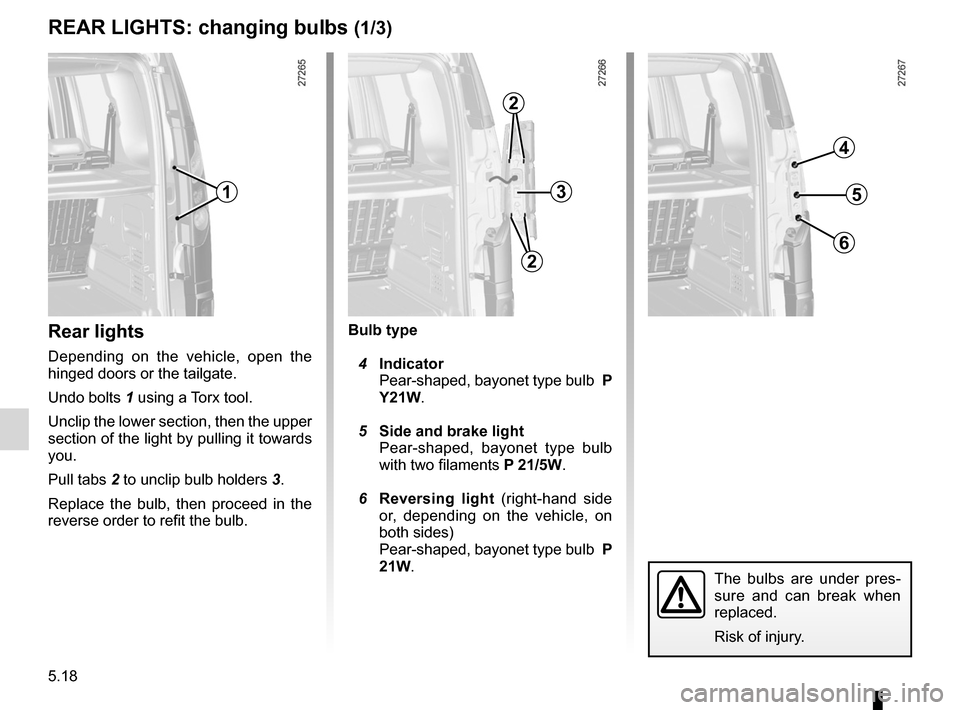

rear lIghts: changing bulbs (1/3)
31
2
2
5
4
6

brake lightschanging bulbs ................................................. (current page)
JauneNoirNoir texte
5.19
ENG_UD6422_2
Feux arrière : remplacement des lampes (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5

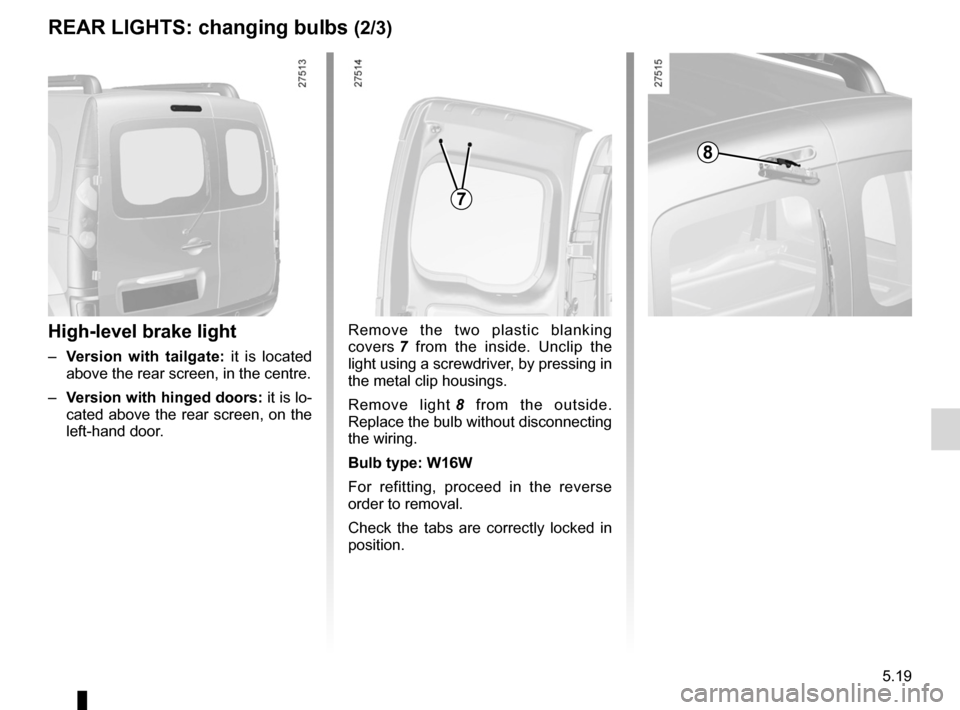

rear lIghts: changing bulbs (2/3)
high-level brake light
– Version with tailgate: it is located
above the rear screen, in the centre.
– Version with hinged doors: it is lo-
cated above the rear screen, on the
left-hand door. Remove the two plastic blanking
covers
7 from the inside. Unclip the
light using a screwdriver, by pressing in
the metal clip housings.
Remove light 8 from the outside.
Replace the bulb without disconnecting
the wiring.
Bulb type: w16w
For refitting, proceed in the reverse
order to removal.
Check the tabs are correctly locked in
position.
7
8

lights:number plate lights .......................................... (current page)
5.20
ENG_UD6422_2
Feux arrière : remplacement des lampes (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5

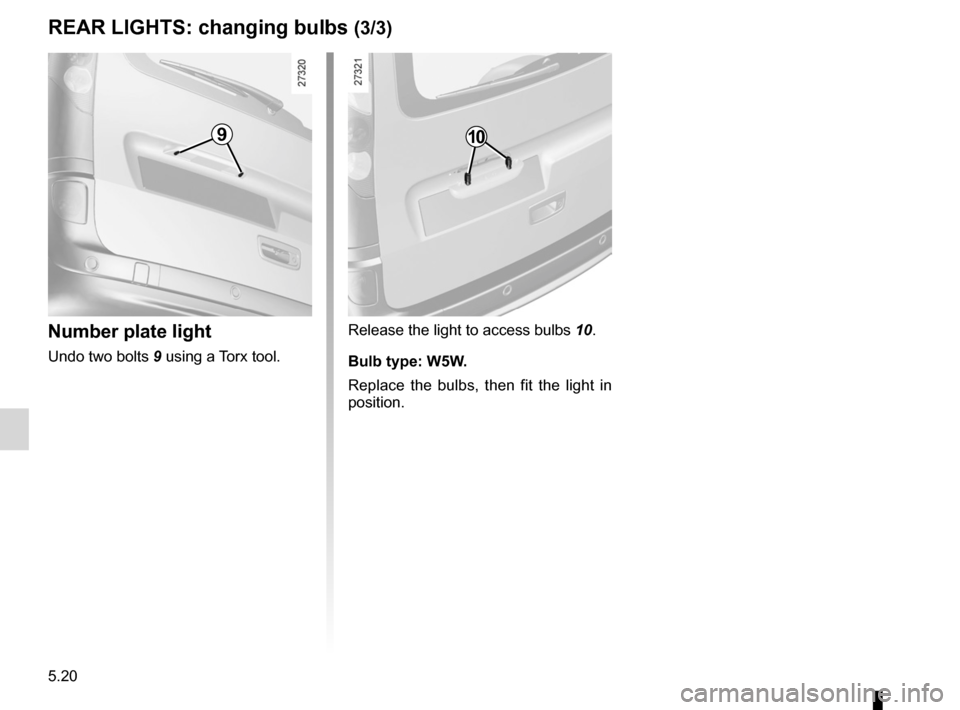

rear lIghts: changing bulbs (3/3)
Release the light to access bulbs 10.
Bulb type: w5w .
Replace the bulbs, then fit the light in
position.number plate light
Undo two bolts 9 using a Torx tool.
109
