RENAULT KANGOO 2012 X61 / 2.G Owners Manual

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
indicators: direction indicators .......................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
side indicator lights changing bulbs ................................ (up to the end of the DU)
5.21
ENG_UD6417_2
Répétiteurs latéraux : remplacement des lampes (X61 - F61 - K6\
1 - Renault)
ENG_NU_813-11_FK61_Renault_5
Répétiteurs latéraux : remplacement des lampes
Turn bulb holder 2 a quarter of a turn
and take out the bulb.
Bulb type: wy5w .
Replace the bulb and refit the indicator
light.
Unclip indicator light 1 on the door side,
using a flat-blade screwdriver type tool.
InDIcat
Or lIghts: changing bulbs
12

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
interior lighting: changing bulbs ................................ (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.22
ENG_UD17480_2
Eclairage intérieur : remplacement des lampes (X61 - F61 - K61 - Ren\
ault)
ENG_NU_813-11_FK61_Renault_5
Jaune NoirNoir texte
Interior lighting: changing bulbs
Passenger compartment
lights
Remove lens 1 using a tool such as a
flat-blade screwdriver.
InterIOr lIghtIng: changing bulbs (1/2)
1
Pull bulbs 2 and 3 downwards to
remove them from their housings.
Bulb type 2: w6w
Bulb type 3: w5w
rear courtesy light bulb type: w6w
Replace the bulbs and replace the lens.
2
3

JauneNoirNoir texte
5.23
ENG_UD17480_2
Eclairage intérieur : remplacement des lampes (X61 - F61 - K61 - Ren\
ault)
ENG_NU_813-11_FK61_Renault_5
InterIOr lIghtIng: changing bulbs (2/2)
light A
Remove the lens using a tool such as a
flat-blade screwdriver.
Pull the bulb to remove it from its hous-
ing.
Bulb type a: w5w
Replace the bulb and refit the lens.
light B or C
Remove the lens using a tool such as a
flat-blade screwdriver.
Pull the bulb to remove it from its hous-
ing.
Bulb type B or C : w6w
Replace the bulb and refit the lens.
a
B
c

batterytroubleshooting ............................... (up to the end of the DU)
5.24
ENG_UD26102_3
Batterie : dépannage (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Jaune NoirNoir texte
Battery: breakdown
Battery: troubleshooting (1/2)
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
The engine may be hot when car -
rying out operations in close prox -
imity. In addition, the engine cooling
fan can come on at any moment.
Risk of injury.
t o avoid all risk of sparks:
– Ensure that any consumers (cour -
tesy lights, etc.) are switched off
before disconnecting or reconnect -
ing the battery.
– When charging, stop the charger
before connecting or disconnecting
the battery.
– Do not place metal objects on the
battery to avoid creating a short cir-
cuit between the terminals.
– Always wait at least twenty seconds
after the engine has been switched
off before disconnecting a battery.
– Make sure that you reconnect the
battery terminals after refitting.
Deactivate the Stop and
Start function for any opera -
tion performed in the engine
compartment.
connecting a battery charger
t he battery charger must be com -
patible with a battery with nominal
voltage of 12 volts.
Switch the engine off and then discon-
nect both battery leads starting with
the negative terminal.
Do not disconnect the battery when the
engine is running. Follow the instruc-
tions given by the manufacturer of
the battery charger you are using.

JauneNoirNoir texte
5.25
ENG_UD26102_3
Batterie : dépannage (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
1
a
2
4
B
3
Battery: troubleshooting (2/2)
Connect the positive (+) lead A to (+)
terminal 1 of the discharged battery,
then to (+) terminal 2 of the battery sup-
plying the current.
Connect the negative (–) lead B to (–)
terminal 3 of the battery supplying the
current and then to (–) terminal 4 of the
discharged battery.
Check that there is no contact between
leads A and B and that the positive (+)
lead A is not touching any metal parts
on the vehicle supplying the current.
Start the engine as normal. As soon as
it is running, disconnect leads A and B
in the reverse order (4-3-2-1)
the two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply
-
ing the current and run it at an interme-
diate engine speed.
Special procedures may be required to charge some batteries. Contact
your approved dealer.
Avoid all risk of sparks which may cause an immediate explosion, and
charge the battery in a well-ventilated area. Risk of serious injury.
1
starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an approved dealer or, if you al -
ready have jump leads, ensure that
they are in perfect condition.

fuses ..................................................... (up to the end of the DU)
5.26
ENG_UD23043_4
Fusibles (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Jaune NoirNoir texte
Fuses
To comply with local legislation, or
as a precaution, you can obtain an
emergency kit containing a set of
spare bulbs and fuses from an ap -
proved Dealer.
Fuses (1/2)
Fuse box
If any electrical component does not
work, check the condition of the fuses.
Unclip cover A. To identify the fuses, refer to the fuse
allocation label (shown on the following
page).
It is not advisable to use the free fuse
locations.
Check the fuse in question and
replace it, if necessary, with a fuse of
the same rating.
If a fuse is fitted where the rating is too high, it may cause the electrical
circuit to overheat (risk of fire) in the event of an item of equipment using
an excessive amount of current.
a
1
t weezers 1
Remove the fuse using tweezers 1, lo-
cated at the back of cover A.
To remove the fuse from the tweezers,
slide the fuse to the side.

JauneNoirNoir texte
5.27
ENG_UD23043_4
Fusibles (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Fuses (2/2)
Some functions are protected by fuses
located in the engine compartment.
However, because of their reduced ac-
cessibility, you are advised to have
these fuses replaced by an approved
Dealer.symbol allocation symbolallocation
Z
Interior lighting, electric
door mirrors, rain/light sen-
sors, heating and air con -
ditioning system.
î
Radio, display, heating and
air conditioning system,
heated seat
ÌHornInstrument panel
DRear fog lights, warningëAccessories socket, cigar
lighter
Electric windowsö
Consumer cut-out (radio,
navigation system, display,
alarm)
ñHeated seatsgHeated door mirrors
fRear screen wiperHFront/rear windscreen wash-
ers
xPassenger compartment
heating systemNCentral door locking
aDaPt Location reserved for addi
-
tional equipment.
nABS
ßBrake lights
allocation of fuses (the presence of fuses DePenDs On the eQuIPment leVel
OF the VehIcle)

wiper blades ......................................... (up to the end of the DU)
windscreen washer/wiper replacing blades .............................. (up to the end of the DU)
5.28
ENG_UD26546_5
Balais d’essuie-vitre (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Jaune NoirNoir texte
Wiper blades
replacing windscreen wiper
blades 2
– with the ignition switched off , lift
wiper arm 2 slightly;
– pull tab 1 upwards;
– move the blade in the direction of the
arrow.
For refitting, proceed in the reverse
order and ensure that the blade is cor-
rectly clipped on.
wInDscreen wIPer BlaDes (1/2)
Check the condition of the wiper
blades. You are responsible for their
service life:
– clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
1
replacing windscreen wiper
blades 3
– with the ignition on and the engine
switched off, lower the windscreen
wiper stalk fully: they stop slightly
away from the bonnet;
– lift wiper arm 5 , pull tab 4 (move -
ment A ) and push the blade up -
wards.
t o refit
Slide the blade along the arm until it
clips on. Make sure that the blade is
correctly locked in position. Return the
windscreen wiper stalk to the park po-
sition.
3
4
5
a
2

JauneNoirNoir texte
5.29
ENG_UD26546_5
Balais d’essuie-vitre (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
wInDscreen wIPer BlaDes (2/2)
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
– Check the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.replacing the rear screen
wiper blade
hinged door versions B
– with the ignition switched off , lift
wiper arm 8;
– pivot the blade 6;
– press tab 7;
– pull the blade to release it (arrow).
For refitting, proceed in the reverse
order and ensure that the blade is cor-
rectly clipped on.
B6
8
t ailgate versions C
– with the ignition switched off , lift
wiper arm 9;
– pivot the blade 10 until some resist-
ance is met;
– pull the blade to release it (arrow).
For refitting, proceed in the reverse
order and ensure that the blade is cor-
rectly clipped on.
c
9
10
7

towing hitch............................................................ (current page)
towing breakdown ....................................................... (current page)
5.30
ENG_UD9721_2
Remorquage : dépannage (X61 - F61 - K61 - Renault)
ENG_NU_813-11_FK61_Renault_5
Jaune NoirNoir texte

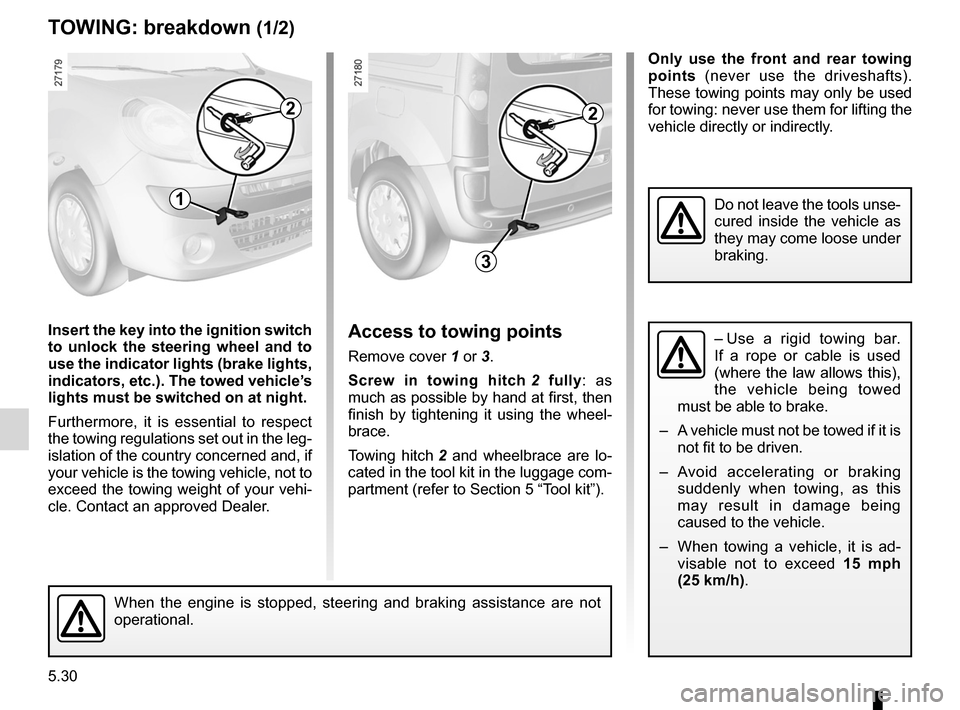

access to towing points
Remove cover 1 or 3.
s crew in towing hitch 2 fully : as
much as possible by hand at first, then
finish by tightening it using the wheel -
brace.
Towing hitch 2 and wheelbrace are lo -
cated in the tool kit in the luggage com-
partment (refer to Section 5 “Tool kit”).
Towing: breakdown
t OwIng: breakdown (1/2)
Insert the key into the ignition switch
to unlock the steering wheel and to
use the indicator lights (brake lights,
indicators, etc.). the towed vehicle’s
lights must be switched on at night.
Furthermore, it is essential to respect
the towing regulations set out in the leg-
islation of the country concerned and, if
your vehicle is the towing vehicle, not to
exceed the towing weight of your vehi-
cle. Contact an approved Dealer.
When the engine is stopped, steering and braking assistance are not
operational.
Only use the front and rear towing
points (never use the driveshafts).
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.
1
3
22
Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Avoid accelerating or braking
suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad -
visable not to exceed 15 mph
(25 km/h).
