RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide SIDE OPENING ELEMENT MECHANISMS
Front door window riser
51
PRB5105
Take out the mechanism.
REMOVING
First remove the trim. Then move the window into
the fully open position and remove the fittings se-

Page 12 of 51

RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide SIDE OPENING ELEMENT MECHANISMS

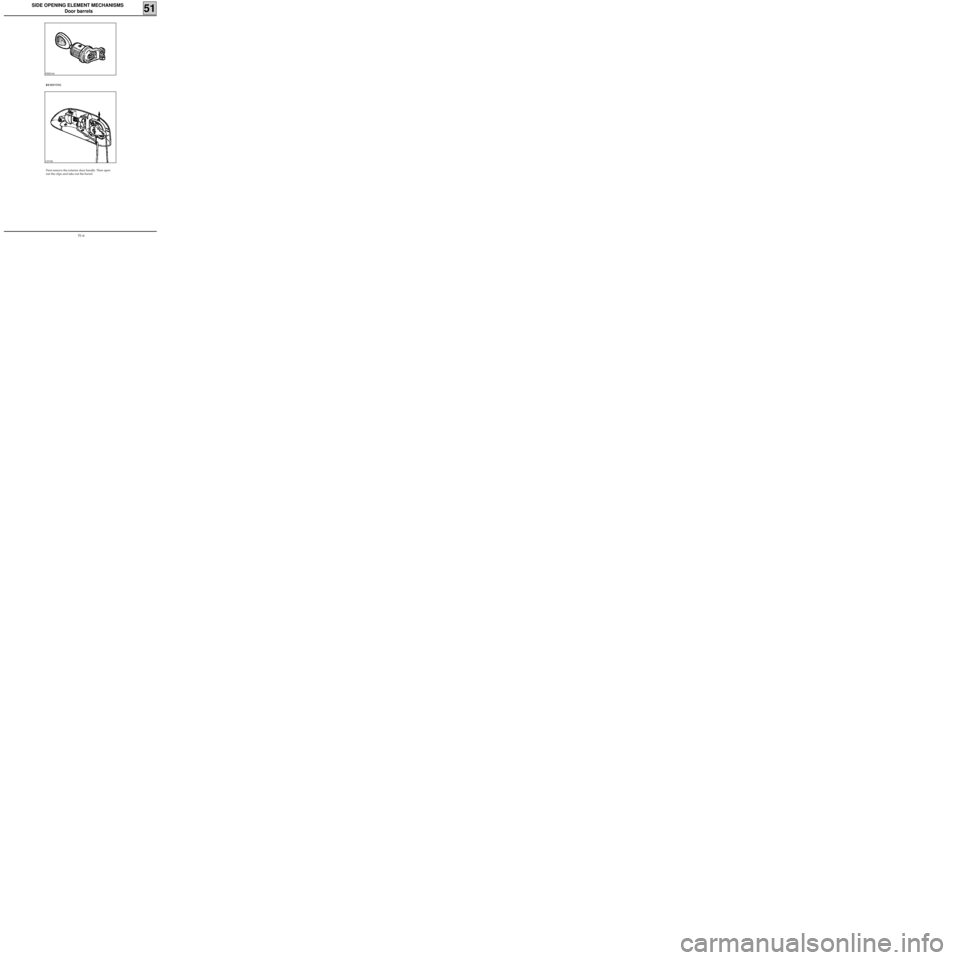

Door barrels
51
PRB5106
First remove the exterior door handle. Then open
out the clips and take out the barrel.
REMOVING
12974R
51-6

Page 13 of 51

RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide SIDE OPENING ELEMENT MECHANISMS
Interior handle for opening the sliding door51
Remove the mounting bolt.
Unclip the opening control cable.
REMOVING
13102R
PRB5103
51-7

Page 14 of 51

RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide SIDE OPENING ELEMENT MECHANISMS
Exterior handle for sliding door
51
PRB5103
- the opening control cable (2).
Remove the mounting bolts (3).
REMOVING
First remove the trim (see section 72) and then un-

Page 15 of 51

RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide SIDE OPENING ELEMENT MECHANISMS
Locking warning light and sliding door lock51
13158R
First remove the trim. Then perform the following operations:
REMOVING THE WARNING LIGHT
Release the mounting clips

Page 16 of 51

RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide SIDE OPENING ELEMENT MECHANISMS
Sliding door runners
51
12979R
REMOVE THE MOUNTING FITTINGS FOR THE
RUNNER IN MID-HEIGHT POSITION REMOVING THE SLIDING DOOR
12978R
- Take out the rear stop.
13105R
- Re

Page 17 of 51

RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide SIDE OPENING ELEMENT MECHANISMS
Sliding door runners
51
13106R
Remove the lower trim, depending on the version.REMOVE THE MOUNTING FITTINGS FOR THE
LOWER RUNNER
12976R
12975R
51-11

Page 18 of 51

RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide SIDE OPENING ELEMENT MECHANISMS
Adjusting the sliding door
51
12333-3R1
Opening clearances:
A = 4.5 mm B = 4 mm C = 4 mm D = 6 mm
51-12

Page 19 of 51

RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide SIDE OPENING ELEMENT MECHANISMS
Adjusting the sliding door
51
13155S
3Adjust the mid-height bracket to obtain clea-
rances A and C.
1Adjust the height of the lower bracket so that
clearances B and D a

Page 20 of 51

RENAULT KANGOO 2013 X61 / 2.G Mechanism And Accessories User Guide NON-SIDE OPENING ELEMENT MECHANISMS
Exterior handle for rear door
- mounting bolt (1),
- handle.
52
REMOVING
First remove trim (see section 72) and then take
out:
PRB5201
13070R1
52-1
