Accessories
AccEssOriEs
use of transmission/
receiving
 devices
(telephones,
 cB
equipment
 etc.).
Telephones and CB equipment with
integrated aerials may cause inter-
ference to the original electronic
systems fitted to the vehicle: it is ad-
visable only to use equipment with
an external aerial.
F
urthermore,  we  remind  you  of
the

  need  to comply  with the legis -
lation
  in  force  concerning  the use
of
 such equipment.
Electrical and electronic
accessories
–
C o n n e c t a c c e s s o r i e s
with a maximum power of
120

Watts only.
  Fire hazard.
– No work may be carried out on
the vehicle’s electrical or radio
circuits, except by approved
Dealers: an incorrectly connected
system may result in damage
being caused to the electrical
equipment and/or the compo-
nents connected to it;
–

if the vehicle is fitted with any
aftermarket electrical equipment,
make sure that the unit is correctly
protected by a fuse. Establish the
rating and position of this fuse.
Before fitting an electrical or
electronic device (particu-
larly for transmitters/receiv-
ers: frequency bandwidth,
power level, position of the aerial
etc.), ensure that it is compatible
with your vehicle.
Contact an approved dealer for this
information.
Fitting after-market
accessories
If you wish to install acces-
sories on the vehicle: con-
sult an approved dealer.
Also, to ensure the correct operation
of your vehicle, and to avoid any risk
to your safety, we recommend that
you use only specific accessories,
designed for your vehicle, which
are the only accessories for which
the manufacturer will provide a war-
ranty.
If you are using an anti-theft
device, only attach it to the
brake pedal.

practical advice ..................................... (up to the end of the DU)
system for cutting off the fuel supply in the event of a severe impact ( up to the end of
the DU)
5.30
ENG_UD7329_1
Système de coupure de carburant en cas de choc violent (X76 - Renaul\
t)
ENG_NU_854-2_X76LL_Renault_5

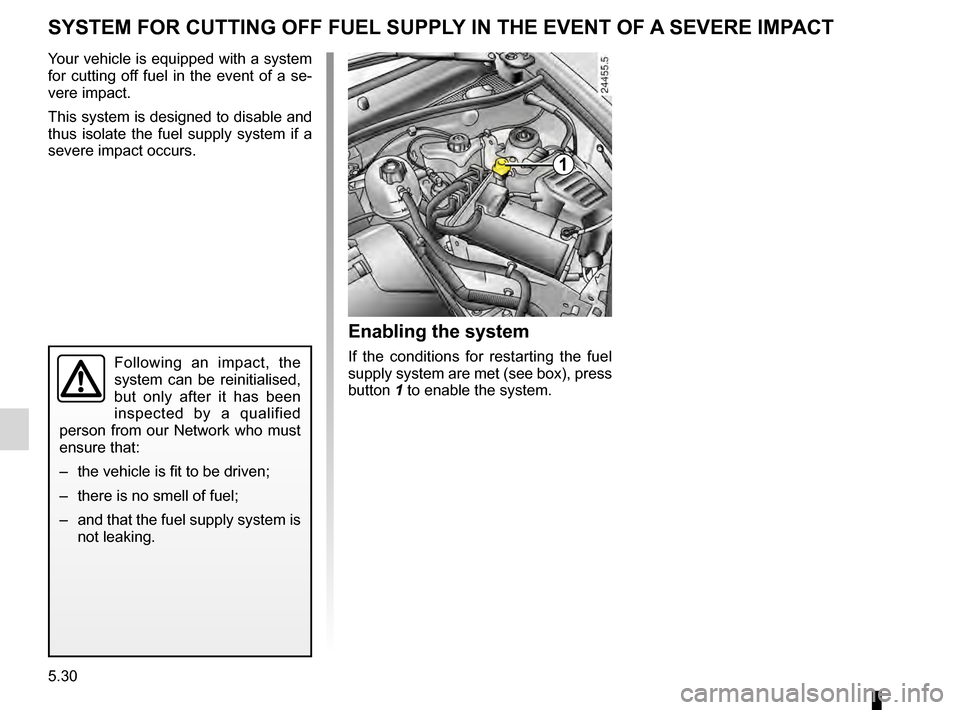

Your vehicle is equipped with a system
for cutting off fuel in the event of a se-
vere impact.
This system is designed to disable and
thus isolate the fuel supply system if a
severe impact occurs.
System for cutting off the fuel supply in the event of a severe impact
Following an impact, the
system can be reinitialised,
but only after it has been
inspected by a qualified
person from our Network who must
ensure that:
–

the vehicle is fit to be driven;
– there is no smell of fuel;
– and that the fuel supply system is
not leaking.
Enabling the system
If the conditions for restarting the fuel
supply system are met (see box), press
button
1 to enable the system.
systEm FOr cutting OFF FuEl suPPly in thE EVEnt OF  A sEVErE imPAct
1

5.31
ENG_UD14323_2
Clé / télécommande à radiofréquence : piles (X76 - Renau\
lt)
ENG_NU_854-2_X76LL_Renault_5
Replace battery 2 according to the di-
rection marked on the cover.
n o
te: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
Batteries can be obtained from your
approved Dealer. These batteries
have a service life of approximately
two years.
There is a delay of 1 second be-
tween locking and unlocking ac-
tions.
rADiO FrEQuEncy rEmOtE cOntrOl:  batteries
2
1
Radio frequency remote control: batteries
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
Unclip remote control cover 1 (using a
coin).

filterdiesel filter ........................................................ (current page)
5.32
ENG_UD7331_1
Filtre à gazole (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5

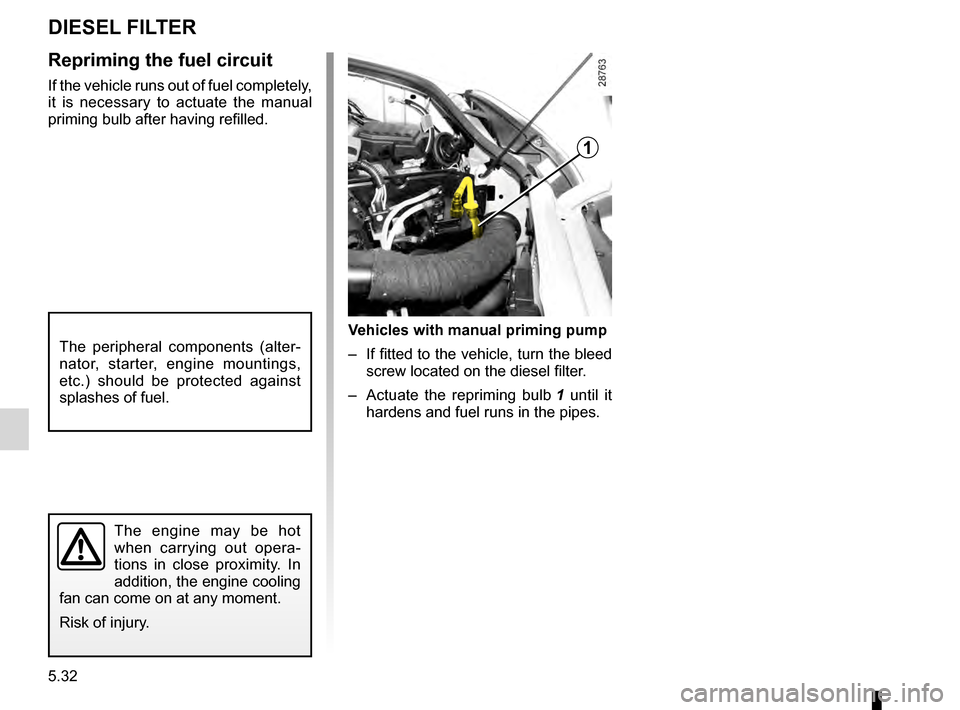

Diesel filter
DiEsEl FiltEr
repriming the fuel circuit
If the vehicle runs out of fuel completely,
it is necessary to actuate the manual
priming bulb after having refilled.
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
The peripheral components (alter-
nator, starter, engine mountings,
etc.) should be protected against
splashes of fuel.
Vehicles with manual priming pump
– If fitted to the vehicle, turn the bleed
screw located on the diesel filter.
–

Actuate the repriming bulb 1 until it
hardens and fuel runs in the pipes.
1

5.33
ENG_UD7332_1
Anomalies de fonctionnement (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
Operating faults
OPErA ting FAults (1/4)
the following  advice will enable  you to carry  out quick,  temporary  repairs. For safety  reasons,  you should  always  contact
an
 approved Dealer as soon as possible.
the starter is activated POssiBlE cAusEsWhAt tO DO
Warning lights dim or fail to come on;
the starter does not run. Battery terminals disconnected,
oxidised or incorrectly secured.Retighten, reconnect or clean them if they
are oxidised.
Battery discharged or worn. Connect another battery to the faulty bat-
tery. Refer to the paragraph “Battery: trou-
bleshooting” in Section 5 or replace the bat-
tery if necessary.
Do not push the vehicle if the steering
column is locked.
The engine will not start. Starting conditions are not fulfilled. Refer to the information on “Starting/stop-
ping the engine” in Section 2.
The steering column remains locked. Steering wheel locked. To unlock, move the key and the steer-
ing wheel (refer to the information on the
“Ignition switch” in Section 2).

5.34
ENG_UD7332_1
Anomalies de fonctionnement (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
Jaune NoirNoir texte
OPErA ting FAults (2/4)
On the road POssiBlE cAusEsWhAt tO DO
Vibrations. Tyres not inflated to the correct pres-
sure, incorrectly balanced or dam-
aged.Check the tyre pressures: if this is not the
problem, have them checked by an ap-
proved Dealer.
Abnormal white smoke from the exhaust
or coolant boiling in the reservoir. Mechanical fault: cylinder head
gasket damaged, water pump defec-
tive.Stop the engine.
Contact an approved Dealer.
Smoke under the bonnet. Short circuit or cooling system leak. Stop, switch off the ignition, stand away
from the vehicle and contact an approved
dealer.
The oil pressure warning light comes
on: while cornering or braking The level is too low. Top up the engine oil (refer to the informa-
tion on “Engine oil level – Topping up/refill-
ing” in Section 4).
is slow to go out or remains lit under
acceleration Loss of oil pressure.
Stop the vehicle and contact an approved
Dealer.

JauneNoirNoir texte
5.35
ENG_UD7332_1
Anomalies de fonctionnement (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
OPErA ting FAults (3/4)
On the road POssiBlE cAusEsWhAt tO DO
Steering becomes heavy. Assistance overheating.Consult an approved Dealer.
The engine overheats. The coolant
temperature indicator and the STOP
warning light come on. Engine cooling fan not working. Stop the vehicle, switch off the engine and
contact an approved Dealer.
Coolant leaks. Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
approved Dealer as soon as possible.
radiator: If there is a lack of coolant, remember that it must never be topped up using cold coolant while the engine is
very warm. After any procedure on the vehicle which has involved even partial draining of the cooling system, it must
be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved by our Technical
Department may be used for this purpose.

5.36
ENG_UD7332_1
Anomalies de fonctionnement (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
OPErA ting FAults (4/4)
Electrical equipment POssiBlE cAusEs WhAt tO DO
The wipers do not work. Wiper blades stuck. Free the blades before using the
wipers.
Faulty electrical circuit. Consult an approved Dealer.
The wiper does not stop. Faulty electrical controls. Consult an approved Dealer.
Direction indicators flashing more
quickly. Blown bulb.
Replace the bulb.
The direction indicators do not work. Faulty electrical circuit. Consult an approved Dealer.
The headlights do not switch on or
off. Faulty electrical circuit or control.
Consult an approved Dealer.
Traces of condensation in the lights. This is not a fault. Traces of condensa- tion are a natural phenomenon caused
by variations in temperature.
These traces soon disappear when the
lights are switched on.

6.1
ENG_UD14023_2
Sommaire 6 (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 6.8
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.15

technical specifications ......................... (up to the end of the DU)
vehicle identification ............................. (up to the end of the DU)
paintwork reference .......................................................... (current page)
vehicle identification plates ................... (up to the end of the DU)
6.2
ENG_UD7335_1
Plaques d identification (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Jaune NoirNoir texte
Vehicle identification plates
6 Technical specifications of the
vehicle.
7
Vehicle paint reference.
8
Equipment level.
9
Vehicle type.
10
Trim code.
1
1 Additional equipment specifica-
tion.
12
Fabrication number.
13
Interior trim code.
A - Vehicle identification plate

1
Vehicle type and chassis number.
2
M a x i m u m p e r m i s s i b l e a l l - u p
weight.
3 T
otal train weight (vehicle fully
loaded, with trailer).
4
Maximum permissible weight on
front axle.
5
Maximum permissible weight on
rear axle.
Quote the details given on the iden-
tification plate A
(right-hand side) on
all letters or orders.
Vehicle identification plates (1/2)
a
a
1
2
3
4
5
6
7
8
9
10
11
12
13
