6.3
ENG_UD7335_1
Plaques d identification (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Vehicle identification plates (2/2)
Quote the details given on engine
plate B on all letters or orders.
B –
engine plate or engine label
(Location varies depending on engine)
1 Engine type.
2 Engine suf
fix.
3 Engine number
.
B
1
23
B
B
Page 152 of 173
engine specifications ............................ (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
engine technical specifications ................... (up to the end of the DU)
6.4
ENG_UD7336_1
Caractéristiques moteurs (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6

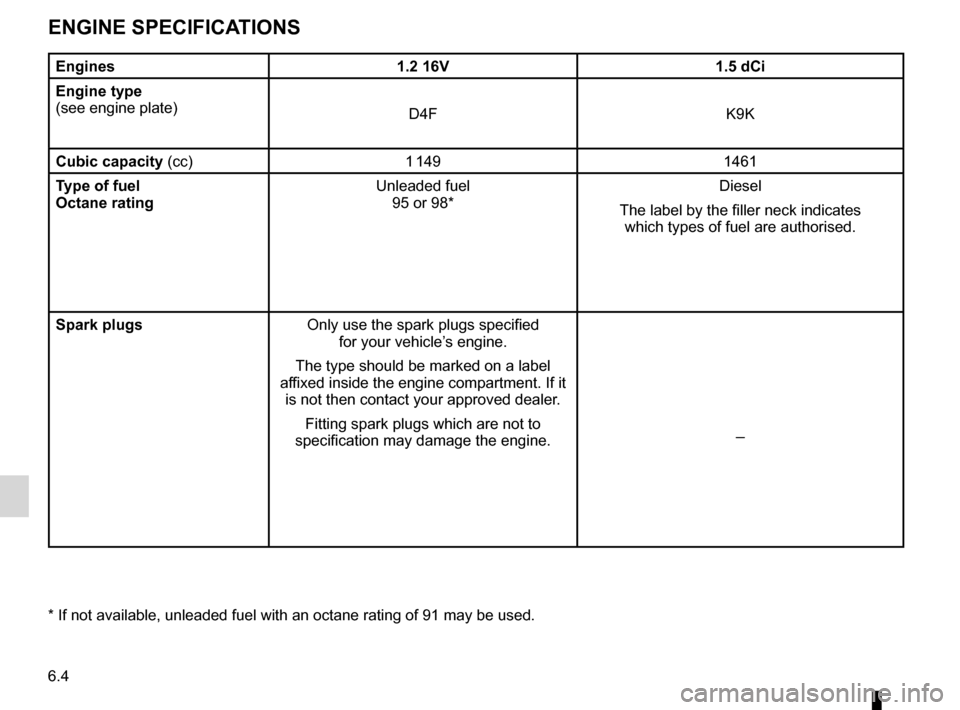

Engine specifications
engines 1.2 16V1.5 d ci
engine type
(see engine plate) D4FK9K
c
ubic capacity (cc) 1
149 1461
t ype of fuel
o
ctane rating Unleaded fuel
95 or 98* Diesel
The label by the filler neck indicates which types of fuel are authorised.
s
park plugs Only use the spark plugs specified
for your vehicle’s engine.
The type should be marked on a label
affixed inside the engine compartment. If it is not then contact your approved dealer.
Fitting spark plugs which are not to
specification may damage the engine. _
engine specifications
* If not available, unleaded fuel with an octane rating of 91 may be use\
d.
Page 153 of 173
technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
weights ................................................. (up to the end of the DU)
towing towing a caravan ............................. (up to the end of the DU) 6.5
ENG_UD14432_2
Masses (en kg) (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
the weights indicated for a basic vehicle without options: they vary depending on your vehicle’s equipment. contact an
approved
dealer.
Weights
V an versions petroldiesel all-terrain
Maximum permissible all-Up Weight (MMac)
Maximum permissible t otal Weight (MMta)
t otal t rain Weight (MtR) Weights indicated on the identification plate
(refer to the information on the “Vehicle identification plates” in Section 6)
t owing weight braked found by calculating: M
tR - MMac
t owing weight unbraked 495525 520
p
ermissible nose weight 75
Maximum permissible load on roof rack 100 (including the carrying device)
t owing weight (
t owing a caravan, boat, etc.)
– It is important to respect the towing regulations in force in the area, specifically those set out in the Road Traffic Regulations.
Contact an approved Dealer for any modifications to towing equipment.
–
When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is
permitted:
–
the rear maximum permissible weight (MMTA) may be exceeded by no more than 15%,
– the MMAC (Maximum permissible all-up weight) may be exceeded by no more than 10% or 100 kg (whichever occurs
first).
In either case, the maximum speed of the towing assembly must not exceed\
48 mph (80 km/h) and the tyre pressure must be in-
creased by 0.2 bar (3 PSI). In all cases, comply with local legislatio\
n.
–
The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
Weights (in kg) (1/2)
Page 154 of 173
6.6
ENG_UD14432_2
Masses (en kg) (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Weights (in kg) (2/2)
the weights indicated for a basic vehicle without options: they vary depending on your vehicle’s equipment. contact an
approved
dealer.
coMBi versions petrol/dieselall-terrain
Maximum permissible all-Up Weight (MMac)
Maximum permissible t otal Weight (MMta)
t otal t rain Weight (MtR) Weights indicated on the identification plate
(refer to the information on the “Vehicle identification plates” in Section 6)
t owing weight braked found by calculating: M
tR - MMac
t owing weight unbraked 560580
p
ermissible nose weight 75
Maximum permissible load on roof rack 100 (including the carrying device)
t owing weight (
t owing a caravan, boat, etc.)
– It is important to respect the towing regulations in force in the area, specifically those set out in the Road Traffic Regulations.
Contact an approved Dealer for any modifications to towing equipment.
–
When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is
permitted:
–
the rear maximum permissible weight (MMTA) may be exceeded by no more than 15%,
– the MMAC (Maximum permissible all-up weight) may be exceeded by no more than 10% or 100 kg (whichever occurs
first).
In either case, the maximum speed of the towing assembly must not exceed 60 mph (100 km/h) and the tyre pressure must be
increased by 0.2 bar (3 PSI). In all cases, comply with local legislat\
ion.
–
The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
Page 155 of 173
technical specifications ......................... (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
turning circle ......................................... (up to the end of the DU) 6.7
ENG_UD7338_1
Dimensions (en mètres) (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
1.405
2.031
1.410
0.730 2.6050.700
4.035
Dimensions
diMensions (in metres)
t urning circle
– between walls: 10.79
important: if the vehicle is fitted with roof bars, the various height
measurements, shown opposite, must be increased by 4.3 cm.
t
hese bars cannot be removed.
(1) Unladen.
(2) Laden.
(3) All-terrain.
2.015
1.835 (1)
1.730 (2)
1.885 (1) (3)
1.785 (2) (3)
Page 156 of 173
technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.8
ENG_UD7339_1
Pièces de rechange et réparations (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
ReplaceMent paRts and RepaiRs
Page 157 of 173
service sheets....................................... (up to the end of the DU)
maintenance:mechanical ...................................... (up to the end of the DU)
maintenance: mileage before service .................... (up to the end of the DU) 6.9
ENG_UD10910_1
Justificatif d’entretien (X06 - X35 - X44 - X45 - X65 - X73 - X81 - \
X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - L38 - L43 - L4\
7 - X61 BUp - X33 - Renault)
ENG_NU_854-2_X76LL_Renault_6
Service sheets
seRVice sheets (1/6)
