Page 121 of 173
indicators ............................................................... (current page)
indicators: direction indicators ........................................... (current page)
lights changing bulbs ................................................. (current page)
Jaune NoirNoir texte
5.9
ENG_UD7316_1
Feux avant avec lampes halogènes : remplacement des lampes (X76 - Re\
nault)
ENG_NU_854-2_X76LL_Renault_5
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Front side light
Remove bulb connector 2.
Turn the bulb holder one quarter-turn
and take out the bulb.
Bulb
type: W5W.
Direction indicator lights
Remove bulb connector 3.
Turn the bulb holder one quarter-turn
and take out the bulb.
Bulb
type:
pear-shaped, bayonet type 21W.

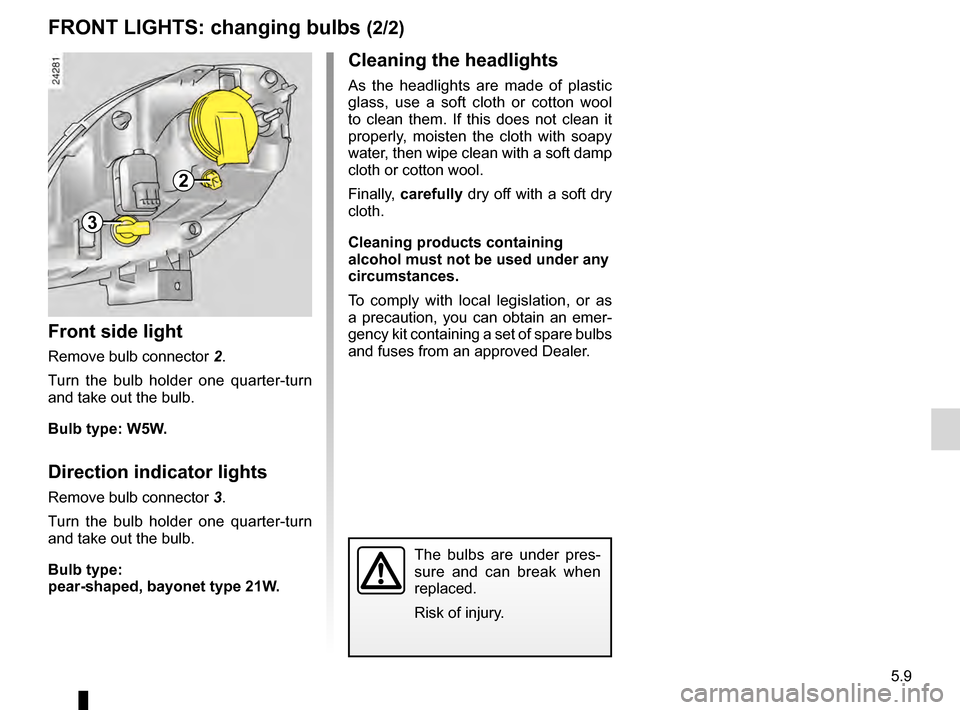

FrOnt lights: changing bulbs (2/2)
2
3
cleaning the headlights
As the headlights are made of plastic
glass, use a soft cloth or cotton wool
to clean them. If this does not clean it
properly, moisten the cloth with soapy
water, then wipe clean with a soft damp
cloth or cotton wool.
Finally, carefully
dry off with a soft dry
cloth.
c
leaning products containing
alcohol
must not be used under any
circumstances.
To comply with local legislation, or as
a precaution, you can obtain an emer-
gency kit containing a set of spare bulbs
and fuses from an approved Dealer.
Page 122 of 173
bulbschanging ......................................... (up to the end of the DU)
fog lights ............................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.10
ENG_UD7317_1
Projecteurs antibrouillard : remplacement des lampes (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
Additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved dealer.
Fog lights
light A
Consult your approved Dealer.
Bulb type: h1

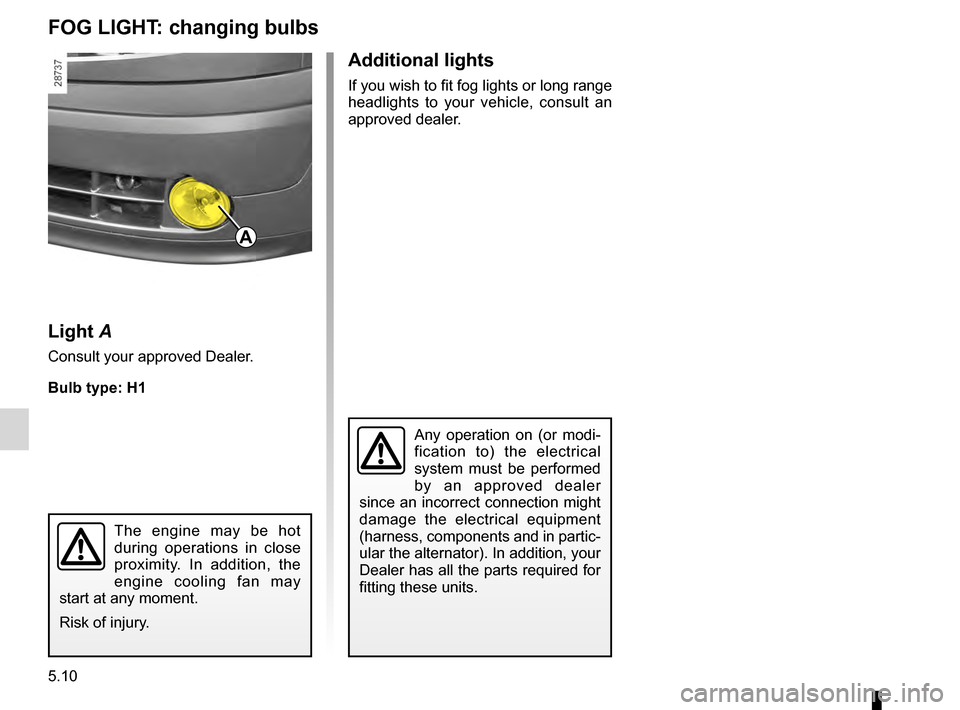

FOg light: changing bulbs
A
The engine may be hot
during operations in close
proximity. In addition, the
engine cooling fan may
start at any moment.
Risk of injury.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.
Page 123 of 173
5.11
ENG_UD7318_1
Feux arrière : remplacement des lampes (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
Rear lights: changing bulbs
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Unclip the bulb holder by pressing on
tab
2.
3
side and brake light
Pear-shaped, bayonet type bulb
with 2
P 21/5 W filaments.
4
indicator
P 21 W pear-shaped, bayonet type
bulb.
5
reversing light (right and left-
hand side, depending on vehicle).
Fog light (left-hand side, depend-
ing on vehicle)
P 21 W pear-shaped, bayonet type
bulb.
rear lights
Remove nuts 1 and release the rear
light from its housing.

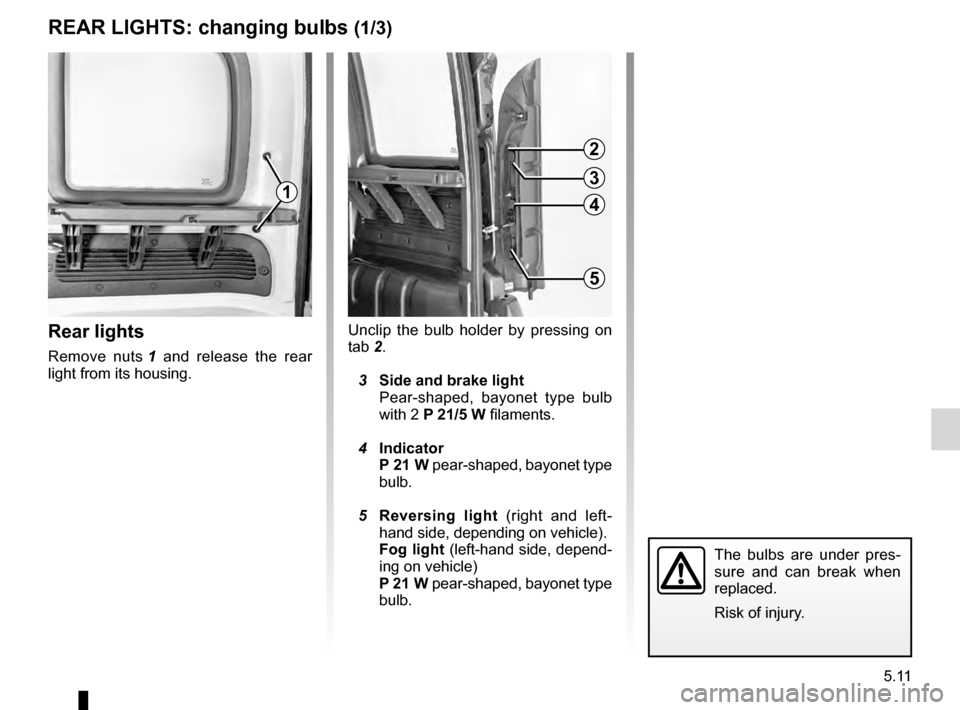

rEAr lights: changing bulbs (1/3)
1
2
3
4
5
Page 124 of 173
5.12
ENG_UD7318_1
Feux arrière : remplacement des lampes (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
Jaune NoirNoir texte
7 Bulb type P 21/5 W.high-level brake light
Remove nuts 6 and release the brake
light from its housing.

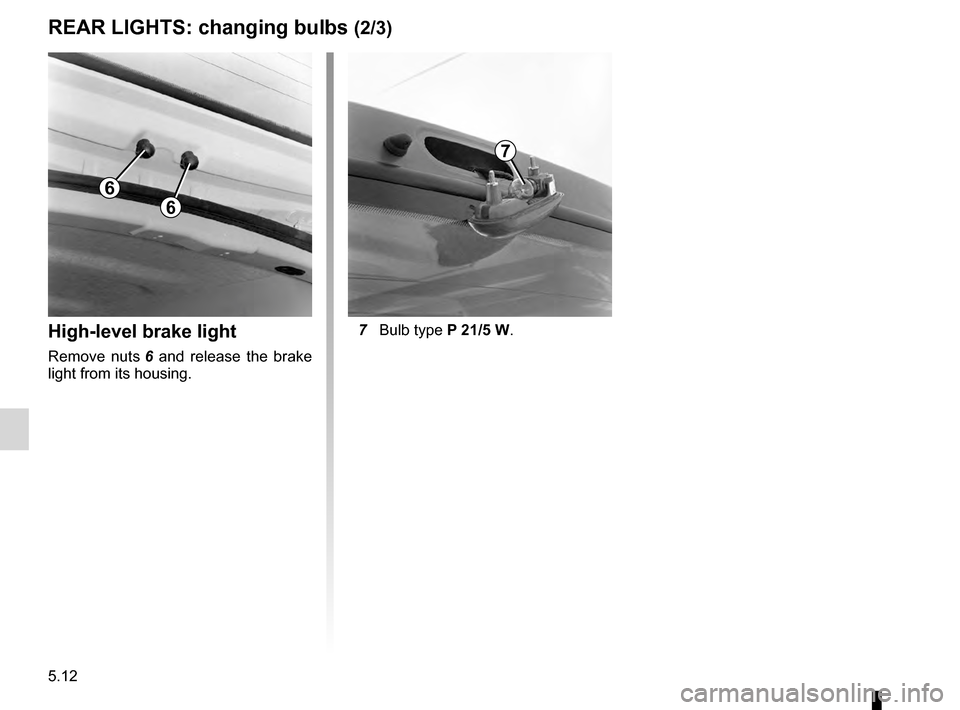

rEAr lights: changing bulbs (2/3)
6
6
7
Page 125 of 173
JauneNoirNoir texte
5.13
ENG_UD7318_1
Feux arrière : remplacement des lampes (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
rEAr lights: changing bulbs (3/3)
Release the light to access bulbs 9.
Bulb
type: W 5 W.number plate light
Unclip the light at 8 using a flat-blade
screwdriver or similar.
8
9
Page 126 of 173
bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
indicators: direction indicators .......................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.14
ENG_UD7319_1
Répétiteurs latéraux : remplacement des lampes (X76 - Renault)\
ENG_NU_854-2_X76LL_Renault_5

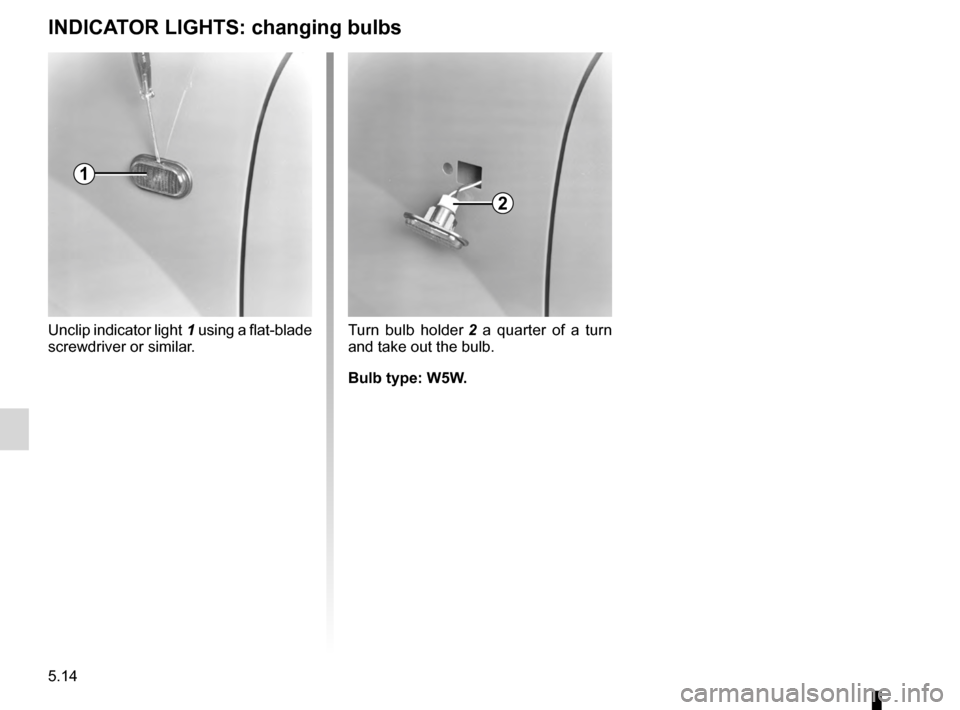

Side indicator lights
Turn bulb holder 2 a quarter of a turn
and take out the bulb.
Bulb
type: W5W.
Unclip indicator light
1 using a flat-blade
screwdriver or similar.
inDicA tOr lights: changing bulbs
1
2
Page 127 of 173
bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
interior lighting: changing bulbs ................................ (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU) 5.15
ENG_UD7320_1
Eclairage intérieur : remplacement des lampes (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
Interior lighting
map reading light
– Remove the light support by press-
ing on tab
2.
Bulb
mounting 4 will fall out when re-
leased.
–
Detach reflector 6 from bulb mount-
ing
4.
–
Replace bulb 5 and refit the unit
taking care not to crush the bulb con-
tact tabs.
Bulb
type: 7 W festoon type bulb.
Release bulb
3.
Bulb
type: 7 W festoon type bulb.Passenger compartment light(depending on vehicle)
Remove light covers 1 using a tool such
as a flat-blade screwdriver.

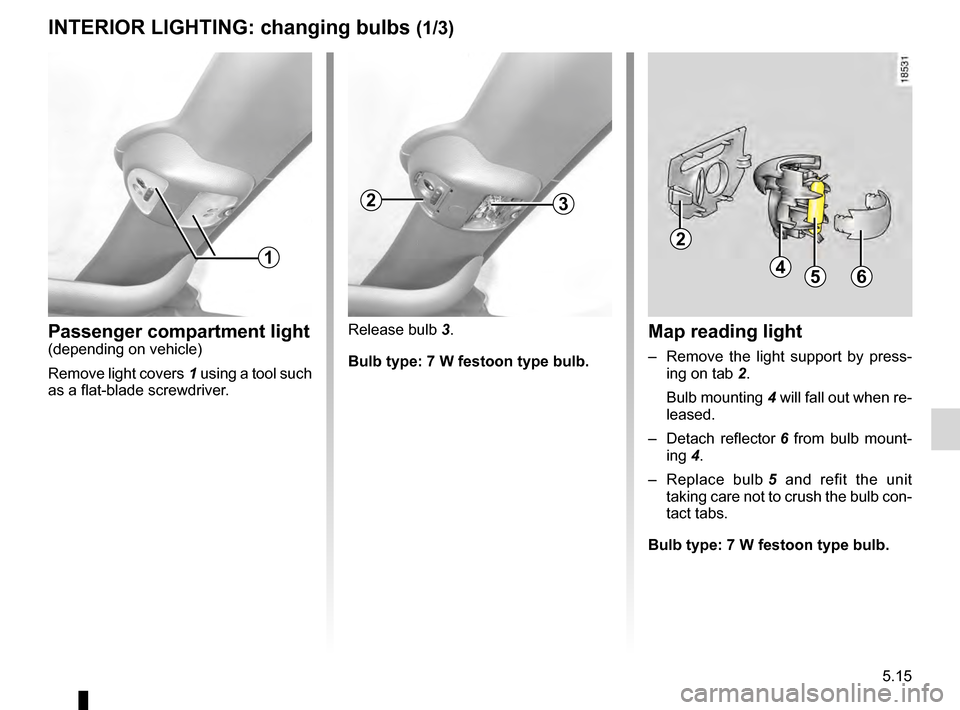

intEriOr lighting: changing bulbs (1/3)
1
23
2
456
Page 128 of 173
5.16
ENG_UD7320_1
Eclairage intérieur : remplacement des lampes (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
Jaune NoirNoir texte
map reading light
– Remove lens 8 using a flat-blade
screwdriver or similar.
–
Release bulbs 10.
Bulb
type: 7 W festoon type bulb.
–
Remove bulb 9.
Bulb
type: 7 W festoon type bulb.Passenger compartment
light 7
(depending on vehicle)
– Tilt lens 7.
–
Remove it by hand.

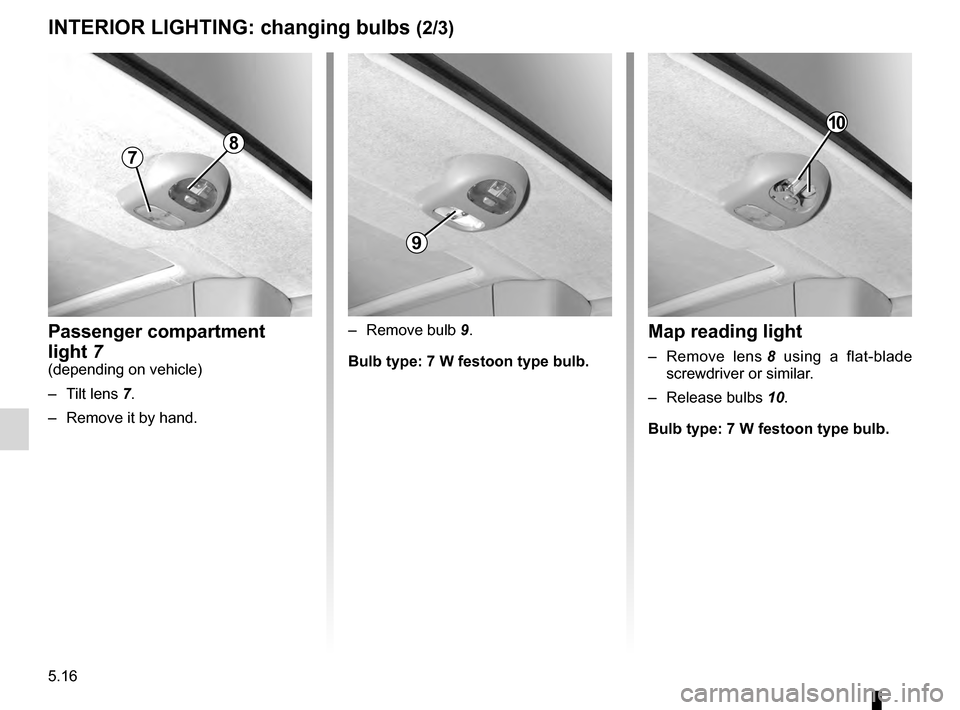

intEriOr lighting: changing bulbs (2/3)
78
9
10
Page 129 of 173
JauneNoirNoir texte
5.17
ENG_UD7320_1
Eclairage intérieur : remplacement des lampes (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
intEriOr lighting: changing bulbs (3/3)
Passenger compartment
light 11
(depending on vehicle)
– Tilt lens 11.
–
Remove it by hand.
Release bulb 12.
Bulb
type: 7 W festoon type bulb.
11
12
Page 130 of 173
bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
practical advice ..................................... (up to the end of the DU)
luggage compartment lighting changing bulbs ................................ (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.18
ENG_UD7321_1
Eclaireur de coffre : remplacement de la lampe (X76 - Renault)
ENG_NU_854-2_X76LL_Renault_5
Luggage compartment light
light A
Press tabs 1 to release the bulb holder.
P
ress tab 2 to release the lens and
access bulb
3.
Bulb
type: 7 W festoon type bulb.

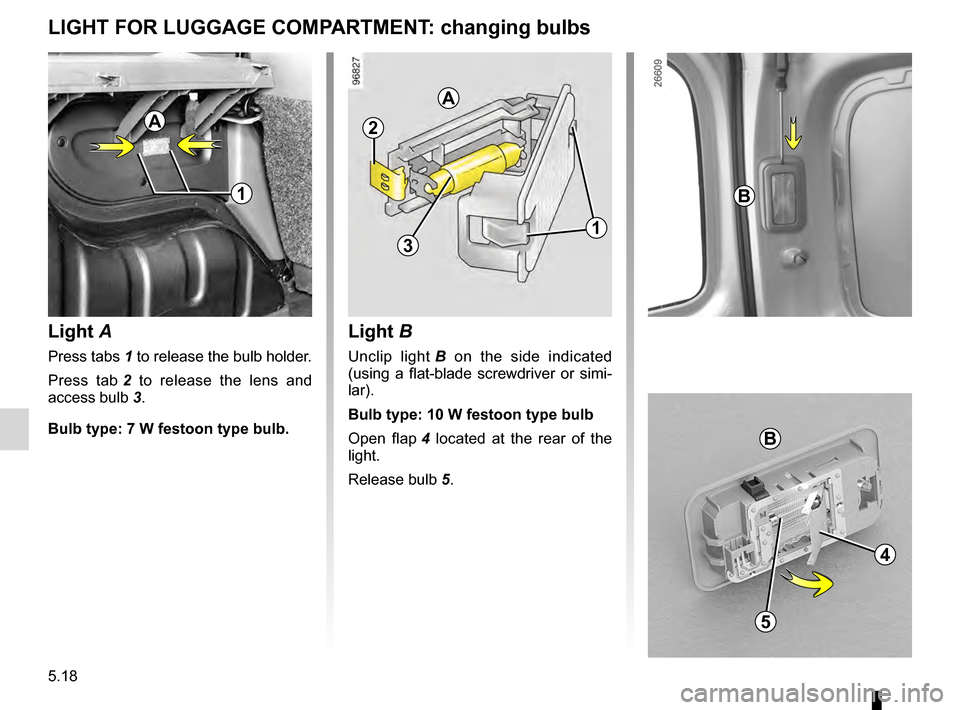

light FOr luggAgE cOmPArtmEnt : changing bulbs
1
2
3
light B
Unclip light B on the side indicated
(using a flat-blade screwdriver or simi-
lar).
Bulb
type: 10 W festoon type bulb
Open flap 4
located at the rear of the
light.
Release bulb
5.
1
A
B
A
B
4
5
