vehicle identification plates ................... (up to the end of the DU)
6.3
ENG_UD27149_4
Plaques d’identification moteur (H45 - X65 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6

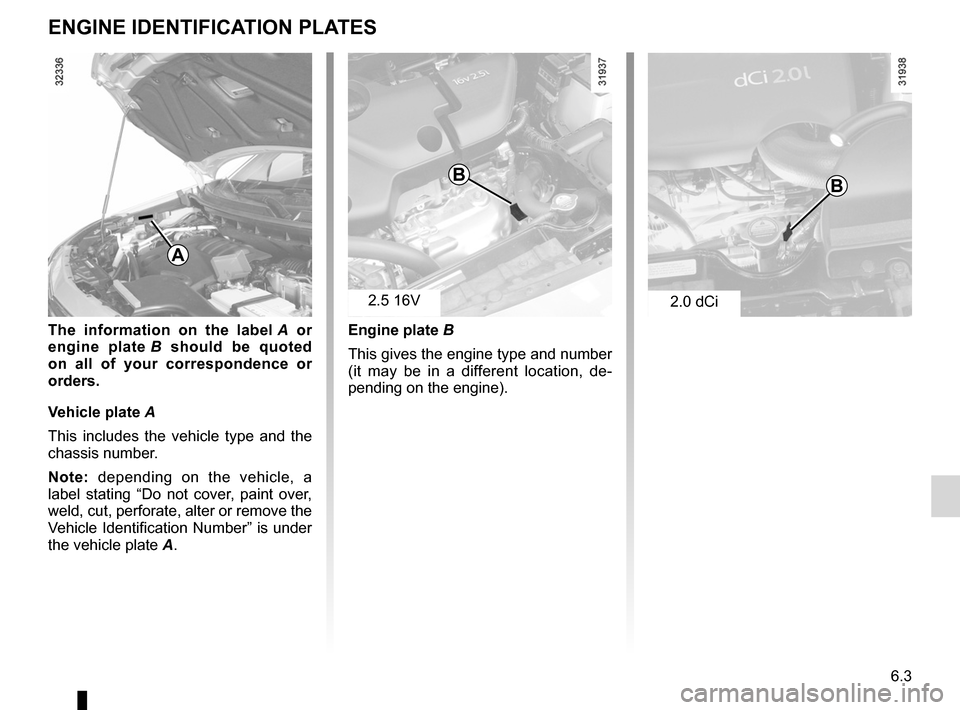

engine identification plates
t he information on the label A or
engine plate B should be quoted
on all of your correspondence or
orders.
Vehicle plate A
This includes the vehicle type and the
chassis number.
n ote: depending on the vehicle, a
label stating “Do not cover, paint over,
weld, cut, perforate, alter or remove the
Vehicle Identification Number” is under
the vehicle plate A.engine plate B
This gives the engine type and number
(it may be in a different location, de -
pending on the engine).
a
BB
2.0 dCi2.5 16V
Page 212 of 233
dimensions ........................................... (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
6.4
ENG_UD23539_3
Dimensions (en mètres) (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6
Dimensions
diMensions (in metres)
955 2.690 875
4.5201.545
1.550
2.120
1.695 (1)
1.715 (2)
(1) without roof rack
(2) with roof rack
Page 213 of 233
enginetechnical specifications ................... (up to the end of the DU)
technical specifications ......................... (up to the end of the DU)
engine specifications ............................ (up to the end of the DU)
6.5
ENG_UD23904_4
Caractéristiques moteurs (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6
Engine specifications
engine specifications
Versions 2.5 16V2.0 dci
engine type
(see engine number) 2TR
M9R Turbo
cubic capacity (cc) 2 488 1 995
t ype of fuel
octane Rating It is
essential to use unleaded petrol
with the octane rating stated on the label
inside the fuel filler flap. If not available,
for a limited time only, use unleaded fuel:
– with an Octane rating of 91 for a
label showing 95 or 98;
– with an octane rating of 87 for a
label showing 91, 95 or 98. Diesel
The label located in the fuel filler flap indicates authorised fuels.
spark plugs Only use the spark plugs specified for
your vehicle’s engine.
The type should be marked on a label af-
fixed inside the engine compartment. If it
is not then contact an approved dealer.
Fitting spark plugs which are not to spe-
cification may damage the engine. –
Page 214 of 233
technical specifications ......................... (up to the end of the DU)
towing a caravan .................................. (up to the end of the DU)
towing weights ...................................... (up to the end of the DU)
weights ................................................. (up to the end of the DU)
6.6
ENG_UD13158_4
Masses (enKg) (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_6
Weights
Towing weights
Weights (in kg)
Maximum permissible all-up weight (MMac)
total train weight (MtR) Weights indicated on the manufacturer’s plate
(refer to Section 6 “Vehicle identification plate”)
t owing weight braked found by calculating:
total train weight
Maximum permissible all-up weight
t owing weight unbraked 750
permissible nose weight 100
permissible load on the roof with the carrying device 85 kg (including the carrying device)
t owing weight (t owing a caravan, boat, etc.)
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact your approved Dealer about any towing equipment.
– For vehicles fitted with a trailer, the total train weight (vehicle + trailer) must never be exceeded. However, the following is
tolerated:
– rear axle maximum permissible weight exceeded by no more than 15%,
– maximum permissible all-up weight exceeded by no more than 10% or 100 kg (whichever is reached first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 kph) and the tyre pressures must be
increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter .
the weights indicated are those of a basic model without options: they will vary depending on the equipment level of
your vehicle. consult an authorised dealer.
Page 215 of 233
technical specifications ......................... (up to the end of the DU)
replacement parts ................................. (up to the end of the DU)
6.7
ENG_UD21022_2
Pi ces de rechange et r parations (X35 - X44 - X45 - H45 - X65 - X77 - X81 - J81 - X85 - X91 - B91 - K91 - D91 - X76 - X83 - X95 - B95 - D95 - E95 - K95 - J95 - R95 -
ENG_NU_977-2_H45_Ph2_Renault_6
Replacement parts and repairs
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
ReplaceMent paRts and RepaiRs
Page 216 of 233
6.8
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - H79
ENG_NU_977-2_H45_Ph2_Renault_6
Jaune NoirNoir texte
Service sheets
Date: Miles (Km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anti-corrosion check:
OK □ Not OK* □
*See specific page
Vin: ..................................................................................

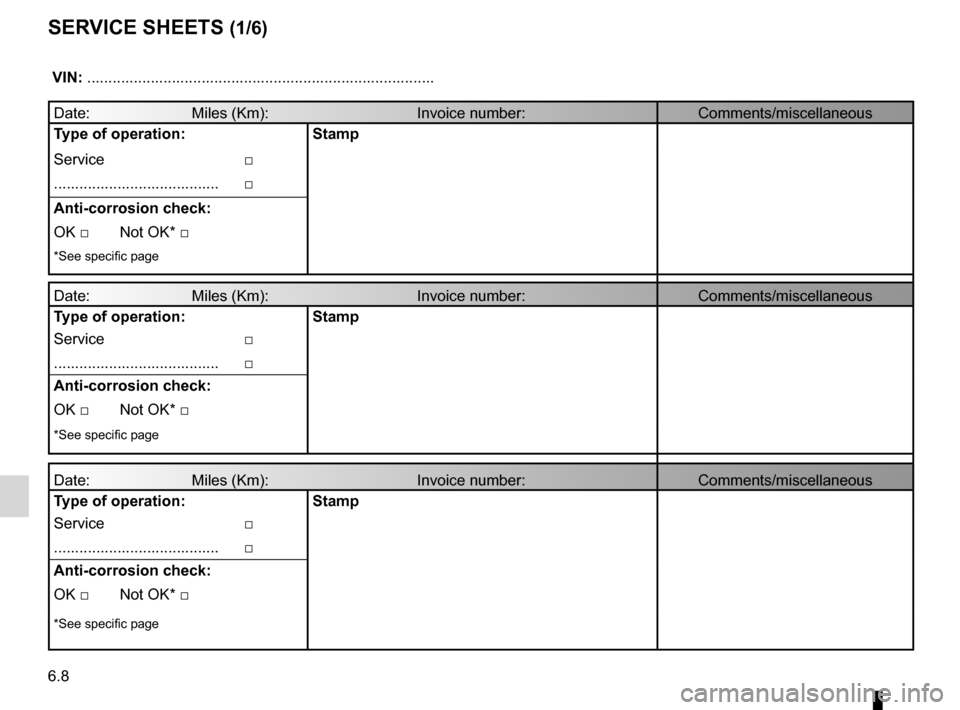

seRVice sheets (1/6)
Page 217 of 233
JauneNoirNoir texte
6.9
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - H79
ENG_NU_977-2_H45_Ph2_Renault_6
seRVice sheets (2/6)
Vin: ..................................................................................
Date: Miles (Km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anti-corrosion check:
OK □ Not OK* □
*See specific page
Page 218 of 233
6.10
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - H79
ENG_NU_977-2_H45_Ph2_Renault_6
Jaune NoirNoir texte
seRVice sheets (3/6)
Vin: ..................................................................................
Date: Miles (Km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anti-corrosion check:
OK □ Not OK* □
*See specific page
Date: Miles (Km): Invoice number: Comments/miscellaneous
t ype of operation: stamp
Service □
....................................... □
anti-corrosion check:
OK □ Not OK* □
*See specific page
Page 219 of 233
JauneNoirNoir texte
6.11
ENG_UD25385_3
Justificatif d’entretien (X06 - S06 - X35 - X44 - X45 - X65 - X73 - X81 - X84 - X85 - X90 - X70 - X76 - X83 - X61 - X24 - X77 ph2 - X95 - L47 - X33 - X47 - X43 - X38 - H79
ENG_NU_977-2_H45_Ph2_Renault_6

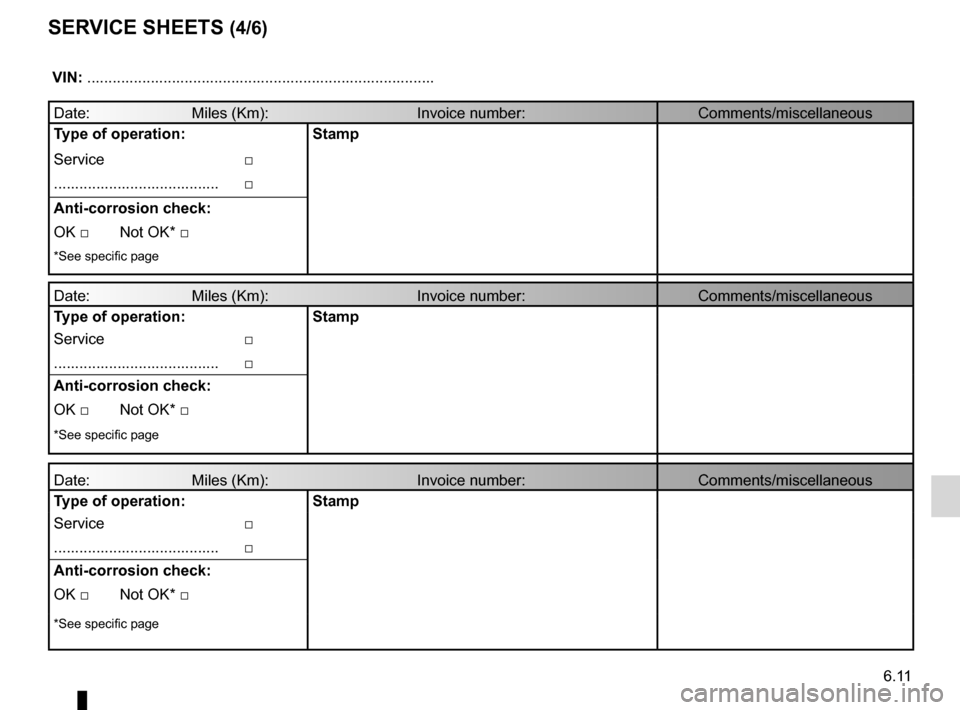

seRVice sheets (4/6)
