Pneumatiques (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
emergency spare wheel
Refer to the information on the
“Emergency spare wheel” and in -
structions on “Changing a wheel” in
Section 5.
changing wheels around
Vehicles fitted with the
tyre pressure monitors
The tyre pressure moni -
tor takes around 8 min -
utes to identify that tyres have been
swapped or replaced. The system
will not operate during this time.
While the tyre pressure monitor is
identifying the tyres which have
been replaced, the information sent
by the system may be inaccurate
and this could have serious conse-
quences.
tyres (2/3)

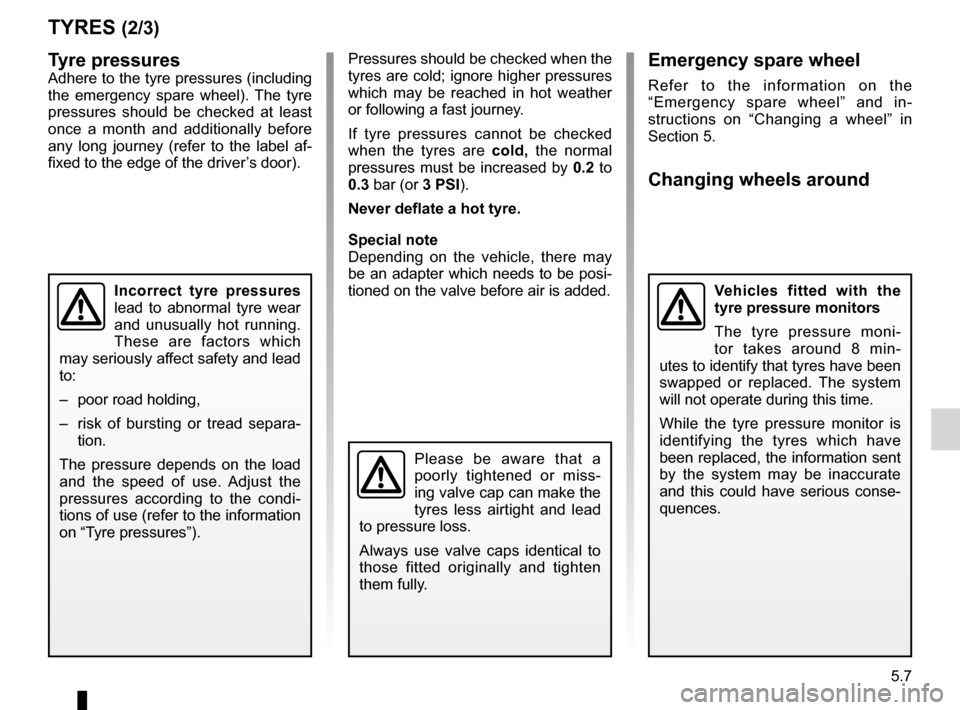

t yre pressures
Adhere to the tyre pressures (including
the emergency spare wheel). The tyre
pressures should be checked at least
once a month and additionally before
any long journey (refer to the label af -
fixed to the edge of the driver’s door).
Incorrect tyre pressures
lead to abnormal tyre wear
and unusually hot running.
These are factors which
may seriously affect safety and lead
to:
– poor road holding,
– risk of bursting or tread separa -
tion.
The pressure depends on the load
and the speed of use. Adjust the
pressures according to the condi -
tions of use (refer to the information
on “Tyre pressures”).
Pressures should be checked when the
tyres are cold; ignore higher pressures
which may be reached in hot weather
or following a fast journey.
If tyre pressures cannot be checked
when the tyres are cold, the normal
pressures must be increased by 0.2 to
0.3 bar (or 3 PsI).
never deflate a hot tyre.
special note
Depending on the vehicle, there may
be an adapter which needs to be posi-
tioned on the valve before air is added.
Please be aware that a
poorly tightened or miss -
ing valve cap can make the
tyres less airtight and lead
to pressure loss.
Always use valve caps identical to
those fitted originally and tighten
them fully.

5.8
ENG_UD21006_4
Pneumatiques (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation. It is neces -
sary to observe the speed specified by
current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.use in winter
chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
chains cannot be fitted to tyres which
are larger than those originally fitted to
the vehicle.
snow or w inter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe -
sion.
w arning: These tyres sometimes have
a specific direction of rotation and a
maximum speed index which may be
lower than the maximum speed of your
vehicle.
tyres (3/3)
Chains may only be fitted
to tyres of the same size
as those originally fitted to
your vehicle.
In all cases, we would recommend
that you contact an approved dealer
who will be able to advise you on
the choice of equipment which is
most suitable for your vehicle.

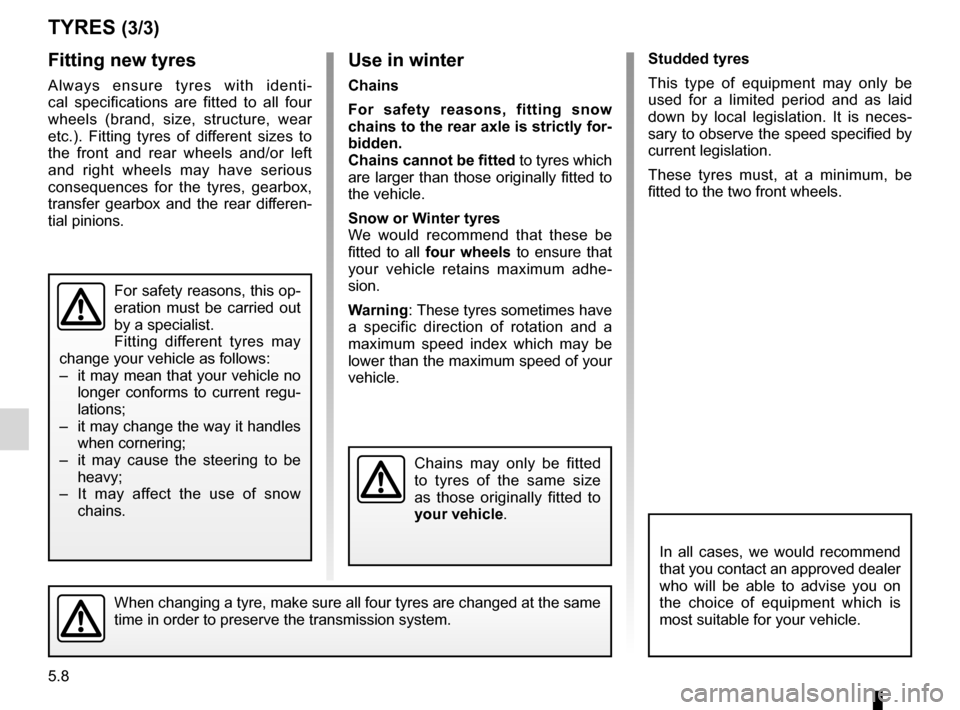

Fitting new tyres
Always ensure tyres with identi -
cal specifications are fitted to all four
wheels (brand, size, structure, wear
etc.). Fitting tyres of different sizes to
the front and rear wheels and/or left
and right wheels may have serious
consequences for the tyres, gearbox,
transfer gearbox and the rear differen-
tial pinions.
For safety reasons, this op-
eration must be carried out
by a specialist.
Fitting different tyres may
change your vehicle as follows:
– it may mean that your vehicle no
longer conforms to current regu-
lations;
– it may change the way it handles
when cornering;
– it may cause the steering to be
heavy;
– It may affect the use of snow
chains.
When changing a tyre, make sure all four tyres are changed at the same
time in order to preserve the transmission system.

lightsfront ................................................. (up to the end of the DU)
lights changing bulbs ................................ (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights: dipped beam headlights .................. (up to the end of the DU)
lights: main beam headlights ..................... (up to the end of the DU)
lights: side lights ........................................ (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
5.9
ENG_UD23533_3
Projecteurs lampes halogène : remplacement des lampes (H45 - X65 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Direction indicator lights
Undo bulb holder 1 a quarter of a turn.
Undo the bulb a quarter of a turn.
Bulb type: wy21w .
Front side light
Disconnect the bulb holder 3 then
remove the bulb.
Bulb type: w5w .
Headlights (changing bulbs)

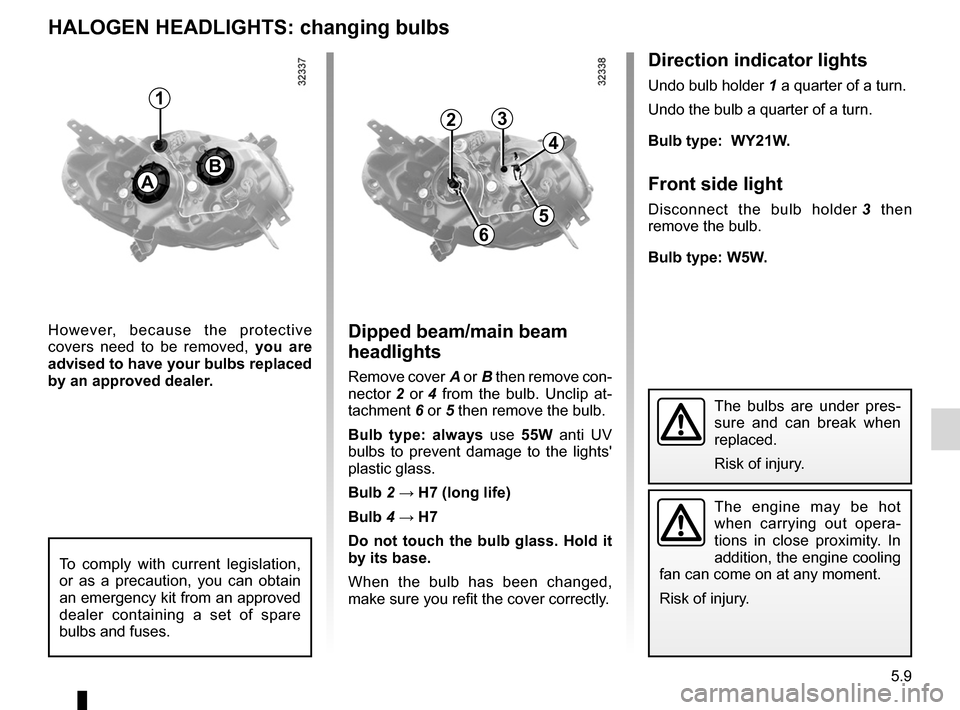

halOgen heaDlIghts: changing bulbs
Dipped beam/main beam
headlights
Remove cover A or B then remove con-
nector 2 or 4 from the bulb. Unclip at -
tachment 6 or 5 then remove the bulb.
Bulb type: always use 55w anti UV
bulbs to prevent damage to the lights'
plastic glass.
Bulb 2 → h7 (long life)
Bulb 4 → h7
Do not touch the bulb glass. hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
1
aB
3
6
2
4
5
However, because the protective
covers need to be removed, you are
advised to have your bulbs replaced
by an approved dealer.
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from an approved
dealer containing a set of spare
bulbs and fuses.
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights changing bulbs ................................ (up to the end of the DU)
5.10
ENG_UD23534_3
Projecteurs lampes au xénon : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
cleaning the headlights
As the headlights are made of plastic
glass, use a soft cloth or cotton wool
to clean them. If this does not clean it
properly, moisten the cloth with soapy
water, then wipe clean with a soft damp
cloth or cotton wool.
Finally, carefully dry off with a soft dry
cloth.
c leaning products containing alco -
hol must not be used.

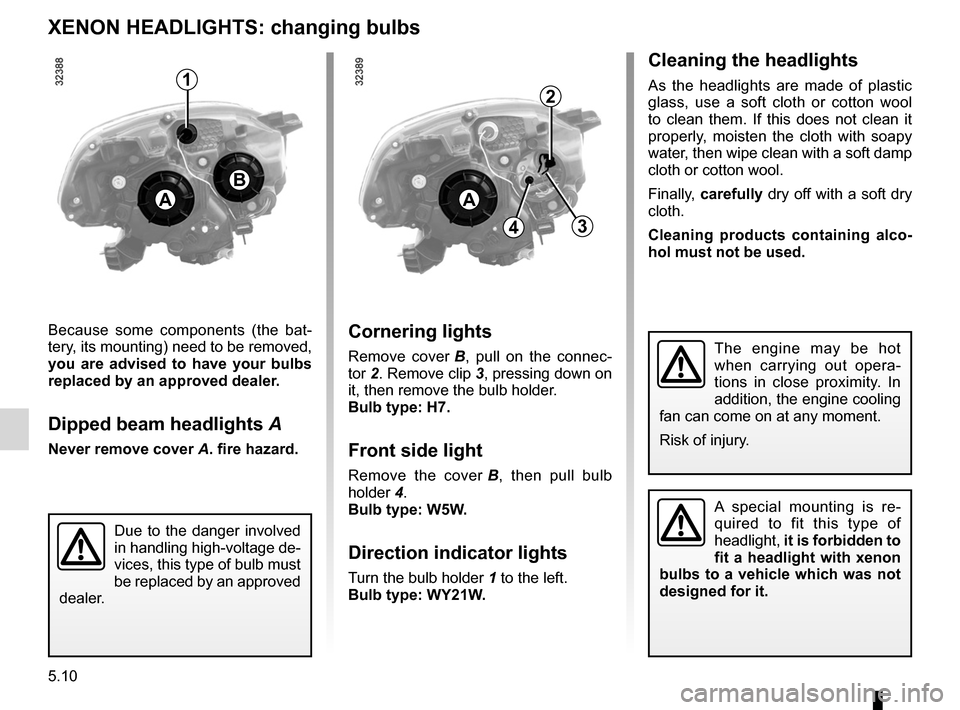

XenOn heaDlIghts: changing bulbs
Because some components (the bat -
tery, its mounting) need to be removed,
you are advised to have your bulbs
replaced by an approved dealer.
Dipped beam headlights A
never remove cover A. fire hazard.
A special mounting is re -
quired to fit this type of
headlight, it is forbidden to
fit a headlight with xenon
bulbs to a vehicle which was not
designed for it.
cornering lights
Remove cover B , pull on the connec -
tor 2. Remove clip 3, pressing down on
it, then remove the bulb holder.
Bulb type: h7.
Front side light
Remove the cover B , then pull bulb
holder 4.
Bulb type: w5w .
Direction indicator lights
Turn the bulb holder 1 to the left.
Bulb type: wy21w .
Due to the danger involved
in handling high-voltage de-
vices, this type of bulb must
be replaced by an approved
dealer.
The engine may be hot
when carrying out opera -
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
1
a
B
a
2
34

bulbschanging ......................................... (up to the end of the DU)
fog lights ............................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: fog lights ......................................... (up to the end of the DU)
bulbs changing ......................................... (up to the end of the DU)
lights additional ........................................ (up to the end of the DU)
lights fog lights ......................................... (up to the end of the DU)
5.11
ENG_UD25389_5
Projecteurs avant : feux de brouillard avant, additionnels (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5

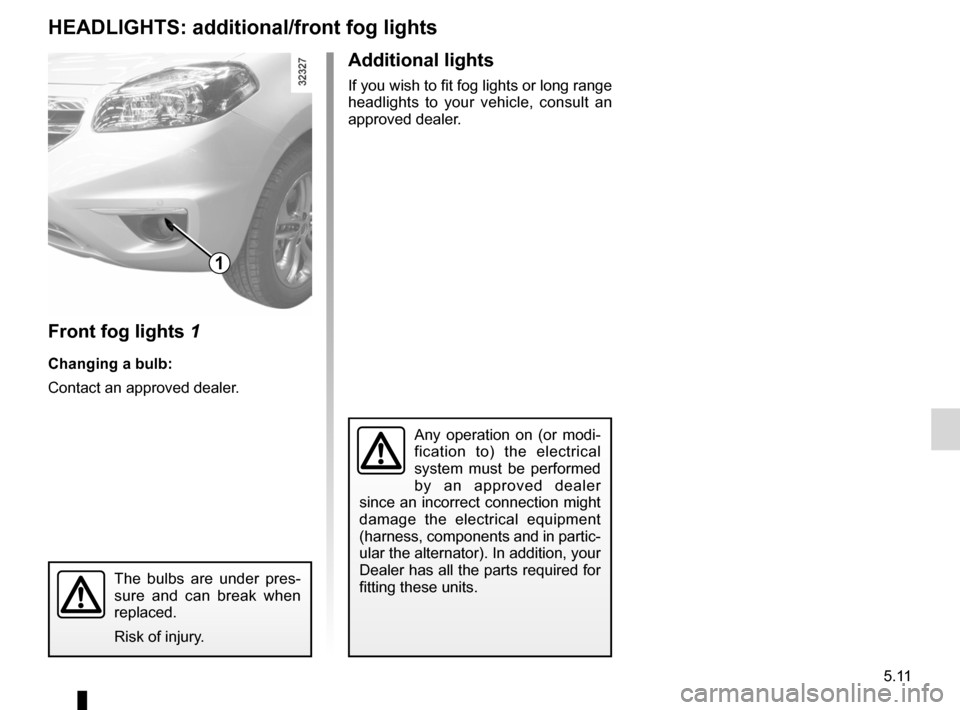

heaDlIghts: additional/front fog lights
Front fog lights 1
changing a bulb:
Contact an approved dealer.
additional lights
If you wish to fit fog lights or long range
headlights to your vehicle, consult an
approved dealer.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
1
Any operation on (or modi -
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.

bulbschanging ......................................... (up to the end of the DU)
changing a bulb .................................... (up to the end of the DU)
lights: side lights ......................................................... (current page)
lights: brake lights ...................................................... (current page)
bulbs changing ......................................... (up to the end of the DU)
lights: direction indicators ........................................... (current page)
5.12
ENG_UD23303_3
Feux arrière : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Jaune NoirNoir texte
Rear lights and side lights (changing bulbs)

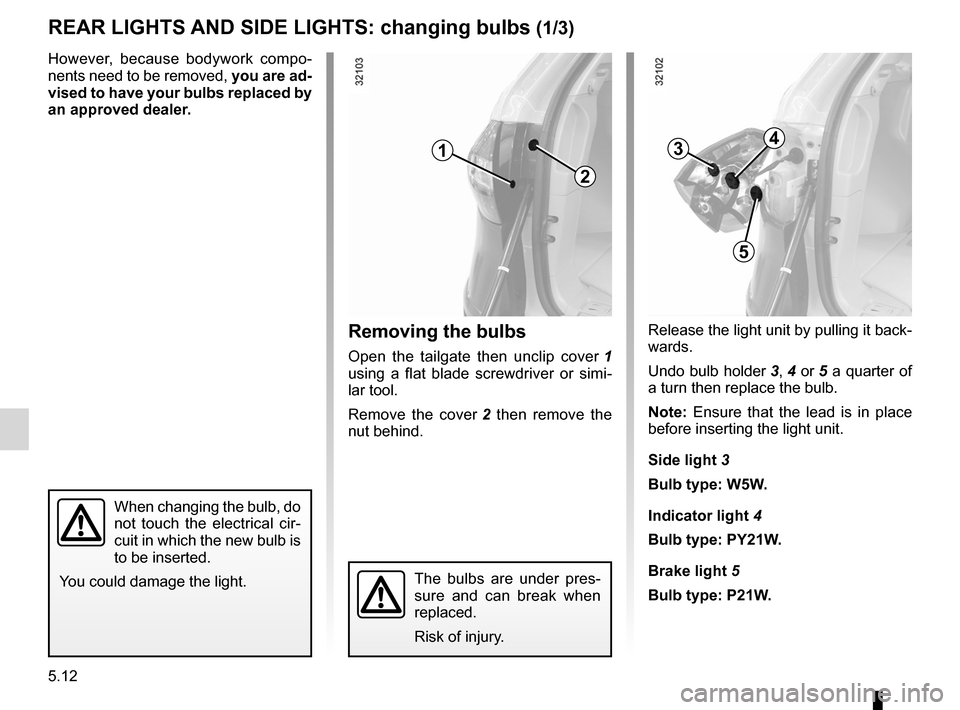

rear lIghts anD sIDe lIghts: changing bulbs (1/3)
However, because bodywork compo -
nents need to be removed, you are ad-
vised to have your bulbs replaced by
an approved dealer.
removing the bulbs
Open the tailgate then unclip cover 1
using a flat blade screwdriver or simi -
lar tool.
Remove the cover 2 then remove the
nut behind.
When changing the bulb, do
not touch the electrical cir -
cuit in which the new bulb is
to be inserted.
You could damage the light.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
Release the light unit by pulling it back-
wards.
Undo bulb holder 3, 4 or 5 a quarter of
a turn then replace the bulb.
n ote: Ensure that the lead is in place
before inserting the light unit.
side light 3
Bulb type: w5w .
Indicator light 4
Bulb type: Py21w .
Brake light 5
Bulb type: P21w .
1
2
43
5

lights:side lights ......................................................... (current page)
lights: reversing lights ................................................. (current page)
JauneNoirNoir texte
5.13
ENG_UD23303_3
Feux arrière : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5

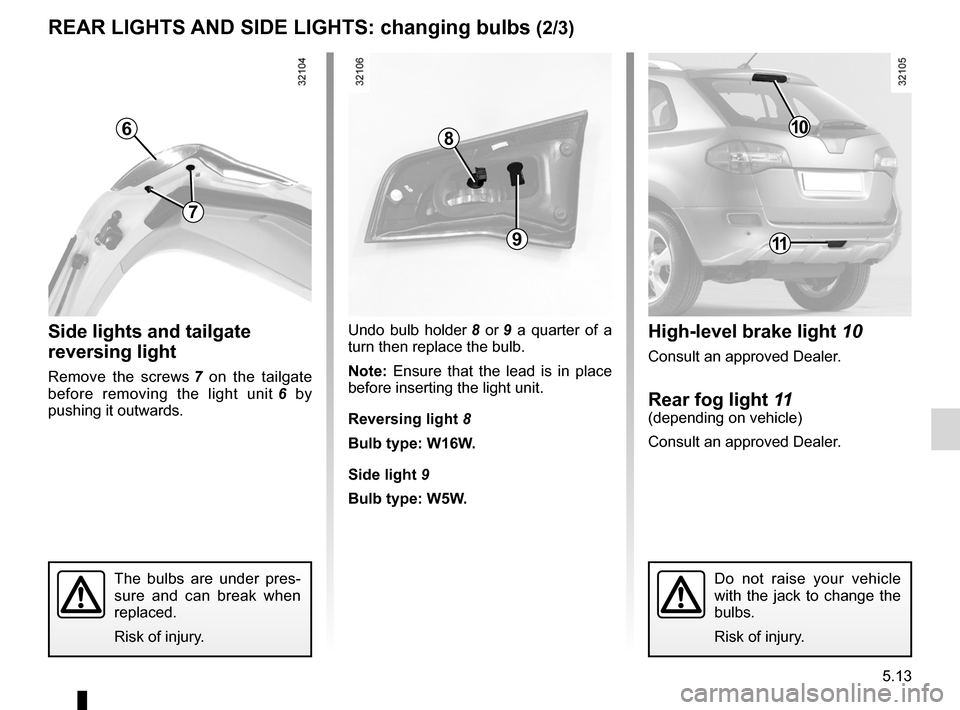

rear lIghts anD sIDe lIghts: changing bulbs (2/3)
side lights and tailgate
reversing light
Remove the screws 7 on the tailgate
before removing the light unit 6 by
pushing it outwards.
Undo bulb holder 8 or 9 a quarter of a
turn then replace the bulb.
n ote: Ensure that the lead is in place
before inserting the light unit.
reversing light 8
Bulb type: w16w .
side light 9
Bulb type: w5w .
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
8
9
7
6
high-level brake light 10
Consult an approved Dealer.
rear fog light 11(depending on vehicle)
Consult an approved Dealer.
Do not raise your vehicle
with the jack to change the
bulbs.
Risk of injury.
10
11

lights:brake lights ...................................................... (current page)
side and number plate lighting changing bulbs ................................................. (current page)
side indicator lights changing bulbs ................................................. (current page)
lights: number plate lights .......................................... (current page)
5.14
ENG_UD23303_3
Feux arrière : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5

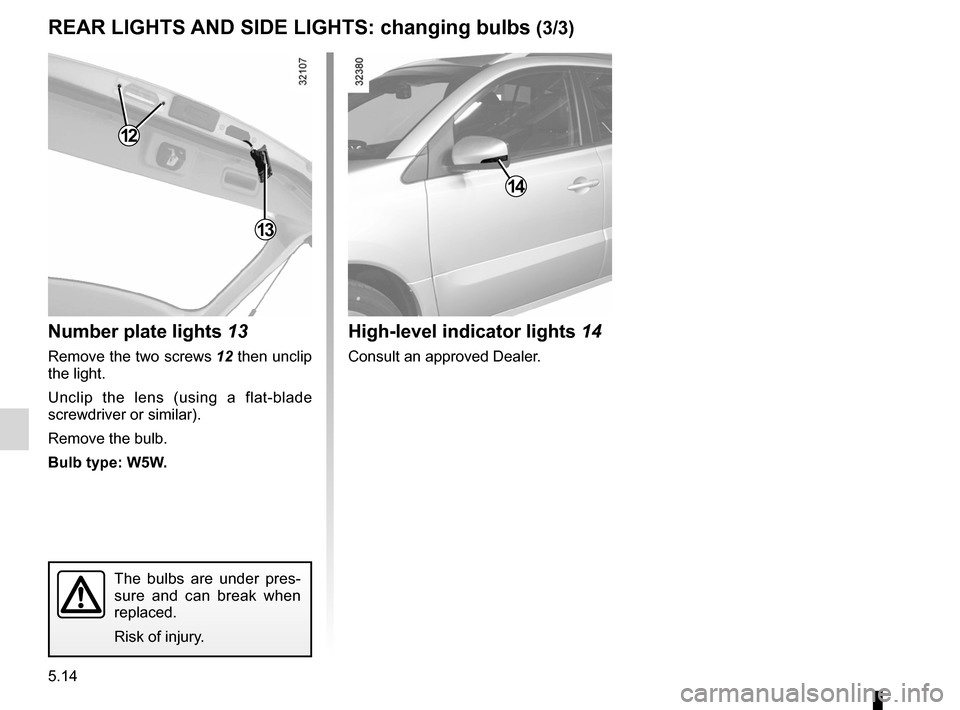

rear lIghts anD sIDe lIghts: changing bulbs (3/3)
number plate lights 13
Remove the two screws 12 then unclip
the light.
Unclip the lens (using a flat-blade
screwdriver or similar).
Remove the bulb.
Bulb type: w5w.
high-level indicator lights 14
Consult an approved Dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
13
14
12

courtesy light ........................................ (up to the end of the DU)
lighting: interior ............................................. (up to the end of the DU)
5.15
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Interior lights (changing bulbs)

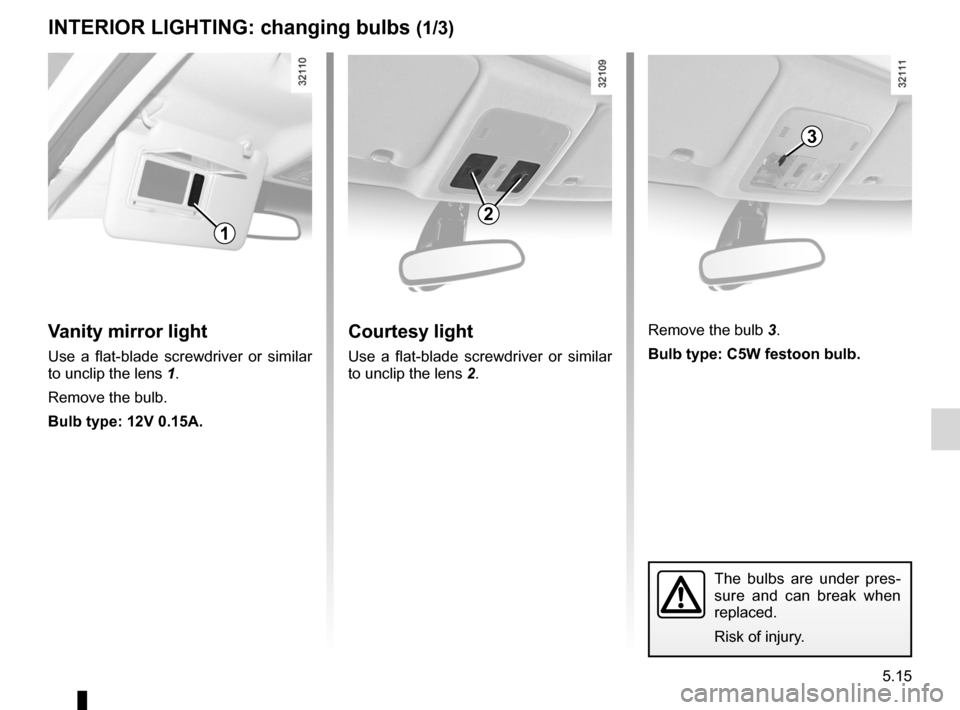

InterIOr lIghtIng: changing bulbs (1/3)
Vanity mirror light
Use a flat-blade screwdriver or similar
to unclip the lens 1.
Remove the bulb.
Bulb type: 12V 0.15a.
courtesy light
Use a flat-blade screwdriver or similar
to unclip the lens 2. Remove the bulb
3.
Bulb type: c5w festoon bulb.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
1
2
3

5.16
ENG_UD23660_3
Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault)
ENG_NU_977-2_H45_Ph2_Renault_5
Jaune NoirNoir texte

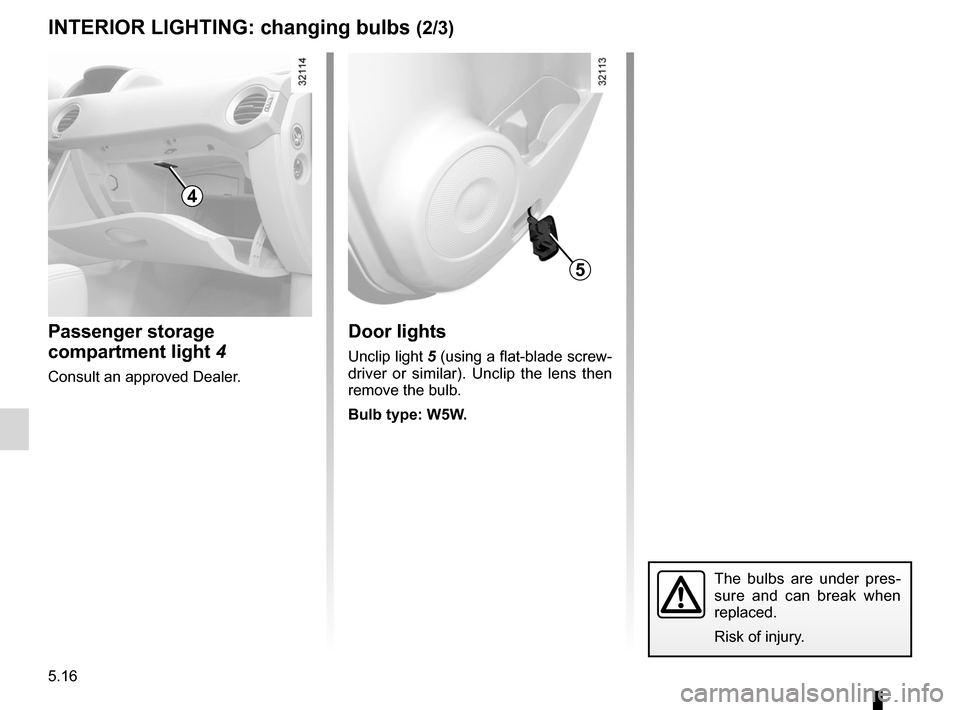

InterIOr lIghtIng: changing bulbs (2/3)
Passenger storage
compartment light 4
Consult an approved Dealer.
Door lights
Unclip light 5 (using a flat-blade screw-
driver or similar). Unclip the lens then
remove the bulb.
Bulb type: w5w.
The bulbs are under pres -
sure and can break when
replaced.
Risk of injury.
5
4
