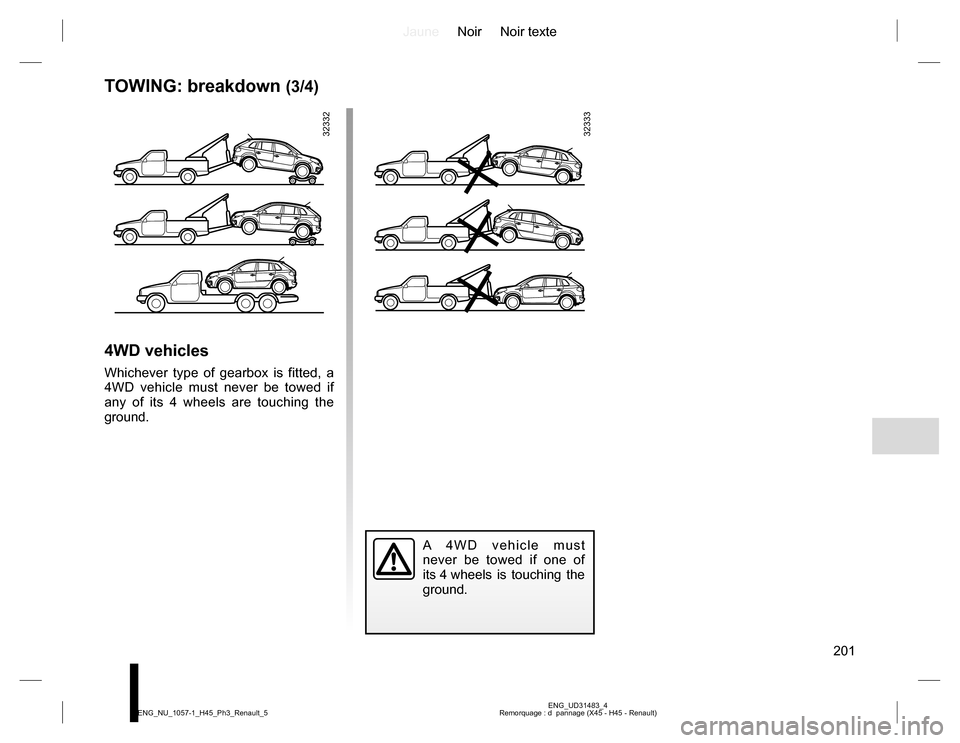

TOWING: breakdown (3/4)
3233232333
4WD vehicles
Whichever type of gearbox is fitted, a 4WD vehicle must never be towed if any of its 4 wheels are touching the ground.
A 4WD vehicle must never be towed if one of its 4 wheels is touching the ground.

JauneNoir Noir texte
202
ENG_UD31483_4
Remorquage : d pannage (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

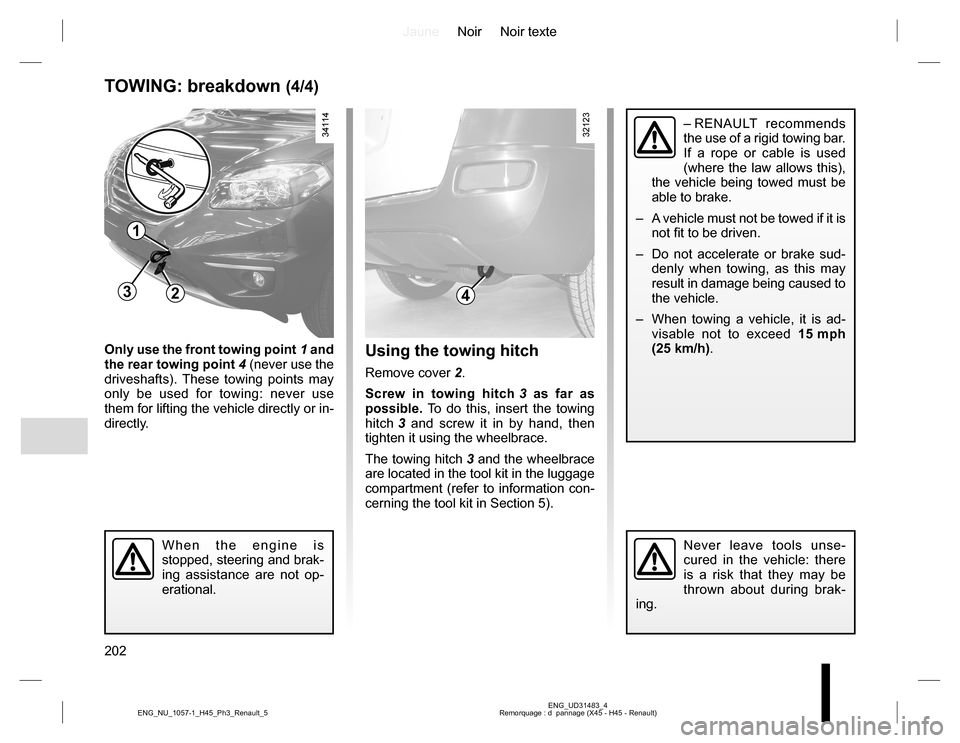

TOWING: breakdown (4/4)
Only use the front towing point 1 and
the rear towing point 4 (never use the
driveshafts). These towing points may
only be used for towing: never use
them for lifting the vehicle directly or in-
directly.
When the engine is
stopped, steering and brak-
ing assistance are not op-
erational.
– RENAULT recommends
the use of a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed must be
able to brake.
– A vehicle must not be towed if it is
not fit to be driven.
– Do not accelerate or brake sud-
denly when towing, as this may
result in damage being caused to
the vehicle.
– When towing a vehicle, it is ad-
visable not to exceed 15 mph
(25 km/h).
1
324
Using the towing hitch
Remove cover 2.
Screw in towing hitch 3 as far as
possible. To do this, insert the towing
hitch 3 and screw it in by hand, then
tighten it using the wheelbrace.
The towing hitch 3 and the wheelbrace
are located in the tool kit in the luggage
compartment (refer to information con-
cerning the tool kit in Section 5).
Never leave tools unse-
cured in the vehicle: there
is a risk that they may be
thrown about during brak-
ing.

JauneNoir Noir texte
203
ENG_UD21017_3
Anomalies de fonctionnement (X45 - H45 - X95 - J95 - R95 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
OPERATING FAULTS (1/5)
The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact
an approved Dealer as soon as possible.
Using the RENAULT card POSSIBLE CAUSES WHAT TO DO
The RENAULT card does not lock or
unlock the doors.Card battery is flat.Replace the battery. You can still lock/
unlock and start your vehicle (refer to the
information on “Locking/unlocking the
doors” in Section 1 and “Starting/Stopping
the engine” in Section 2).
Use of appliances operating on the
same frequency as the card (mobile
phone, etc.).Stop using the equipment or use the
emergency key (refer to the informa-
tion on “Locking/unlocking the doors” in
Section 1).
Vehicle located in a high electromag-
netic radiation zone.
Vehicle battery flat.Use the emergency key integrated in the
card (refer to the information on “Locking/
unlocking the doors” in Section 1).

JauneNoir Noir texte
204
ENG_UD21017_3
Anomalies de fonctionnement (X45 - H45 - X95 - J95 - R95 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
OPERATING FAULTS (2/5)
The starter is activated POSSIBLE CAUSES WHAT TO DO
The instrument panel indicator lights
are weak or fail to light up and the
starter does not turn.Battery terminals not tight,
battery terminals discon-
nected or oxidised.Retighten or reconnect the terminals, or clean
them if they are oxidised.
Discharged battery or not
operational.Connect another battery to the faulty battery.
Refer to information on “Battery: troubleshooting”
in Section 5 or replace the battery if necessary.
Do not push the vehicle if the steering column is
locked.
The engine will not start.Starting conditions are not
fulfilled.Refer to the information on “Starting/stopping the
engine” in Section 2.
The RENAULT “hands-free”
card does not work.Insert the card in the card reader in order to start
the engine.
Refer to the information on “Starting/stopping the
engine” in Section 2.
The engine cannot be switched off. Card not detected. Insert the card in card reader.
Electronic fault. Press the starter button quickly five times.
The steering column remains locked. Steering wheel locked. Move the steering wheel while pressing the engine
start button (refer to the information on “Starting
the engine” in Section 2).

JauneNoir Noir texte
205
ENG_UD21017_3
Anomalies de fonctionnement (X45 - H45 - X95 - J95 - R95 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

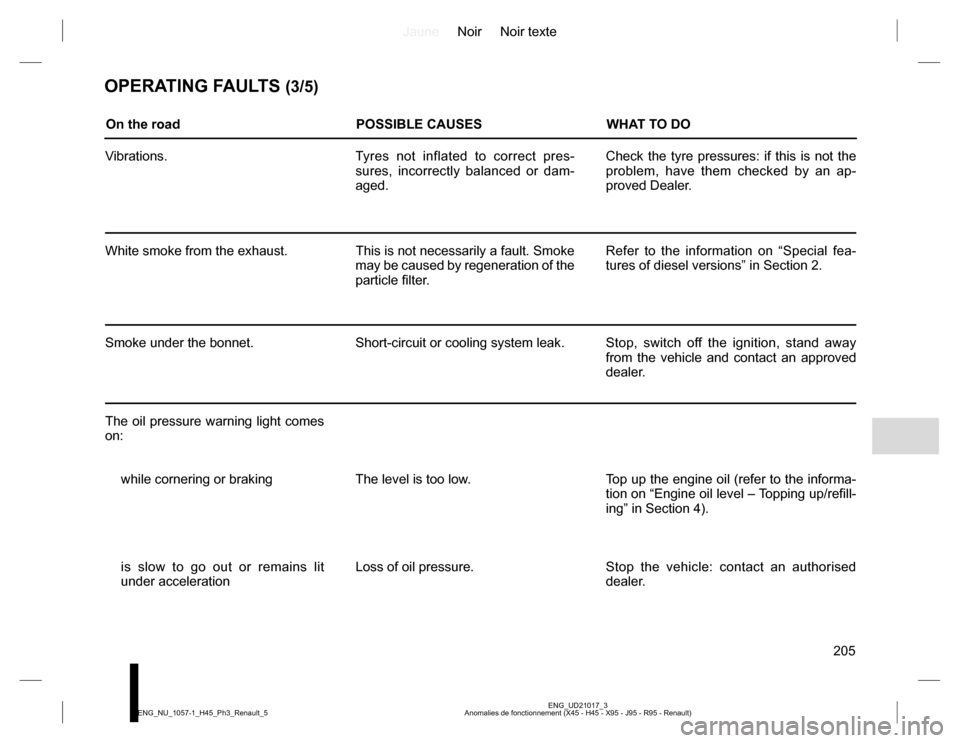

OPERATING FAULTS (3/5)
On the road POSSIBLE CAUSES WHAT TO DO
Vibrations. Tyres not inflated to correct pres-
sures, incorrectly balanced or dam-
aged.Check the tyre pressures: if this is not the
problem, have them checked by an ap-
proved Dealer.
White smoke from the exhaust. This is not necessarily a fault. Smoke
may be caused by regeneration of the
particle filter.Refer to the information on “Special fea-
tures of diesel versions” in Section 2.
Smoke under the bonnet. Short-circuit or cooling system leak.Stop, switch off the ignition, stand away
from the vehicle and contact an approved
dealer.
The oil pressure warning light comes
on:
while cornering or braking The level is too low. Top up the engine oil (refer to the informa-
tion on “Engine oil level – Topping up/refill-
ing” in Section 4).
is slow to go out or remains lit
under accelerationLoss of oil pressure.Stop the vehicle: contact an authorised
dealer.

JauneNoir Noir texte
206
ENG_UD21017_3
Anomalies de fonctionnement (X45 - H45 - X95 - J95 - R95 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

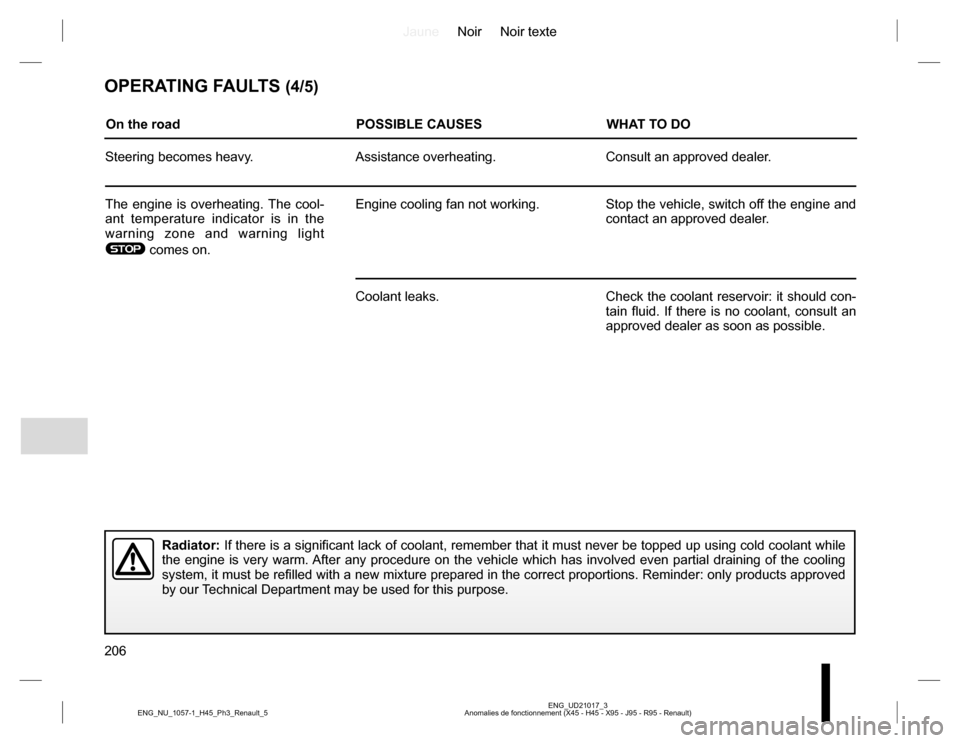

OPERATING FAULTS (4/5)
On the road POSSIBLE CAUSES WHAT TO DO
Steering becomes heavy. Assistance overheating. Consult an approved dealer.
The engine is overheating. The cool-
ant temperature indicator is in the
warning zone and warning light
® comes on.Engine cooling fan not working. Stop the vehicle, switch off the engine and
contact an approved dealer.
Coolant leaks. Check the coolant reservoir: it should con-
tain fluid. If there is no coolant, consult an
approved dealer as soon as possible.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while
the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling
system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved
by our Technical Department may be used for this purpose.

JauneNoir Noir texte
207
ENG_UD21017_3
Anomalies de fonctionnement (X45 - H45 - X95 - J95 - R95 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

-
OPERATING FAULTS (5/5)
Electrical equipment POSSIBLE CAUSES WHAT TO DO
The wipers do not work. Wiper blades stuck. Free the blades before using the wipers.
Faulty electrical circuit. Consult an approved dealer.
Fuse damaged. Replace the fuse, refer to the information
on “Fuses”.
The wiper does not stop. Faulty electrical controls. Consult an approved dealer.
Direction indicators flashing more
quickly.Blown bulb. See information on “Headlights: changing
the bulbs” or “Rear lights: changing the
bulbs” in section 5.
The direction indicators do not work. Faulty electrical circuit. Consult an approved dealer.
The lights do not come on or go off. Faulty electrical circuit or control. Consult an approved dealer.
Traces of condensation in the lights. Traces of condensation may be a nat-
ural phenomenon caused by varia-
tions in temperature.
In this situation, these traces soon dis-
appear when the lights are switched
on.
The illumination of the seat belt re-
minder warning light does not match
the seat belt status.An object is stuck between the floor
and the seat and is disrupting the op-
eration of the sensor.Remove any objects from underneath the
rear seats.

JauneNoir Noir texte
208
ENG_UD20783_6

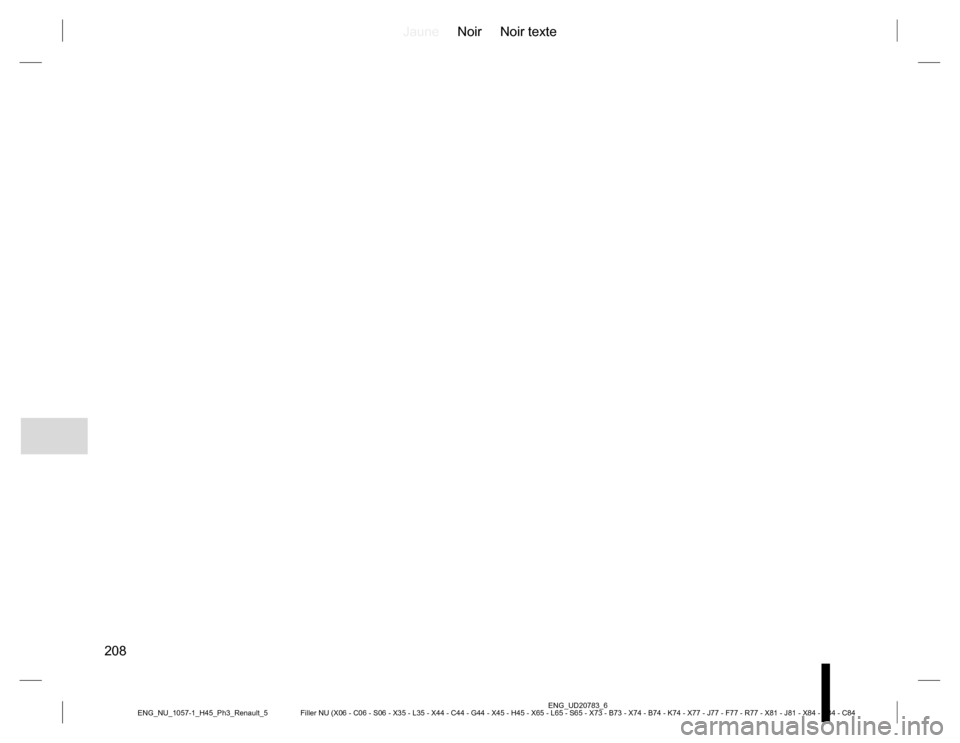

Filler NU (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84 ENG_NU_1057-1_H45_Ph3_Renault_5

JauneNoir Noir texte
209
ENG_UD31513_3
Contents 6 (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_6
Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Anti-corrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222

JauneNoir Noir texte
210
ENG_UD31484_6
Plaques d’identification v hicule (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_6
VEHICLE IDENTIFICATION PLATES
A
B
A
1
2
34
5
678
9
10
11
12
13
The information shown on the ve-
hicle identification plate should be
quoted on all correspondence or
orders.
Vehicle identification plate A
1 Vehicle type and chassis number.
Depending on the vehicle, this
information is also given on
marking B.
2 Maximum permissible all-up
weight.
3 Total train weight (vehicle fully
loaded, with trailer).
4 Front axle maximum permissible
all-up weight.
5 Rear axle maximum permissible
all-up weight. 6 Technical specifications of vehicle.
7 Vehicle paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specifica-
tion.
12 Fabrication number.
13 Interior trim code.
