Eclairage intérieur : remplacement des lampes (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
INTERIOR LIGHTING: changing bulbs (3/3)
Rear passenger lights 6
and light for luggage
compartment 7
Unclip light 6 or 7 (using a flat-blade
screwdriver or similar).
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Remove the screw 8 (using a tool such
as a flat-blade screwdriver) then unclip
the lens. Remove the bulb 9.
Bulb type: C5W festoon bulb.
7
8
9
6

JauneNoir Noir texte
192
ENG_UD21012_4 Fusibles (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
FUSES (1/2)
32119
Disconnect the fuse using tweezers 2.
Slide the fuse backwards to remove it from the tweezers.
Do not reuse the fuse.
1
2
CORRECT
INCORRECT
Fuse box 1
If any electrical component does not work, check the condition of the fuses.
Open the cover.
To identify the fuses, refer to the fuse allocation label (shown on the following page).
Check the fuse in question and replace it, if neces- sary, by a fuse of the same rating .
If a fuse is fitted where the rating is too high, it may cause the electrical circuit to overheat (risk of fire) in the event of an item of equipment using an excessive amount of current.In accordance with local legislation or as a precautionary measure:
Obtain an emergency kit containing a set of spare bulbs and fuses from an approved Dealer.

JauneNoir Noir texte
193
ENG_UD21012_4
Fusibles (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
FUSES (2/2)
Allocation of fuses (DEPENDING ON THE EQUIPMENT LEVEL)
Some accessories are protected by
fuses located in the engine compart-
ment in fuse box A.
However, because of their reduced ac-
cessibility, we advise you to have your
fuses replaced by an approved Dealer.
A
Symbol Allocation Symbol Allocation
SPARE Spare fuses ELEC IGN Electrical equipment
BLOWER
MOTORVentilation4WD
CONTAll-wheel drive trans-
mission
REAR
DEFOGHeated rear screen METER Counter
BOSE AMP Audio systemROOM
LAMPInterior light
FRONT
POWER
SOCKETFront lightsMIRROR
HEATERHeated door mirrors
CIGAR
LIGHTERCigar lighterBOSE
AMPAudio system
AUDIO
MIRRORAudio system and elec-
tric rear-view mirrorsSTOP
LAMPBrake lights
REAR
POWER
SOCKETRear lightsELEC
B (+)Electrical equipment
AIR BAG Air bag
METER Equipment and options

JauneNoir Noir texte
194
ENG_UD31482_5
Batterie : d pannage (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

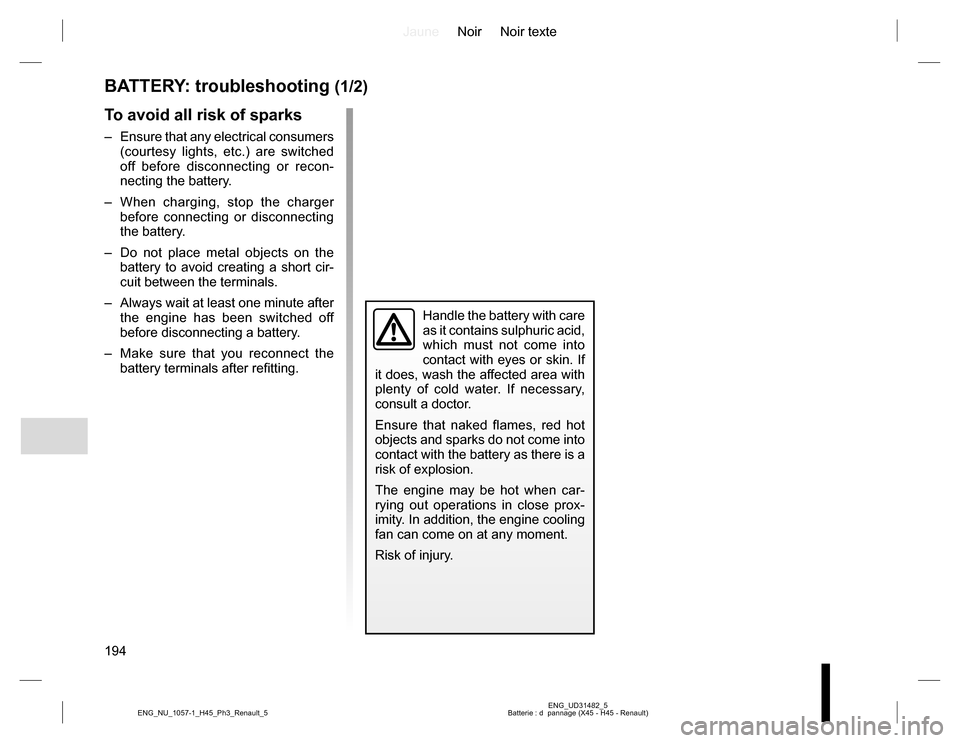

BATTERY: troubleshooting (1/2)
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water. If necessary,
consult a doctor.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion.
The engine may be hot when car-
rying out operations in close prox-
imity. In addition, the engine cooling
fan can come on at any moment.
Risk of injury.
To avoid all risk of sparks
– Ensure that any electrical consumers
(courtesy lights, etc.) are switched
off before disconnecting or recon-
necting the battery.
– When charging, stop the charger
before connecting or disconnecting
the battery.
– Do not place metal objects on the
battery to avoid creating a short cir-
cuit between the terminals.
– Always wait at least one minute after
the engine has been switched off
before disconnecting a battery.
– Make sure that you reconnect the
battery terminals after refitting.

JauneNoir Noir texte
195
ENG_UD31482_5
Batterie : d pannage (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
12
B
3
4
A
Starting the vehicle using the
battery from another vehicle
If you have to use the battery from an-
other vehicle to start, obtain suitable
jump leads (with a large cross section)
from an approved dealer or, if you al-
ready have jump leads, ensure that
they are in perfect condition.
The two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle supply-
ing the current and run it at an interme-
diate engine speed.

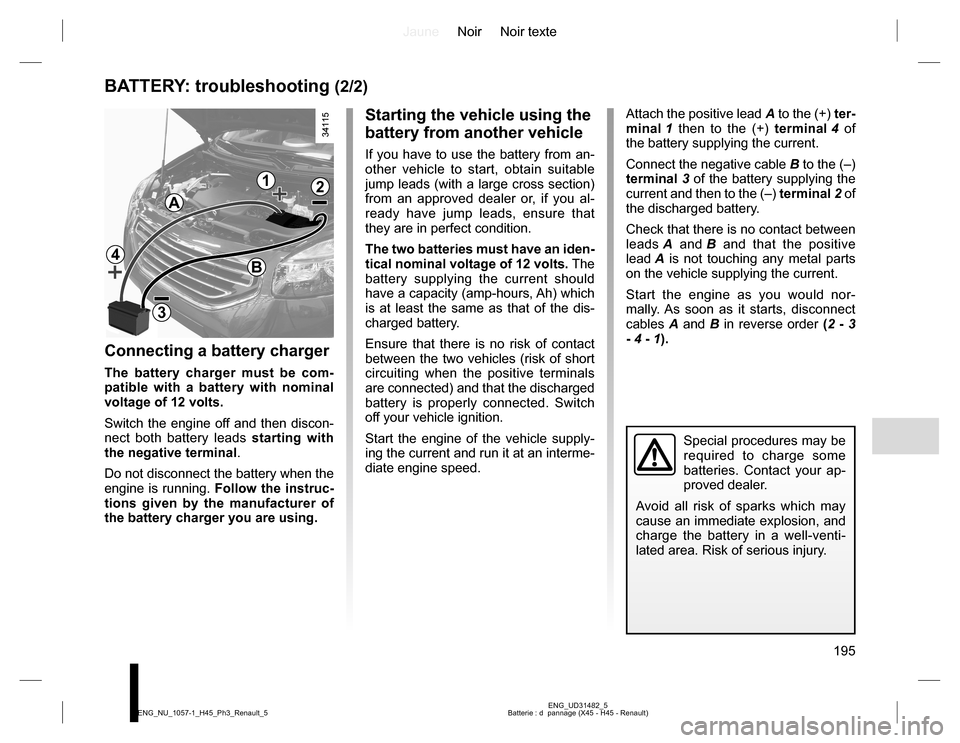

BATTERY: troubleshooting (2/2)
Connecting a battery charger
The battery charger must be com-
patible with a battery with nominal
voltage of 12 volts.
Switch the engine off and then discon-
nect both battery leads starting with
the negative terminal.
Do not disconnect the battery when the
engine is running. Follow the instruc-
tions given by the manufacturer of
the battery charger you are using.
Special procedures may be
required to charge some
batteries. Contact your ap-
proved dealer.
Avoid all risk of sparks which may
cause an immediate explosion, and
charge the battery in a well-venti-
lated area. Risk of serious injury.
Attach the positive lead A to the (+) ter-
minal 1 then to the (+) terminal 4 of
the battery supplying the current.
Connect the negative cable B to the (–)
terminal 3 of the battery supplying the
current and then to the (–) terminal 2 of
the discharged battery.
Check that there is no contact between
leads A and B and that the positive
lead A is not touching any metal parts
on the vehicle supplying the current.
Start the engine as you would nor-
mally. As soon as it starts, disconnect
cables A and B in reverse order (2 - 3
- 4 - 1).

JauneNoir Noir texte
196
ENG_UD30291_8
Carte RENAULT : pile (X45 - H45 - X91 - B91 - K91 - X95 - B95 - D95 - E95 - K95 - J95 - R95 - L38 - X38 - X32 - B32 - X98 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
Operating faultsIf the battery is too weak to ensure cor-
rect operation, you may start (insert the
RENAULT card in the card reader) and
lock/unlock the vehicle (refer to the in-
formation on “Locking/unlocking the
doors” in Section 1).
RENAULT CARD: battery
Replacing the batteryWhen the message “Keycard battery
low” appears on the instrument panel,
replace the RENAULT card battery,
press button 1 pulling on emergency
key 2, then unclip the cover 3 using
tab 4.
Remove the battery by pressing on one
side (movement A) and by lifting the
other (movement B) then replace it, en-
suring the polarity and model, shown
on cover 3 are respected.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
1
2
When refitting, proceed in the reverse
order, then press one of the buttons on
the card four times, close to the vehicle:
the next time the vehicle is started, the
message will disappear.
Note: it is not advisable to touch the
electronic circuit or contacts on the
RENAULT card when replacing the bat-
tery.
A
B
3
The batteries are available from approved Dealers, and their service life approxi-
mately two years. Check that there is no dye on the battery: risk of an incorrect
electrical contact.
4
Check that the cover is clipped shut.

JauneNoir Noir texte
197
ENG_UD27824_1
Accessoires VT (X06 - X35 - X44 - X45 - X77 - X81 - X85 - X90 - X91 - X70 - X76 - X83 - X61 - TEST - X95 - X33 - X47 - X43 - X38 - H79 - X62 - X32 - X09 - X67 - X92 - ENG_NU_1057-1_H45_Ph3_Renault_5

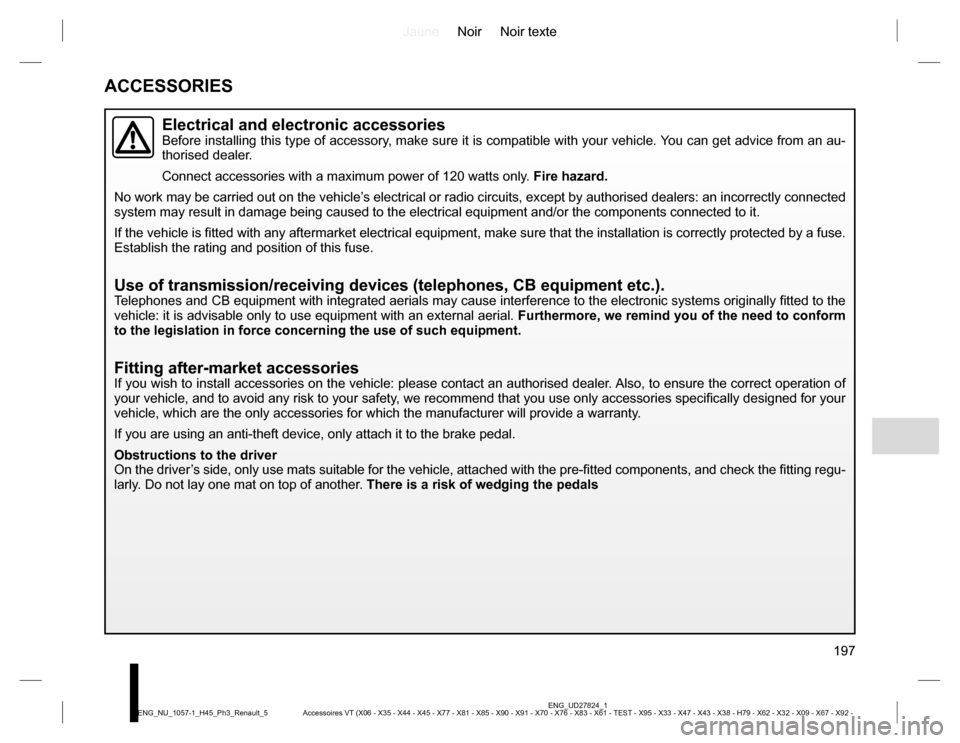

ACCESSORIES
Electrical and electronic accessoriesBefore installing this type of accessory, make sure it is compatible with your vehicle. You can get advice from an au-
thorised dealer.
Connect accessories with a maximum power of 120 watts only. Fire hazard.
No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected
system may result in damage being caused to the electrical equipment and/or the components connected to it.
If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.
Establish the rating and position of this fuse.
Use of transmission/receiving devices (telephones, CB equipment etc.).Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the
vehicle: it is advisable only to use equipment with an external aerial. Furthermore, we remind you of the need to conform
to the legislation in force concerning the use of such equipment.
Fitting after-market accessoriesIf you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of
your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your
vehicle, which are the only accessories for which the manufacturer will provide a warranty.
If you are using an anti-theft device, only attach it to the brake pedal.
Obstructions to the driver
On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-
larly. Do not lay one mat on top of another. There is a risk of wedging the pedals

JauneNoir Noir texte
198
ENG_UD20957_3
Balais d’essuie-vitre avant (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
WIPER BLADES
Check the condition of the wiper
blades. You are responsible for their
service life:
– clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
Check the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency (ap-
proximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
Replacing windscreen wiper
blades 1
With the ignition on and engine
switched off, lower the windscreen
wiper stalk completely: they stop
slightly away from the bonnet. Lift the
wiper arm 3, pinch the tabs 2, gently
pull upwards (movement A) then push
the blade upwards (movement B).
Refitting
Slide the blade along the arm until
it clips on. Check that it is correctly
locked. Return the windscreen wiper
stalk to the park position.
1
2
3
A
Rear screen wiper blade 4
– Lift wiper arm 5;
– pivot the blade 4 beyond the point of
resistance. (movement C);
Replace the blade.
To refit
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
4
C
5
B

JauneNoir Noir texte
199
ENG_UD31483_4
Remorquage : d pannage (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5
TOWING: breakdown (1/4)
Towing procedure
Before any towing, check that the steer-
ing column is not locked.
If it is locked, insert the RENAULT card
into the reader and press the Start/Stop
button twice without pressing on the
pedals. The steering column unlocks,
the vehicle accessory functions are
supplied with power and you can use
the lights (stop lights, directional indica-
tor lights, etc.): the vehicle must have
its lights on at night.
Do not remove the RENAULT card from
the reader when the vehicle is being
towed.
Press the Start/Stop button twice in
succession to switch off the ignition
once towing is finished (risk of running
down the battery).
Furthermore, it is essential to respect
the towing regulations set out in the leg-
islation of the country concerned and, if
your vehicle is the towing vehicle, not to
exceed the towing weight of your vehi-
cle. Contact your approved Dealer.

JauneNoir Noir texte
200
ENG_UD31483_4 Remorquage : d pannage (X45 - H45 - Renault) ENG_NU_1057-1_H45_Ph3_Renault_5

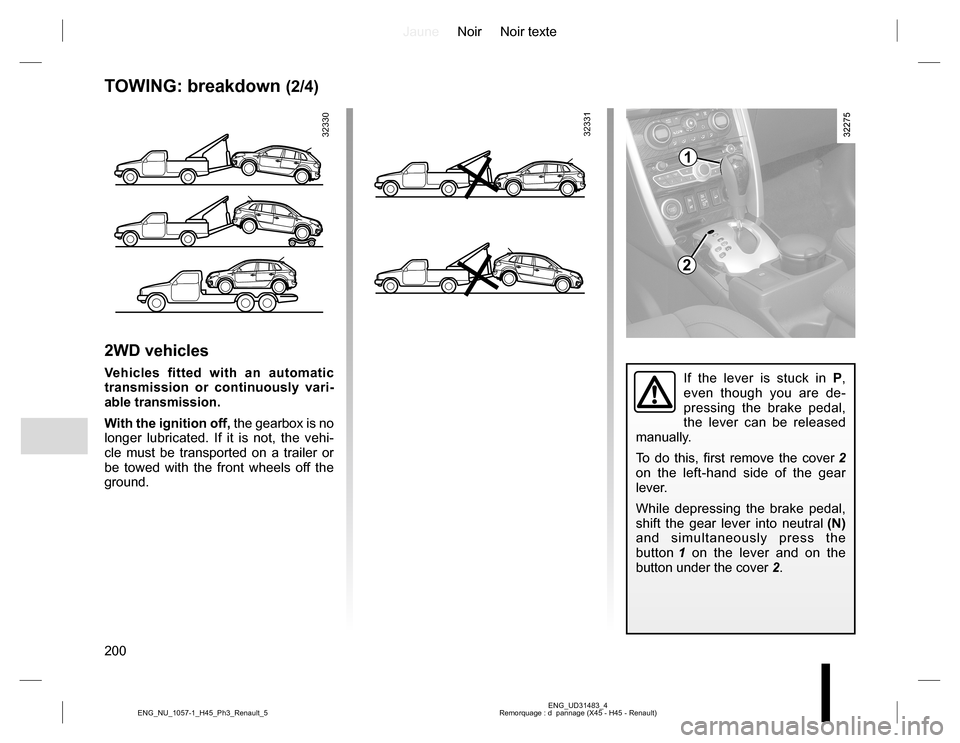

TOWING: breakdown (2/4)
3233032331
2WD vehicles
Vehicles fitted with an automatic transmission or continuously vari-able transmission.
With the ignition off, the gearbox is no longer lubricated. If it is not, the vehi-cle must be transported on a trailer or be towed with the front wheels off the ground.
If the lever is stuck in P, even though you are de-pressing the brake pedal, the lever can be released manually.
To do this, first remove the cover 2 on the left-hand side of the gear lever.
While depressing the brake pedal, shift the gear lever into neutral (N) and simultaneously press the button 1 on the lever and on the button under the cover 2.
2
1
