POWER ASSISTED STEERING
Fault finding - Conformity check
36B
36B - 31V6 MR-366-X84-36B000$528_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12
SUB-FUNCTION: ASSISTANCE
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as examples.
Test condition: ENGINE AT IDLE SPEED.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
1Steering
wheel
angleET020:Steering wheel
angle sensor
programmingStatus 4: calibrated
and initialisedIn the event of a fault, refer to
the interpretation of status
ET020.
PR121:Steering wheel
angle0˚ with the wheels set
straight ahead
+ or - 570˚ ± 20˚ at full
lockIn the event of a fault, consult
the interpretation of PR121.
2Vehicle
speedPR003:Vehicle speed0 mph (km/h) when
stationaryIn the event of a fault, test the
multiplex network.
3TorquePR001:Torque applied to
the steering wheel- 11 Nm < X
< + 11 Nm
with action on the
steering wheelIn the event of a fault, consult
the interpretation of PR001.
PR006:Steering motor
torque setpoint0 Nm ± 0.2 NmIn the event of a fault, consult
the interpretation of PR006.
4Motor
powerPR012:Current absorbed
by the motor- 90 < X < 90A ± 5AIn the event of a fault, consult
the interpretation of PR012.
PR013:Setpoint for
current absorbed
by the motor- 90 < X < 90A ± 5ANone
5Thermal
protectionPR119:Motor thermal
protection
indicatorInterior temperature
± 5 ˚CIf PR119 > 60 ˚C, thermal
protection is activated.
The assistance level PR140
= 15 %.
To deactivate thermal
protection, switch off the
engine and do not operate the
EPAS for 15 minutes. PR014:Level of
assistance
available100 % idle speed
15 % if thermal
protection activated.

POWER ASSISTED STEERING
Fault finding - Conformity check
36B
36B - 32V6 MR-366-X84-36B000$528_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12
SUB-FUNCTION: ASSISTANCE (CONTINUED)
NOTESOnly check conformity after a complete check using the diagnostic tool. The values
shown in this conformity check are given as examples.
Test condition: ENGINE AT IDLE SPEED.
Order FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
6Computer
calibrationET026:Computer
calibrationConfiguration 1 to 5
according to
equipment and vehicle
type.Redefine the vehicle
specifications using
command SC001 Computer
calibration.

POWER ASSISTED STEERING
36B
36B - 33V6 MR-366-X84-36B000$594_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12POWER ASSISTED STEERING
Fault finding - Status summary table
Tool status Diagnostic tool title
ET020Steering wheel angle sensor programming
ET023Engine operation
ET026Computer calibration
PAS X84 V04 V1.1
MR-366-X84-36B000$594_eng.mif

POWER ASSISTED STEERING
Fault finding - Interpretation of statuses
36B
36B - 34V6 MR-366-X84-36B000$660_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12POWER ASSISTED STEERING
Fault finding - Interpretation of statuses
ET020
PROGRAMMING THE STEERING WHEEL ANGLE SENSOR
NOTESSpecial notes:
–The status is declared as correct when it is STATUS 4 (nominal mode). Otherwise,
apply this fault finding procedure.
–An unprogrammed steering wheel angle sensor will cause the Service warning light
to come on.
–If the steering wheel angle sensor has never been programmed, the Service warning
light will flash rapidly until the index position is detected.
VARIOUS POSSIBLE STATUS VALUES (with the meaning):
STATUS 1–Steering wheel index not detected.
–Straight ahead wheel position not programmed.
–Invalid angle value.
–NOT PROGRAMMED: Program the steering wheel angle sensor.
STATUS 2–Steering wheel index detected.
–Straight ahead wheel position not programmed.
–Invalid angle value.
–NOT PROGRAMMED: Program the steering wheel angle sensor.
STATUS 3–Steering wheel index not detected.
–Straight ahead wheel position not programmed.
–Invalid angle value.
–PROGRAMMING DONE, CONFIRM ANGLE: Turn the steering wheel to right full lock, and then
left full lock; then slowly return to the centre point and go slightly beyond.
STATUS 4–Straight ahead wheel position not programmed.
–Valid angle value.
–PROGRAMMING COMPLETE
Note:
A present or stored fault may prevent the change to STATUS 4.
AFTER REPAIRRun a system fault check.
Repeat the conformity check.
DAETRW_V04_ET020/DAETRW_V08_ET020/DAETRW_V06_ET020/ DAETRW_V0C_ET020/
DAETRW_V12_ET020
MR-366-X84-36B000$660_eng.mif

POWER ASSISTED STEERING
Fault finding - Interpretation of statuses
36B
36B - 35V6 MR-366-X84-36B000$660_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12
ET020
CONTINUED
STATUS 1 OR STATUS 2
If the status is STATUS 1 or STATUS 2, program the steering wheel angle sensor (see Configurations and
programming).
STATUS 3
If the status is STATUS 3, turn the steering wheel to right full lock, and then left full lock; then slowly return to the
centre point and go slightly beyond.
Status ET020 should become STATUS 4.
Note:
A present or stored fault can impede STATUS 4 (make the necessary repairs, consulting the fault finding manual).
After the battery is disconnected, status ET020 is STATUS 3 and PR121 Steering wheel angle remains 0.
Consult the Replacement of components section for the procedure to follow after disconnecting the battery.
AFTER REPAIRRun a system fault check.
Repeat the conformity check.

POWER ASSISTED STEERING
Fault finding - Interpretation of statuses
36B
36B - 36V6 MR-366-X84-36B000$660_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12
ET023
ENGINE OPERATION
STOPPED
STALLED
RUNNING
STARTING
NOTESThis signal is sent by the injection computer and is then transmitted to the electric
power-assisted steering computer via the multiplex network.
STOPPED: the engine has not yet been started or has been stopped normally, using the Start button.
STALLED: the engine is stopped, but it has been stopped abnormally, without using the Start button.
RUNNING: the engine is presently running.
STARTING: the engine is being actuated by the starter.
If the signal does not match the actual status of the engine, run a multiplex network test.
Refer to the interpretation of fault DF033 Multiplex network if necessary.
AFTER REPAIRRun a system fault check.
Repeat the conformity check.
DAETRW_V04_ET023/DAETRW_V08_ET023/DAETRW_V06_ET023/ DAETRW_V0C_ET023/
DAETRW_V12_ET023

POWER ASSISTED STEERING
Fault finding - Interpretation of statuses
36B
36B - 37V6 MR-366-X84-36B000$660_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12
ET026
COMPUTER CALIBRATION
Configuration 0
Configuration 1
Configuration 2
Configuration 3
Configuration 4
Configuration 5
NOTESNone
WARNING
Use the information from the diagnostic tool.
Incorrect calibration can damage the function.
If the computer calibration is not as you want it (consult the help for ET026 on the Clip tool, redefine the vehicle
specifications using command SC001 Computer calibration.
AFTER REPAIRRun a system fault check.
Repeat the conformity check.
DAETRW_V04_ET026/DAETRW_V08_ET026/DAETRW_V06_ET026/ DAETRW_V0C_ET026/
DAETRW_V12_ET026

POWER ASSISTED STEERING
36B
36B - 38V6 MR-366-X84-36B000$726_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12POWER ASSISTED STEERING
Fault finding - Parameter summary table
Tool parameter Diagnostic tool title
PR001Torque applied to the steering wheel
PR003Vehicle speed
PR006Steering motor torque setpoint
PR012Current absorbed by the motor
PR013Setpoint for current absorbed by the motor
PR014Level of assistance available
PR108Computer feed voltage
PR119Motor thermal protection indicator
PR121Steering wheel angle
MR-366-X84-36B000$726_eng.mif

POWER ASSISTED STEERING
Fault finding - Parameter interpretation
36B
36B - 39V6 MR-366-X84-36B000$792_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12POWER ASSISTED STEERING
Fault finding - Parameter interpretation
PR003
VEHICLE SPEED
NOTESThis signal is sent by the ABS computer to the multiplex network.
The vehicle speed signal can adapt the steering assistance to the vehicle speed.
PR003 must be equal to the actual vehicle speed, within 6 mph (10 km/h).
If the parameter does not match the actual vehicle speed:
–run fault finding on the multiplex network using the diagnostic tool,
–consult the interpretation of faults DF033 Multiplex network and DF057 Vehicle speed multiplex signal.
If the fault is still present, contact the Techline.
Note:
If the vehicle speed multiplex signal is absent or invalid, the value displayed on the tool is 0 or a fixed value
(depending on the configuration).
AFTER REPAIRCarry out a road test, followed by a check with the diagnostic tool.
DAETRW_V04_PR003/DAETRW_V08_PR003/DAETRW_V06_PR003/DAETRW_V0C_PR003 /
DAETRW_V12_PR003
MR-366-X84-36B000$792_eng.mif

POWER ASSISTED STEERING
Fault finding - Parameter interpretation
36B
36B - 40V6 MR-366-X84-36B000$792_eng.mif
PAS
Vdiag No.: 04, 06, 08, 0C
and 12

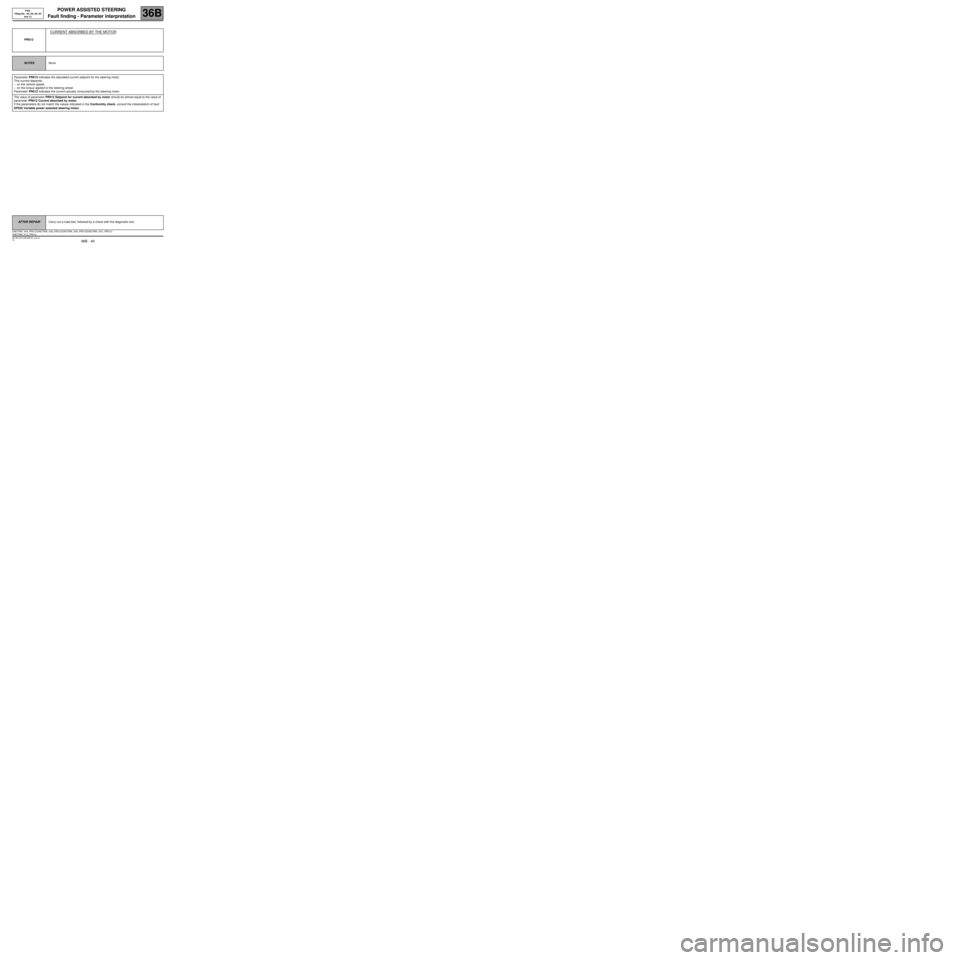

PR012
CURRENT ABSORBED BY THE MOTOR
NOTESNone
Parameter PR013 indicates the stipulated current setpoint for the steering motor.
This current depends:
–on the vehicle speed,
–on the torque applied to the steering wheel.
Parameter PR012 indicates the current actually consumed by the steering motor.
The value of parameter PR013 Setpoint for current absorbed by motor should be almost equal to the value of
parameter PR012 Current absorbed by motor.
If the parameters do not match the values indicated in the Conformity check, consult the interpretation of fault
DF035 Variable power assisted steering motor.
AFTER REPAIRCarry out a road test, followed by a check with the diagnostic tool.
DAETRW_V04_PR012/DAETRW_V08_PR012/DAETRW_V06_PR012/DAETRW_V0C_PR012 /
DAETRW_V12_PR012
