ANTI-LOCK BRAKING SYSTEM
Fault finding - Introduction
38C
38C - 3V2 MR-372-J84-38C000$066_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
Faults
Faults are declared as either present or stored (depending on whether they appeared in a certain context and have
disappeared since, or whether they remain present but have not been diagnosed within the current context).
The present or stored status of faults should be taken into consideration when the diagnostic tool is switched on
after the + after ignition feed (without any system components being active).
For a present fault, apply the procedure described in the Interpretation of faults section.
For a stored fault, note the faults displayed and apply the instructions in the Notes section.
If the fault is confirmed when the instructions in the Notes section are applied, the fault is present. Deal with the fault
If the fault is not confirmed, check:
–the electrical lines which correspond to the fault,
–the connectors for these lines (for oxidation, bent pins, etc.),
–the resistance of the component detected as faulty,
–the condition of the wires (melted or split insulation, wear).
Conformity check
The aim of the conformity check is to check data that does not produce a fault on the diagnostic tool because the
data is inconsistent. Therefore, this stage is used to:
–carry out fault finding on faults that do not have a fault display, and which may correspond to a customer
complaint.
–check that the system is operating correctly and that there is no risk of a fault recurring after repairs.
This section gives the fault finding procedures for statuses and parameters and the conditions for checking them.
If a status is not behaving normally or a parameter is outside the permitted tolerance values, consult the
corresponding fault finding page.
Customer complaints - Fault finding chart
If the test with the diagnostic tool is OK but the customer complaint is still present, the fault should be processed by
customer complaints.
A synopsis of the general procedure to follow is provided on the following page
in the form of a flow chart
ABS 8.0X84 4.0
Page 5 of 64
ANTI-LOCK BRAKING SYSTEM
Fault finding - Introduction
38C
38C - 5V2 MR-372-J84-38C000$066_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
4. FAULT FINDING PROCEDURE (continued)
Wiring check
Fault finding problems
Disconnecting the connectors and/or manipulating the wiring harness may temporarily remove the cause of a fault.
Electrical measurements of voltage, resistance and insulation are generally correct, especially if the fault is not
present when the analysis is made (stored fault).
Visual inspection
Look for damage under the bonnet and in the passenger compartment.
Carefully check the fuses, insulators and wiring harness routing.
Look for signs of oxidation.
Tactile inspection
While manipulating the wiring harness, use the diagnostic tool to note any change in fault status from stored to
present.
Make sure that the connectors are properly locked.
Apply light pressure to the connectors.
Twist the wiring harness.
If there is a change in status, try to locate the source of the fault.
Inspection of each component
Disconnect the connectors and check the appearance of the clips and tabs, as well as the crimping (no crimping on
the insulating section).
Make sure that the clips and tabs are properly locked in the sockets.
Check that no clips or tabs have been dislodged during connection.
Check the clip contact pressure using an appropriate model of tab.
Resistance check
Check the continuity of entire lines, then section by section.
Look for a short circuit to earth, to + 12 V or to another wire.
If a fault is detected, repair or replace the wiring harness.
ABS 8.0X84 4.0
Page 10 of 64
ANTI-LOCK BRAKING SYSTEM
Fault finding - Configurations and programming38C
38C - 10V2 MR-372-J84-38C000$264_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0FANTI-LOCK BRAKING SYSTEM
Fault finding - Configurations and programming
Settings
VP001: Write VIN.
This command allows the vehicle identification number to be entered into the computer. Use this
command each time the computer is replaced. The VIN number (VF...) can be found on the
manufacturer's plate on the front right-hand door pillar and on the body panel under the left-hand side
of the windscreen.
VP004: Vehicle parameters.
This command is used to configure the engine type + braking definition + body type.
Select command VP004 on the diagnostic tool (it is imperative to check that the variants selected
correspond to the vehicle type).
VP006: Write date of the last After-Sales service.
Whenever the ABS system is worked on in the shop, the date must be entered.
Select command VP006 on the diagnostic tool.
Enter the operation date with the tool keyboard.
VP007: Tachometric index.
This command is used to program the computer memory with the index required to calculate vehicle
speed from the speed at which the wheels turn.
The BOSCH ABS 8.0 computer supplies the vehicle speed signal to all vehicle systems that use this
information (instrument panel, engine management, etc.). This vehicle speed signal replaces the one
supplied by the speed sensor located on the gearbox. The ABS computer calculates the vehicle speed
from the speed of the wheels and the circumference of the tyres fitted on the vehicle.
Note:
The vehicle speed is sent by wire (track 23) to the xenon bulb computer, radio and electric sunroof, and
via the multiplex network to the other computers.
The tyre circumference must be programmed into the memory of a new computer. This consists
of entering a number X using the VP007 "Tachometric index" command on the diagnostic tool.
Once the number has been entered using the VP007 command, delete the fault in the computer memory
and then switch off the ignition. Use the parameter PR030 to check that the index entered has been
stored correctly.
VP032: Vehicle speed at initialisation.
Vehicle speed transmitted via the multiplex network when the computer is initialised.
Select "Type 1" or "Type 2" according to the information supplied by the tool.
ABS 8.0X84 4.0
MR-372-J84-38C000$264_eng.mif
Page 31 of 64

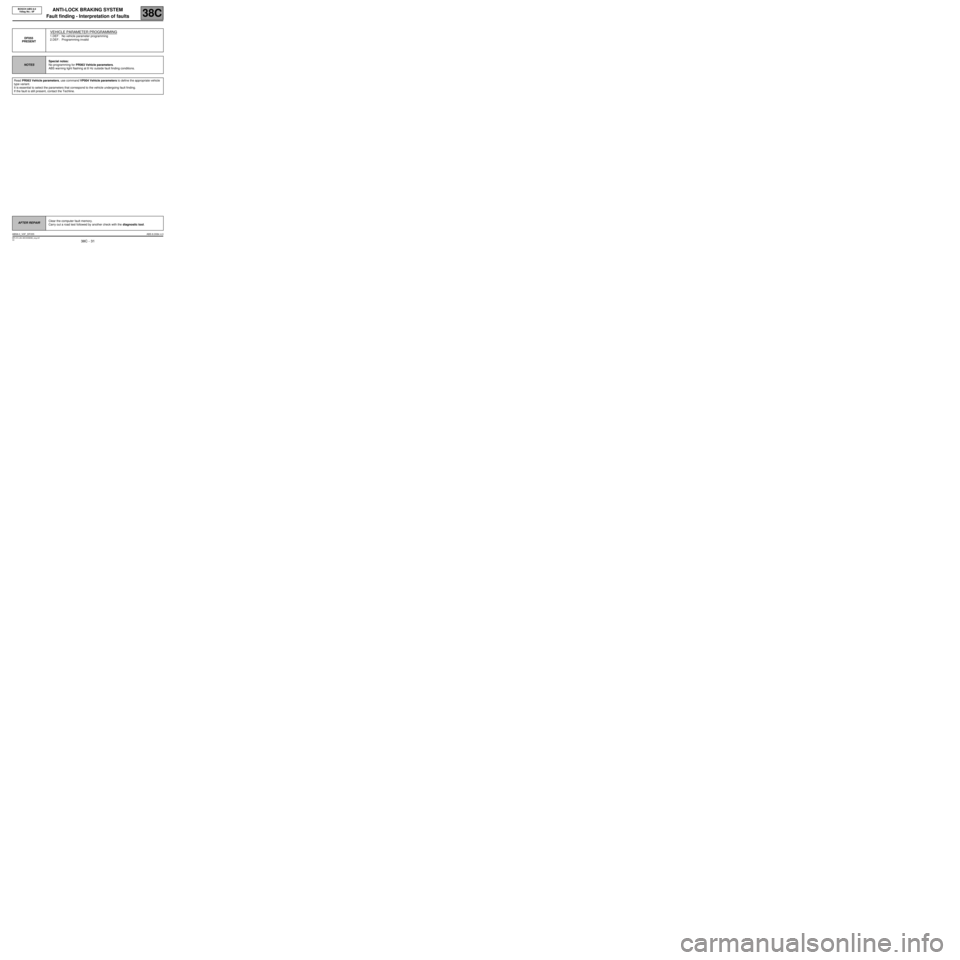

ANTI-LOCK BRAKING SYSTEM
Fault finding - Interpretation of faults
38C
38C - 31V2 MR-372-J84-38C000$396_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0F
DF055
PRESENT
VEHICLE PARAMETER PROGRAMMING
1.DEF : No vehicle parameter programming
2.DEF : Programming invalid
NOTESSpecial notes:
No programming for PR063 Vehicle parameters.
ABS warning light flashing at 8 Hz outside fault finding conditions.
Read PR063 Vehicle parameters, use command VP004 Vehicle parameters to define the appropriate vehicle
type variant.
It is essential to select the parameters that correspond to the vehicle undergoing fault finding.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
ABS8.0_V0F_DF055ABS 8.0X84 4.0
Page 43 of 64
ANTI-LOCK BRAKING SYSTEM
Fault finding - Conformity check
38C
38C - 43V2 MR-372-J84-38C000$528_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0FANTI-LOCK BRAKING SYSTEM
Fault finding - Conformity check
NOTESOnly carry out this conformity check after a complete check using the diagnostic
tool.
Order FunctionParameter or Status
checked or Action Display and Notes Fault finding
1Diagnostic tool
dialogueBOSCH ABS 8.0Apply Fault Finding
Chart 1
2Computer
configurationPR030:Tachometric
indexMake sure the index
entered matches the
vehicle's tyres (see
Replacing
components)None
3Vehicle
parameter
readingPR063:Vehicle
parametersEnsure that the
parameters correspond
to the vehicle
undergoing fault finding.See Configurations and
Programming (VP004)
4Brake pedal not
depressed
detectionET017:Brake pedalReleased status
confirmed, brake pedal
not depressedIn the event of a fault,
apply interpretation of
ET017.
5Depressed
brake pedal
detectionET017:Brake pedal"Depressed" status
confirmed; brake pedal
fully depressedIn the event of a fault,
apply interpretation of
ET017.
6Vehicle speed at
initialisationPR020:Vehicle speed at
initialisationCheck that the value is
correct according to the
information in the Help
sectionIn the event of a fault,
apply parameter VP032
Vehicle speed at
initialisation.
ABS8.0_V0C_CCONF/ABS8.0_V0D_CCONF/ ABS8.0_V0E_CCONF/ABS8.0_V0F_CCONF ABS 8.0X84 4.0
