RENAULT SCENIC 2007 J84 / 2.G Anti Lock Braking System Bosch 8.0 ABS Workshop Manual

Chassis
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a result of changes introduced by the
manufacturer in the production of the various component units and accessories from
which his vehicles are constructed."
V2
All rights reserved by Renault s.a.s.
Edition Anglaise
Copying or translating, in part or in full, of this document or use of the service part
reference numbering system is forbidden without the prior written authority of
Renault s.a.s.
© Renault s.a.s.
V2 MR-372-J84-38C000$000_engTOC.mif
ANTI-LOCK BRAKING SYSTEM
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
Fault finding - Introduction 38C - 2
Fault finding - System operation 38C - 7
Fault finding - Replacement of components 38C - 9
Fault finding - Configurations and programming 38C - 10
Fault finding - Fault summary table 38C - 11
Fault finding - Interpretation of faults 38C - 12
Fault finding - Conformity check 38C - 43
Fault finding - List of Statuses and parameters 38C - 44
Fault finding - Interpretation of statuses 38C - 45
Fault finding - Parameter procedures 38C - 47
Fault finding - Dealing with commands 38C - 48
Fault finding - Customer complaints 38C - 50
Diagnostic - Fault finding chart 38C - 51
38C
MR-372-J84-38C000$000_engTOC.mif

ANTI-LOCK BRAKING SYSTEM
Fault finding - Introduction
38C
38C - 2V2 MR-372-J84-38C000$066_eng.mif
138C
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0FANTI-LOCK BRAKING SYSTEM

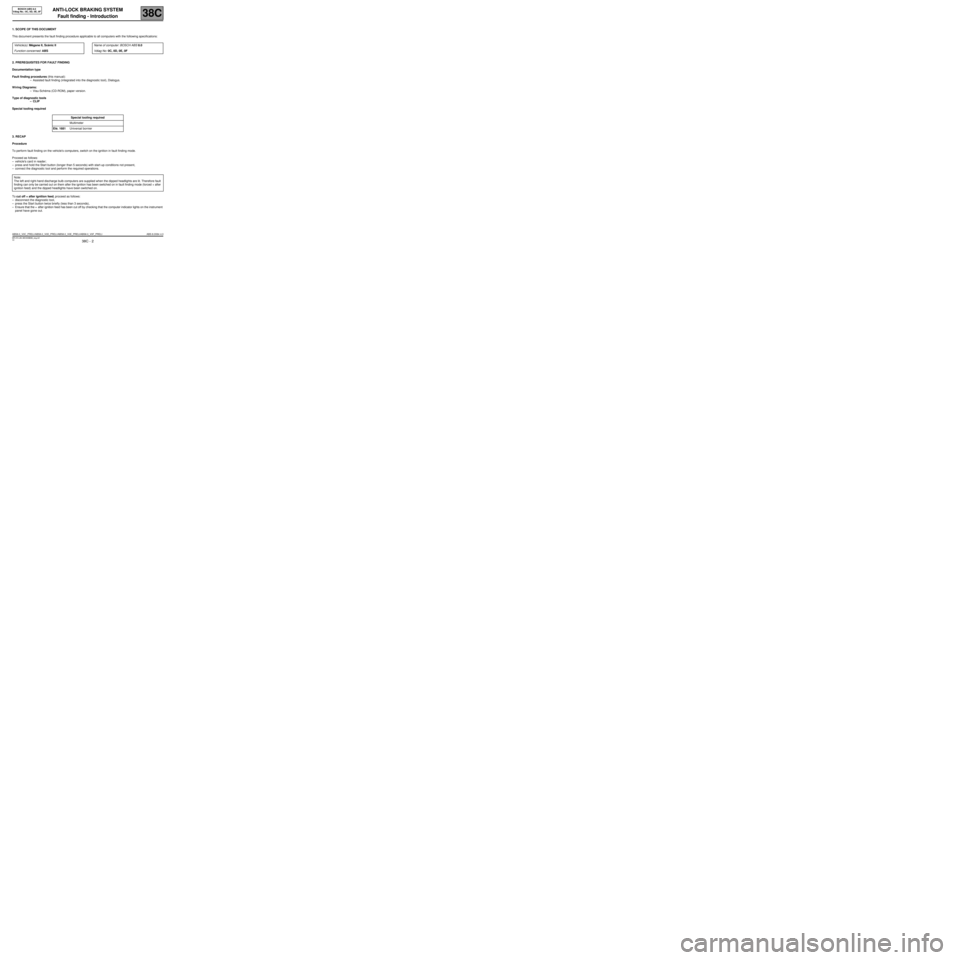

Fault finding - Introduction
1. SCOPE OF THIS DOCUMENT
This document presents the fault finding procedure applicable to all computers with the following specifications:
2. PREREQUISITES FOR FAULT FINDING
Documentation type
Fault finding procedures (this manual):
–Assisted fault finding (integrated into the diagnostic tool), Dialogys.
Wiring Diagrams:
–Visu-Schéma (CD-ROM), paper version.
Type of diagnostic tools
–CLIP
Special tooling required
3. RECAP
Procedure
To perform fault finding on the vehicle's computers, switch on the ignition in fault finding mode.
Proceed as follows:
–vehicle's card in reader;
–press and hold the Start button (longer than 5 seconds) with start-up conditions not present,
–connect the diagnostic tool and perform the required operations.
To cut off + after ignition feed, proceed as follows:
–disconnect the diagnostic tool,
–press the Start button twice briefly (less than 3 seconds),
–Ensure that the + after ignition feed has been cut off by checking that the computer indicator lights on the instrument
panel have gone out. Vehicle(s): Mégane II, Scénic II
Function concerned: ABSName of computer: BOSCH ABS 8.0
Vdiag No: 0C, 0D, 0E, 0F
Special tooling required
Multimeter
Elé. 1681Universal bornier
Note:
The left and right-hand discharge bulb computers are supplied when the dipped headlights are lit. Therefore fault
finding can only be carried out on them after the ignition has been switched on in fault finding mode (forced + after
ignition feed) and the dipped headlights have been switched on.
ABS8.0_V0C_PRELI /ABS8.0_V0D_PRELI /ABS8.0_V0E_PRELI/ABS8.0_V0F_PRELI ABS 8.0X84 4.0
MR-372-J84-38C000$066_eng.mif

ANTI-LOCK BRAKING SYSTEM
Fault finding - Introduction
38C
38C - 3V2 MR-372-J84-38C000$066_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
Faults
Faults are declared as either present or stored (depending on whether they appeared in a certain context and have
disappeared since, or whether they remain present but have not been diagnosed within the current context).
The present or stored status of faults should be taken into consideration when the diagnostic tool is switched on
after the + after ignition feed (without any system components being active).
For a present fault, apply the procedure described in the Interpretation of faults section.
For a stored fault, note the faults displayed and apply the instructions in the Notes section.
If the fault is confirmed when the instructions in the Notes section are applied, the fault is present. Deal with the fault
If the fault is not confirmed, check:
–the electrical lines which correspond to the fault,
–the connectors for these lines (for oxidation, bent pins, etc.),
–the resistance of the component detected as faulty,
–the condition of the wires (melted or split insulation, wear).
Conformity check
The aim of the conformity check is to check data that does not produce a fault on the diagnostic tool because the
data is inconsistent. Therefore, this stage is used to:
–carry out fault finding on faults that do not have a fault display, and which may correspond to a customer
complaint.
–check that the system is operating correctly and that there is no risk of a fault recurring after repairs.
This section gives the fault finding procedures for statuses and parameters and the conditions for checking them.
If a status is not behaving normally or a parameter is outside the permitted tolerance values, consult the
corresponding fault finding page.
Customer complaints - Fault finding chart
If the test with the diagnostic tool is OK but the customer complaint is still present, the fault should be processed by
customer complaints.
A synopsis of the general procedure to follow is provided on the following page
in the form of a flow chart
ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Introduction
38C
38C - 4V2 MR-372-J84-38C000$066_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
4. FAULT FINDING PROCEDURE
Perform a pre-diagnostic
on the system
Print the system fault finding log
(available on CLIP and in the
Workshop Repair Manual or
Technical Note)
Connect CLIP
no
Dialogue with
computer?
yes
Read faults
no
Faults
present
yes
Deal with present faults
Deal with stored faults
no
The cause is
still presentFault
solved
yes
Refer to ALP No. 1
Conformity check
no
The cause is
still presentFault
solved
yes
Use fault finding charts (ALPs)
no
The cause is
still presentFault
solved
yes
Contact the Techline with the
completed fault finding log
ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Introduction
38C
38C - 5V2 MR-372-J84-38C000$066_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
4. FAULT FINDING PROCEDURE (continued)
Wiring check
Fault finding problems
Disconnecting the connectors and/or manipulating the wiring harness may temporarily remove the cause of a fault.
Electrical measurements of voltage, resistance and insulation are generally correct, especially if the fault is not
present when the analysis is made (stored fault).
Visual inspection
Look for damage under the bonnet and in the passenger compartment.
Carefully check the fuses, insulators and wiring harness routing.
Look for signs of oxidation.
Tactile inspection
While manipulating the wiring harness, use the diagnostic tool to note any change in fault status from stored to
present.
Make sure that the connectors are properly locked.
Apply light pressure to the connectors.
Twist the wiring harness.
If there is a change in status, try to locate the source of the fault.
Inspection of each component
Disconnect the connectors and check the appearance of the clips and tabs, as well as the crimping (no crimping on
the insulating section).
Make sure that the clips and tabs are properly locked in the sockets.
Check that no clips or tabs have been dislodged during connection.
Check the clip contact pressure using an appropriate model of tab.
Resistance check
Check the continuity of entire lines, then section by section.
Look for a short circuit to earth, to + 12 V or to another wire.
If a fault is detected, repair or replace the wiring harness.
ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Introduction
38C
38C - 6V2 MR-372-J84-38C000$066_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
5. FAULT FINDING LOG
You will always be asked for this log:
●when requesting technical assistance from Techline,
●for approval requests when replacing parts for which approval is mandatory,
●to be attached to monitored parts for which reimbursement is requested. The log is needed for warranty
reimbursement, and enables better analysis of the parts removed.
6. SAFETY ADVICE
Safety rules must be observed during any work on a component to prevent any damage or injury:
–make sure that the battery is properly charged to avoid damaging the computers with a low load,
–use the appropriate tools.
–It is forbidden to carry out a road test with the diagnostic tool in dialogue with the ECU because
the ABS and Electronic Brake Distribution functions are deactivated. Braking pressure is
identical on both vehicle axles (risk of a spin under heavy braking). IMPORTANT!IMPORTANT
Any fault on a complex system requires thorough fault finding with the appropriate tools. The
FAULT FINDING LOG, which should be completed during the procedure, enables you to keep
track of the procedure which is carried out. It is an essential document when consulting the
manufacturer.
IT IS THEREFORE MANDATORY TO FILL OUT A FAULT FINDING LOG EACH TIME FAULT FINDING
IS CARRIED OUT.
ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - System operation
38C
38C - 7V2 MR-372-J84-38C000$132_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0FANTI-LOCK BRAKING SYSTEM
Fault finding - System operation
The main functions of ABS on this vehicle are the electronic balancing of front and rear braking by controlling rear
wheel slip and preventing the brakes from locking by controlling the slipping of all four wheels.
The system also supplies the other computers with information on the vehicle speed via a wire connection for the
discharge bulbs, the radio and the electric sunroof, and via the multiplex network for the other computers. The ABS
computer supplies the multiplex network with the odometry for the instrument panel and navigation system. If heavy
braking produces very rapid deceleration, the ABS computer sends out a request to the UCH via the multiplex network
to ask it to switch on the hazard warning lights (depending on the law in the relevant country).
Fault finding warning light illumination strategy for Mégane II ph1 and Scénic II ph 1
Instrument panel warning lightInstrument panel message
Meaning
MEGANE II SCENIC II
Brake faultsABS SERVICE STOPNo message"Brake
fault"Electronic brake
distribution and ABS
functions inoperative.
ABS SERVICENo messageCheck the
ABSABS function
inoperative.
Brake faults
flashing at
2 HzABS flashing
at 2 HzNo messageNo
messageABS computer is in
fault finding mode.
ABS flashing
at 8 HzNo messageNo
messageTachometric index not
programmed.
NOTE:
The STOP warning light is always accompanied by a single audible warning (1 beep).
ABS 8.0X84 4.0
MR-372-J84-38C000$132_eng.mif

ANTI-LOCK BRAKING SYSTEM
Fault finding - System operation
38C
38C - 8V2 MR-372-J84-38C000$132_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
Fault finding warning light illumination strategy for Mégane II ph 2 and Scénic II ph 2
Instrument panel warning lightInstrument panel message
Meaning
MEGANE II
PH2SCENIC II
PH2
Brake faultsABS SERVICE STOPBraking faultElectronic brake
distribution and ABS
functions inoperative.
ABS SERVICECheck ABSABS function
inoperative.
Brake faults
flashing at
2 HzABS flashing
at 2 HzNo messageABS computer is in
fault finding mode.
ABS flashing
at 8 HzNo messageTachometric index not
programmed.
Vehicle speed at
initialisation not
programmed.
Tachometric index and
vehicle speed at
initialisation not
programmed.
Brake faultsABS flashing
at 8 HzSTOPNo messageVehicle parameters not
programmed.
Vehicle parameters
and tachometric index
not programmed.
Vehicle parameters
and vehicle speed at
initialisation not
programmed.
Vehicle parameters
and tachometric index
and vehicle speed at
initialisation not
programmed.
NOTE:
The STOP warning light is always accompanied by a single audible warning (1 beep).
ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Replacement of components
38C
38C - 9V2 MR-372-J84-38C000$198_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0FANTI-LOCK BRAKING SYSTEM
Fault finding - Replacement of components
Replacing the computer
When replacing the computer, apply the following procedure:
–switch off the ignition,
–replace the computer (see MR364 or MR370, Mechanical 38C, Anti-lock braking system, Hydraulic unit),
–enter the VIN using command VP001,
–configure the tachometric index using command VP007,
–enter the most recent After Sales operation date using command VP006;
–For Vdiag 0F: configure the vehicle parameters with command VP004 and configure the vehicle speed with
command VP032;
–perform a road test followed by a fault reading to confirm that the system is operating correctly.
ABS 8.0X84 4.0
MR-372-J84-38C000$198_eng.mif

ANTI-LOCK BRAKING SYSTEM
Fault finding - Configurations and programming38C
38C - 10V2 MR-372-J84-38C000$264_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0FANTI-LOCK BRAKING SYSTEM
Fault finding - Configurations and programming
Settings
VP001: Write VIN.
This command allows the vehicle identification number to be entered into the computer. Use this
command each time the computer is replaced. The VIN number (VF...) can be found on the
manufacturer's plate on the front right-hand door pillar and on the body panel under the left-hand side
of the windscreen.
VP004: Vehicle parameters.
This command is used to configure the engine type + braking definition + body type.
Select command VP004 on the diagnostic tool (it is imperative to check that the variants selected
correspond to the vehicle type).
VP006: Write date of the last After-Sales service.
Whenever the ABS system is worked on in the shop, the date must be entered.
Select command VP006 on the diagnostic tool.
Enter the operation date with the tool keyboard.
VP007: Tachometric index.
This command is used to program the computer memory with the index required to calculate vehicle
speed from the speed at which the wheels turn.
The BOSCH ABS 8.0 computer supplies the vehicle speed signal to all vehicle systems that use this
information (instrument panel, engine management, etc.). This vehicle speed signal replaces the one
supplied by the speed sensor located on the gearbox. The ABS computer calculates the vehicle speed
from the speed of the wheels and the circumference of the tyres fitted on the vehicle.
Note:
The vehicle speed is sent by wire (track 23) to the xenon bulb computer, radio and electric sunroof, and
via the multiplex network to the other computers.
The tyre circumference must be programmed into the memory of a new computer. This consists
of entering a number X using the VP007 "Tachometric index" command on the diagnostic tool.
Once the number has been entered using the VP007 command, delete the fault in the computer memory
and then switch off the ignition. Use the parameter PR030 to check that the index entered has been
stored correctly.
VP032: Vehicle speed at initialisation.
Vehicle speed transmitted via the multiplex network when the computer is initialised.
Select "Type 1" or "Type 2" according to the information supplied by the tool.
ABS 8.0X84 4.0
MR-372-J84-38C000$264_eng.mif
