RADIO
Anti-theft code
86A
86A - 7V2 MR-372-J84-86A000$297_eng.mif
RADIO
Anti-theft code
The radio is protected by a four digit code. This code
must be entered via the control satellite or the radio
keypad each time the battery is disconnected.
Entering the code with the control on the steering
wheel:
Press the lower button on the control to confirm an
entry.
Entry via the radio:
Enter the digits using buttons 1, 2, 3 and 4, and then
confirm with button 6.
If the code is entered incorrectly, the radio will be
locked (1 minute for the first error, 2 minutes for the
second error, 4 minutes for the third error, etc.
32 minutes maximum).
Some configurations must be set after the code has
been entered for the first time (see the Configuration
Section). These settings are stored when the battery is
disconnected.Reminder:
The radio will operate for approximately 2 minutes in
scrambled mode without the code having been entered
(with regular warning beeps).
If the vehicle is equipped with a CD changer in the
front panel, a code is exchanged between the CD
changer and the radio.
–If a new CD changer is fitted, the radio code is
programmed when the battery or CD changer is
connected.
–If the radio is replaced, enter the security code of the
old radio connected to the CD changer. The CD
changer is programmed with the code for the new
radio.
–If the old radio code is lost, the changer code can be
cleared using the clearing code. The clearing code is
issued by the Techline, server, etc.
Note:
If there is a configuration error, you can return to scrambled mode by pressing the 2 and 5 buttons at the same
time as switching the power on. Then wait 2 minutes.
Note:
The CD changer is supplied uncoded. When it is installed in the vehicle, the CD changer is programmed with the
radio supply code.
Reminder:
The radio will operate for approximately 2 minutes in scrambled mode without the code having been entered (with
regular warning beeps).
IMPORTANT
If the vehicle is fitted with a top of the range navigation system (ITS), enter the radio code in the following
way:
1. switch on the system by activating the vehicle's + after ignition feed,
2. wait 2 minutes: scrambled mode with beeps from the speakers, then code request screen appears,
3. enter the radio code using the ITS keypad: move the cursor with the central control and press to confirm.
4. switch off the ignition.
MR-372-J84-86A000$297_eng.mif

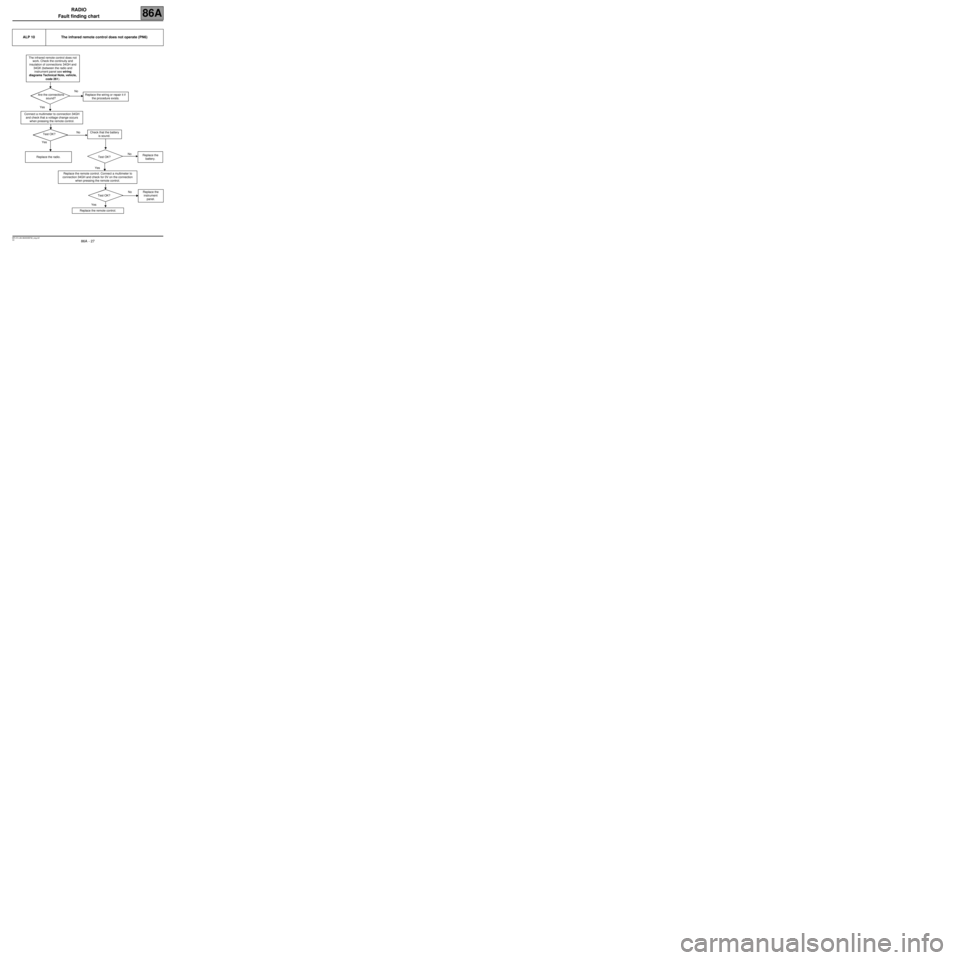

Page 27 of 34
RADIO
Fault finding chart
86A
86A - 27V2 MR-372-J84-86A000$792_eng.mif
ALP 10 The infrared remote control does not operate (PN6)
The infrared remote control does not
work. Check the continuity and
insulation of connections 34GH and
34GK (between the radio and
instrument panel see wiring
diagrams Technical Note, vehicle,
code 261).
No
Are the connections
sound?Replace the wiring or repair it if
the procedure exists.
Yes
Connect a multimeter to connection 34GH
and check that a voltage change occurs
when pressing the remote control.
Test OK?No Check that the battery
is sound.
Yes
Replace the radio. Test OK?No
Replace the
battery.
Yes
Replace the remote control. Connect a multimeter to
connection 34GH and check for 0V on the connection
when pressing the remote control.
Test OK?No Replace the
instrument
panel.
Yes
Replace the remote control.
Page 28 of 34
RADIO
Recovering a jammed CD
86A
86A - 28V2 MR-372-J84-86A000$891_eng.mif
RADIO
Recovering a jammed CD
First solution
If the electric ejector motor is operational, eject the CD
using a 4.5 V battery to supply the electric motor (B)
(attach the + wire to contact (1) and the - wire to
contact (2) when ejecting the CD).
RADIO
MR-372-J84-86A000$891_eng.mif
Page 33 of 34
RADIO
Recovering a jammed CD
86A
86A - 33V2 MR-372-J84-86A000$891_eng.mif
Remove:
–the three bolts (1) located underneath the unit,
–the two springs (2) after bringing them to the upper
position,
–the four dampers (3) (clipped on).Remove the electronic module from the mounting and
place it to the side.
First solution
If the electric motors are operating:
1Reinsert the CD and its drawer into the changer (4)
using a 4.5 V battery to supply the electric motor (3),
(attach the + wire to contact (1) and the - wire to
contact (2)).
2Eject the changer by moving lever (4).
CHANGER IN THE BOOT
