AUTOMATIC TRANSMISSION
Fault finding – Parameter interpretation23A
23A - 107V4 MR-372-J84-23A050$726.mif
SIEMENS TA2000
Vdiag No.: 10-11-15
PR128
ENGINE/TURBINE SPEED DIFFERENCE
NOTESThere must be no present or stored faults.
Check gearbox oil grade and level.
If an oil change or top-up is necessary see the Draining-Filling-Levels section of the Workshop Repair Manual.
Check that the gearbox is not leaking oil.
Disconnect the battery.
Disconnect the modular connector, and check the cleanliness and condition of the connections.
Disconnect the computer. Check the cleanliness and condition of the connections.
Use the Universal bornier Elé. 1681 to check the insulation, continuity and the absence of interference
resistance on the following connections:
●Connection code 5DA between components 119 and 1017.
●Connection code 5DB between components 119 and 1017.
●Connection code 5BX between components 119 and 754.
●Connection code 5BA between components 119 and 754.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
Measure the resistance of component 1017 between the following connections:
●Connection code 5DA.
●Connection code 5DB.
The value should be approximately 300 Ω ± 40 Ω at a temperature of approximately 20 ˚C.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the resistance is not correct, either the sensor or the harness is damaged. Replace the faulty component.
Measure the resistance of component 754 between the following connections:
●Connection code 5BX.
●Connection code 5BA.
The value should be approximately 1 Ω ± 0.2 Ω at 20 ˚C.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the value is not correct, the solenoid valve or the electric/hydraulic interface harness is damaged.
AFTER REPAIRRepeat the conformity check from the start.
DP0TA2000_V10_PR128/DP0TA2000_V11_PR128 /DP0TA2000_V15_PR128

AUTOMATIC TRANSMISSION
23A
23A-115V4 MR-372-J84-23A050$924.mif
SIEMENS TA2000
Vdiag No.: 10-11-15AUTOMATIC TRANSMISSION
Fault finding – Fault Finding Chart

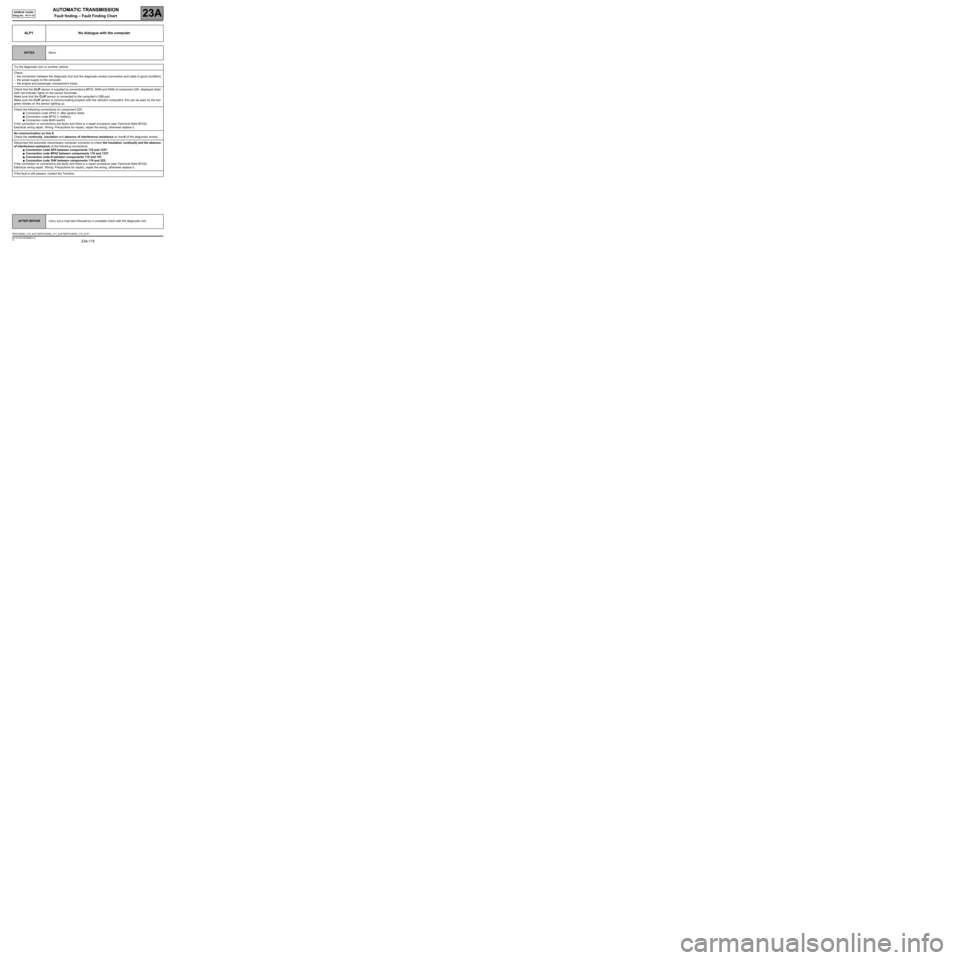

ALP1 No dialogue with the computer
NOTESNone.
Try the diagnostic tool on another vehicle.
Check:
–the connection between the diagnostic tool and the diagnostic socket (connection and cable in good condition),
–the power supply to the computer,
–the engine and passenger compartment fuses.
Check that the CLIP sensor is supplied by connections BP32, MAN and NAM of component 225, displayed when
both red indicator lights on the sensor illuminate.
Make sure that the CLIP sensor is connected to the computer's USB port.
Make sure the CLIP sensor is communicating properly with the vehicle's computers; this can be seen by the two
green diodes on the sensor lighting up.
Check the following connections on component 225:
●Connection code AP43 (+ after ignition feed).
●Connection code BP32 (+ battery).
●Connection code MAN (earth).
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
No communication on line K
Check the continuity, insulation and absence of interference resistance on line K of the diagnostic socket.
Disconnect the automatic transmission computer connector to check the insulation, continuity and the absence
of interference resistance of the following connections:
●Connection code AP4 between components 119 and 1337.
●Connection code BP42 between components 119 and 1337.
●Connection code N between components 119 and 107.
●Connection code 3HK between components 119 and 225.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A,
Electrical wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
If the fault is still present, contact the Techline.
AFTER REPAIRCarry out a road test followed by a complete check with the diagnostic tool.
DP0TA2000_V10_ALP1/DP0TA2000_V11_ALP1/DP0TA2000_V15_ALP1
MR-372-J84-23A050$924.mif

AUTOMATIC TRANSMISSION
Fault finding – Fault Finding Chart23A
23A-117V4 MR-372-J84-23A050$924.mif
SIEMENS TA2000
Vdiag No.: 10-11-15
Start with the ALP1 cycle
ALP3 Automatic transmission operating faults
NOTESOnly refer to Customer complaints after carrying out a complete fault finding
procedure with the diagnostic tool and the conformity check.
If the engine races when shifting from 1/2 when cold (automatic transmission oil
temperature lower than 15˚C), replace the pressure modulating solenoid valve
(EVM).
Use the diagnostic tool to check the
consistency between the display and the gear
lever positions (ignition on and engine
stopped).Adjust the control settings following the instructions
provided (see MR 370, Mechanical, 23 A,
Automatic Transmission, Automatic
transmission control unit (for Mégane II and
Scénic II)).
Are they consistent?
Check the oil level and the condition of the oil
(colour, odour, etc.).Replace the automatic transmission (see MR 364,
Mechanical, 23A, Automatic transmission,
Removal-Refitting (for Mégane II) and MR 370,
Mechanical, 23A, Automatic transmission,
Removal-Refitting (for Scénic II)). Does the condition of the oil suggest there
is an internal fault in the automatic
transmission?
With the engine stopped, check the line
pressure information provided by the pressure
sensor (PR003 Oil pressure).Replace the pressure sensor (see MR 364,
Mechanical, 23A, Automatic transmission,
Pressure sensor (for Mégane II) and MR 370,
Mechanical, 23A, Automatic transmission,
Pressure sensor (for Scénic II)). Is the value higher than 0.2 bar?
NO
YES
YES
NO
YES
NO
A
AFTER REPAIRCarry out a road test followed by a complete check with the diagnostic tool.
DP0TA2000_V10_ALP3/DP0TA2000_V11_ALP3/DP0TA2000_V15_ALP3

AUTOMATIC TRANSMISSION
Fault finding – Fault Finding Chart23A
23A -121V4 MR-372-J84-23A050$924.mif
SIEMENS TA2000
Vdiag No.: 10-11-15
ALP5 Erratic gear changes
NOTESOnly refer to Customer complaints after carrying out a complete fault finding
procedure with the diagnostic tool and the conformity check.
Carry out a road test using the diagnostic tool, making sure that status ET013 Gear engaged operates normally.
If the customer complaint occurs with the brake pedal released, check that status ET004 Brake light switch
(Closed) is NO.
If not, adjust the brake light switch and the brake pedal.
Make sure that the instrument panel display of the gear engaged matches the gear lever position.
Check the automatic transmission wiring harness (sequence solenoid valve control).
Replace it if necessary.
Check that the gear lever cable is working properly and adjust it if necessary.
Check that the multifunction switch is working correctly.
If the fault is still present, replace the multifunction switch.
Carry out fault finding on the injection system.
Check engine speed signal PR006 during a road test at a steady speed.
If the signal is wrong, replace the engine speed sensor.
AFTER REPAIRCarry out a road test followed by a complete check with the diagnostic tool.
DP0TA2000_V10_ALP5/DP0TA2000_V11_ALP5/DP0TA2000_V15_ALP5
