RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual Electrical equipment
"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a resu

Page 2 of 47

RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 2V4 MR-372-J84-87F000$066_eng.mif
187F
Vdiag No: 04-08PARKING DISTANCE CONTROL
Fault finding - Introduction
1. SCOPE OF THIS DOCUMENT
Th

Page 3 of 47

RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 3V4 MR-372-J84-87F000$066_eng.mif
Vdiag No: 04-08
Faults
Faults are declared as either present or stored (depending on whether they appe

Page 4 of 47

RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 4V4 MR-372-J84-87F000$066_eng.mif
Vdiag No: 04-08

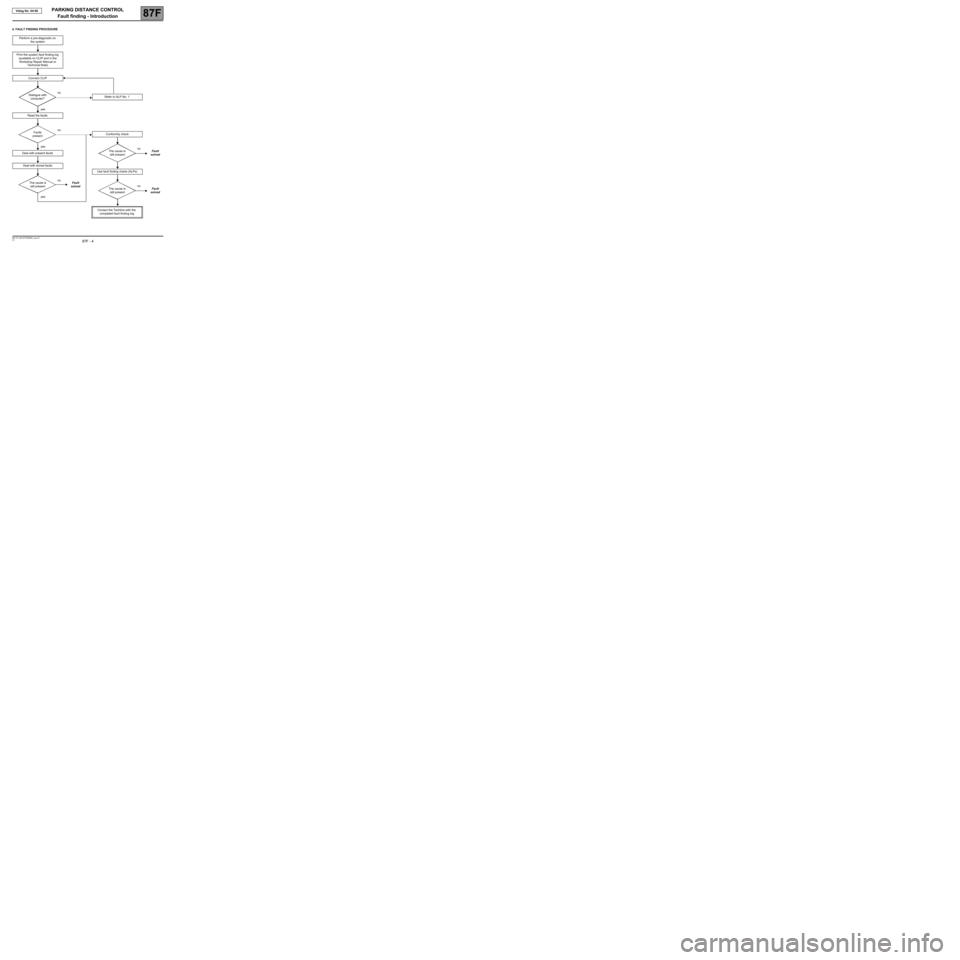

4. FAULT FINDING PROCEDURE
Perform a pre-diagnostic on
the system
Print the system fa

Page 5 of 47

RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 5V4 MR-372-J84-87F000$066_eng.mif
Vdiag No: 04-08
4. FAULT FINDING PROCEDURE (continued)
Wiring check
Fault finding problems
Disconnecti

Page 6 of 47

RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Introduction
87F
87F - 6V4 MR-372-J84-87F000$066_eng.mif
Vdiag No: 04-08

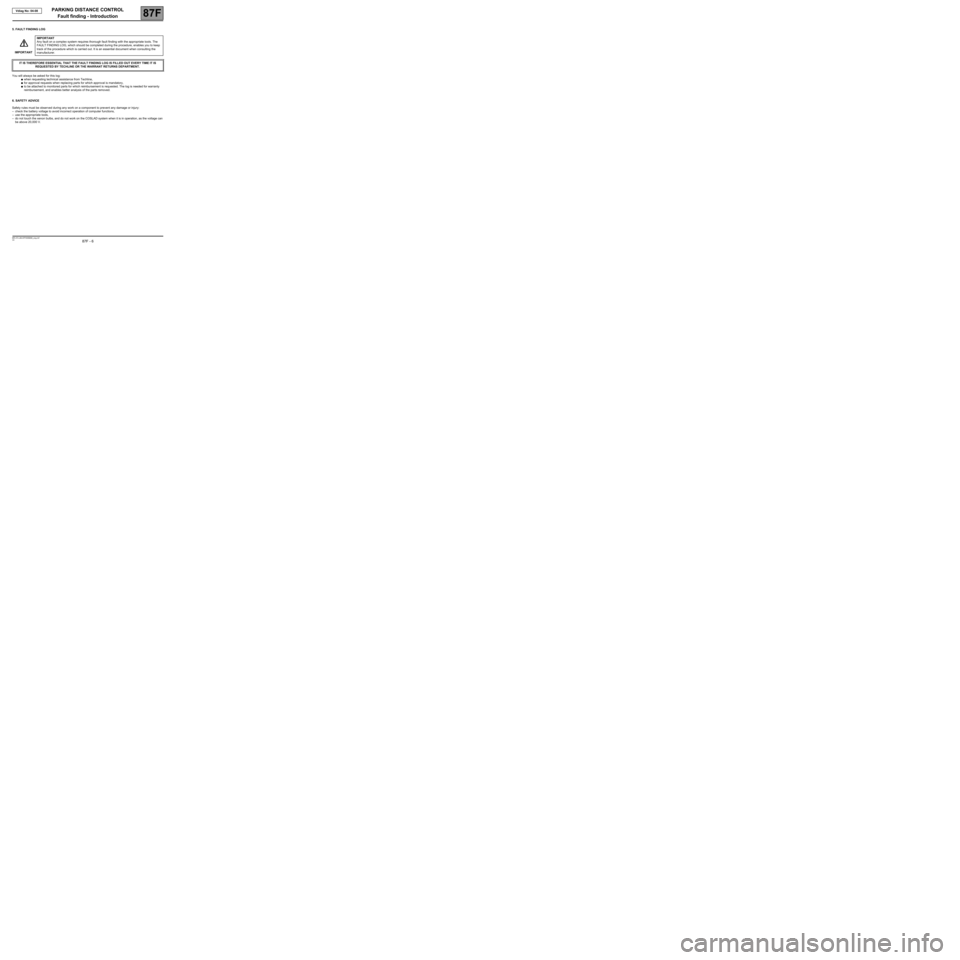

5. FAULT FINDING LOG
You will always be asked for this log:
●when requesting technic

Page 7 of 47

RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - System operation
87F
87F - 7V4 MR-372-J84-87F000$132_eng.mif
Vdiag No: 04-08PARKING DISTANCE CONTROL
Fault finding - System operation
Description of operation

Page 8 of 47

RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Allocation of computer tracks87F
87F - 8V4 MR-372-J84-87F000$198_eng.mif
Vdiag No: 04-08PARKING DISTANCE CONTROL
Fault finding - Allocation of computer tracks

Page 9 of 47

RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL
Fault finding - Allocation of computer tracks87F
87F - 9V4 MR-372-J84-87F000$198_eng.mif
Vdiag No: 04-08PARKING DISTANCE CONTROL
Fault finding - Allocation of computer tracks

Page 10 of 47

RENAULT SCENIC 2008 J84 / 2.G Parking Distance Control Workshop Manual PARKING DISTANCE CONTROL

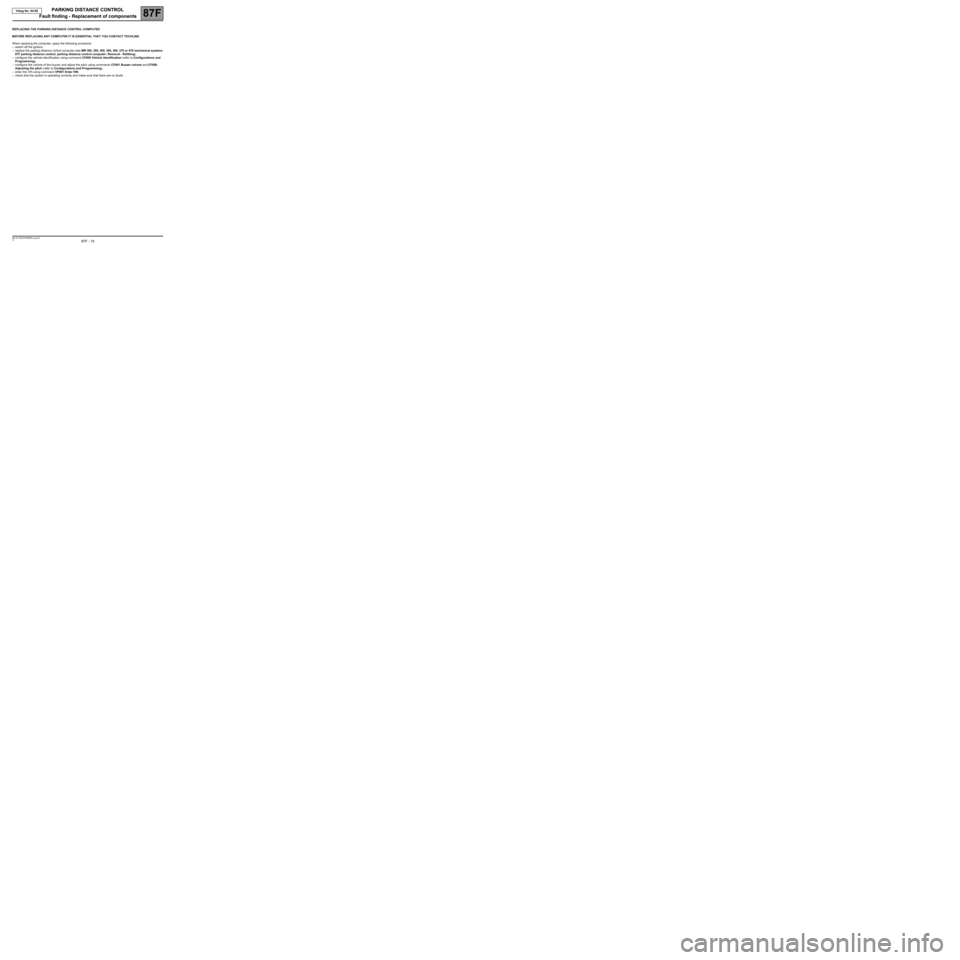

Fault finding - Replacement of components
87F
87F - 10V4 MR-372-J84-87F000$264_eng.mif
Vdiag No: 04-08PARKING DISTANCE CONTROL
Fault finding - Replacement of components
REPLAC
